Beach House Plan with 3rd Floor Art Loft

Plan 68666VR

  • 1,359

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2-3

    Stories

  • 2

    Cars

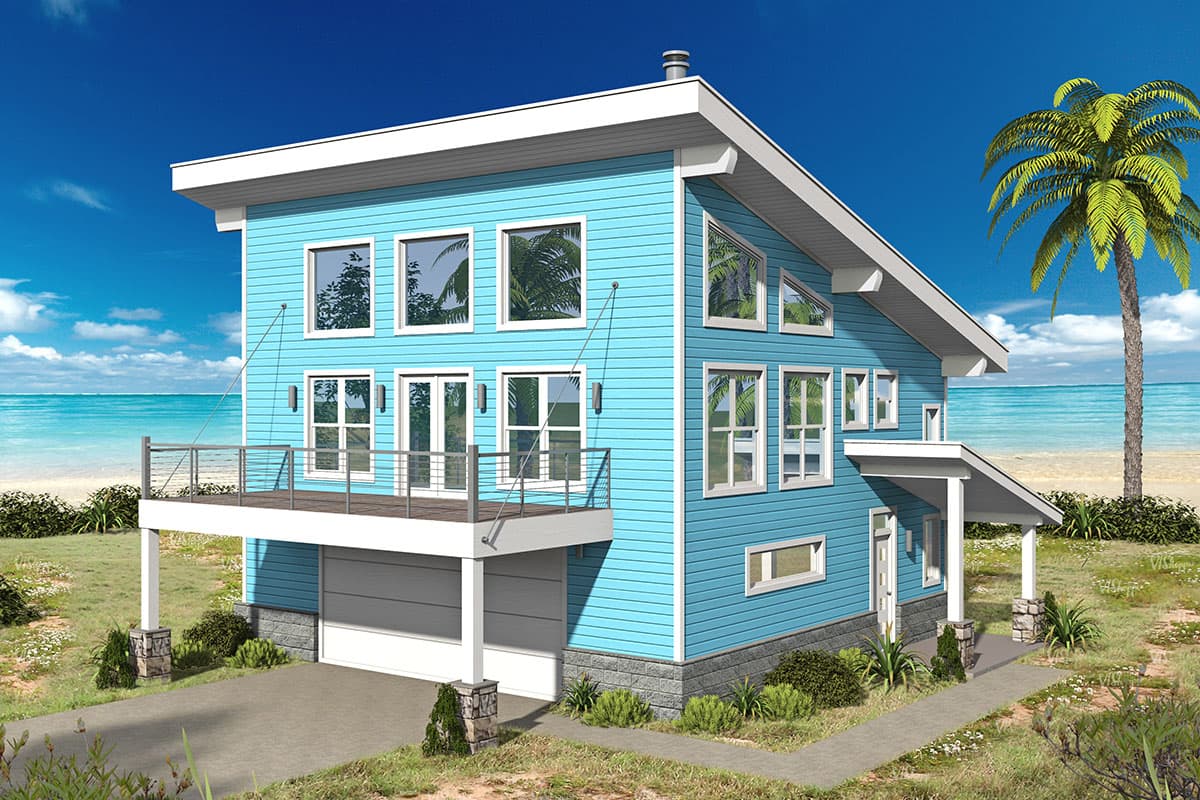

  • The sloped roof offers a dramatic element to this relaxed beach house.
  • The main level consists of a double garage with room for storage, as well as a bedroom and full bath.
  • Upstairs, a large balcony off the vaulted family room takes advantage of the surrounding views.
  • Seating at the U-shaped kitchen counters allows guests to keep the host company.
  • A second bedroom neighbors the family room and provides pass-through access to the laundry room, walk-in closet, and 4-fixture bath.
  • Enjoy the flexible 200 square foot space, or art loft, above the bedroom, accessible by way of a ship's ladder.
  • Related Plans: Get an alternate version with a drive-under garage with house plan 680097VR. Get a side-entry garage with house plans 68633VR (1,359 sq. ft.), 68994VR (1,359 sq. ft. without the loft), 68760VR (1,570 sq. ft.), 68775VR (1,700 sq. ft.), 68740VR (1,721 sq. ft.), 68860VR (1,612 sq. ft.) and 680157VR (1,910 sq. ft.).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

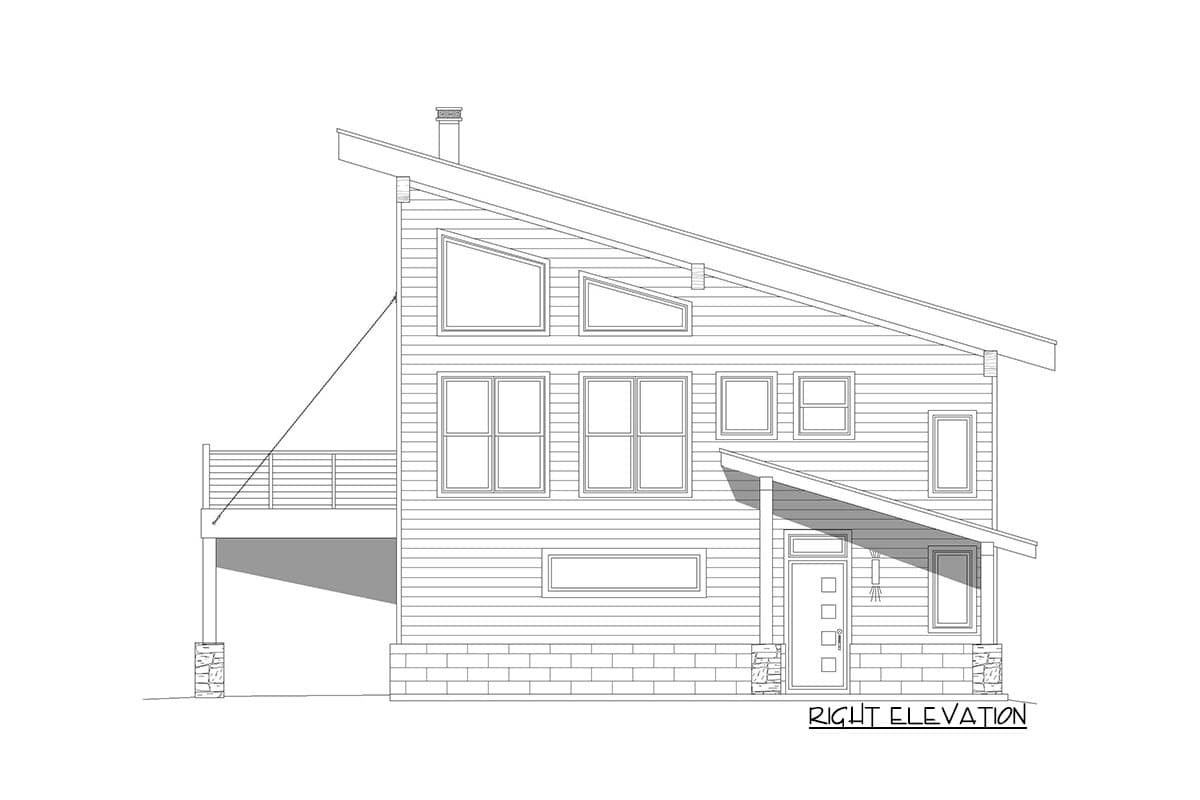

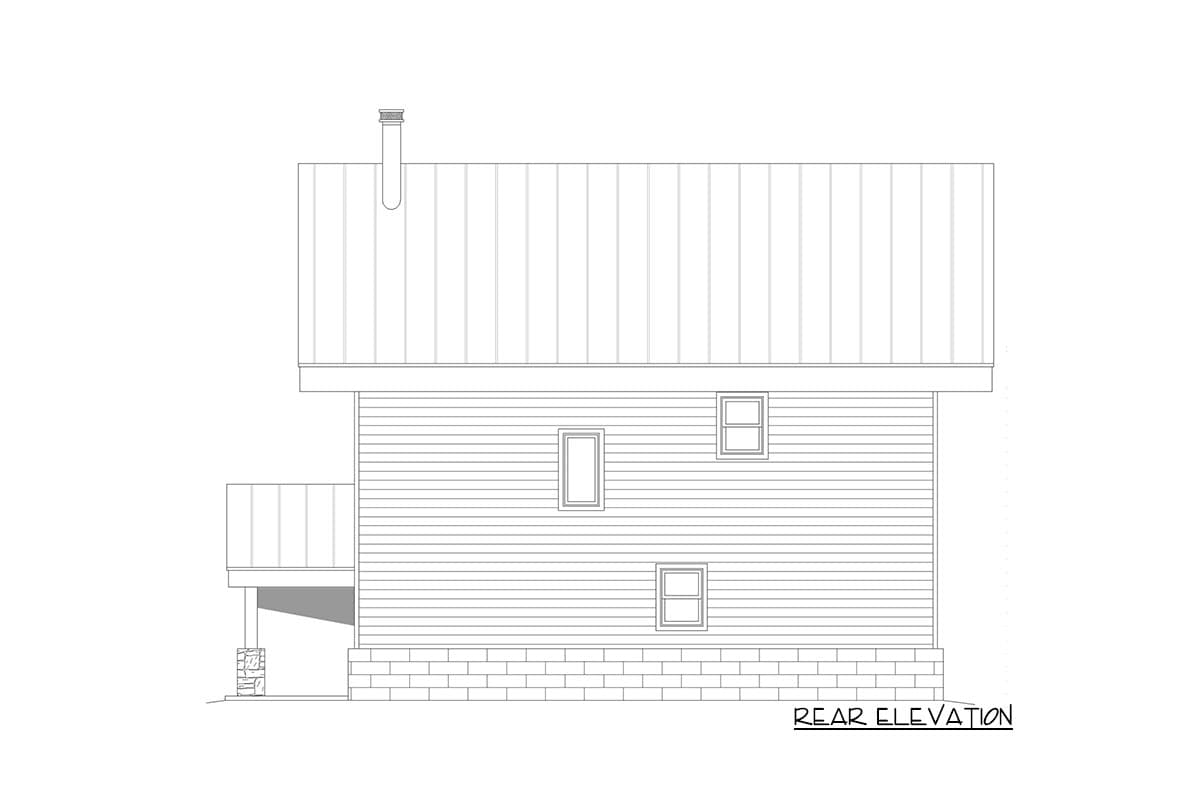

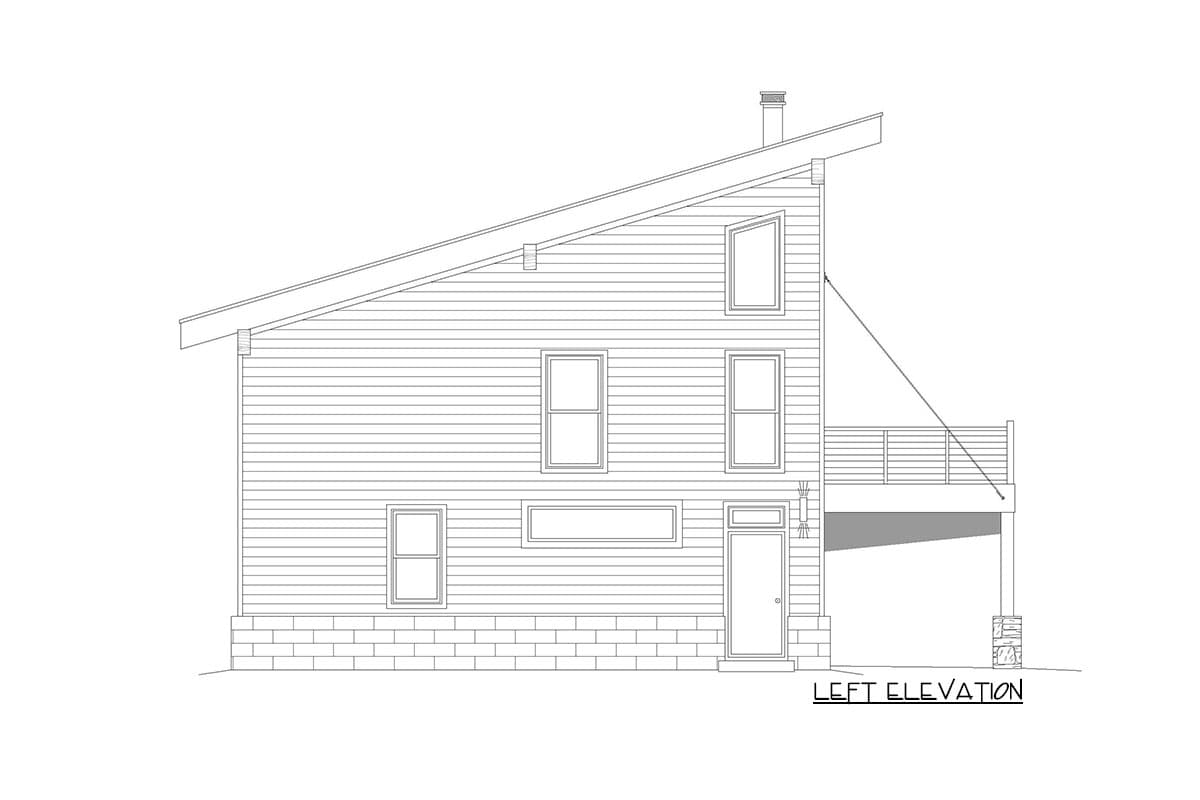

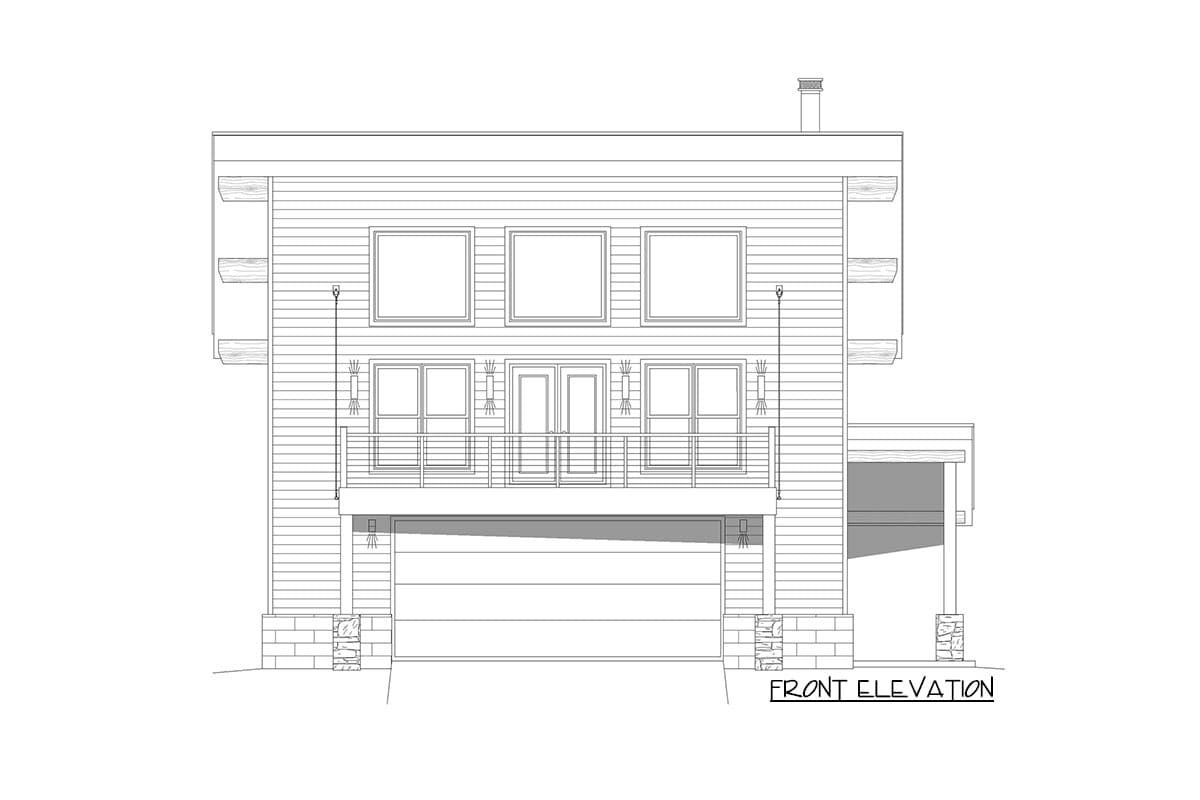

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

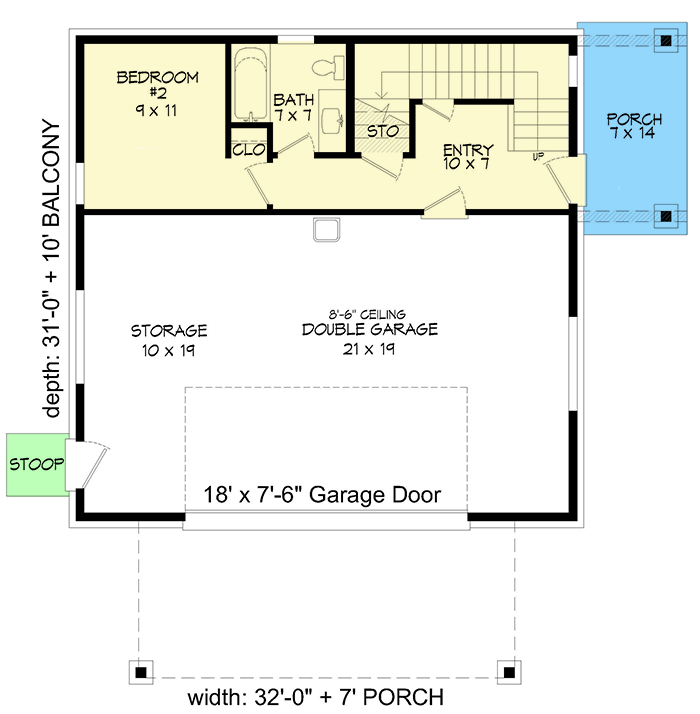

Beach House Plan with 3rd Floor Art Loft - 68666VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

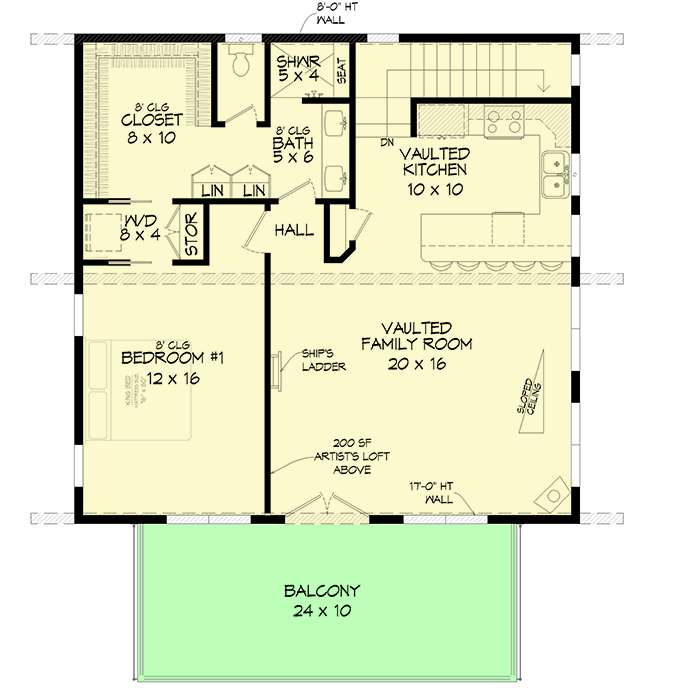

Beach House Plan with 3rd Floor Art Loft - 68666VR floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

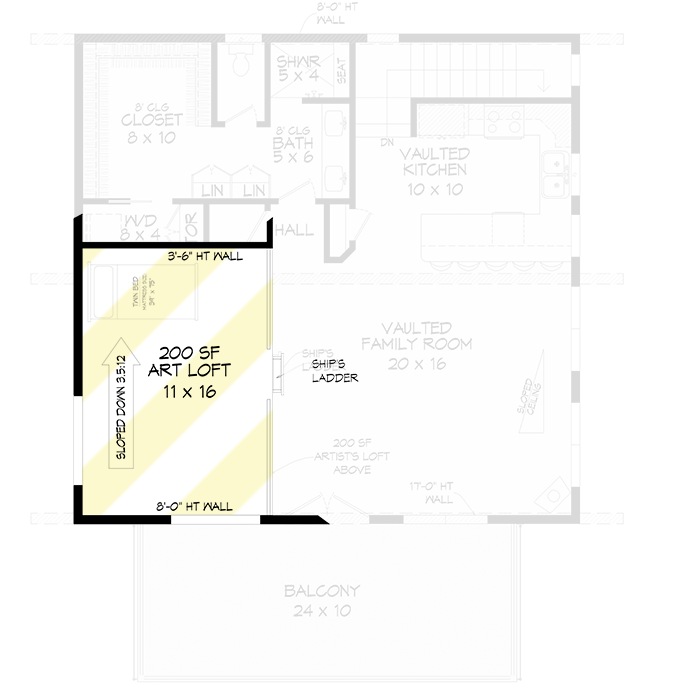

Beach House Plan with 3rd Floor Art Loft - 68666VR floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,359 sq. ft.
  • 1st Floor: 367 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • Porch, Combined: 311 sq. ft.
  • Loft: 200 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 31' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Drive Under
  • Area: 625 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Beach House Plan with 3rd Floor Art Loft

  • 1,359

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2-3

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,075
  • 5 Sets $1,160
  • 5 Sets + PDF $1,287
  • CAD + PDF - Single-Build $1,575
  • View all purchase option online

About This Plan

  • The sloped roof offers a dramatic element to this relaxed beach house.
  • The main level consists of a double garage with room for storage, as well as a bedroom and full bath.
  • Upstairs, a large balcony off the vaulted family room takes advantage of the surrounding views.
  • Seating at the U-shaped kitchen counters allows guests to keep the host company.
  • A second bedroom neighbors the family room and provides pass-through access to the laundry room, walk-in closet, and 4-fixture bath.
  • Enjoy the flexible 200 square foot space, or art loft, above the bedroom, accessible by way of a ship's ladder.
  • Related Plans: Get an alternate version with a drive-under garage with house plan 680097VR. Get a side-entry garage with house plans 68633VR (1,359 sq. ft.), 68994VR (1,359 sq. ft. without the loft), 68760VR (1,570 sq. ft.), 68775VR (1,700 sq. ft.), 68740VR (1,721 sq. ft.), 68860VR (1,612 sq. ft.) and 680157VR (1,910 sq. ft.).
