Plan 21992DR 2-Bed House Plan with Graceful Porch and Carport

2-Bed House Plan with Graceful Porch and Carport

Plan 21992DR

  • 1,348

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • 1

    Cars

  • A graceful wraparound porch and stone detailing at the base of the home and the porch columns lend great character to this house plan. It is based on our popular design 21492DR and adds a Craftsman touch along with 4' in width and 2' in depth plus a carport with bonus space above and enlargement of the bathroom-laundry room on first level.
  • The porch entry leads directly into the kitchen/dining room area.
  • Adjacent is a generously sized family room with soaring ceiling partially open to above.
  • A bedroom with great bath and laundry completes the first floor.
  • Upstairs, you'll enjoy the lounge area with views below plus a large bedroom plus bath.
  • Expand above the garage where you'll get up to 312 sq. ft. of extra livable space.
  • Related Plans: Remove the carport and bonus space with house plans 21492DR 1,226 sq. ft.), 21093DR (1,168 sq. ft.), 21735DR 1,343 sq. ft.), 21861DR (1,561 sq. ft.) and 22356DR (833 sq. ft. with an unifinished second floor). Get an attached garage with house plan 21506DR (1,457 sq. ft.).

Each plan includes the following:

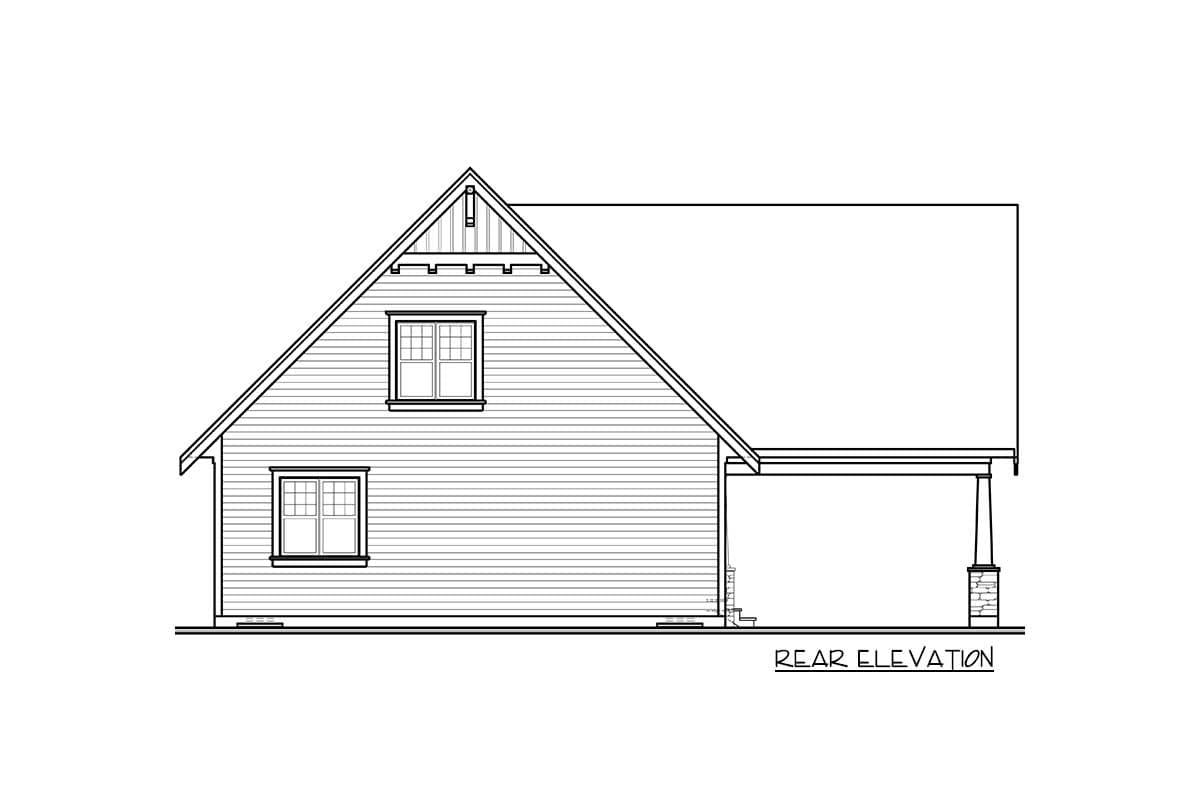

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Truss Diagrams & Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Plan details



2-Bed House Plan with Graceful Porch and Carport

  • 1,348

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $900
  • 8 Sets $930
  • Reproducible Set $950
  • PDF - Single-Build $950
  • CAD - Single-Build $1,630
  • View all purchase option online

About This Plan

  • A graceful wraparound porch and stone detailing at the base of the home and the porch columns lend great character to this house plan. It is based on our popular design 21492DR and adds a Craftsman touch along with 4' in width and 2' in depth plus a carport with bonus space above and enlargement of the bathroom-laundry room on first level.
  • The porch entry leads directly into the kitchen/dining room area.
  • Adjacent is a generously sized family room with soaring ceiling partially open to above.
  • A bedroom with great bath and laundry completes the first floor.
  • Upstairs, you'll enjoy the lounge area with views below plus a large bedroom plus bath.
  • Expand above the garage where you'll get up to 312 sq. ft. of extra livable space.
  • Related Plans: Remove the carport and bonus space with house plans 21492DR 1,226 sq. ft.), 21093DR (1,168 sq. ft.), 21735DR 1,343 sq. ft.), 21861DR (1,561 sq. ft.) and 22356DR (833 sq. ft. with an unifinished second floor). Get an attached garage with house plan 21506DR (1,457 sq. ft.).

Floor Plans

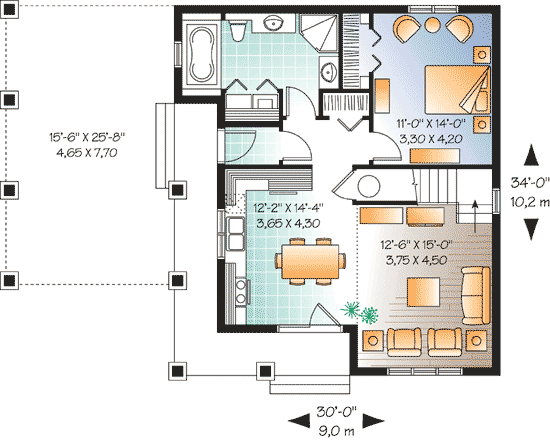

  • Main Level

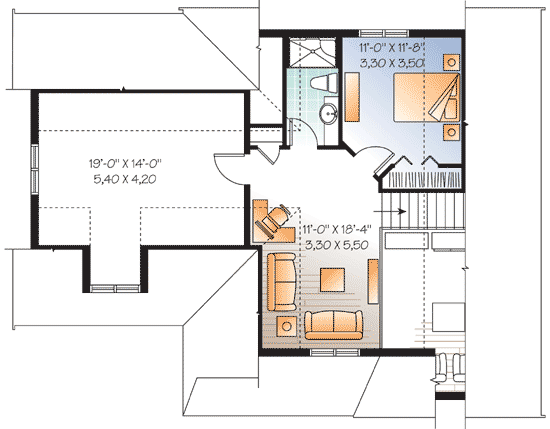

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,348 sq. ft.
  • 1st Floor: 871 sq. ft.
  • 2nd Floor: 477 sq. ft.
  • Bonus: 312 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 11"
  • Depth: 34' 0"
  • Max ridge height: 26' 4"

Garage

  • Type: Carport
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
