Plan 42436DB

2300 Square Foot New American House Plan with a 2- or 3-Car Garage

Heated S.F.
2,321
Beds
4
Baths
2.5
Stories
2
Cars
2- 3

Floor Plan

Plan 42436DB

Main Level
Main Level
2nd Floor
2nd Floor
Main Floor - Slab/Crawl Option
Main Floor - Slab/Crawl Option

Plan 42436DB

M-F 9am-5pm EST |

1-203-761-8500

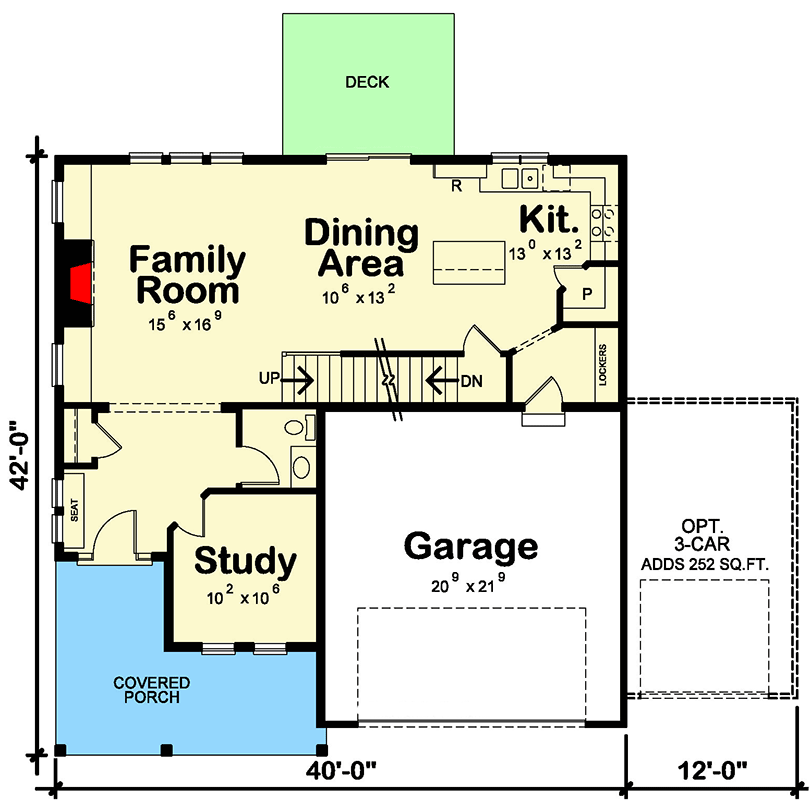

Main Level

Plan 42436DB: 2300 Square Foot New American House Plan with a 2- or 3-Car Garage - Floor Plan - Main Level - Country, Craftsman, New American

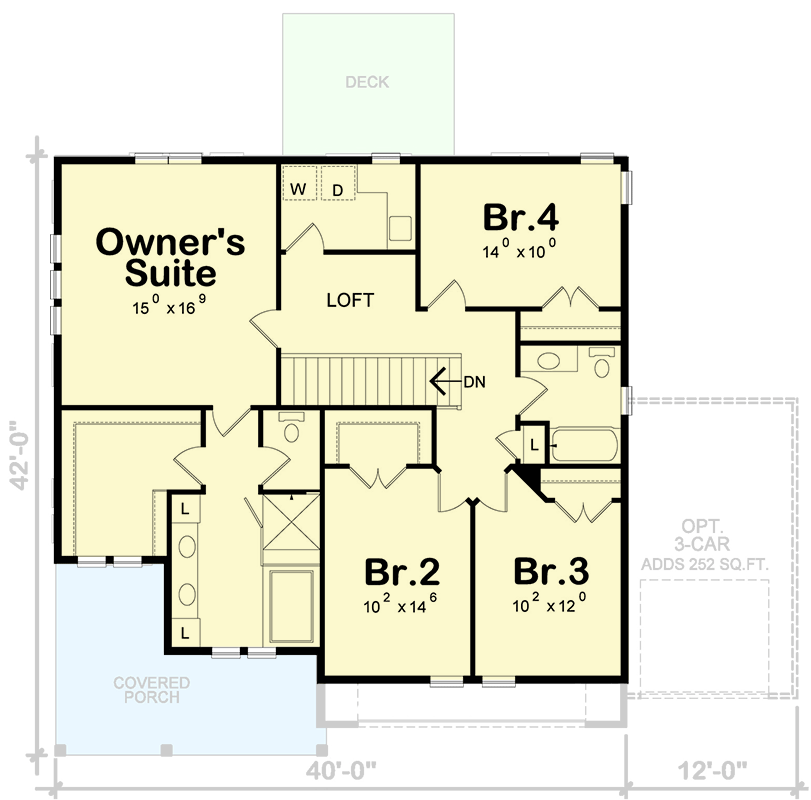

2nd Floor

Plan 42436DB: 2300 Square Foot New American House Plan with a 2- or 3-Car Garage - Floor Plan - 2nd Floor - Country, Craftsman, New American

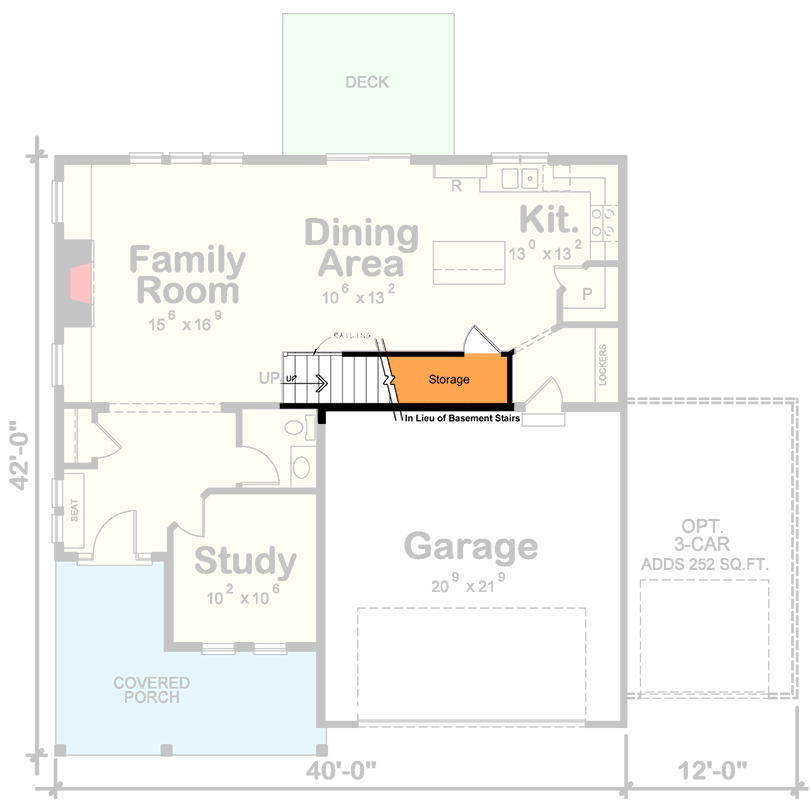

Main Floor - Slab/Crawl Option

Plan 42436DB: 2300 Square Foot New American House Plan with a 2- or 3-Car Garage - Floor Plan - Main Floor - Slab/Crawl Option - Country, Craftsman, New American

Plan Details

  • This 4-bed New American home plan has an attractive board and batten exterior with a metal roof and wood supports adding to the curb appeal.
  • The main floor consists of the shared living spaces in an open-concept floor plan, along with a quiet study in the front of the home. Sleeping rooms can be found on the second level.
  • Sliding doors off the dining area lead to a back deck, providing a space for a BBQ.
  • Upstairs, the owner's suite features a walk-in closet off the 5-fixture bath, and is conveniently located next to the laundry room. Three additional bedrooms share a central full bath.
  • Built-in lockers are provided in the mudroom to help organize personal items when coming or going from the garage.
  • The optional third car garage adds 12’ to the width of this home plan for a total width of 52'.
  • Related Plans: Get an alternate exterior with house plans 42588DB, 42589DB and 42670DB.

What's Included

  • General Notes

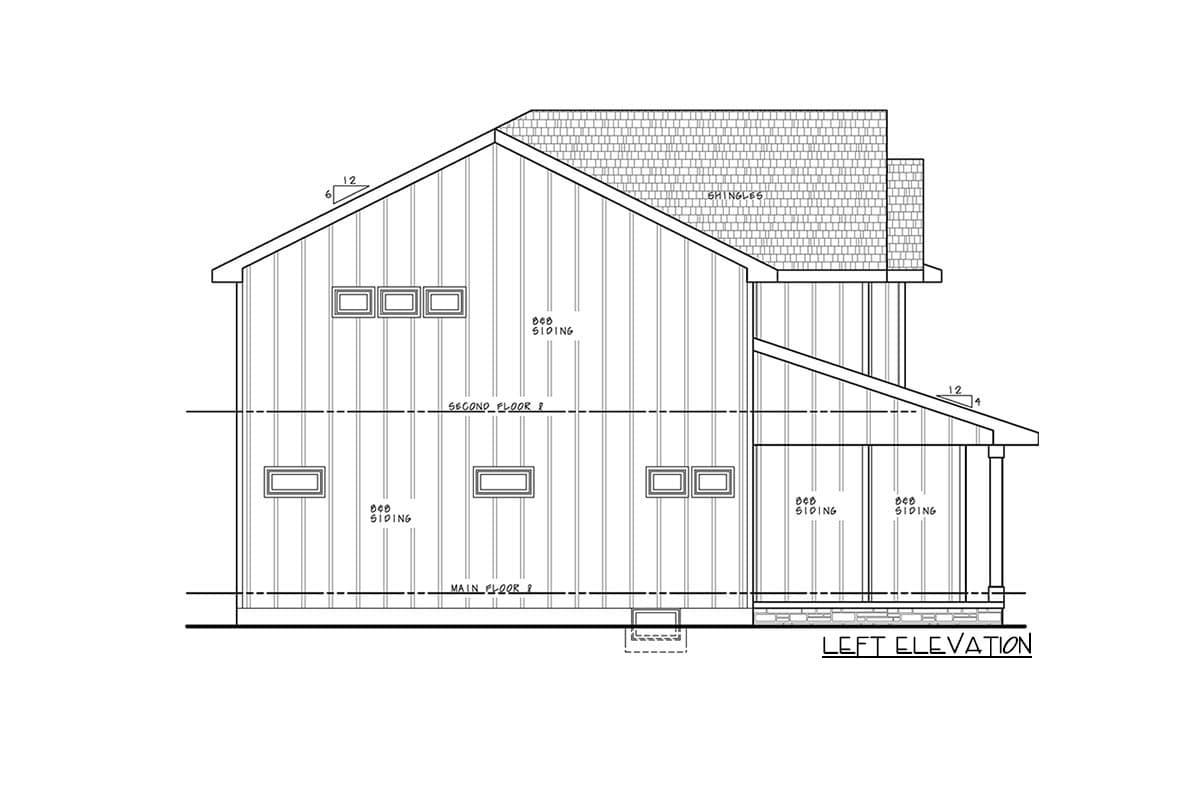

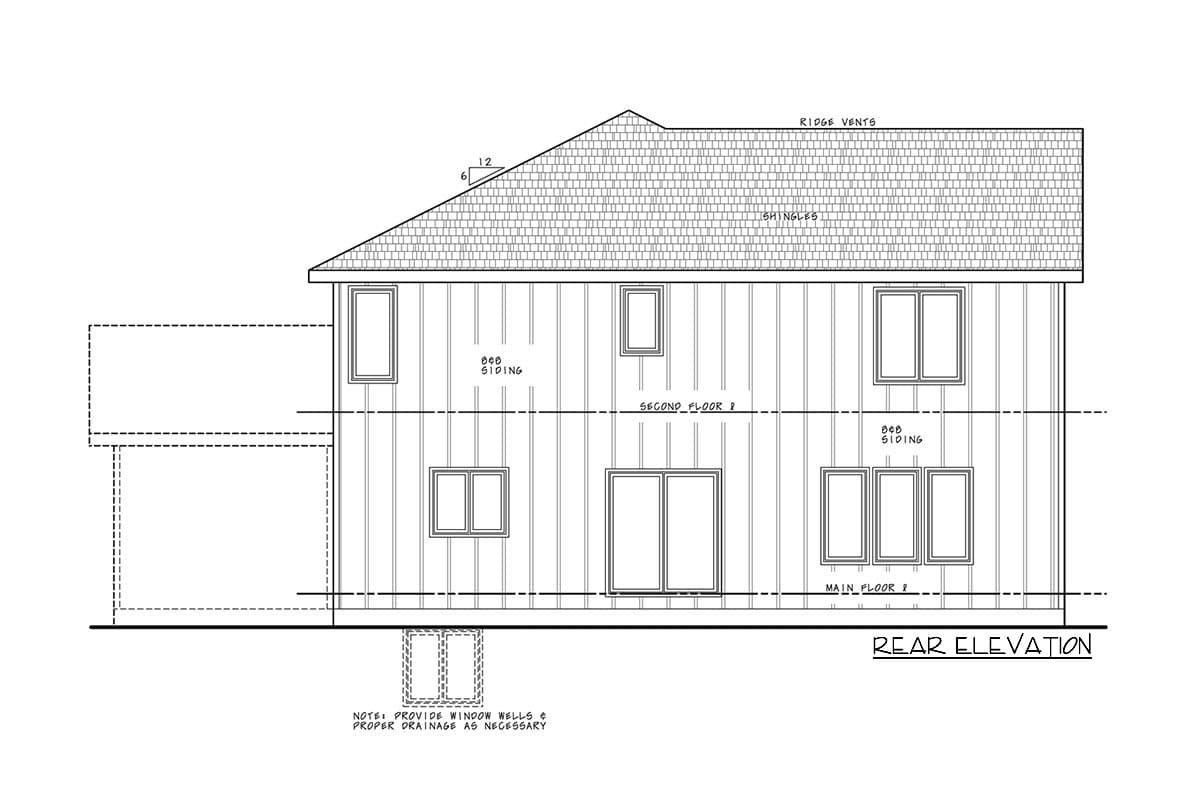

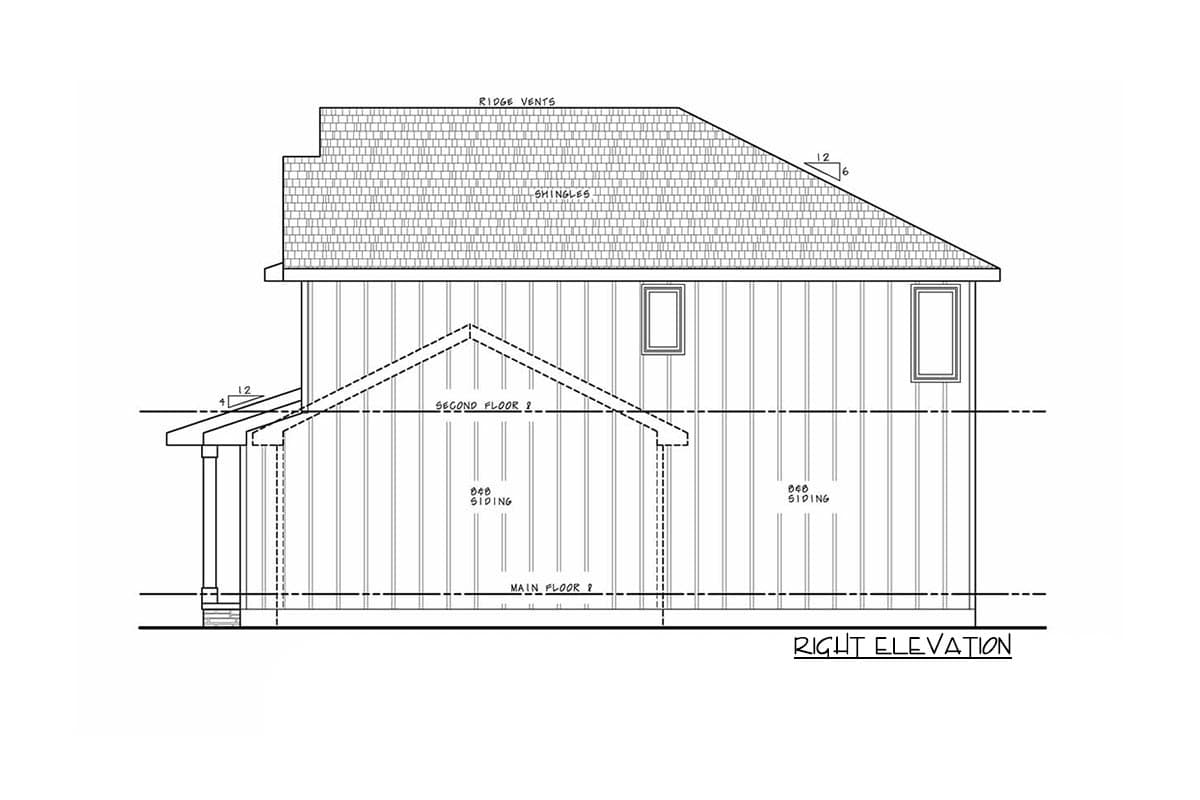

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,321 sq. ft.

1st Floor

982 sq. ft.

2nd Floor

1,339 sq. ft.

Porch, Front

105 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

42' 0"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

479 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Special Features

Bedrooms - Clustered

Flex Room

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,321 sq. ft.

1st Floor

982 sq. ft.

2nd Floor

1,339 sq. ft.

Porch, Front

105 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

42' 0"

Max Ridge Height

28' 4"

Garage

Type

Attached

Area

479 sq. ft.

Count

2 or 3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Special Features

Bedrooms - Clustered

Flex Room

Laundry - Upstairs

Library/Study

Loft

Master Suite - Upstairs

Mudroom

Walk-in Pantry
