Plan 270045AF

4 Bed Transitional House Plan with Vaulted Spaces Indoors and Out - 3402 Sq Ft

Heated S.F.

3,402

Beds

4

Baths

2.5

Stories

2

Cars

2

Floor Plan

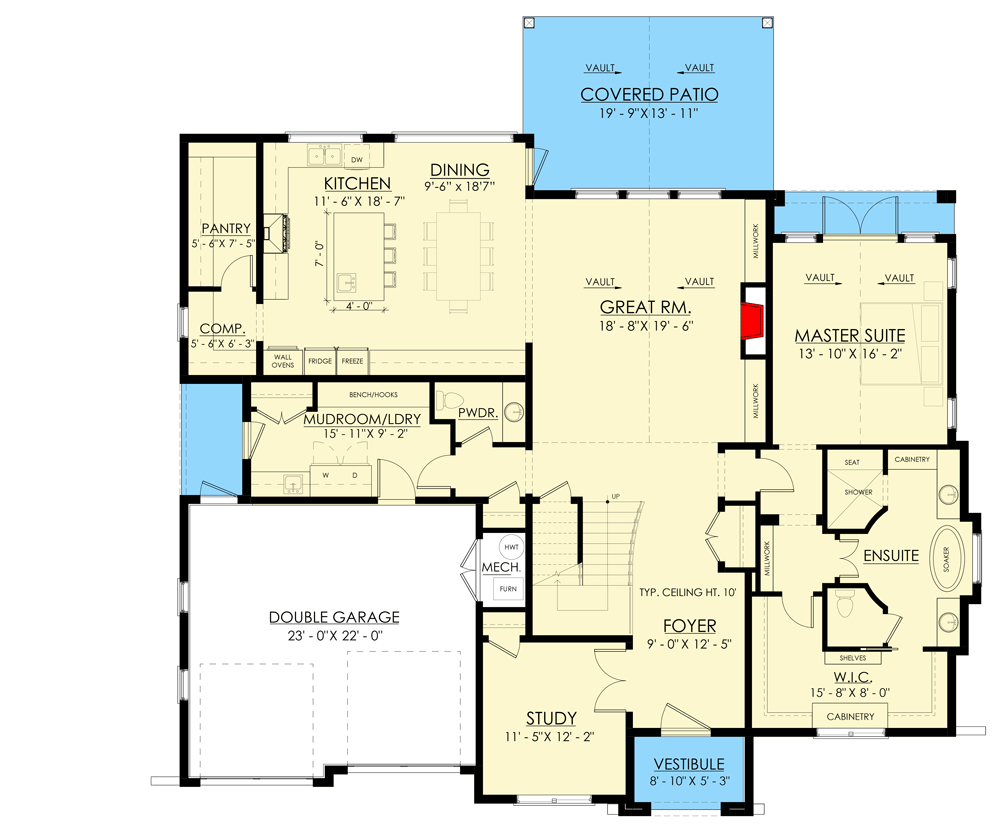

Main Level

Plan 270045AF: 4 Bed Transitional House Plan with Vaulted Spaces Indoors and Out - 3402 Sq Ft - Floor Plan - Main Level - Contemporary, Country, European, Traditional, Transitional

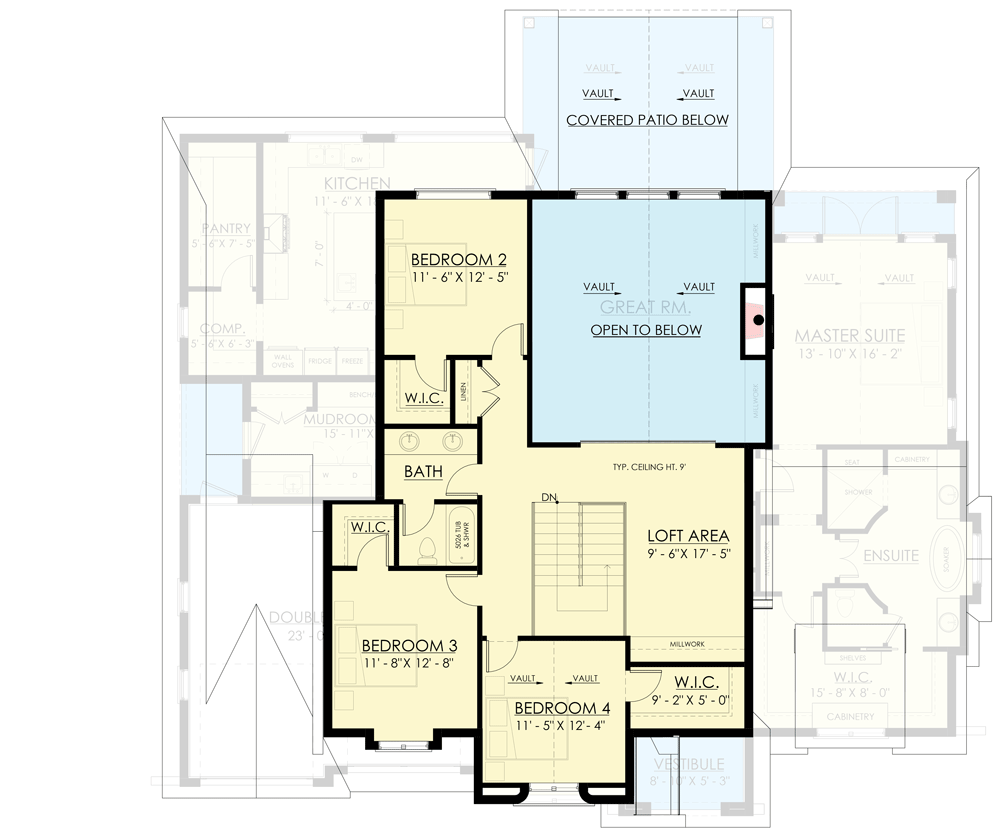

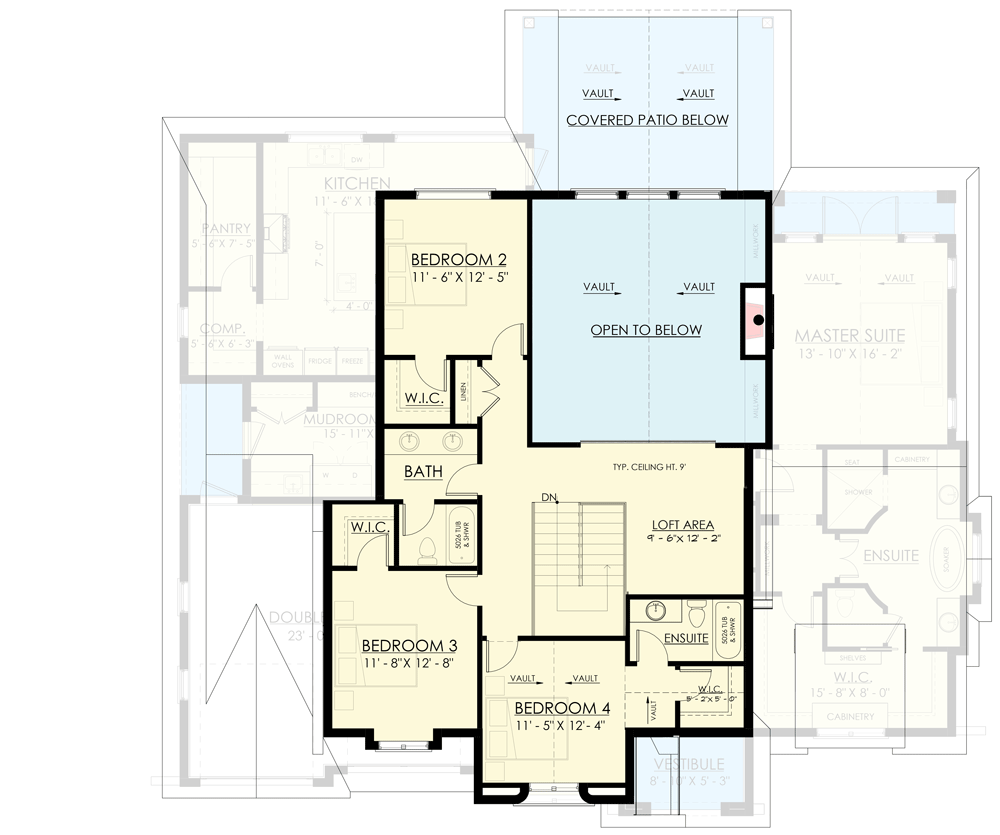

2nd Floor

Plan 270045AF: 4 Bed Transitional House Plan with Vaulted Spaces Indoors and Out - 3402 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Country, European, Traditional, Transitional

2nd Floor - 4th Bedroom w/ Ensuite Option ($ Paid Option)

Plan 270045AF: 4 Bed Transitional House Plan with Vaulted Spaces Indoors and Out - 3402 Sq Ft - Floor Plan - 2nd Floor - 4th Bedroom w/ Ensuite Option ($ Paid Option) - Contemporary, Country, European, Traditional, Transitional

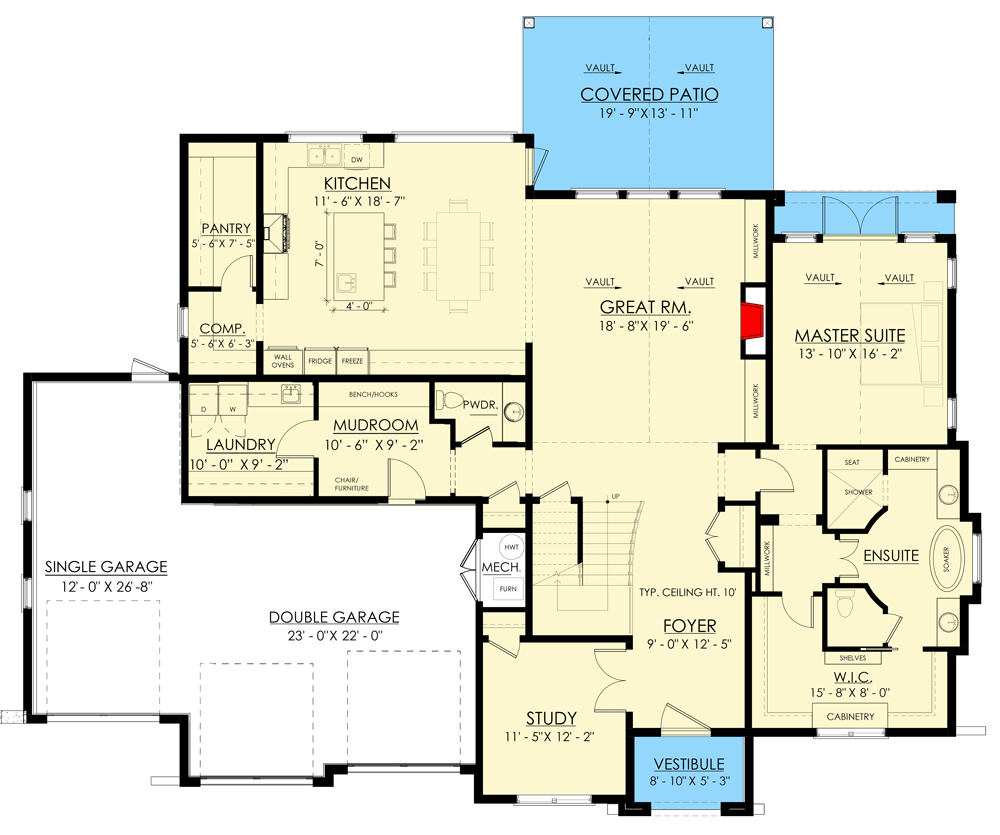

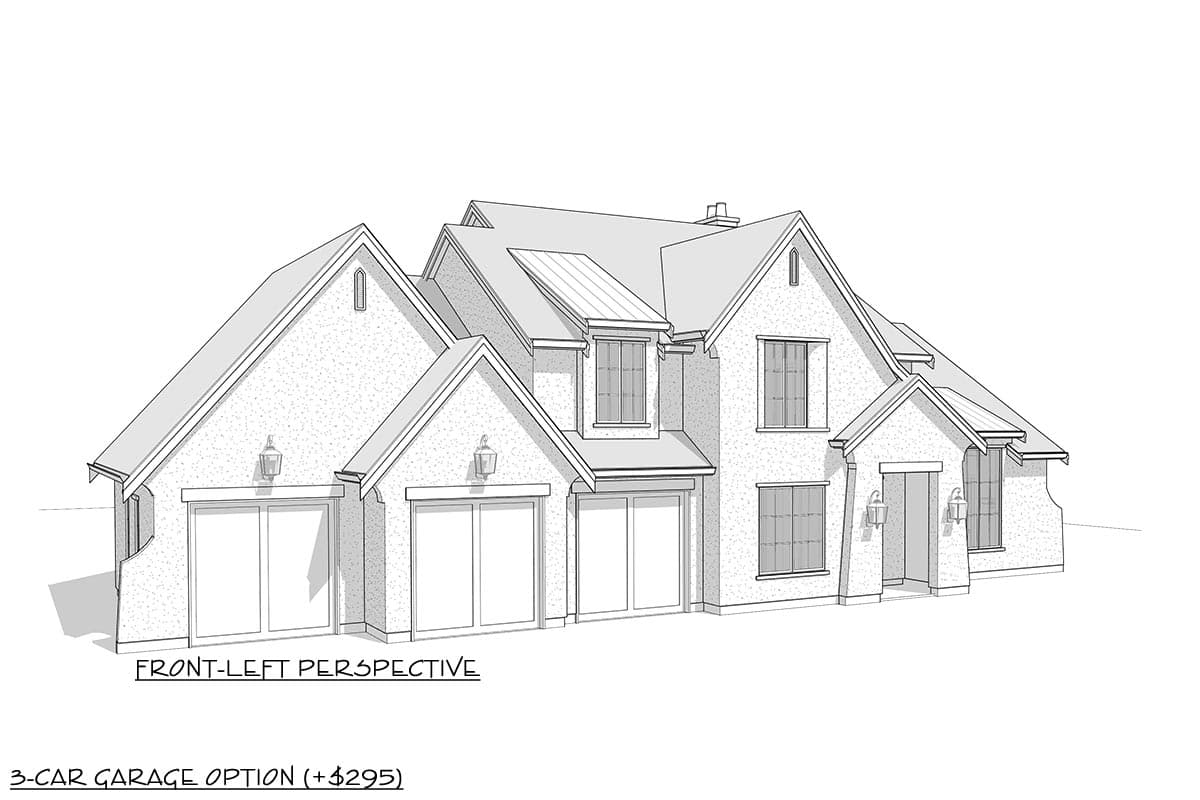

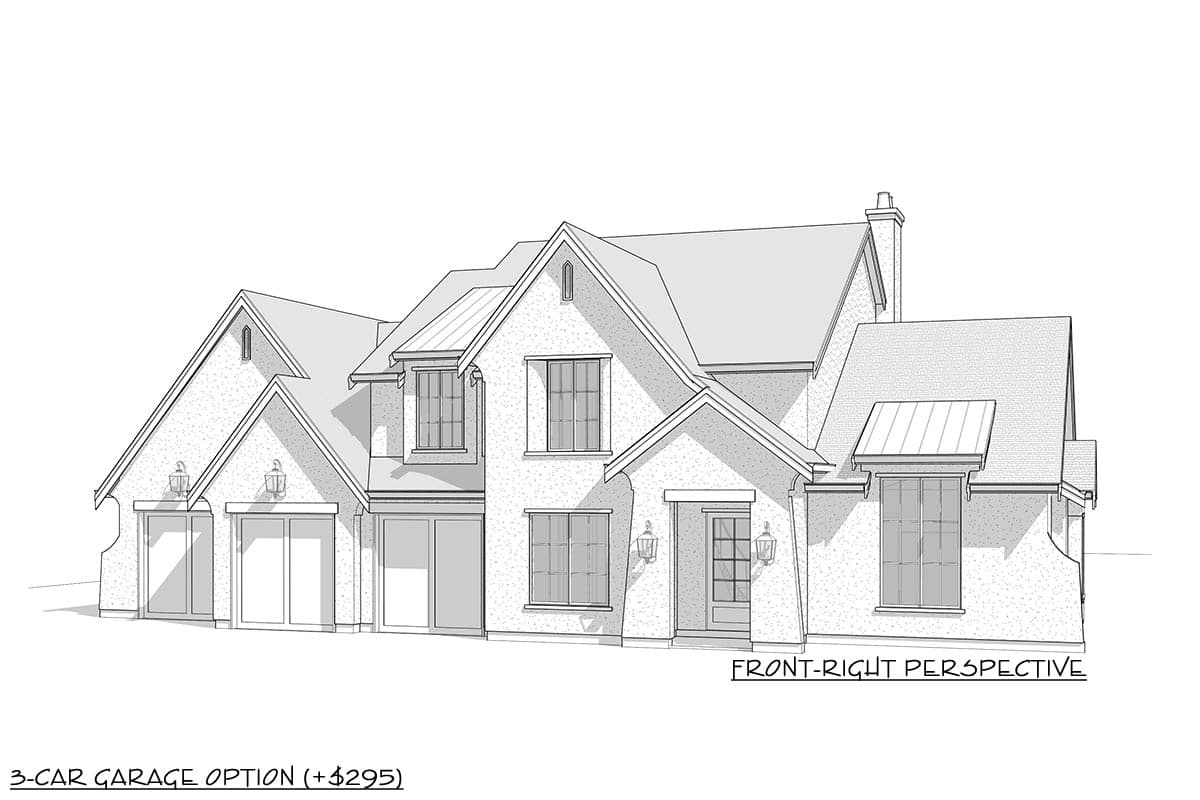

3-Car Garage Option ($ Paid Option)

Plan 270045AF: 4 Bed Transitional House Plan with Vaulted Spaces Indoors and Out - 3402 Sq Ft - Floor Plan - 3-Car Garage Option ($ Paid Option) - Contemporary, Country, European, Traditional, Transitional

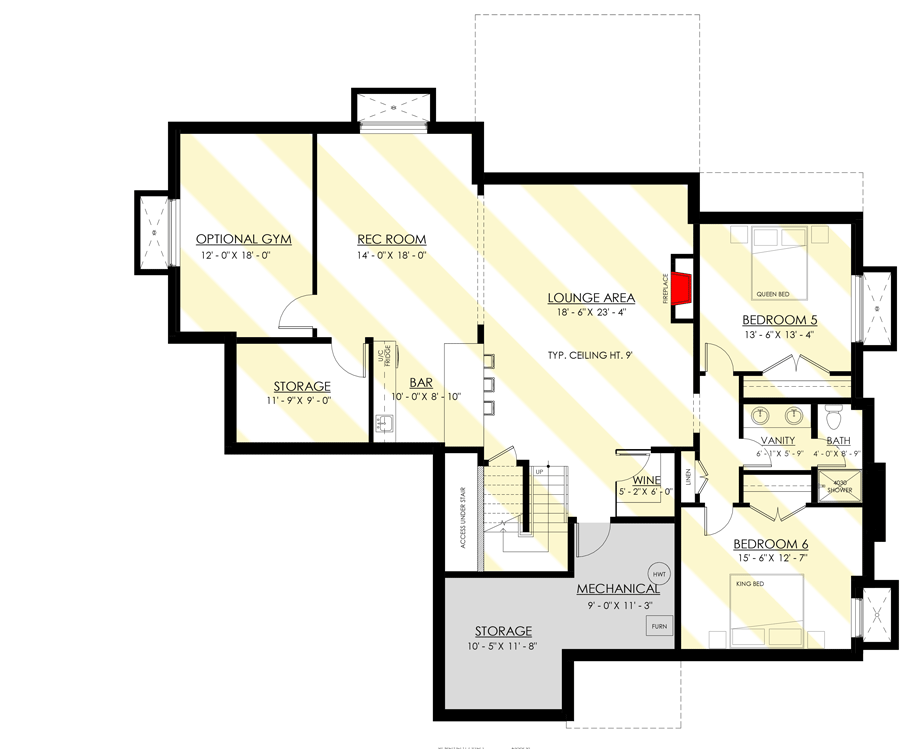

Finished Lower Level Layout ($ Paid Option)

Plan 270045AF: 4 Bed Transitional House Plan with Vaulted Spaces Indoors and Out - 3402 Sq Ft - Floor Plan - Finished Lower Level Layout ($ Paid Option) - Contemporary, Country, European, Traditional, Transitional

Plan Details

The stunning exterior of this 4-bedroom, Transitional house plan boasts steeply pitched gables, metal roof accents, and oversized windows.

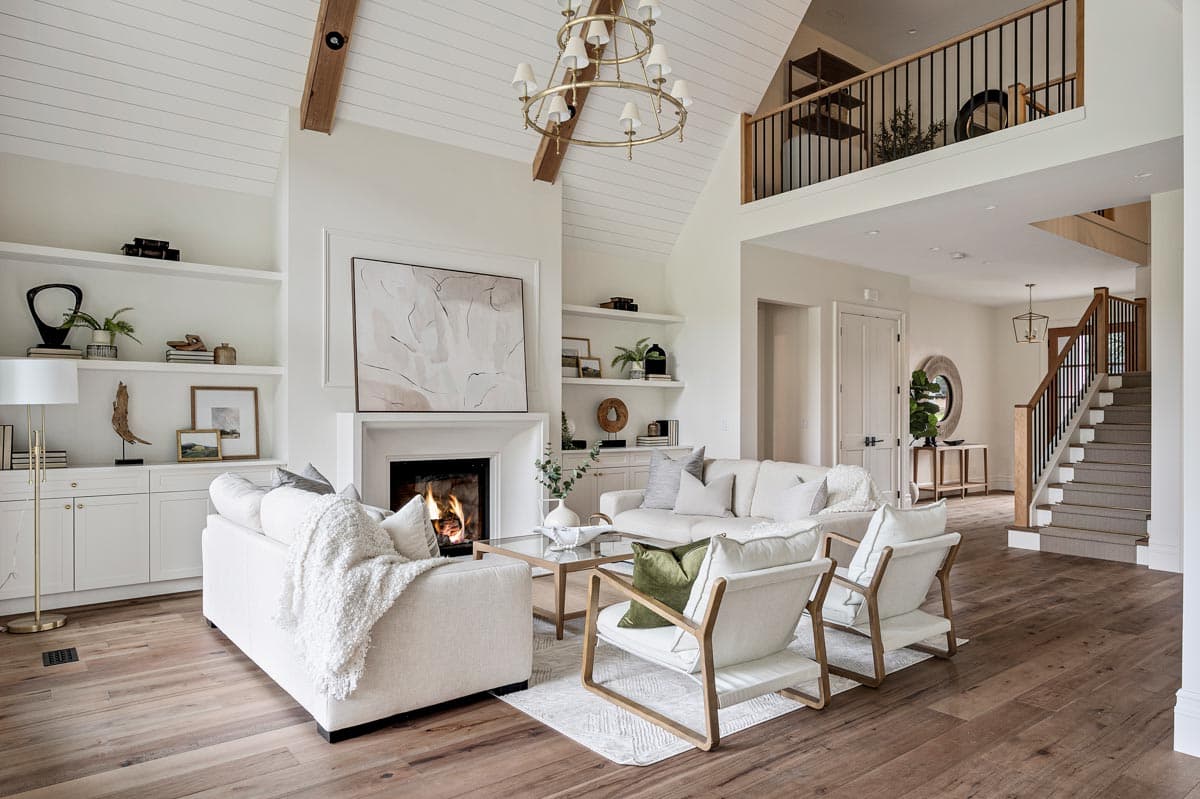

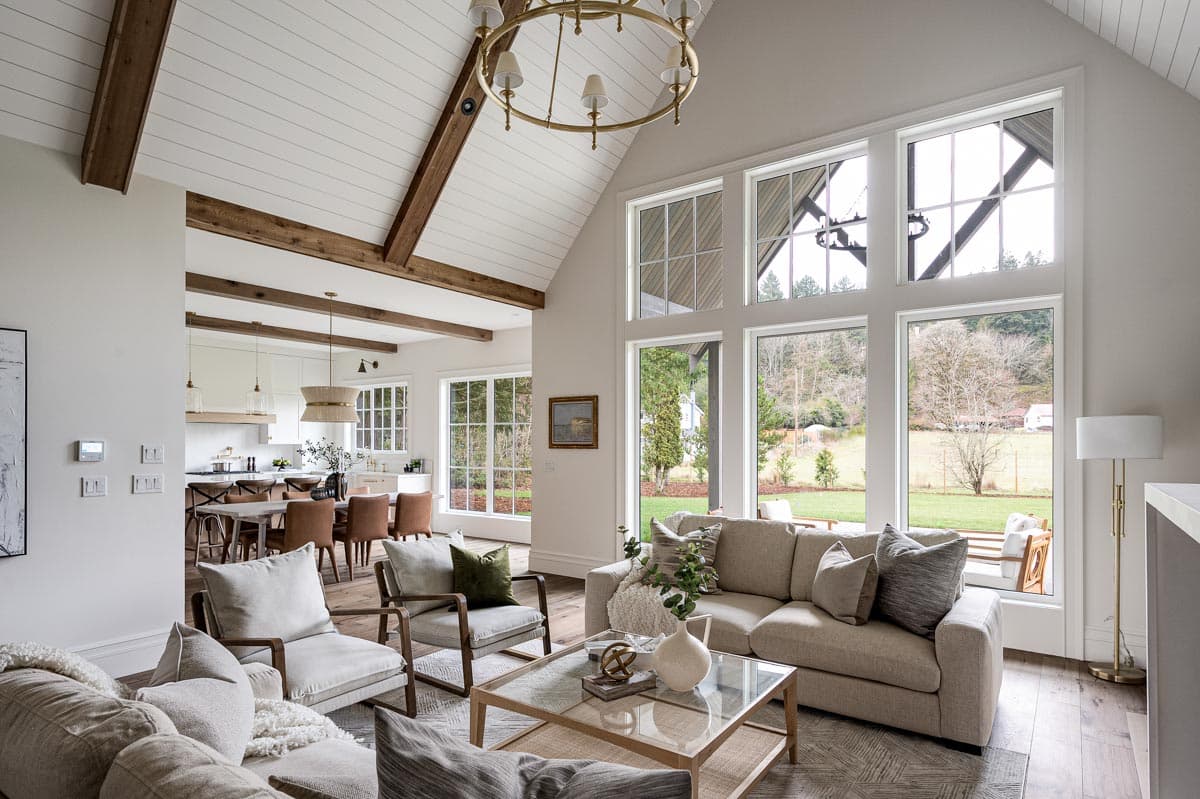

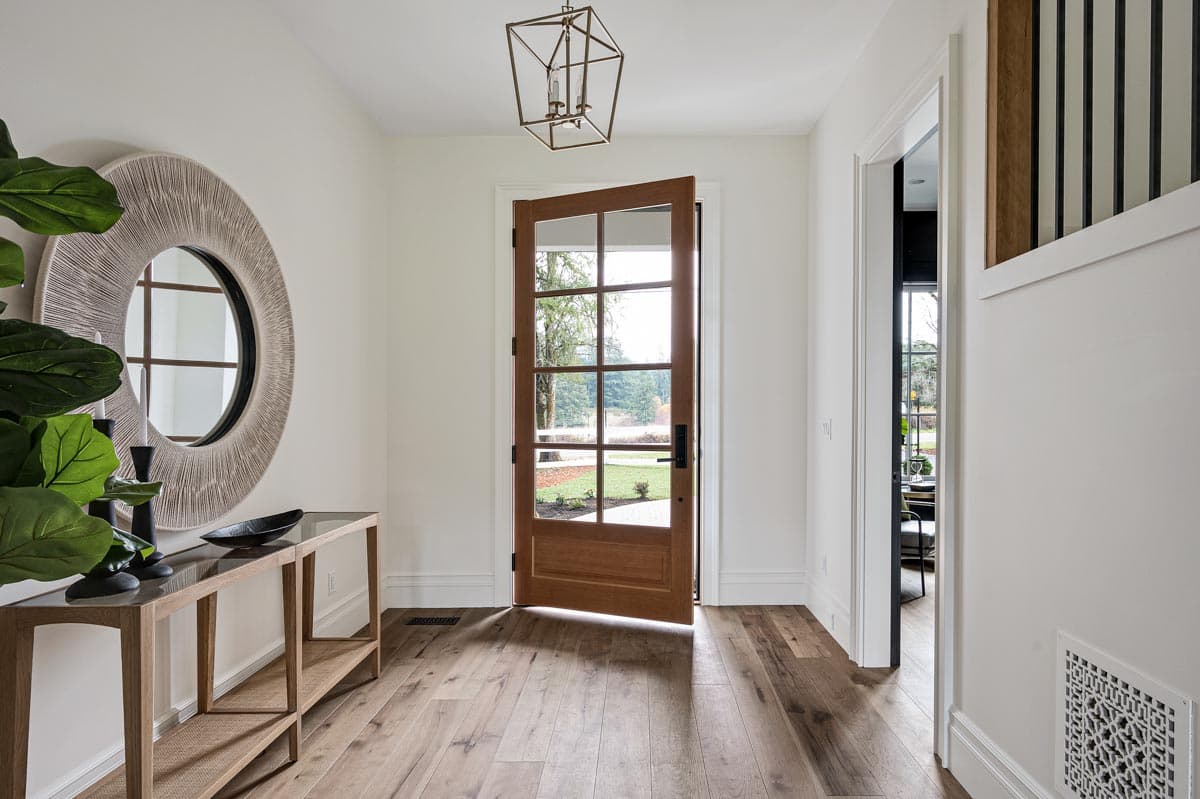

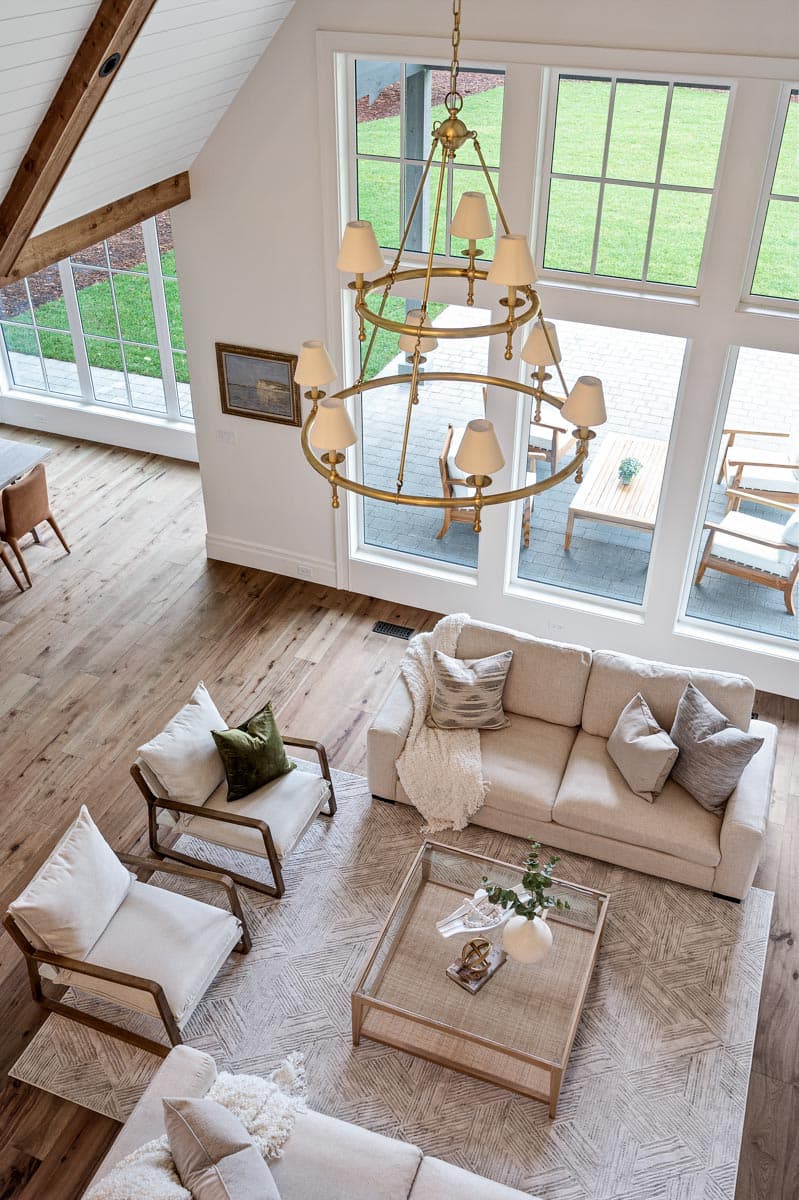

French doors off the foyer open to a quiet study, while the great room can be found straight ahead, crowned by a vaulted ceiling.

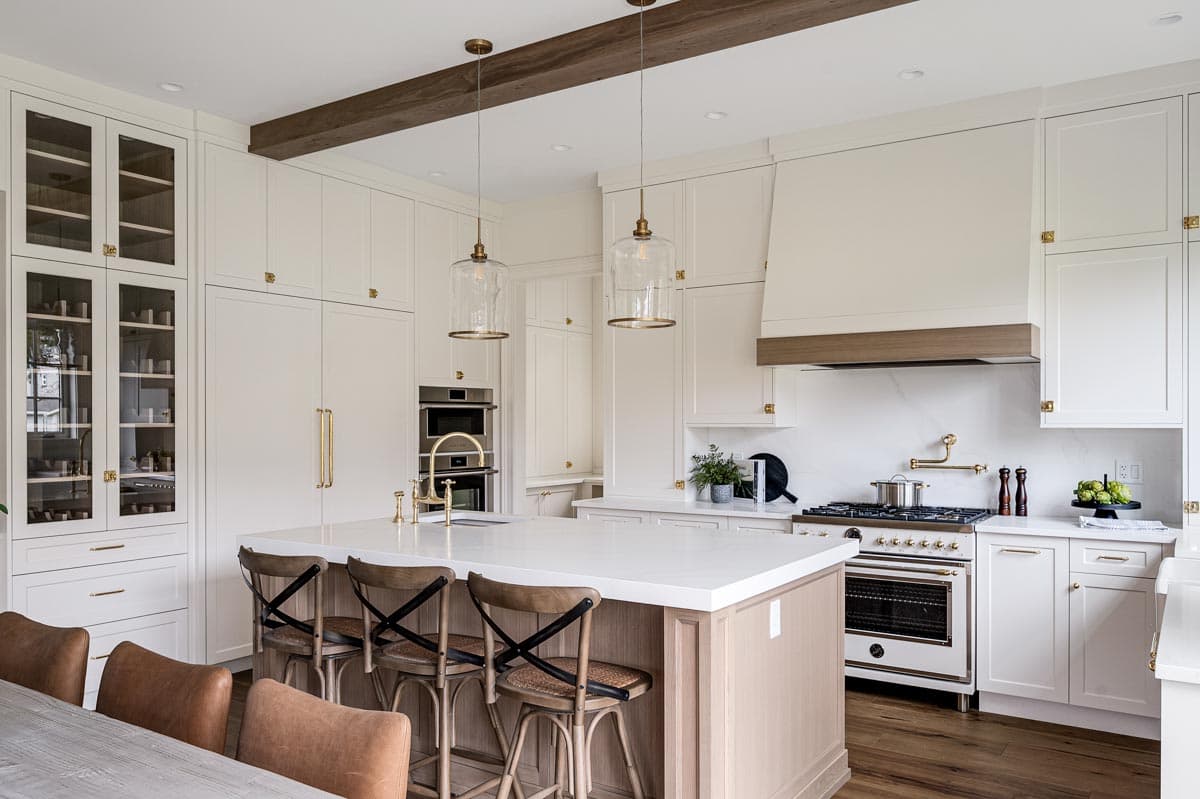

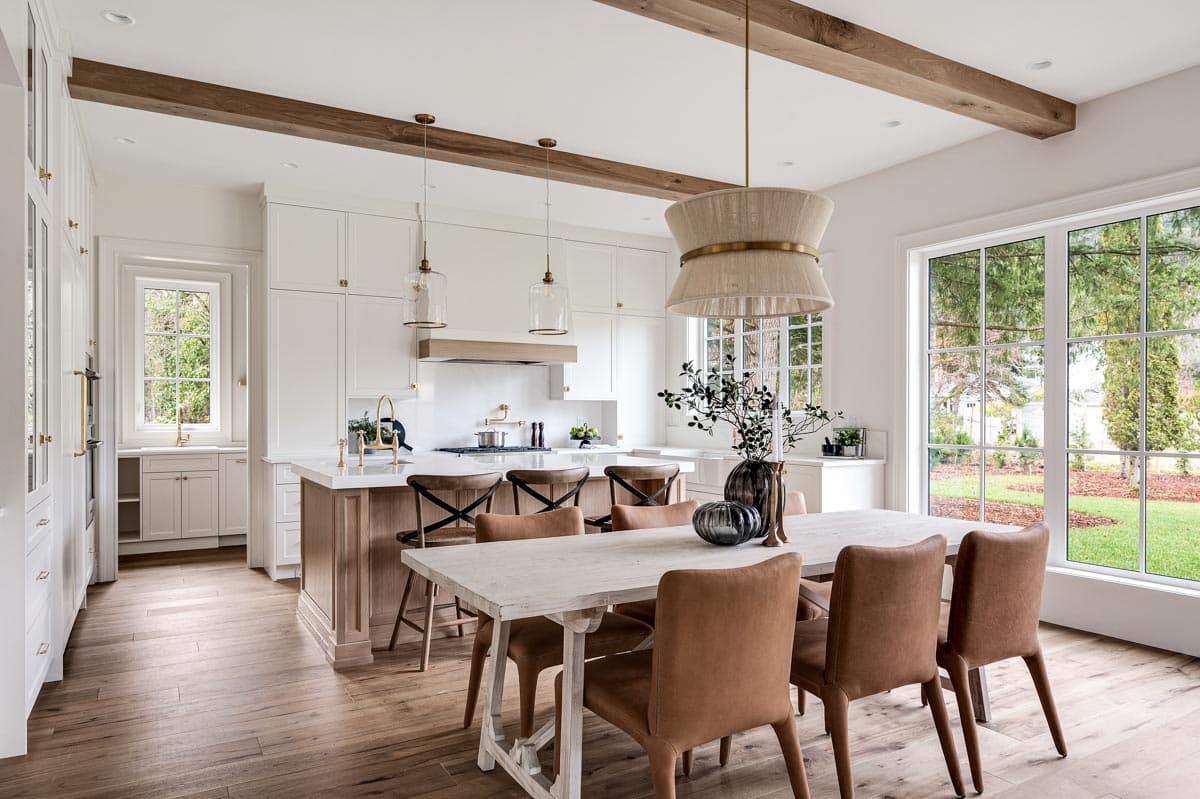

The spacious kitchen provides enough room for more than one cook and boasts double ovens, a 7' by 4' island, walk-in pantry, and nearby computer nook for recipe research or homework.

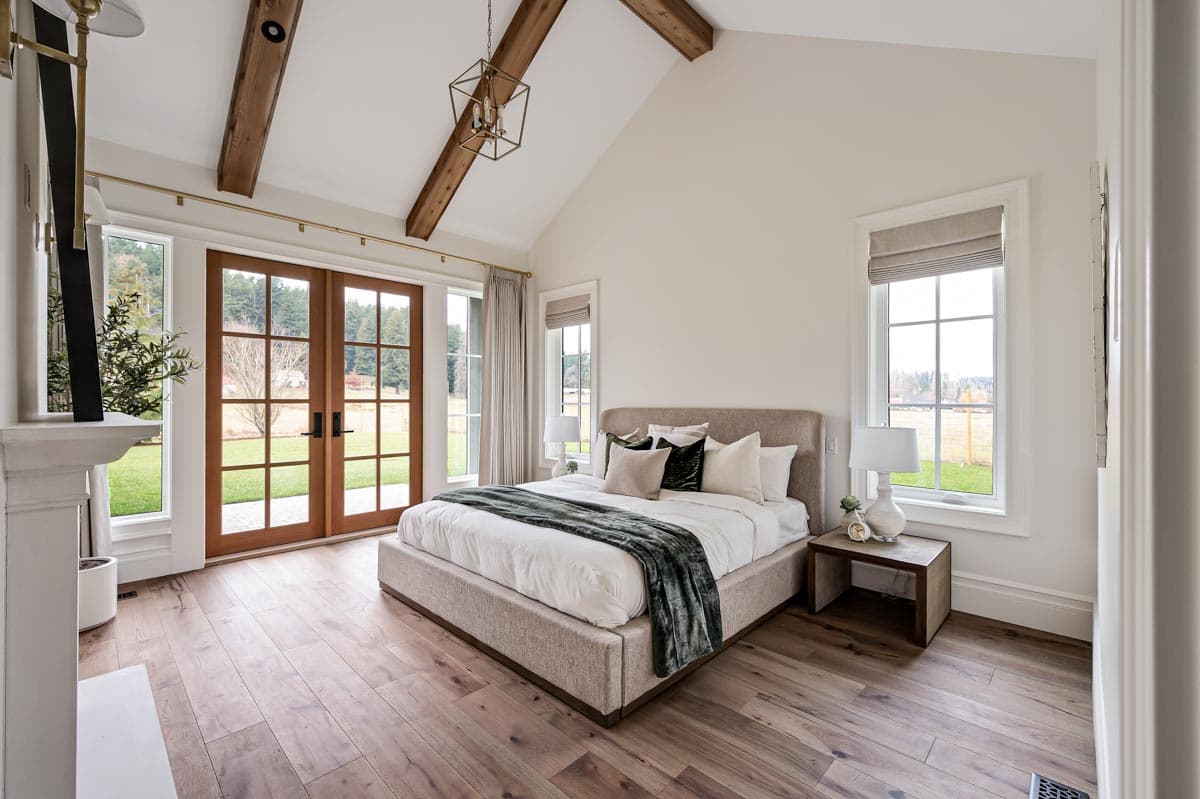

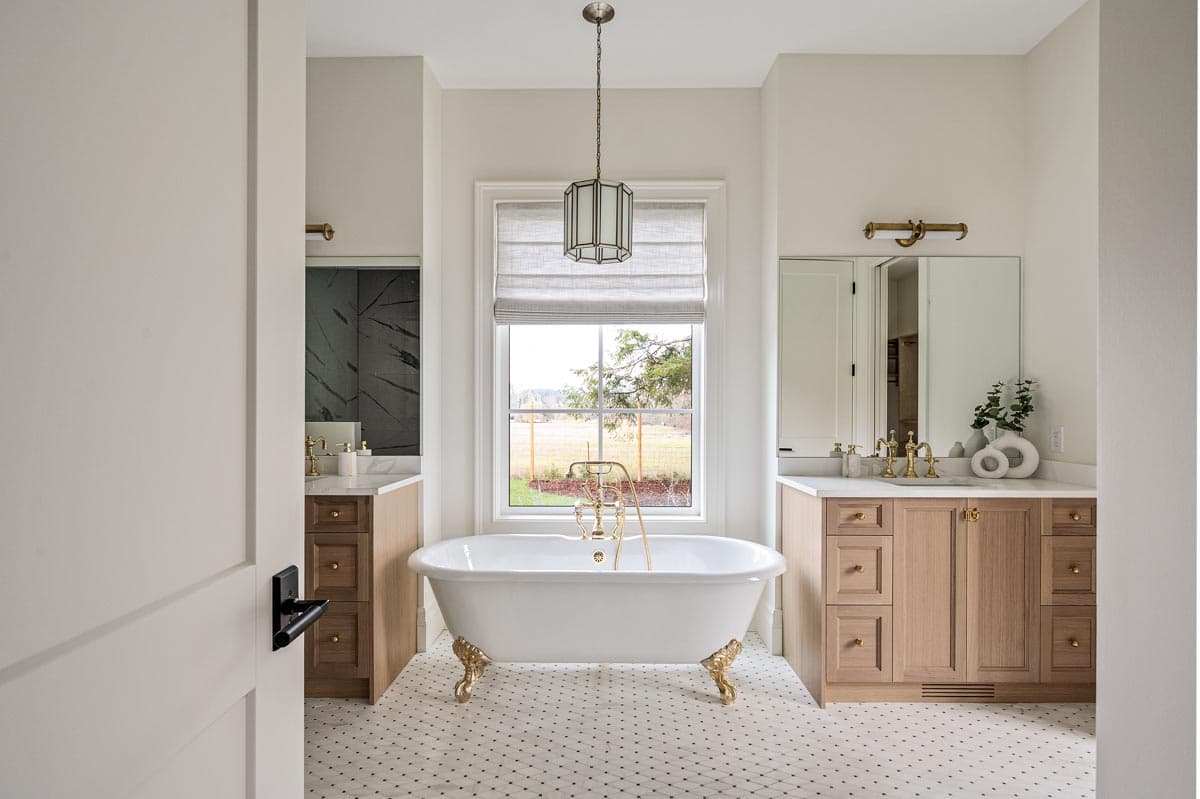

The master suite is conveniently located on the main level and features a vaulted ceiling, freestanding tub flanked by vanities, and a large walk-in closet. Three family bedrooms share the second level with a loft.
Enter from the double garage to find the laundry / mudroom combo with access to a side porch.
Related Plan: Get a side entry garage with house plan 270067AF. Get a craftsman-style exterior, a second full bath ensuite upstairs, and reversed floor plan with house plan 270114AF (3,367 sq. ft.).

Build Gallery

See and hear from existing customers with real photos, videos, and reviews.

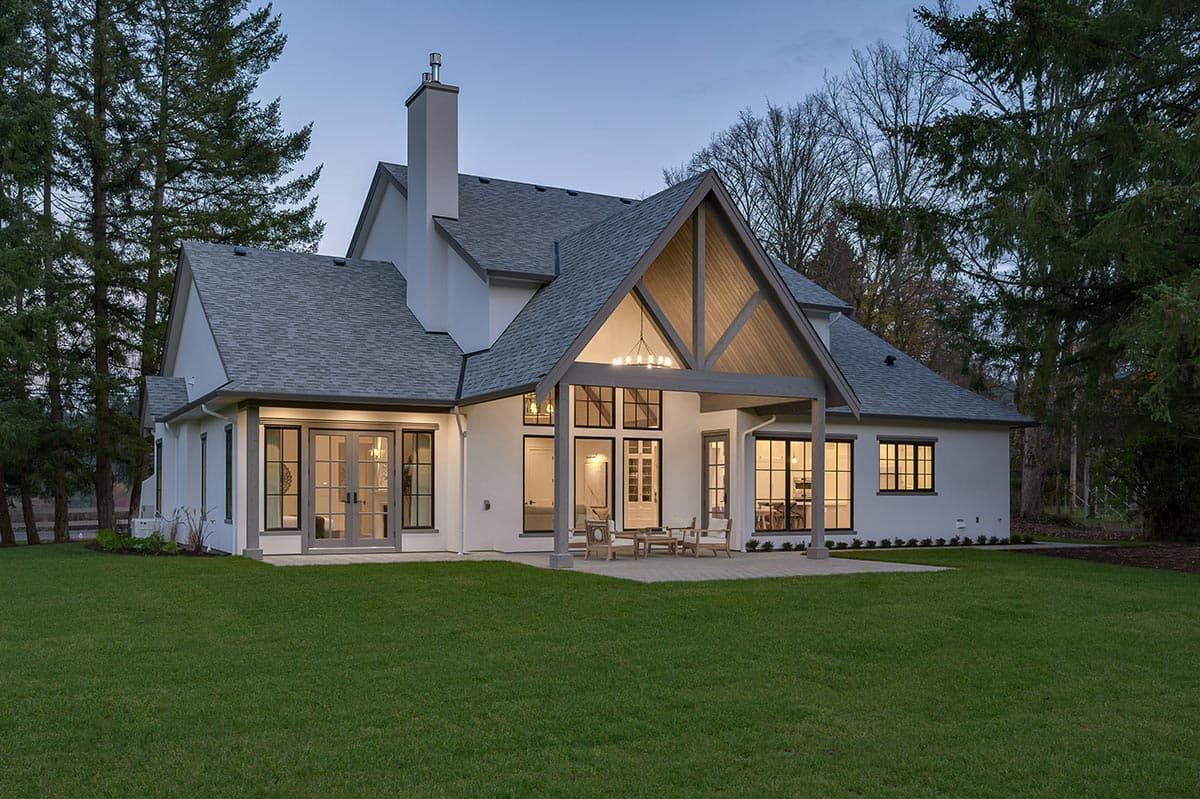

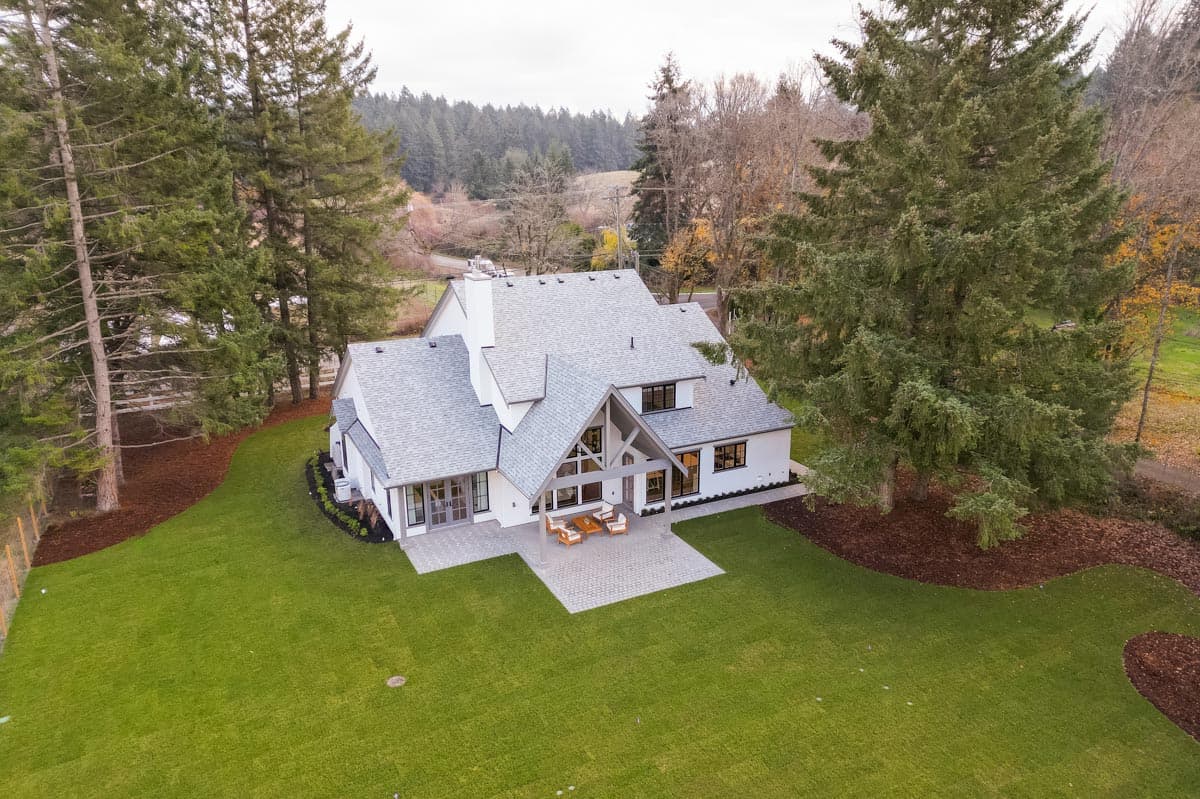

build gallery item - House Plan 270045AF Comes to Life in British Columbia

House Plan 270045AF Comes to Life in British Columbia

71

Photos

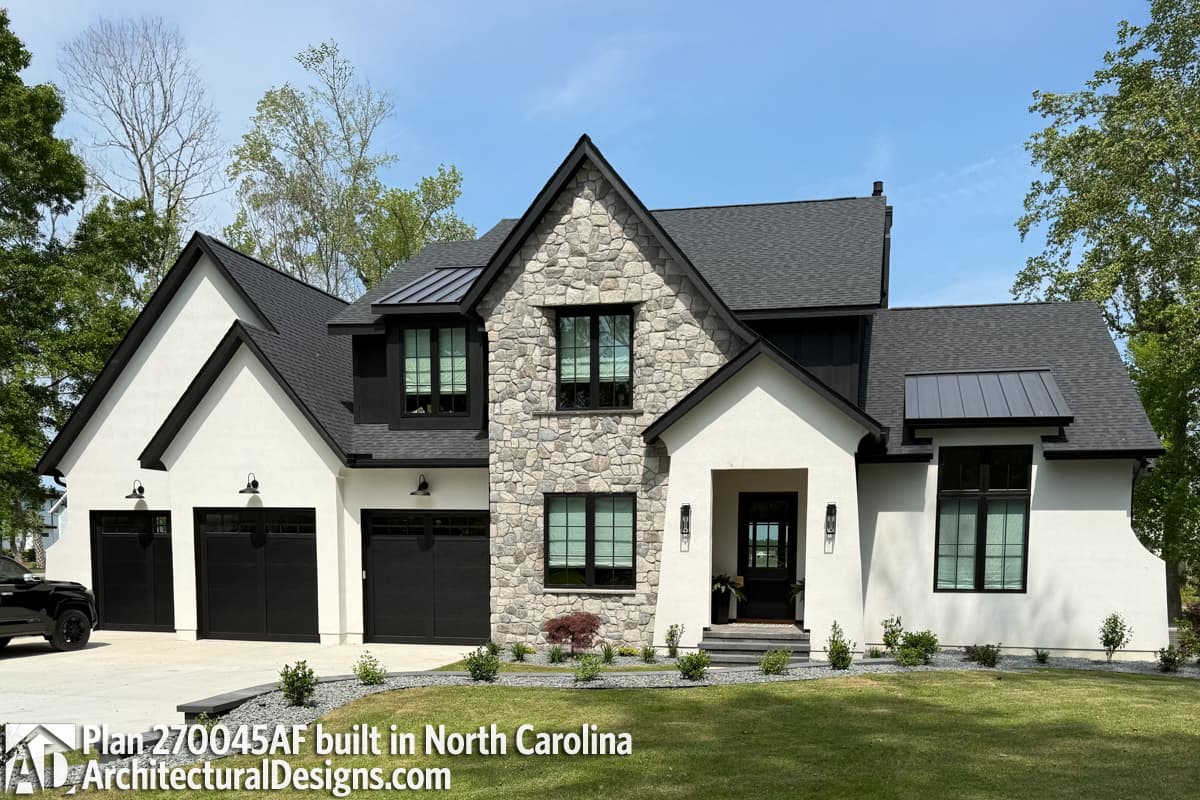

build gallery item - Transitional House Plan 270045AF Comes to Life in North Carolina

Transitional House Plan 270045AF Comes to Life in North Carolina

20

Photos

What's Included

Foundation Plan
Floor Plan(s) with Door and Window Opening Sizes
Roof Plan showing pitches, valleys, ridges

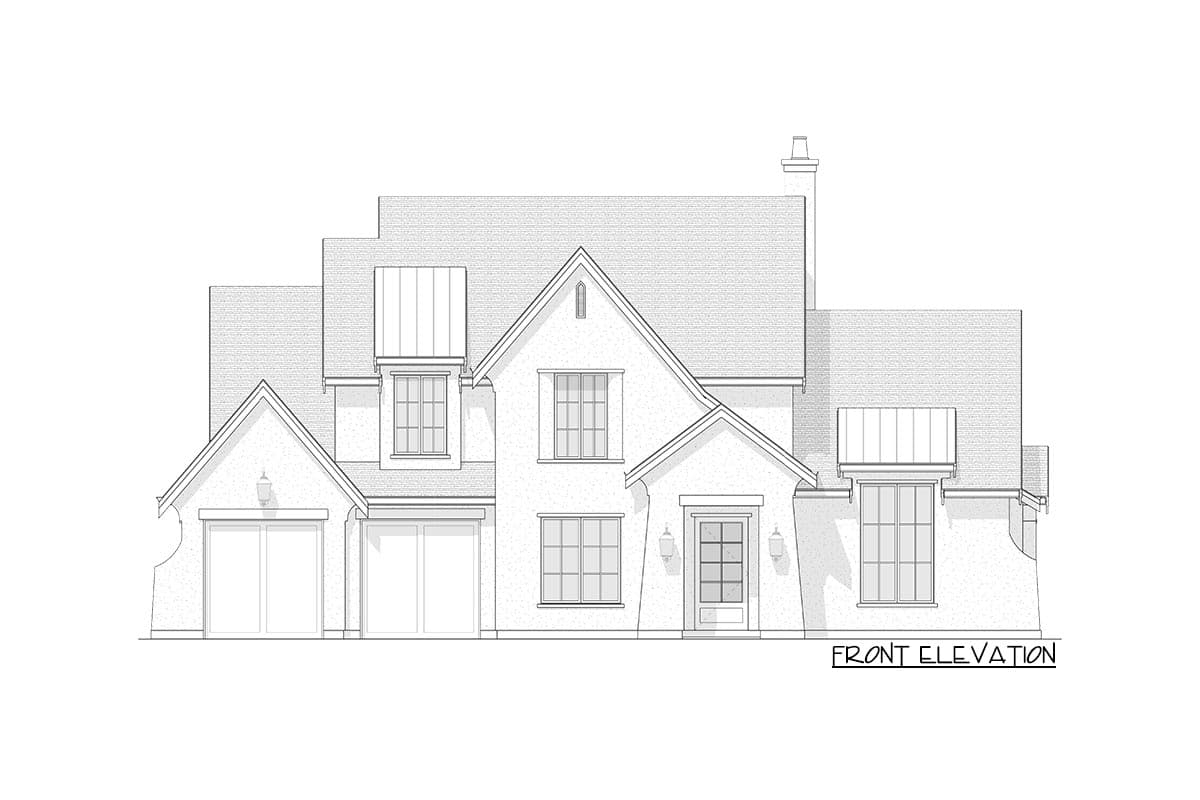

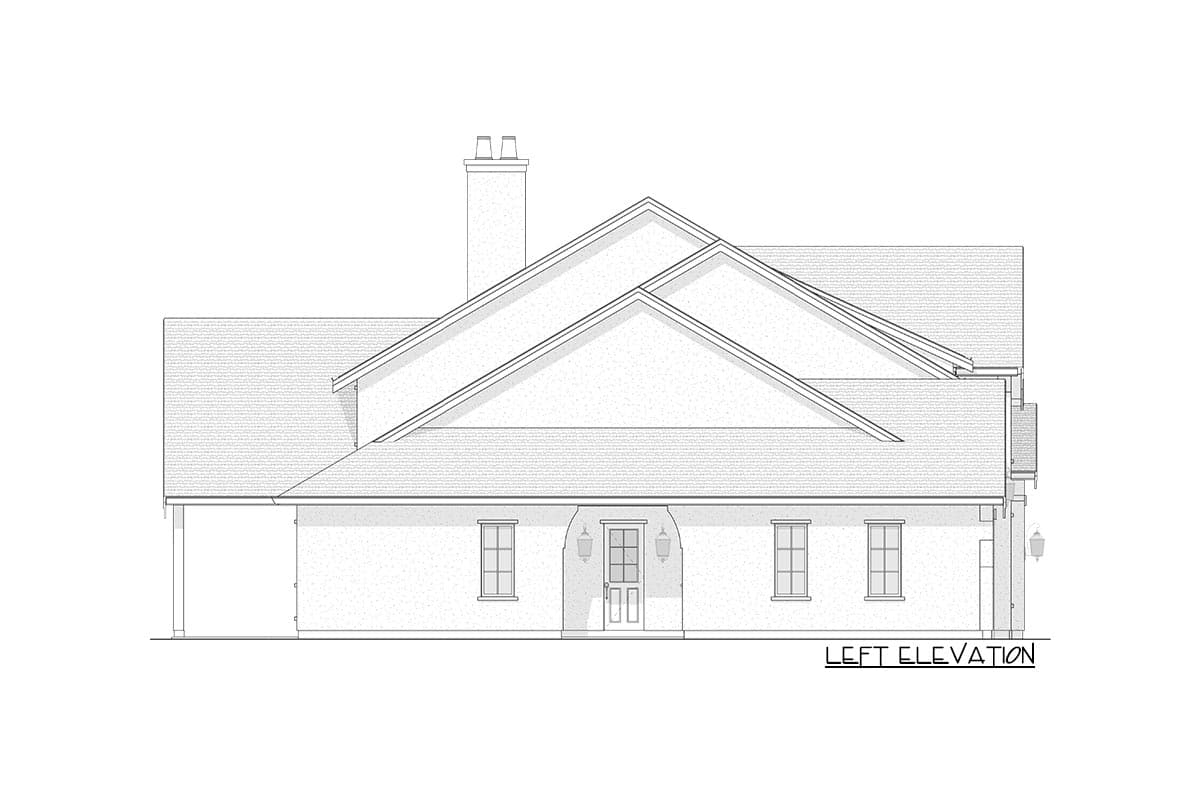

Exterior Elevations
Building Section
Typical Construction Details/Sections

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Framing - layouts with beam sizes and locations
Electrical plan
Plumbing Details
Mechanical Drawings (location of heating and air equipment and duct work)
Energy calculations - handled locally when required
Renderings, photography, or marketing imagery

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,402 sq. ft.

1st Floor

2,376 sq. ft.

2nd Floor

1,026 sq. ft.

Optional Lower Level

2,358 sq. ft.

Porch, Front

107 sq. ft.

Deck

324 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 8"

Depth

63' 6"

Max Ridge Height

33' 2"

Garage

Type

Attached

Area

516 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Canadian House Plans

Premium Collection

Square Footage Breakdown

Total Heated Area

3,402 sq. ft.

1st Floor

2,376 sq. ft.

2nd Floor

1,026 sq. ft.

Optional Lower Level

2,358 sq. ft.

Porch, Front

107 sq. ft.

Deck

324 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

63' 8"

Depth

63' 6"

Max Ridge Height

33' 2"

Garage

Type

Attached

Area

516 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

14 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Canadian House Plans

Premium Collection
