4 Bedroom Craftsman House Plan with Flex Options

Plan 50116PH

  • 2,175

    Heated s.f.

  • 4-5

    Beds

  • 3

    Baths

  • 2

    Stories

  • This classic Craftsman cottage is not only beautiful to look at but it is functional and cost efficient as well.
  • A simple roofline and rectangular foundation shape keeps costs down so you can put the savings into things like energy-efficient appliances and extra insulation.
  • The well-functioning living space means less energy is needed over the life of the home.
  • An open floor plan and flex space that can be used differently by each homeowner are added bonuses.
  • Upstairs, four bedrooms and two baths complete the home.
  • Related Plans: Get alternate versions with house plans 50102PH (2,095 sq. ft.), 50146PH (2,175 sq. ft.), 50147PH and 50179PH (both 2,268 sq. ft.), 50151PH (2,580 sq. ft.), 50187PH (2,590 sq. ft.) and 50123PH (3,570 sq. ft. with a finished lower level).

Each plan set includes the following:

  • Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
  • Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
  • Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

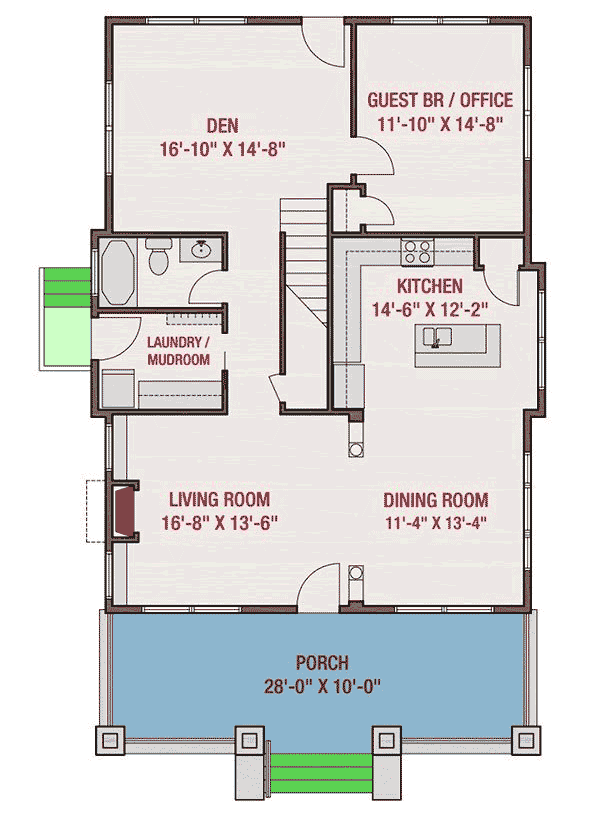

4 Bedroom Craftsman House Plan with Flex Options - 50116PH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

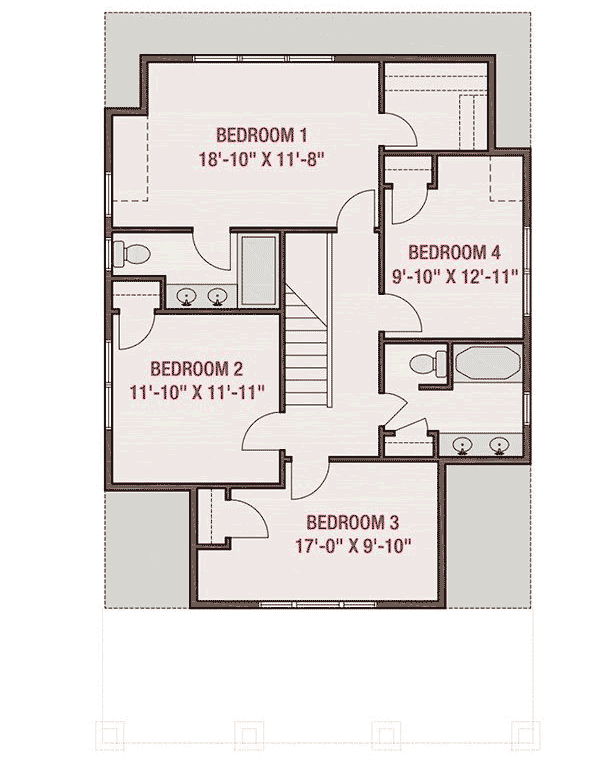

4 Bedroom Craftsman House Plan with Flex Options - 50116PH floor plan - 2nd Floor
