Plan 35401GH
5 Car Shop with Vaulted Living Space Above - 1660 Sq Ft
Heated S.F.
1,660
Beds
2
Baths
3
Stories
2
Cars
5
Floor Plan

Plan 35401GH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 35401GH

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • We took one of our best-selling flexible plans - house plan 35245GH - and created this 5-car version. Now, you have more room for your vehicular toys as well as room to enjoy life on top.

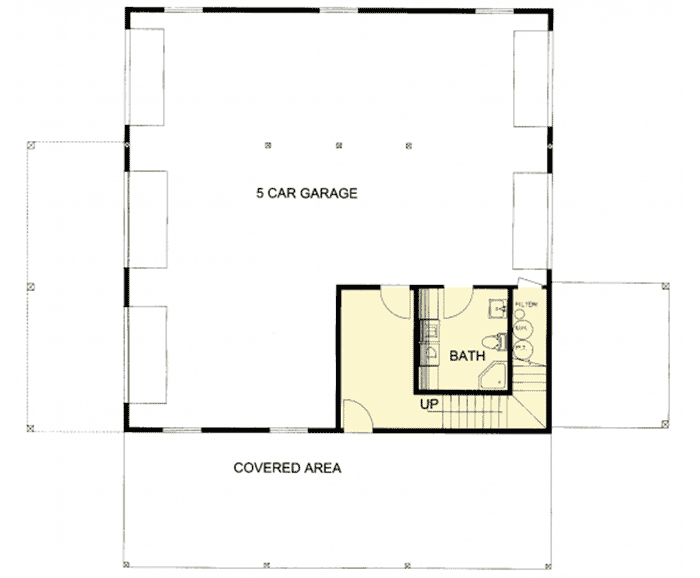

  • The ground floor has room for 5 cars under roof and has drive-through access for easy tandem parking. A bath is there for quick relief while you are tinkering with the vehicles.

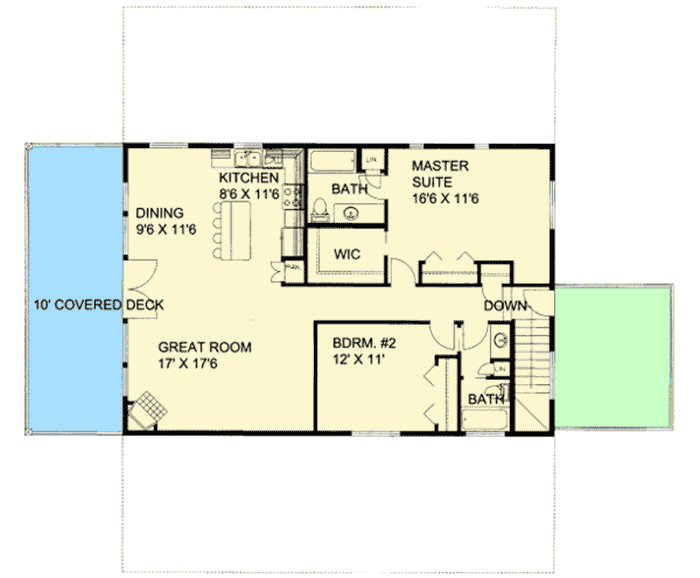

  • The living floor above features a great vaulted great room that is open to the kitchen and dining room which also benefit from the vault. A 10'-deep deck extends this vaulted space and gives you views with fresh air.
  • Two beds and two baths are in the back. And a smaller open deck is by the stair giving you a place to relax and enjoy more views.
  • The maximum ridge height is 30'10" from grade.
  • Related Plans: See the original 2-car versions with plan 35245GH (office on main), 35485GH (a larger version at 2,025 sq. ft.), 35513GH (another larger version at 2,068 sq. ft.), 35361GH (shop on main) and 35396GH (ICF exterior walls). Get a man-cave version with house plan 35572GH.
What's Included

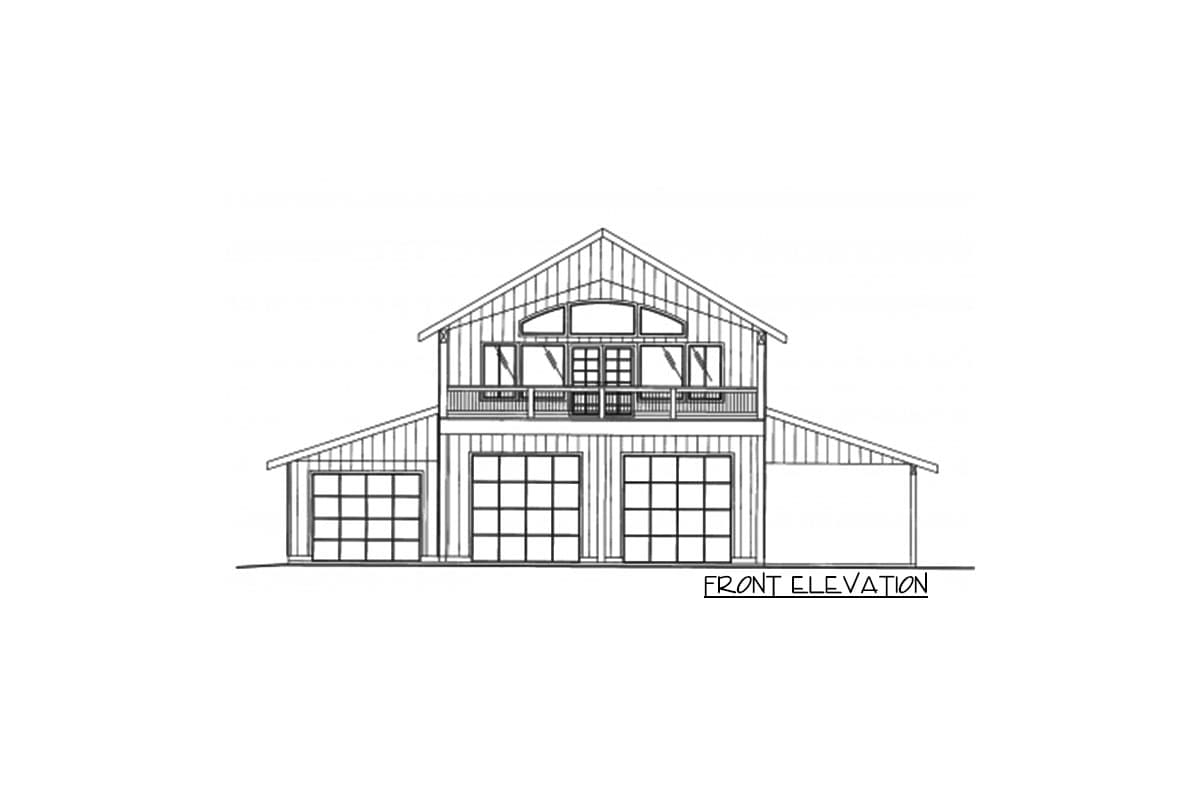

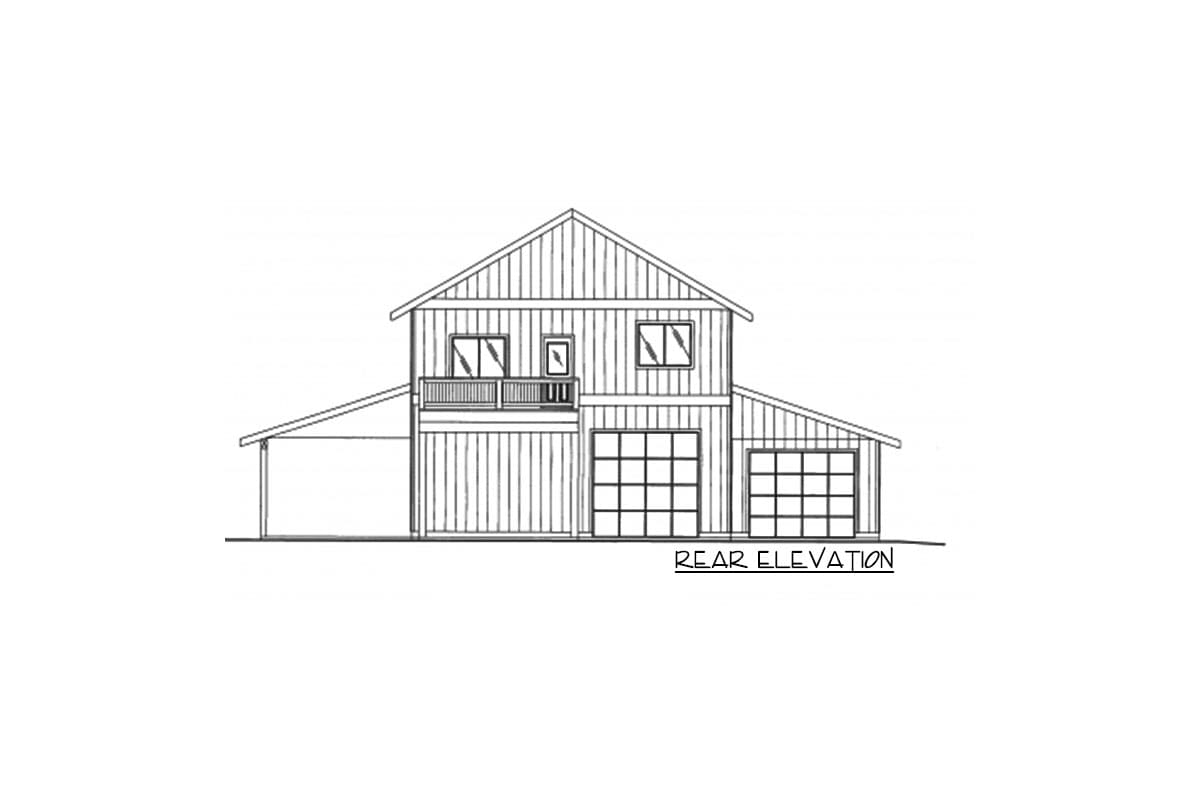

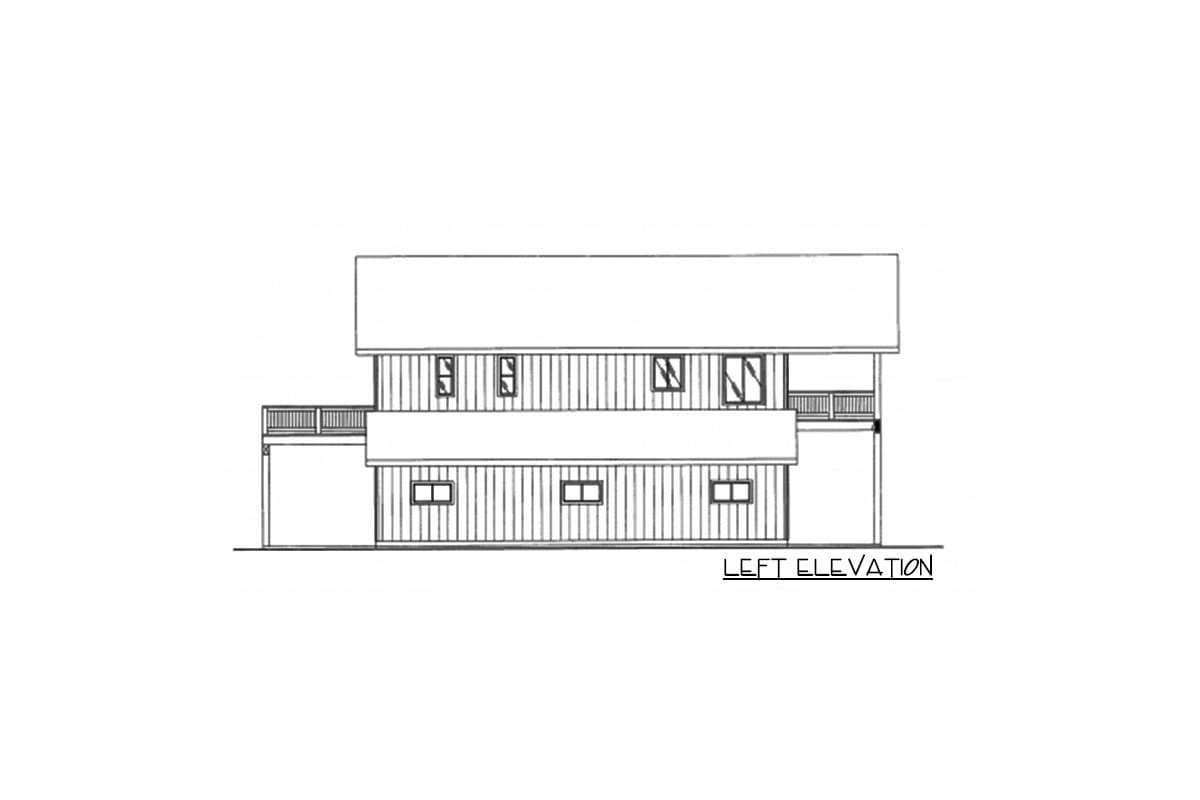

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan: This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Basic Electric: This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,660 sq. ft.

1st Floor

340 sq. ft.

2nd Floor

1,320 sq. ft.

Deck

440 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

44' 0"

Max Ridge Height

30' 10"

Garage

Type

Detached

Area

908 sq. ft.

Count

5 Cars

Entry Location

Rear

Ceiling Heights

First Floor

12'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

N on N

Framing Type

Truss

Architectural Style

Carriage

Plan Collections
