Above And Beyond

Plan 23480JD

  • 4,750

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 4

    Cars

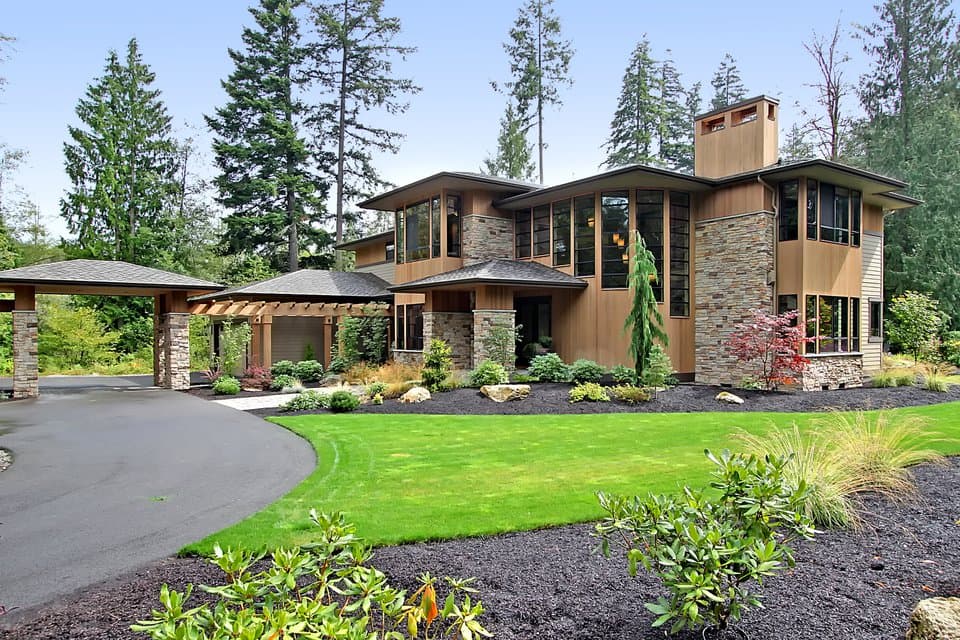

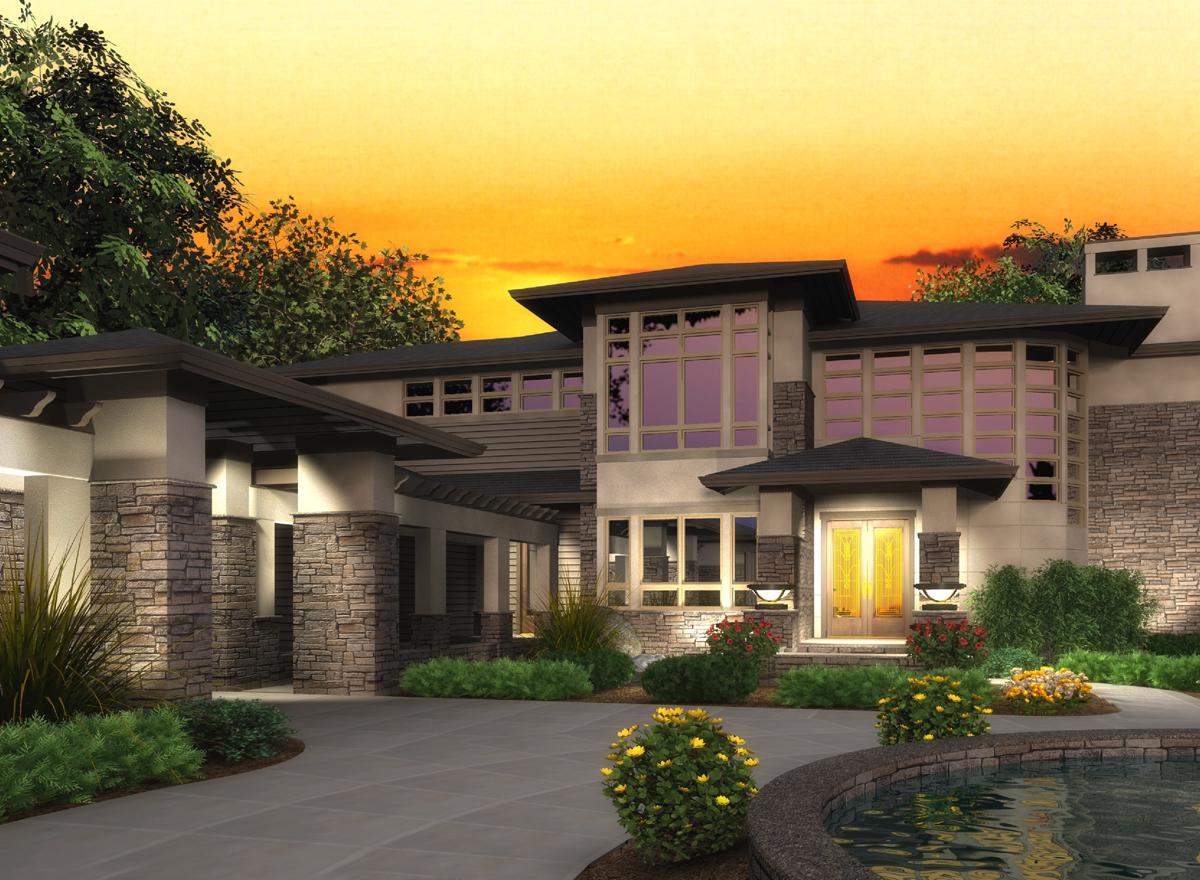

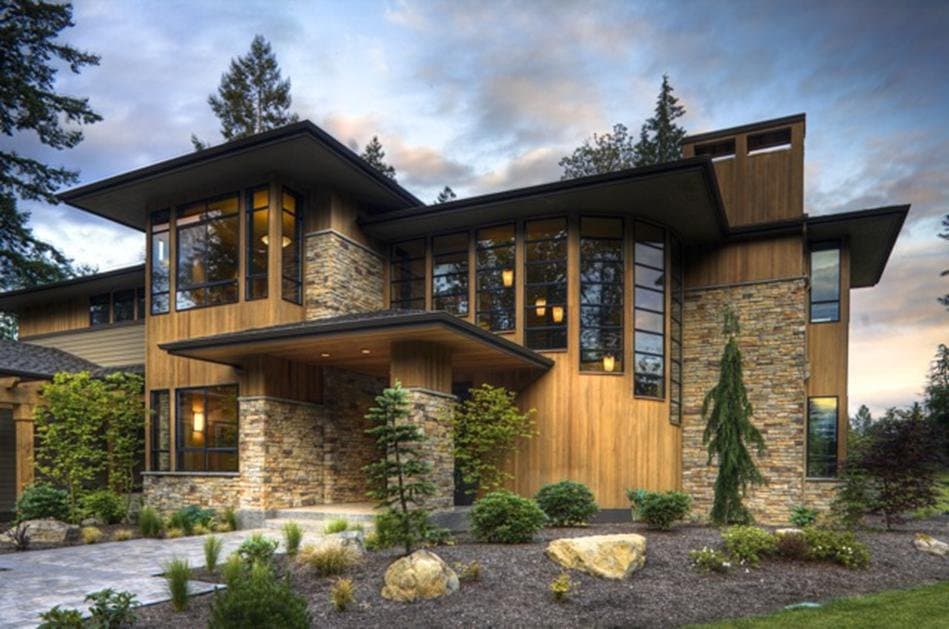

  • This outstanding Northwest home is a true architectural beauty with dramatic two-story windows that make you feel as if you are bringing nature inside.

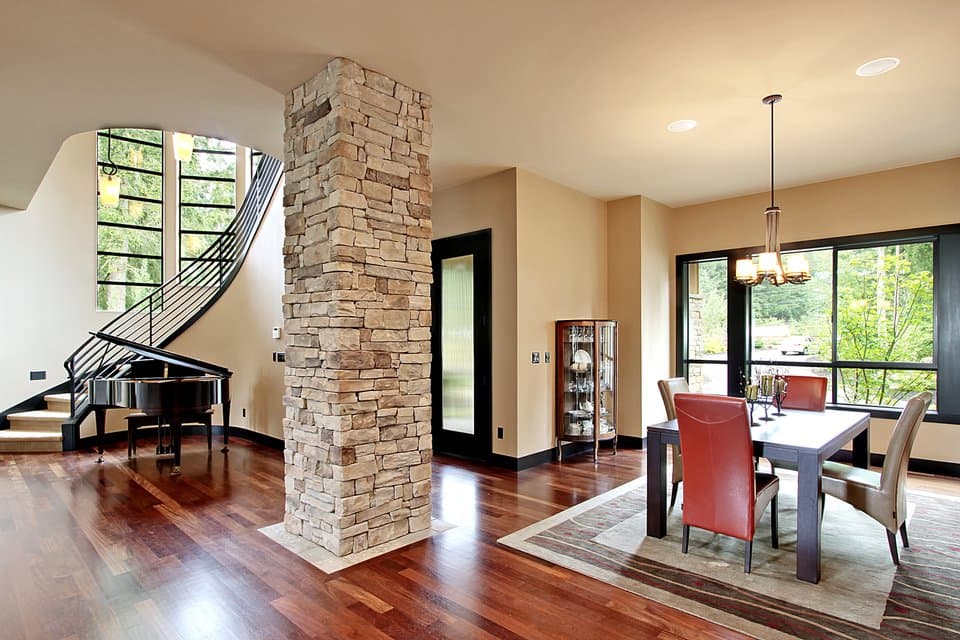

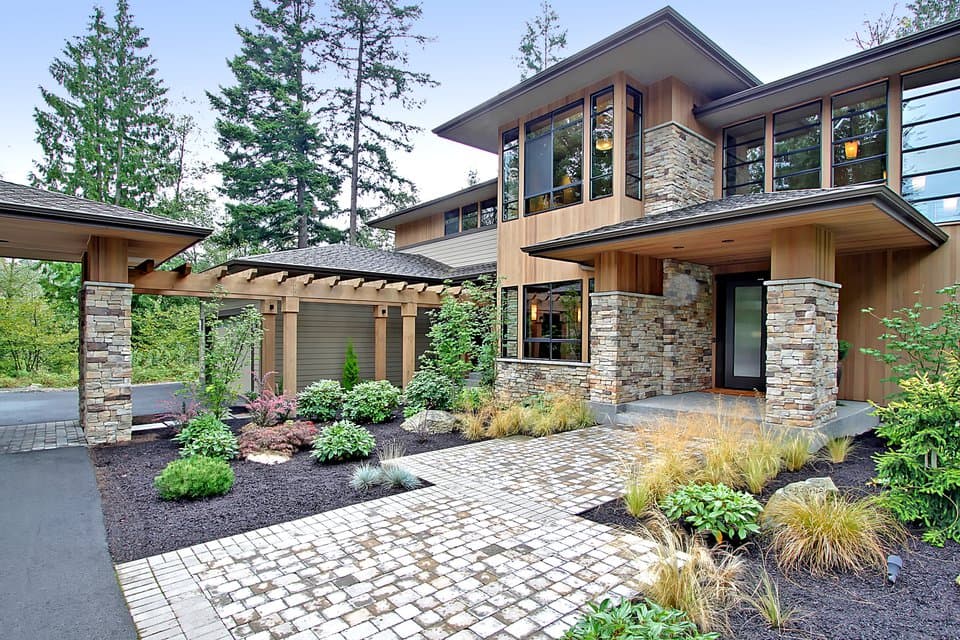

  • Clean lines and high ceilings enhance the contemporary feel while stone columns add texture.
  • Folding doors off the nook open the home to the outdoor living area with its fireplace and outdoor kitchen.

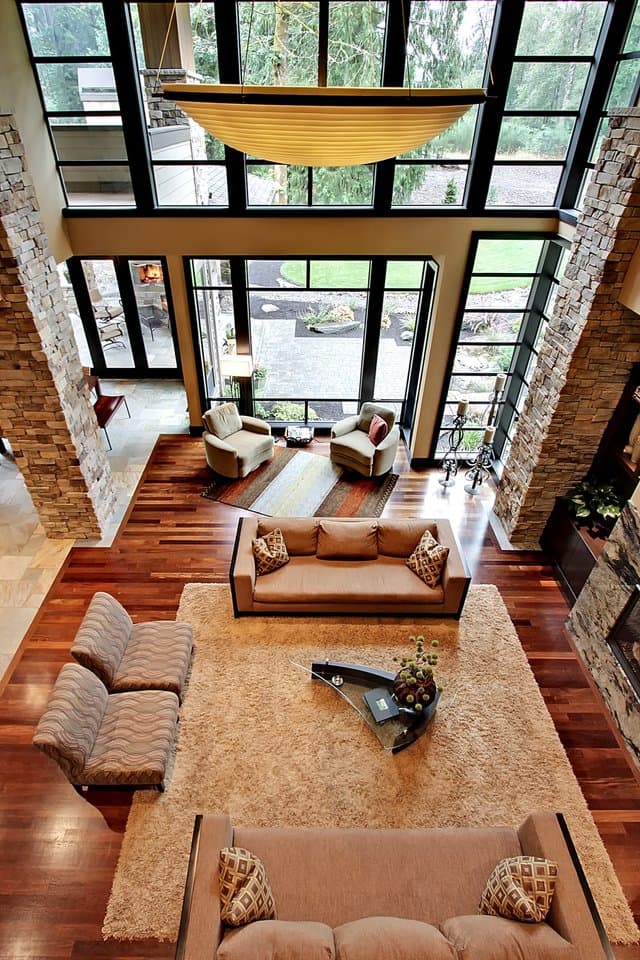

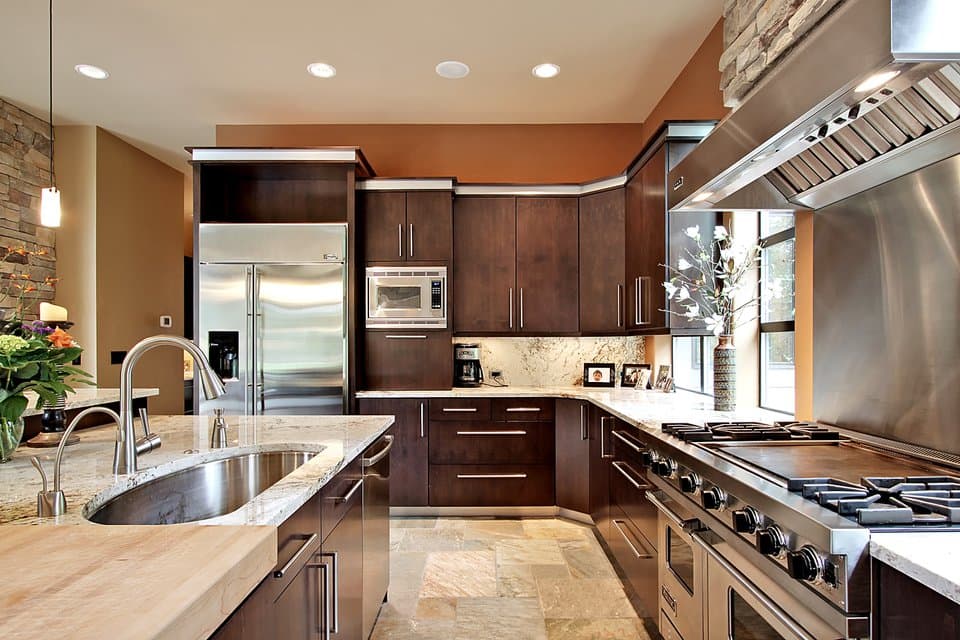

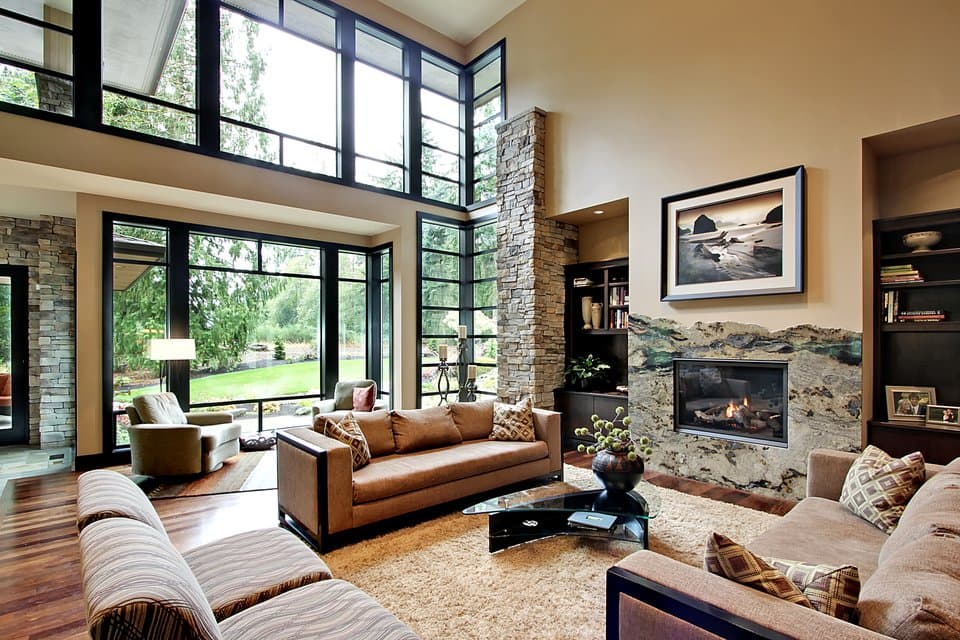

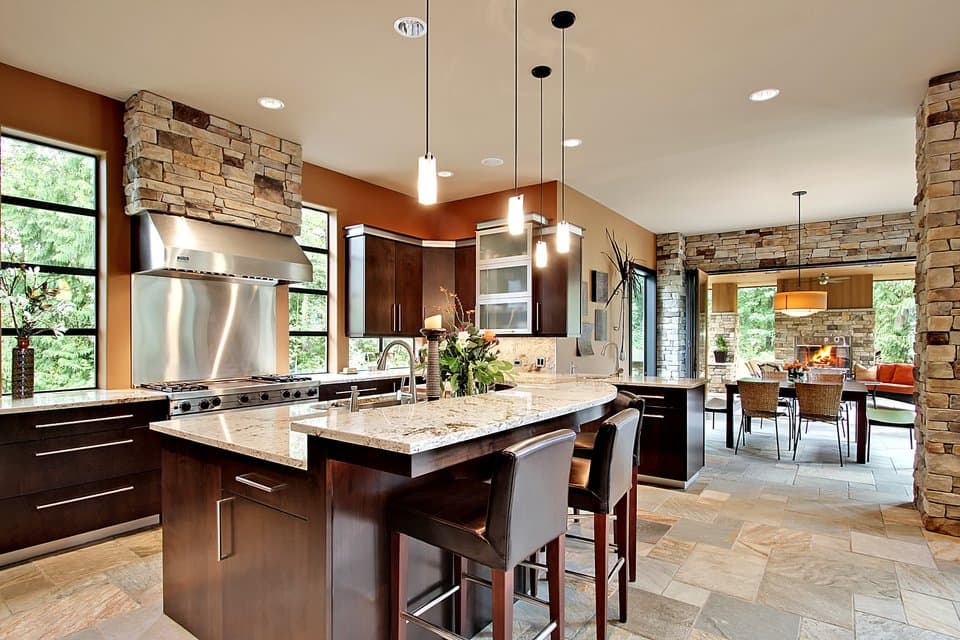

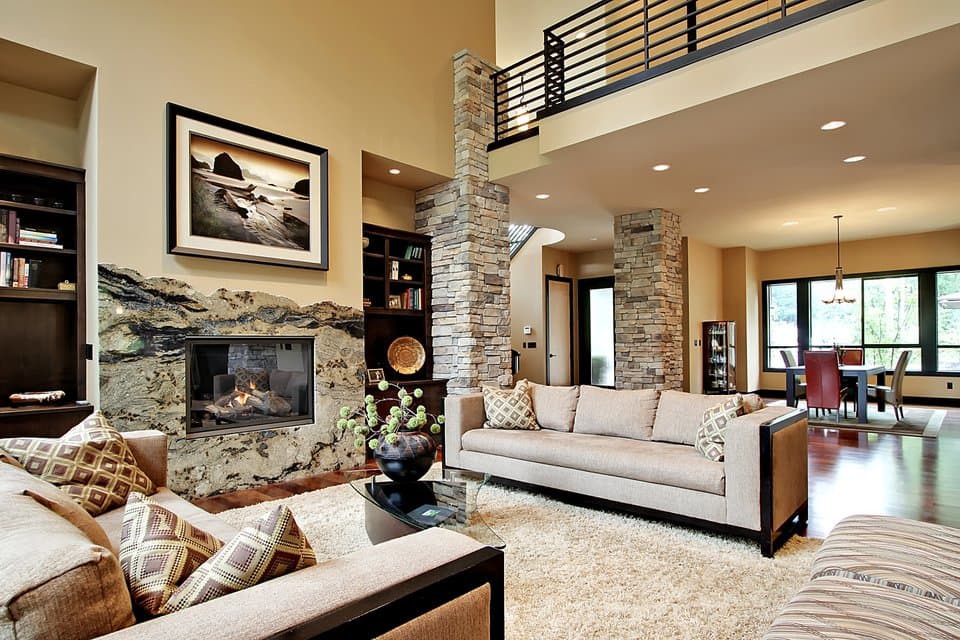

  • The enormous kitchen is wide open to the great room, creating sweeping views.

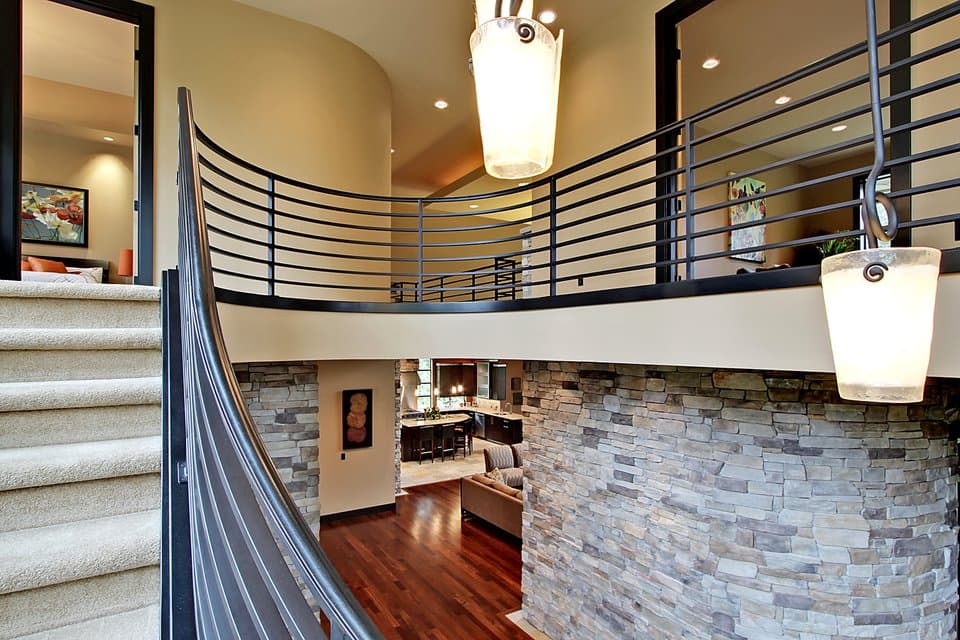

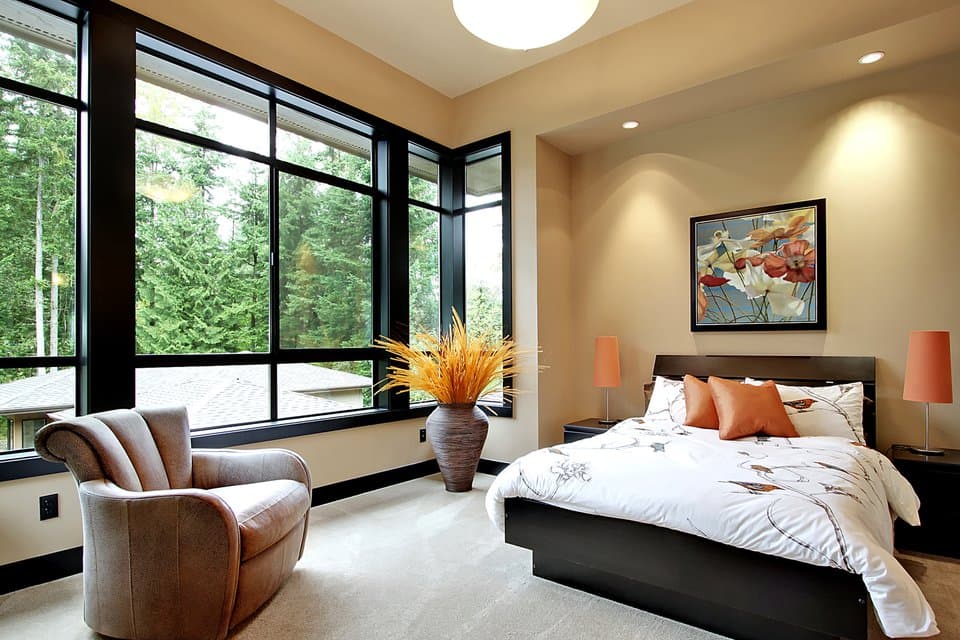

  • Most of the bedrooms are on the second floor with the master suite at the end of a bridge that overlooks the great room below.

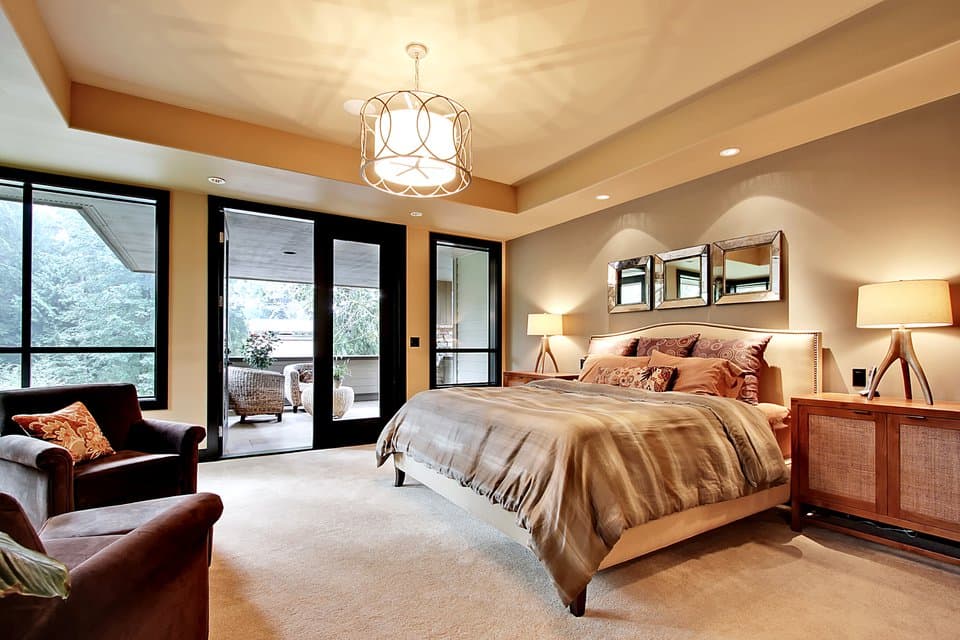

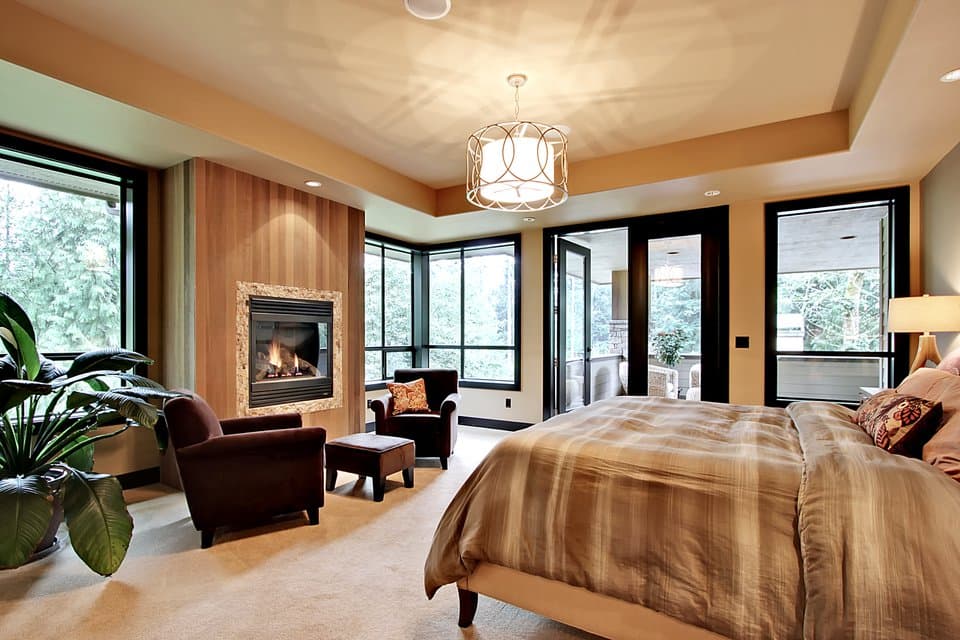

  • Step out of your luxurious master suite onto your own covered porch where you can greet the morning with your cup of coffee.
  • A huge bonus room can also become another bedroom with its access to a shared bathroom.
  • Related Plans: Remove the porte-cochere extension and get 3 garages on the corner with house plan 23620JD (4,555 sq. ft.). Downsize to 2,550 sq. ft. with house plans 23566JD (crawlspace) and 23567JD (basement).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

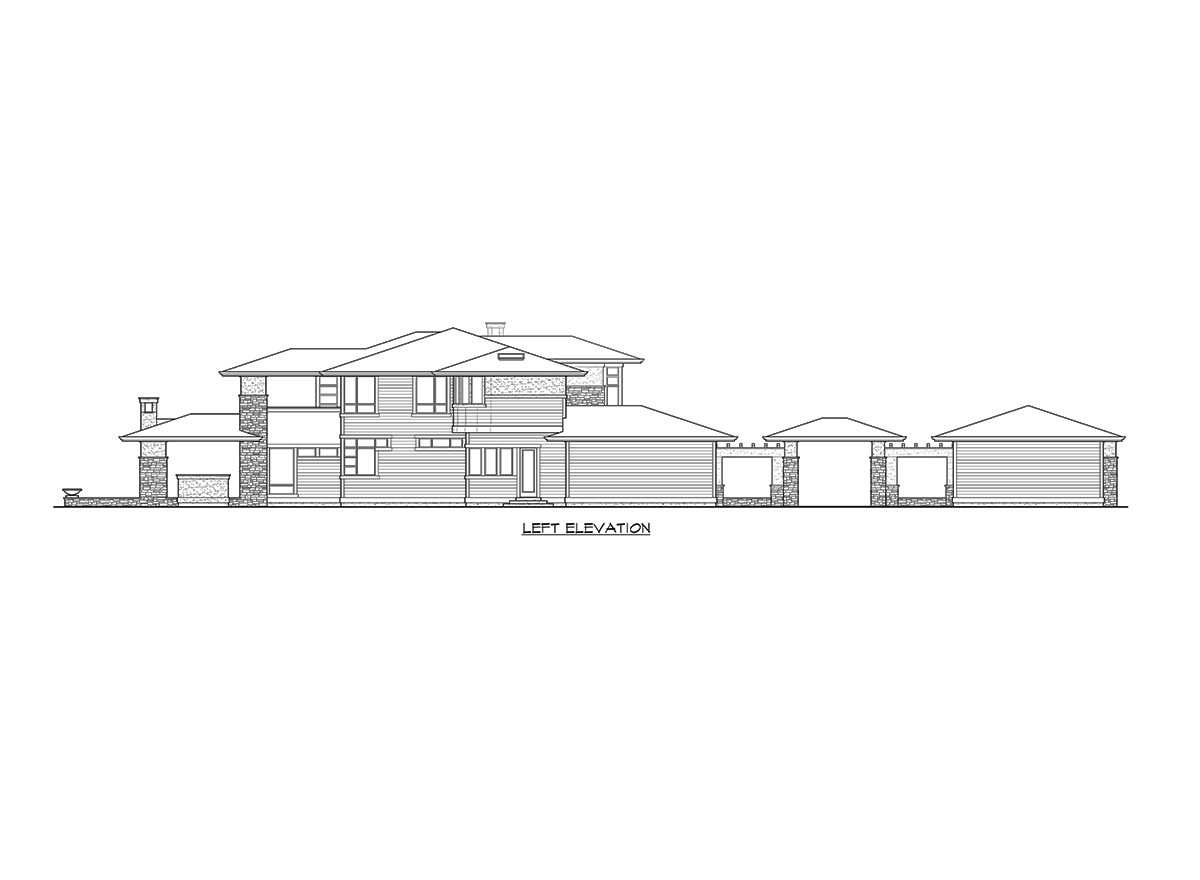

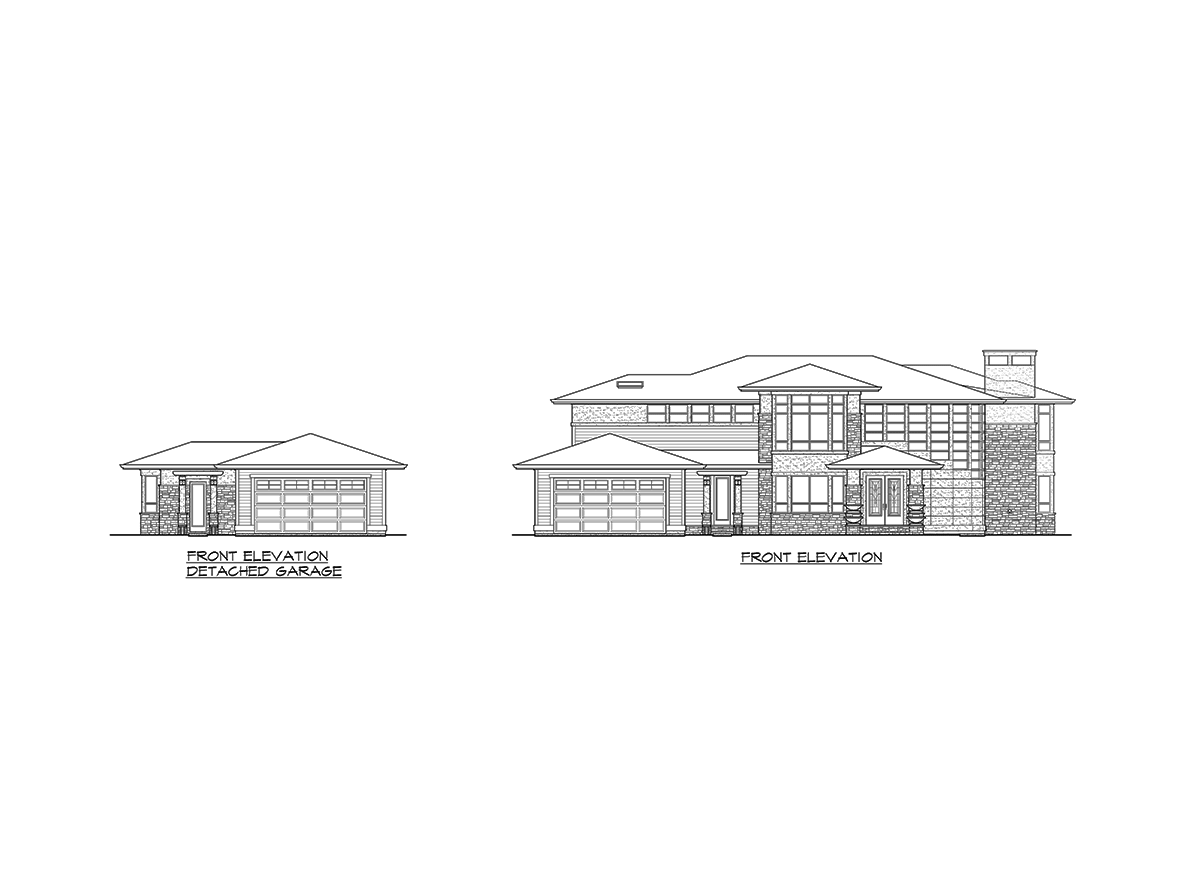

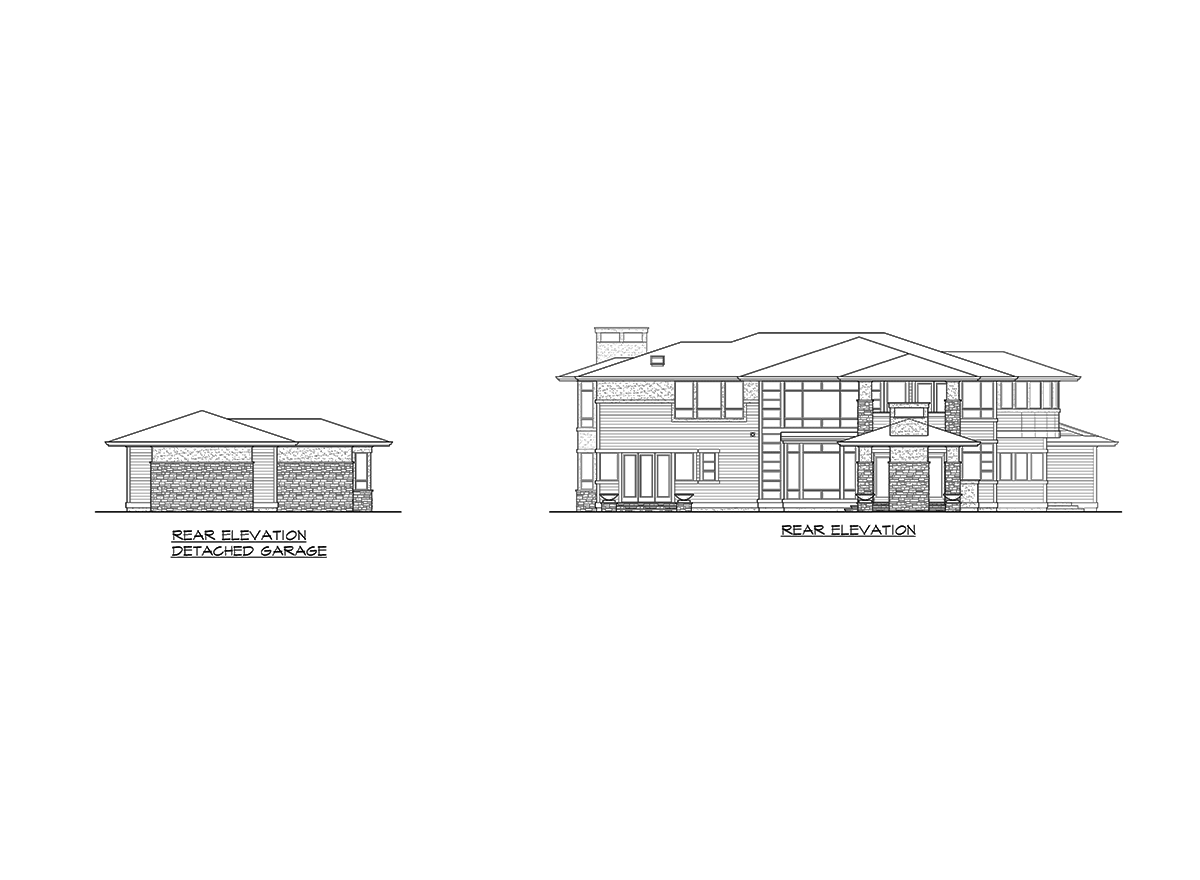

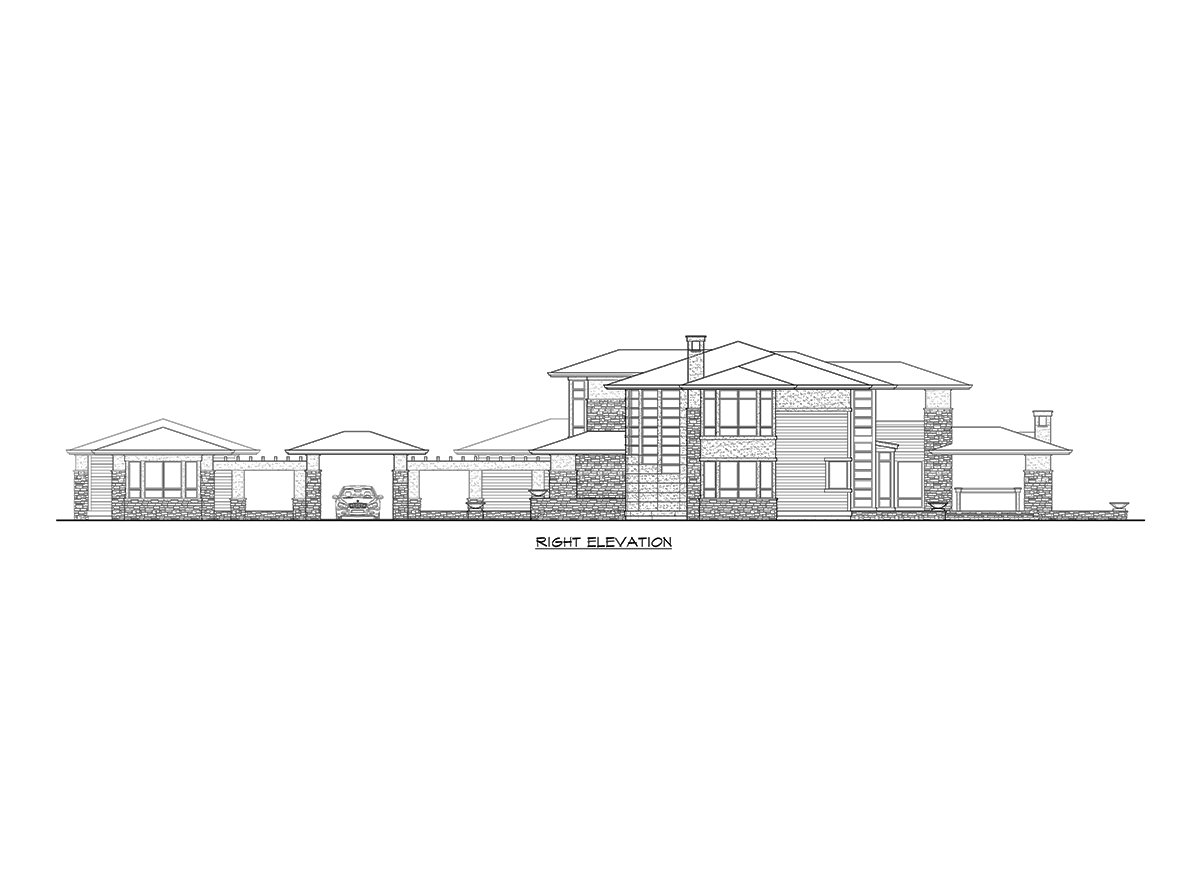

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

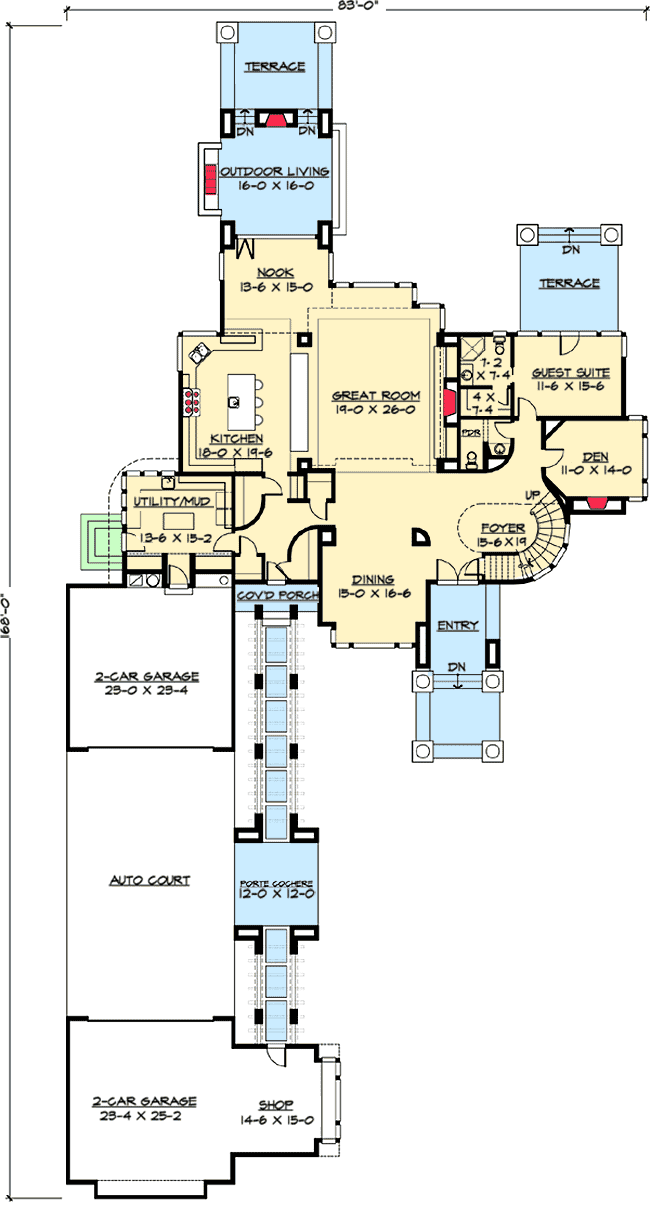

Above And Beyond - 23480JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

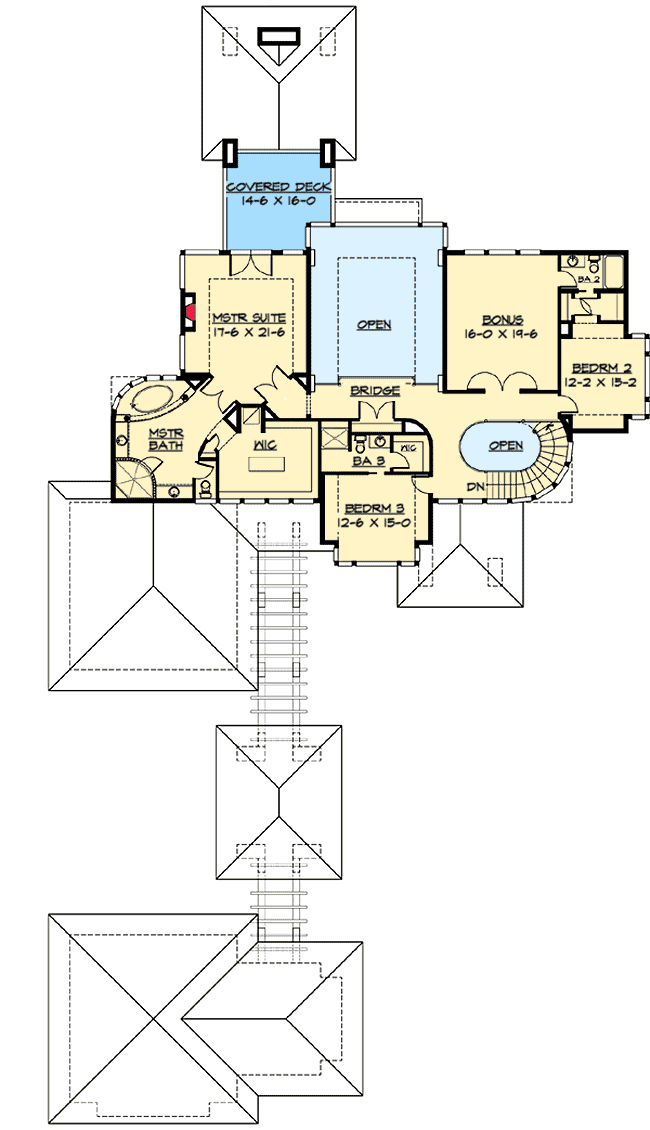

Above And Beyond - 23480JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,750 sq. ft.
  • 1st Floor: 2,745 sq. ft.
  • 2nd Floor: 2,005 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 83' 0"
  • Depth: 168' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 1435 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Above And Beyond

  • 4,750

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,500
  • CAD + PDF - Unlimited Build $4,200
  • View all purchase option online

About This Plan

  • This outstanding Northwest home is a true architectural beauty with dramatic two-story windows that make you feel as if you are bringing nature inside.
  • Clean lines and high ceilings enhance the contemporary feel while stone columns add texture.
  • Folding doors off the nook open the home to the outdoor living area with its fireplace and outdoor kitchen.
  • The enormous kitchen is wide open to the great room, creating sweeping views.
  • Most of the bedrooms are on the second floor with the master suite at the end of a bridge that overlooks the great room below.
  • Step out of your luxurious master suite onto your own covered porch where you can greet the morning with your cup of coffee.
  • A huge bonus room can also become another bedroom with its access to a shared bathroom.
  • Related Plans: Remove the porte-cochere extension and get 3 garages on the corner with house plan 23620JD (4,555 sq. ft.). Downsize to 2,550 sq. ft. with house plans 23566JD (crawlspace) and 23567JD (basement).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,750 sq. ft.
  • 1st Floor: 2,745 sq. ft.
  • 2nd Floor: 2,005 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 83' 0"
  • Depth: 168' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 1435 sq. ft.
  • Count: 4 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
