Barndominium-style House Plan with Home Office and Two-story Great Room

Plan 623032DJ

  • 2,810

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 3

    Cars

  • This stunning barndominium-style house plan has a barn-like exterior with board and batten siding, large windows, and barn doors. Just inside the side entry of the home, you'll find a practical office that is perfect for anyone who works from home.
  • The great room, kitchen, and dining room flow seamlessly in a wide open layout. The high ceilings in the great room make the space feel massive. A fireplace warms the great room and is flanked by bult-in bookshelves. The kitchen includes a large island and a walk-in pantry.
  • The master suite is situated on the right side of the home for privacy. The master bathroom includes a soaking tub, his/her vanities, an enclosed toilet, and a walk-in shower. The master closet has convenient access to the laundry room.
  • On the left side of the home, bedrooms 2 and 3 share a centrally located hall bathroom with the main living area. An amazing loft overlooks the great room.
  • The home's large 3 car garage has a high cathedral ceiling and accesses the home through a mud room that includes a bench and lockers.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

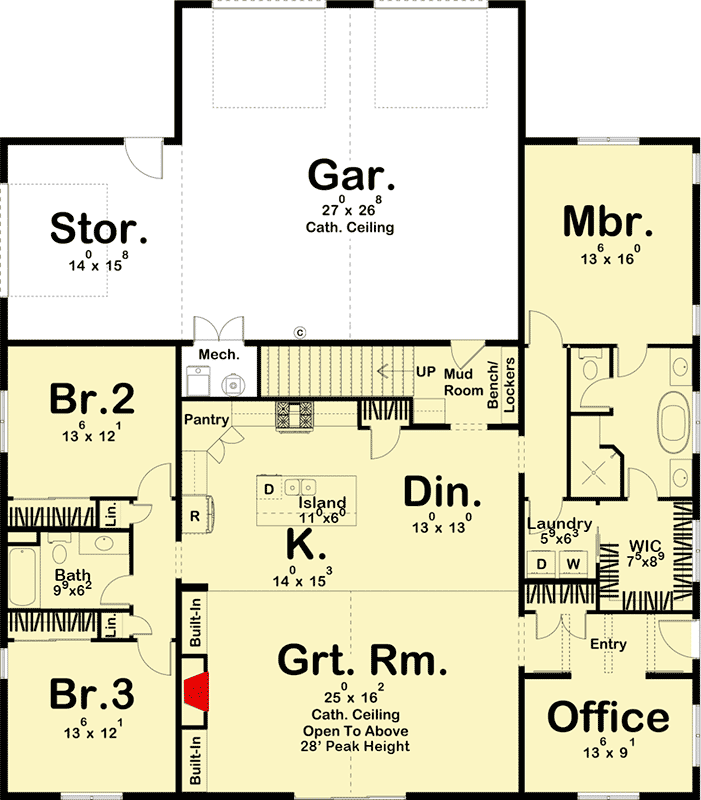

Barndominium-style House Plan with Home Office and Two-story Great Room - 623032DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

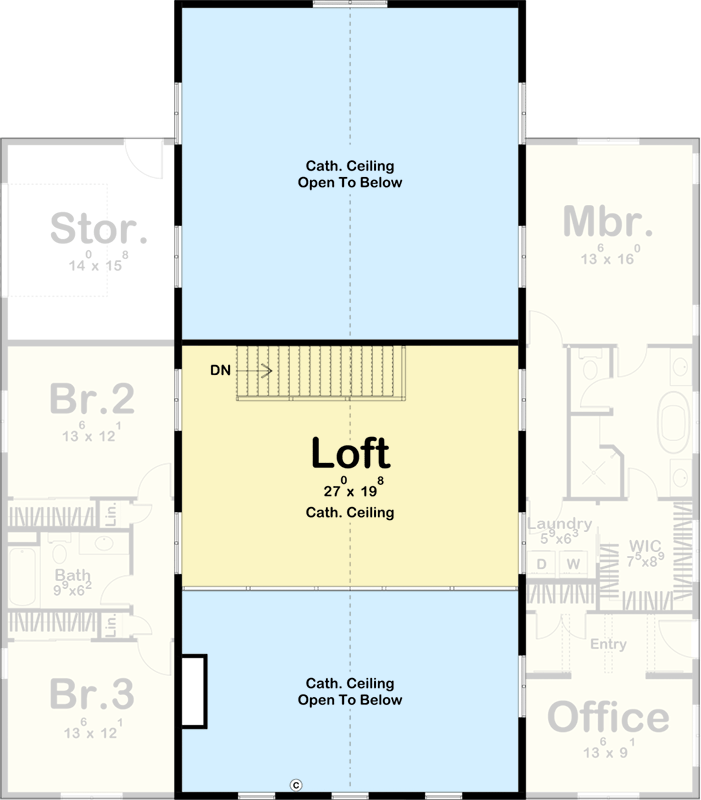

Barndominium-style House Plan with Home Office and Two-story Great Room - 623032DJ floor plan - 2nd Floor

Main Level - Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

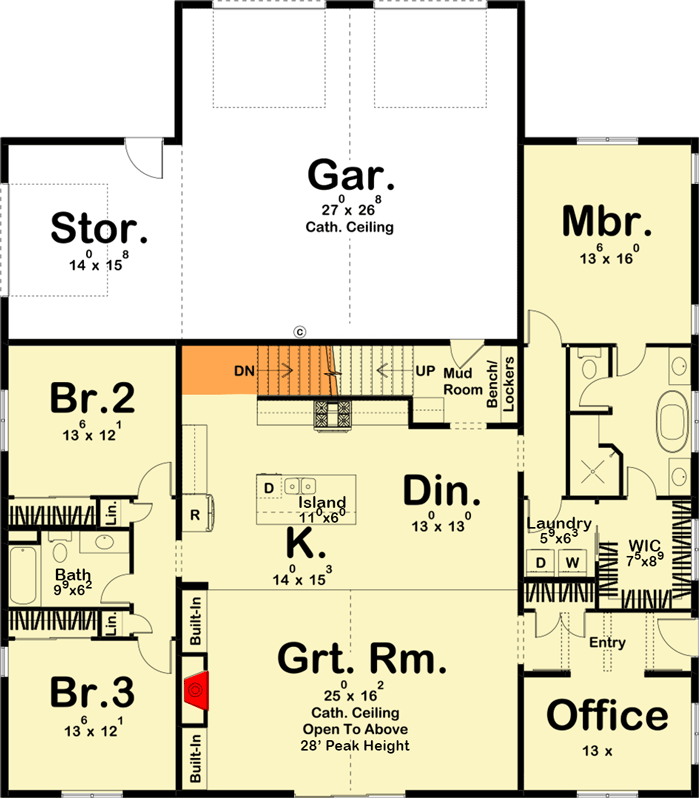

Barndominium-style House Plan with Home Office and Two-story Great Room - 623032DJ floor plan - Main Level - Basement Stair Location
