Beautiful 4 Bed Shingle Style House Plan

Plan 23344JD

  • 3,555

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

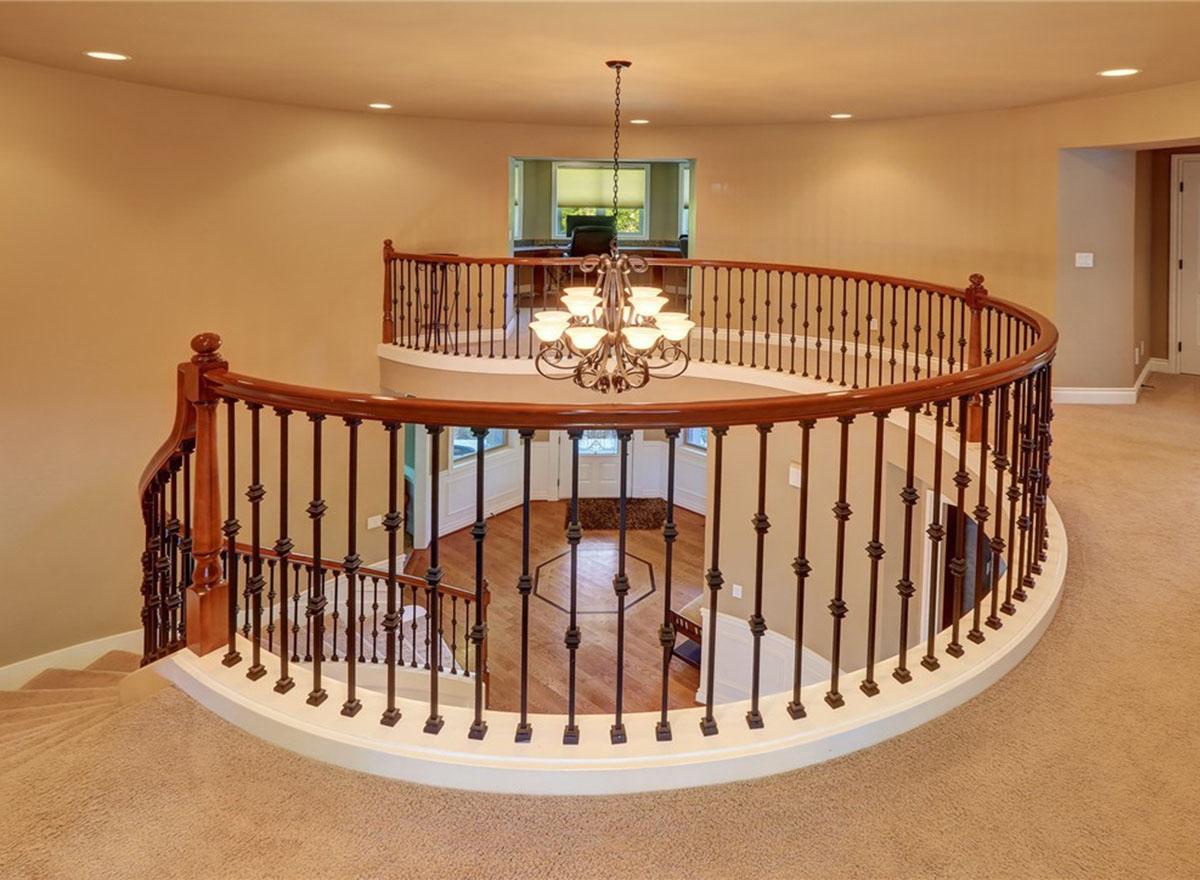

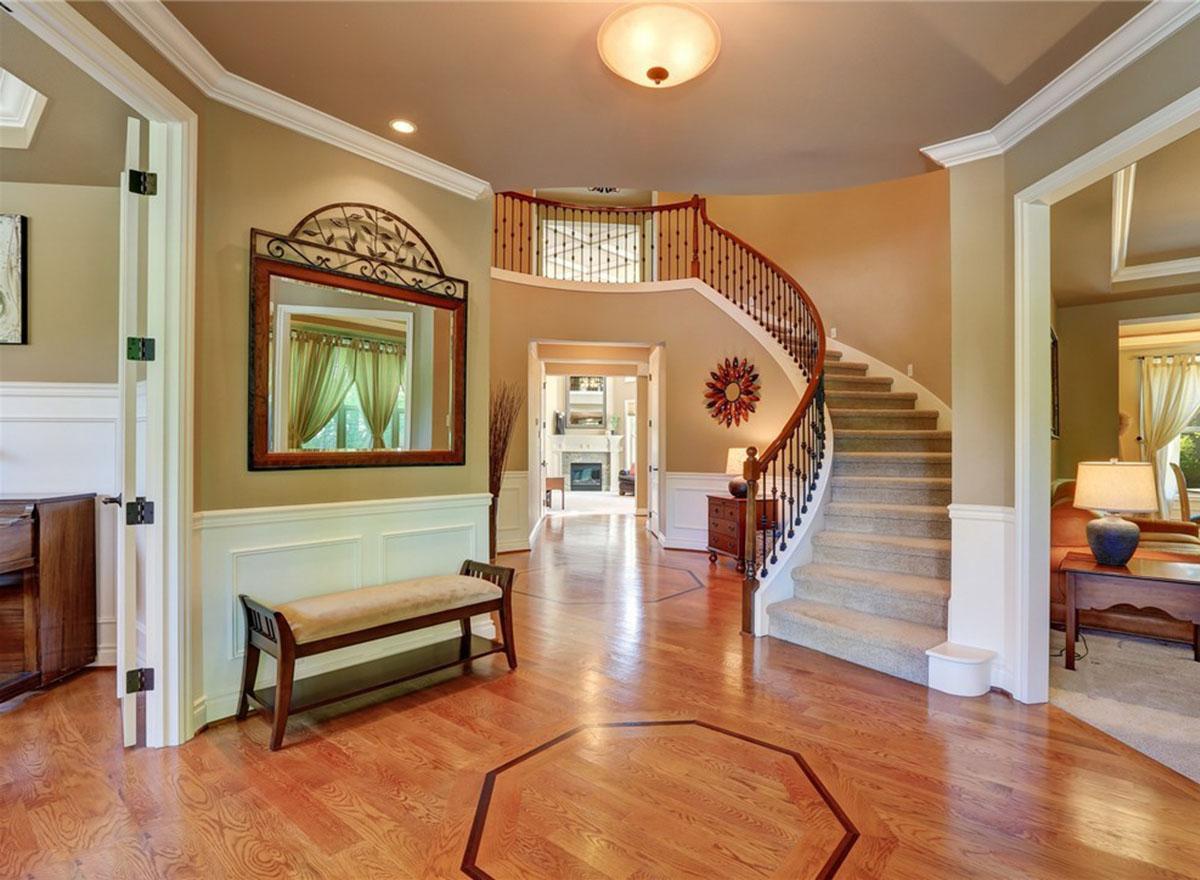

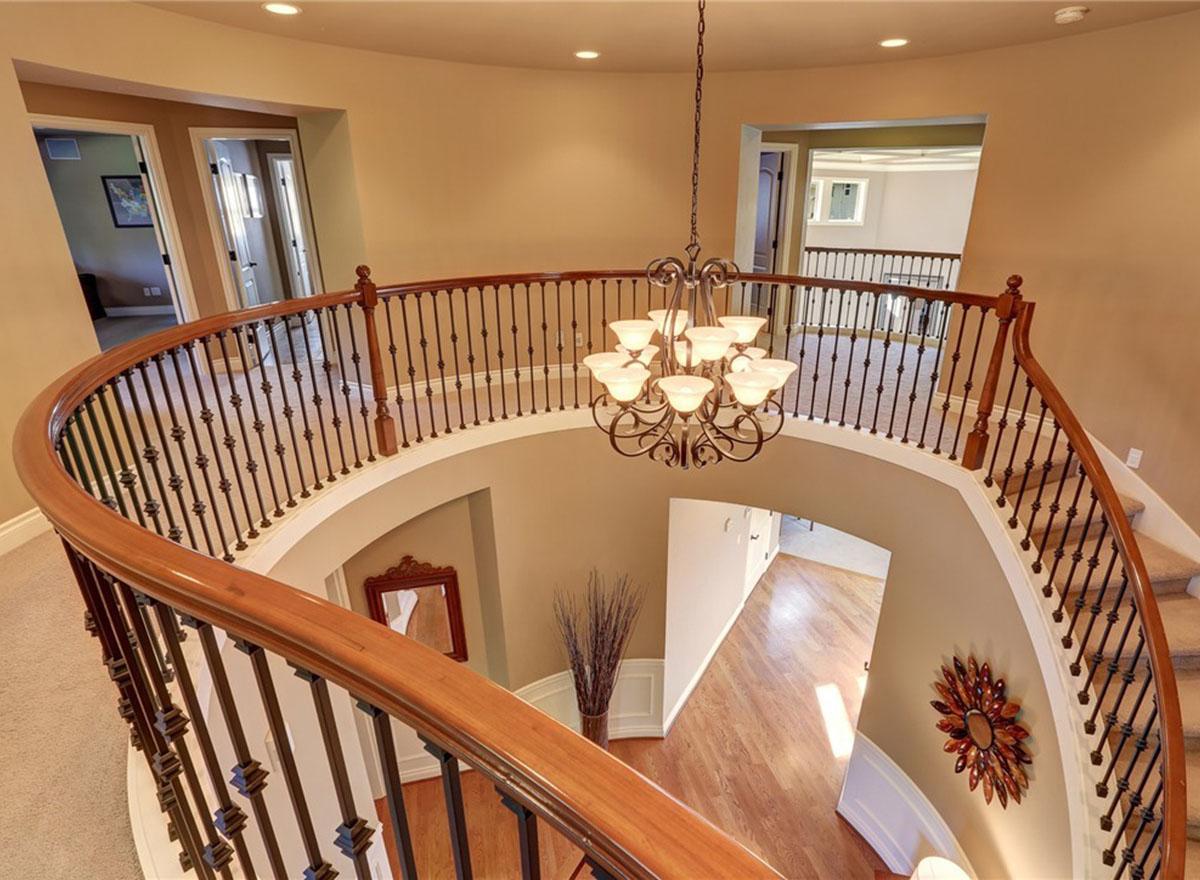

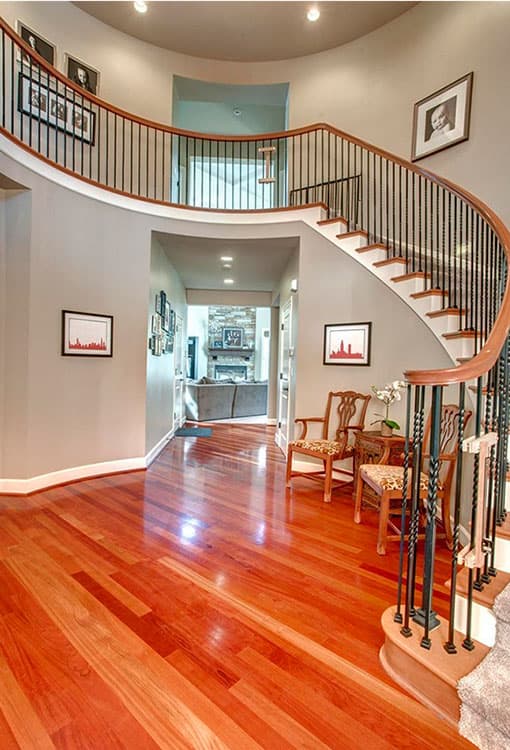

  • This popular house plan comes in a number of versions all with the signature central rotunda with a curved stair.

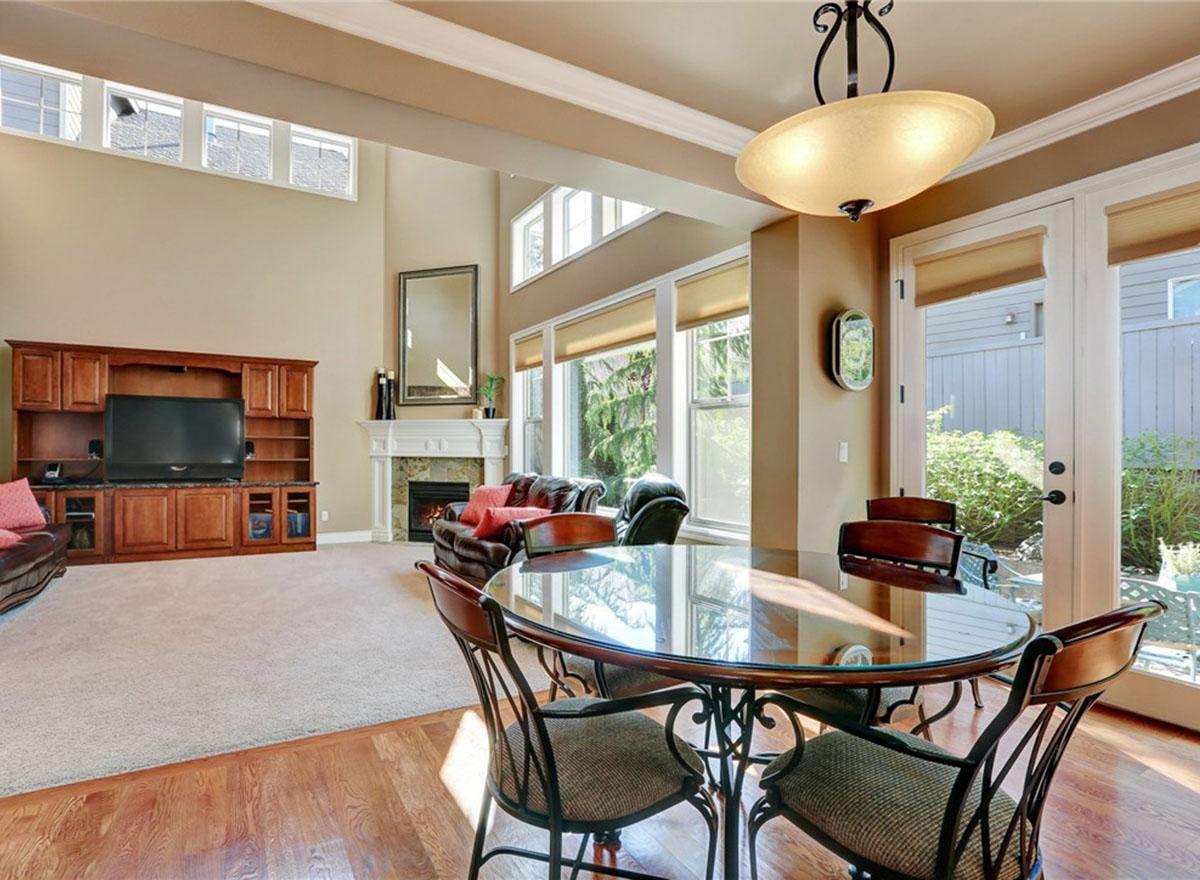

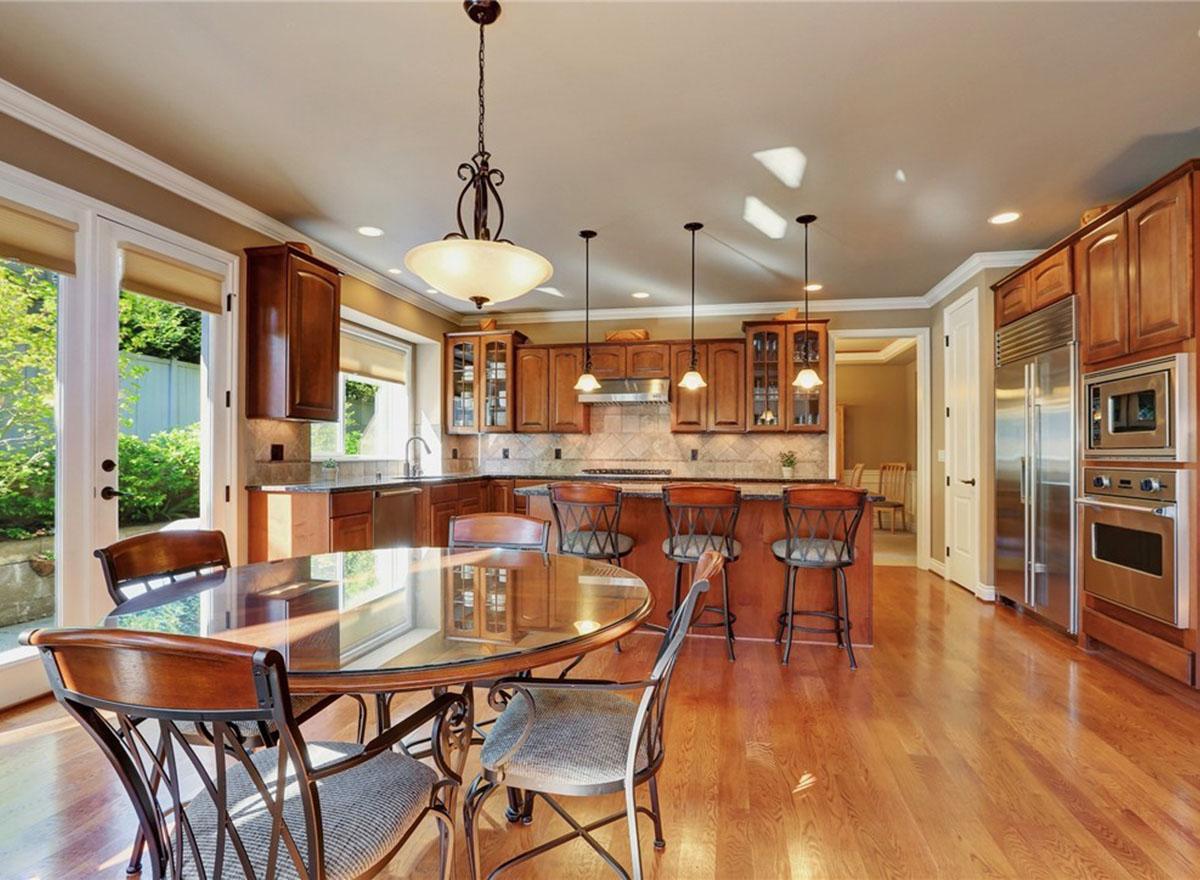

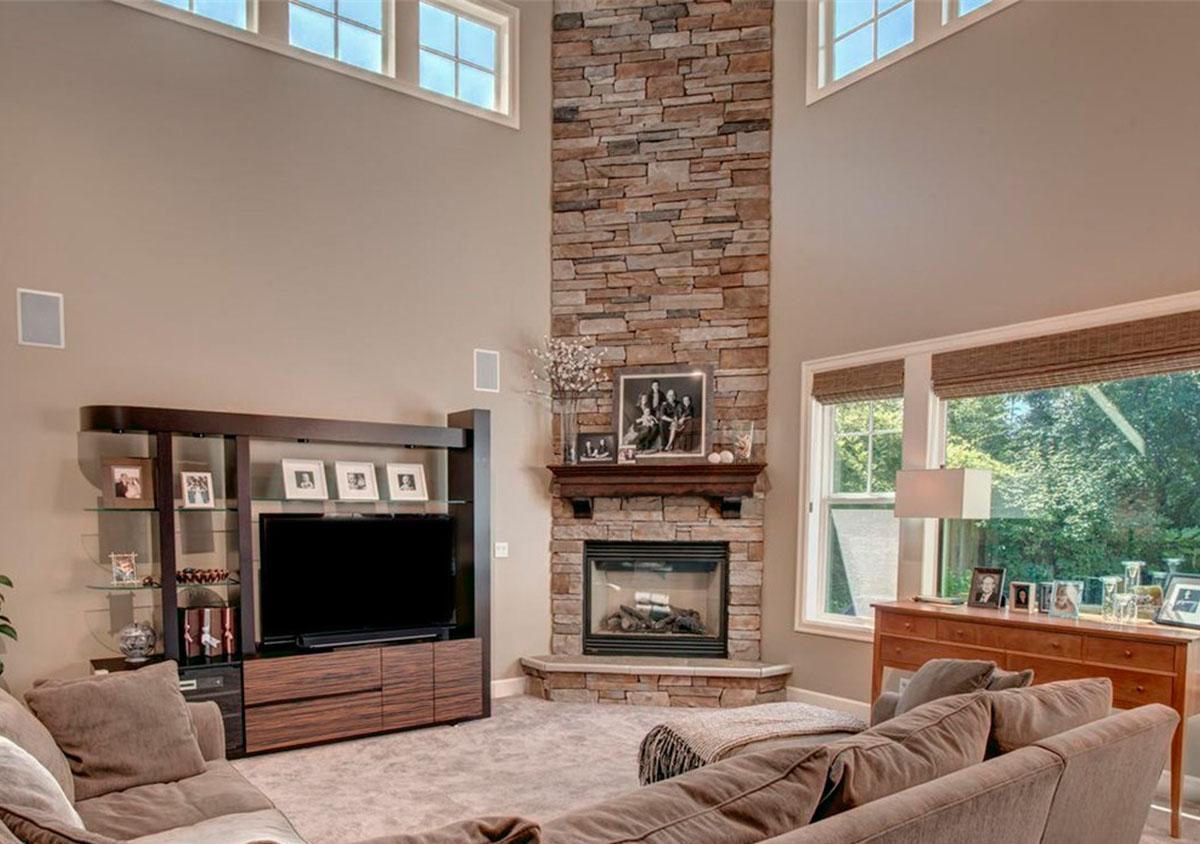

  • The rotunda serves as a traffic cop sending traffic to the entertaining spaces of the living and dining rooms and the family spaces with the open 2-story family room and kitchen.

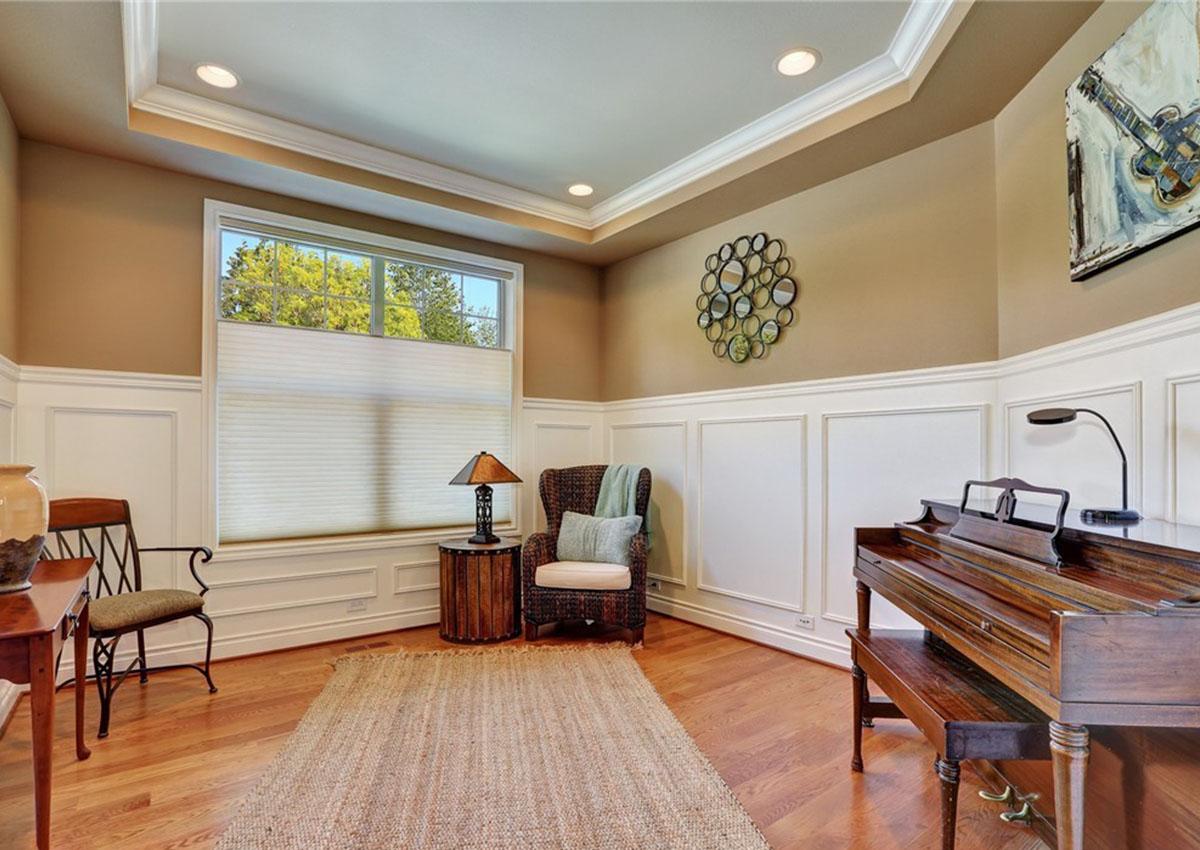

  • A quiet den is located off the foyer behind french doors.

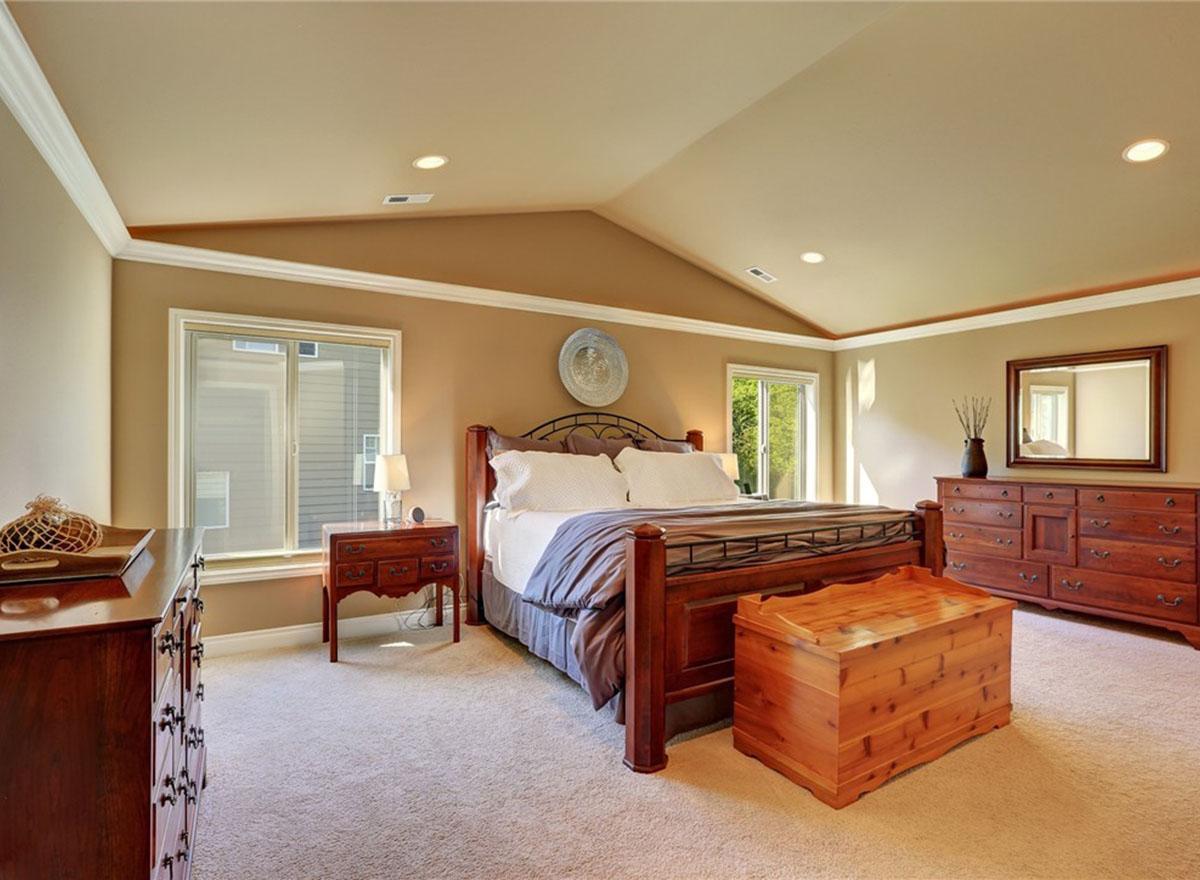

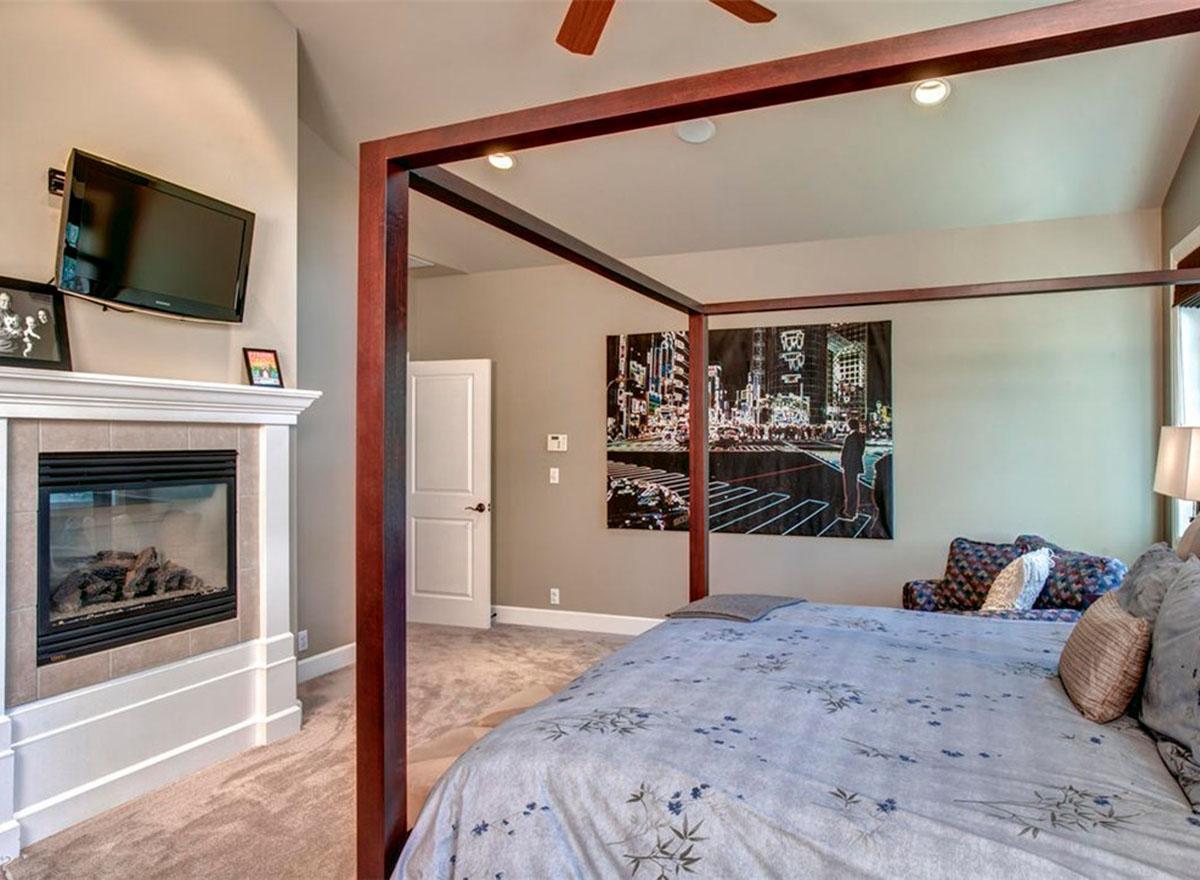

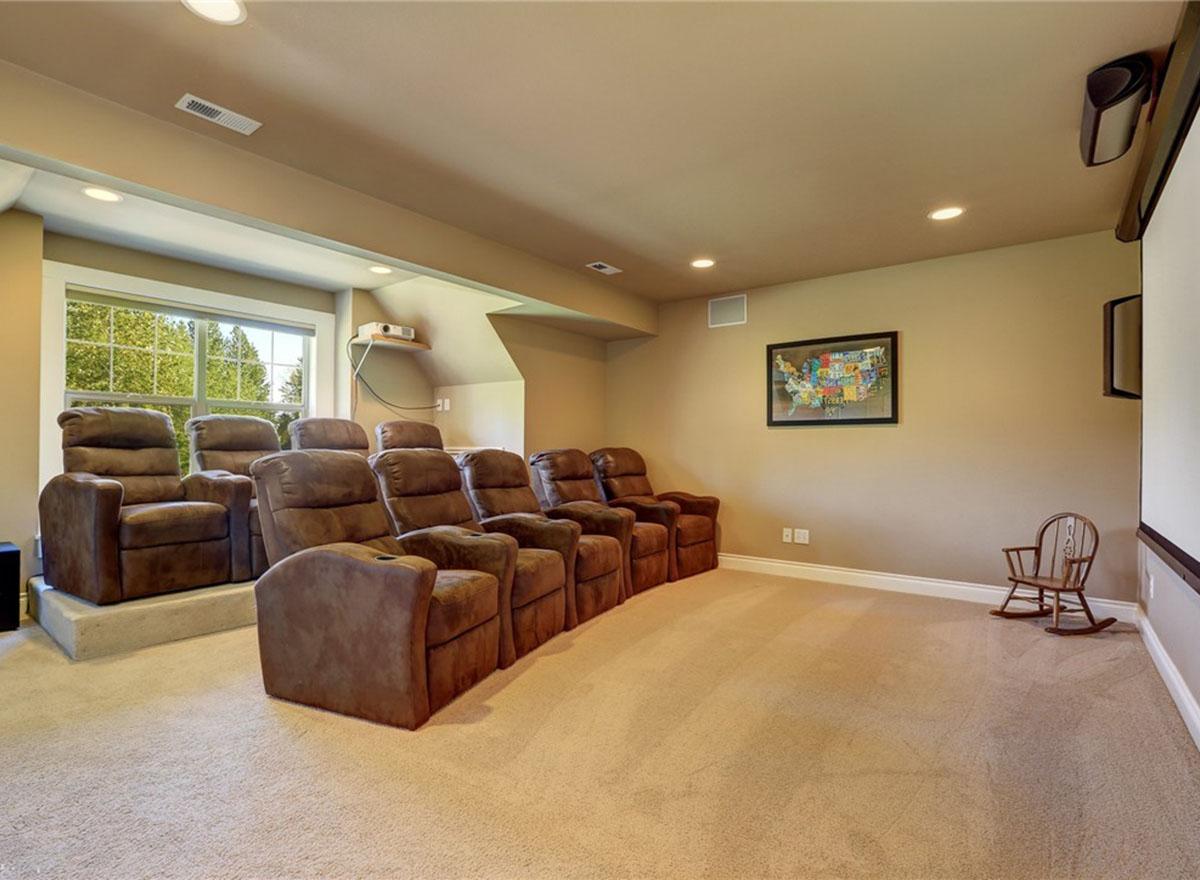

  • Upstairs, the vaulted master bedroom has its own fireplace and walk-in closet. Three more bedrooms and a bonus room, plus a centrally located laundry room, round out the floor. Note, the bonus room is factored into the total living area.
  • Related Plans: Get more room with 23582JD (4,038 sq. ft.).
  • Get a side-entry garage with house plan 23172JD and a basement with house plan 23171JD.
  • Get a Victorian exterior with house plan 2375JD and Craftsman exterior with house plan 23173JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

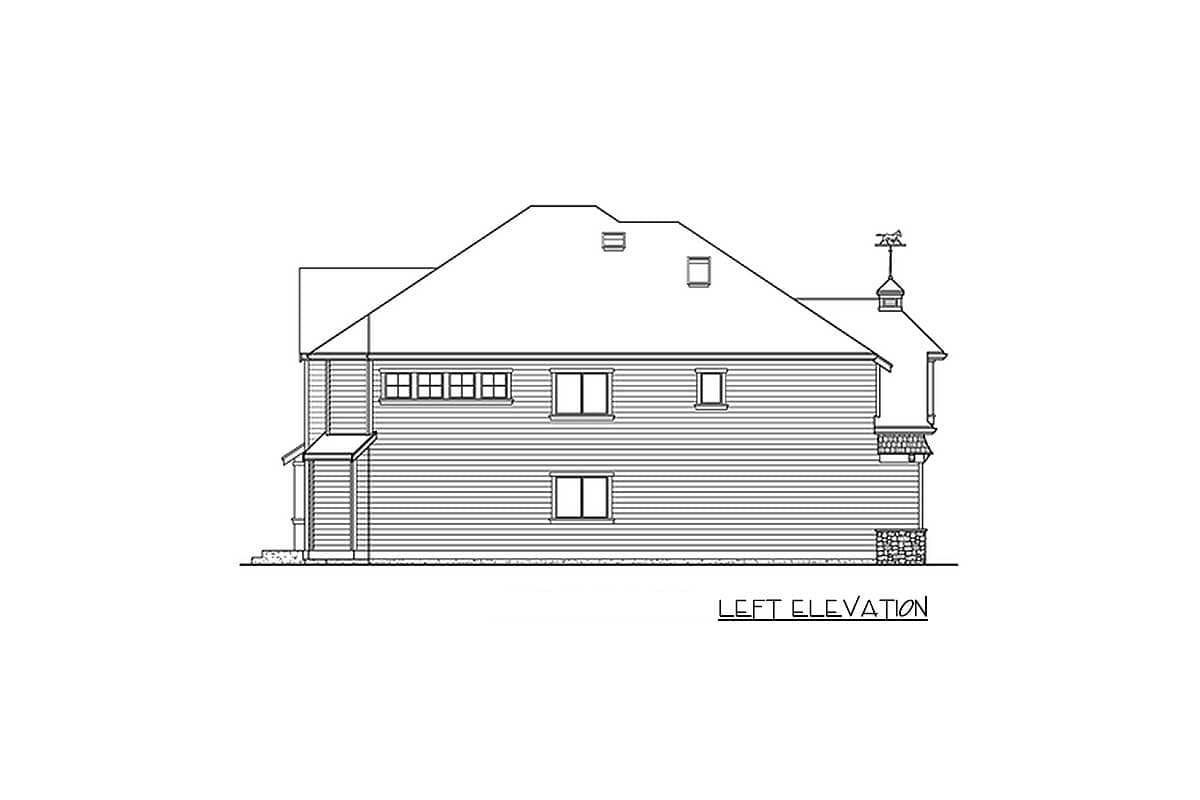

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

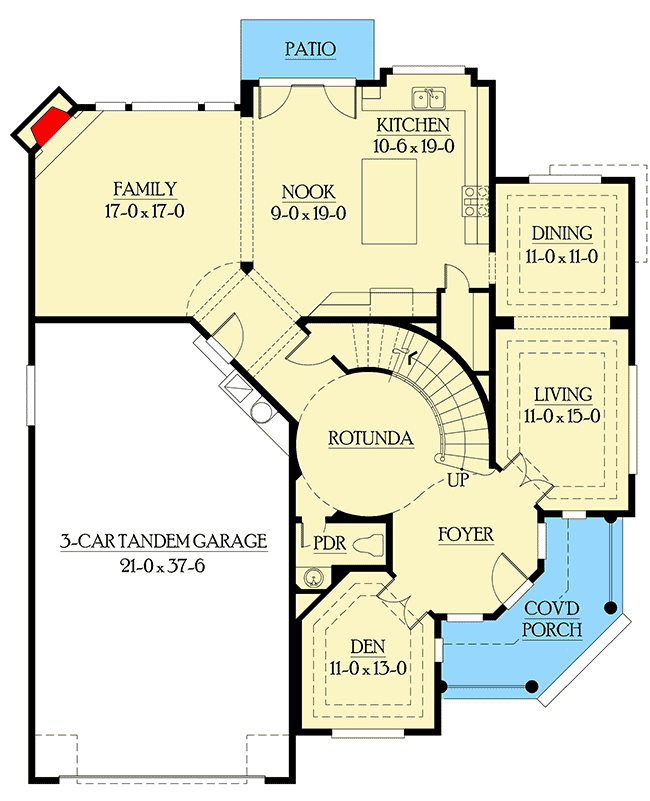

Beautiful 4 Bed Shingle Style House Plan - 23344JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

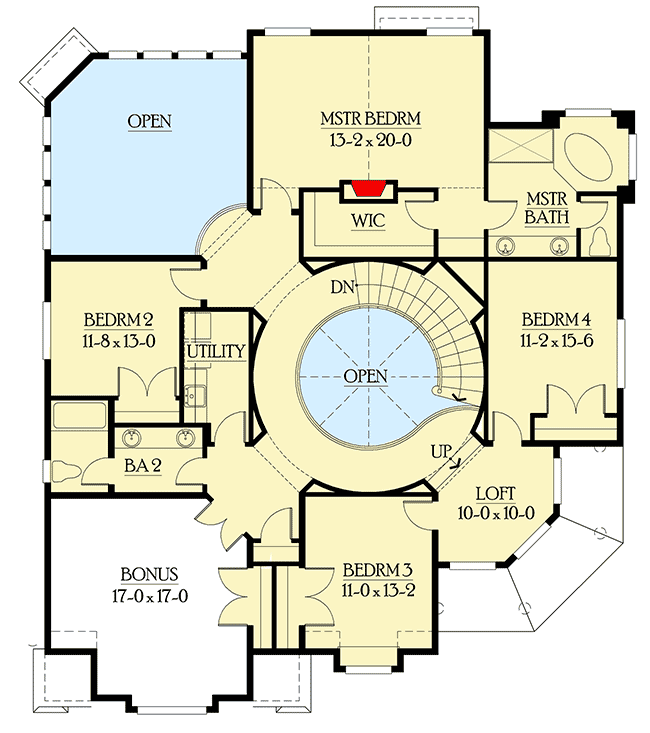

Beautiful 4 Bed Shingle Style House Plan - 23344JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,555 sq. ft.
  • 1st Floor: 1,629 sq. ft.
  • 2nd Floor: 1,926 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 58' 0"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 791 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Beautiful 4 Bed Shingle Style House Plan

  • 3,555

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,200
  • CAD + PDF - Unlimited Build $3,700
  • View all purchase option online

About This Plan

  • This popular house plan comes in a number of versions all with the signature central rotunda with a curved stair.
  • The rotunda serves as a traffic cop sending traffic to the entertaining spaces of the living and dining rooms and the family spaces with the open 2-story family room and kitchen.
  • A quiet den is located off the foyer behind french doors.
  • Upstairs, the vaulted master bedroom has its own fireplace and walk-in closet. Three more bedrooms and a bonus room, plus a centrally located laundry room, round out the floor. Note, the bonus room is factored into the total living area.
  • Related Plans: Get more room with 23582JD (4,038 sq. ft.).
  • Get a side-entry garage with house plan 23172JD and a basement with house plan 23171JD.
  • Get a Victorian exterior with house plan 2375JD and Craftsman exterior with house plan 23173JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,555 sq. ft.
  • 1st Floor: 1,629 sq. ft.
  • 2nd Floor: 1,926 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 58' 0"
  • Max ridge height: 32' 6"

Garage

  • Type: Attached
  • Area: 791 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
