Plan 17806LV
Cleverly-Designed Narrow Lot House Plan
Heated S.F.
1,582
Beds
3
Baths
3
Stories
2
Flyer
Photos
What's Included
Plan Details
  • Stonework and shakes accent the exterior of this narrow lot Northwest house plan.
  • Cleverly designed to maximize the use of space, the home has a two-story foyer that soars upward.
  • A stack washer/dryer closet saves space and the marvelous open layout of the main living area makes the home feel larger.
  • One bedroom is on the first floor and upstairs there are two more bedrooms.
  • A second washer/dryer closet on this floor is a wonderful convenience.
  • The master bedroom gets a walk-in closet and the loft space has an open rail that expands the area.
  • Related Plans: Get different exteriors and layouts with house plan 17805LV (1,572 sq. ft.), house plan 17808LV (1,614 sq. ft.) and house plan 17809LV (1,713 sq. ft.).
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans

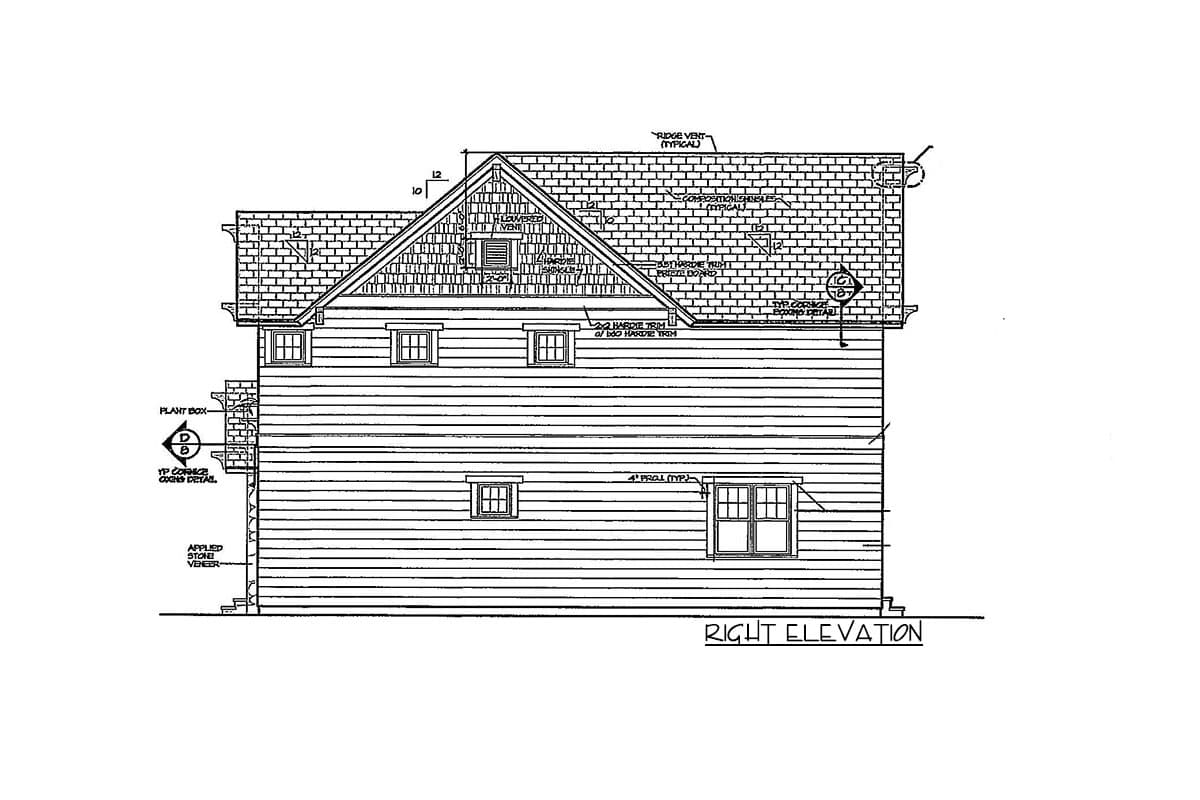

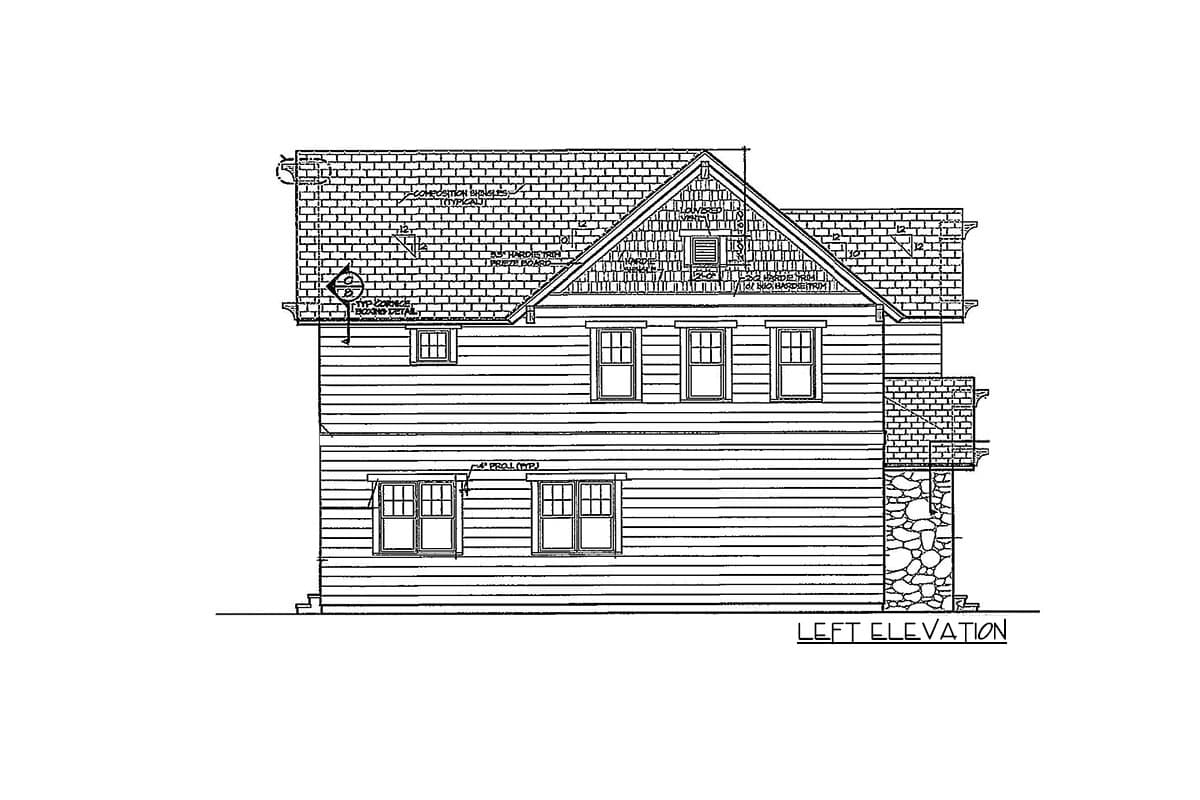

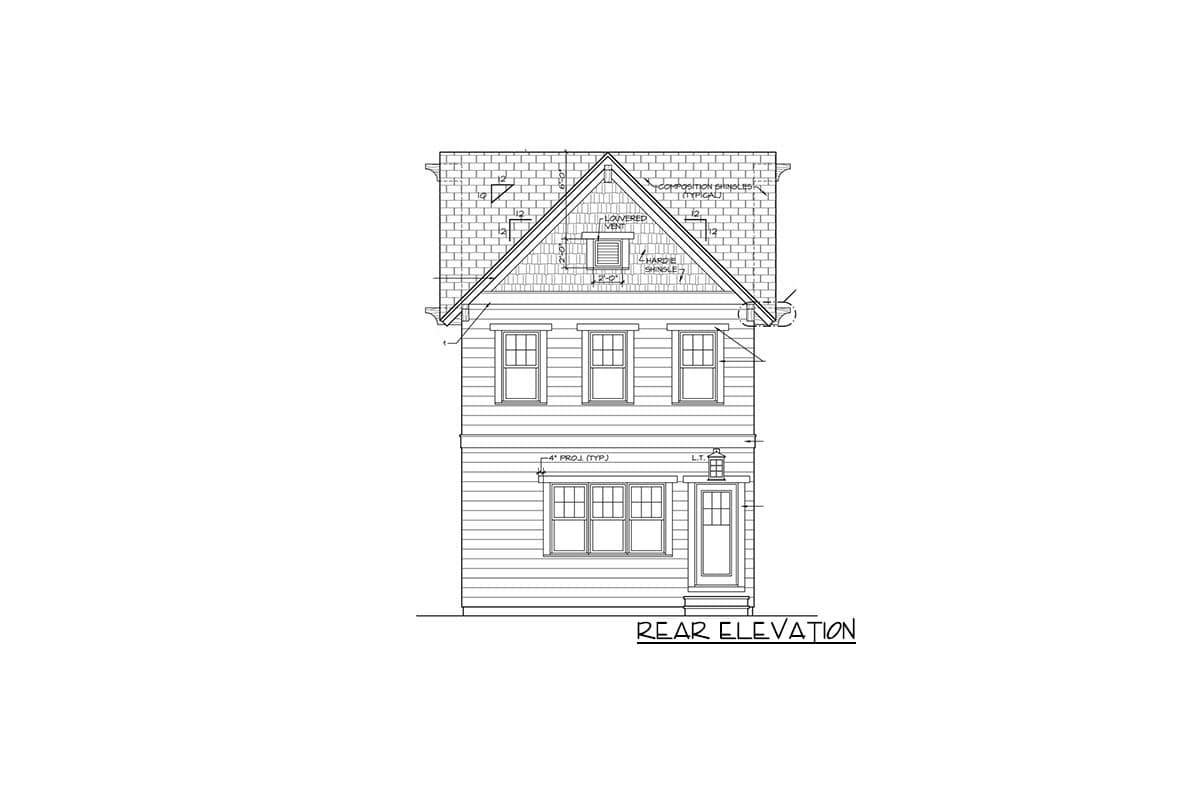

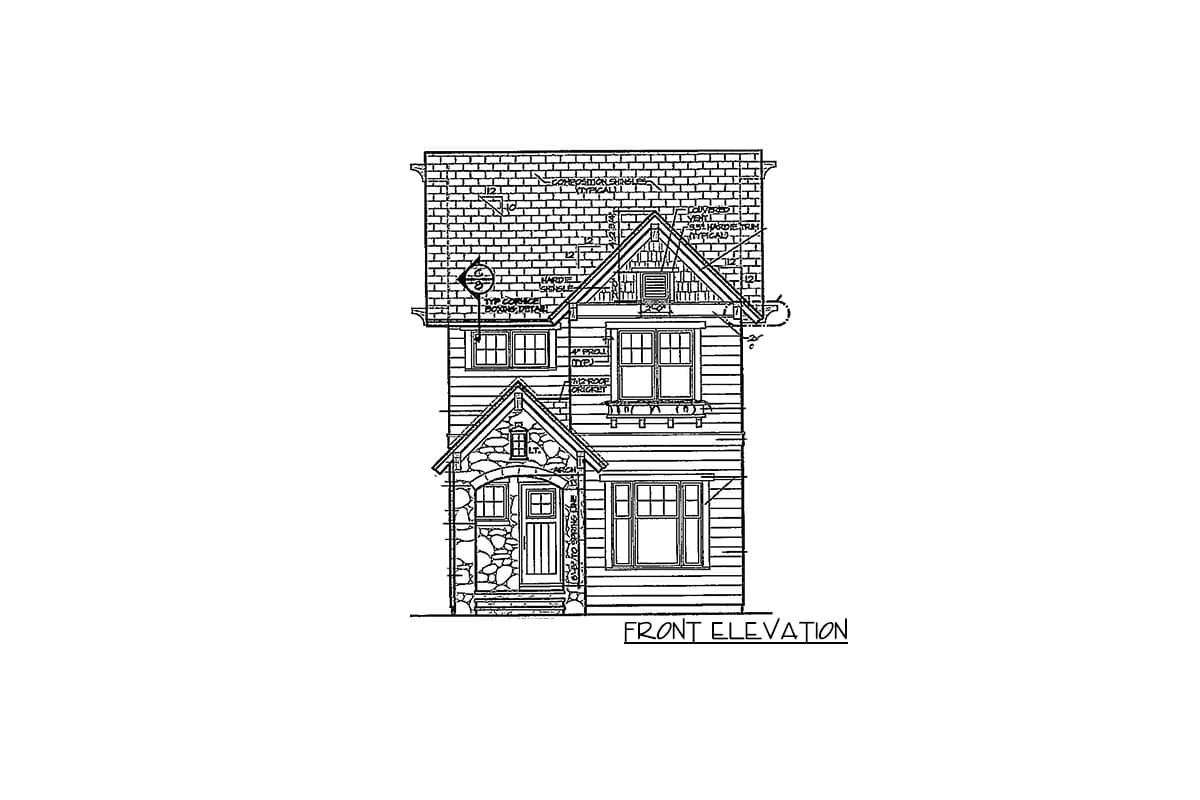

  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Cleverly-Designed Narrow Lot House Plan

  • 1,582

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Floor Plan

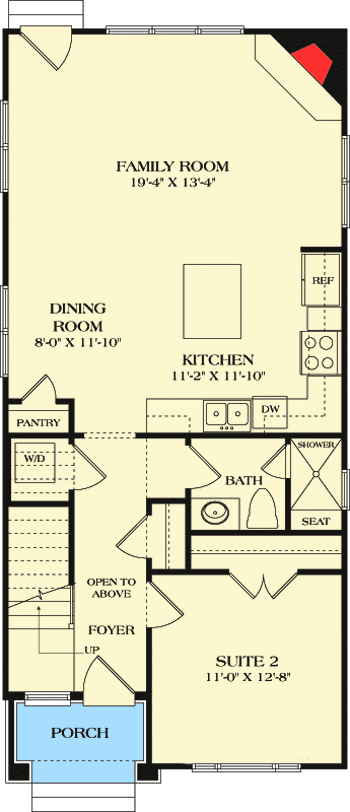

  • Main Level

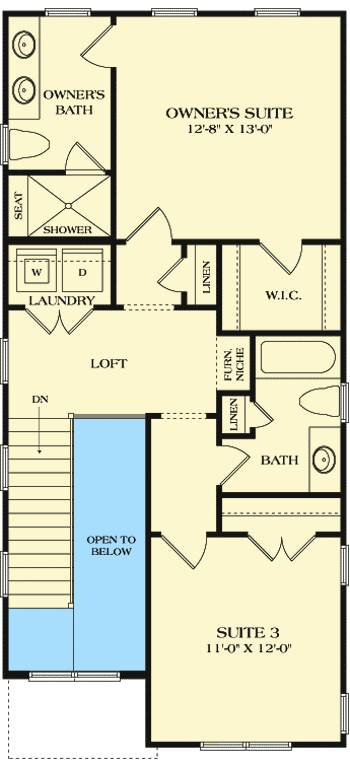

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,582 sq. ft.
  • 1st Floor: 820 sq. ft.
  • 2nd Floor: 762 sq. ft.

Dimensions

  • Width: 20' 0"
  • Depth: 43' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
