Cleverly-Designed Narrow Lot Home Plan

Plan 17808LV

  • 1,614

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • Metal roofing and shakes accent the exterior of this narrow lot Northwest house plan.
  • Cleverly designed to maximize the use of space, the home makes use of every inch of its 20' wide footprint.
  • A stack washer/dryer closet saves space and the marvelous open layout of the main living area makes the home feel larger.
  • One bedroom is on the first floor and upstairs there are two more bedrooms.
  • A second washer/dryer closet on this floor is a wonderful convenience.
  • Each bedroom on this level gets a walk-in closet and the loft space has an open rail that expands the area.
  • Related Plans: Get different exteriors and layouts with house plan 17805LV (1,572 sq. ft.), house plan 17806LV (1,582 sq. ft.) and house plan 17809LV (1,713 sq. ft.).

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

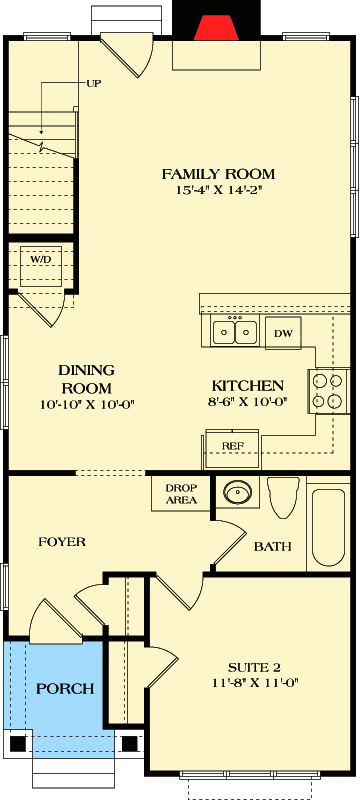

Cleverly-Designed Narrow Lot Home Plan - 17808LV floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

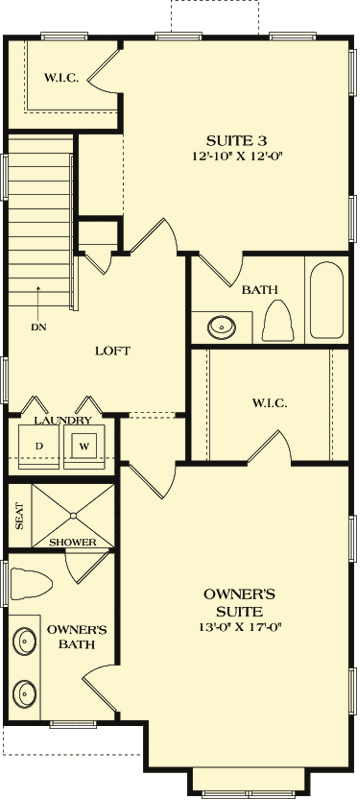

Cleverly-Designed Narrow Lot Home Plan - 17808LV floor plan - 2nd Floor

Architectural Style

Plan Collections

Cleverly-Designed Narrow Lot Home Plan

  • 1,614

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,614 sq. ft.
  • 1st Floor: 786 sq. ft.
  • 2nd Floor: 828 sq. ft.

Dimensions

  • Width: 20' 0"
  • Depth: 44' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
