Plan 623621DJ

Coastal Contemporary House Plan with Courtyard and Upstairs Master Suite

Heated S.F.
3,827
Beds
4
Baths
4.5
Stories
2
Tour

Floor Plan

Plan 623621DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623621DJ

M-F 9am-5pm EST |

1-203-761-8500

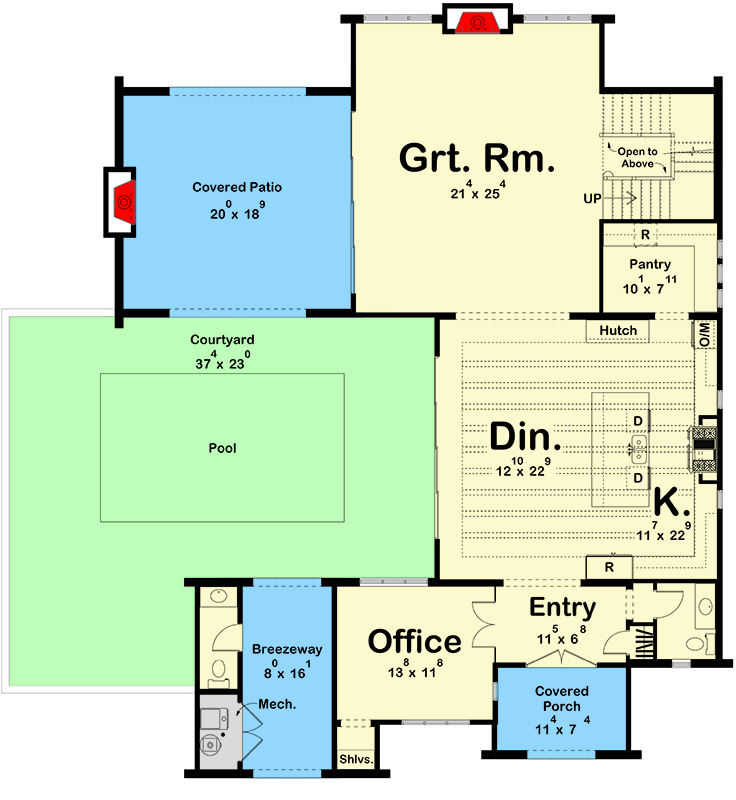

Main Level

Plan 623621DJ: Coastal Contemporary House Plan with Courtyard and Upstairs Master Suite - Floor Plan - Main Level - Coastal Contemporary, Contemporary, Florida-Style

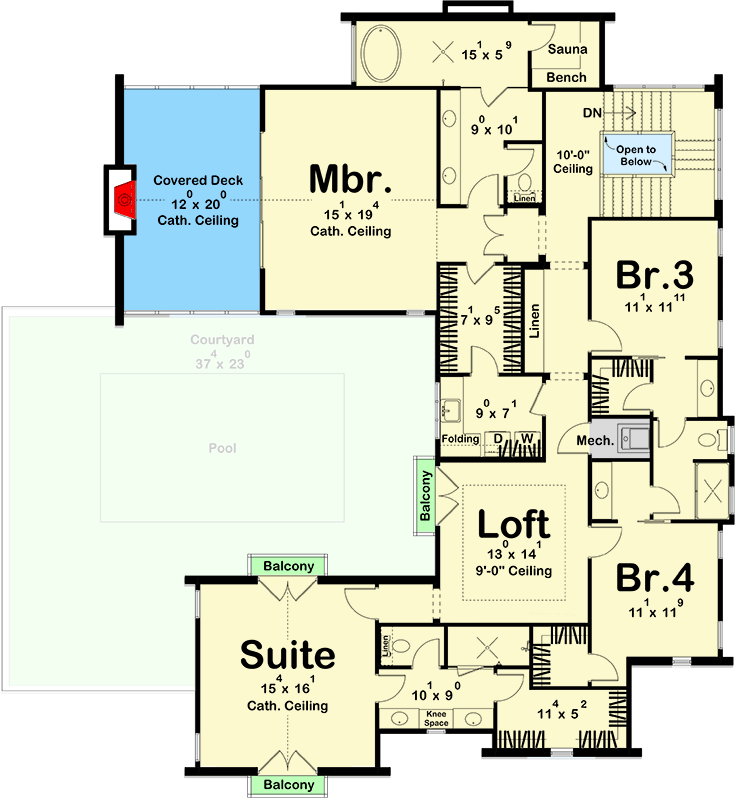

2nd Floor

Plan 623621DJ: Coastal Contemporary House Plan with Courtyard and Upstairs Master Suite - Floor Plan - 2nd Floor - Coastal Contemporary, Contemporary, Florida-Style

Plan Details

  • This 3,827 sq ft Coastal Contemporary House Plan offers 4 bedrooms, 4.5 baths, and features a distinctive white stucco exterior with gabled roofs.
  • Experience a grand arrival through an arched main entry or access the home via a private gated courtyard, setting a tone of elegant privacy.
  • The layout includes a dedicated home office and a practical butler walk-in pantry, enhancing daily living and entertaining possibilities.
  • The primary suite is thoughtfully located upstairs with direct laundry access, offering a private retreat, while secondary clustered bedrooms share a convenient Jack & Jill bath.
  • A versatile loft space provides an additional area for relaxation or hobbies, complementing the home's open and airy design.
  • Enjoy outdoor living with 652 sq ft of combined porch space and a charming courtyard featuring an inviting outdoor fireplace.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,827 sq. ft.

1st Floor

1,758 sq. ft.

2nd Floor

2,069 sq. ft.

Porch, Combined

652 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

67' 8"

Max Ridge Height

35' 3"

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Coastal Contemporary

Contemporary

Florida-Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Courtyard

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Upstairs

Loft

Master Suite - Upstairs

Outdoor Fireplace

Square Footage Breakdown

Total Heated Area

3,827 sq. ft.

1st Floor

1,758 sq. ft.

2nd Floor

2,069 sq. ft.

Porch, Combined

652 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 0"

Depth

67' 8"

Max Ridge Height

35' 3"

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Coastal Contemporary

Contemporary

Florida-Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Courtyard

Home Office

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Upstairs

Loft

Master Suite - Upstairs

Outdoor Fireplace
