Contemporary Northwest Home Plan with Main-level Apartment

Plan 68745VR

  • 1,957

    Heated s.f.

  • 2

    Beds

  • 2.5+

    Baths

  • 2

    Stories

  • 2

    Cars

  • The rectangular shape of this Contemporary Northwest home plan provides a modern aesthetic while keeping budget in mind.
  • The double garage offers entry into the main-level apartment (complete with a kitchenette, living space, full bath, and laundry) and the foyer to the second-level living space.
  • A coat closet and built-in bench in the entry helps when you are a hurry, and the staircase leads directly into the upstairs living room, dining area, and kitchen.
  • Have guests keep you company at the eating bar included in the island, or retreat to the deck off the living room for some outdoor enjoyment.
  • The bedroom, laundry room, and a full bath line the rear wall of the second level.
  • Related Plans: Gain 2' in width with house plan 68774VR. Remove the finished areas on the ground level with house plan 68648VR and 68541VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

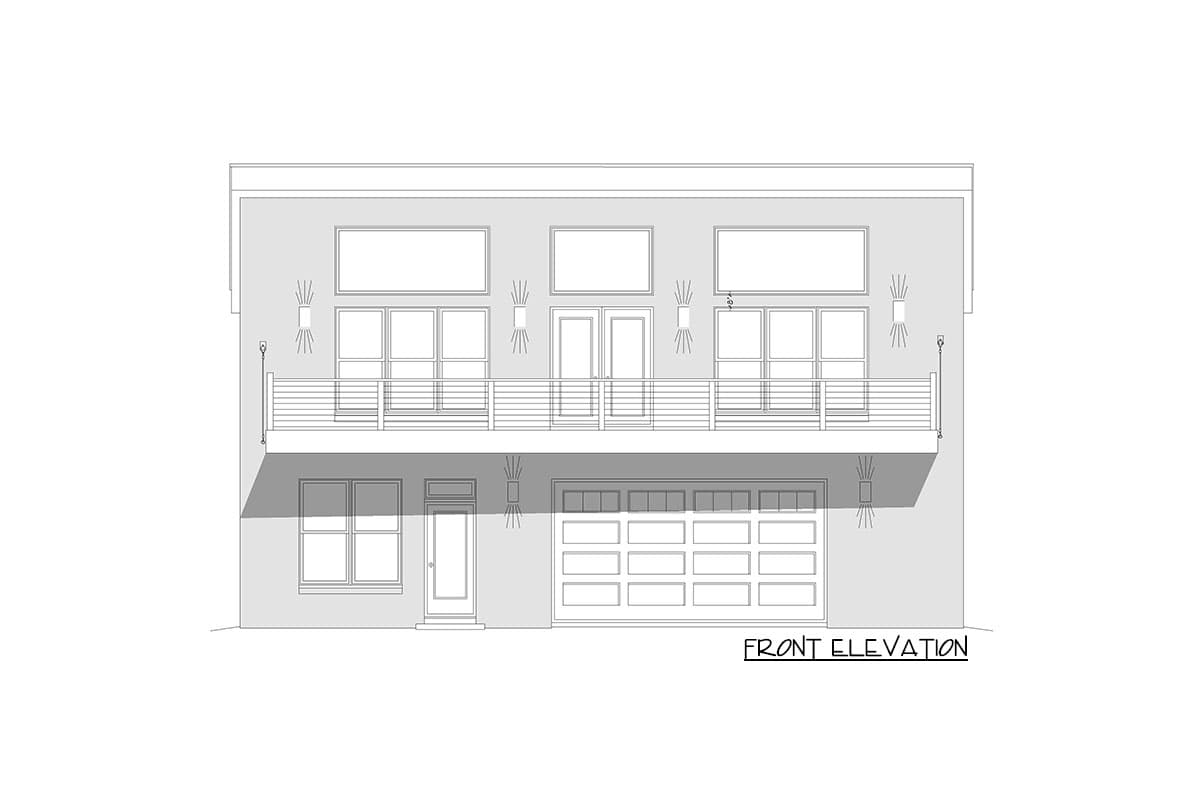

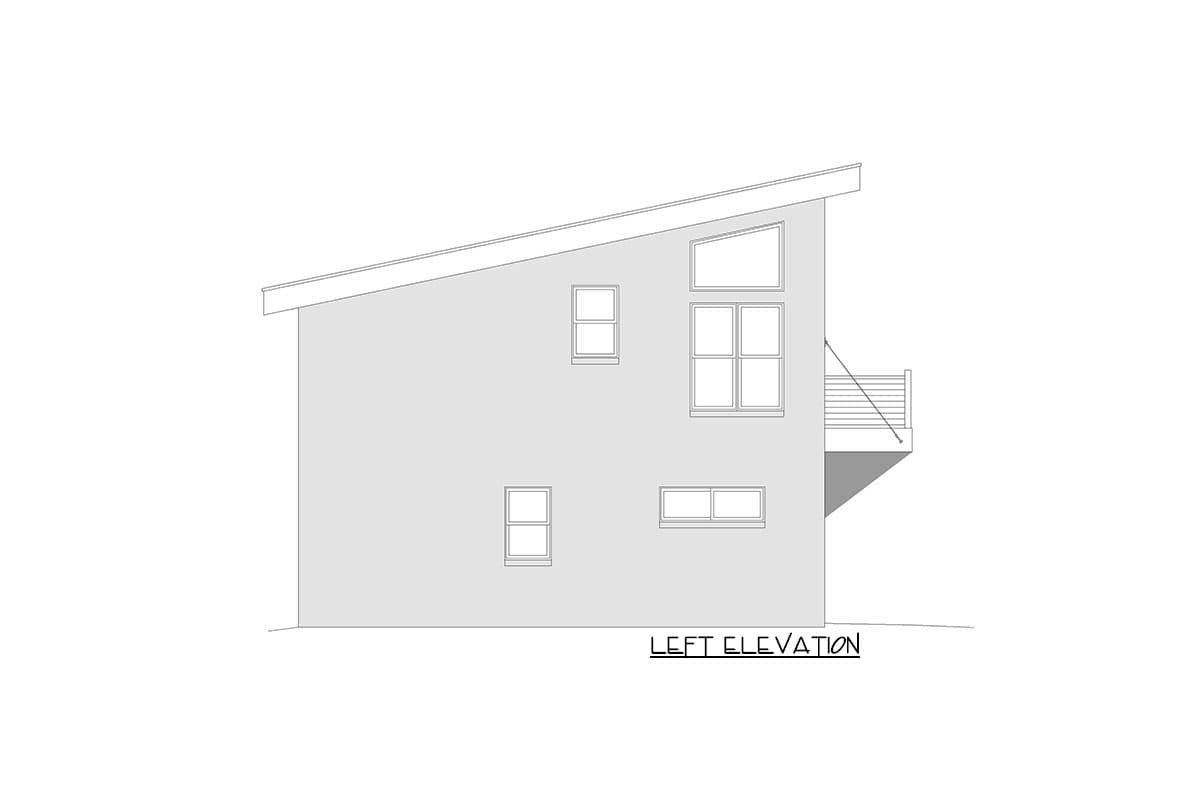

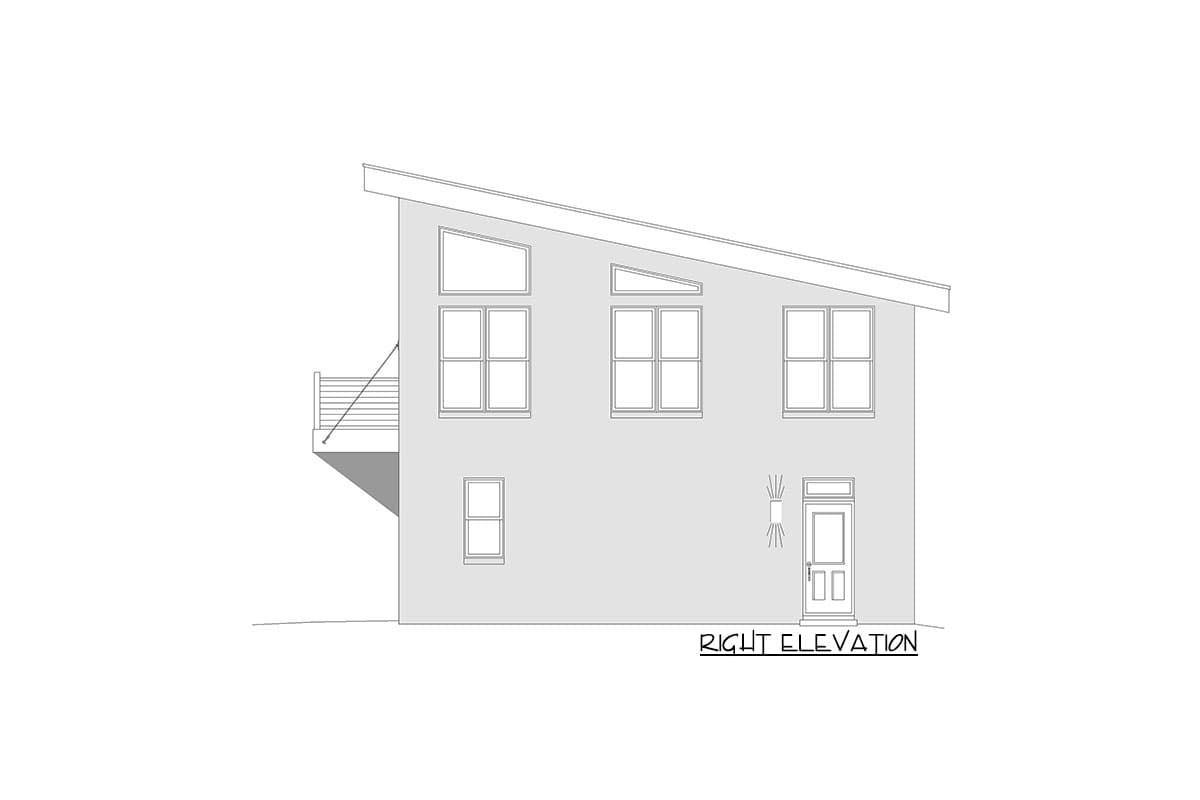

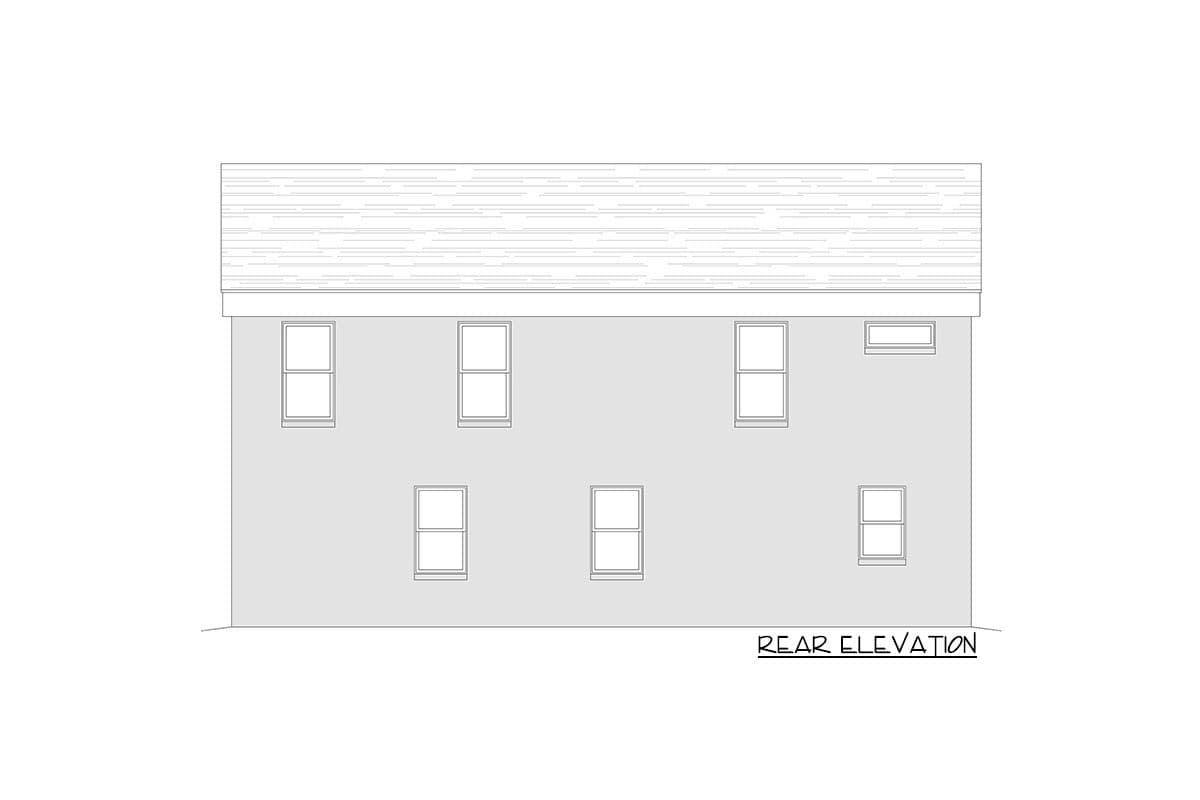

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

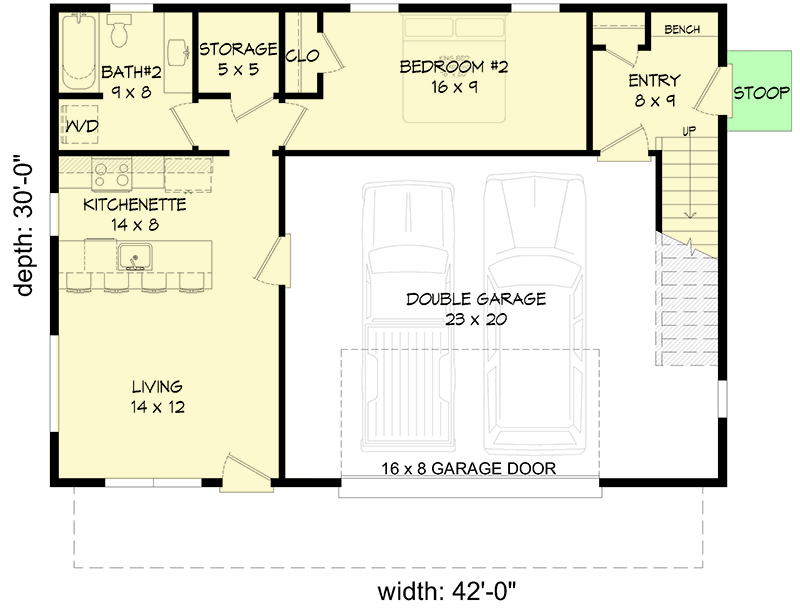

Contemporary Northwest Home Plan with Main-level Apartment - 68745VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

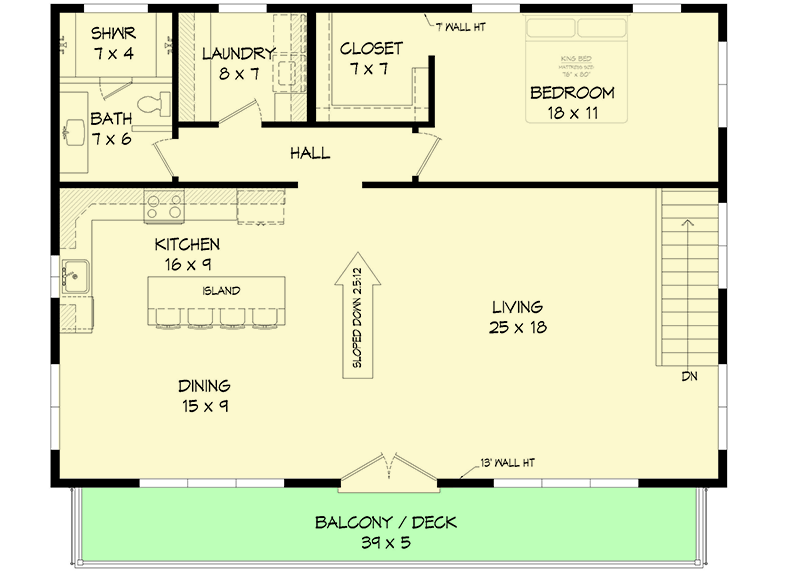

Contemporary Northwest Home Plan with Main-level Apartment - 68745VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,957 sq. ft.
  • 1st Floor: 697 sq. ft.
  • 2nd Floor: 1,260 sq. ft.
  • Balcony / Veranda: 195 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 42' 0"
  • Depth: 30' 0"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 563 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 13' 0"

Roof Details

  • Primary Pitch: 2.5 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Contemporary Northwest Home Plan with Main-level Apartment

  • 1,957

    Heated s.f.

  • 2

    Beds

  • 2.5+

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,095
  • 5 Sets $1,260
  • 5 Sets + PDF $1,307
  • CAD + PDF - Single-Build $1,645
  • View all purchase option online

About This Plan

  • The rectangular shape of this Contemporary Northwest home plan provides a modern aesthetic while keeping budget in mind.
  • The double garage offers entry into the main-level apartment (complete with a kitchenette, living space, full bath, and laundry) and the foyer to the second-level living space.
  • A coat closet and built-in bench in the entry helps when you are a hurry, and the staircase leads directly into the upstairs living room, dining area, and kitchen.
  • Have guests keep you company at the eating bar included in the island, or retreat to the deck off the living room for some outdoor enjoyment.
  • The bedroom, laundry room, and a full bath line the rear wall of the second level.
  • Related Plans: Gain 2' in width with house plan 68774VR. Remove the finished areas on the ground level with house plan 68648VR and 68541VR.
