Plan 68774VR Modern Mountain Home Plan with Ground Floor Apartment

Modern Mountain Home Plan with Ground Floor Apartment

Plan 68774VR

  • 2,056

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • The rectangular shape of this Contemporary mountain home plan provides a modern aesthetic while keeping budget in mind.
  • The double garage offers entry into the main-level apartment (complete with a kitchenette, living space, full bath, and laundry) and the foyer to the second-level living space.
  • A coat closet and built-in bench in the entry helps when you are a hurry, and the staircase leads directly into the upstairs living room, dining area, and kitchen.
  • Have guests keep you company at the eating bar included in the island, or retreat to the deck off the living room for some outdoor enjoyment.
  • The bedroom, laundry room, and a full bath line the rear wall of the second level.
  • Related Plans: Get a smaller version with house plan 68745VR (1,957 sq. ft.). Remove the finished areas on the ground level with house plan 68648VR and 68541VR.

This plan set has the following details:

Cover Page

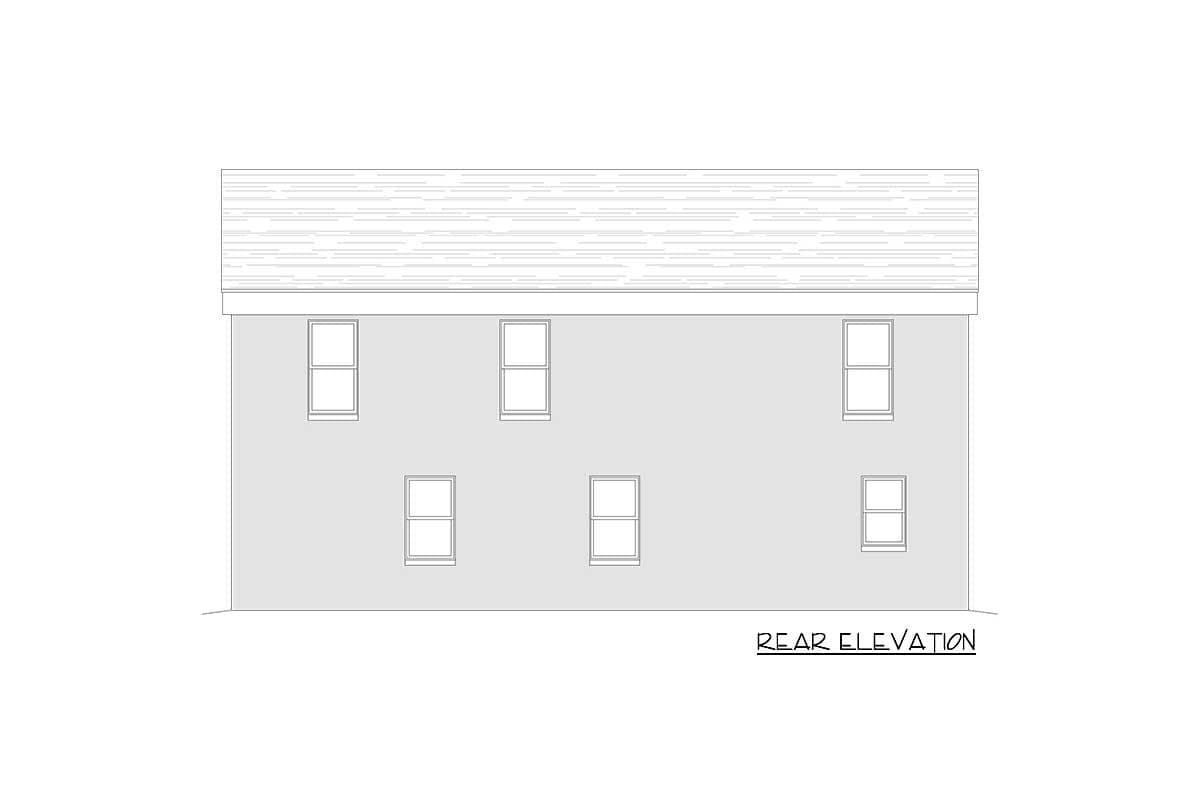

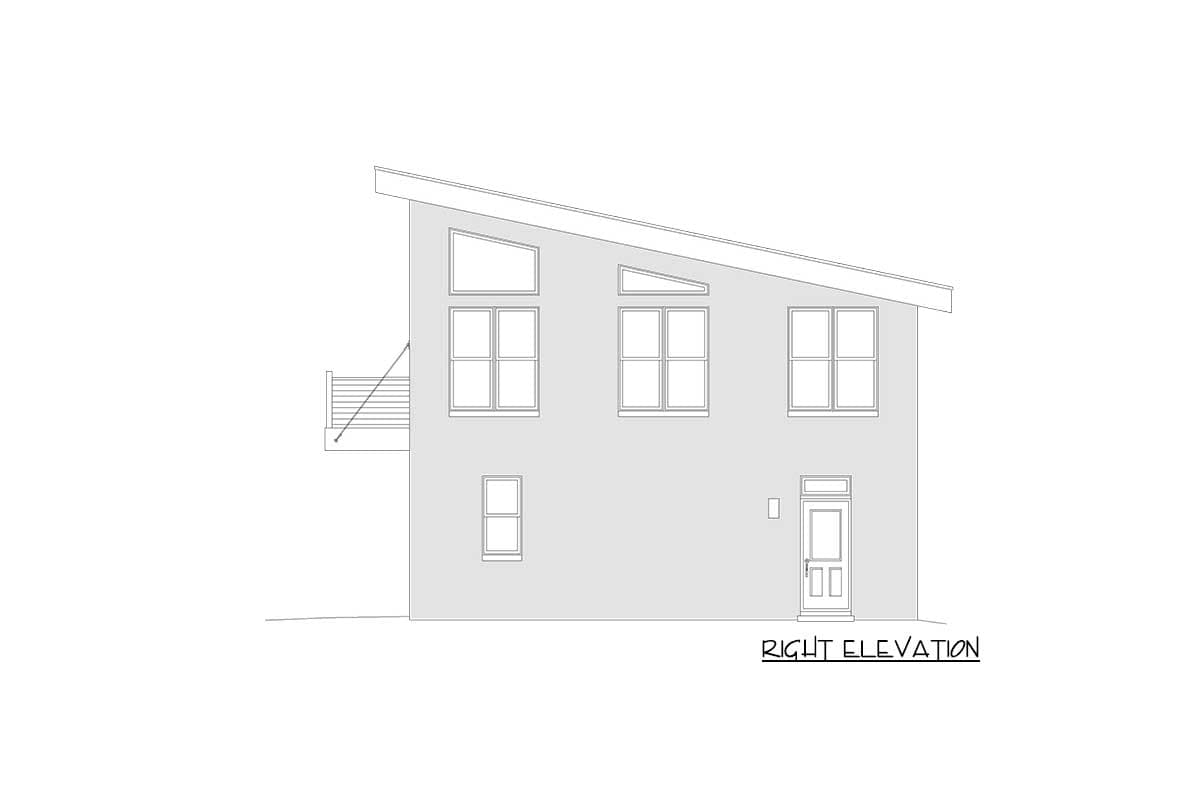

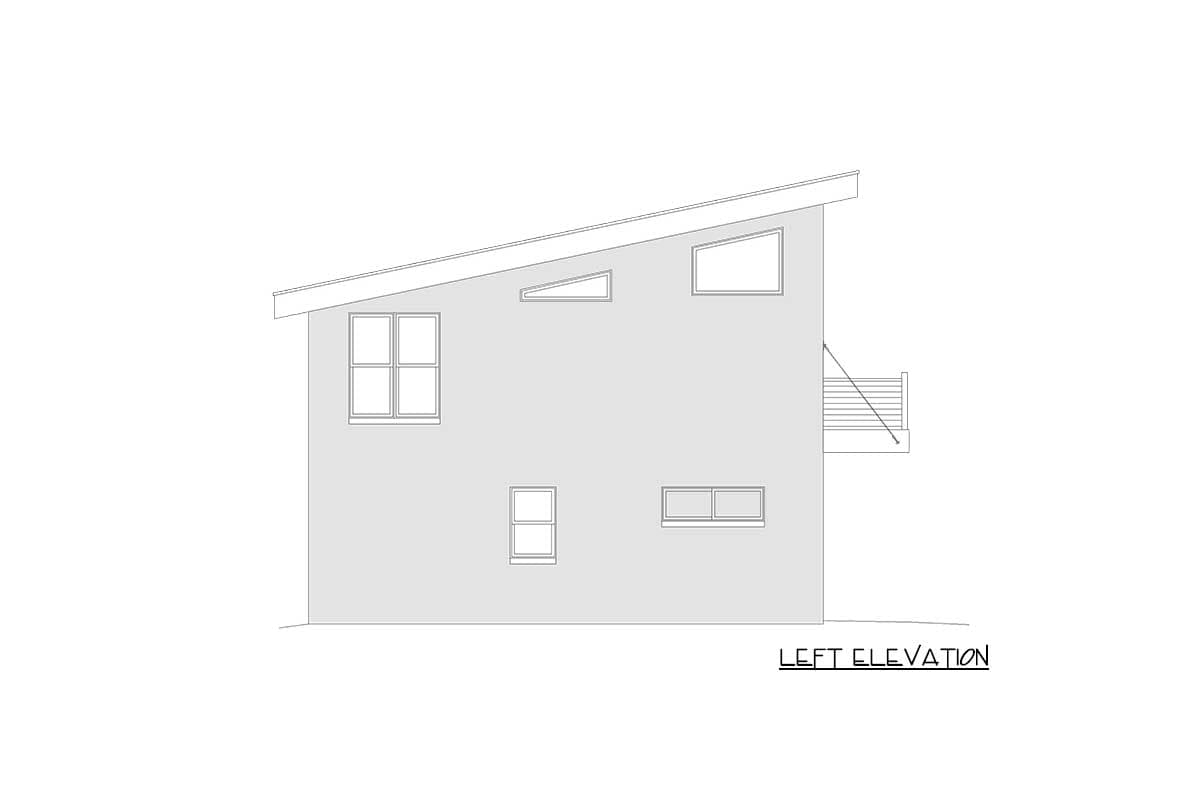

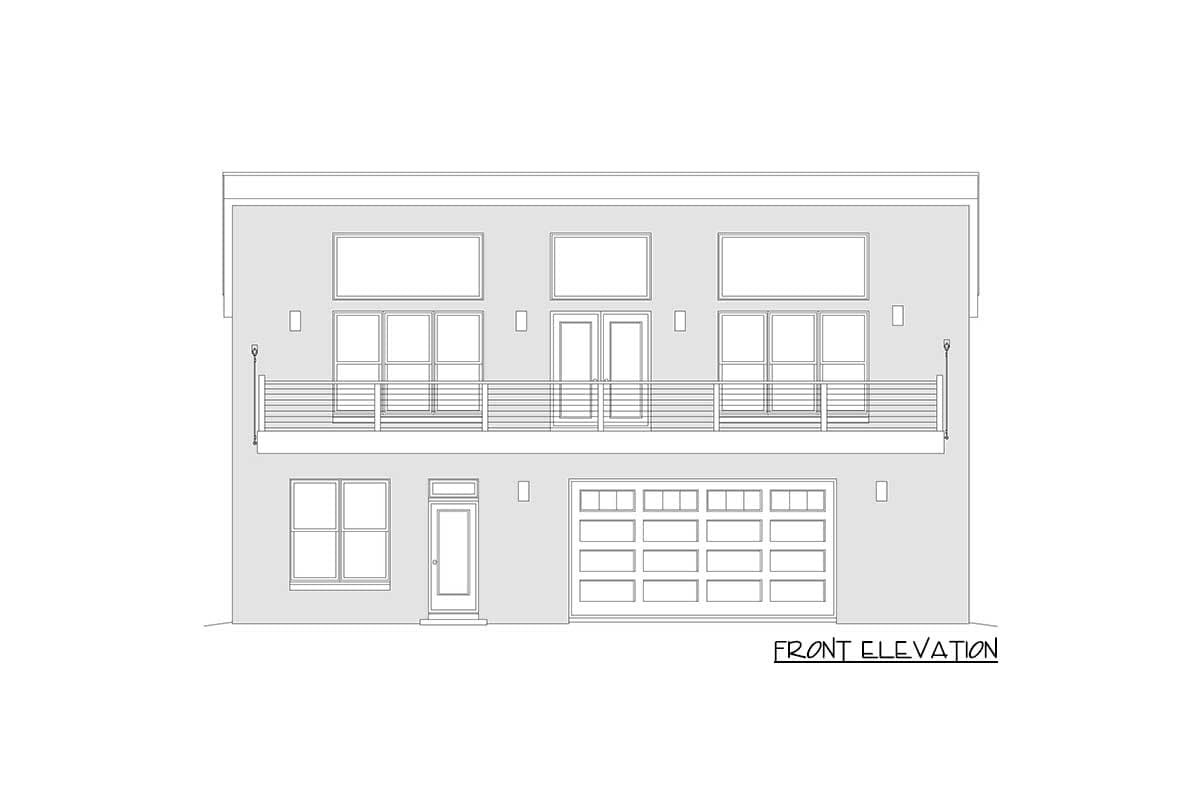

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

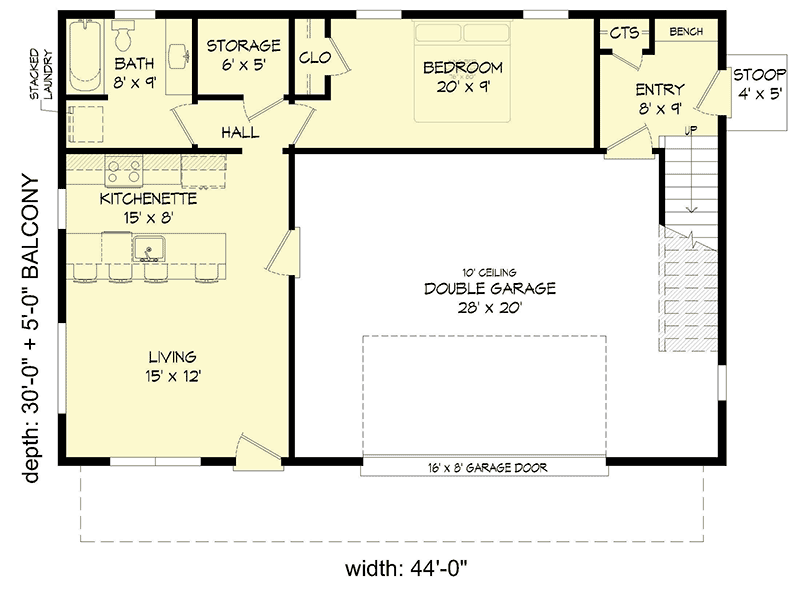

Modern Mountain Home Plan with Ground Floor Apartment - 68774VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

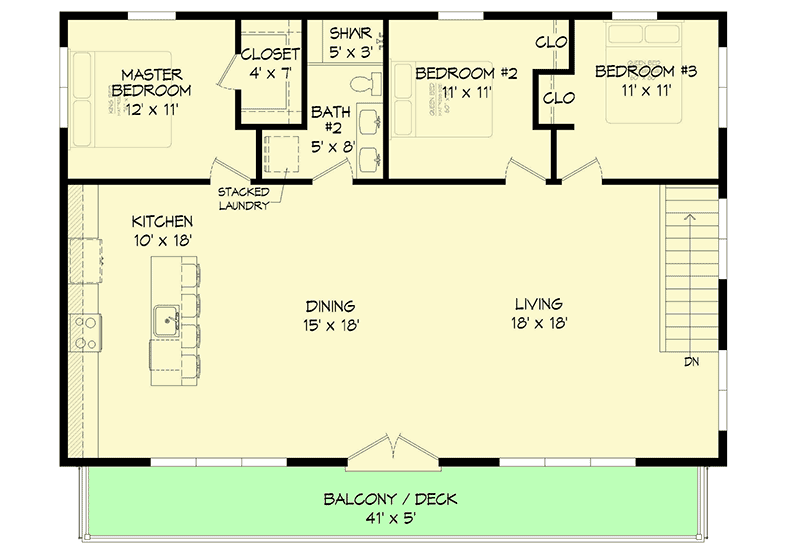

Modern Mountain Home Plan with Ground Floor Apartment - 68774VR floor plan - 2nd Floor

Plan details

Modern Mountain Home Plan with Ground Floor Apartment

  • 2,056

    Heated s.f.

  • 4

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $825
  • PDF - Single-Build $1,095
  • 5 Sets $1,195
  • 5 Sets + PDF $1,220
  • CAD + PDF - Single-Build $1,645
  • View all purchase option online

About This Plan

  • The rectangular shape of this Contemporary mountain home plan provides a modern aesthetic while keeping budget in mind.
  • The double garage offers entry into the main-level apartment (complete with a kitchenette, living space, full bath, and laundry) and the foyer to the second-level living space.
  • A coat closet and built-in bench in the entry helps when you are a hurry, and the staircase leads directly into the upstairs living room, dining area, and kitchen.
  • Have guests keep you company at the eating bar included in the island, or retreat to the deck off the living room for some outdoor enjoyment.
  • The bedroom, laundry room, and a full bath line the rear wall of the second level.
  • Related Plans: Get a smaller version with house plan 68745VR (1,957 sq. ft.). Remove the finished areas on the ground level with house plan 68648VR and 68541VR.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,056 sq. ft.
  • 1st Floor: 736 sq. ft.
  • 2nd Floor: 1,320 sq. ft.
  • Balcony / Veranda: 205 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 35' 0"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 584 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 13' 0"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Truss
