3-Car Modern Carriage House Plan with Sun Deck

Plan 68541VR

  • 1,190

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This modern house plan is great for a mountain or water view lot or as an outbuilding to your neighborhood home.
  • Three single garage doors are covered by the sun deck and open to give you room for three vehicles. Upstairs, the living area is brightly lit from the wall of windows and has soaring ceilings.
  • The deck is accessed through a set of French doors. The bedroom and bath are in back for your privacy.
  • Related Plans: Move the garage opening to the back with plan 68632VR (1,200 sq. ft.) and to the side with 68633VR (1,359 sq. ft.). Get more room with house plans 68648VR (1,265 sq. ft.) and 68627VR (1,309 sq. ft.). Add finished space on the ground level with 68745VR (1,957 sq. ft.).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

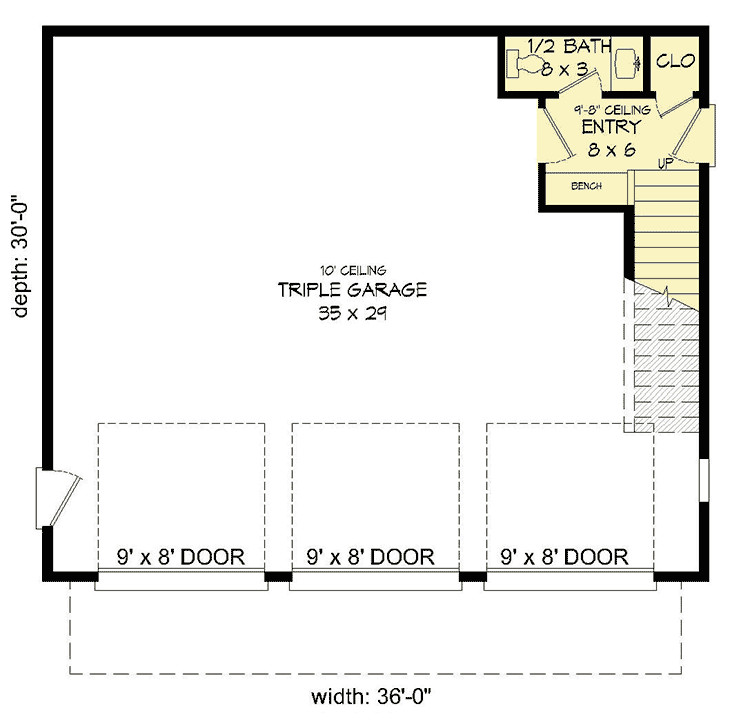

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Car Modern Carriage House Plan with Sun Deck - 68541VR floor plan - Main Level

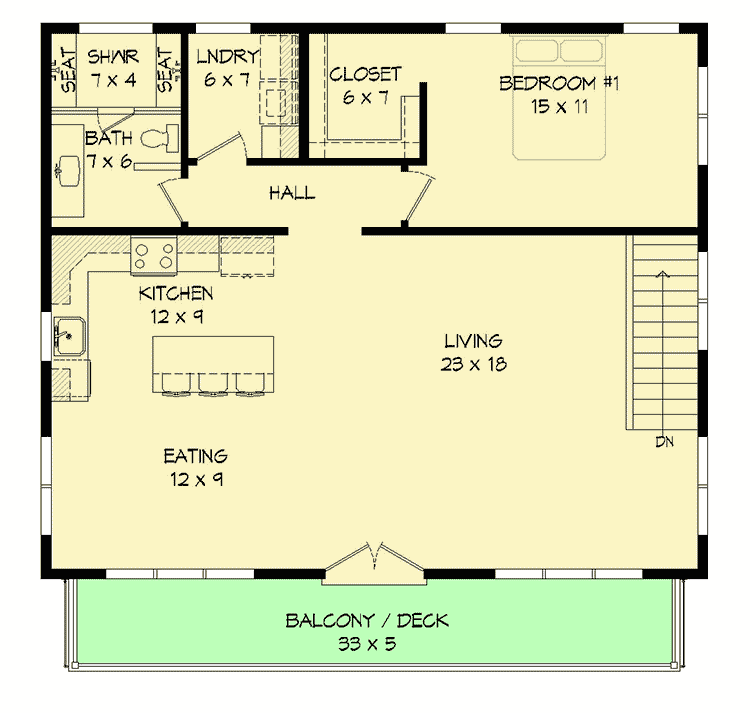

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Car Modern Carriage House Plan with Sun Deck - 68541VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,190 sq. ft.
  • 1st Floor: 110 sq. ft.
  • 2nd Floor: 1,080 sq. ft.
  • Balcony / Veranda: 165 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 30' 0"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 970 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 12' 8"

Roof Details

  • Primary Pitch: 2.5 on 12
  • Framing Type: Truss

Architectural Style

Special features

3-Car Modern Carriage House Plan with Sun Deck

  • 1,190

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $975
  • 5 Sets $1,060
  • 5 Sets + PDF $1,183
  • CAD + PDF - Single-Build $1,425
  • View all purchase option online

About This Plan

  • This modern house plan is great for a mountain or water view lot or as an outbuilding to your neighborhood home.
  • Three single garage doors are covered by the sun deck and open to give you room for three vehicles. Upstairs, the living area is brightly lit from the wall of windows and has soaring ceilings.
  • The deck is accessed through a set of French doors. The bedroom and bath are in back for your privacy.
  • Related Plans: Move the garage opening to the back with plan 68632VR (1,200 sq. ft.) and to the side with 68633VR (1,359 sq. ft.). Get more room with house plans 68648VR (1,265 sq. ft.) and 68627VR (1,309 sq. ft.). Add finished space on the ground level with 68745VR (1,957 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,190 sq. ft.
  • 1st Floor: 110 sq. ft.
  • 2nd Floor: 1,080 sq. ft.
  • Balcony / Veranda: 165 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 36' 0"
  • Depth: 30' 0"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 970 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 12' 8"

Roof

  • Primary Pitch: 2.5 on 12
  • Framing Type: Truss
Plan 68541VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/68541VR
|
Need Help? 800-854-7852
|
