Plan 36668TX
Downsized Rugged Hill Country House Plan with Outdoor Lounge
Heated S.F.
2,670
Beds
3
Baths
4
Stories
1
Cars
2
What's Included
Plan Details

  • Designed in response to requests for a smaller version of 36618TX (3,065 sq. ft.), this design has timber-framed gables giving it a rugged Hill country look. A 2-car garage extends at a 45-degree angle from the front of the home and a covered porch graces the front.
  • Step inside, and a private study is located to the right of the foyer. Ahead, a spacious family room has wood accents on the ceiling and a fireplace on the right wall. The family room flows seamlessly into the eat-in kitchen.
  • A cooktop island sits in the center of the kitchen and an extension gives you bar-height seating. The nearby pantry can be found across from the laundry room.
  • The patio is accessible from the dining room and it flows into the large outdoor lounge in back.
  • The master suite occupies the right side of the home, and boasts a master bath with private vanities and toilet rooms on either side of a 2-person shower. Across the home, the guest room has easy access to the garage.
  • Related Plan: Get more room with house plan 36618TX.

What's Included
  • Cover sheet
  • Foundation Plan

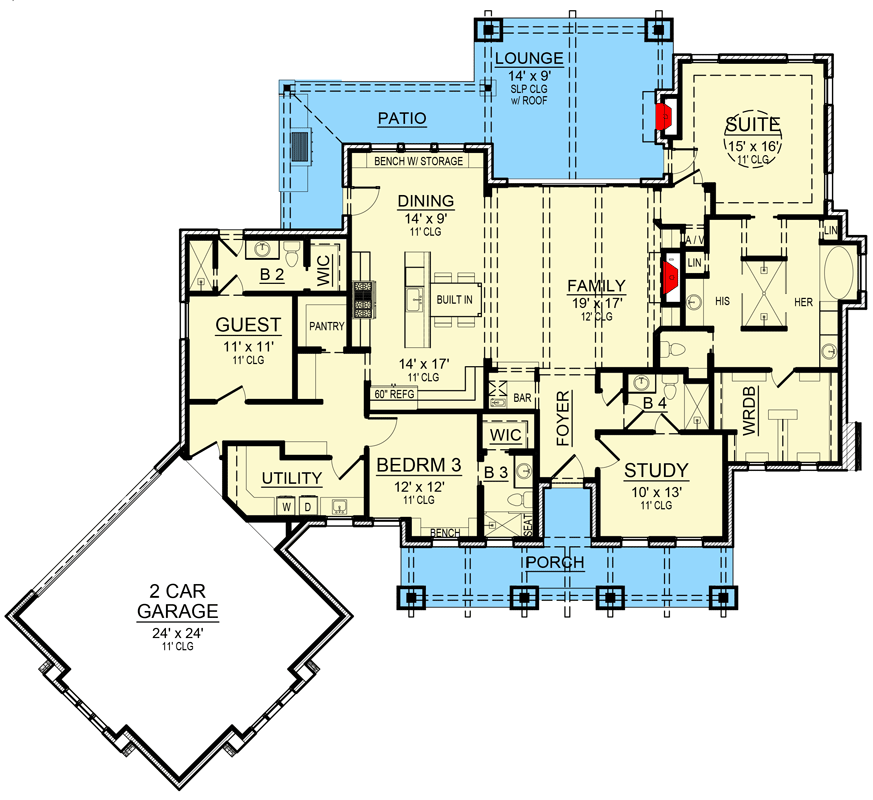

  • First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
  • Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
  • First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
  • Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

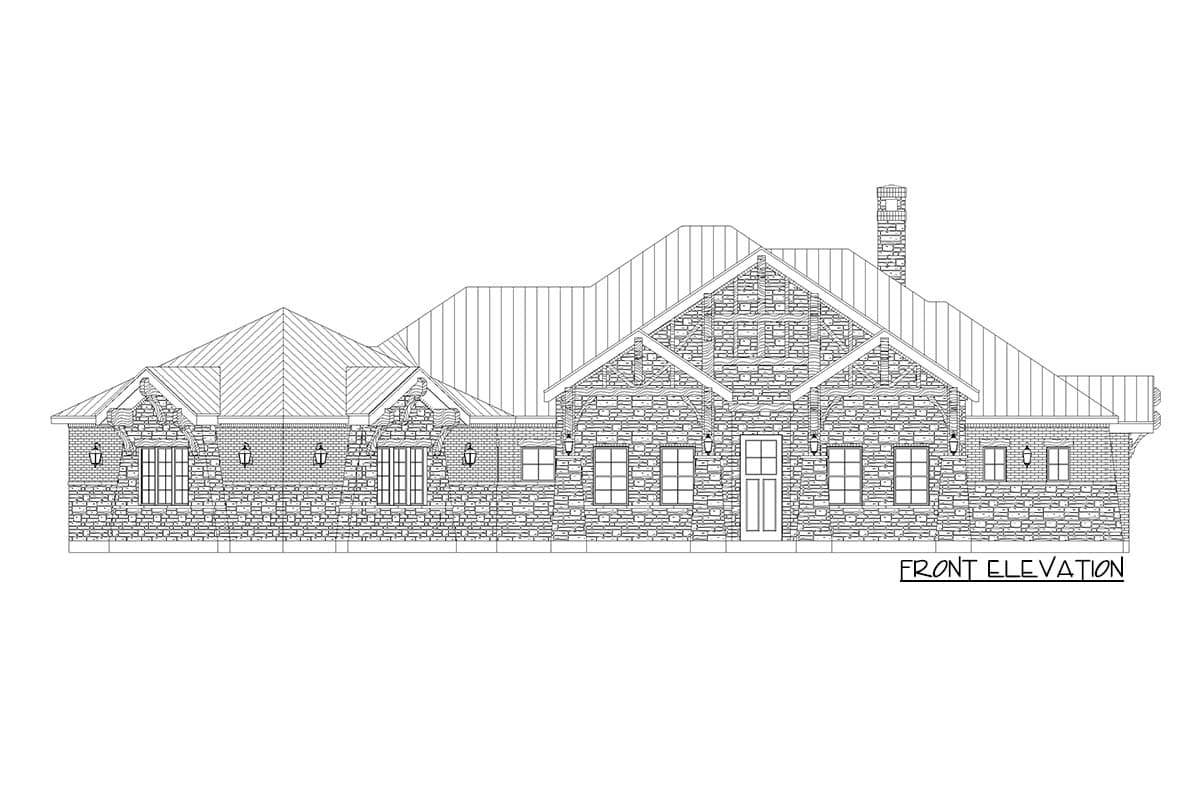

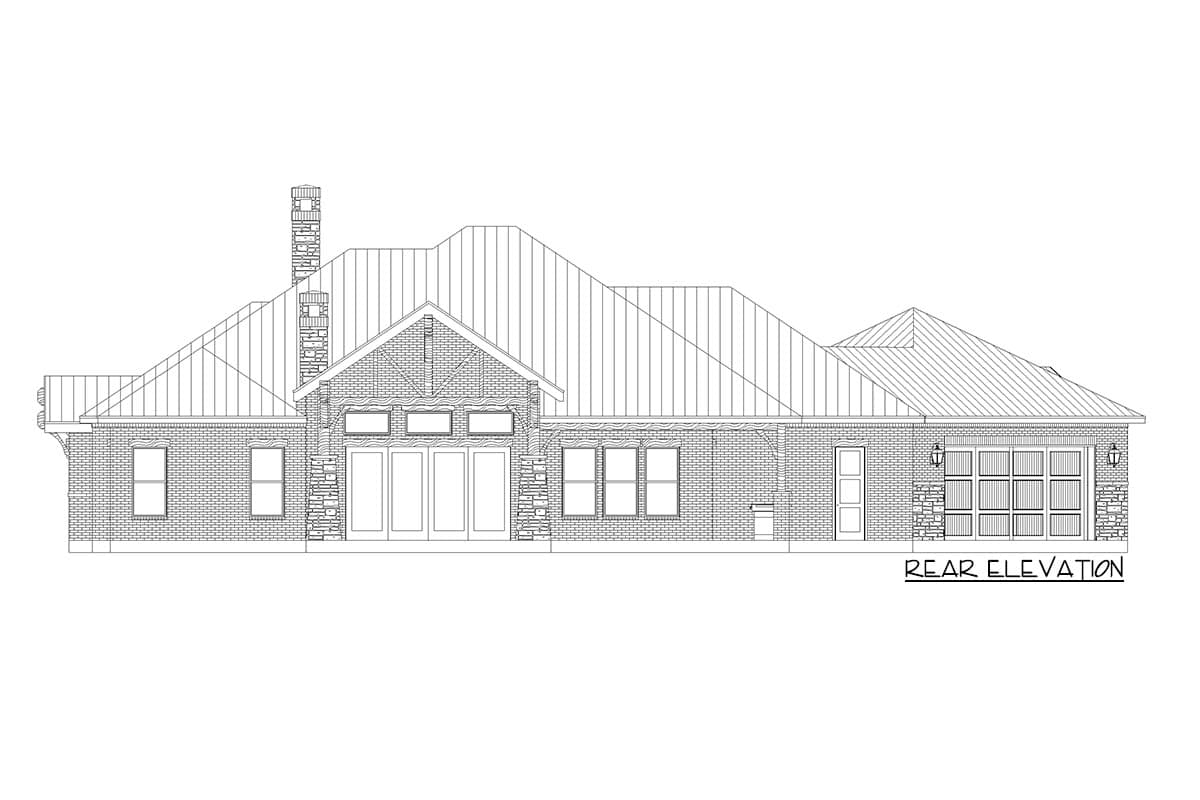

  • Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

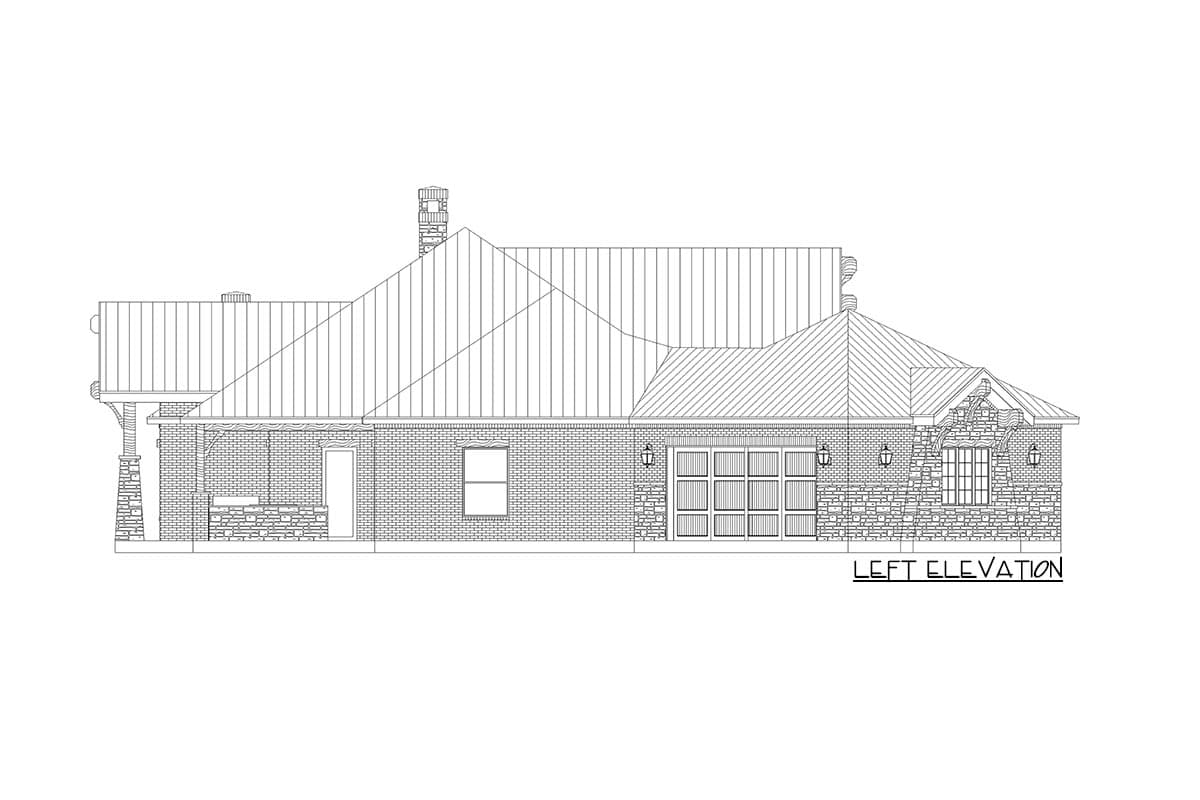

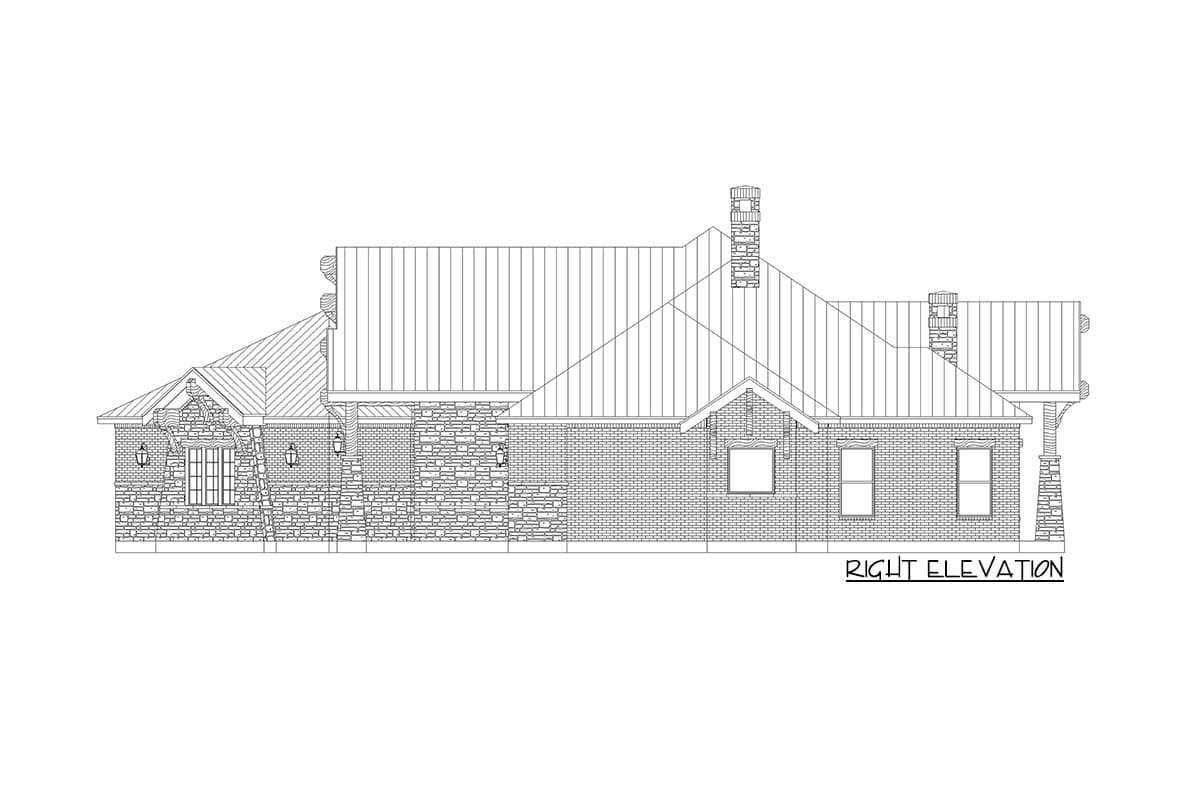

  • Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
  • Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
  • Sections page
  • Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Downsized Rugged Hill Country House Plan with Outdoor Lounge

  • 2,670

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,670 sq. ft.
  • 1st Floor: 2,670 sq. ft.

Dimensions

  • Width: 91' 0"
  • Depth: 81' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Rear, Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 11' 0"
