Plan 64464SC Flexible 3-Bed Modern Farmhouse with Bonus Spaces

2,610 3 2 - 3 1-2 3
1 Client
Album watch
video Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Flexible 3-Bed Modern Farmhouse with Bonus Spaces

Plan 64464SC

  • 2,610

    Heated s.f.

  • 3

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 3

    Cars

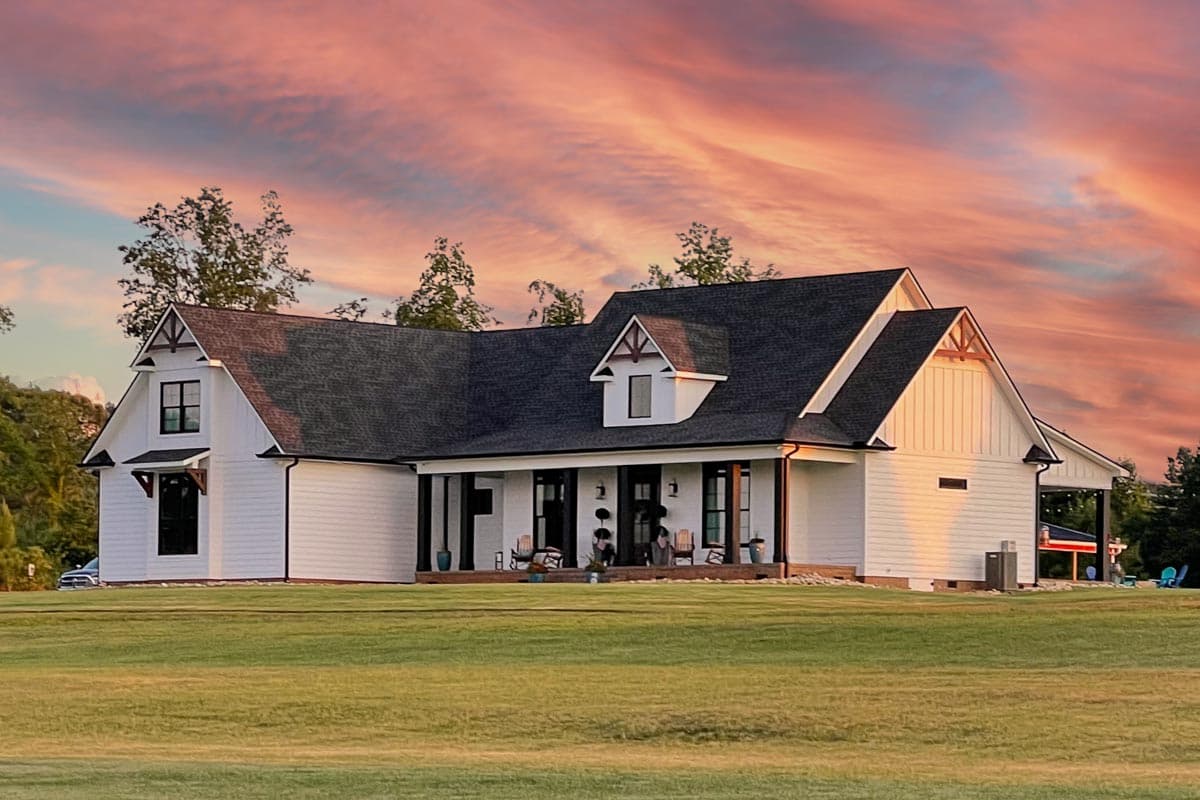

  • This classic modern farmhouse plan has clean lines, an open floor plan and great flexibility with an optional bonus level and finished lower level.

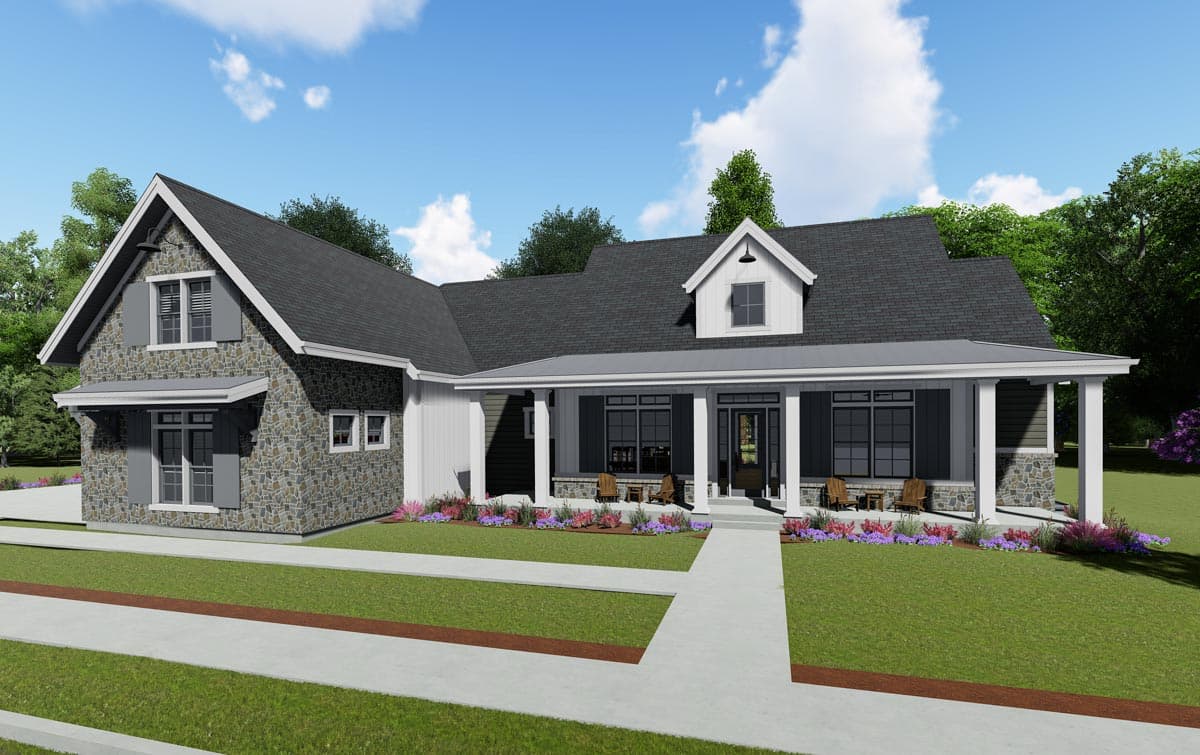

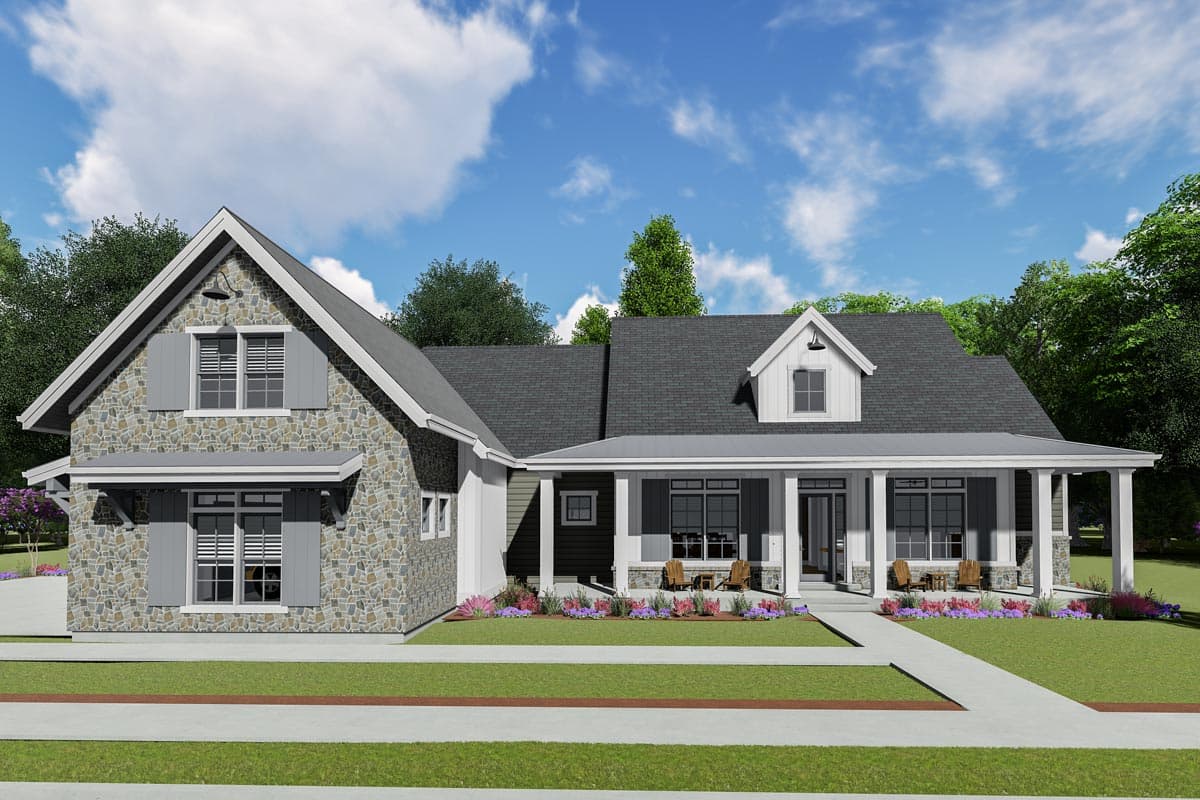

  • A front porch spans the front and gives you lots of room for rocking chairs and room to rest your drinks.
  • Inside, the entry opens to the vaulted living room with fireplace flanked by french doors giving you access to the rear outdoor living room.
  • The kitchen and dining room/nook are open to the living room.
  • The master suite is on the main floor and has a spa-like bath and large closet walk-in closet with pocket doors that give you access to the laundry room.

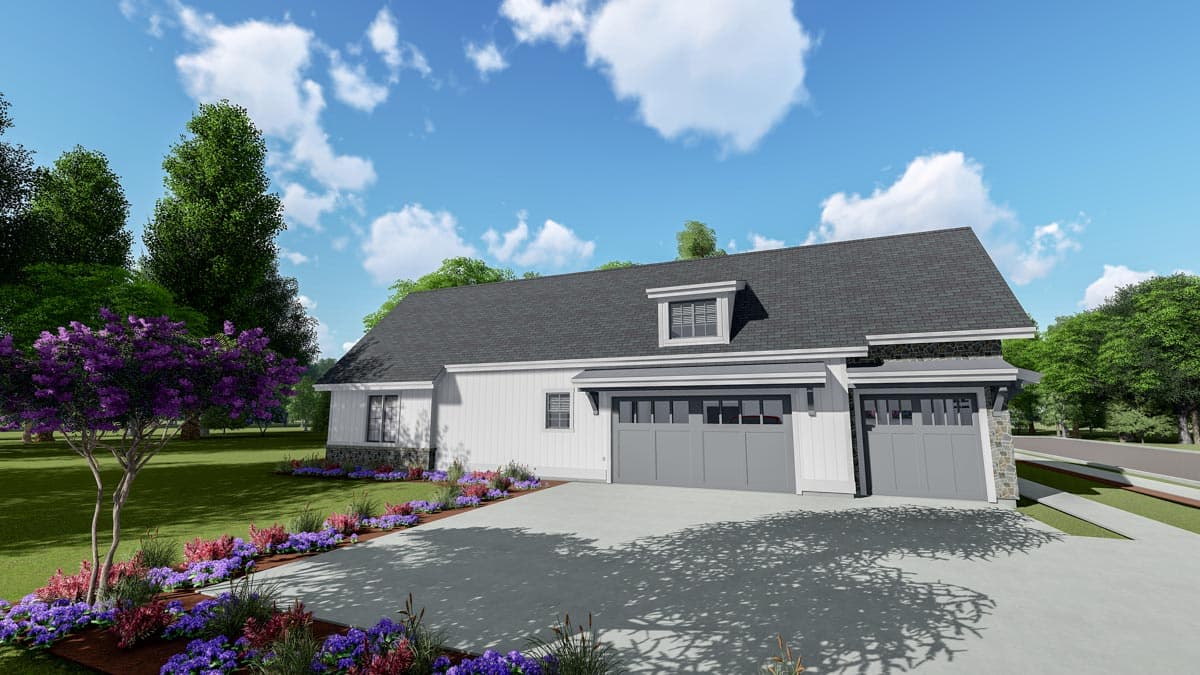

  • The owner's entry off the garage gives you a mudroom with bench and cubbies and storage, along with a half bath to allow guests privacy.
  • This plan also comes with an optional bonus room with closet and a bath. A large basement option has room for at least two more bedrooms, a rec room and storage.
  • Related Plans: Get a 3-car front-facing garage with house plan 64460SC.  Get a 2-car side-entry garage with house plans 64462SC (2,593 sq. ft.), 64501SC (2,729 sq. ft.) and 64504SC (2,697 sq. ft.). Get a rustic craftsman exterior and jack & jill bath with house plan 64466SC and 64469SC;. Build on a rear-sloping lot with house plan 64471SC.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

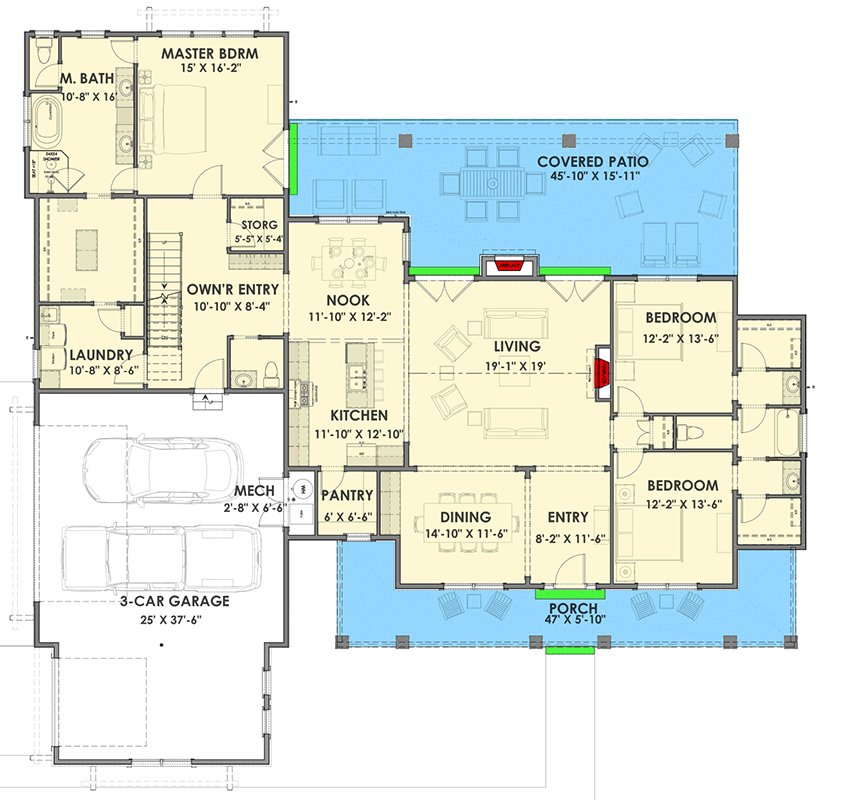

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Flexible 3-Bed Modern Farmhouse with Bonus Spaces - 64464SC floor plan - Main Level

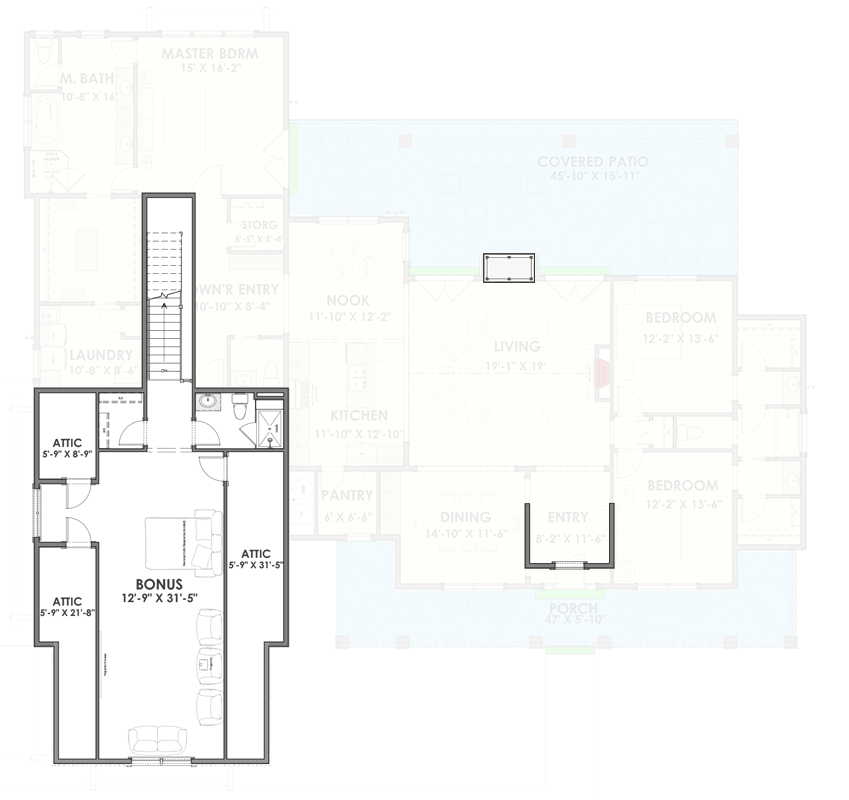

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Flexible 3-Bed Modern Farmhouse with Bonus Spaces - 64464SC floor plan - Bonus

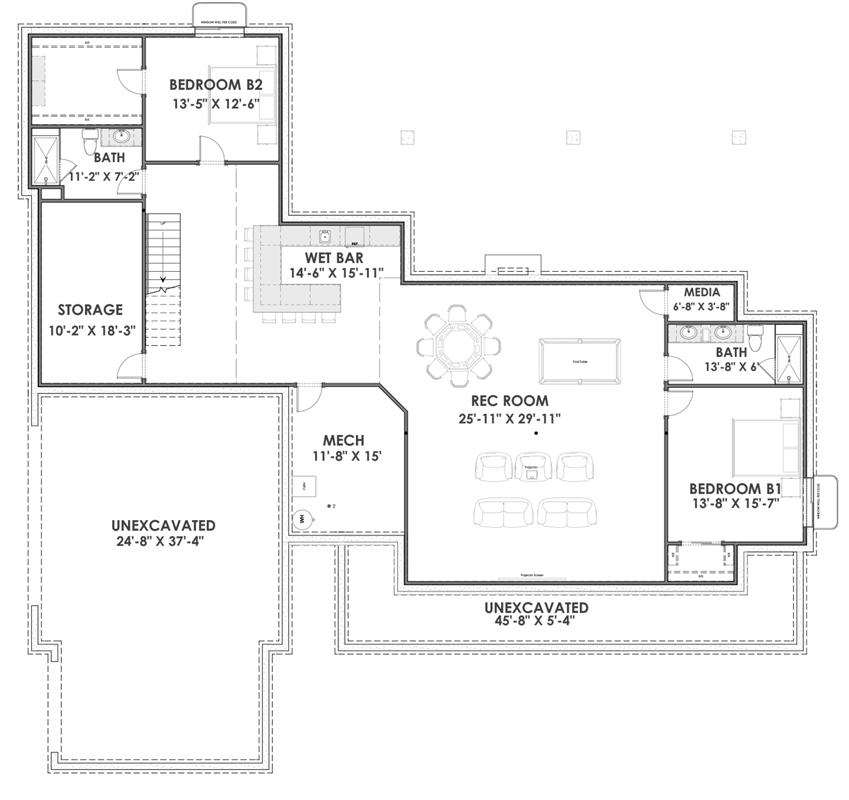

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Flexible 3-Bed Modern Farmhouse with Bonus Spaces - 64464SC floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,610 sq. ft.
  • 1st Floor: 2,610 sq. ft.
  • Covered Patio: 645 sq. ft.
  • Porch, Front: 325 sq. ft.
  • Bonus: 605 sq. ft.
  • Optional Lower Level: 2,238 sq. ft.
  • Basement Unfinished: 202 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Basement, Daylight, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 75' 0"
  • Max ridge height: 28' 8"

Garage

  • Area: 888 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

Flexible 3-Bed Modern Farmhouse with Bonus Spaces

  • 2,610

    Heated s.f.

  • 3

    Beds

  • 2 - 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $995
  • PDF - Unlimited Build $1,295
  • CAD + PDF - Single-Build $1,495
  • CAD + PDF - Unlimited Build $1,995
  • View all purchase option online

About This Plan

  • This classic modern farmhouse plan has clean lines, an open floor plan and great flexibility with an optional bonus level and finished lower level.
  • A front porch spans the front and gives you lots of room for rocking chairs and room to rest your drinks.
  • Inside, the entry opens to the vaulted living room with fireplace flanked by french doors giving you access to the rear outdoor living room.
  • The kitchen and dining room/nook are open to the living room.
  • The master suite is on the main floor and has a spa-like bath and large closet walk-in closet with pocket doors that give you access to the laundry room.
  • The owner's entry off the garage gives you a mudroom with bench and cubbies and storage, along with a half bath to allow guests privacy.
  • This plan also comes with an optional bonus room with closet and a bath. A large basement option has room for at least two more bedrooms, a rec room and storage.
  • Related Plans: Get a 3-car front-facing garage with house plan 64460SC.  Get a 2-car side-entry garage with house plans 64462SC (2,593 sq. ft.), 64501SC (2,729 sq. ft.) and 64504SC (2,697 sq. ft.). Get a rustic craftsman exterior and jack & jill bath with house plan 64466SC and 64469SC;. Build on a rear-sloping lot with house plan 64471SC.

Floor Plans

  • Main Level

  • Bonus

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,610 sq. ft.
  • 1st Floor: 2,610 sq. ft.
  • Covered Patio: 645 sq. ft.
  • Porch, Front: 325 sq. ft.
  • Bonus: 605 sq. ft.
  • Optional Lower Level: 2,238 sq. ft.
  • Basement Unfinished: 202 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Basement, Daylight, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 75' 0"
  • Max ridge height: 28' 8"

Garage

  • Area: 888 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
