Plan 64469SC
Rugged Modern Farmhouse with Bonus Room
Heated S.F.
2,593
Beds
3
Baths
4
Stories
1
Cars
2
Floor Plan

Plan 64469SC

Main Level
slide image 0
Bonus Level
slide image 1

Plan 64469SC

1-800-854-7852

1-262-521-4596

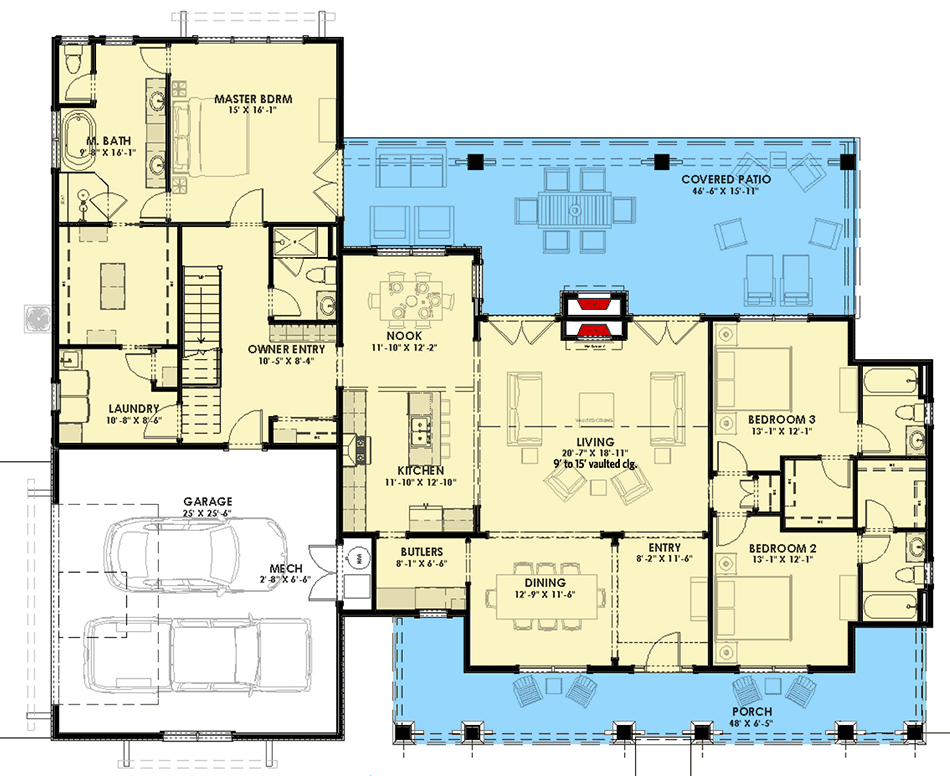

Main Level
floor plan image Main Level

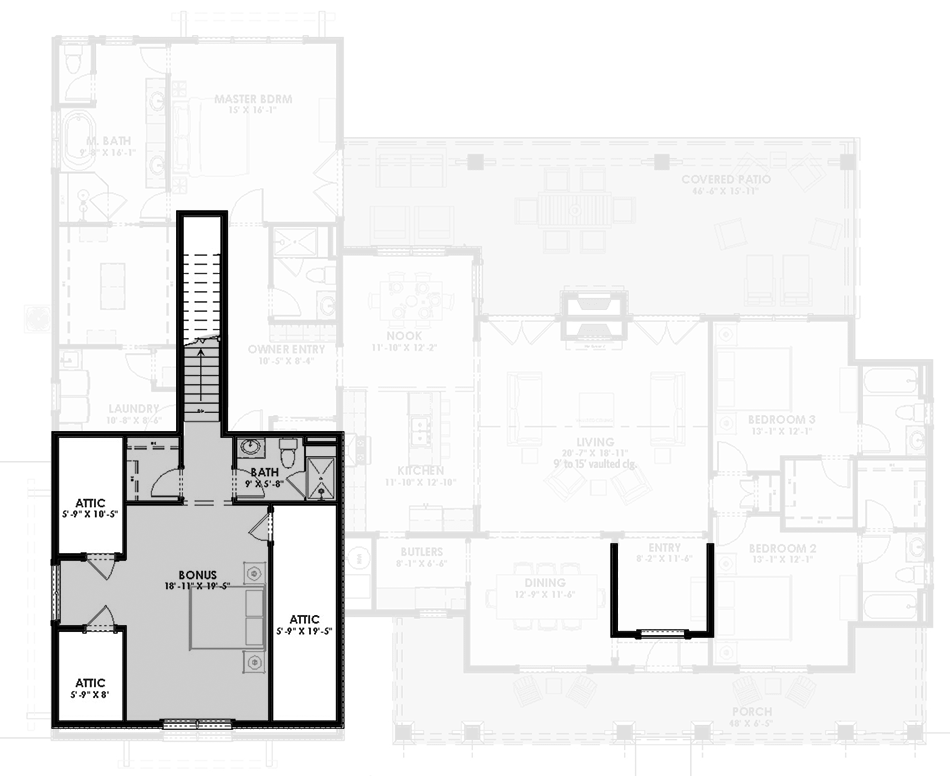

Bonus Level
floor plan image Bonus Level
Plan Details

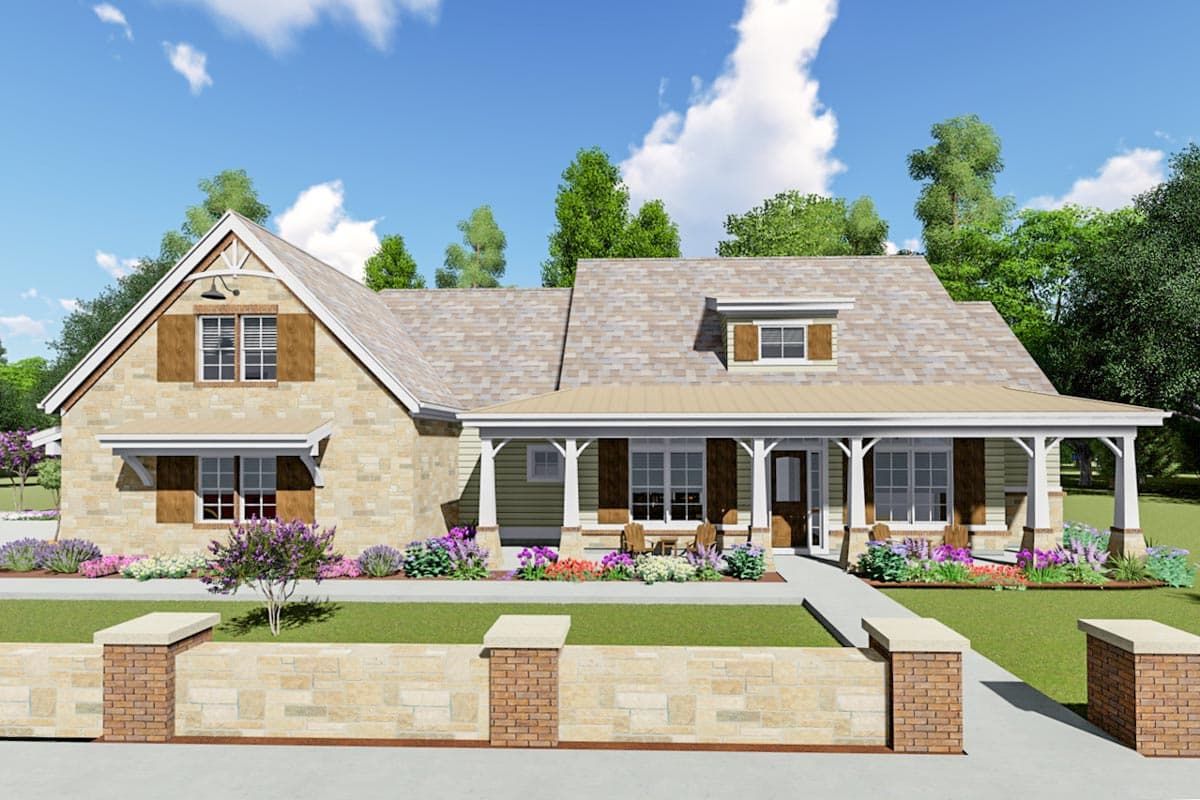

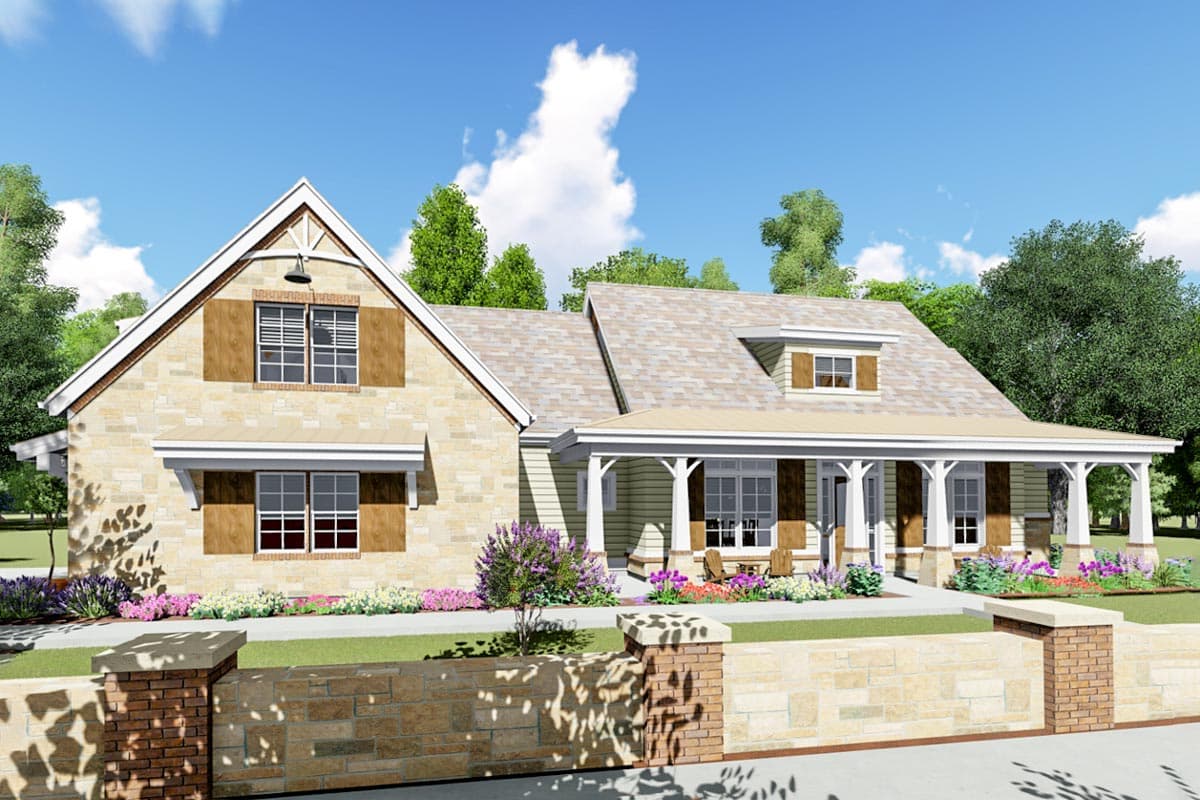

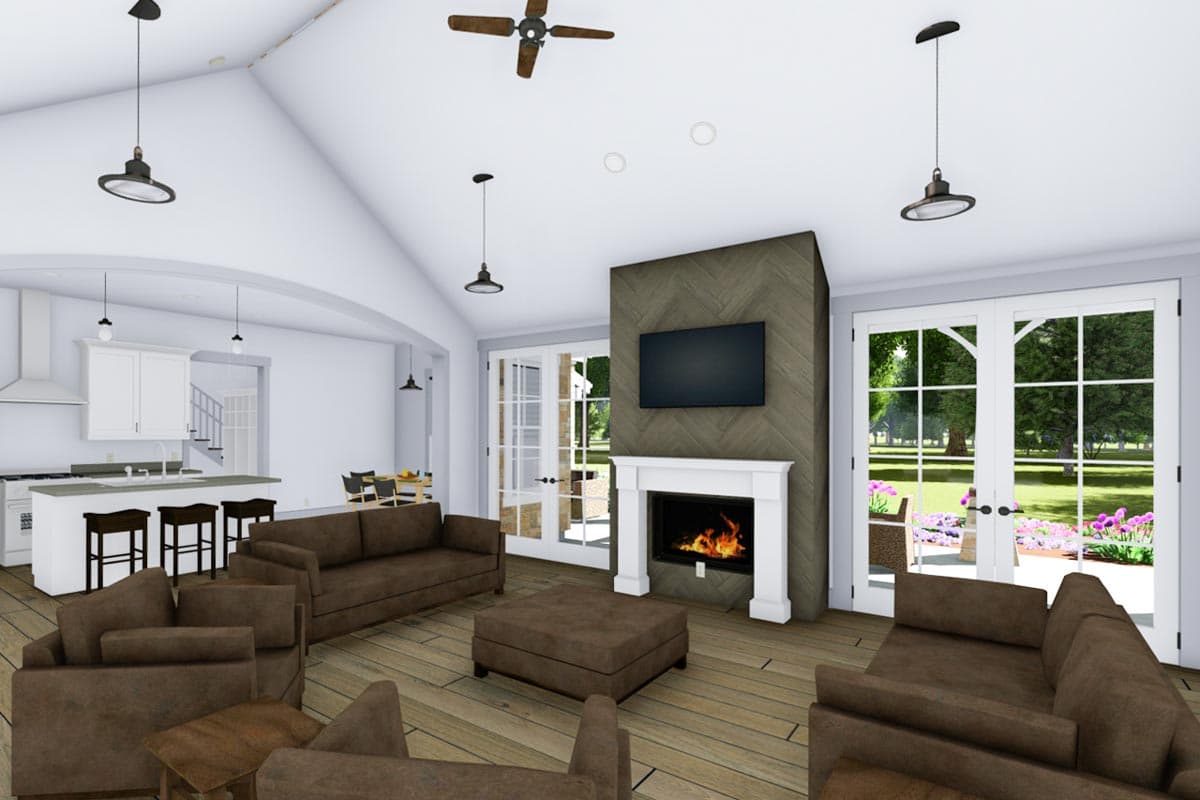

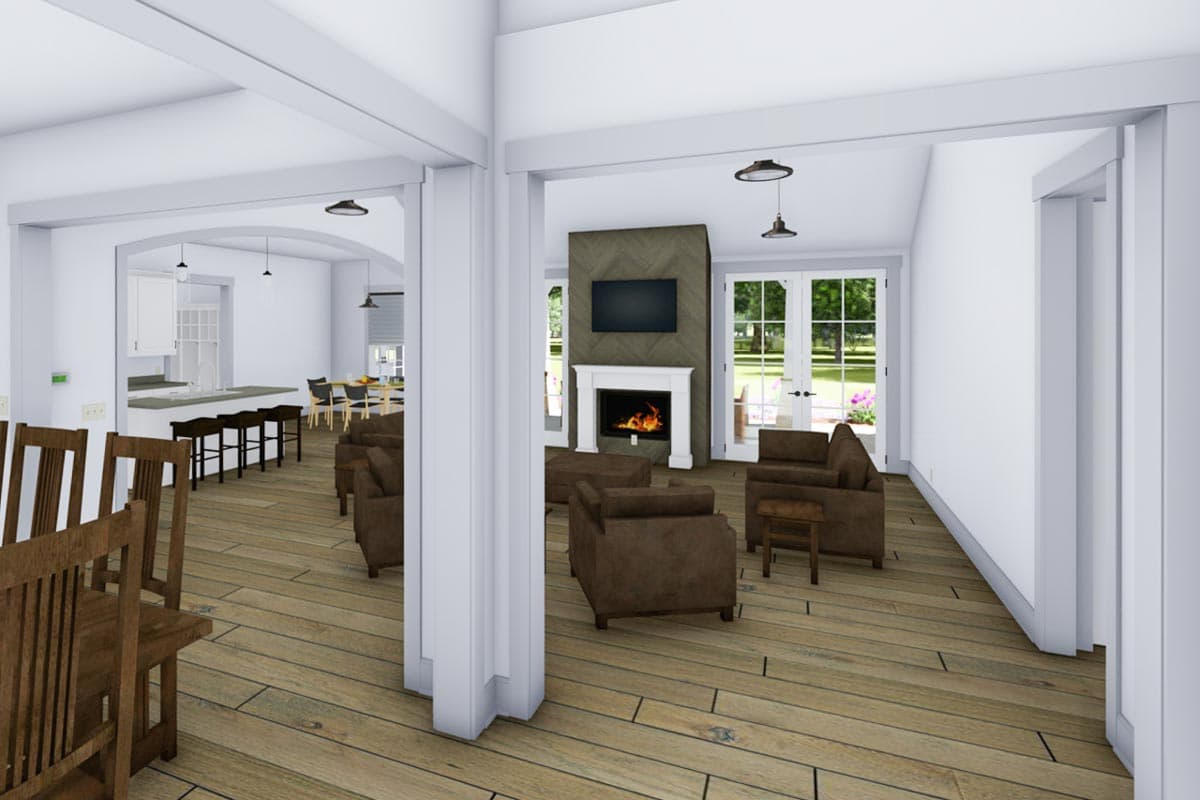

  • This split bed farmhouse plan has a rugged appearance with a broad, welcoming front porch. Step inside and you are greeted by an open floor plan with views extending across the vaulted living room to the covered patio in back.
  • The kitchen has a conveniently located walk-in pantry and an island with casual seating.

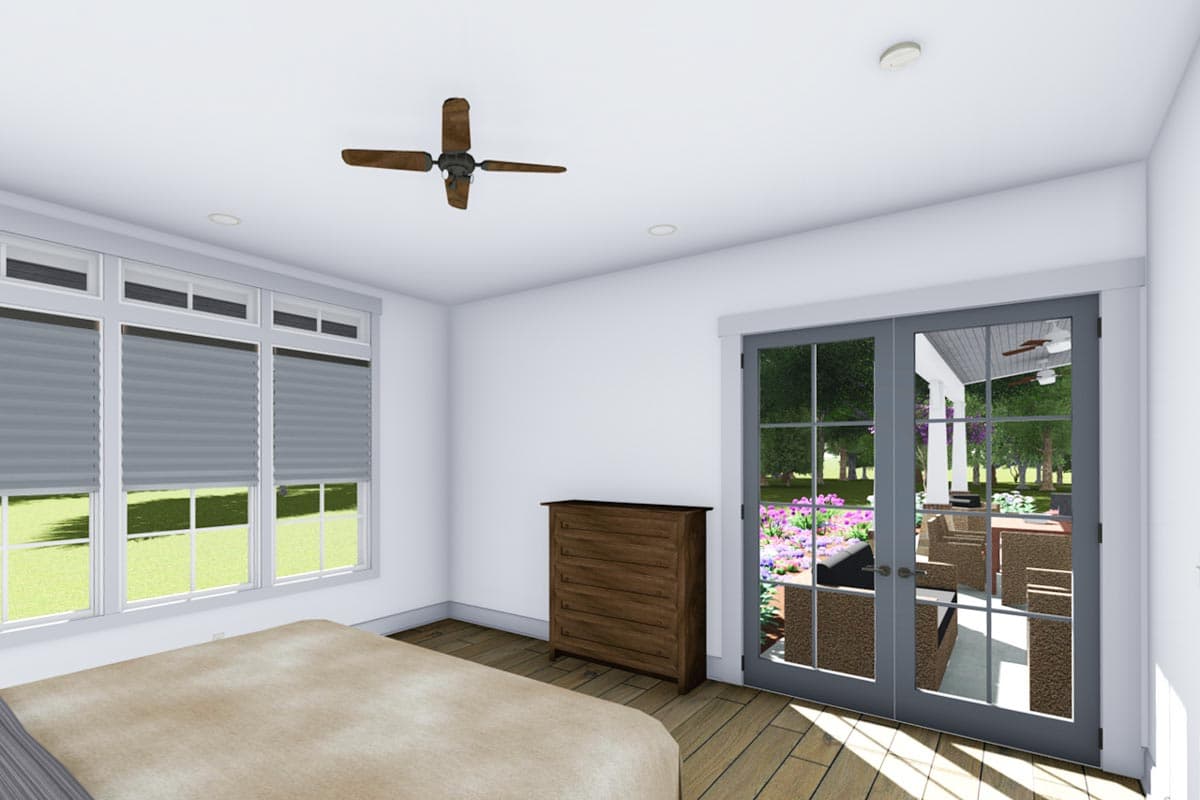

  • A secluded master suite awaits homeowners and offers double doors to the rear patio, a luxurious master bathroom and a giant walk-in closet that opens right into the laundry room.

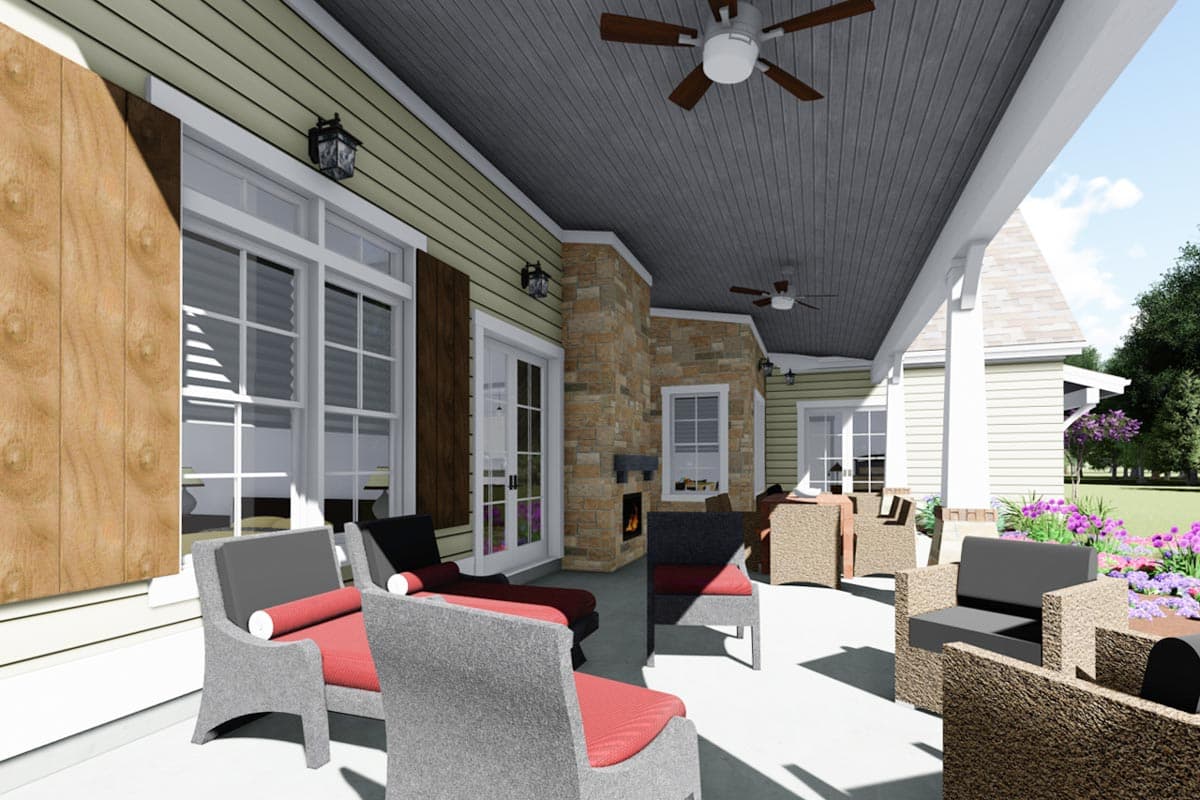

  • Two sets of double doors take you out to the enormous rear covered patio with lots of space for entertaining.
  • Across the home, two bedrooms each have their own bathrooms.
  • A bonus room over the garage gives you expansion possibilities.
  • Related Plans: Get an alternate version with house plans 64460SC64462SC and 64464SC. Build on a rear-sloping lot with house plan 64471SC. Get a front-facing garage with house plan 64466SC
What's Included
  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,593 sq. ft.

1st Floor

2,593 sq. ft.

Bonus

444 sq. ft.

Porch, Front

325 sq. ft.

Covered Patio

645 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 0"

Depth

60' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

636 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Plan Collections

Square Footage Breakdown

Total Heated Area

2,593 sq. ft.

1st Floor

2,593 sq. ft.

Bonus

444 sq. ft.

Porch, Front

325 sq. ft.

Covered Patio

645 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

79' 0"

Depth

60' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

636 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Stick And Truss

Plan Collections
