Flexible House Plan with In-Law Suite

Plan 3067D

  • 3,164

    Heated s.f.

  • 3-5

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • At opposite ends of this luxurious sprawling design are the master suite and the guest suite, which could become wonderful in-law quarters. Both suites open to private decks.
  • In the informal living area, the family room lies next to the bayed breakfast room and the islanded kitchen with its walk-in pantry. The formal living area is comprised of a dining room set off by columns and a fireplaced living room that opens to the large deck in back.
  • The guest suite also features a sitting area with a small auxiliary kitchen. In the master suite, the bathroom contains a spa tub next to a separate shower, with his and her walk-in closets on either side.
  • By moving the door to bedroom three so that it opens to the foyer, this room could be used as a study. Similarly, bedroom four could be accessed from the master suite and/or the living room for a home office. As shown, it is accessed from the master suite and functions as a bedroom or a media center.
  • Related Plans: For a larger version, see house plan 31030D (3,329 sq. ft.). For smaller versions see 31041D (2,458 sq. ft.) and 31022D (3,066 sq. ft.).
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

The plan set includes:
  • Foundation plan
  • Fully dimensioned floor plan

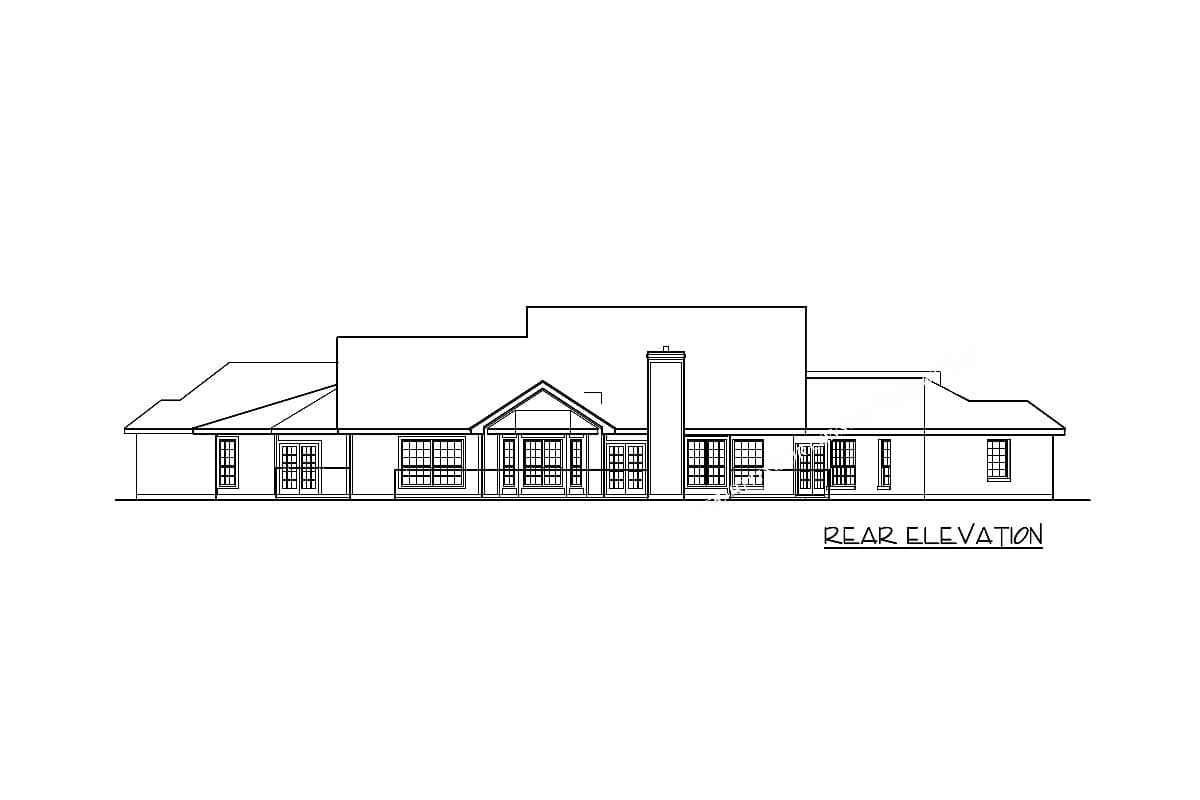

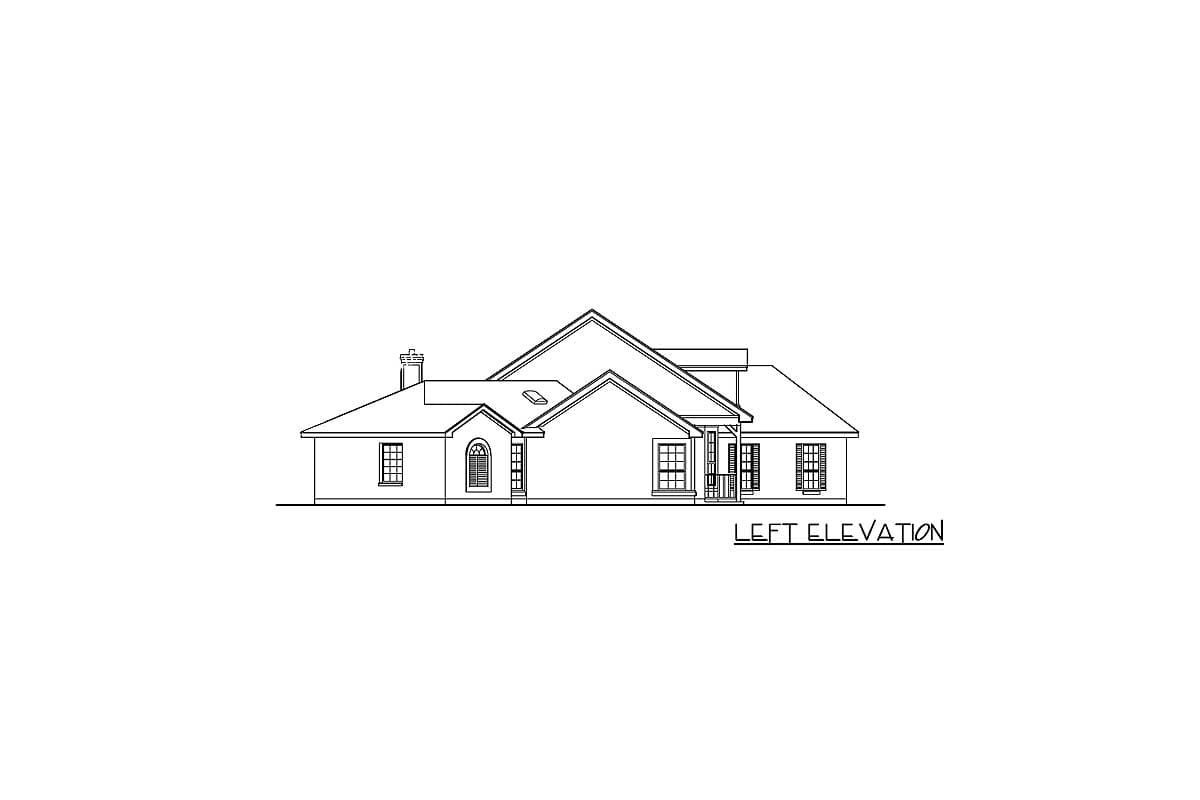

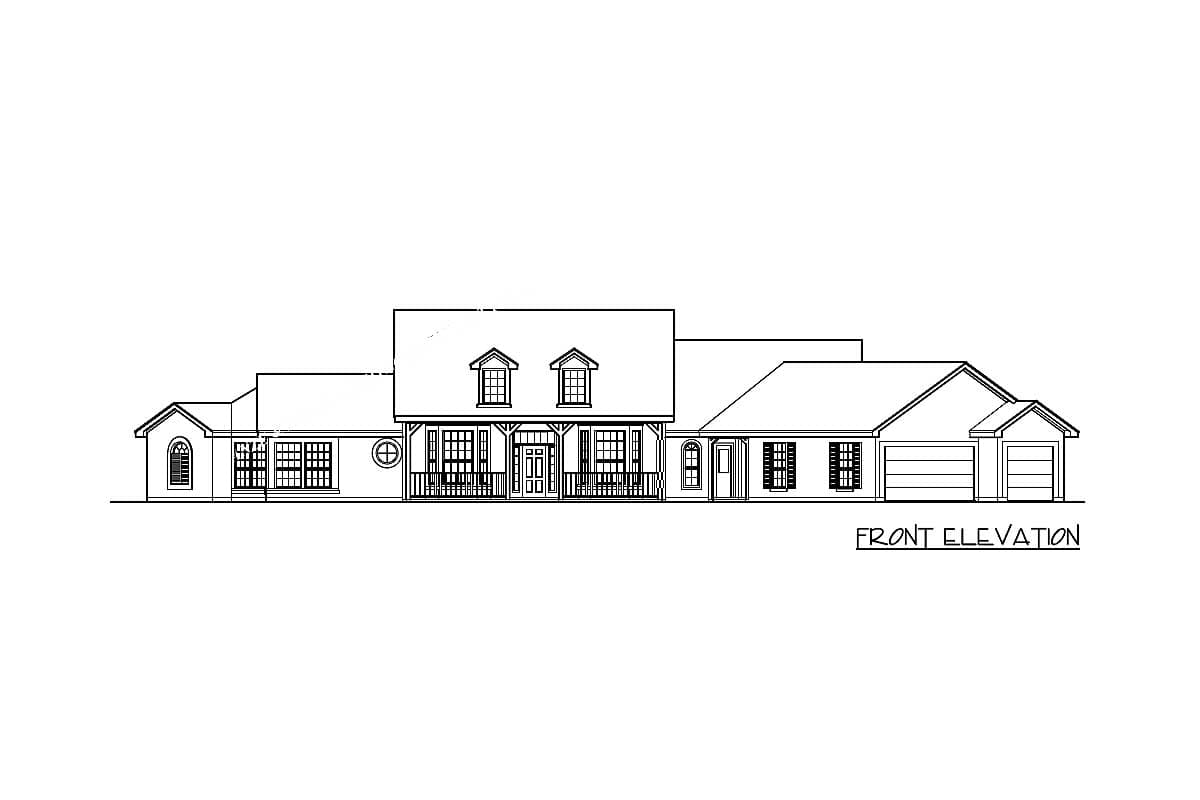

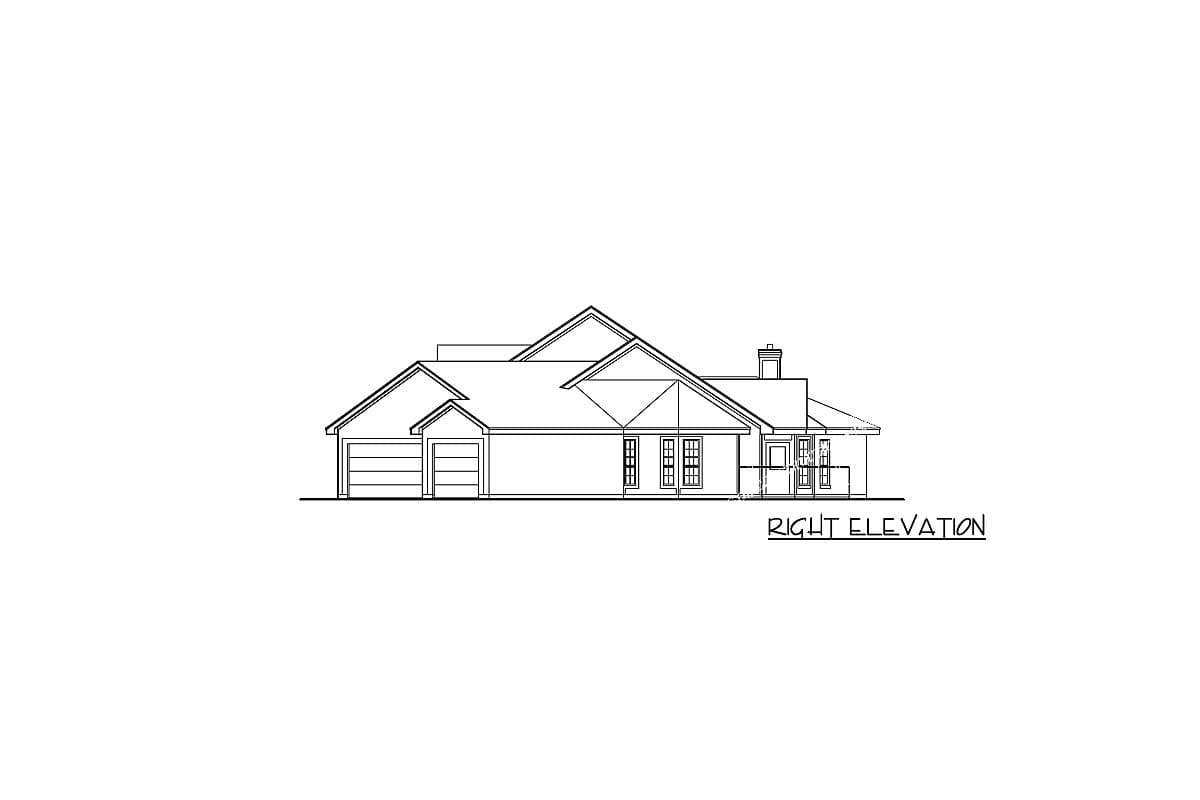

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

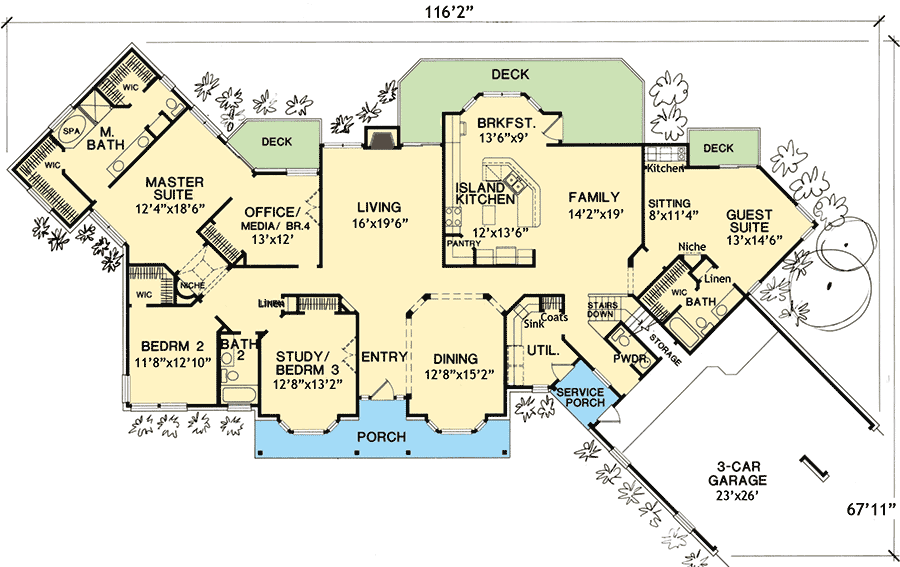

Flexible House Plan with In-Law Suite - 3067D floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,164 sq. ft.
  • 1st Floor: 3,164 sq. ft.
  • Deck: 390 sq. ft.
  • Porch, Front: 209 sq. ft.
  • Basement Unfinished: 3,164 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 116' 2"
  • Depth: 67' 11"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 623 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Flexible House Plan with In-Law Suite

  • 3,164

    Heated s.f.

  • 3-5

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,995
  • CAD - Single-Build $3,095
  • View all purchase option online

About This Plan

  • At opposite ends of this luxurious sprawling design are the master suite and the guest suite, which could become wonderful in-law quarters. Both suites open to private decks.
  • In the informal living area, the family room lies next to the bayed breakfast room and the islanded kitchen with its walk-in pantry. The formal living area is comprised of a dining room set off by columns and a fireplaced living room that opens to the large deck in back.
  • The guest suite also features a sitting area with a small auxiliary kitchen. In the master suite, the bathroom contains a spa tub next to a separate shower, with his and her walk-in closets on either side.
  • By moving the door to bedroom three so that it opens to the foyer, this room could be used as a study. Similarly, bedroom four could be accessed from the master suite and/or the living room for a home office. As shown, it is accessed from the master suite and functions as a bedroom or a media center.
  • Related Plans: For a larger version, see house plan 31030D (3,329 sq. ft.). For smaller versions see 31041D (2,458 sq. ft.) and 31022D (3,066 sq. ft.).
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas. If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
