Plan 23842JD Incredible 5-Bed Prairie Modern Home Plan with Bonus Room

4,811 5 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Incredible 5-Bed Prairie Modern Home Plan with Bonus Room

Plan 23842JD

  • 4,811

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

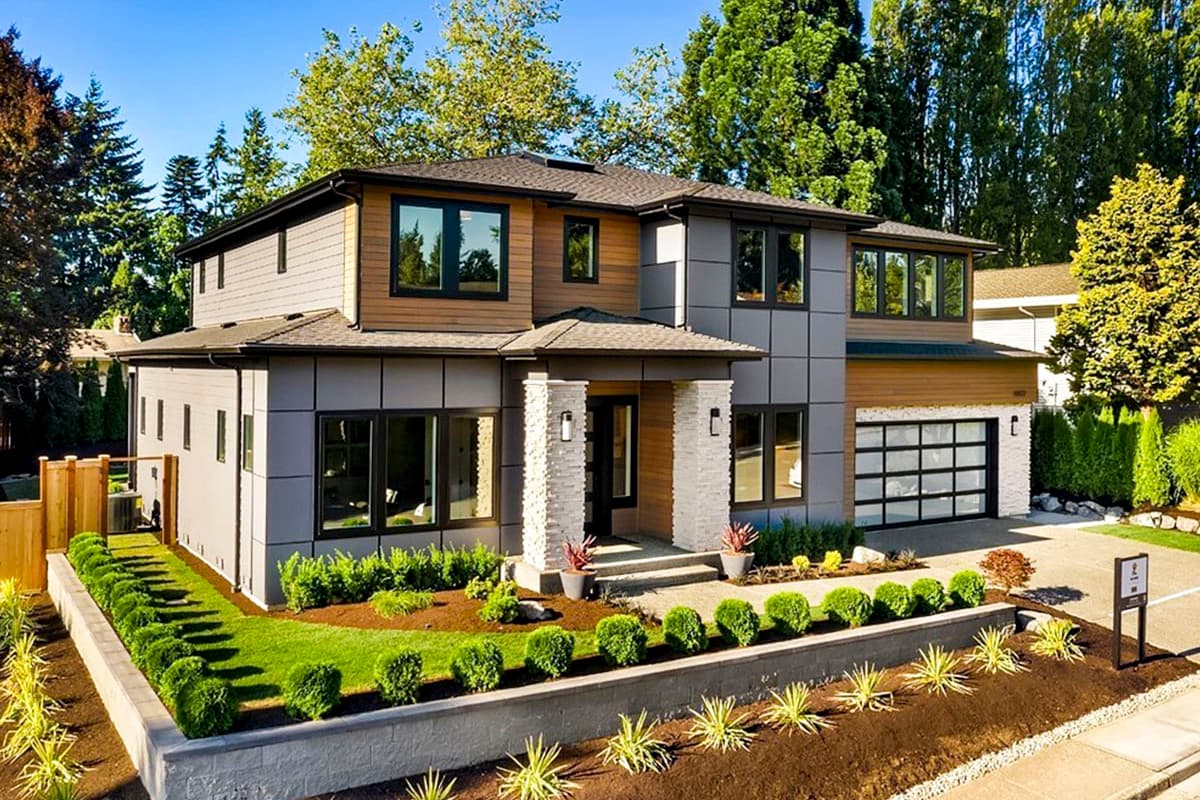

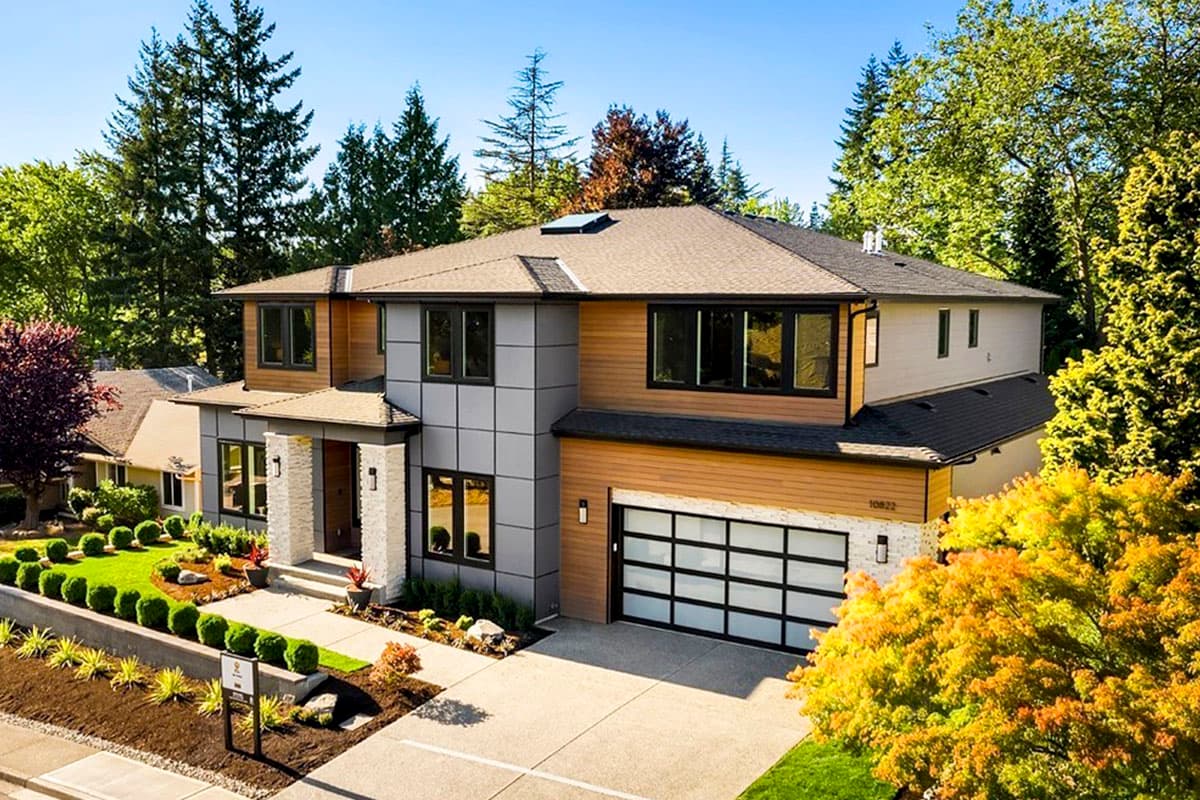

  • A Prairie-inspired exterior with a timbered covered entry greets you to this 5 bed modern house plan. The single garage door opens to reveal parking for 3 cars with 2 of them parked tandem.

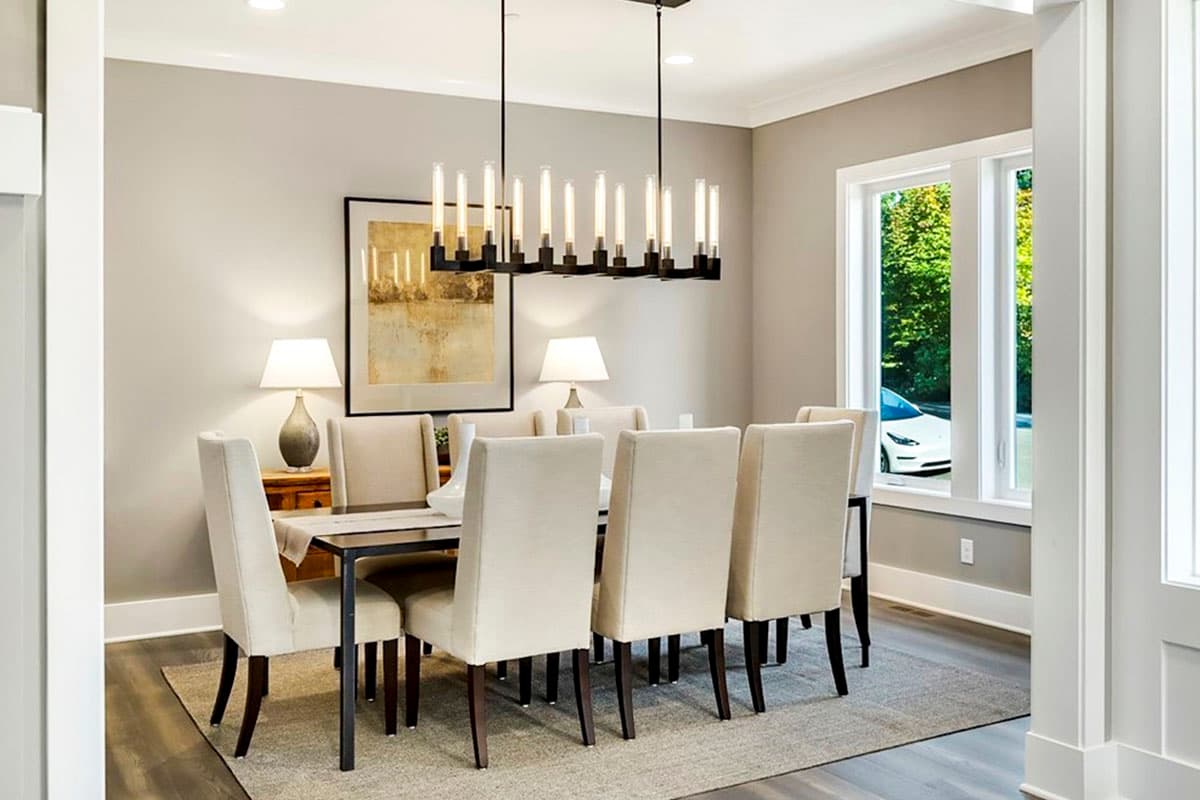

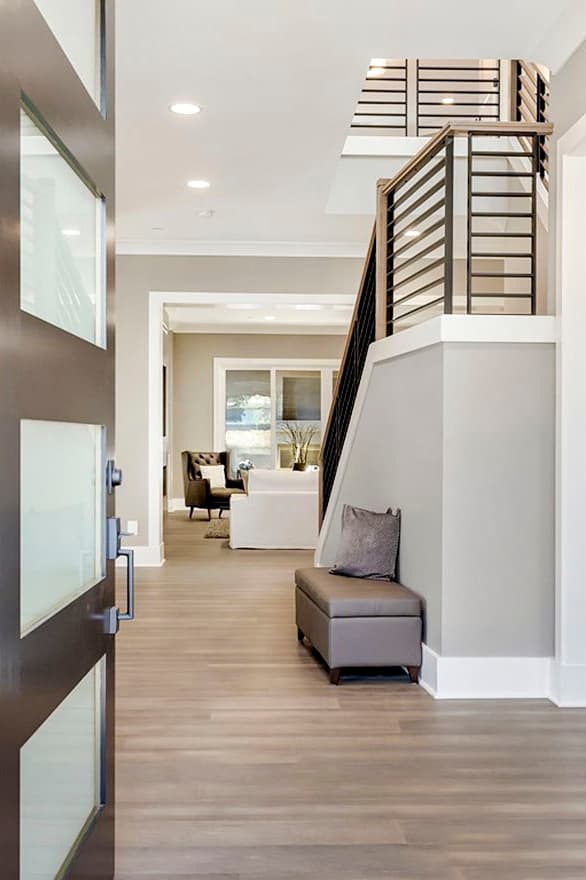

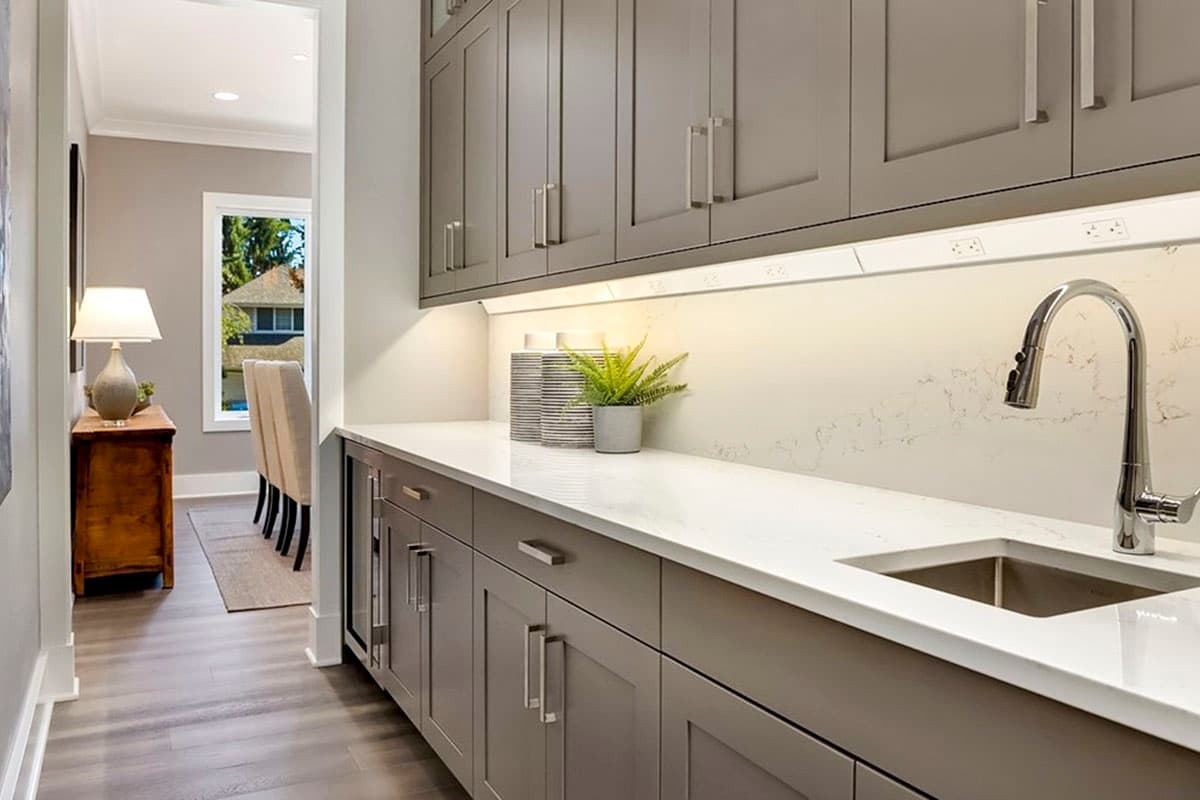

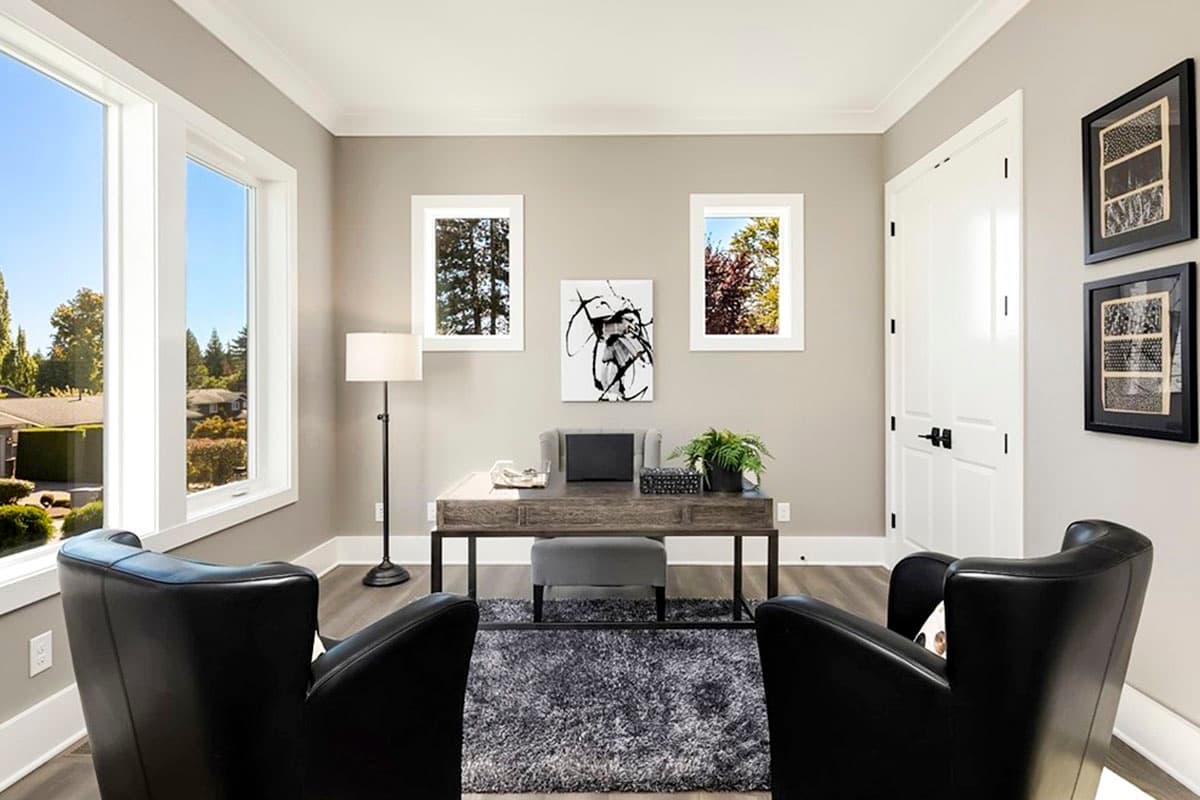

  • French doors open to the foyer which leads you to the great room in back. On your left, another set of  French doors reveal the den while the dining room with coffered ceiling is on your right. With access to the kitchen through the butler's pantry, the home has a circular flow.

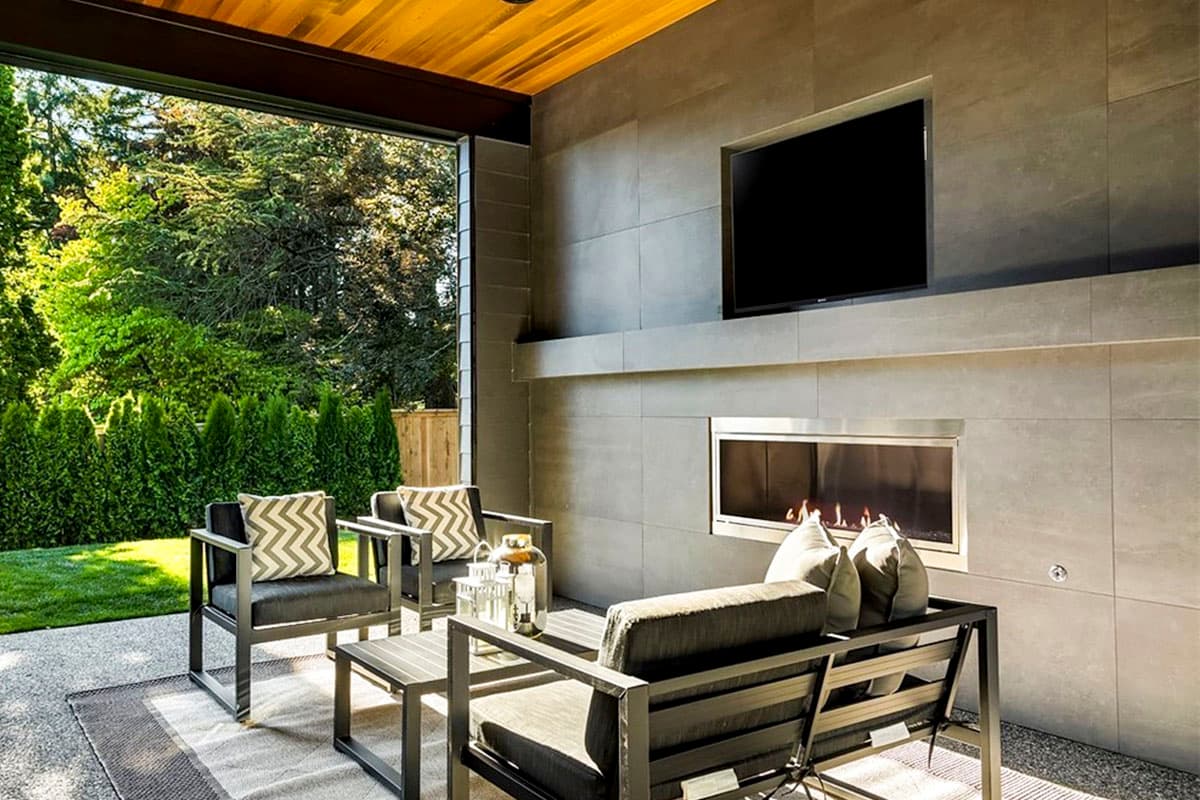

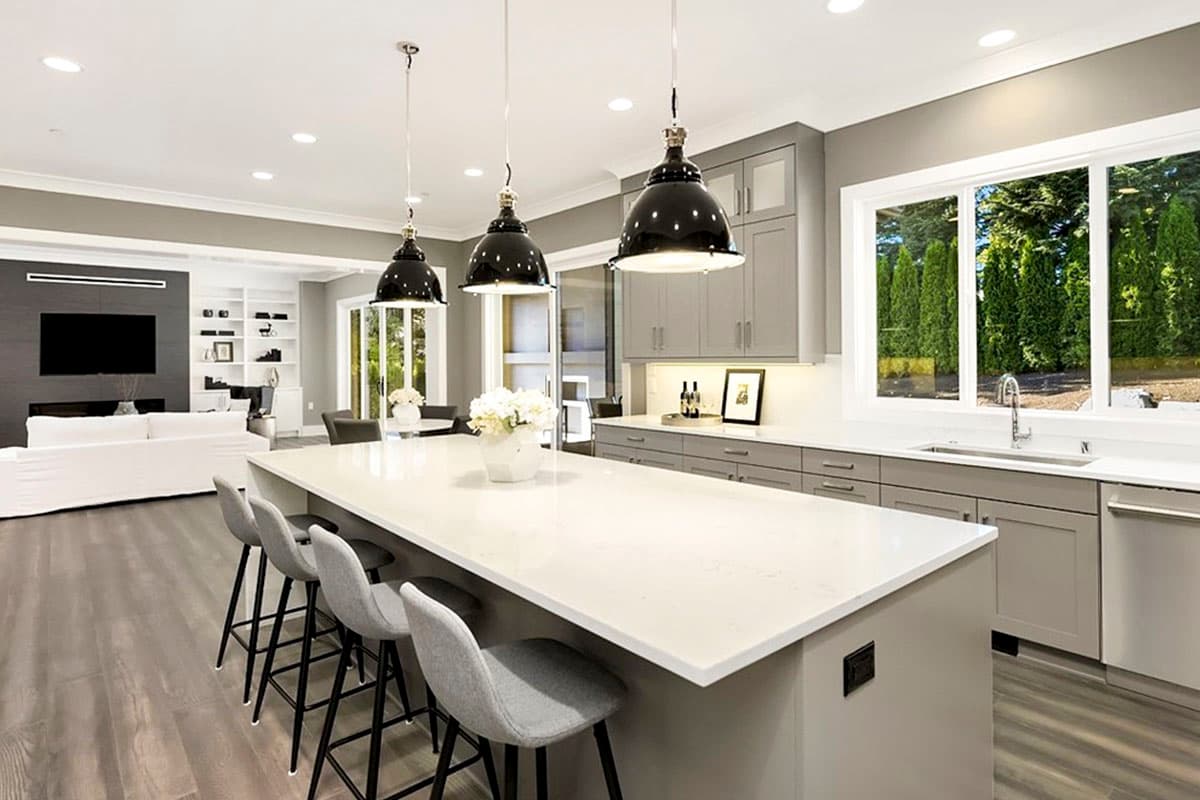

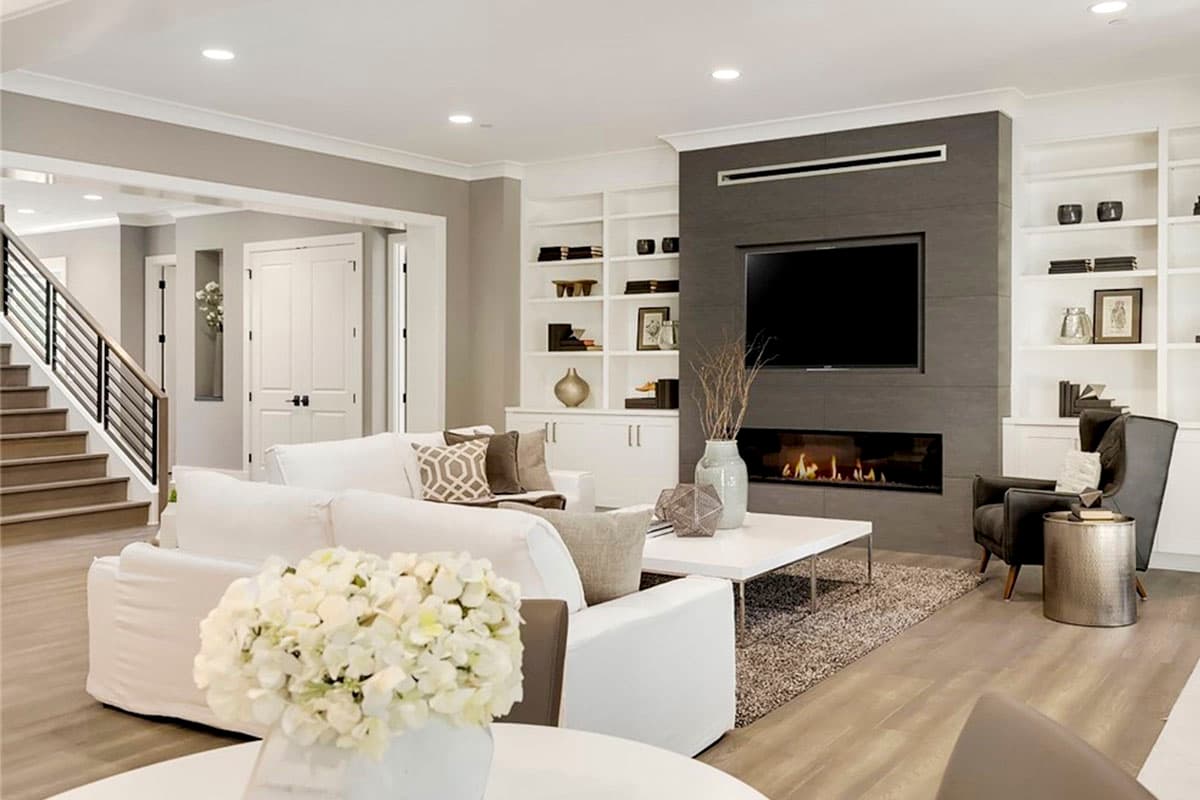

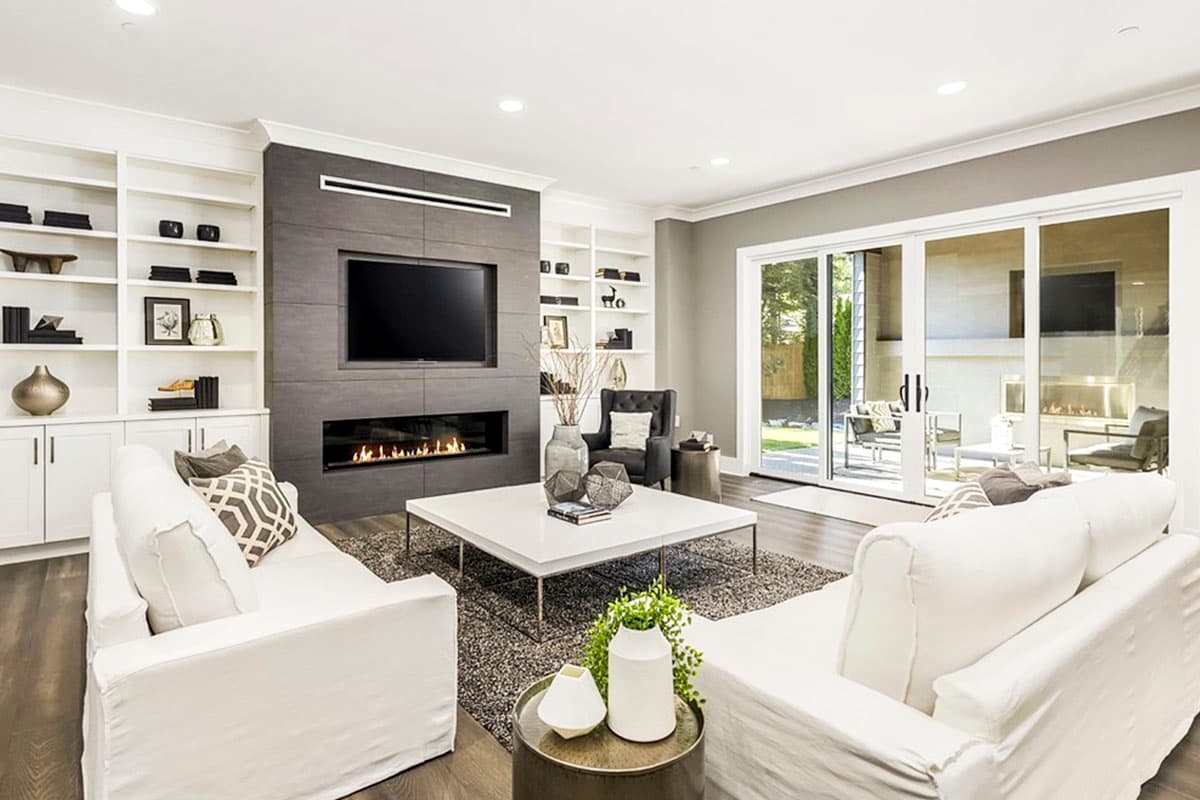

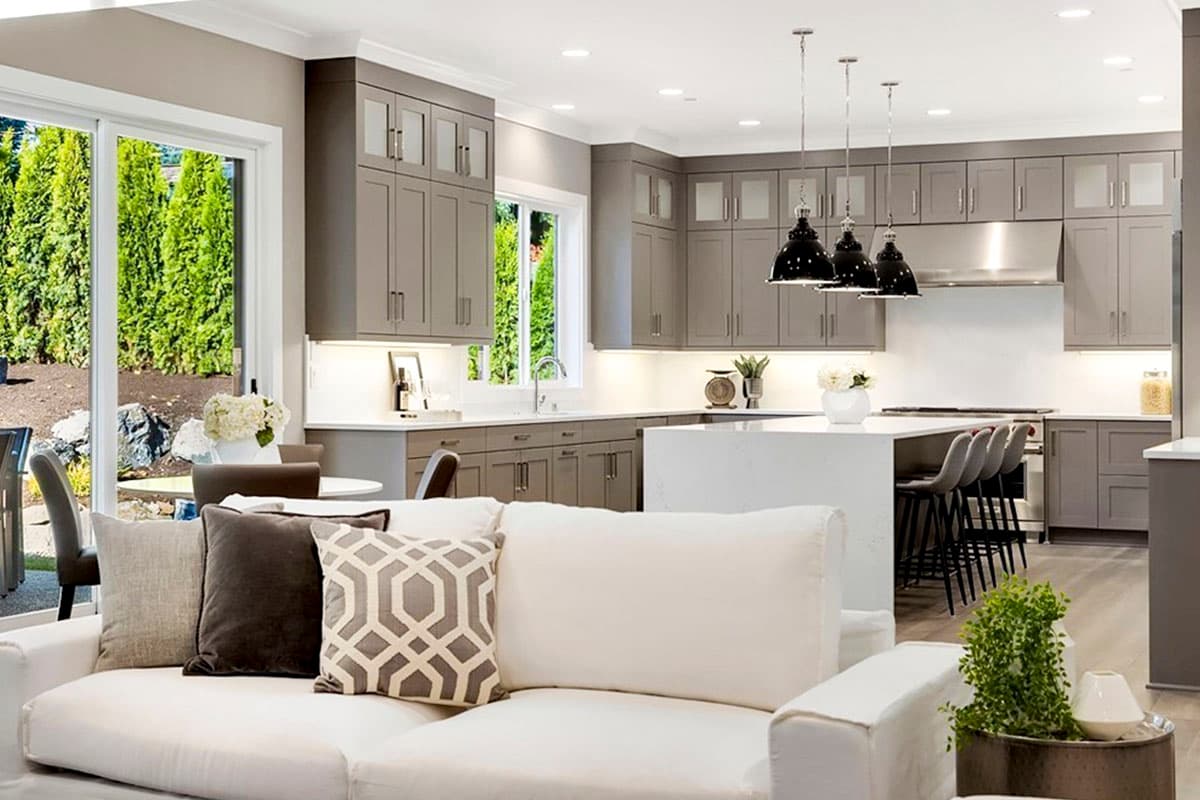

  • The great room has a fireplace with built-ins to the left and French doors to the right that lead to your covered patio with fireplace. The room is open to both the nook and kitchen which has a large island with casual seating and a walk-in pantry.

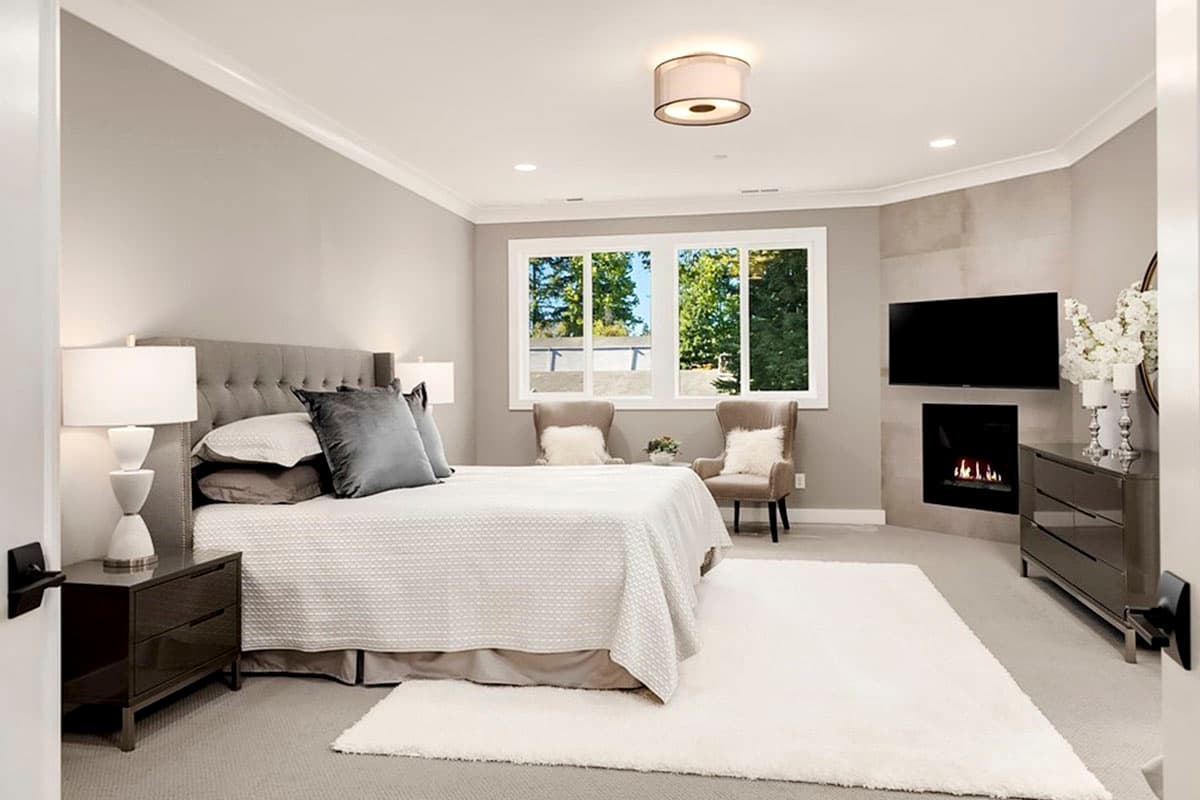

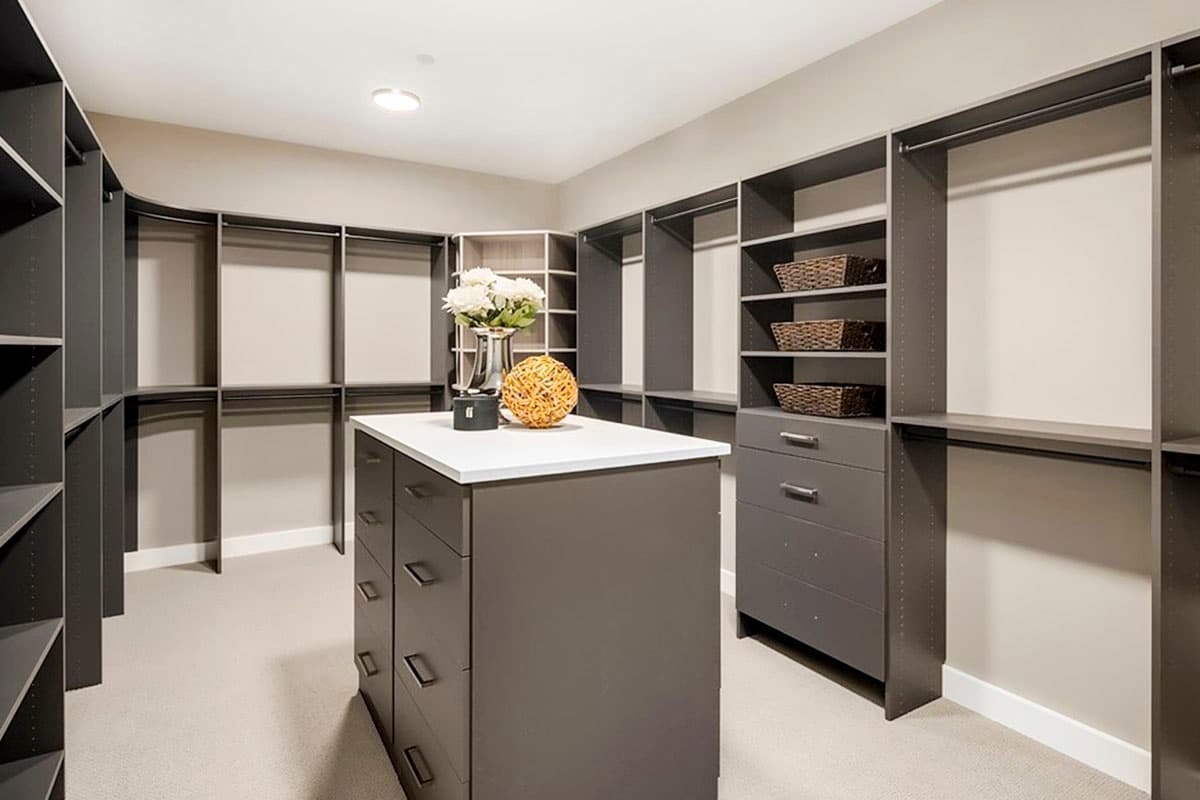

  • The master bed is upstairs with a large walk-in closet plus a fireplace.

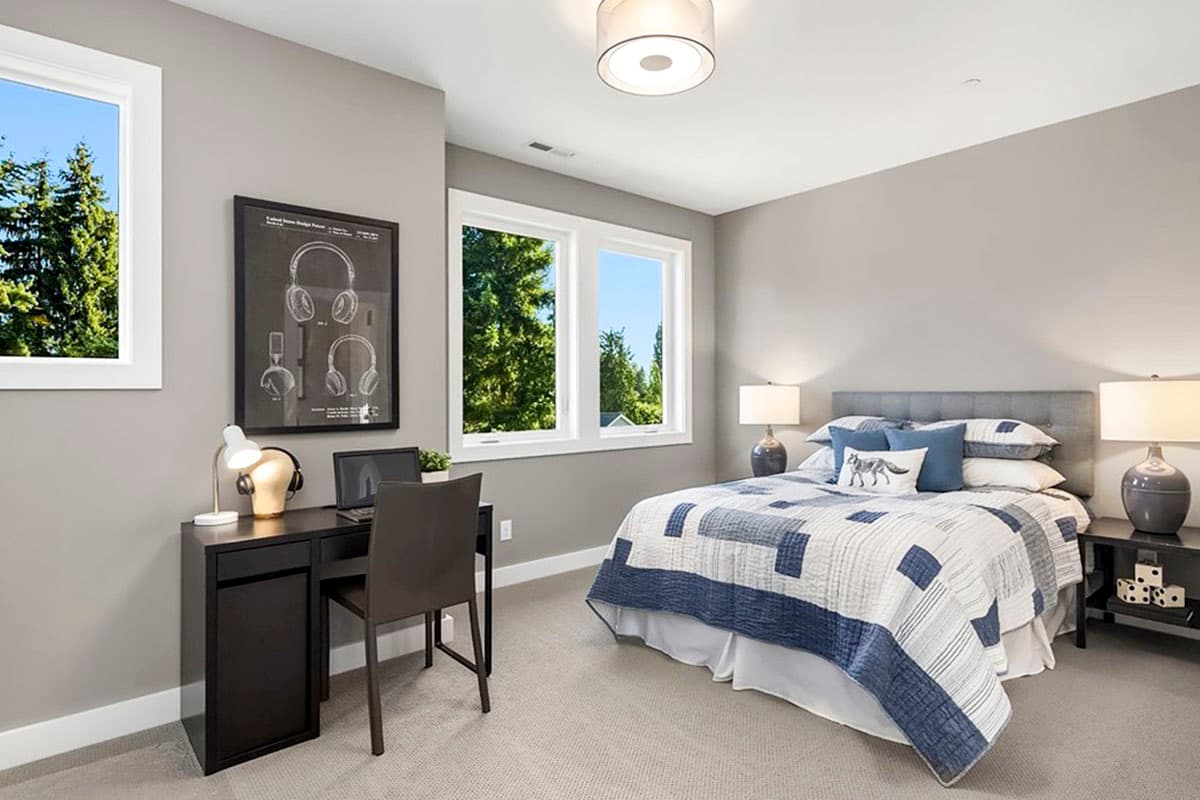

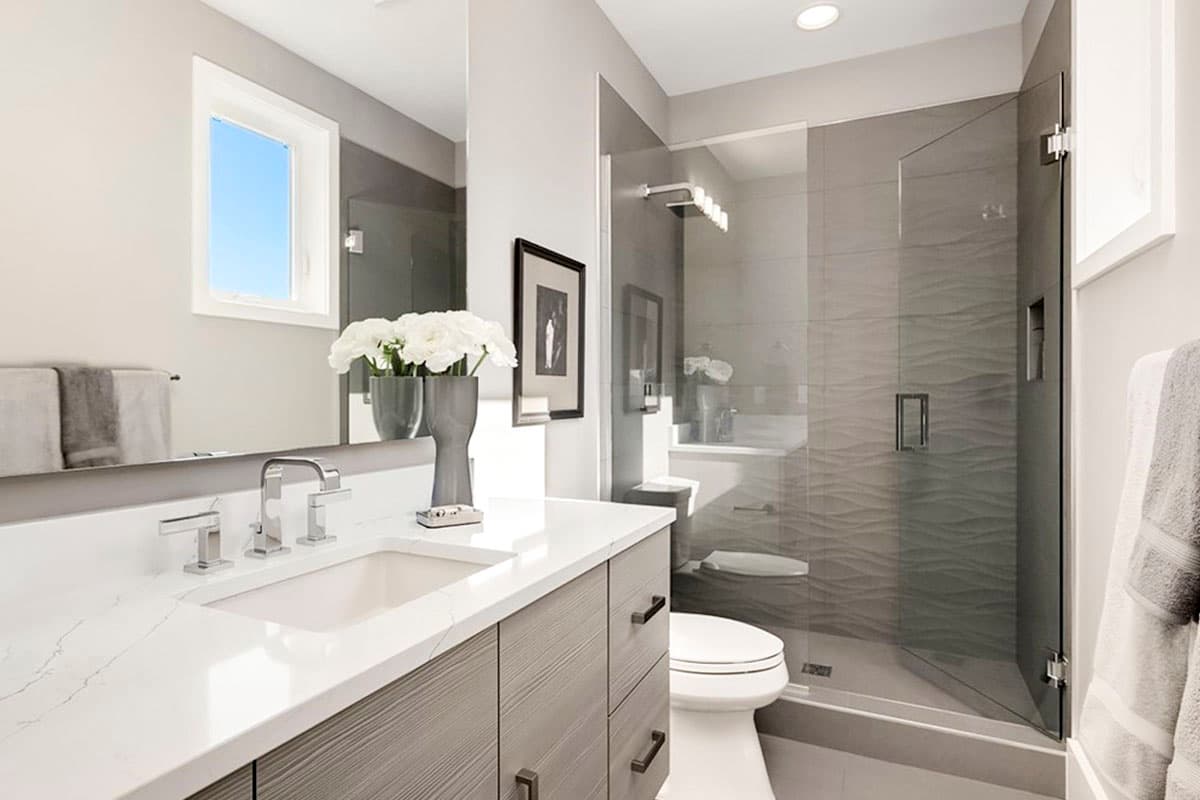

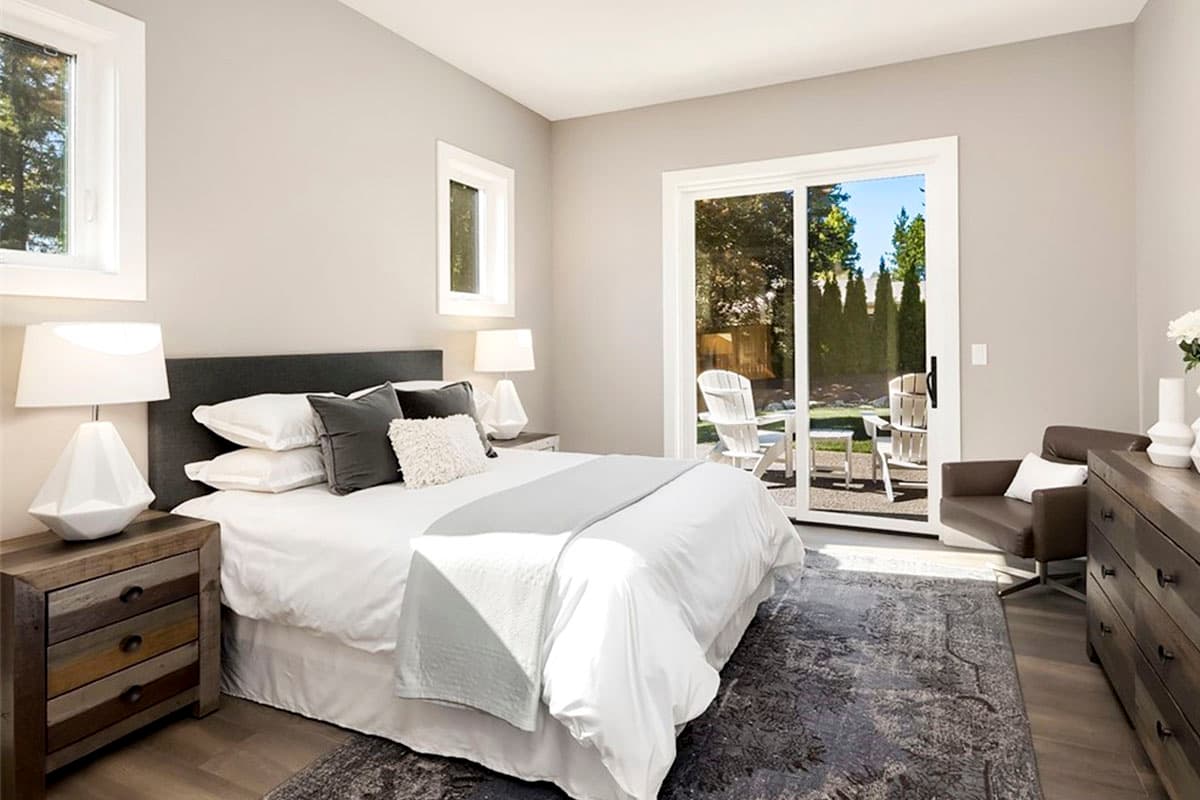

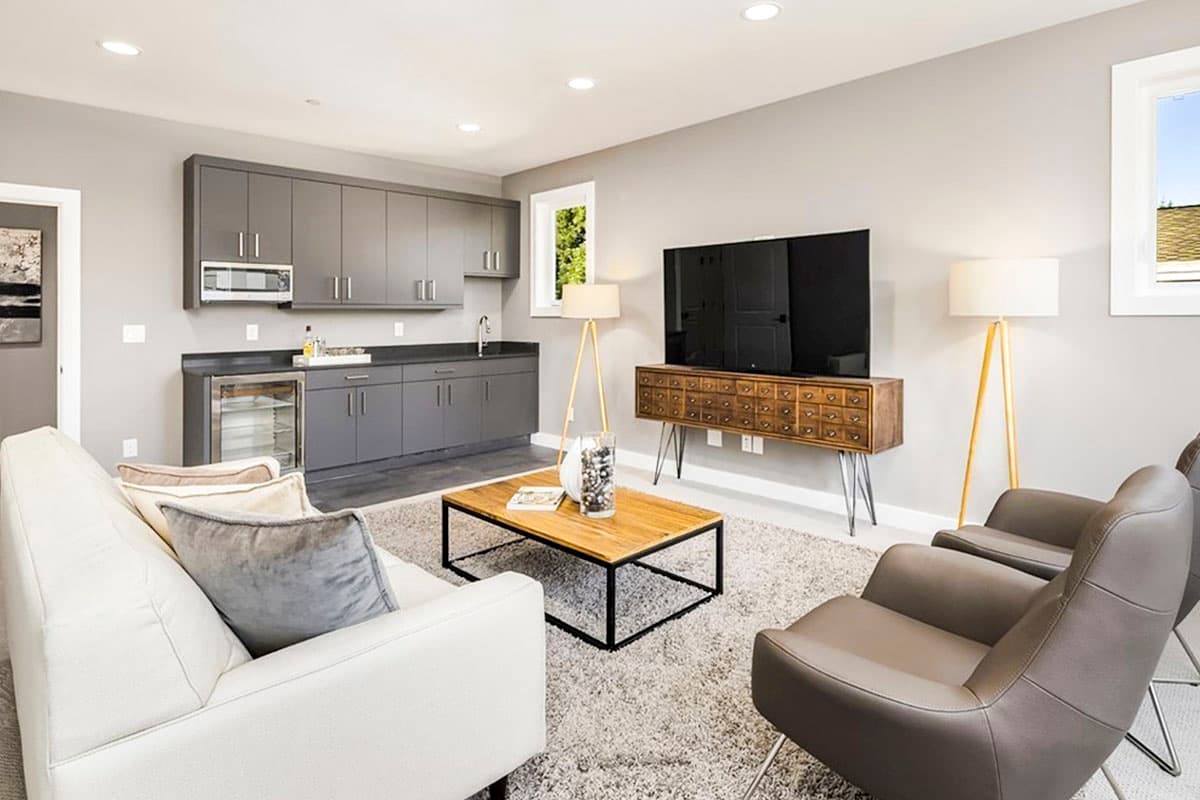

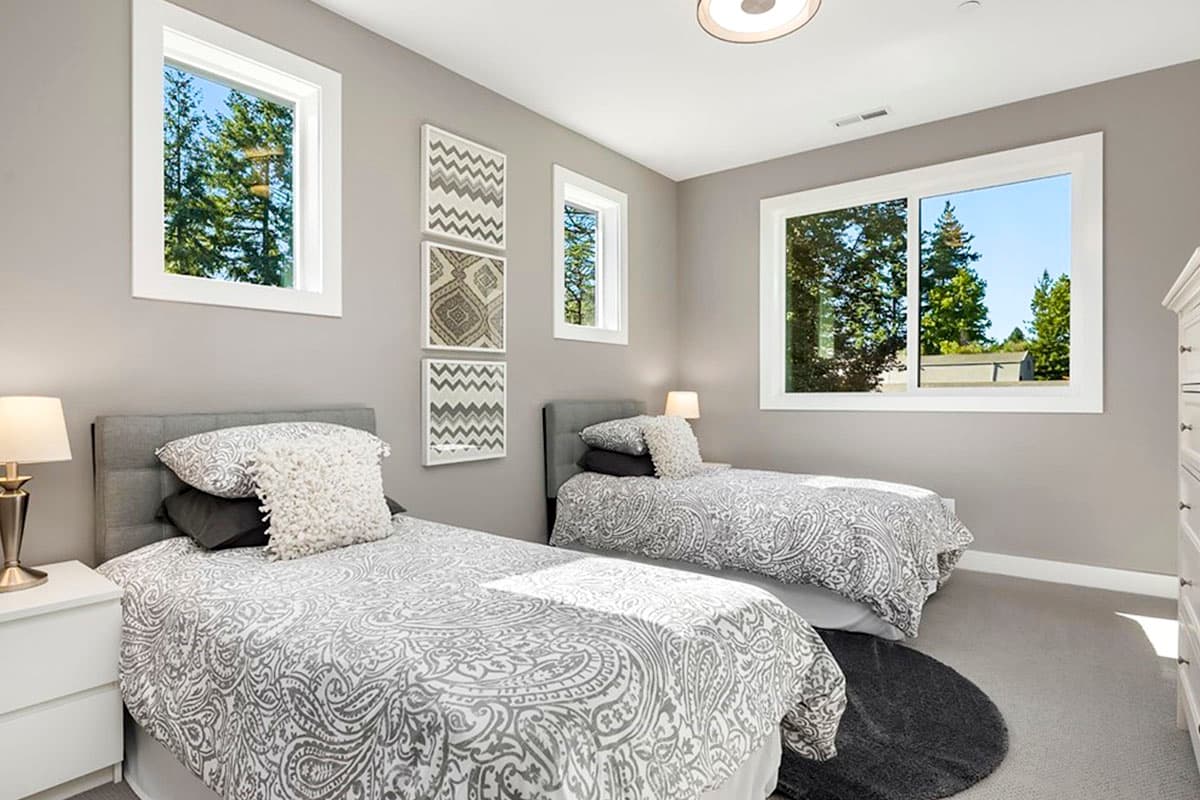

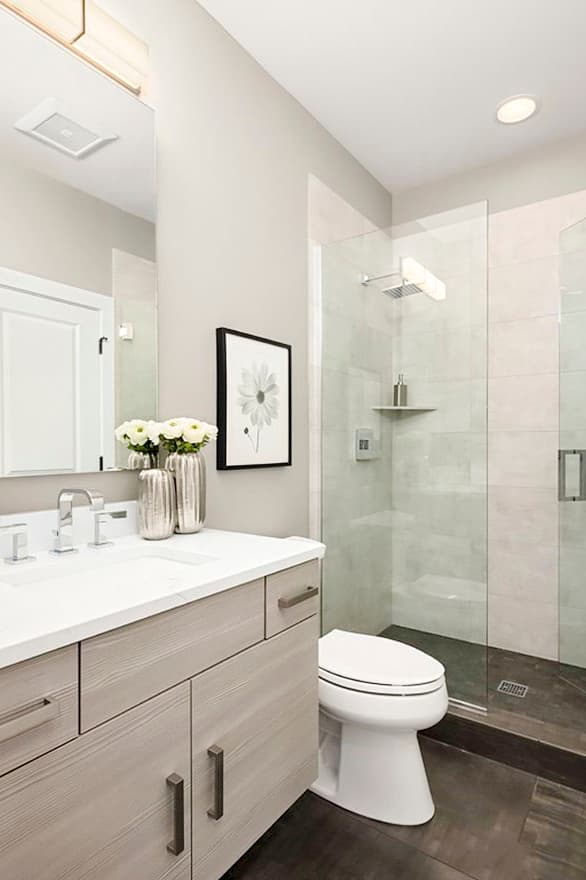

  • Bed 2 has its own bath while bed 3 and bed 4 share a Jack-and-Jill. Upstairs includes its own bonus room and including an upstairs laundry for your convenience.
  • Related:  Get an alternate second level with house plan 23682JD (5,006 sq. ft.)
  • NOTE:  Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

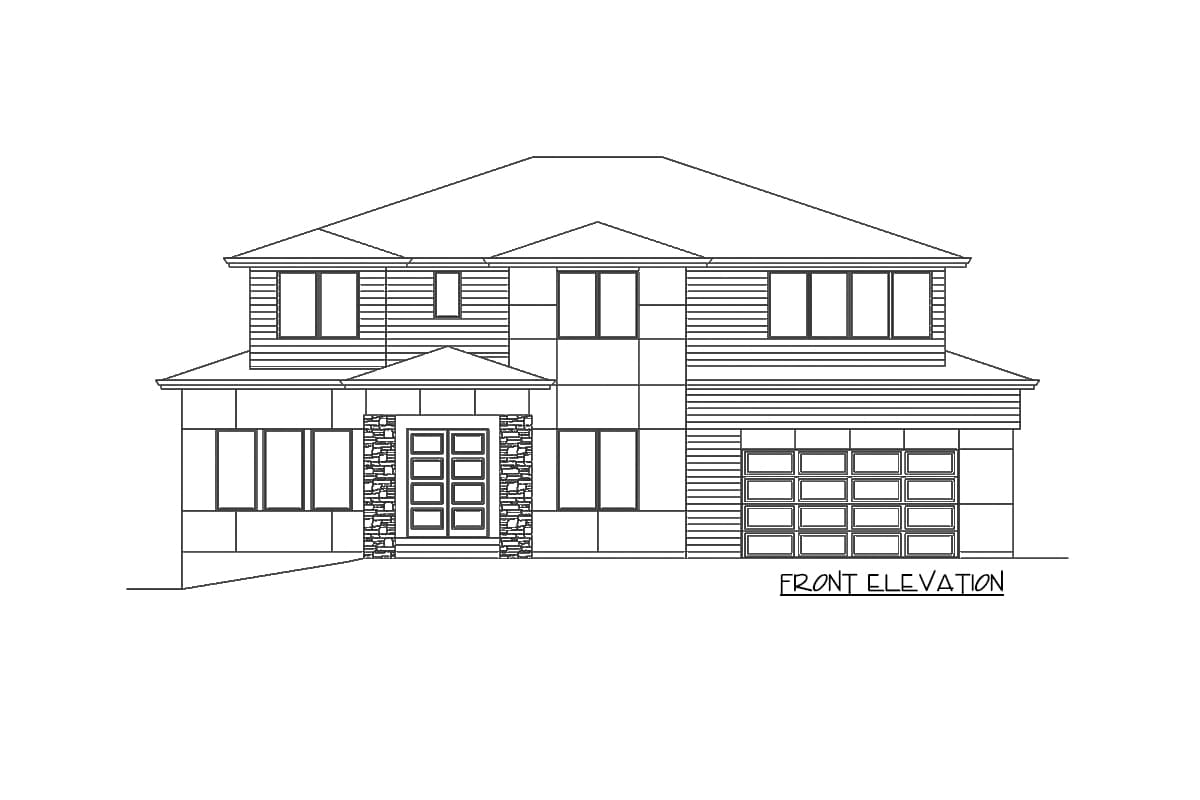

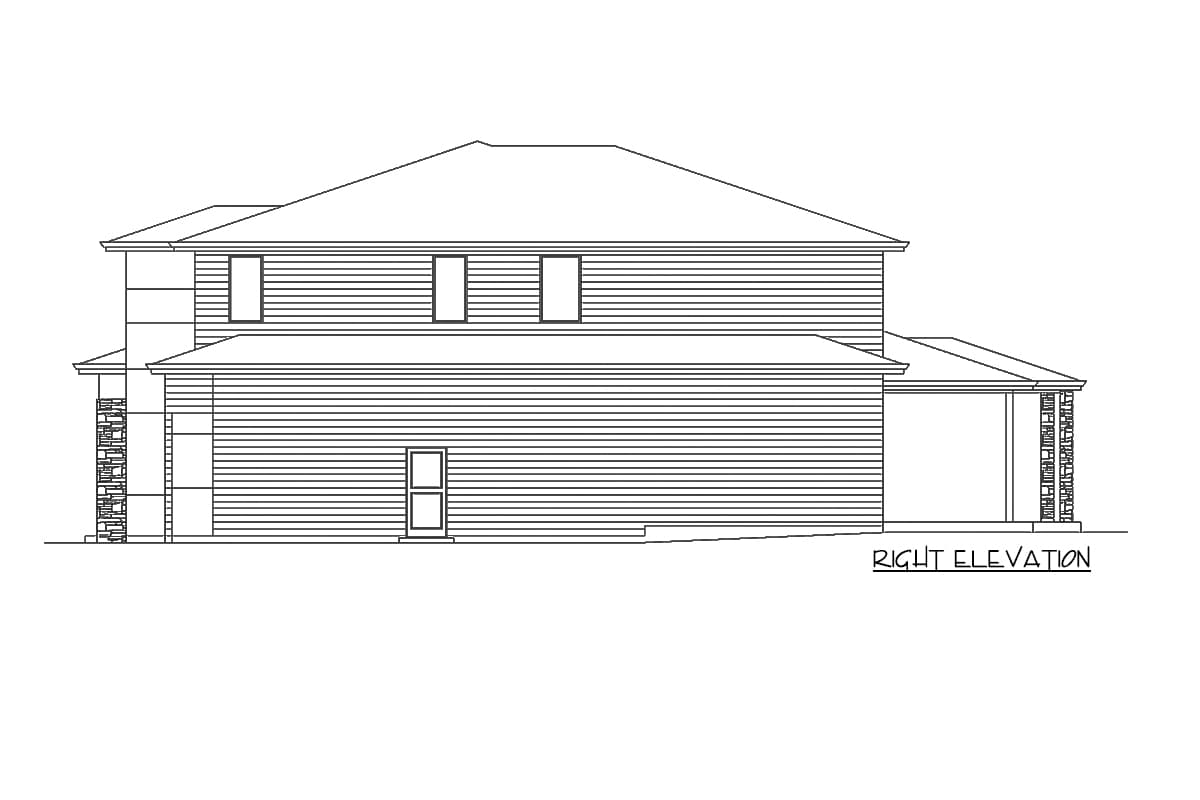

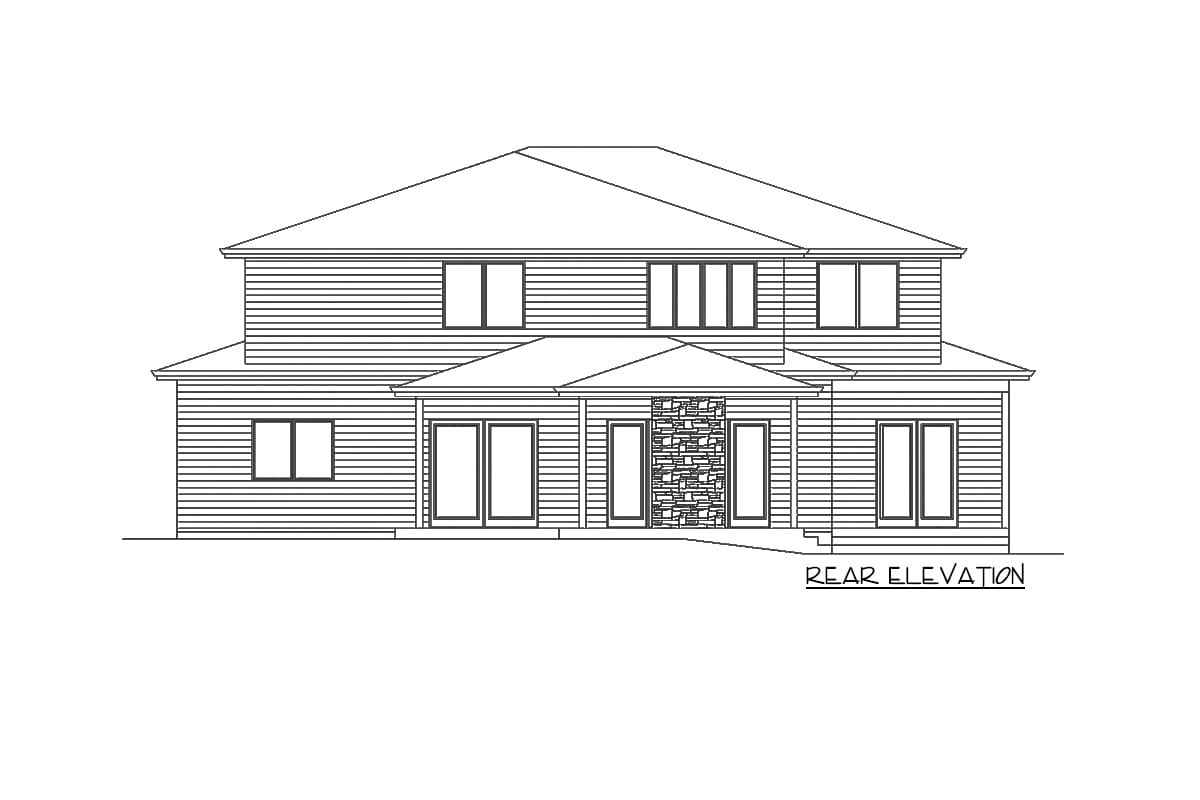

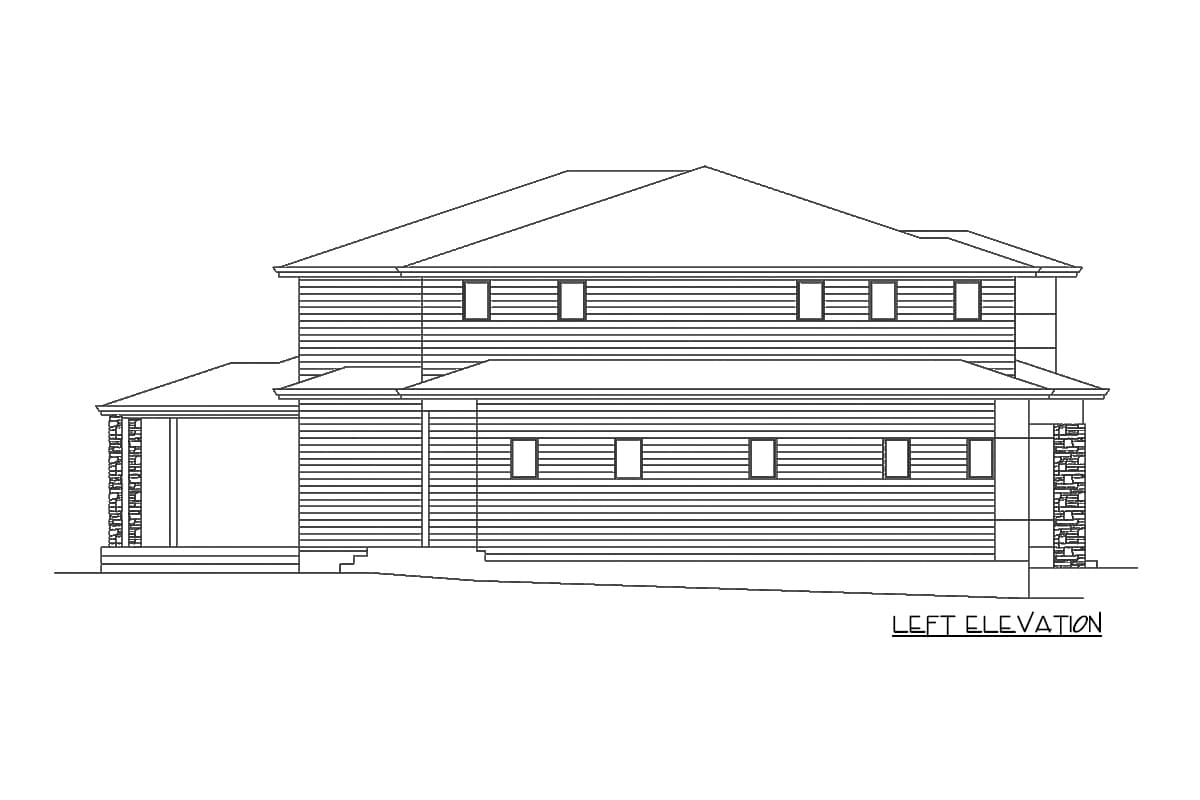

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

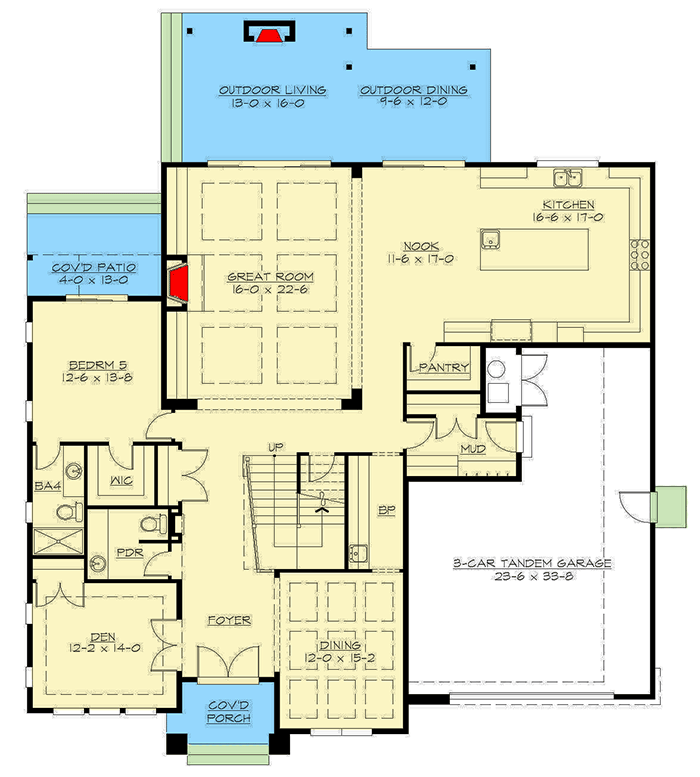

Incredible 5-Bed Prairie Modern Home Plan with Bonus Room - 23842JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

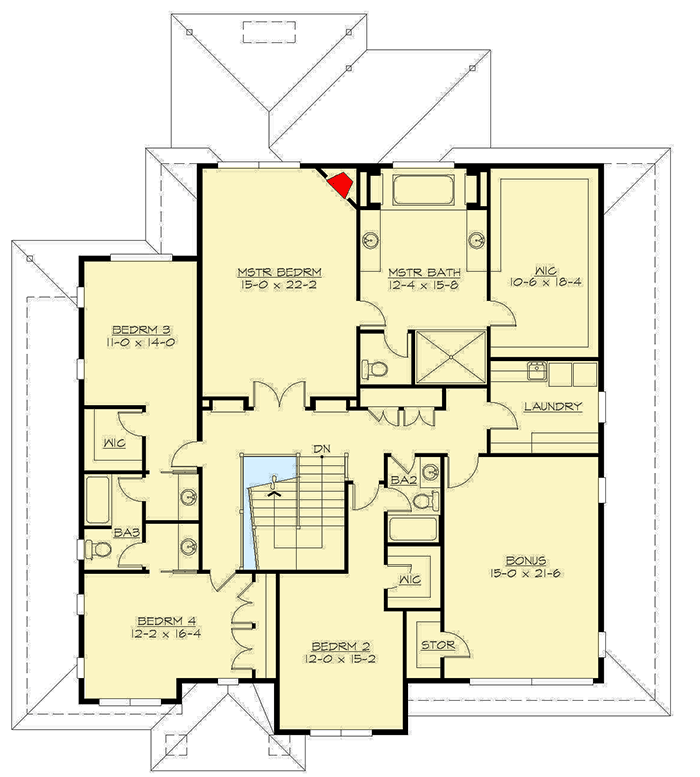

Incredible 5-Bed Prairie Modern Home Plan with Bonus Room - 23842JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,811 sq. ft.
  • 1st Floor: 2,362 sq. ft.
  • 2nd Floor: 2,449 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 61' 0"
  • Depth: 72' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 699 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Incredible 5-Bed Prairie Modern Home Plan with Bonus Room

  • 4,811

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,700
  • CAD + PDF - Unlimited Build $4,500
  • View all purchase option online

About This Plan

  • A Prairie-inspired exterior with a timbered covered entry greets you to this 5 bed modern house plan. The single garage door opens to reveal parking for 3 cars with 2 of them parked tandem.
  • French doors open to the foyer which leads you to the great room in back. On your left, another set of  French doors reveal the den while the dining room with coffered ceiling is on your right. With access to the kitchen through the butler's pantry, the home has a circular flow.
  • The great room has a fireplace with built-ins to the left and French doors to the right that lead to your covered patio with fireplace. The room is open to both the nook and kitchen which has a large island with casual seating and a walk-in pantry.
  • The master bed is upstairs with a large walk-in closet plus a fireplace.
  • Bed 2 has its own bath while bed 3 and bed 4 share a Jack-and-Jill. Upstairs includes its own bonus room and including an upstairs laundry for your convenience.
  • Related:  Get an alternate second level with house plan 23682JD (5,006 sq. ft.)
  • NOTE:  Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,811 sq. ft.
  • 1st Floor: 2,362 sq. ft.
  • 2nd Floor: 2,449 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 61' 0"
  • Depth: 72' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 699 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
Plan 23842JD
View this and more for this plan by visiting www.architechtecturaldesigns.com/23842JD
|
