Luxury Mediterranean Home Plan with Angled 4-Car Garage

Plan 666108RAF

This plan plants 3 trees

6,320
Heated s.f.
4-6
Beds
6.5
Baths
2
Stories
4
Cars

This luxury, Mediterranean home plan, with a contemporary exterior, features 6,320 square feet of heated living space. The well-appointed design boasts multiple outdoor living spaces, a two-story great room, and a 4-car garage (with 11'6" ceilings).
A grand foyer with a curved staircase greets you upon entering, flanked by a home office and formal dining room.
Entertaining is a delight with this sizable kitchen, multiple lounge areas, and 608 sq ft covered deck off the rear of the home. Don't miss the wet and dry sauna in the lounge room near the garage!
A guest suite (with a 113 sq ft private deck) completes the main level, while the remaining 3 bedrooms are located upstairs, including the deluxe master. Each bedroom boasts a private balcony.
Also upstairs, discover a bonus room, generous laundry room, and 749 sq ft storage room above the garage.

Plans include:

Cover Sheet
General notes
Foundation Plan
Fully dimensioned floor plans

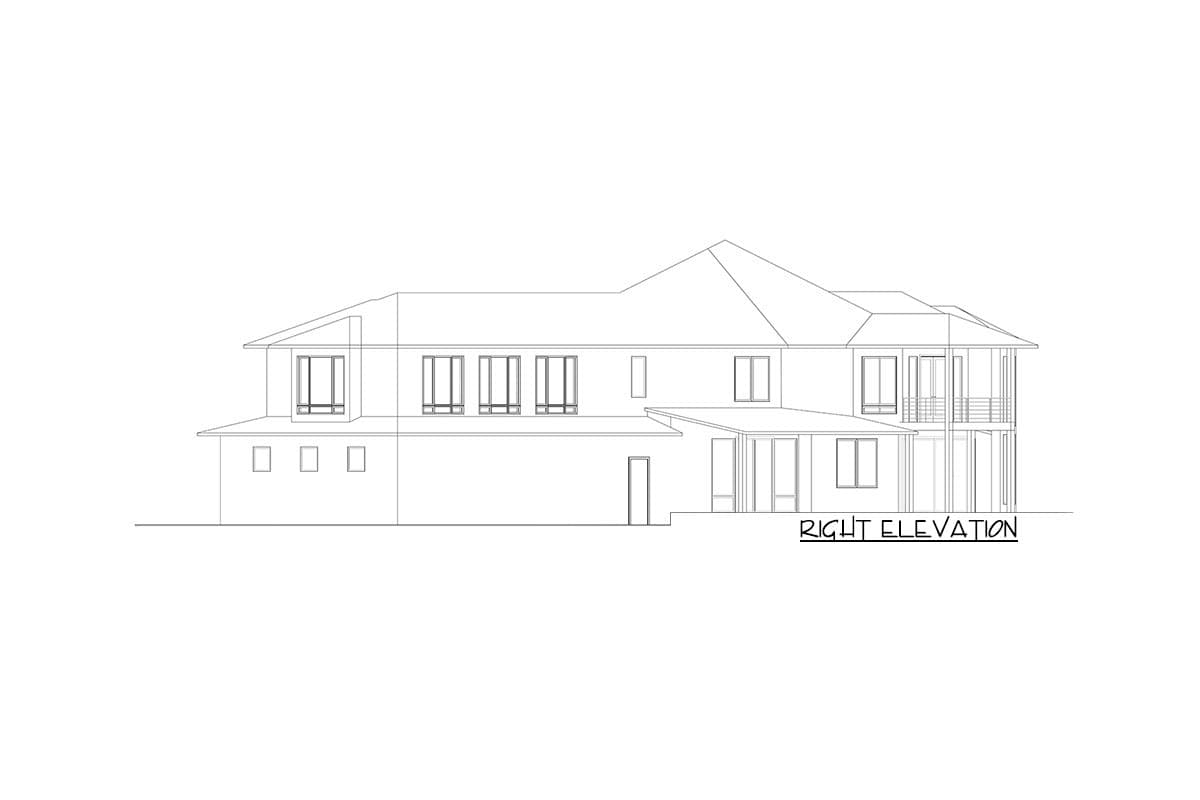

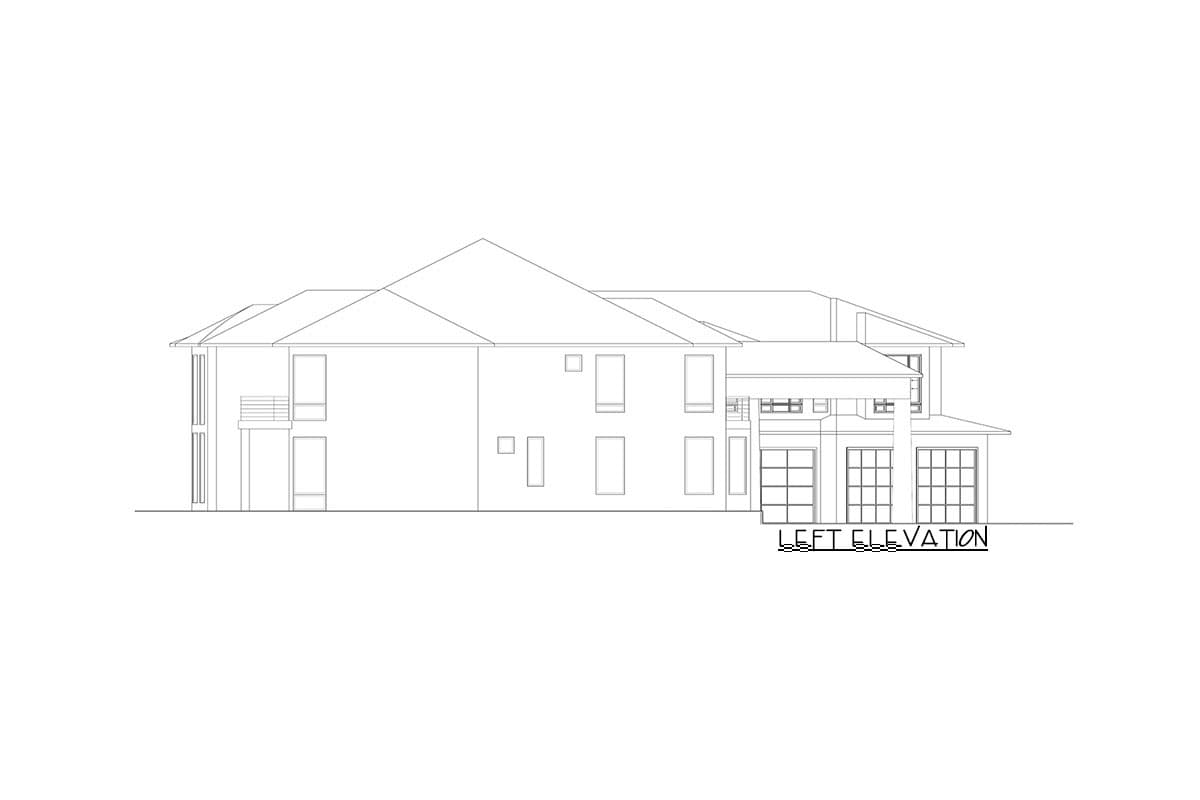

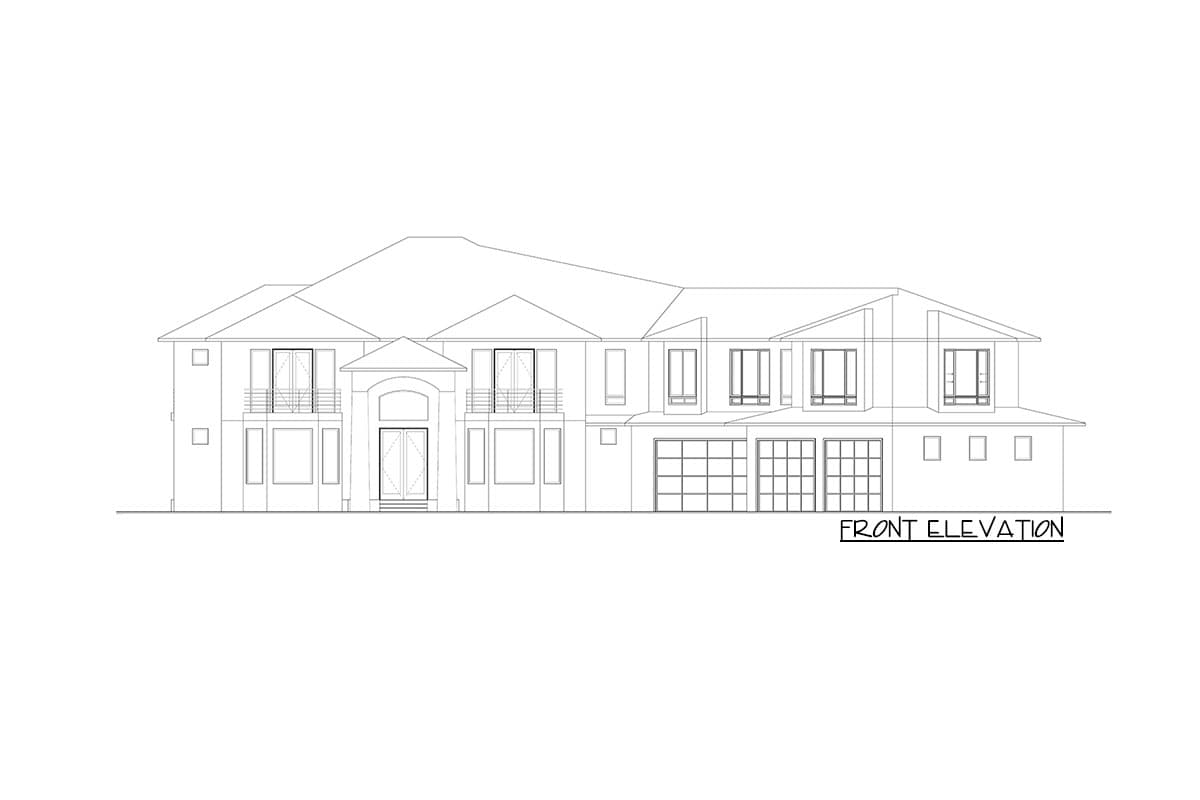

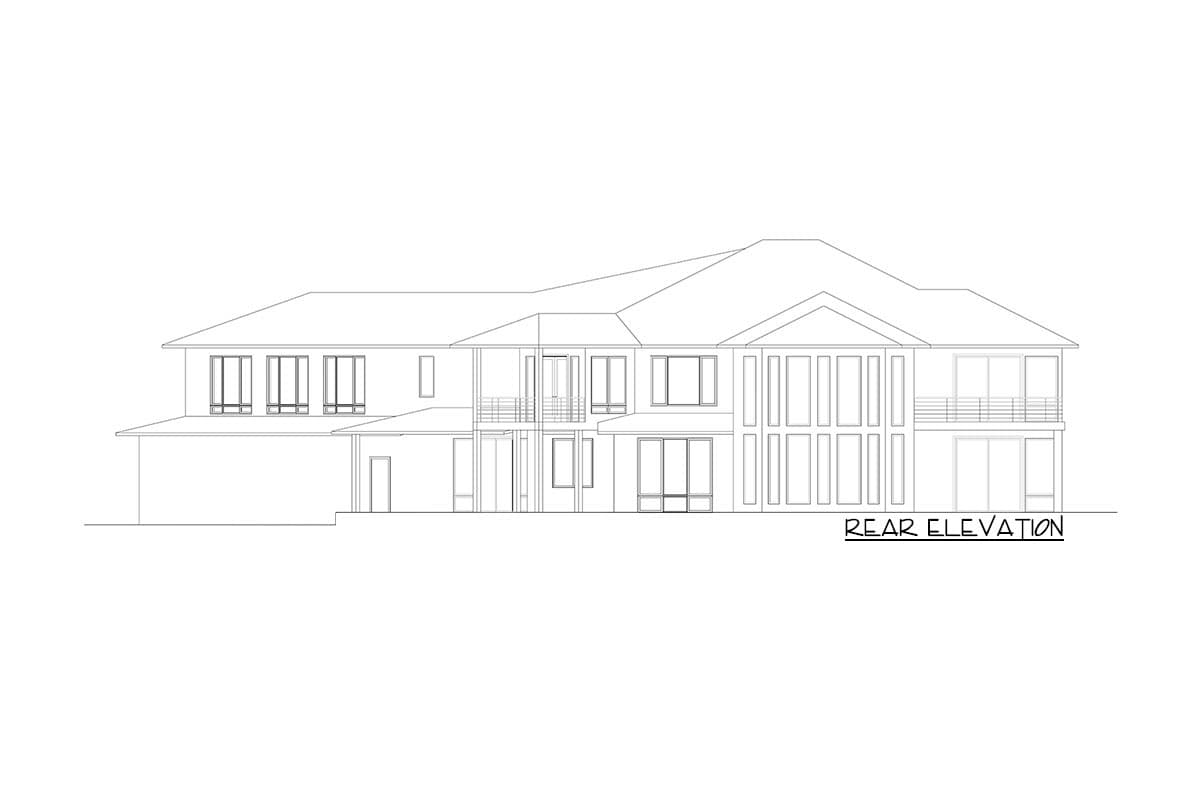

Elevations
Building cross sections
Roof Plan

What is NOT included in the plans:

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Energy calculations

Floor Plan

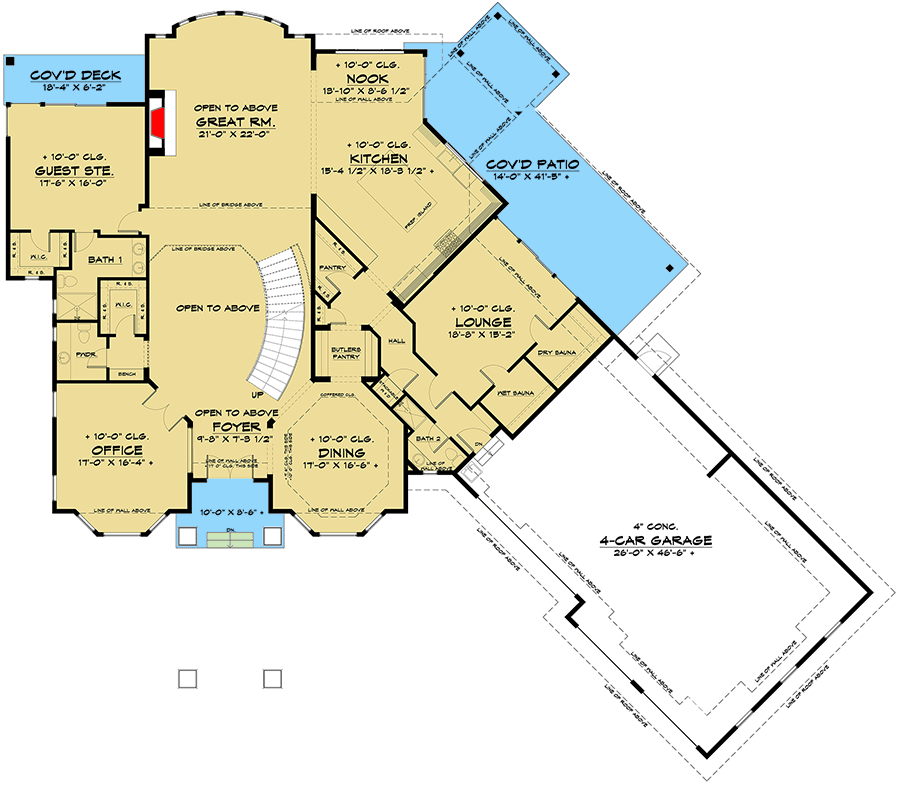

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

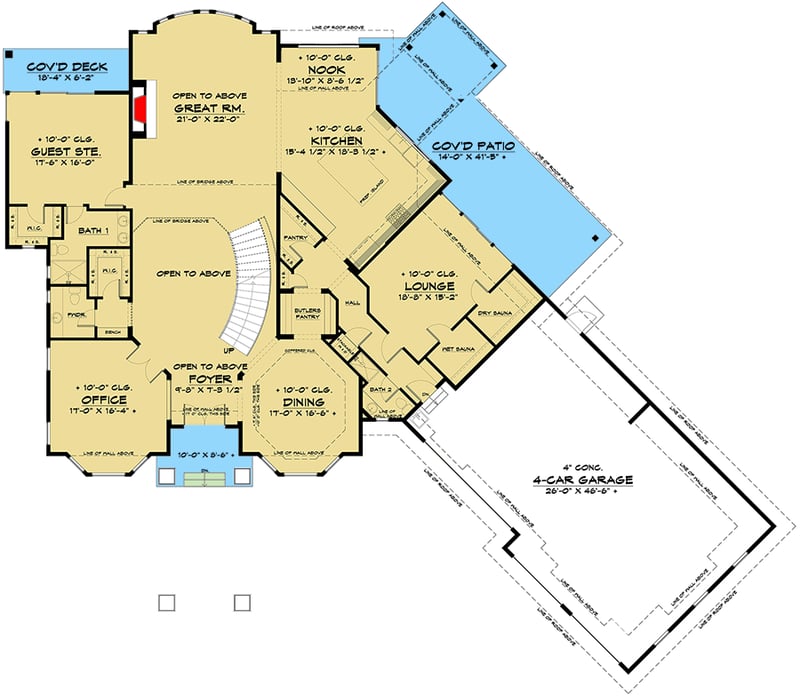

Luxury Mediterranean Home Plan with Angled 4-Car Garage - 666108RAF floor plan - Main Level

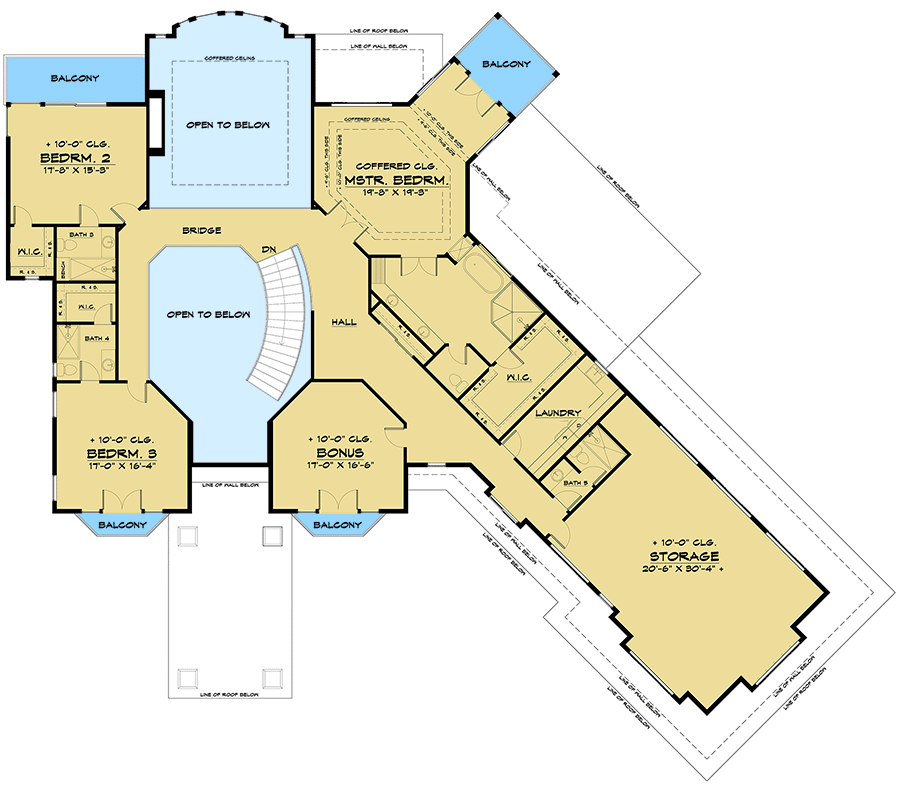

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

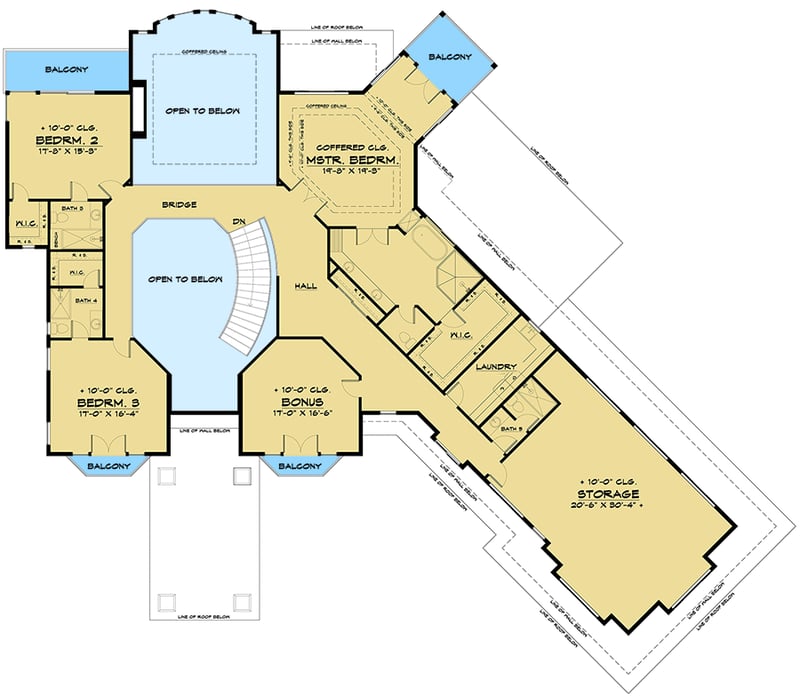

Luxury Mediterranean Home Plan with Angled 4-Car Garage - 666108RAF floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 6,320 sq. ft.
1st Floor: 3,629 sq. ft.
2nd Floor: 2,691 sq. ft.

Storage: 749 sq. ft.
Balcony / Veranda: 254 sq. ft.
Deck: 113 sq. ft.
Porch, Front: 91 sq. ft.
Bonus: 749 sq. ft.

Beds/Baths

Bedrooms: 4, 5, or 6

Full bathrooms: 6
Half bathrooms: 1

Foundation Type

Standard Foundations: Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 112' 4"
Depth: 96' 10"
Max ridge height: 35' 2"

Garage

Type: Attached
Area: 1206 sq. ft.
Count: 4 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

Primary Pitch: 6 on 12

Framing Type: Truss

Architectural Style

Special features

Plan Collections
