Luxury on 3 Levels

Plan 23364JD

  • 7,425

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2-3

    Stories

  • 4

    Cars

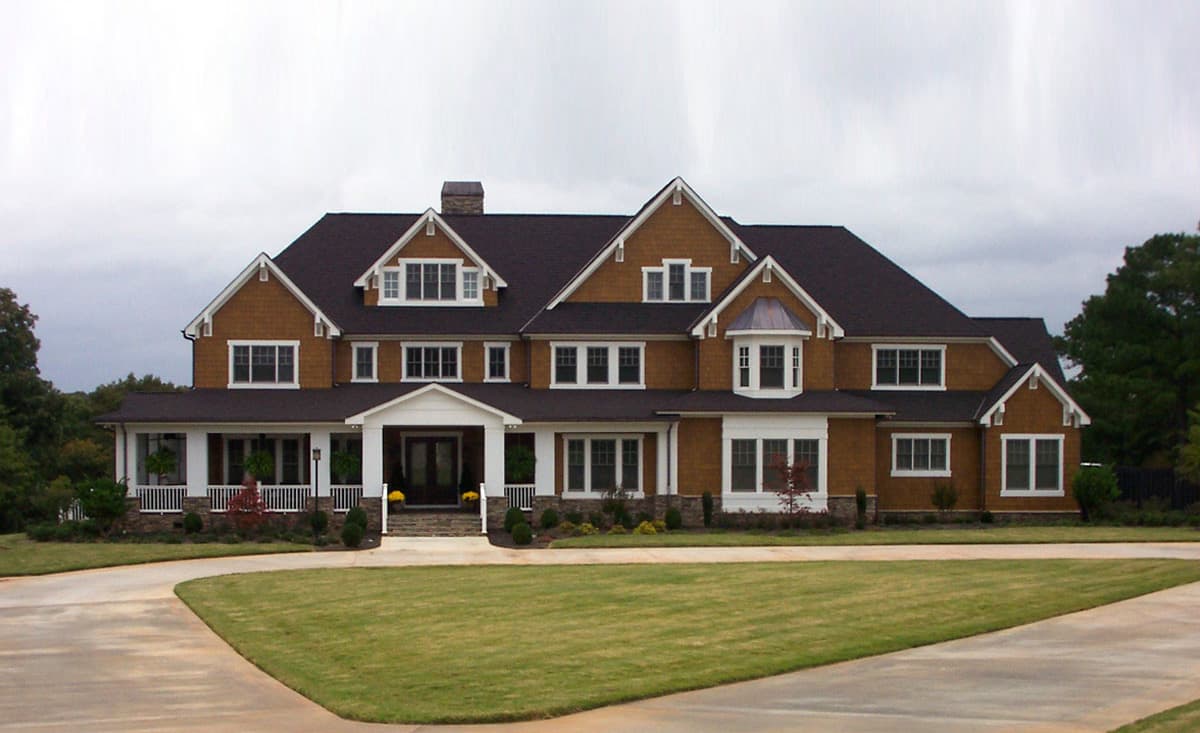

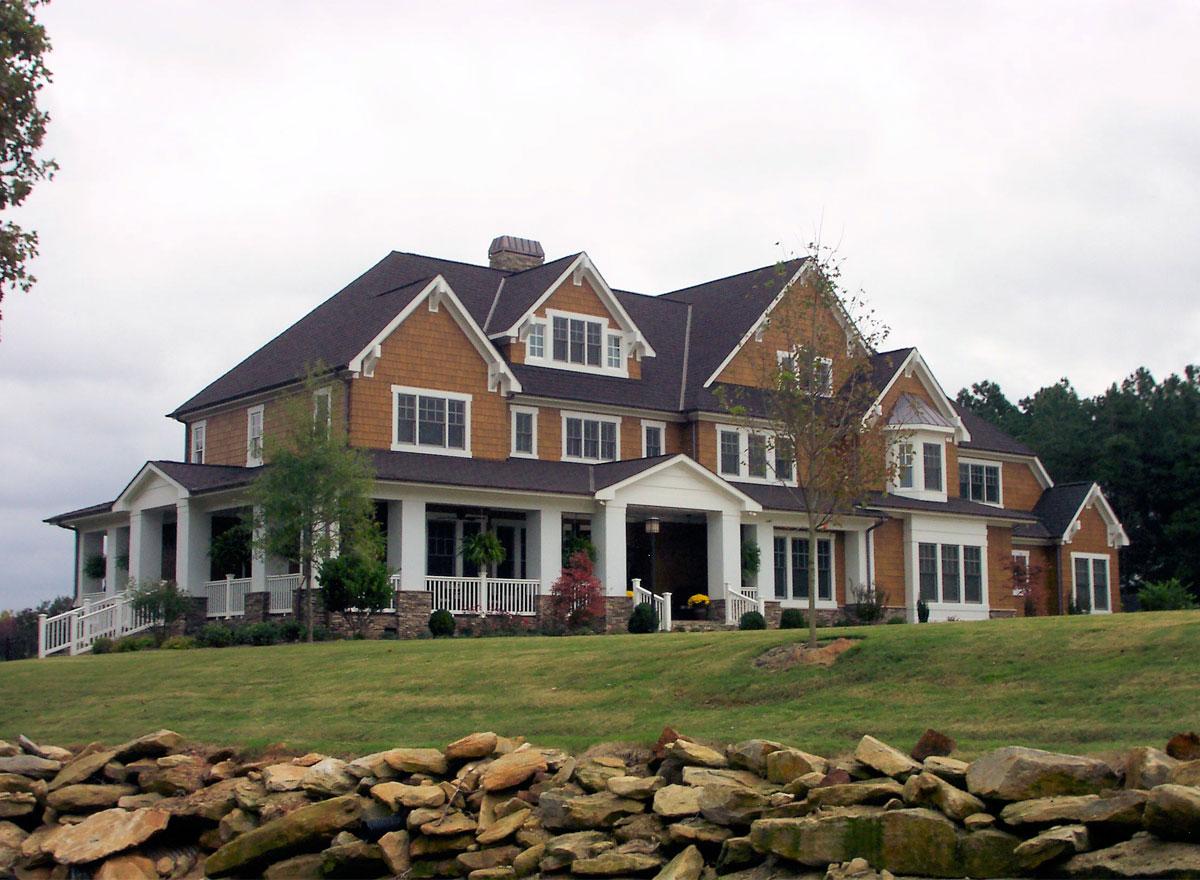

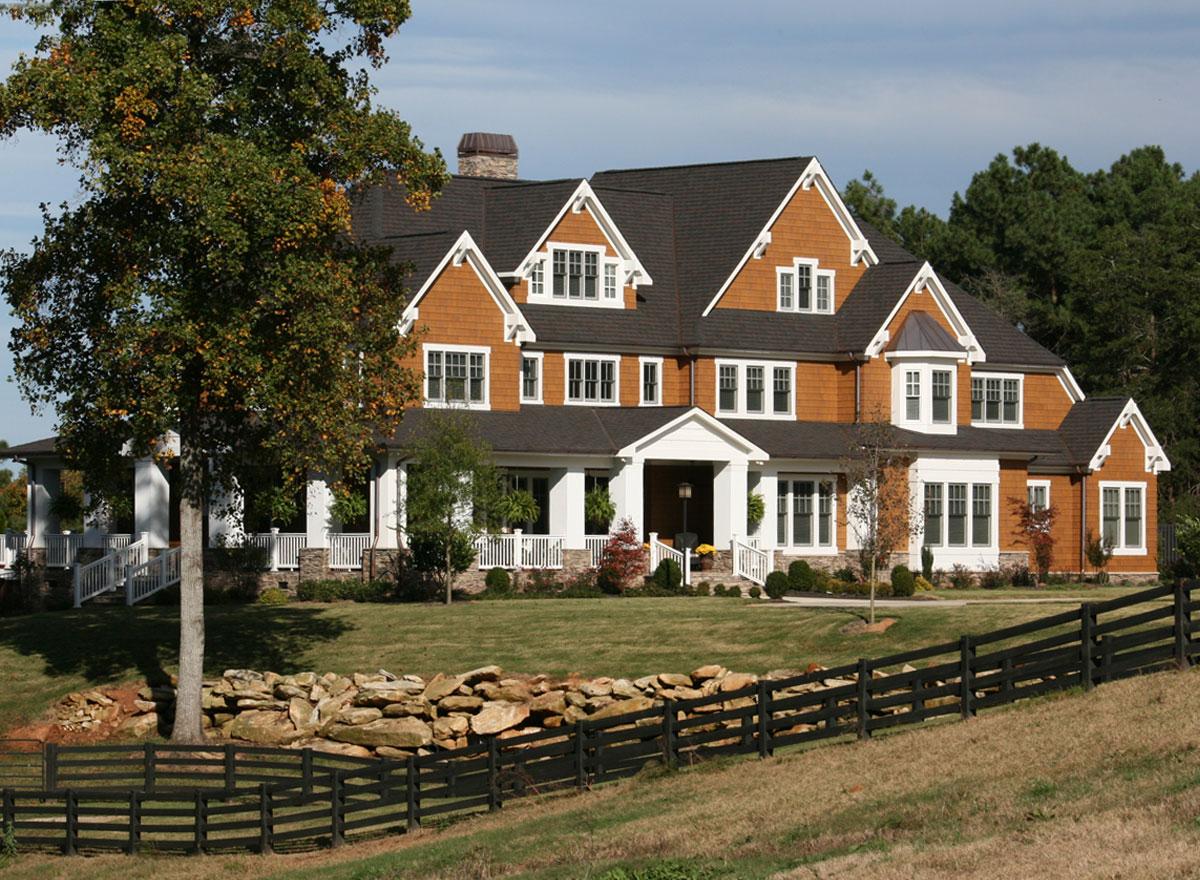

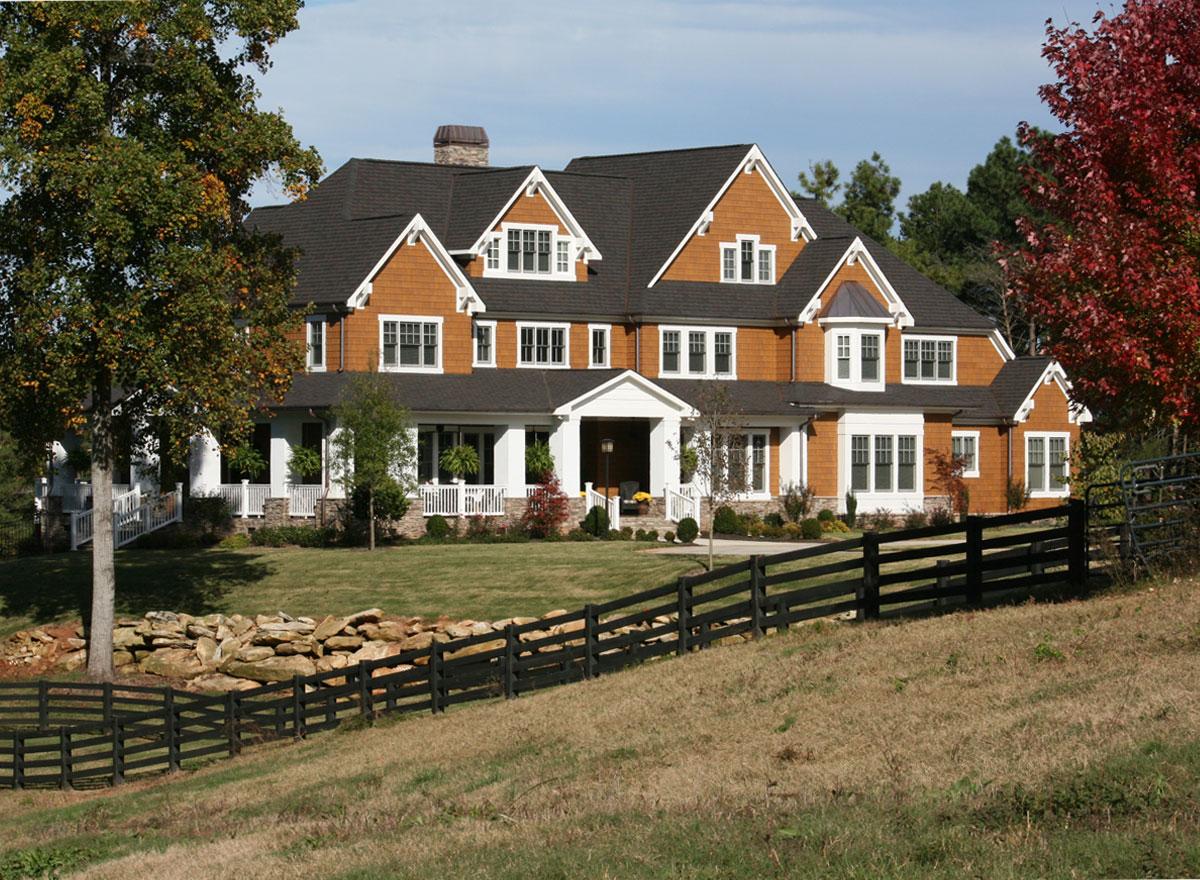

  • This luxury Craftsman house plan has an abundance of windows that provide light and views throughout the home.

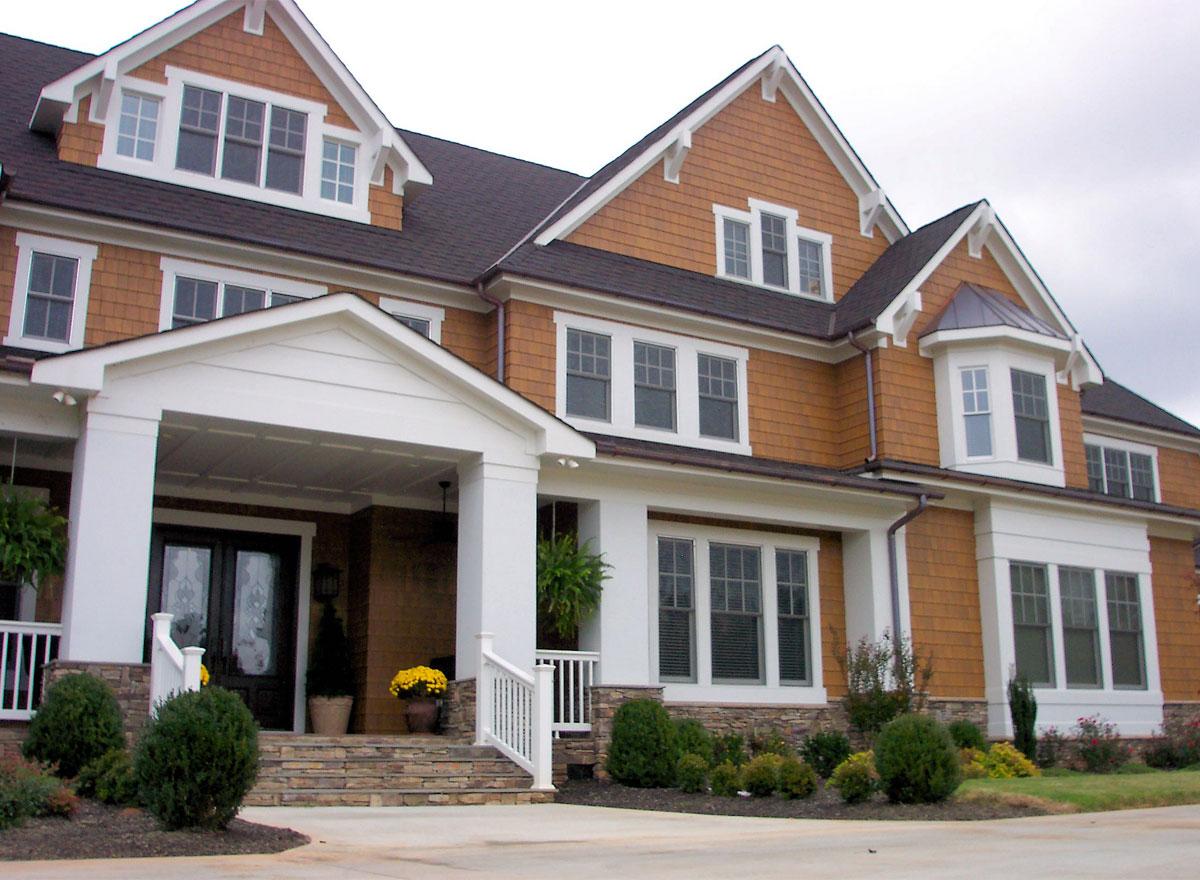

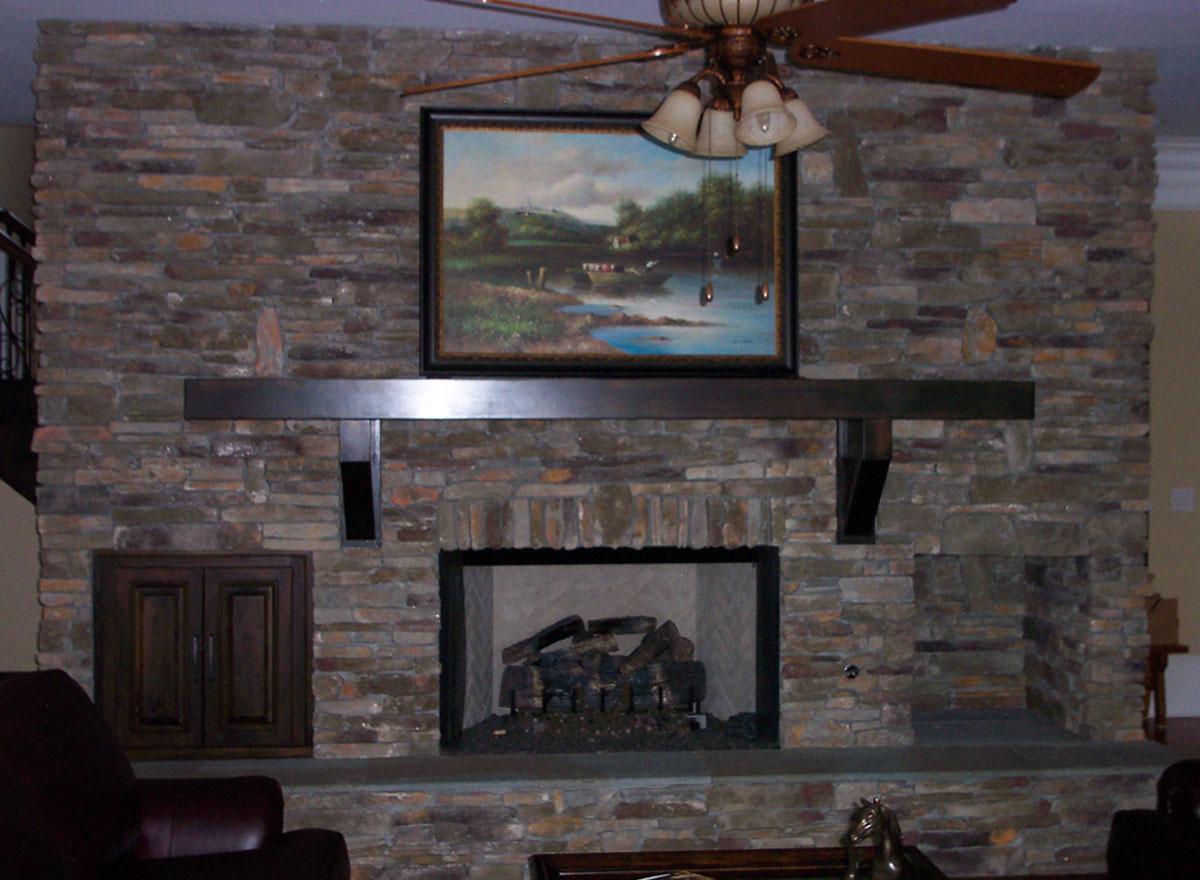

  • Walk through the formal foyer off the covered front porch and note the two-sided fireplace ahead. This separates the formal entry from expansive great room.

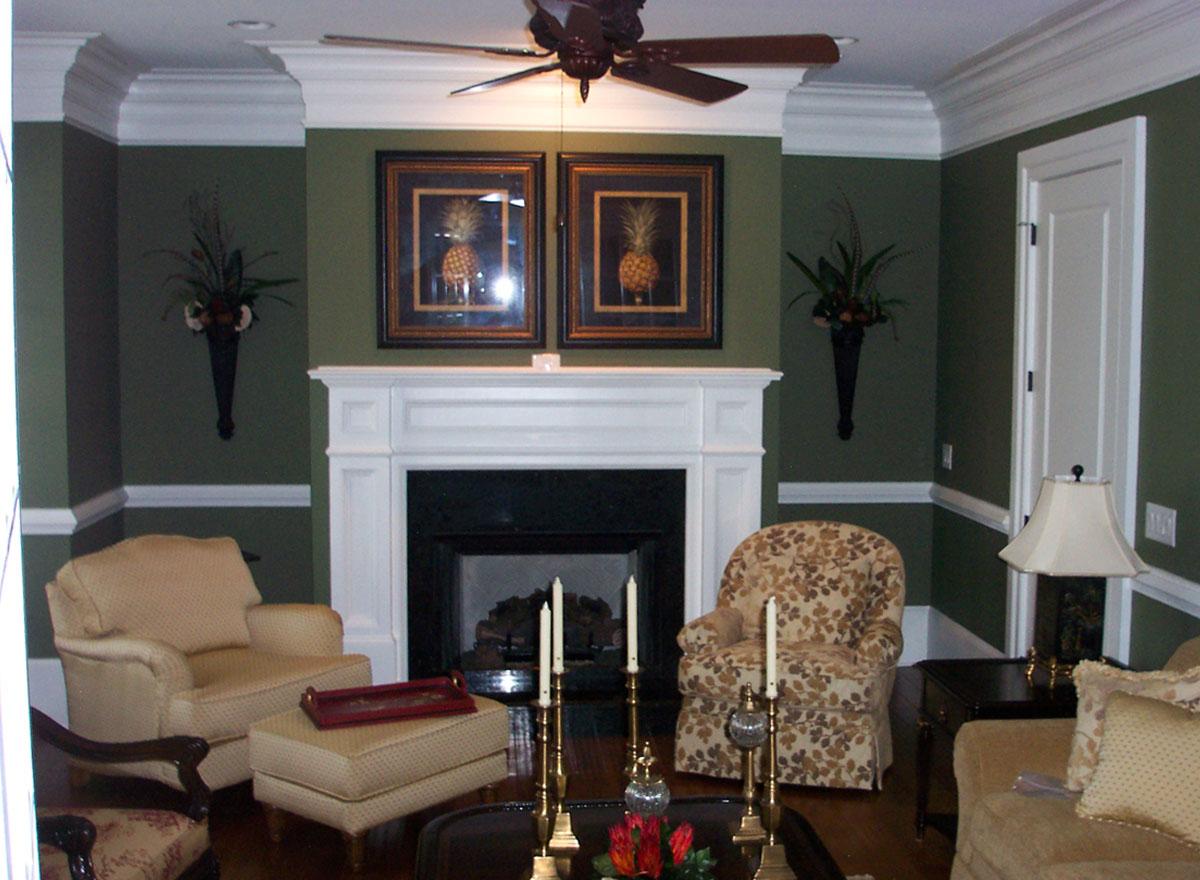

  • Fireplaces can be found in the living room and library as well.

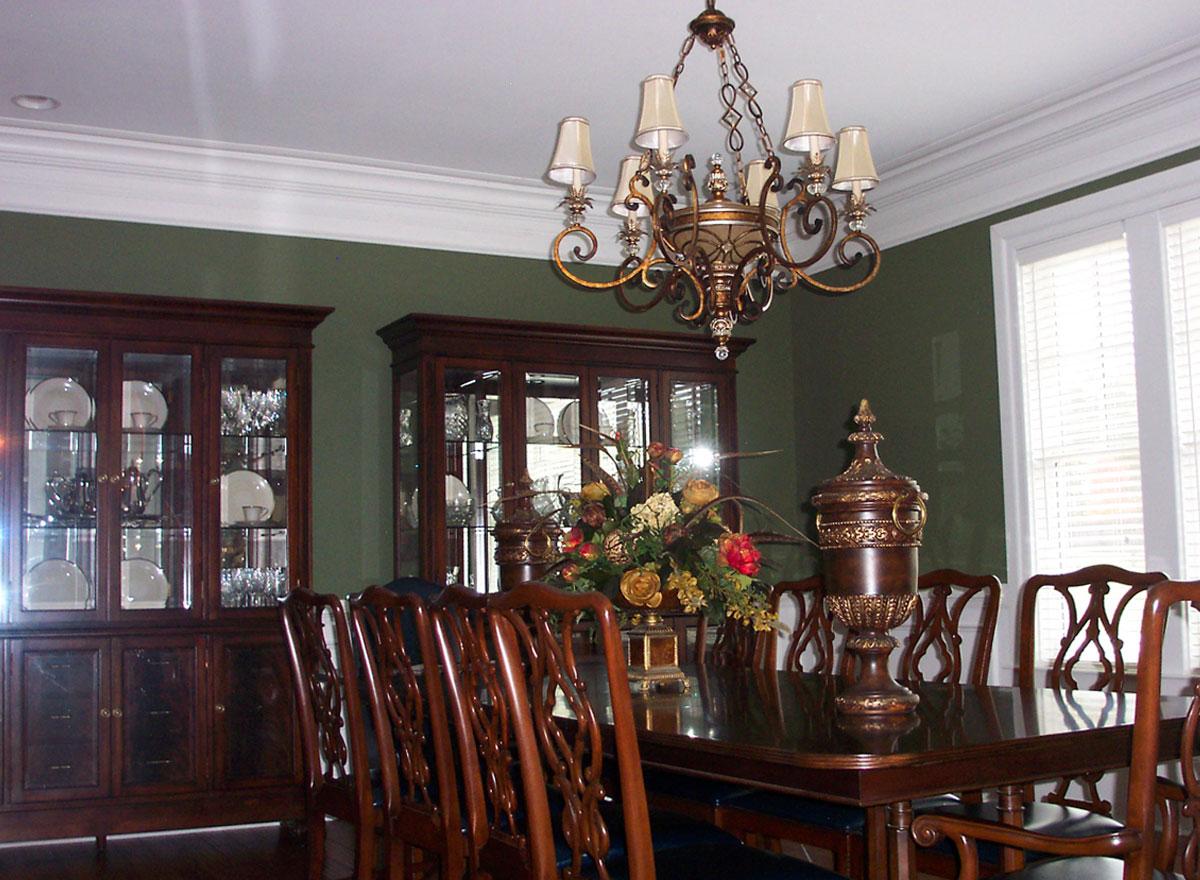

  • A formal dining room is great for entertaining. Note the spacious butler's pantry and the open kitchen and breakfast room.

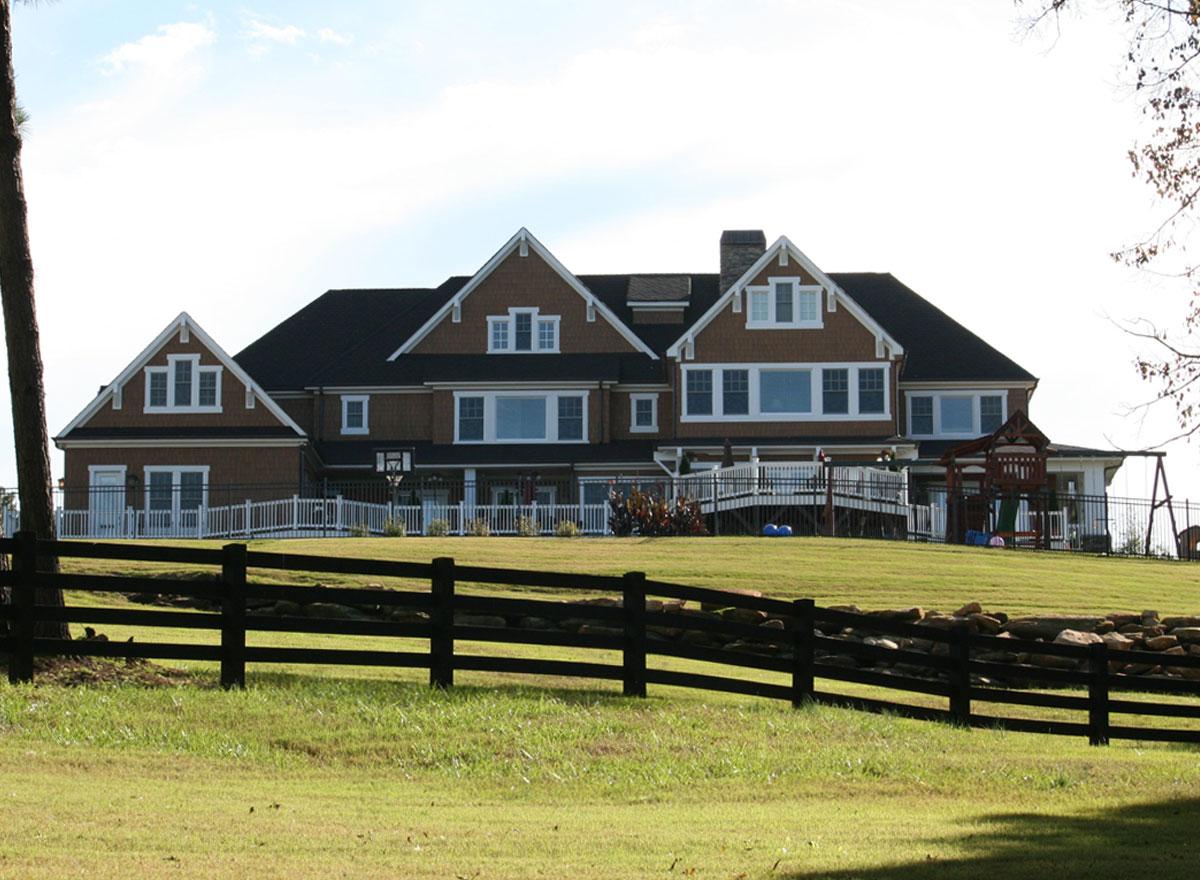

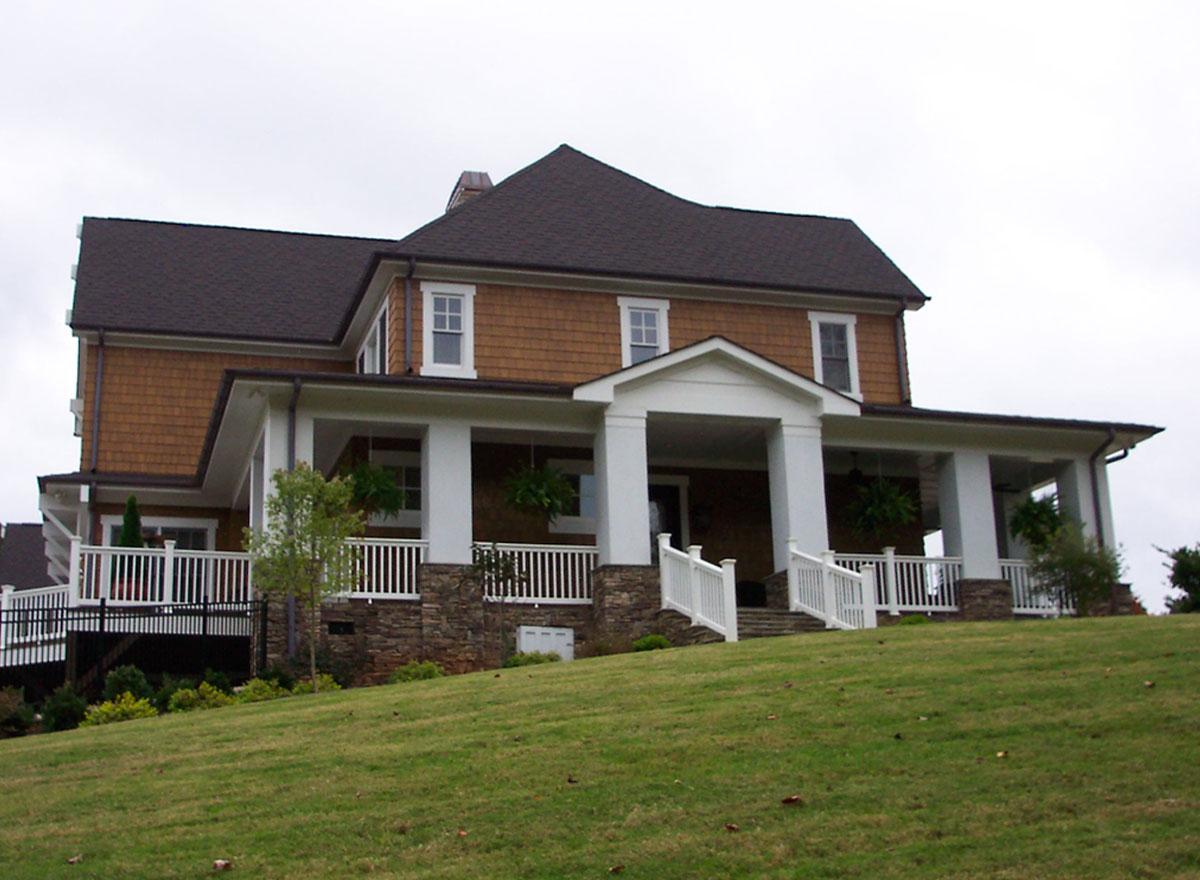

  • A wraparound porch extends along two sides and a huge deck space helps expand your entertaining options.
  • Guests can stay on the main floor guest room.
  • Upstairs, you'll find three bedrooms including the master with private deck. A bonus room can be turned into a play or media room.
  • Upon another flight of stairs you'll find a private office retreat.
  • A note regarding ridge height since it has a lowered garage: from the main subfloor it is 34'7" and from the top of the garage slab it is 42'
  • Related Plans: On a tighter budget? See house plan 23374JD (3,558 sq. ft.).
  • Also see these smaller versions - 23300JD, 23180JD and 2325JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

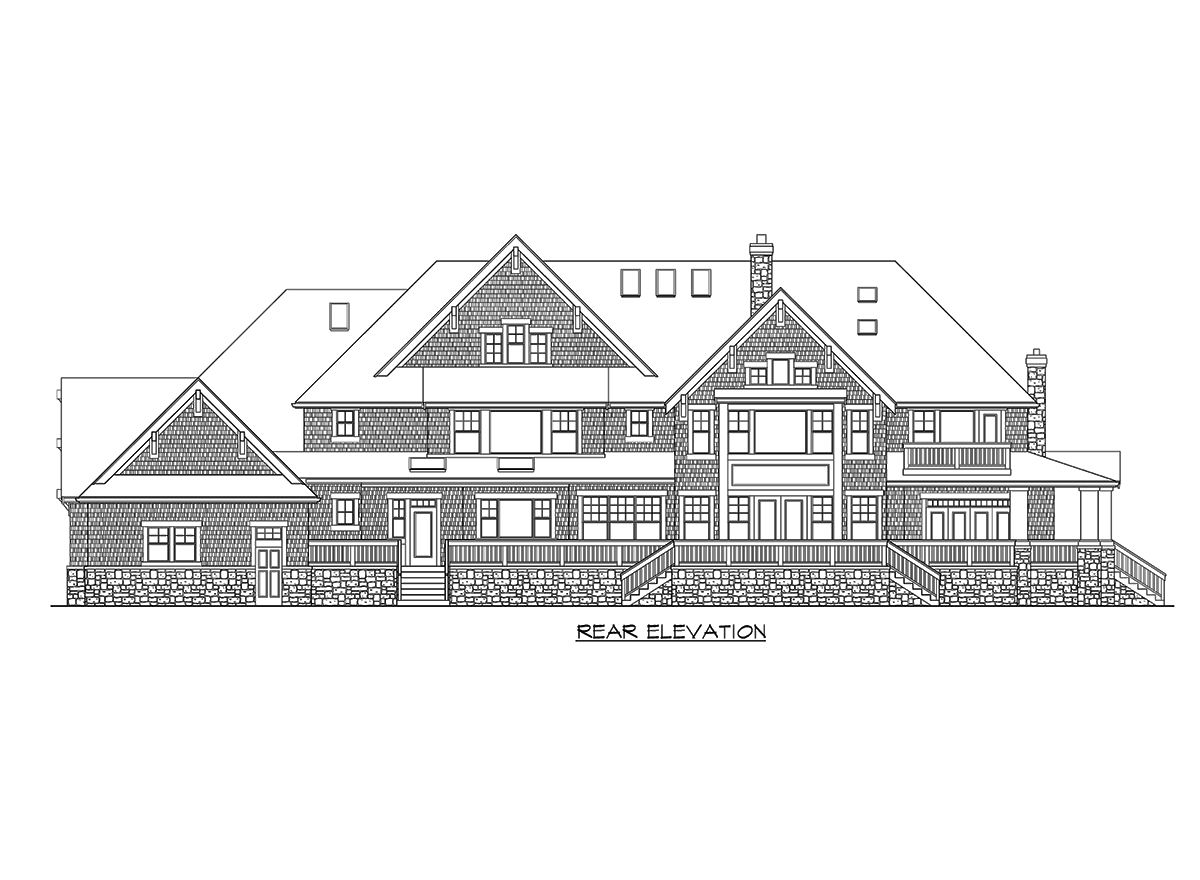

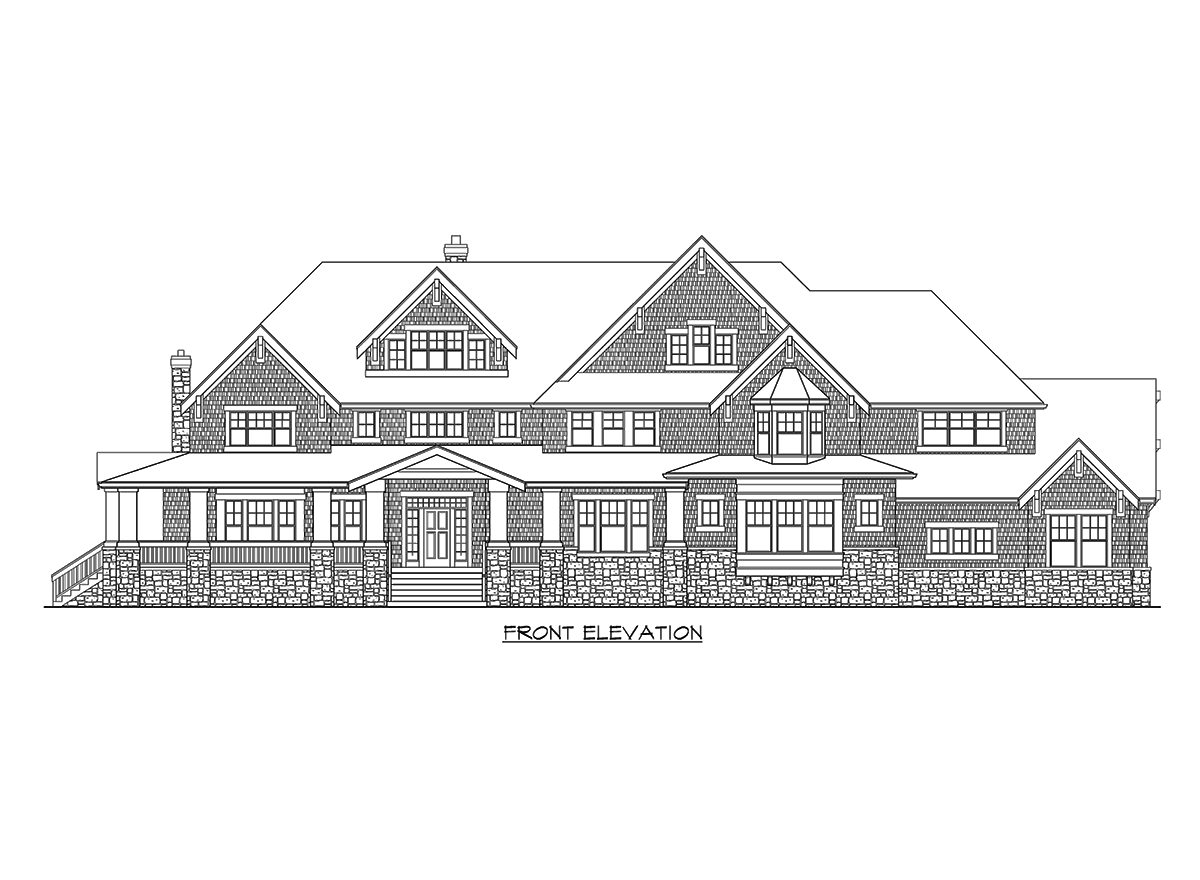

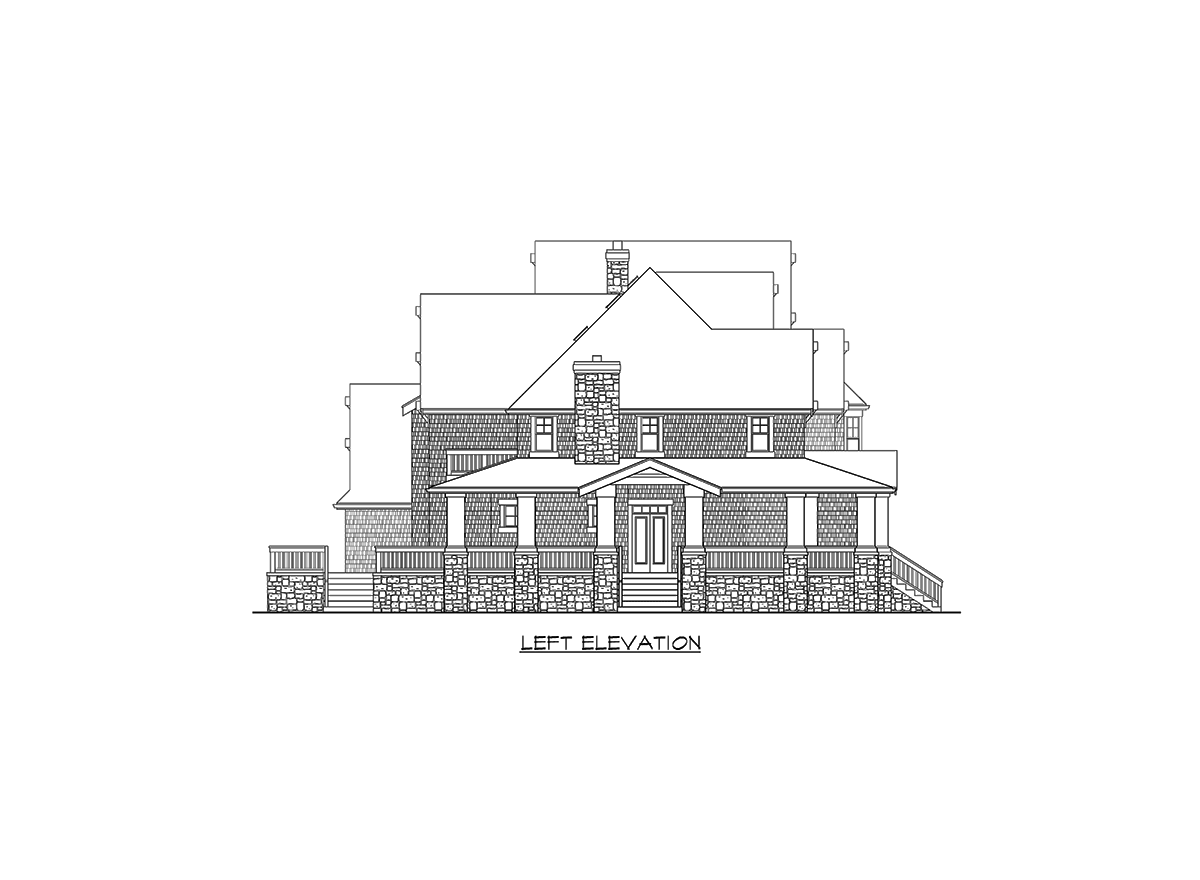

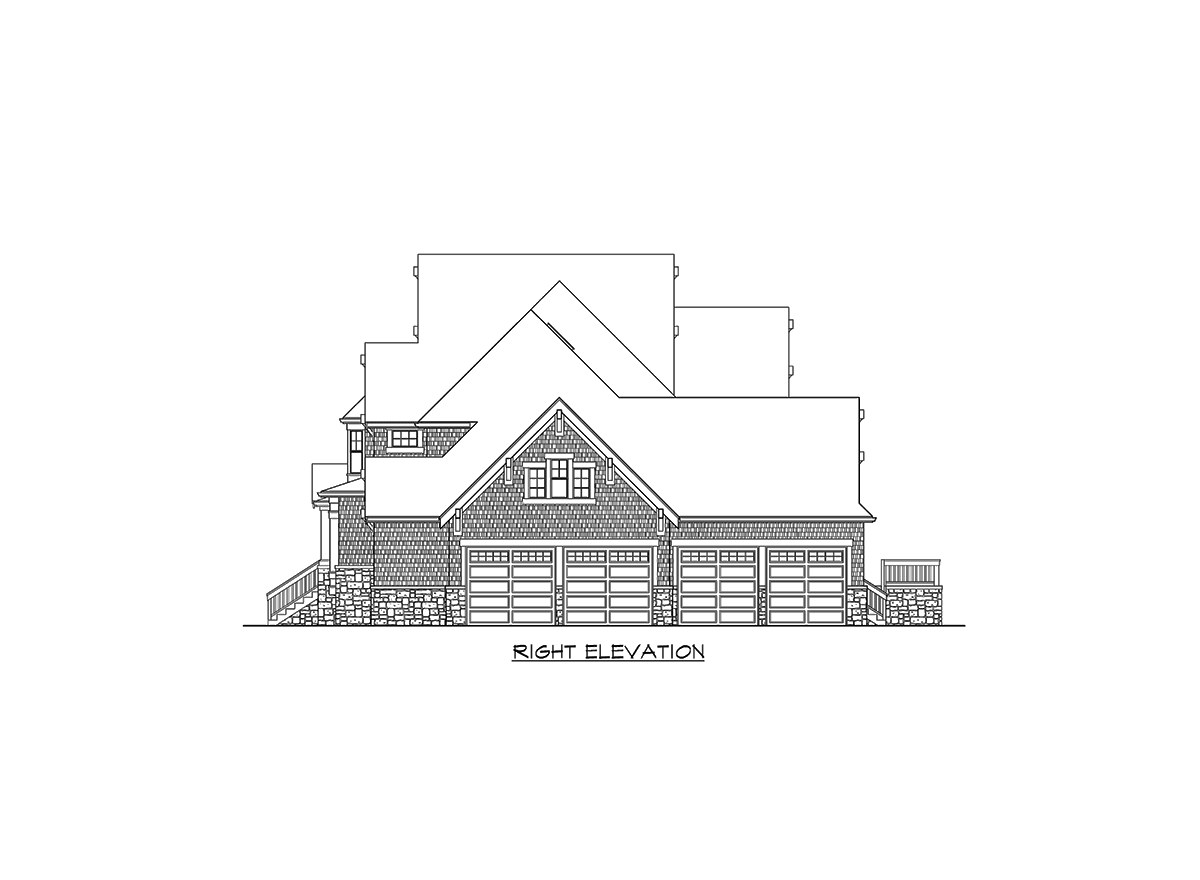

Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Plan details



Luxury on 3 Levels

  • 7,425

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2-3

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - single-use $3,300
  • 5 Sets PLUS $3,500
  • CAD - multi-use $5,300
  • View all purchase option online

About This Plan

  • This luxury Craftsman house plan has an abundance of windows that provide light and views throughout the home.
  • Walk through the formal foyer off the covered front porch and note the two-sided fireplace ahead. This separates the formal entry from expansive great room.
  • Fireplaces can be found in the living room and library as well.
  • A formal dining room is great for entertaining. Note the spacious butler's pantry and the open kitchen and breakfast room.
  • A wraparound porch extends along two sides and a huge deck space helps expand your entertaining options.
  • Guests can stay on the main floor guest room.
  • Upstairs, you'll find three bedrooms including the master with private deck. A bonus room can be turned into a play or media room.
  • Upon another flight of stairs you'll find a private office retreat.
  • A note regarding ridge height since it has a lowered garage: from the main subfloor it is 34'7" and from the top of the garage slab it is 42'
  • Related Plans: On a tighter budget? See house plan 23374JD (3,558 sq. ft.).
  • Also see these smaller versions - 23300JD, 23180JD and 2325JD.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

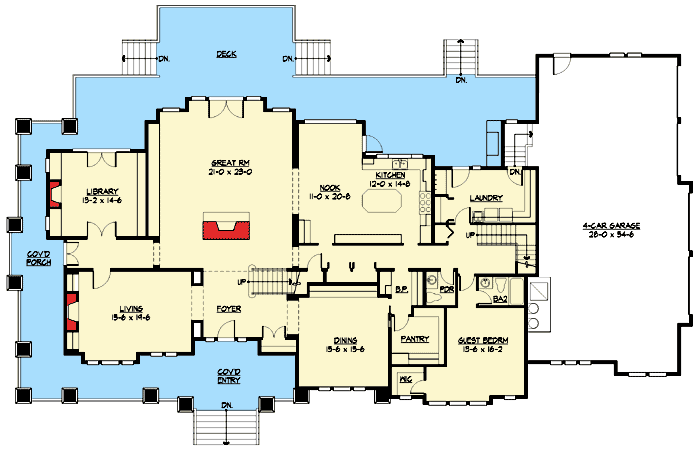

  • Main Level

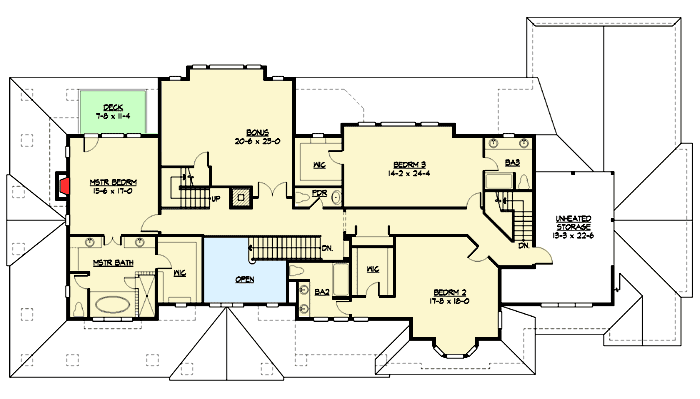

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,425 sq. ft.
  • 1st Floor: 3,413 sq. ft.
  • 2nd Floor: 3,038 sq. ft.
  • 3rd Floor: 974 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 118' 0"
  • Depth: 62' 0"
  • Max ridge height: 37' 6"

Garage

  • Type: Attached
  • Area: 1465 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
