Plan 81771AB

Modern 3000 Square Foot Home Plan 3rd Floor Office and Loft

Heated S.F.
3,008
Beds
3
Baths
2.5 - 3.5
Stories
3

Floor Plan

Plan 81771AB

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 81771AB

M-F 9am-5pm EST |

1-203-761-8500

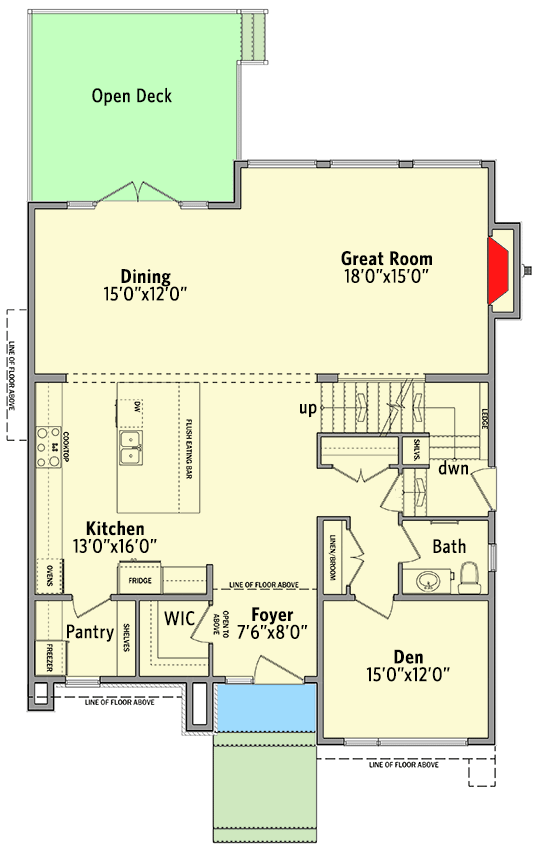

Main Level

Plan 81771AB: Modern 3000 Square Foot Home Plan 3rd Floor Office and Loft - Floor Plan - Main Level - Contemporary, Modern, Northwest

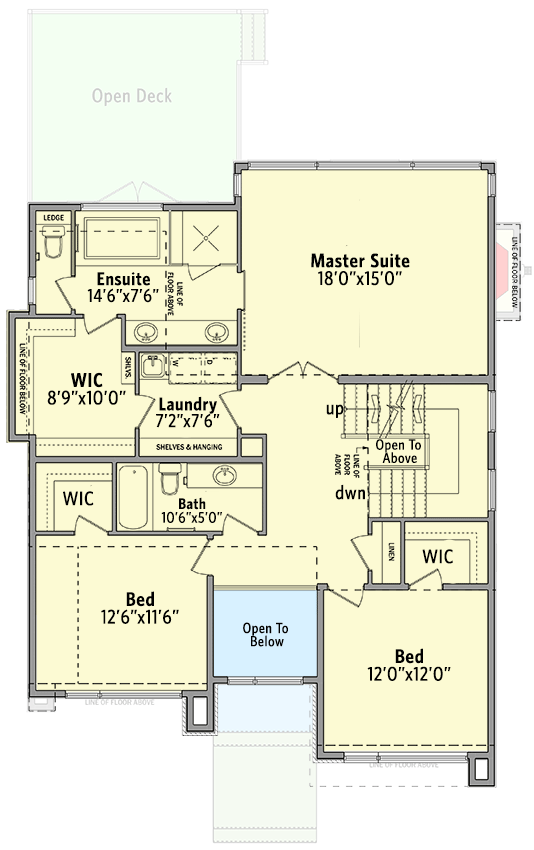

2nd Floor

Plan 81771AB: Modern 3000 Square Foot Home Plan 3rd Floor Office and Loft - Floor Plan - 2nd Floor - Contemporary, Modern, Northwest

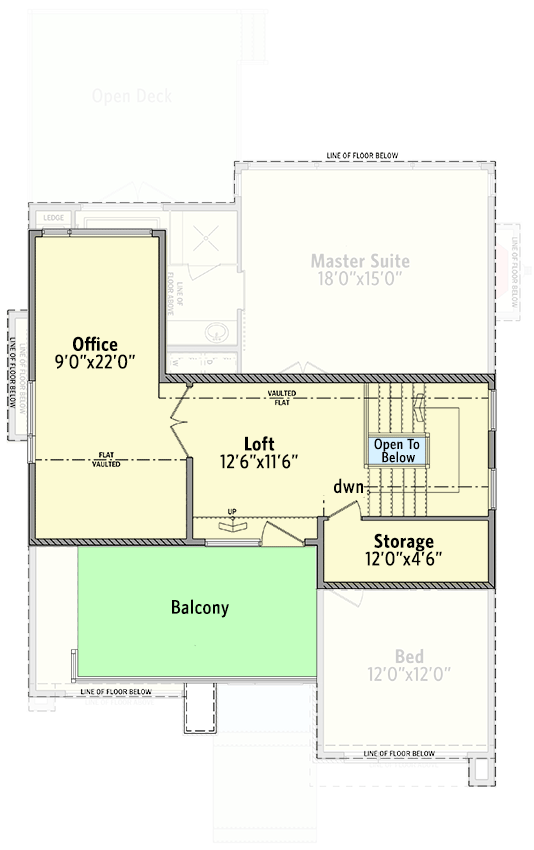

3rd Floor

Plan 81771AB: Modern 3000 Square Foot Home Plan 3rd Floor Office and Loft - Floor Plan - 3rd Floor - Contemporary, Modern, Northwest

Plan Details

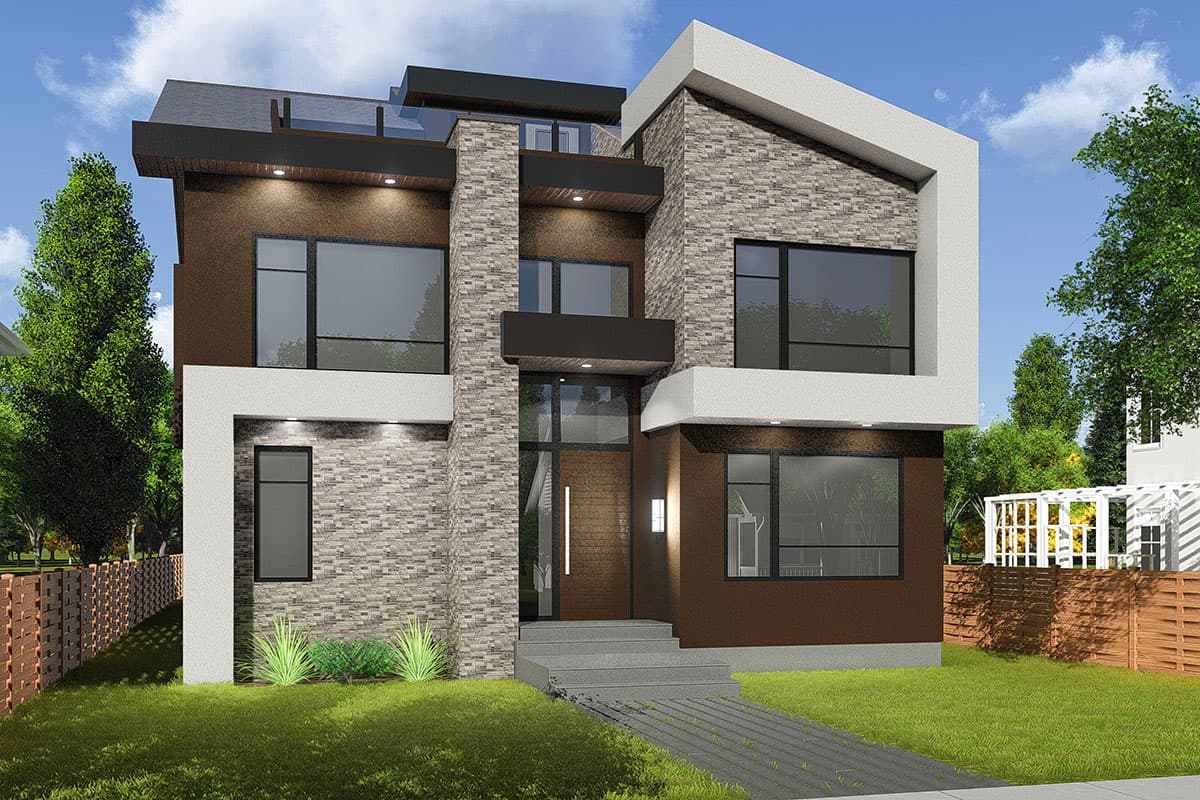

  • Large windows invite natural lighting to fill the interior of this Modern Two-story home plan, complete with a third-floor loft that includes a home office and balcony.
  • The heart of the home features a large island with an eating bar, walk-in pantry, and large range. The great room and dining area are open to one another and oriented to enjoy the rearward views.
  • A quiet den near the foyer provides a space to work or relax away from the hustle and bustle of everyday living.
  • Upstairs, discover three bedrooms with the largest reserved for the homeowner. The master bathroom includes 5 fixtures and a walk-in closet that connects to the laundry room.
  • Downstairs, a basement suite totals 818 square feet.

What's Included

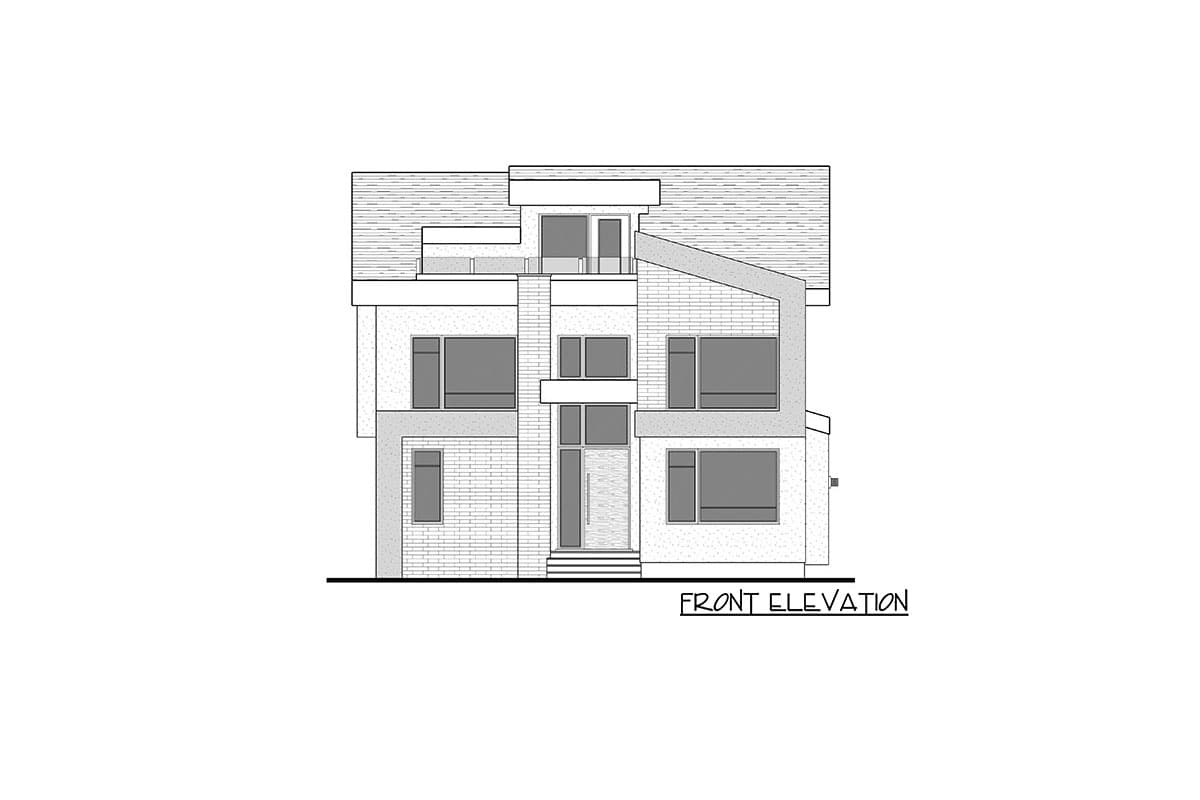

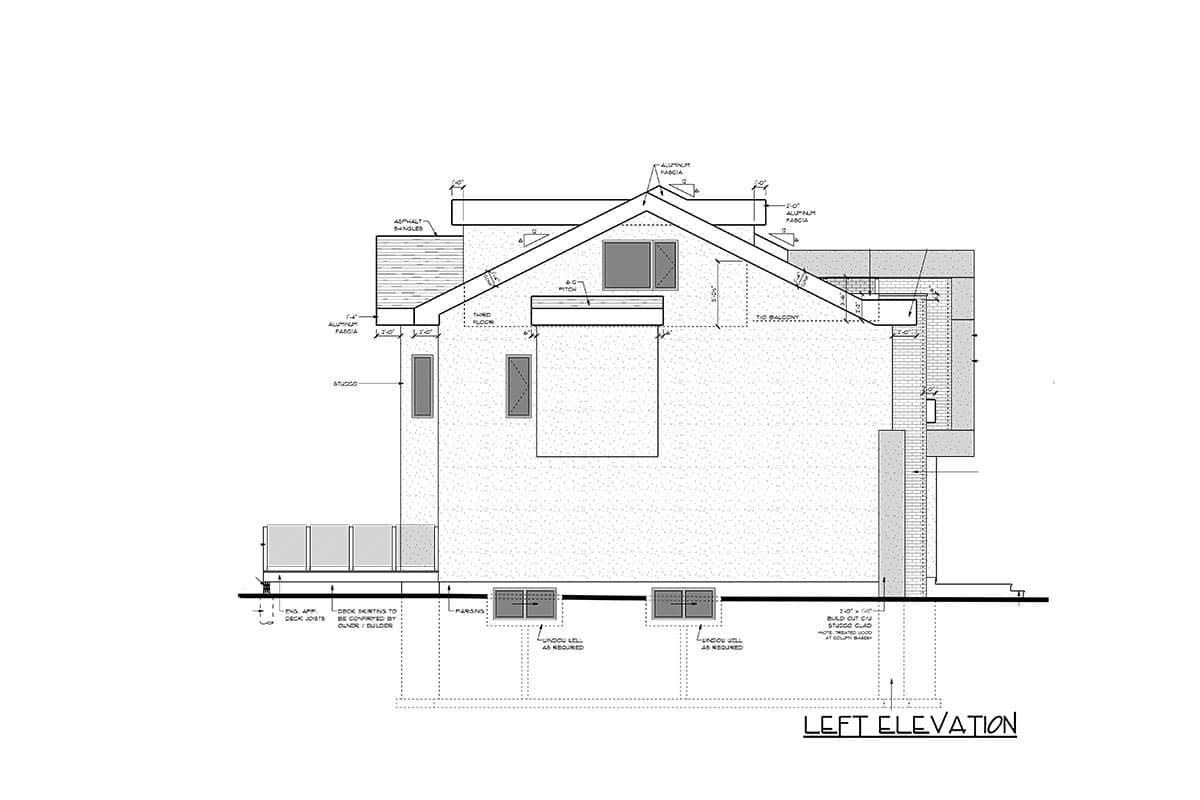

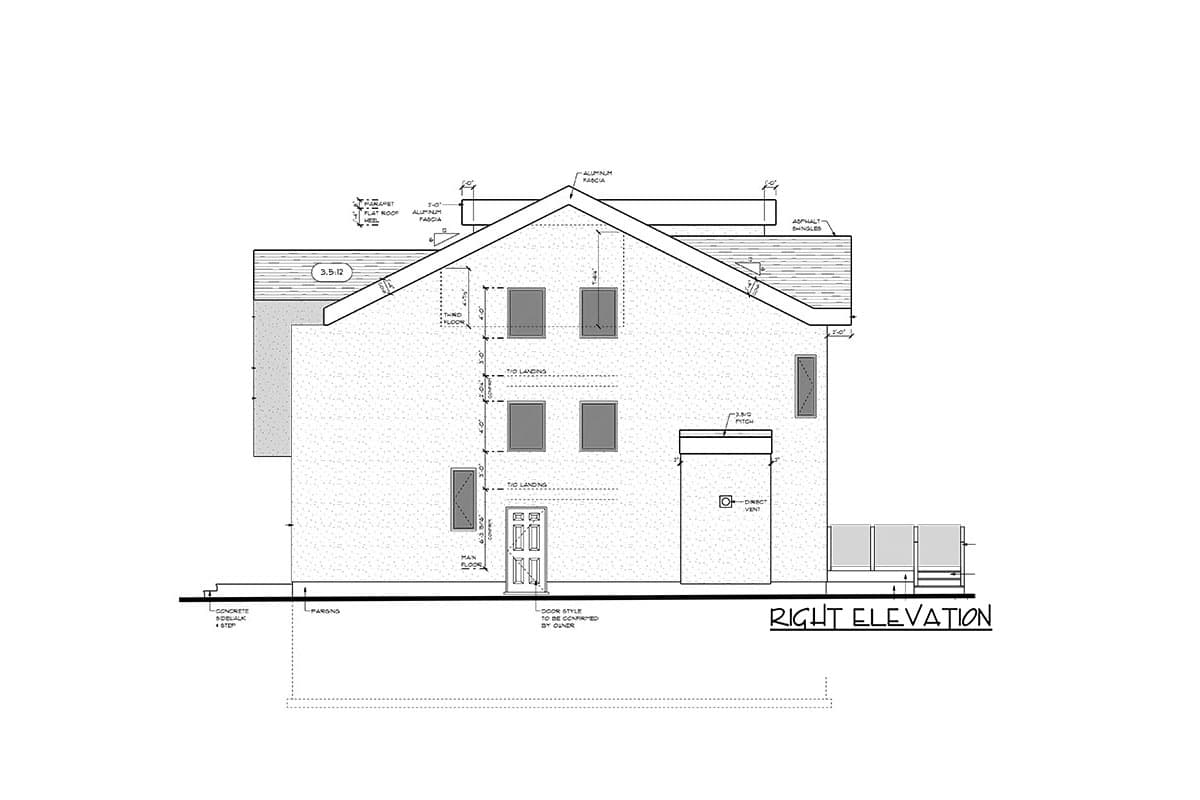

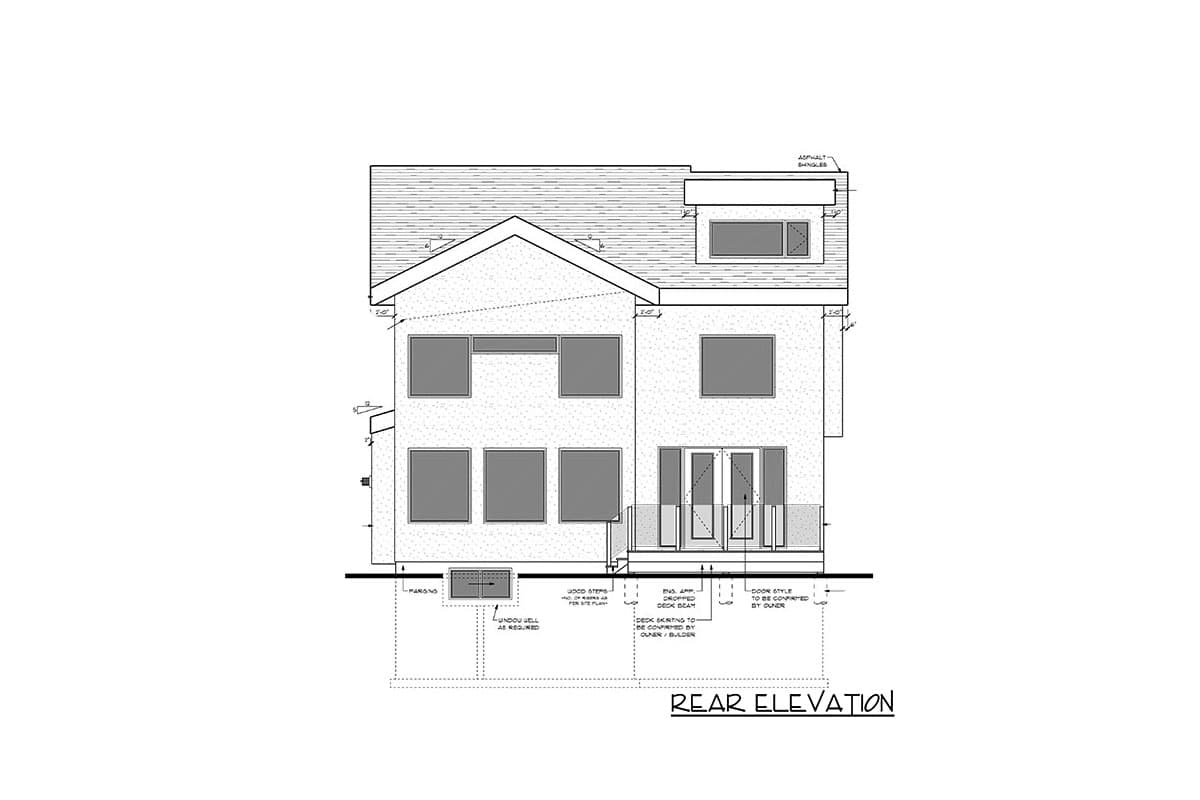

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,008 sq. ft.

Lower Level

975 sq. ft.

1st Floor

1,318 sq. ft.

2nd Floor

1,208 sq. ft.

3rd Floor

482 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

56' 6"

Max Ridge Height

30' 5"

Garage

Type

Attached, RV Garage

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9' 1"

Second Floor

8' 1"

third fllor

8' 1''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Northwest

Special Features

Den

Home Office

Laundry Access from Master Suite

Laundry - Upstairs

Loft

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Canadian House Plans
