Modern A-Frame with Ladder-Accessible Third Story Loft - 2025 Sq Ft

Plan 270047AF

  • 2,025

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 3

    Stories

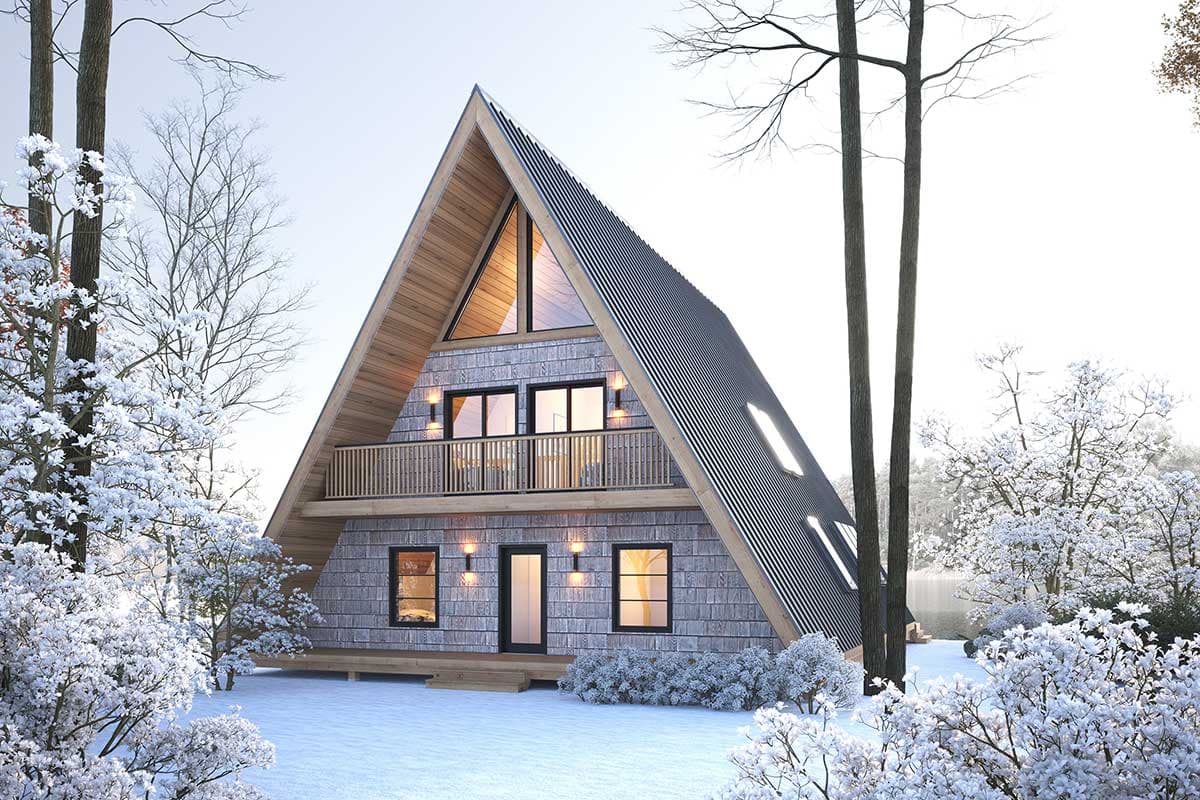

  • This modern A-frame house plan offers the simplicity of form with with jaw-dropping looks. Put this by a lake, in the mountains, or wherever you want to escape to and you'll be sure to enjoy your time spent on the front and back decks and inside.
  • A bench greets you when you enter the front door and a closet is there to help prevent clutter from spreading. Doors to either side take you to two main floor bedrooms.

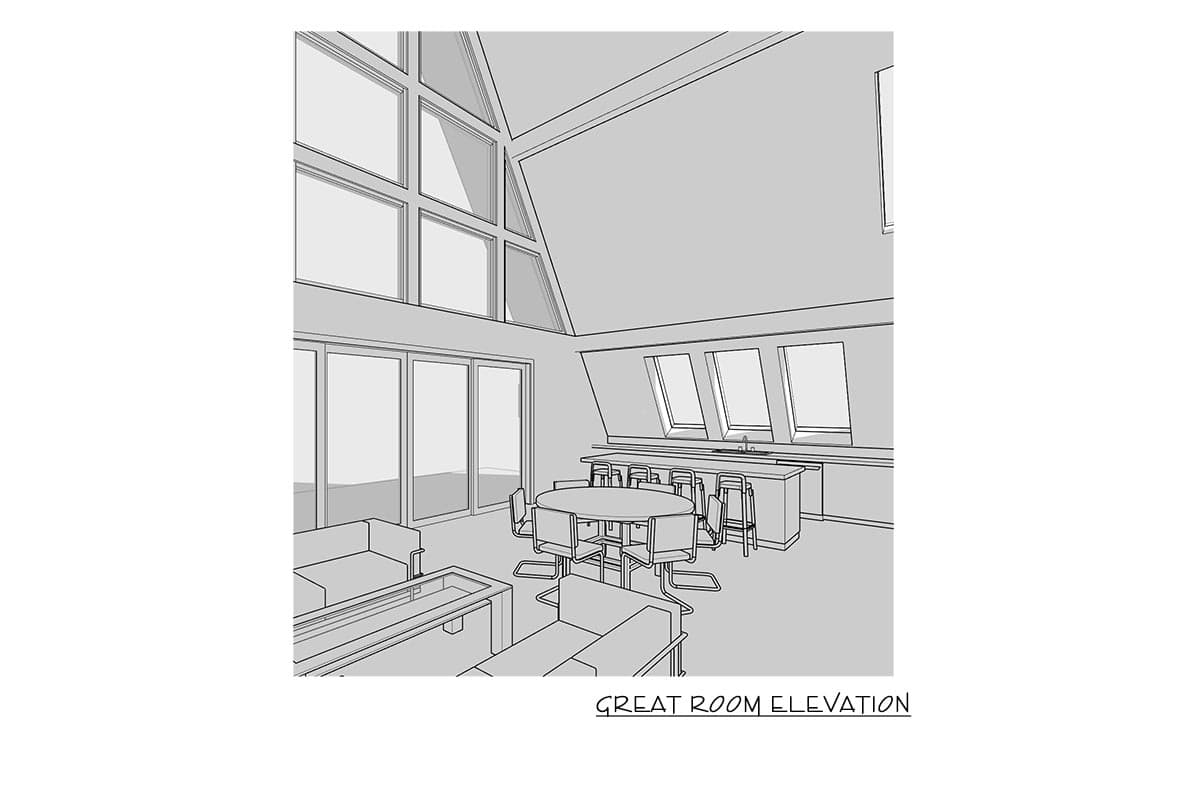

  • Go down the hall and you'll find yourself in the towering open living space unifying the living/dining room and the kitchen under a vaulted ceiling. Windows in back are designed to maximize your views.
  • Stairs take you to the second floor where two more bedrooms await as well as a lounge area with views to below. Note the ladder in the lounge area. That takes you to a 239 square foot third floor loft with views to the back and below.
  • Related Plans: Get alternate versions with house plans 270046AF270048AF and 270094AF

This plan set includes the following:

  • Foundation Plan - Footing sizes, slab thickness, floor framing notes, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Roof Plan - Roof framing notes, roof pitch, attic venting, overhangs, roof finish materials, etc.

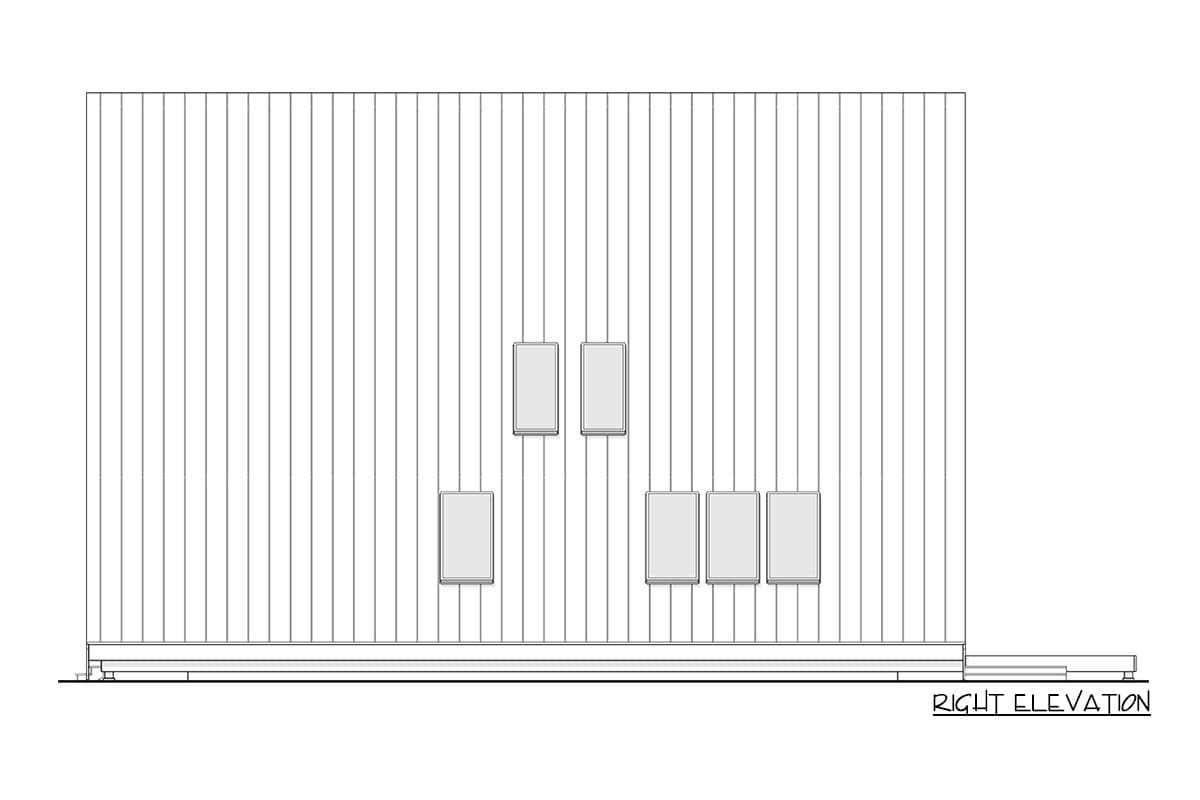

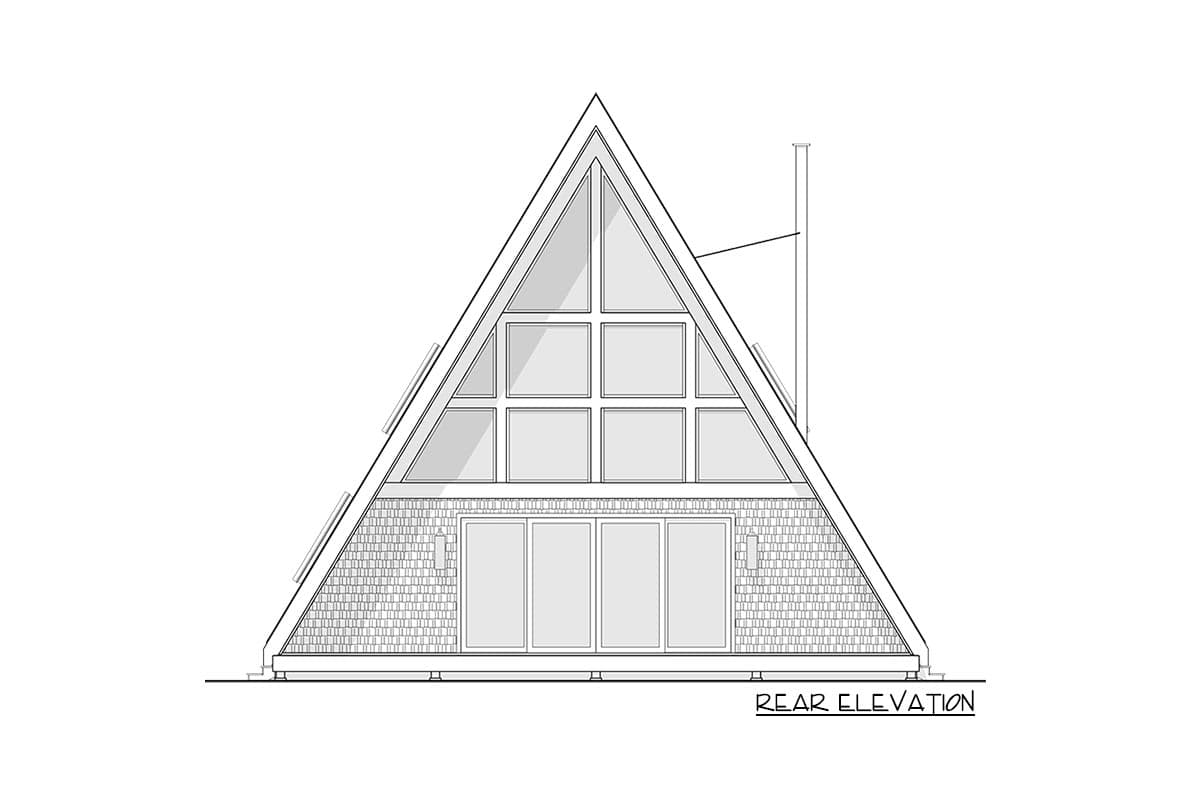

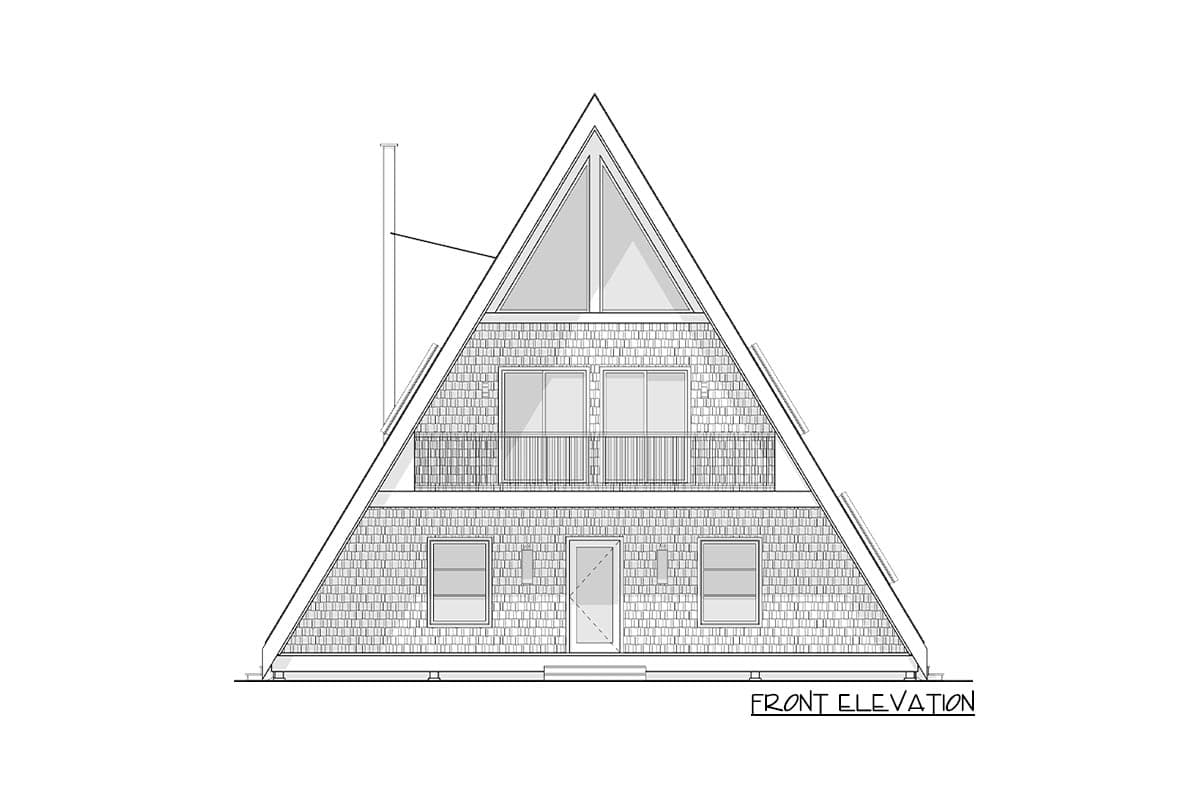

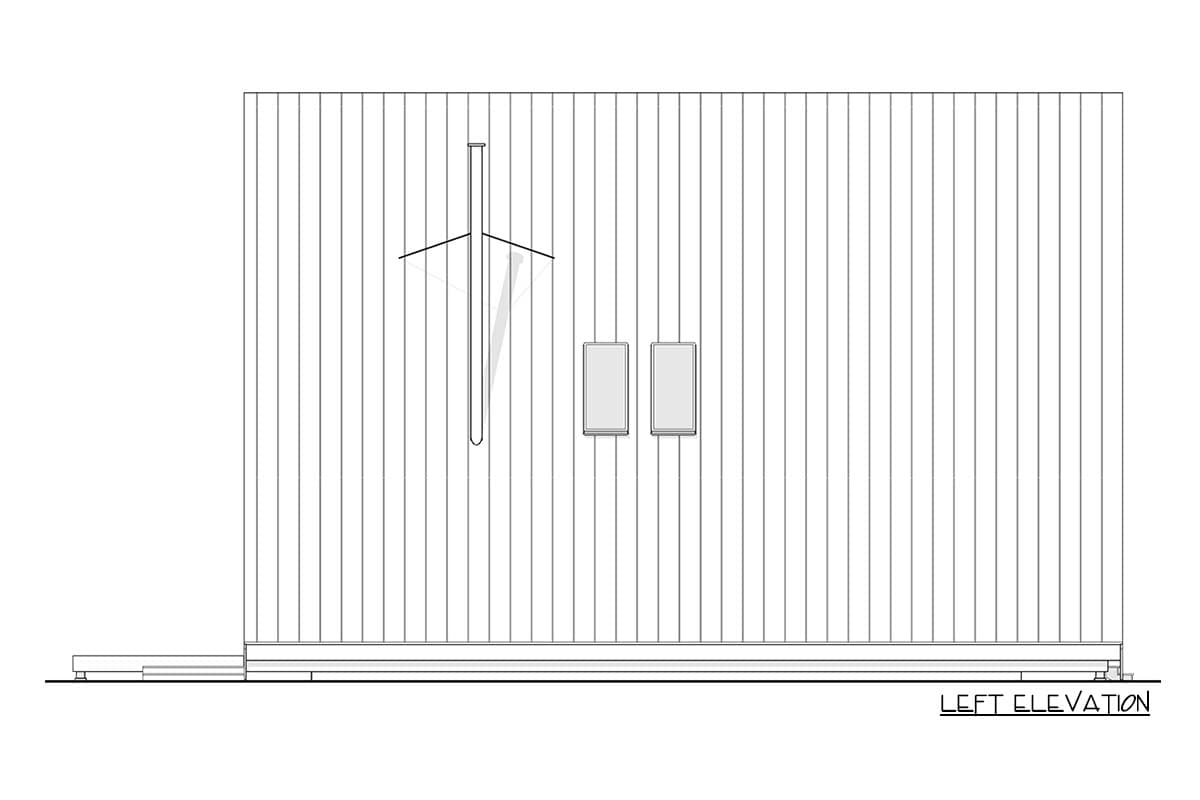

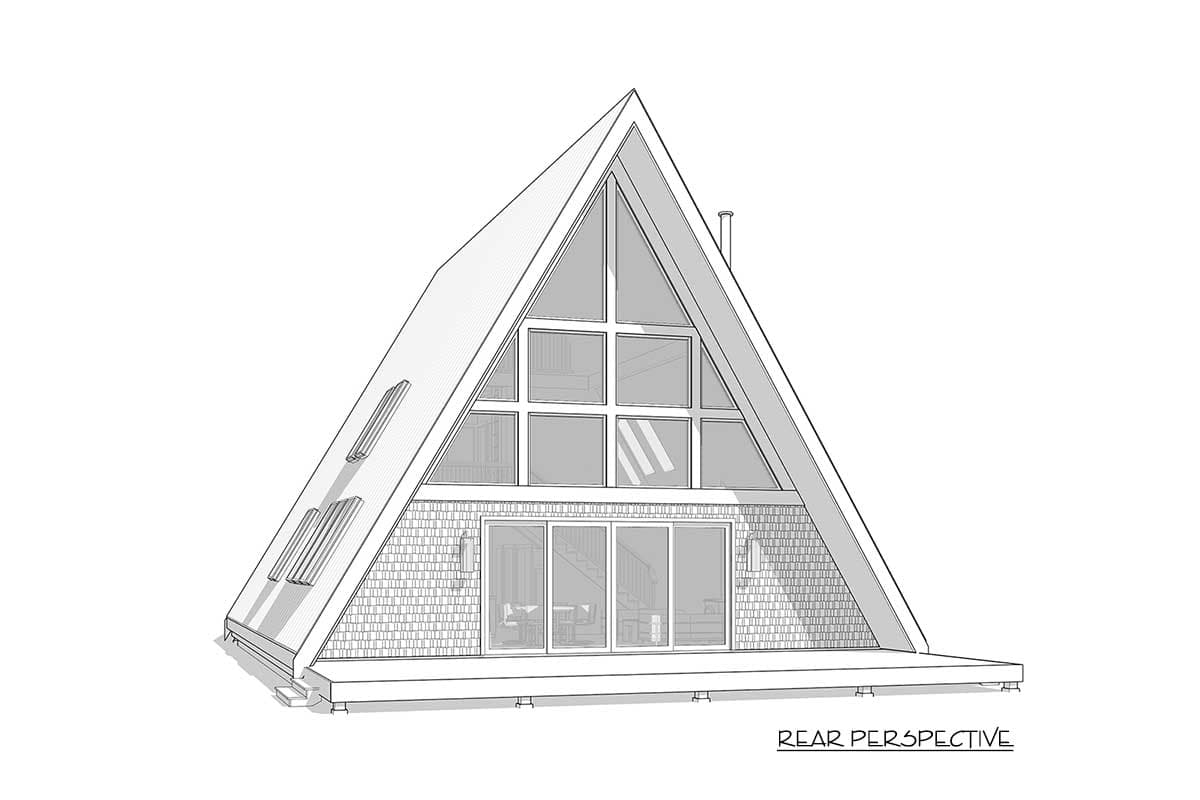

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Building Sections and Notes - Cut through views of the home
  • Details - Dissected drawings of typical construction details
What is NOT included in the plans:

  •           Architectural or Engineering Stamp - handled locally if required
  •           Site Plan - handled locally when required
  •           Electrical plan
  •           Mechanical Drawings (location of heating and air equipment and duct work) — your subcontractors handle this
  •           Framing layouts with beam sizes and locations
  •           Material lists
  •           Energy calculations - handled locally when required
  •   Renderings, photography, or marketing imagery

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

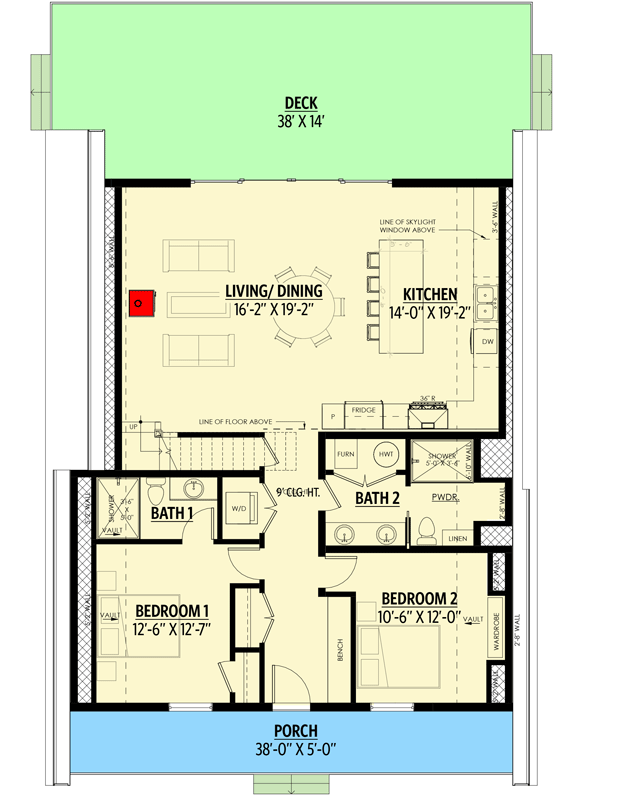

Modern A-Frame with Ladder-Accessible Third Story Loft - 2025 Sq Ft - 270047AF floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

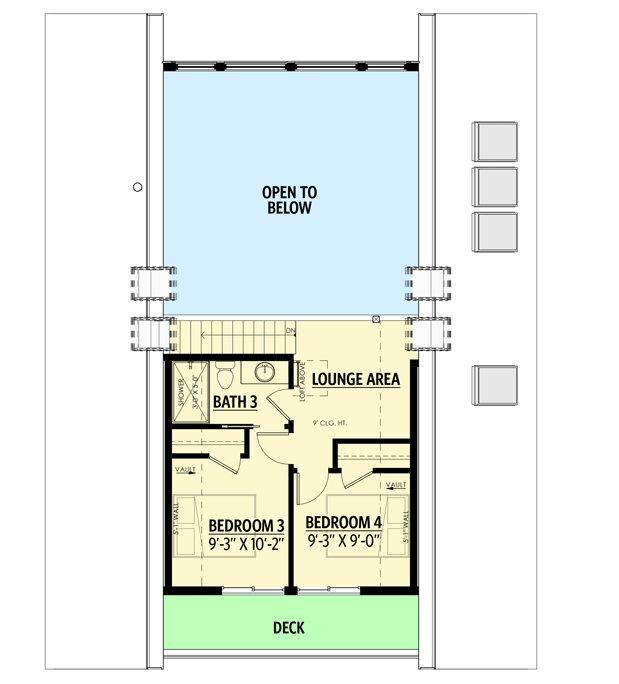

Modern A-Frame with Ladder-Accessible Third Story Loft - 2025 Sq Ft - 270047AF floor plan - 2nd Floor
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

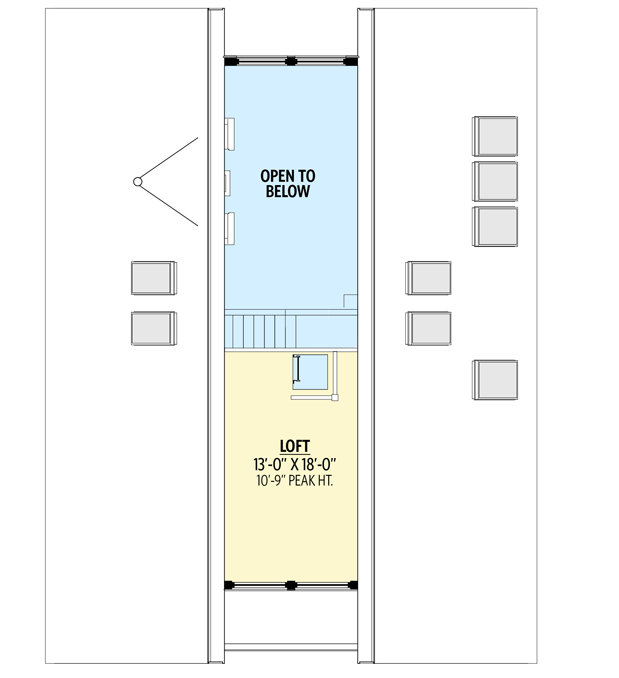

Modern A-Frame with Ladder-Accessible Third Story Loft - 2025 Sq Ft - 270047AF floor plan - 3rd Floor

Modern A-Frame with Ladder-Accessible Third Story Loft - 2025 Sq Ft

  • 2,025

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 3

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,025 sq. ft.
  • 1st Floor: 1,367 sq. ft.
  • 2nd Floor: 419 sq. ft.
  • 3rd Floor: 239 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 61' 0"
  • Max ridge height: 34' 11"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 20 on 12
  • Framing Type: Stick
