Modern Mountain Home Plan with Art Loft

Plan 68802VR

  • 1,984

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • Deep overhangs extend from the sloped roof on this Modern Mountain home plan.
  • The main level is where you'll find a spacious den, along with two bedrooms, a full bath, and the utility / mechanical room.
  • The heart of the home is located on the second level with a vaulted ceiling offering grand views for the combined family room and kitchen.
  • U-shaped cabinets form the kitchen and an eating bar provides a comfortable and casual space for meals.
  • The primary bedroom resides also on the second level and includes a washer / dryer unit in the walk-in closet. A step ladder leads to a charming art loft above the bedroom.
  • Related Plans: Get an alternate version with house plans 68970VR and 680030VR. Get the home with a matching garage attached by a breezeway with house plan 68803VR. Get the garage separately with plan 68801VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

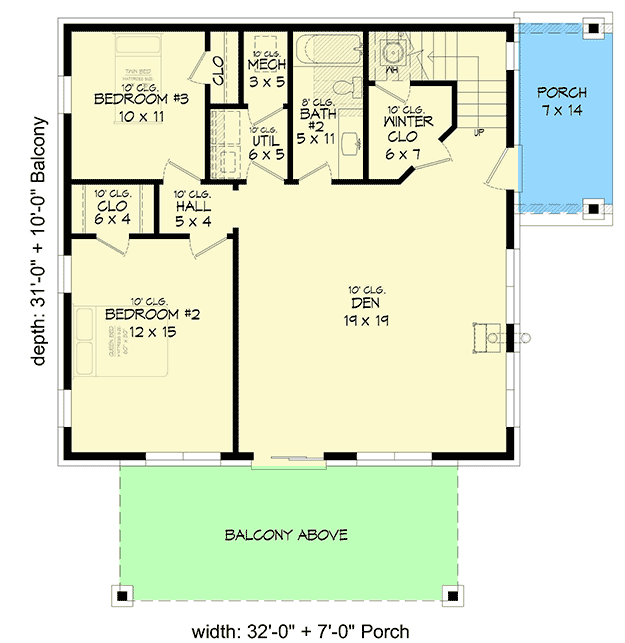

Modern Mountain Home Plan with Art Loft - 68802VR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

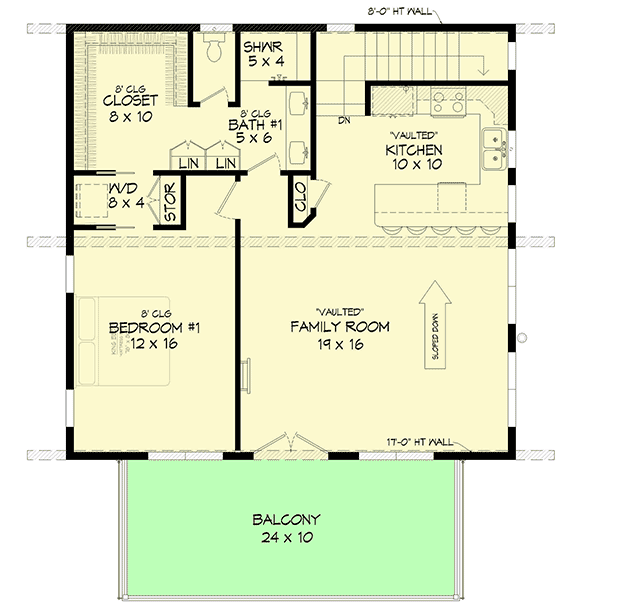

Modern Mountain Home Plan with Art Loft - 68802VR floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

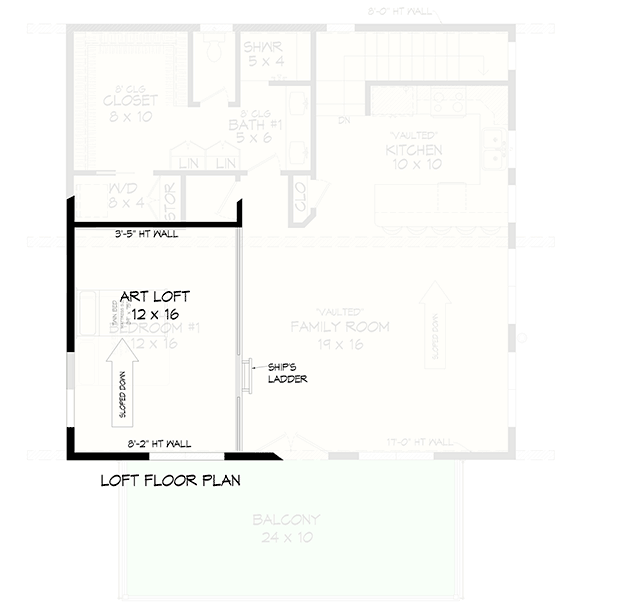

Modern Mountain Home Plan with Art Loft - 68802VR floor plan - 3rd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,984 sq. ft.
  • 1st Floor: 992 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • Porch, Combined: 321 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 6"

Roof Details

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Modern Mountain Home Plan with Art Loft

  • 1,984

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,095
  • 5 Sets $1,260
  • 5 Sets + PDF $1,307
  • CAD + PDF - Single-Build $1,645
  • View all purchase option online

About This Plan

  • Deep overhangs extend from the sloped roof on this Modern Mountain home plan.
  • The main level is where you'll find a spacious den, along with two bedrooms, a full bath, and the utility / mechanical room.
  • The heart of the home is located on the second level with a vaulted ceiling offering grand views for the combined family room and kitchen.
  • U-shaped cabinets form the kitchen and an eating bar provides a comfortable and casual space for meals.
  • The primary bedroom resides also on the second level and includes a washer / dryer unit in the walk-in closet. A step ladder leads to a charming art loft above the bedroom.
  • Related Plans: Get an alternate version with house plans 68970VR and 680030VR. Get the home with a matching garage attached by a breezeway with house plan 68803VR. Get the garage separately with plan 68801VR.

Floor Plans

  • Main Level

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,984 sq. ft.
  • 1st Floor: 992 sq. ft.
  • 2nd Floor: 992 sq. ft.
  • Porch, Combined: 321 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 0"
  • Depth: 41' 0"
  • Max ridge height: 30' 6"

Roof

  • Primary Pitch: 3.5 on 12
  • Framing Type: Stick
