Plan 62368DJ New American Home Plan with Split Bedroom Layout Plus Bonus and Lower Level Expansion

New American Home Plan with Split Bedroom Layout Plus Bonus and Lower Level Expansion

Plan 62368DJ

  • 2,175

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This one-story house plan adds a modern flair to the traditional farmhouse style. The New American exterior mixes board and batten siding with wood siding and large windows to give the home excellent curb appeal.
  • Just off the entry is a perfect home office that includes built-in shelves. Further in the home, the great room is warmed by a fireplace and is open to the kitchen and dining room. The home's kitchen includes a large island and a walk-in pantry.
  • On the left of the home, two bedrooms share a Jack and Jill bathroom. The large master suite is across the home and has a soaring cathedral ceiling. The master bathroom includes his/her vanities, a walk-in shower, an enclosed toilet area, and a walk-in closet with access to the laundry room.
  • A massive bonus room above the garage would make a great home office or a place for your kids to play and adds 398 square feet to the finished square footage total when built.
  • This plan is also available with a finished basement add-on available for purchase from the Options menu. The finished basement adds 1,310 square feet to the home and adds an exercise room, a family room, and 2 finished bedrooms.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

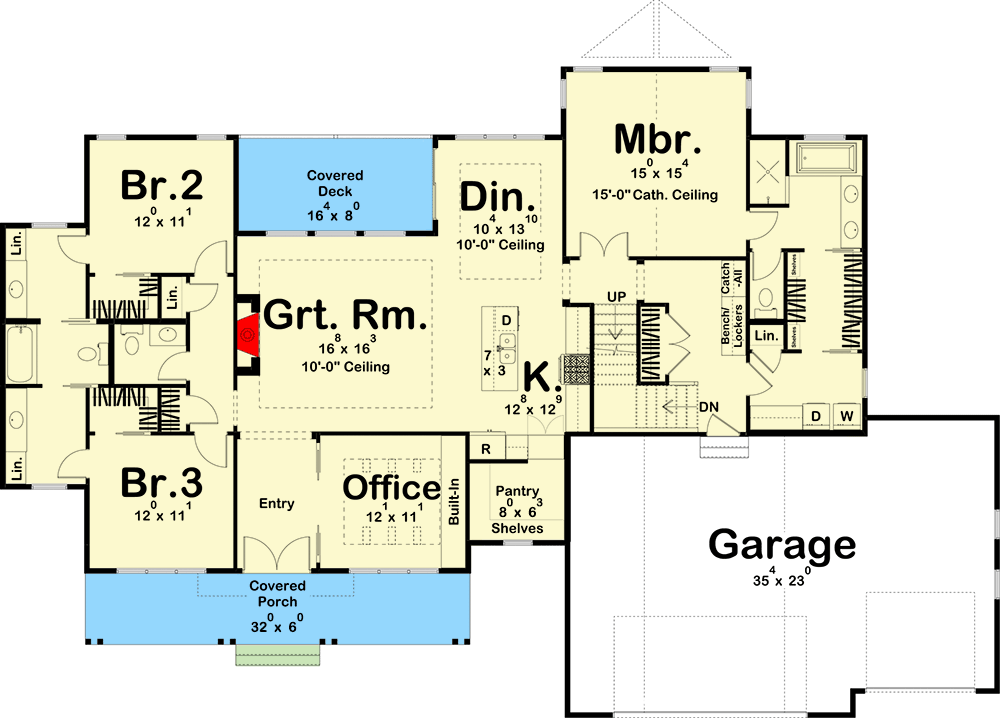

New American Home Plan with Split Bedroom Layout Plus Bonus and Lower Level Expansion - 62368DJ floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

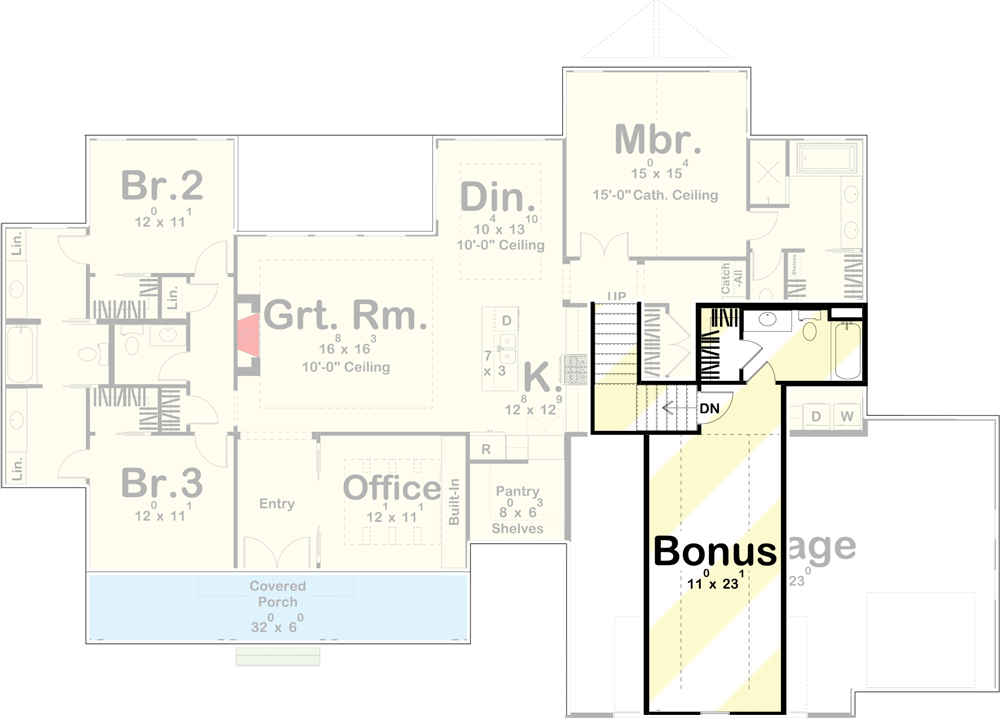

New American Home Plan with Split Bedroom Layout Plus Bonus and Lower Level Expansion - 62368DJ floor plan - Bonus Level

Optional Lower Level (+$250)

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

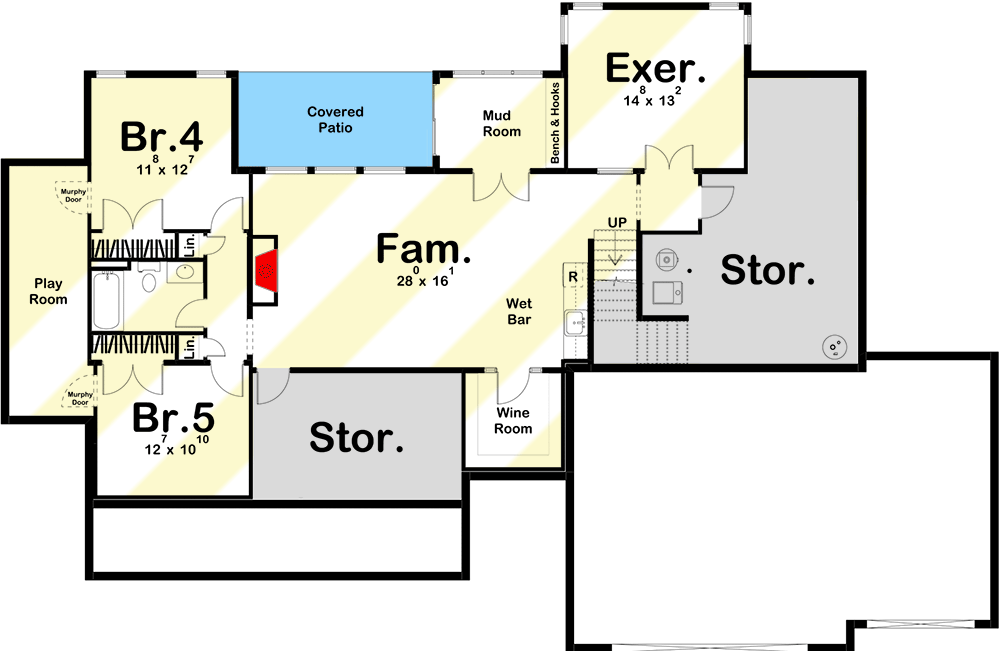

New American Home Plan with Split Bedroom Layout Plus Bonus and Lower Level Expansion - 62368DJ floor plan - Optional Lower Level (+$250)

Plan details

New American Home Plan with Split Bedroom Layout Plus Bonus and Lower Level Expansion

  • 2,175

    Heated s.f.

  • 3 - 5

    Beds

  • 3 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets + PDF $1,450
  • CAD + PDF - Single-Build $1,700
  • PDF - Unlimited Build $1,700
  • CAD - Unlimited Build $2,200
  • View all purchase option online

About This Plan

  • This one-story house plan adds a modern flair to the traditional farmhouse style. The New American exterior mixes board and batten siding with wood siding and large windows to give the home excellent curb appeal.
  • Just off the entry is a perfect home office that includes built-in shelves. Further in the home, the great room is warmed by a fireplace and is open to the kitchen and dining room. The home's kitchen includes a large island and a walk-in pantry.
  • On the left of the home, two bedrooms share a Jack and Jill bathroom. The large master suite is across the home and has a soaring cathedral ceiling. The master bathroom includes his/her vanities, a walk-in shower, an enclosed toilet area, and a walk-in closet with access to the laundry room.
  • A massive bonus room above the garage would make a great home office or a place for your kids to play and adds 398 square feet to the finished square footage total when built.
  • This plan is also available with a finished basement add-on available for purchase from the Options menu. The finished basement adds 1,310 square feet to the home and adds an exercise room, a family room, and 2 finished bedrooms.

Floor Plans

  • Main Level

  • Bonus Level

  • Optional Lower Level (+$250)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,175 sq. ft.
  • 1st Floor: 2,175 sq. ft.
  • Deck: 131 sq. ft.
  • Porch, Combined: 310 sq. ft.
  • Porch, Front: 192 sq. ft.
  • Bonus: 398 sq. ft.
  • Optional Lower Level: 1,310 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 83' 0"
  • Depth: 54' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 831 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
