Plan 81809AB

One-level Mid-Century Modern Home Plan with Angled Garage and Optional Basement

Heated S.F.
2,993
Beds
2 - 4
Baths
2.5 - 5.5
Stories
1
Cars
4

Floor Plan

Plan 81809AB

Main Level
Main Level
Optionally Finished Lower Level
Optionally Finished Lower Level

Plan 81809AB

M-F 9am-5pm EST |

1-203-761-8500

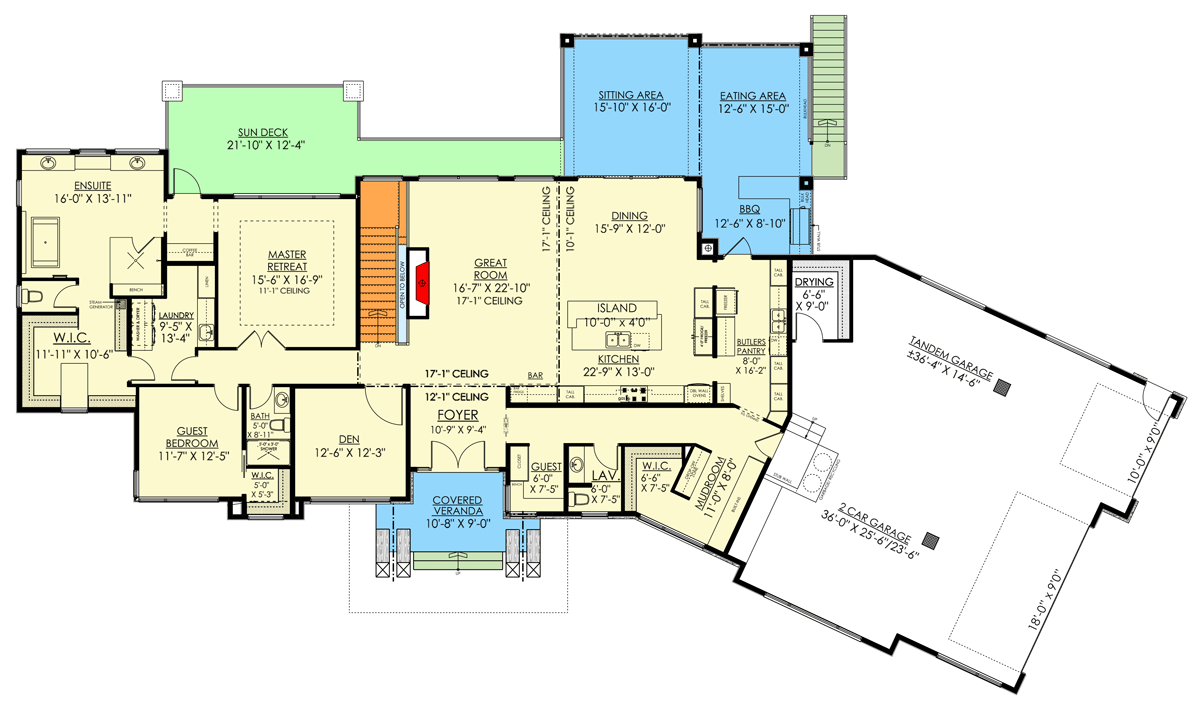

Main Level

Plan 81809AB: One-level Mid-Century Modern Home Plan with Angled Garage and Optional Basement - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern, Ranch

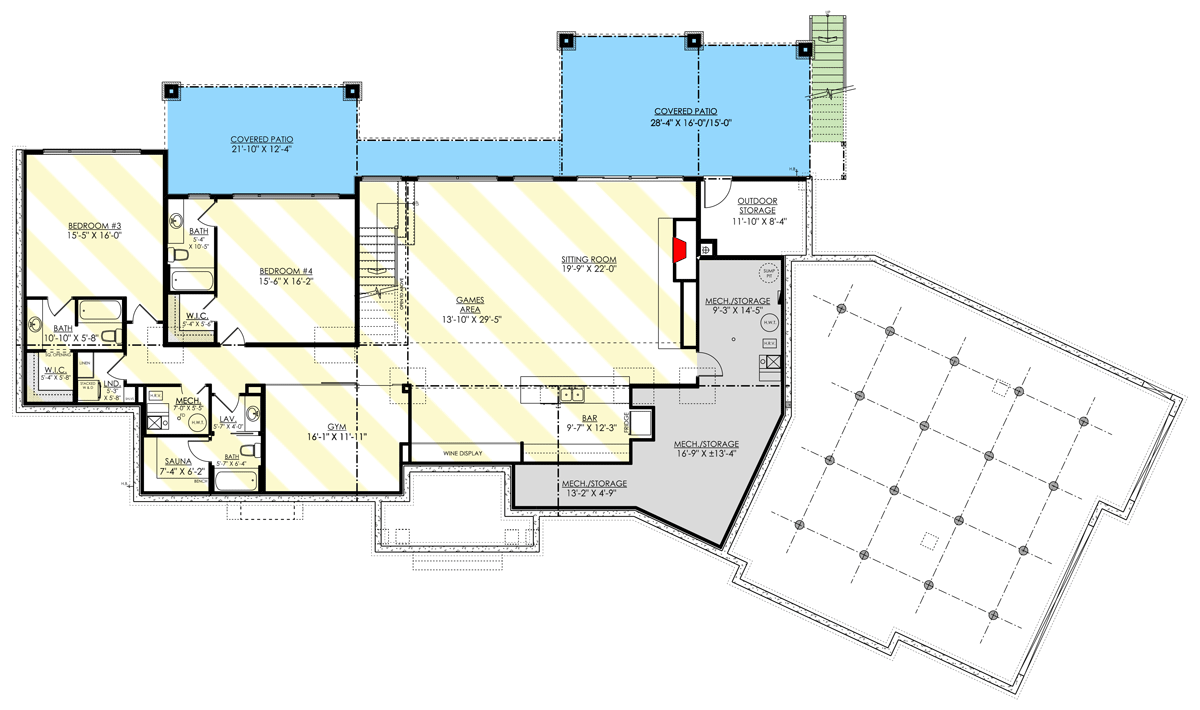

Optionally Finished Lower Level

Plan 81809AB: One-level Mid-Century Modern Home Plan with Angled Garage and Optional Basement - Floor Plan - Optionally Finished Lower Level - Contemporary, Mid Century Modern, Modern, Ranch

Plan Details

  • Double your square footage when you finish the walkout basement designed for this Mid-Century Modern home plan and gain two bedrooms, a rec room with wet bar, and home gym with a sauna.
  • The spacious main level delivers nearly 3,000 square feet, including an open-concept living space, sizable master retreat with laundry room access from the closet, and a quiet den.
  • Enjoy entertaining with family and friends in this gourmet kitchen that boasts a pass-thru pantry which conveniently connects to the BBQ on the covered porch.
  • Secure a spot in the sun or shade when outdoors, complete with an exterior staircase that leads to the lower patio.
  • Four cars are accommodated for in the angled, tandem garage with plenty of storage for shoes, bags, and outerwear in the adjacent mudroom.

What's Included

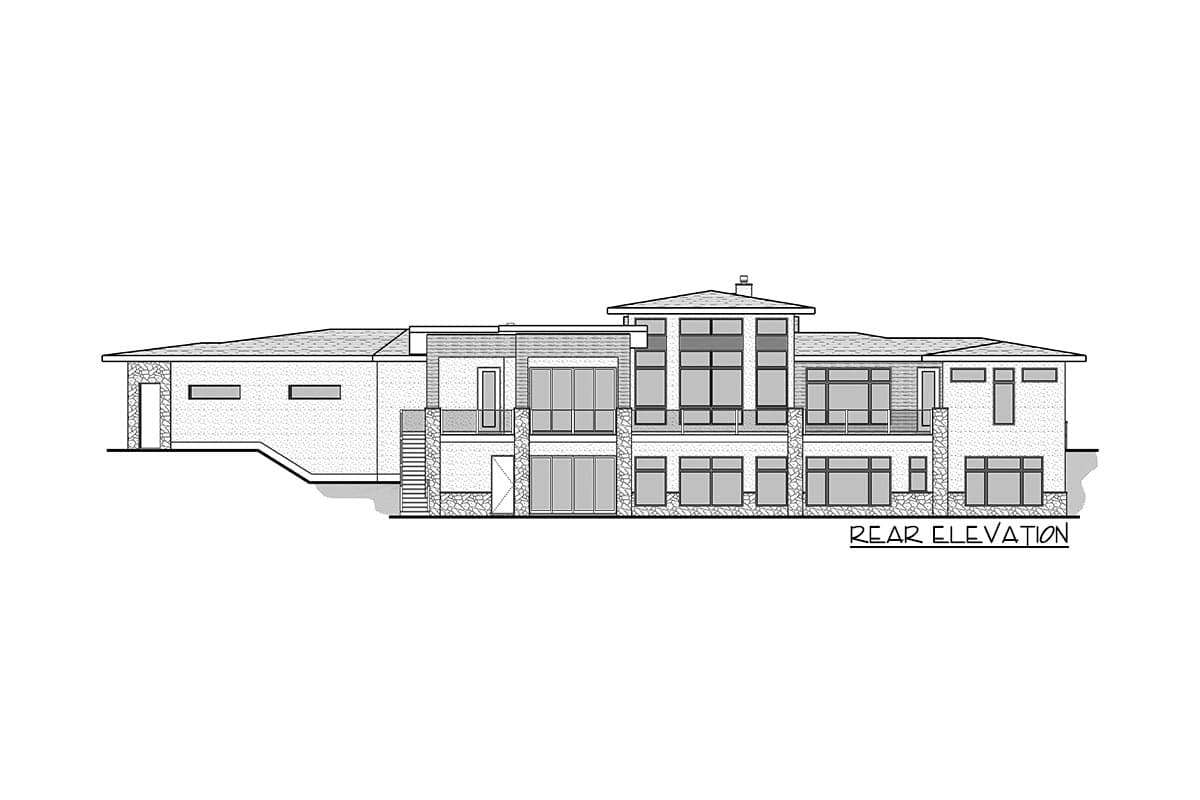

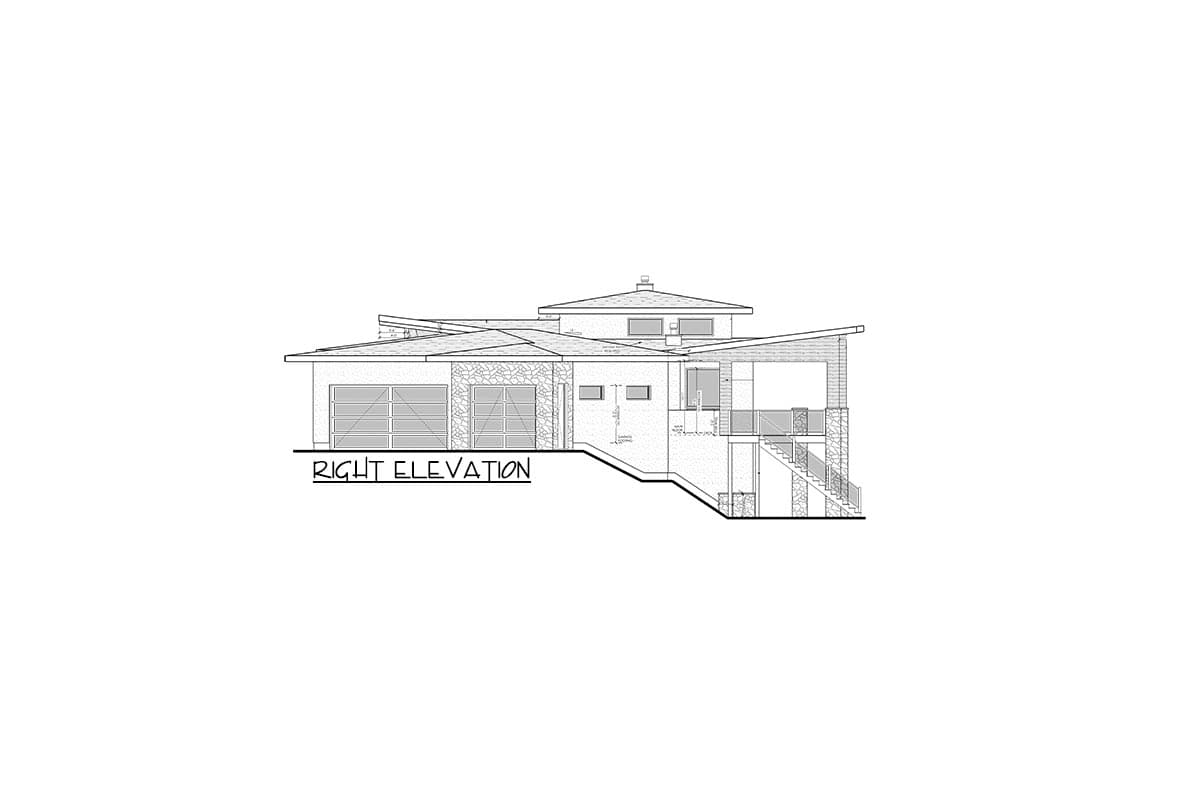

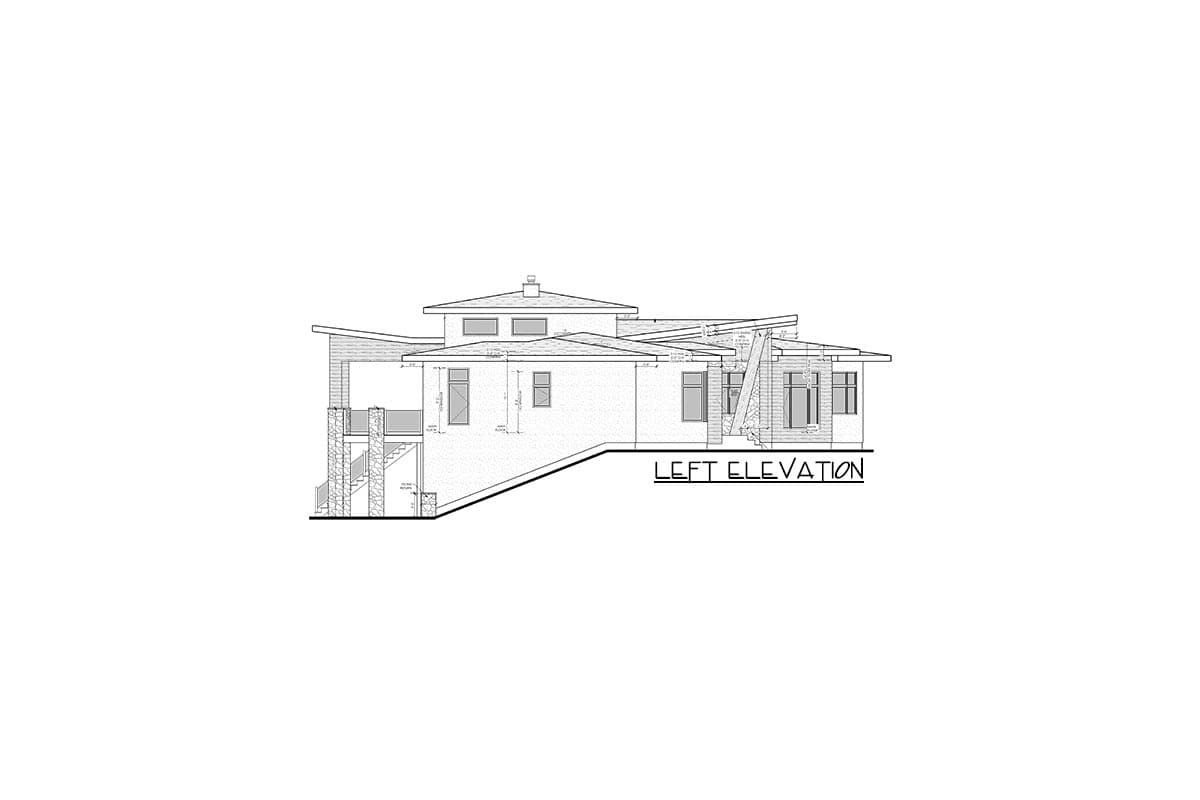

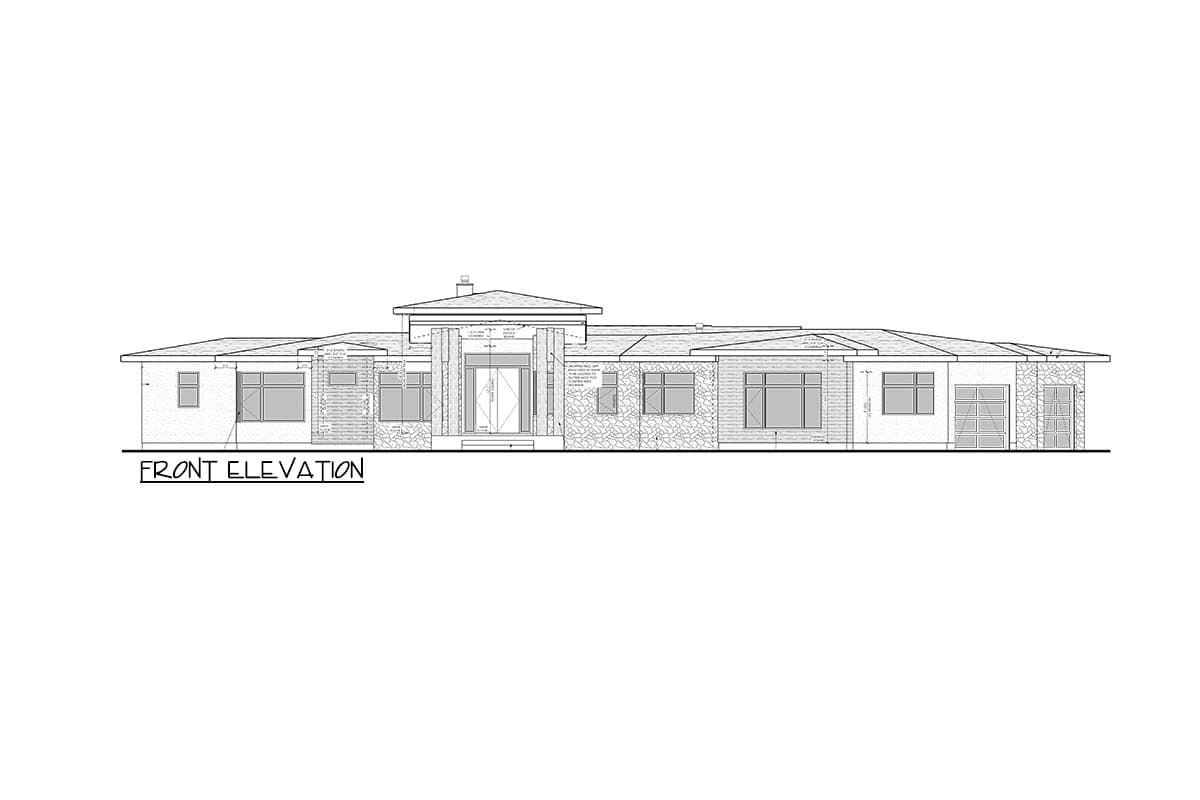

  • Elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.

View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,993 sq. ft.

1st Floor

2,993 sq. ft.

Optional Lower Level

2,249 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

2, 3, 4, or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

130' 11"

Depth

61' 2"

Max Ridge Height

22' 3"

Garage

Type

Attached

Area

1528 sq. ft.

Count

4 Cars

Entry Location

Front, Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10' 1"

Roof Details

Primary Pitch

2 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mid Century Modern

Modern

Ranch

Special Features

Angled Garage

Game/Rec Room

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Outdoor Kitchen

Tandem Garage

Walk-in Pantry

Wet Bar

Plan Collections

Canadian House Plans
