Plan 12276JL

Rustic Ranch With Bonus Upstairs Spaces

Pageloader

Rustic Ranch With Bonus Upstairs Spaces

Plan 12276JL

  • 2,666

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This rustic ranch style home plan gives you great outdoor spaces with porches front and back and a flexible floor plan with the optional upstairs spaces.

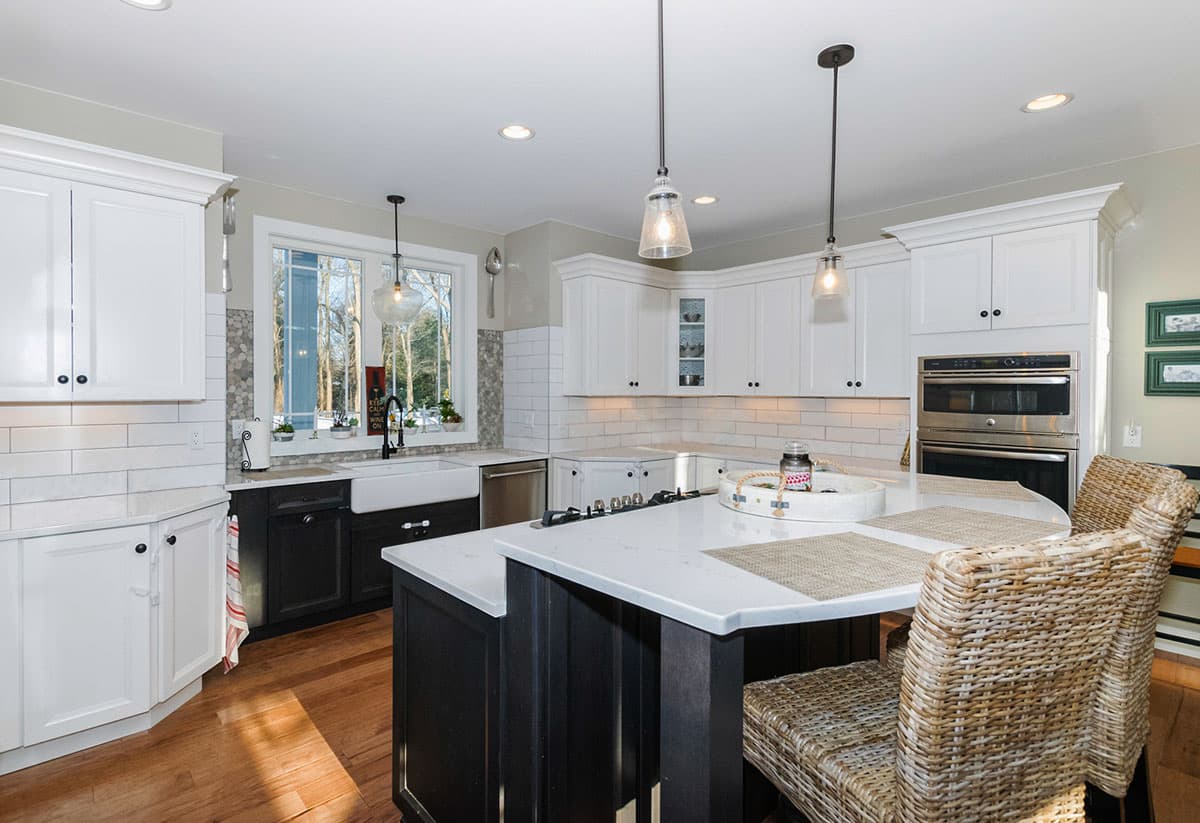

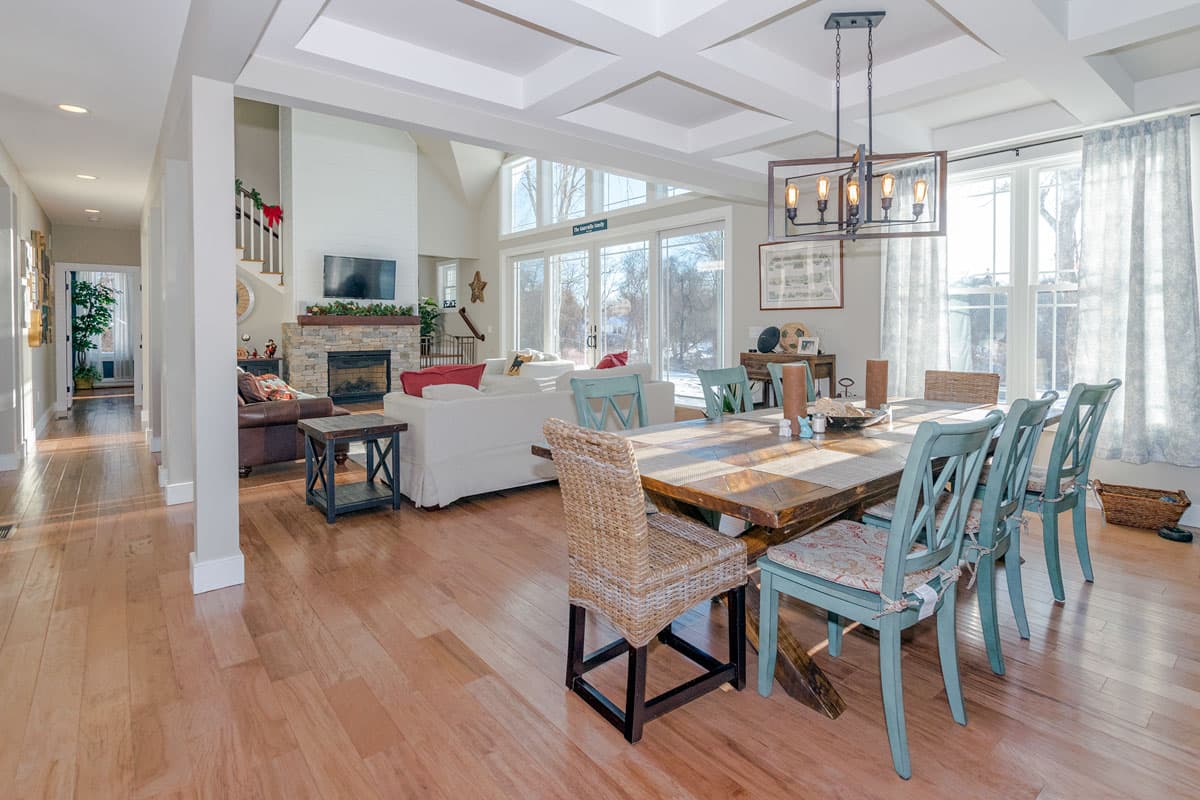

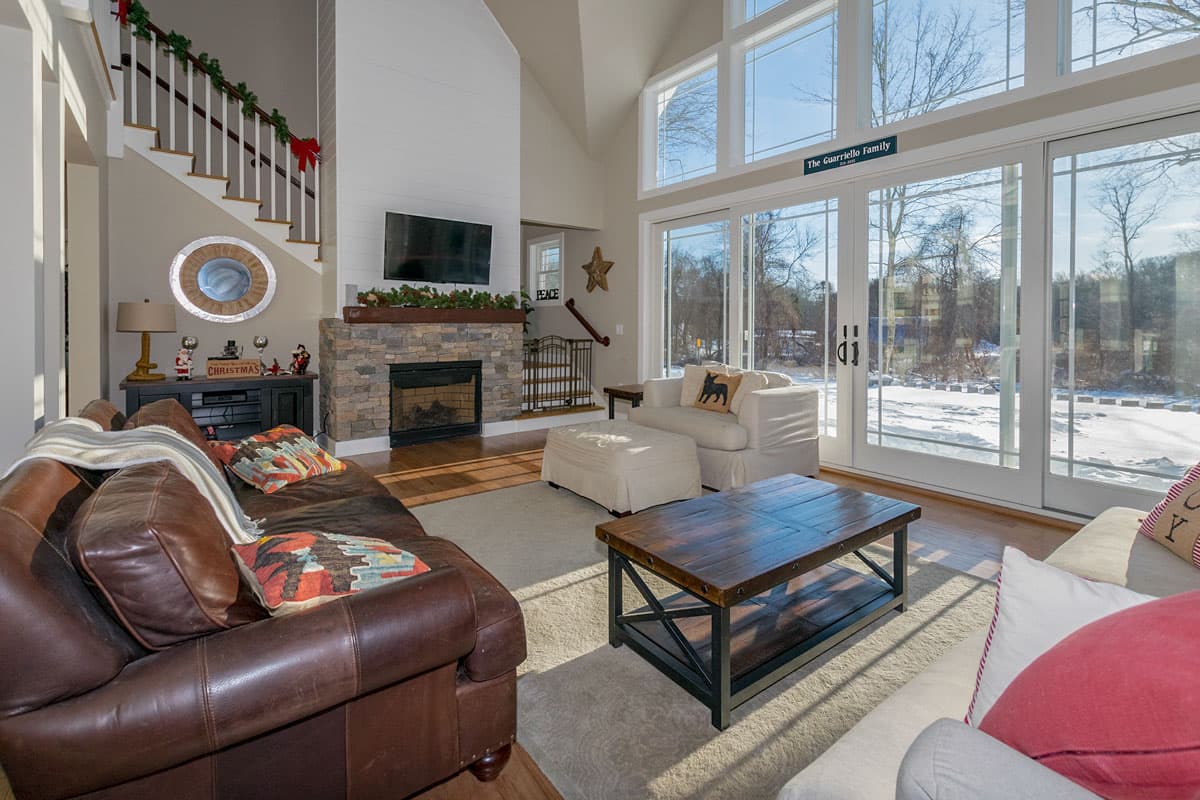

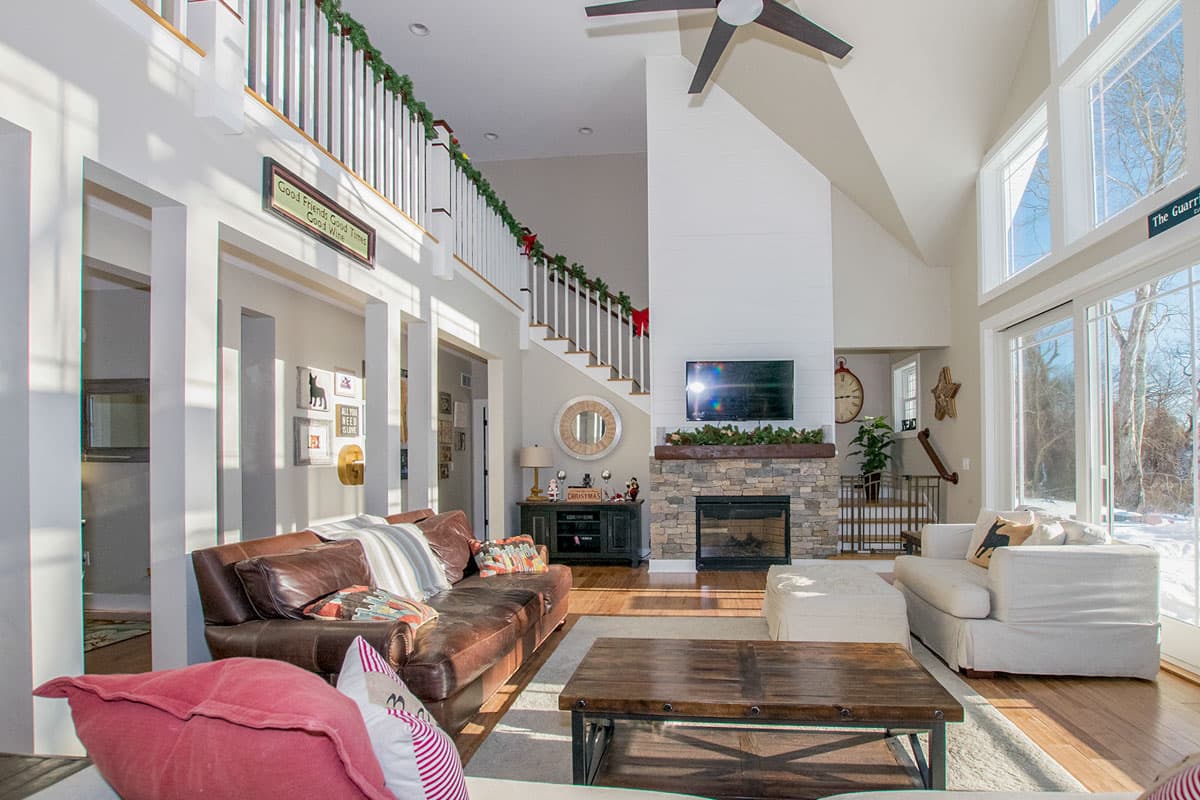

  • The open layout of the great room, casual dining room and extensive kitchen, boasting a 7'x6' foot island, makes this a great home for entertaining. The central area features a 2-story stone fireplace with floating wood beams in the two story ceiling.

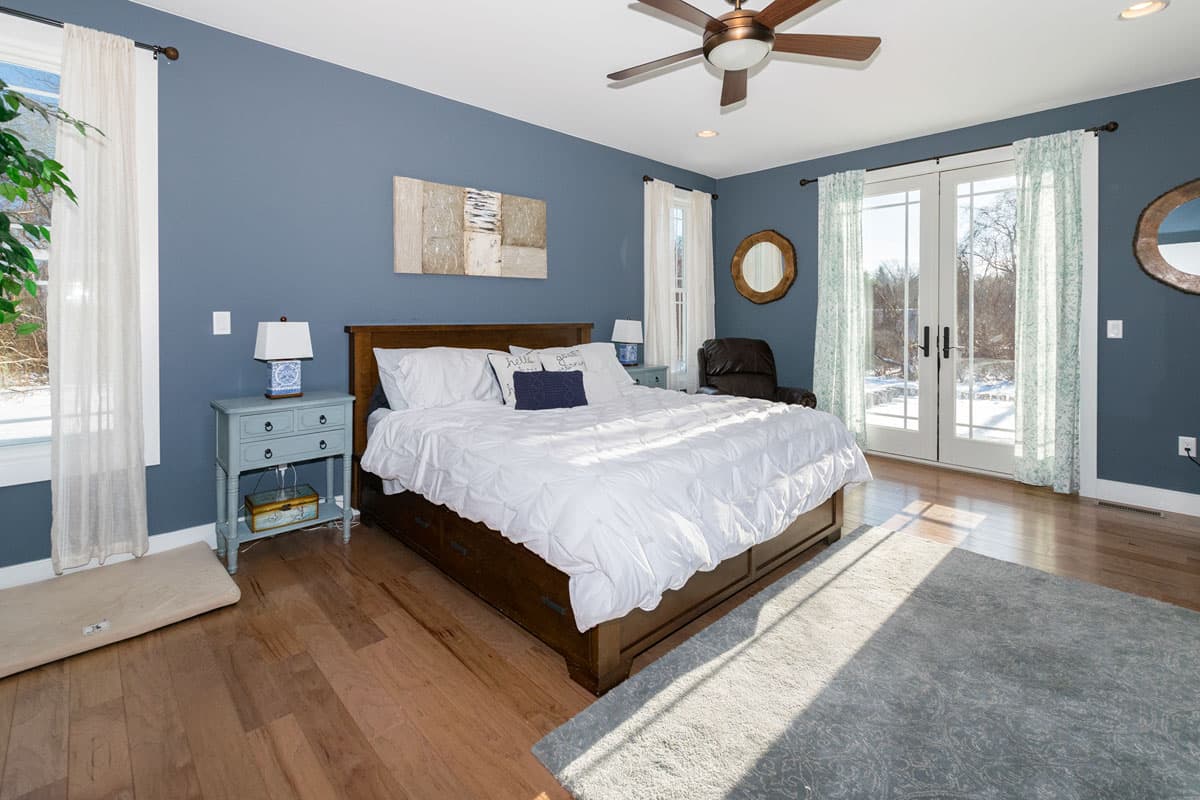

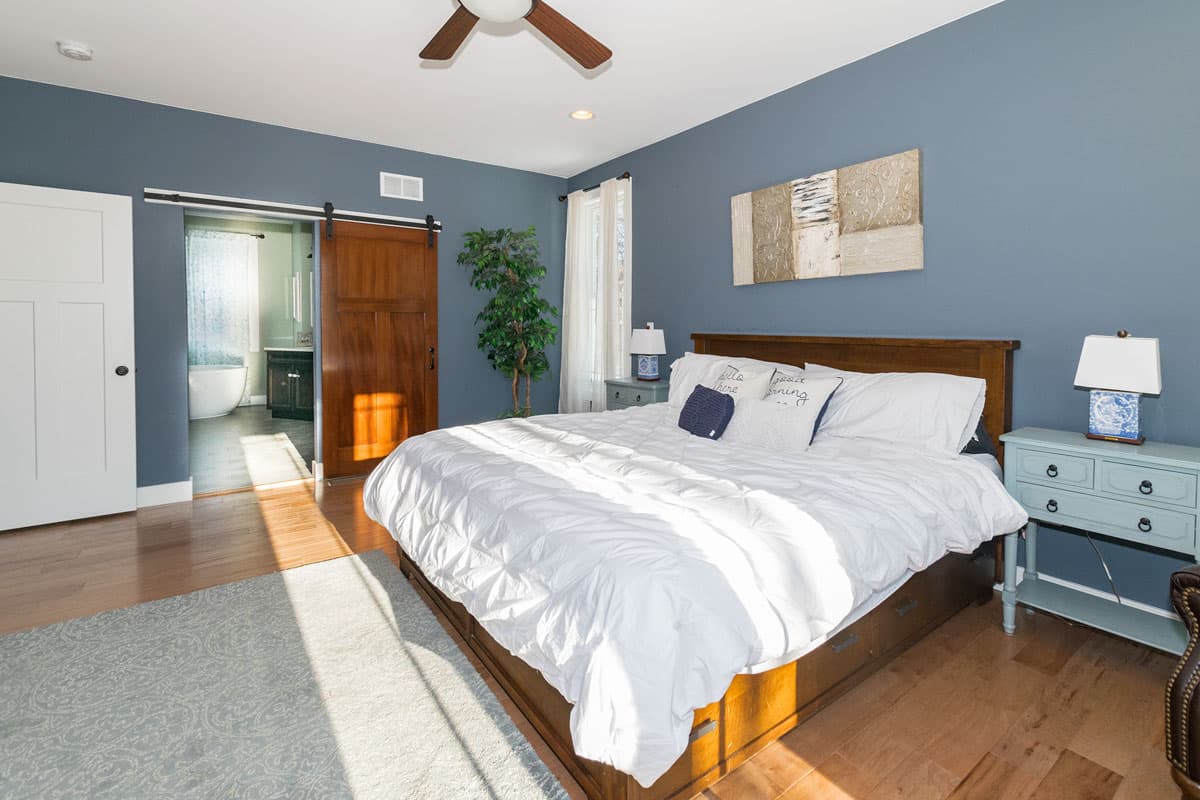

  • Situated for privacy, the master suite features direct access to the patio and veranda. The spacious master bath has a glass shower and separate lounging tub. A large walk-in closet is a nice touch.
  • Across the home two additional bedrooms with private baths share a Jack and Jill bath and close access to the laundry room with sink and folding area..
  • Stairs behind the fireplace take you to the optional second story with future space for a potential loft, living area an optional hallway to space over the garage.
  • Related Plans: Gain a main floor in-law suite with house plan 12277JL.
  • Downsize with house plans 12261JL (2,498 sq. ft.) and 12279JL (2,531 sq. ft.).
  • Straighten the garage with house plan 12281JL (2,251 sq. ft.).

Each plan set includes the following:

  • Cover Sheet -The cover sheet features an elevation of the home, sheet number index for the plan, and contact information.
  • Foundation - These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above.  If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.

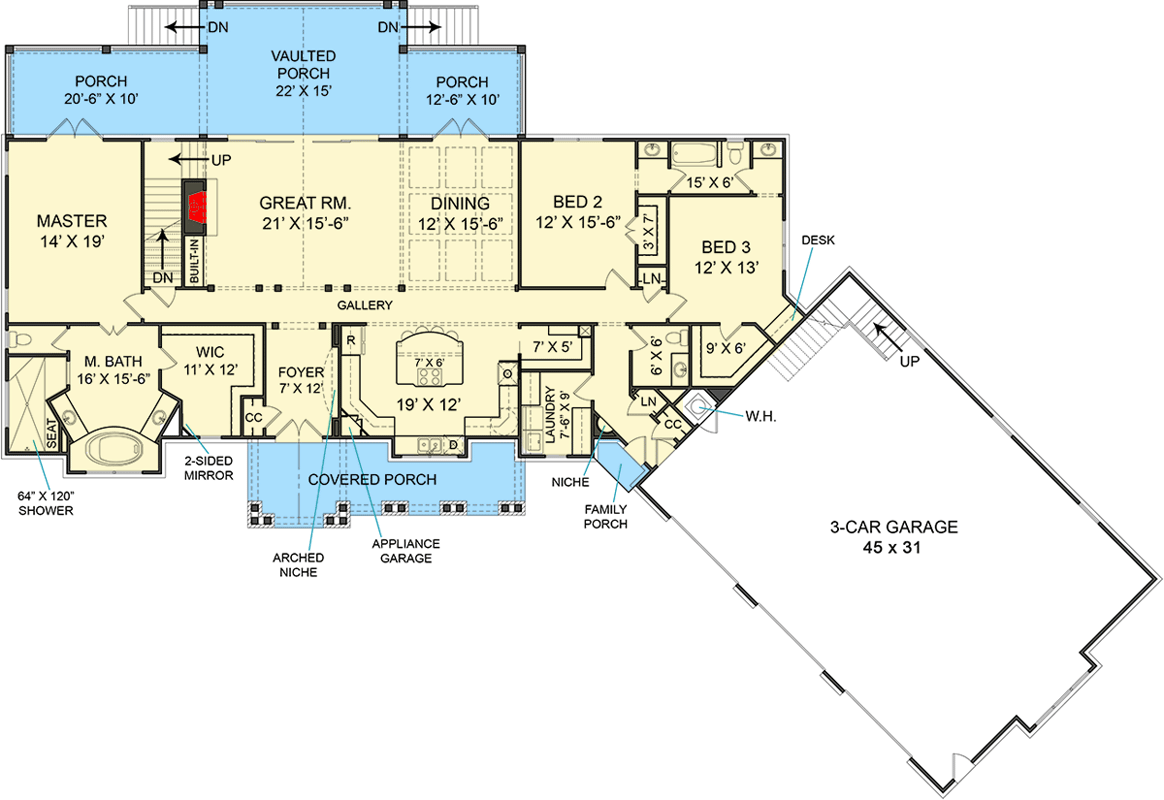

  • First Floor Plan - This page is drawn to 1/4”=1’-0” scale and includes exterior dimensions to build the home.  The notes are precise directions for your builder.  Important features such as built-ins, niches, and appliances are noted.  Doors and windows are identified and specific sizing can be found on window and door schedules. Conventional framing.

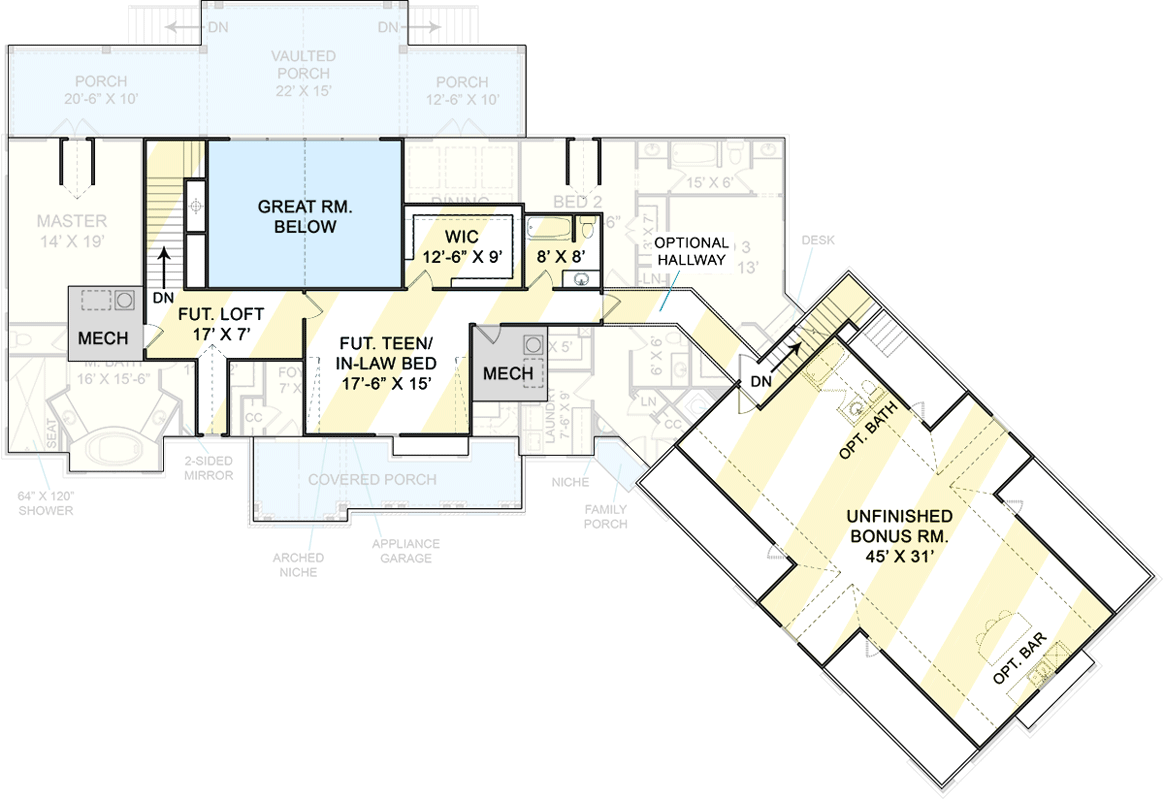

  • Second Floor Plan - The second floor includes stair details.  Often the reflective roof detail is shown legibly over the second floor plan.  This is helpful for the framing contractor.
  • Lighting and Electrical - On this sheet you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors.  It is common place to build with your builder and/or electrician before the work starts to review this plan.  Careful planning can make your home special and convenient for your family.
  • Second Floor Lighting - The same details as provided for the first floor.
  • Front and Rear Elevations - The front and rear elevations may be on separate pages depending on the size of the house.  This page comes with exterior dimensions and notes required to complete construction.  This is where the windows, doors, and interior trim details are illustrated, as well as wall heights, roof pitches and ridge heights.

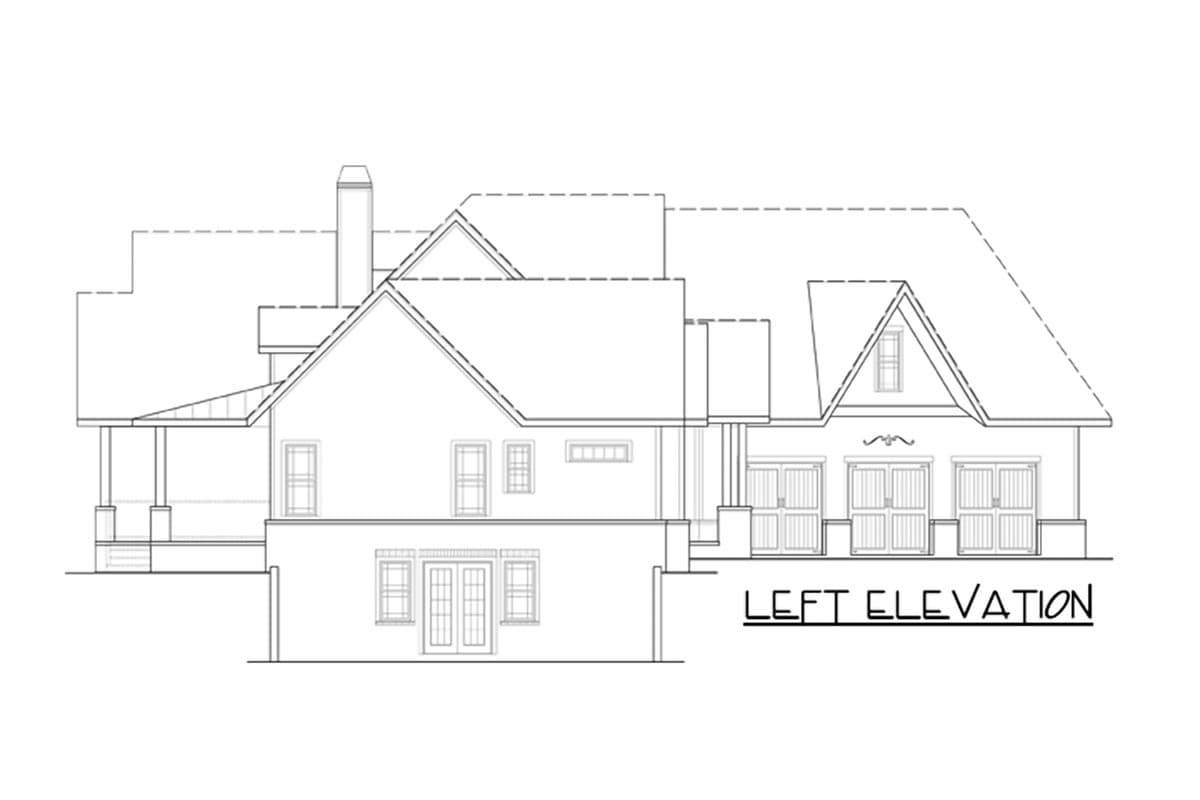

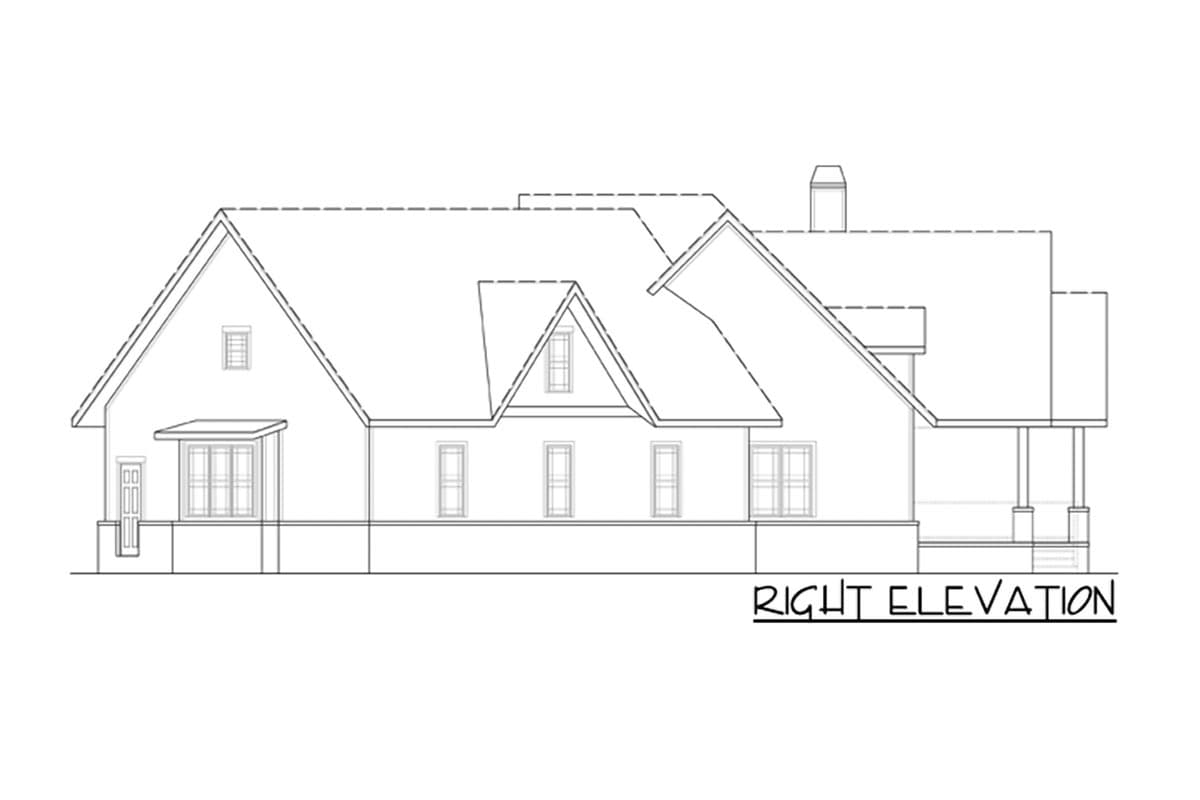

  • Right and Left Elevations - The right and left elevations provide the same details as the front and rear elevations.
  • Roof Plan - This drawing, usually at 1/4”=1’-0” scale, will be a bird’s eye view of the home.  It will show the ridges, hips, and valleys.  This page will show a beautifully designed roof.
  • Cross-Sections - Sections are used to further describe any architectural intent necessary for the builder or framer. This drawing will illustrate important changes in the floor, ceiling, and roof heights.
  • Cabinet Elevations - Cabinet elevations are provided with your plans, and like the electrical plan, they are mainly a guide for estimating purposes.  Cabinets are an area that is easy to customize and your builder or cabinet maker will work with you early on in the process to ensure that the correct cabinets are specified.  After framing and sheet rock installation sizes of walls may change slightly.  The cabinet maker must take as built measurements to properly size your cabinets. **NOTE: Most house plans will contain interior/cabinet elevations, however not all plans will. Please inquire prior to purchase.

Plan details



Rustic Ranch With Bonus Upstairs Spaces

  • 2,666

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $1,055
  • PDF - single-use $1,465
  • 5 Sets $1,565
  • CAD $2,095
  • View all purchase option online

About This Plan

  • This rustic ranch style home plan gives you great outdoor spaces with porches front and back and a flexible floor plan with the optional upstairs spaces.
  • The open layout of the great room, casual dining room and extensive kitchen, boasting a 7'x6' foot island, makes this a great home for entertaining. The central area features a 2-story stone fireplace with floating wood beams in the two story ceiling.
  • Situated for privacy, the master suite features direct access to the patio and veranda. The spacious master bath has a glass shower and separate lounging tub. A large walk-in closet is a nice touch.
  • Across the home two additional bedrooms with private baths share a Jack and Jill bath and close access to the laundry room with sink and folding area..
  • Stairs behind the fireplace take you to the optional second story with future space for a potential loft, living area an optional hallway to space over the garage.
  • Related Plans: Gain a main floor in-law suite with house plan 12277JL.
  • Downsize with house plans 12261JL (2,498 sq. ft.) and 12279JL (2,531 sq. ft.).
  • Straighten the garage with house plan 12281JL (2,251 sq. ft.).

Floor Plans

  • Main Level

  • Bonus

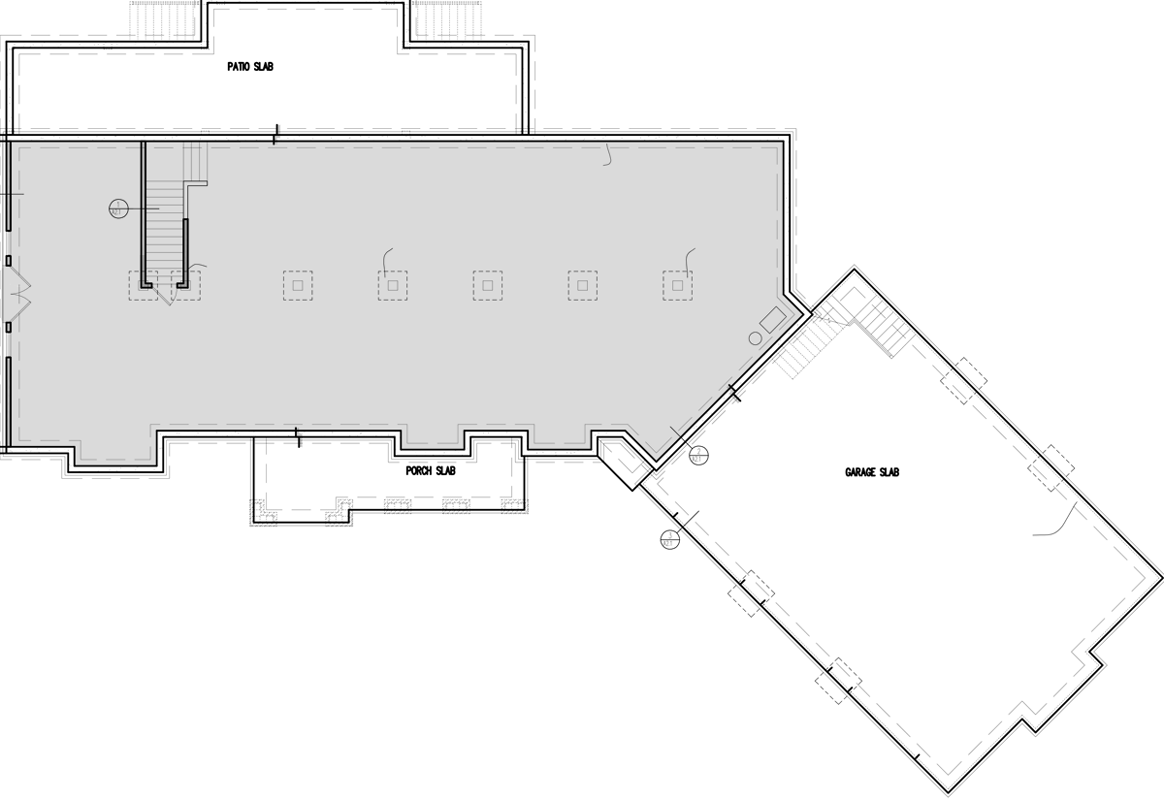

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,666 sq. ft.
  • 1st Floor: 2,666 sq. ft.
  • Porch, Rear: 645 sq. ft.
  • Porch, Front: 234 sq. ft.
  • Apartment: 688 sq. ft.
  • Bonus: 1,021 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 122' 0"
  • Depth: 84' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 1485 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
