Sprawling Mediterranean Ranch House Plan with Three Bedrooms and Office

Name: Plan 150037HRP: Sprawling Mediterranean Ranch House Plan with Three Bedrooms and Office
Brand: Architectural Designs
SKU: 150037HRP
Price: 2450.0 USD
Availability: InStock

Heated S.F.

3,637

Beds

Baths

2.5

Stories

Cars

Floor Plan

Plan Details

This sprawling 3,637 square foot Mediterranean style ranch house plan offers three bedrooms, two full bathrooms, a half bath, and a generous three-car garage.
The home greets visitors with a stately exterior featuring textured stucco and stone, leading into an expansive single-level floor plan designed for effortless flow.
A dedicated formal dining room sits near the entry, while the heart of the home opens into a grand living space that connects seamlessly to the kitchen and a large walk-in pantry.
The primary suite is tucked away for maximum privacy, boasting a dedicated sitting area and the convenience of direct access to the main-level laundry room.
Secondary bedrooms are thoughtfully positioned in a split configuration to ensure comfort and quiet for family or guests, complemented by a versatile game and recreation room.
Outdoor living is emphasized by a massive 710 square foot rear porch that includes an integrated fireplace, creating an ideal setting for year-round relaxation and evening gatherings.

What's Included

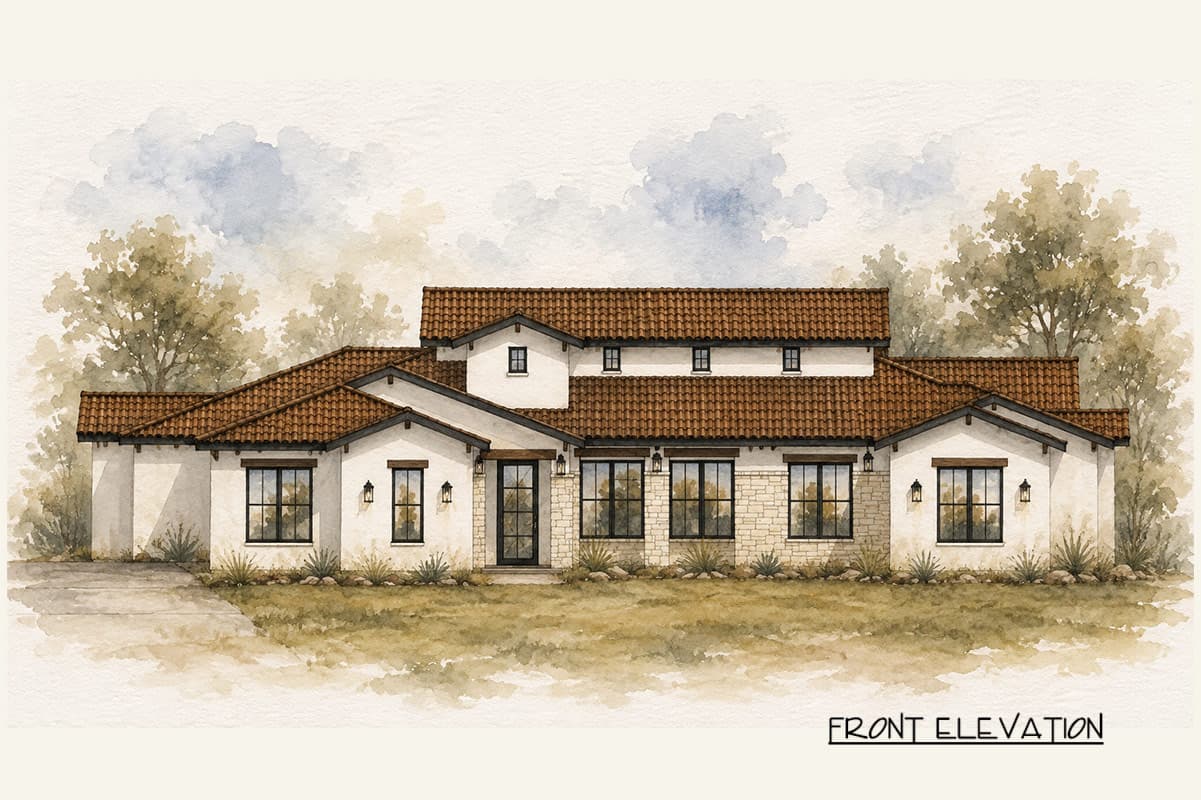

Cover Sheet: Shows the front elevation and typical notes and requirements.

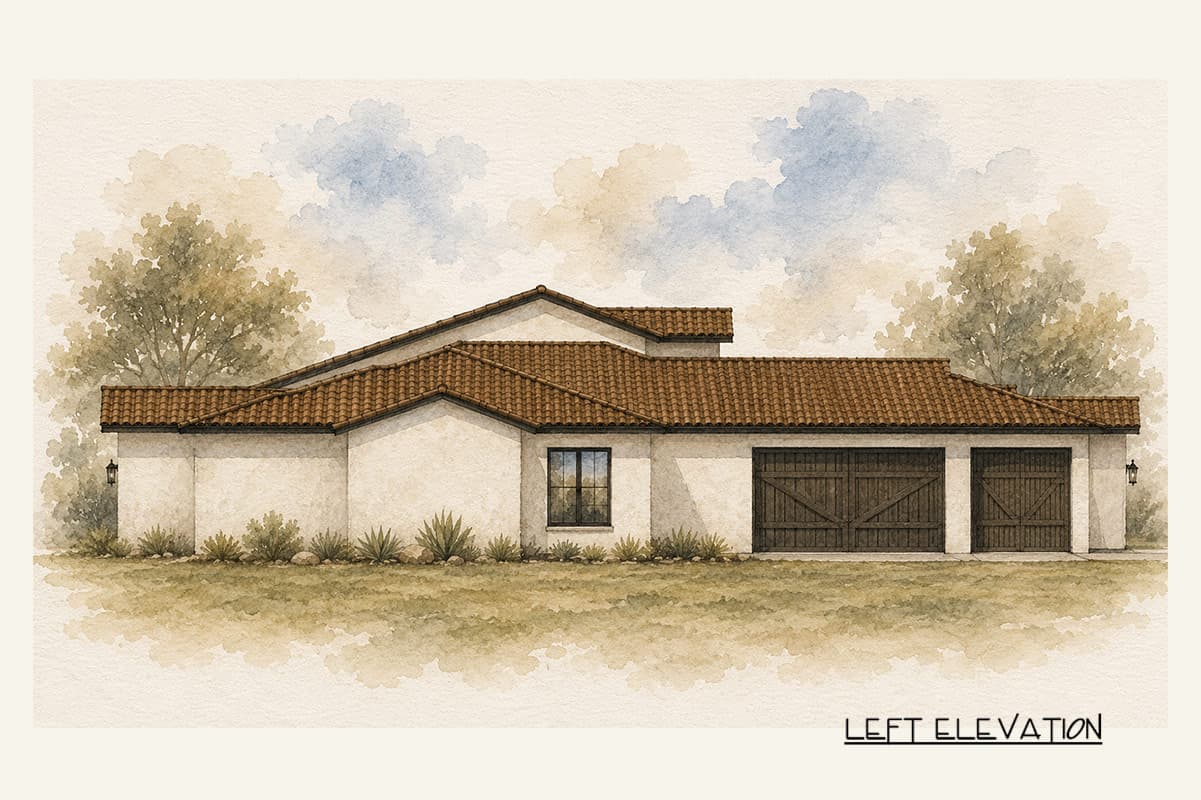

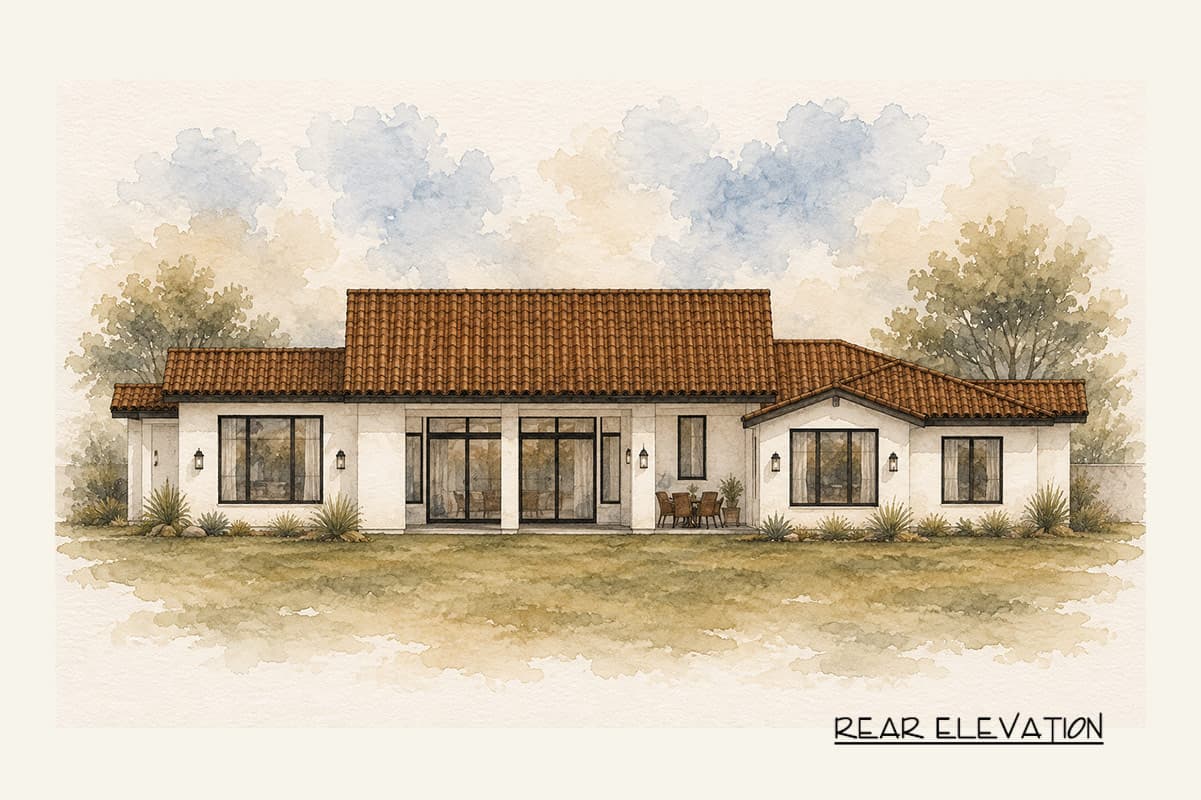

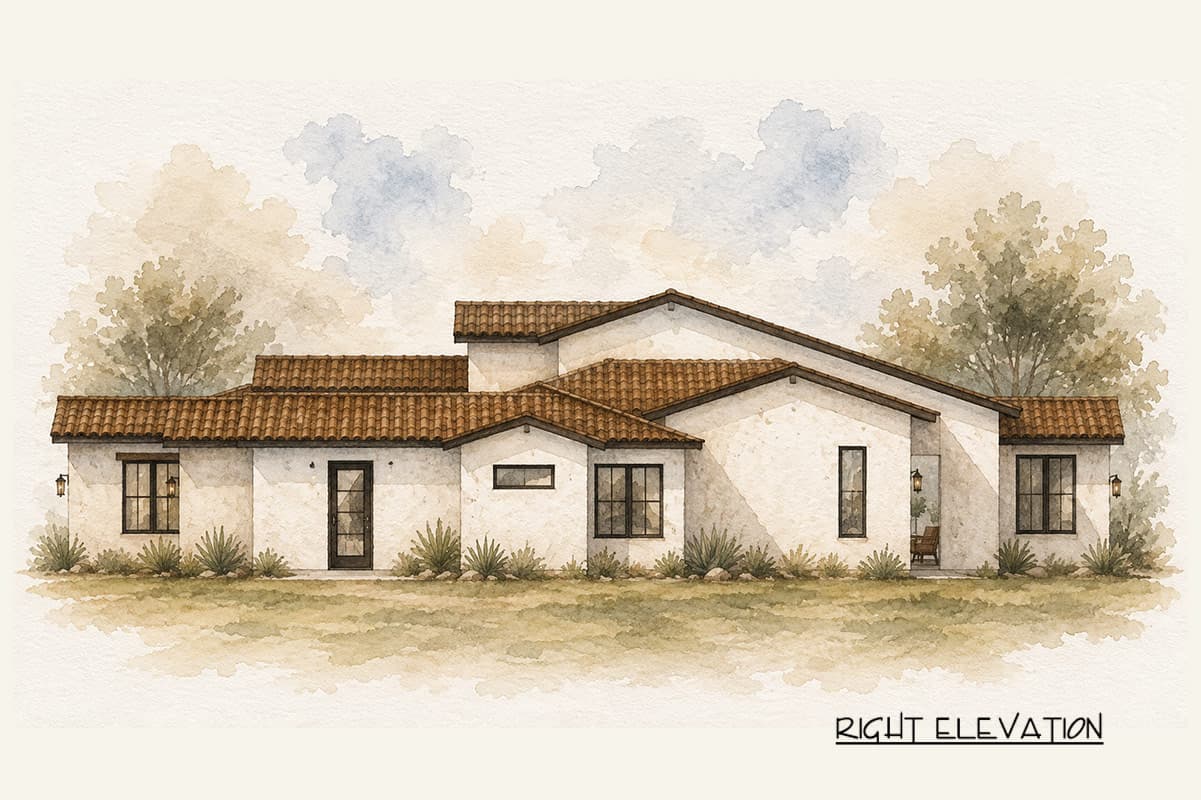

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement

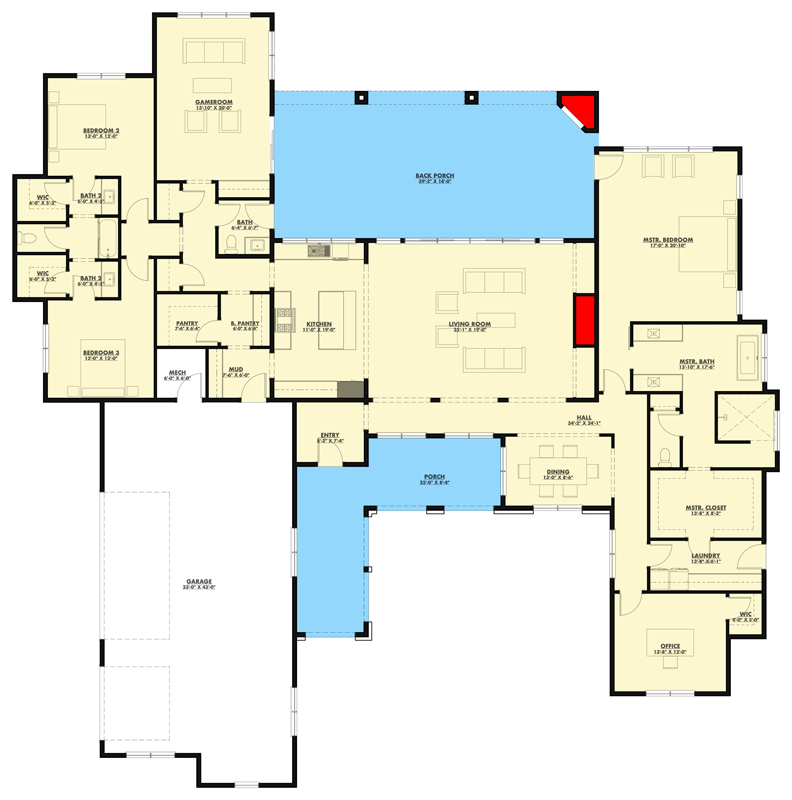

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans
Roof Plan

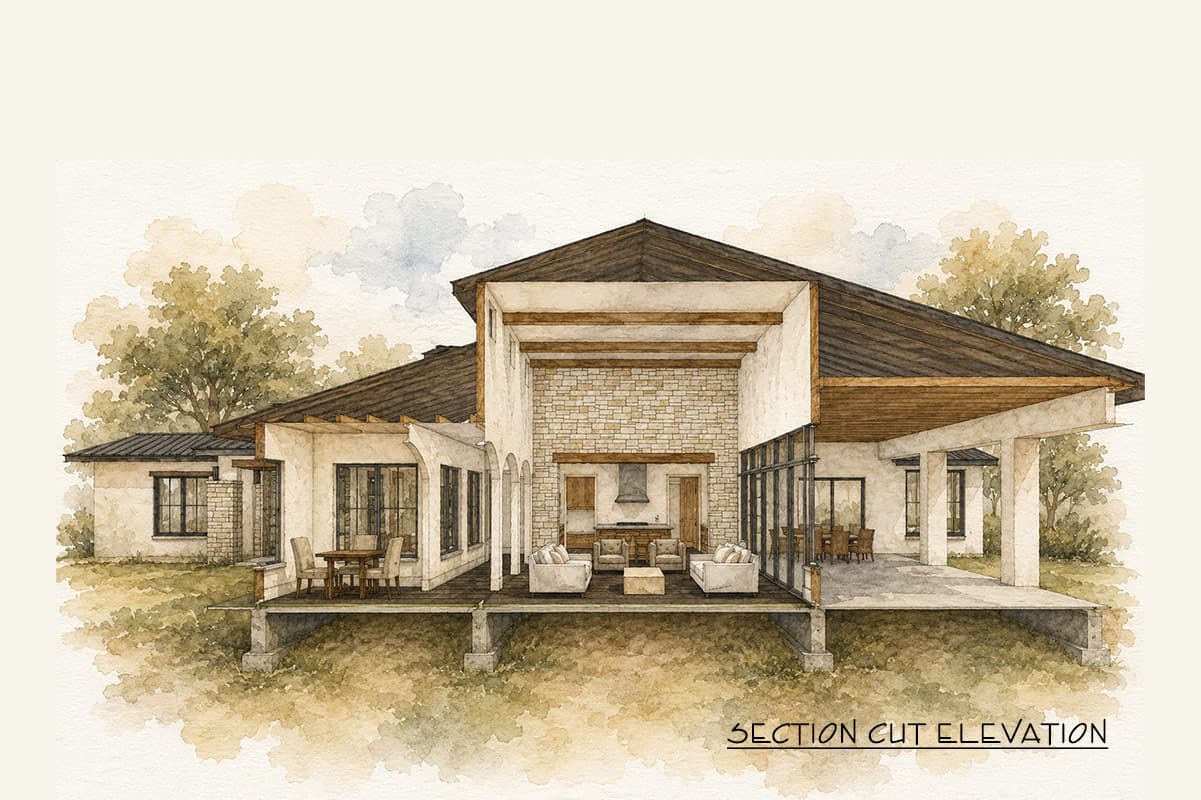

Typical wall section
Typical Stair section
Cabinets are shown on all plans.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
