Stately 2-Bed Contemporary House Plan with Loft

Name: Plan 80937PM: Stately 2-Bed Contemporary House Plan with Loft
Brand: Architectural Designs
SKU: 80937PM
Price: 1605.0 USD
Availability: InStock

Heated S.F.

2,639

Beds

Baths

Stories

Cars

Floor Plan

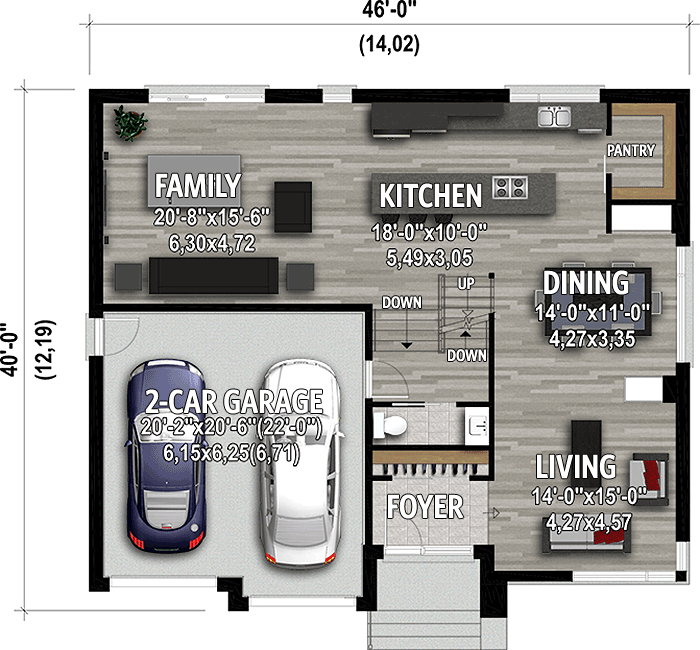

Main Level

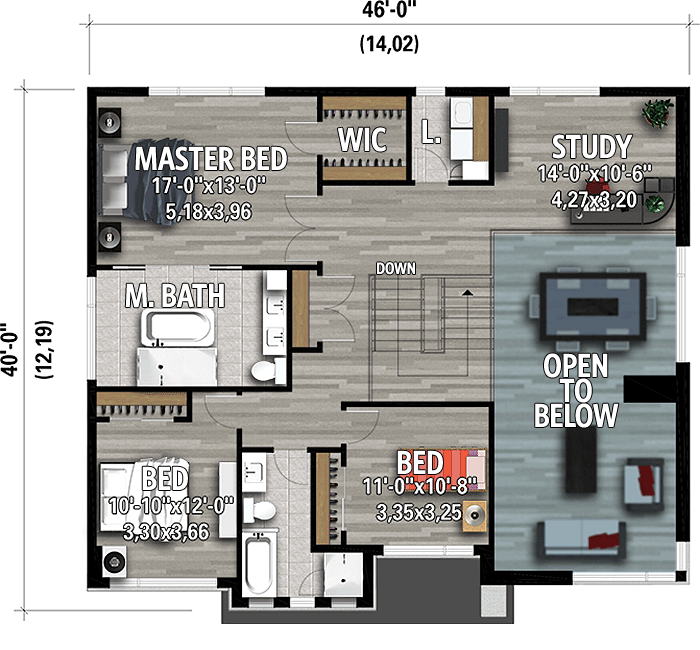

2nd Floor

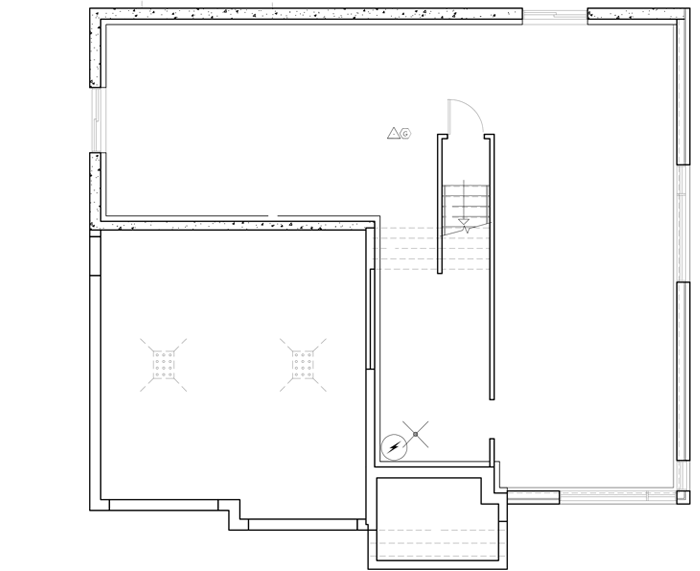

Unfinished Basement

Plan Details

Brick, concrete, and natural wood siding adorn the exterior of this contemporary, 2-bedroom house plan. A two-story, living room provides a feeling of grandeur upon entering.
The spacious, main level provides two living rooms allowing guests to spread out when entertaining. Large, modern windows provide plenty of natural light. Ample workspace in the kitchen, due in part by an oversized island, helps the chef in the house get creative.
Upstairs, an office in the loft overlooks one of the main-floor, living rooms.
Your second-level, master suite sits adjacent the laundry room, and pocket doors within lead to a 5-fixture, master bathroom.
Two additional bedrooms are separated by a 4-fixture bathroom.

What's Included

Please note this plan is designed to the National Building Code of Canada.

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
