Plan 65734BS Transitional 2-Story Mediterranean House Plan with Elevator and Outdoor Spaces on Both Floors

Transitional 2-Story Mediterranean House Plan with Elevator and Outdoor Spaces on Both Floors

Plan 65734BS

  • 4,680

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This Transitional Mediterranean house plan offers a smooth transition between the open concept living space and offers a covered lanai in back, extending your enjoyment to the outside.
  • An oversized island sits in the center of the gourmet kitchen, creating plenty of workspace, and a walk-in pantry maximizes room for storage in the adjacent hallway.
  • Throughout the home, enjoy elegant tray or coffered ceilings ranging from 12' to 26'8". A study hides behind a barn door and offers a space to work from him in.
  • Occupying the right side of the home, the master suite has access to the back lanai, dual walk-in closets, and a five-fixture bath with a free-standing spa tub and a dual head walk-in shower.
  • Upstairs - accessible by stairs (note the wine storage underneath them) as well as by an elevator - bedrooms occupy three of the four corners of the home, each with its own walk-in closet and bathroom. Bed 2 has access to a balcony with views to the back. A loft overlooks the first floor and also enjoys balcony access.
  • Related Plan: Get a little less square footage with house plan 65733BS (4,544 sq. ft.).
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Plans include the following:

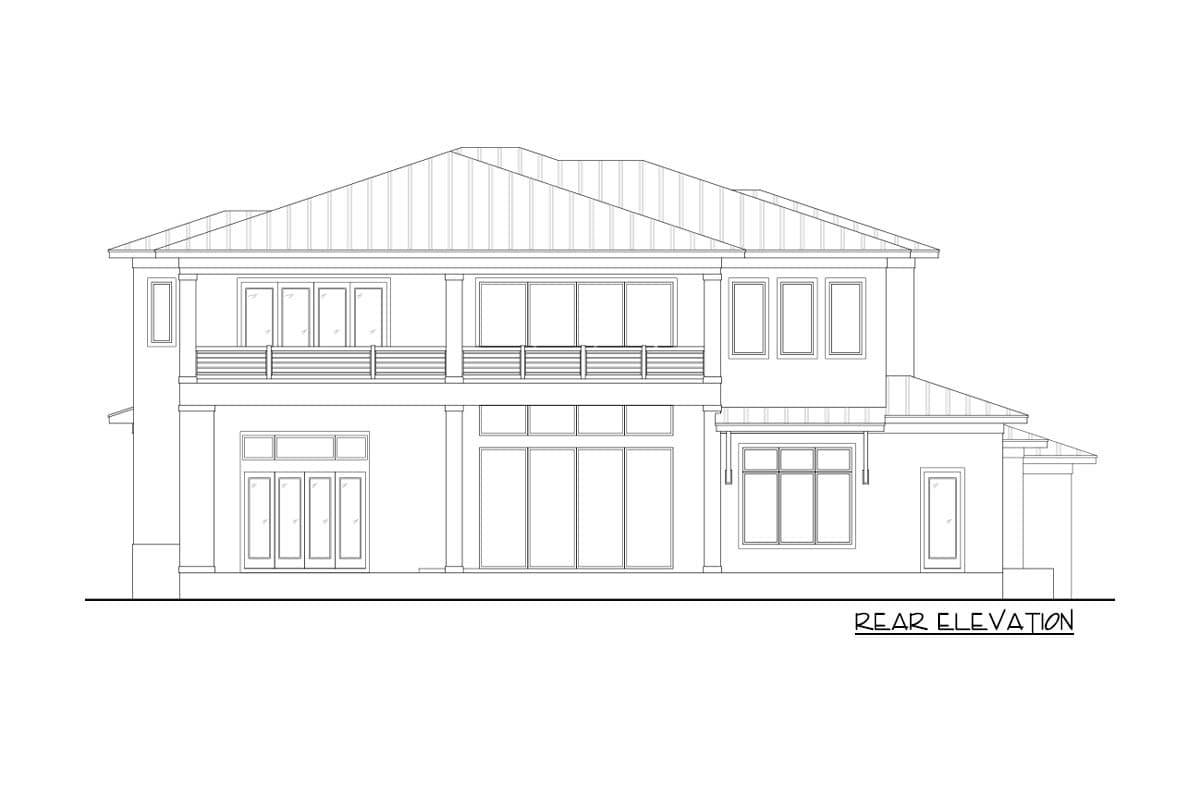

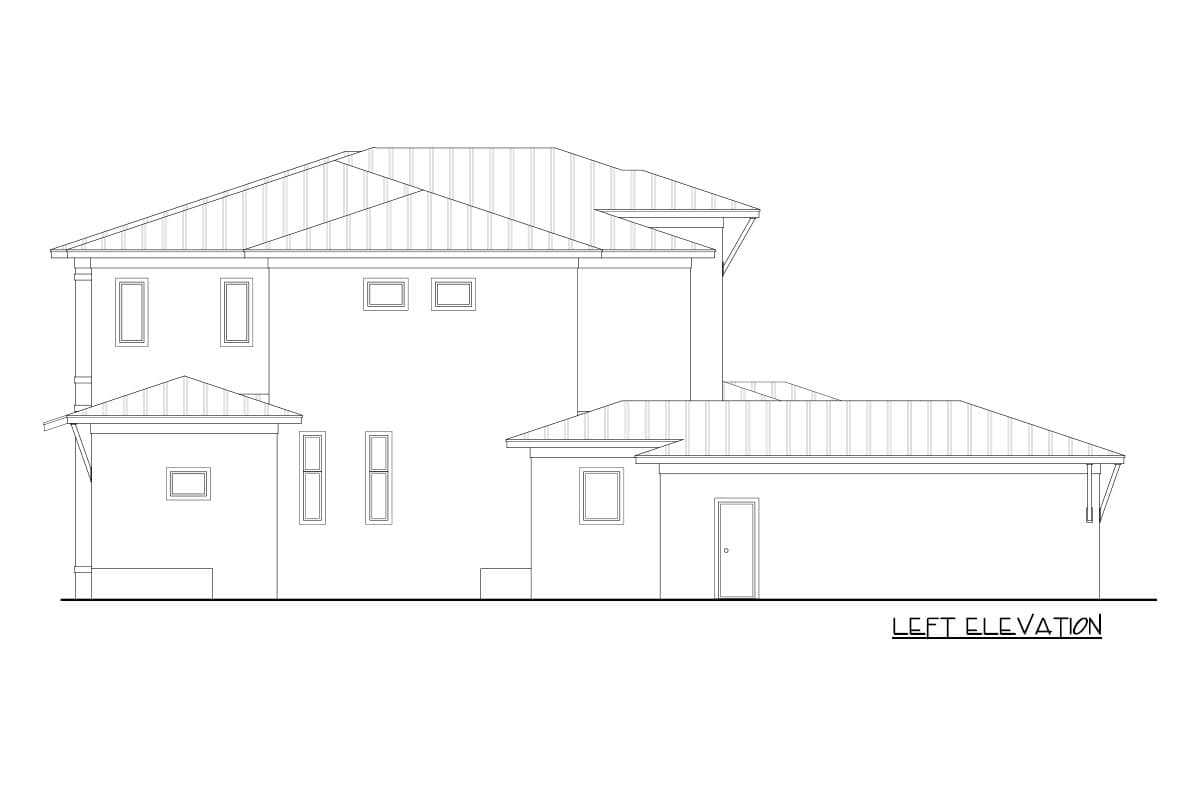

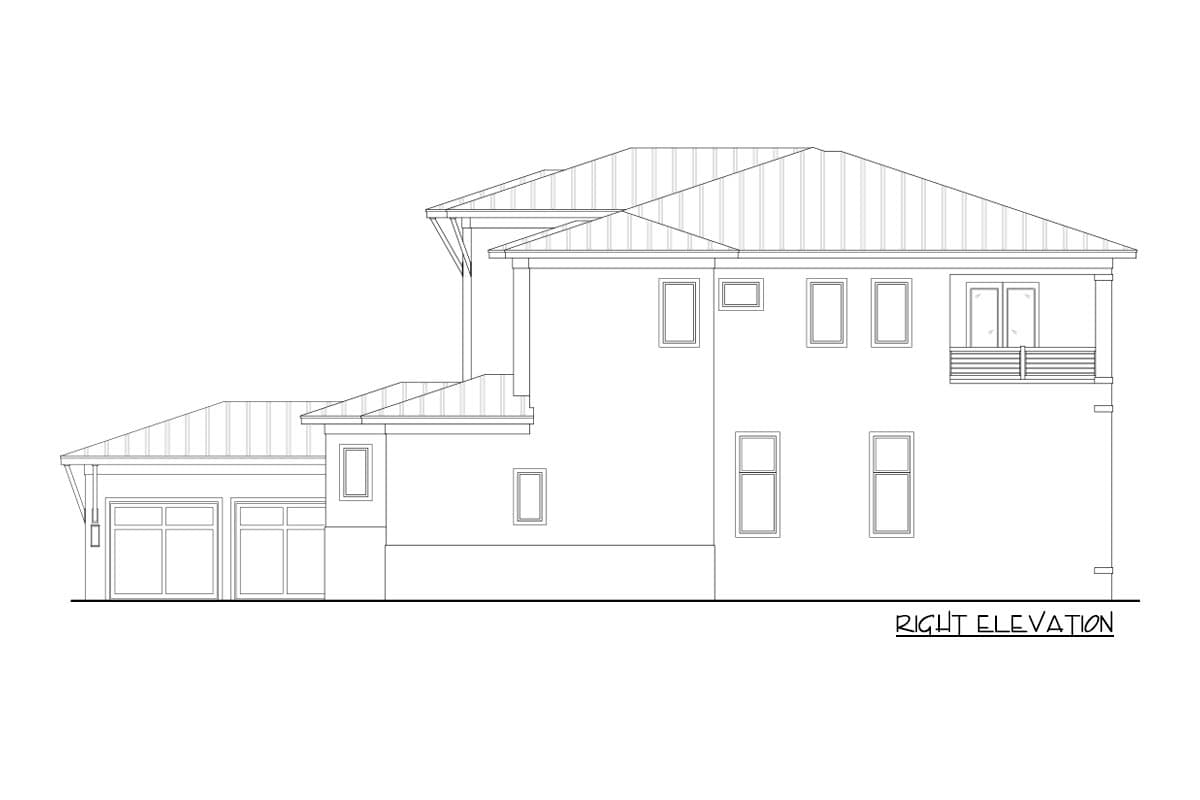

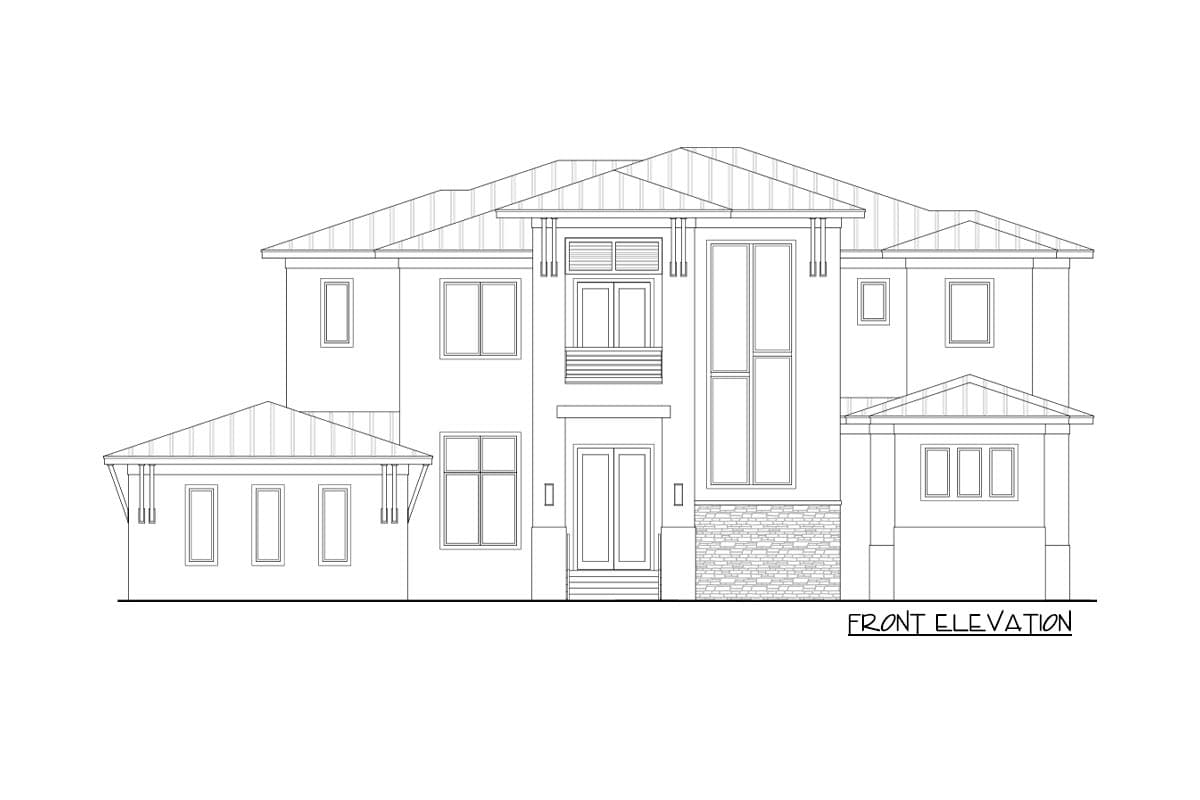

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

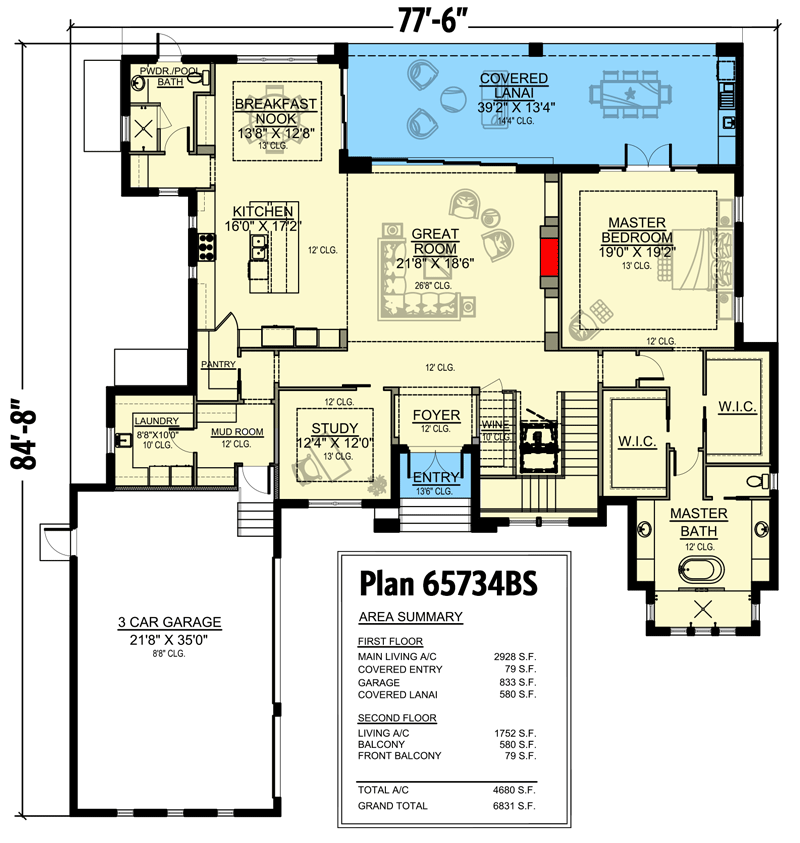

Transitional 2-Story Mediterranean House Plan with Elevator and Outdoor Spaces on Both Floors - 65734BS floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

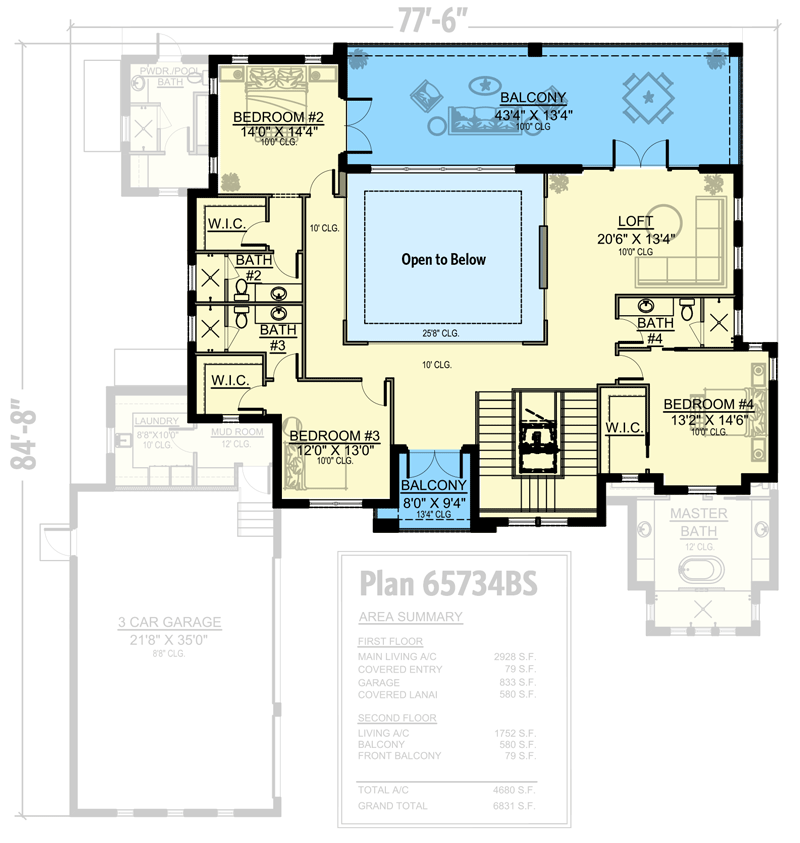

Transitional 2-Story Mediterranean House Plan with Elevator and Outdoor Spaces on Both Floors - 65734BS floor plan - 2nd Floor

Plan details

Transitional 2-Story Mediterranean House Plan with Elevator and Outdoor Spaces on Both Floors

  • 4,680

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,215
  • PDF - Single-Build $4,215
  • View all purchase option online

About This Plan

  • This Transitional Mediterranean house plan offers a smooth transition between the open concept living space and offers a covered lanai in back, extending your enjoyment to the outside.
  • An oversized island sits in the center of the gourmet kitchen, creating plenty of workspace, and a walk-in pantry maximizes room for storage in the adjacent hallway.
  • Throughout the home, enjoy elegant tray or coffered ceilings ranging from 12' to 26'8". A study hides behind a barn door and offers a space to work from him in.
  • Occupying the right side of the home, the master suite has access to the back lanai, dual walk-in closets, and a five-fixture bath with a free-standing spa tub and a dual head walk-in shower.
  • Upstairs - accessible by stairs (note the wine storage underneath them) as well as by an elevator - bedrooms occupy three of the four corners of the home, each with its own walk-in closet and bathroom. Bed 2 has access to a balcony with views to the back. A loft overlooks the first floor and also enjoys balcony access.
  • Related Plan: Get a little less square footage with house plan 65733BS (4,544 sq. ft.).
  • BUILDING RESTRICTION: This plan my not be built in Lee and Collier Counties, Florida as well as Sarasota, Florida.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,680 sq. ft.
  • 1st Floor: 2,928 sq. ft.
  • 2nd Floor: 1,752 sq. ft.
  • Lanai: 580 sq. ft.
  • Balcony / Veranda: 659 sq. ft.
  • Entry: 79 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 6"
  • Depth: 84' 8"
  • Max ridge height: 34' 10"

Garage

  • Area: 833 sq. ft.
  • Count: 3 Cars

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
