Transitional Mediterranean House Plan with Covered Lanai and 2-Story Great Room

Plan 65733BS

  • 4,544

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This Transitional Mediterranean house plan offers a smooth transition between the open concept living space and the outdoor space in back.
  • An oversized island sits in the center of the gourmet kitchen, creating plenty of workspace, and a walk-in pantry maximizes room for storage in the adjacent hallway.
  • Throughout the home, enjoy elegant tray or coffered ceilings ranging from 12' to 26'8". A study hides behind a barn door and offers a space to work from him in.
  • Occupying the right side of the home, the master suite has access to the back lanai, dual walk-in closets, and a five-fixture bath with a free-standing spa tub and a dual head walk-in shower.
  • Upstairs - accessible by stairs (note the wine storage underneath them) as well as by an elevator - bedrooms occupy three of the four corners of the home, each with its own walk-in closet and bathroom. Bed 2 has access to a balcony with views to the back. A loft overlooks the first floor and also enjoys balcony access.
  • Related Plan: Get a little more square footage with house plan 65734BS (4,680 sq. ft.).
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.

Plans include the following:


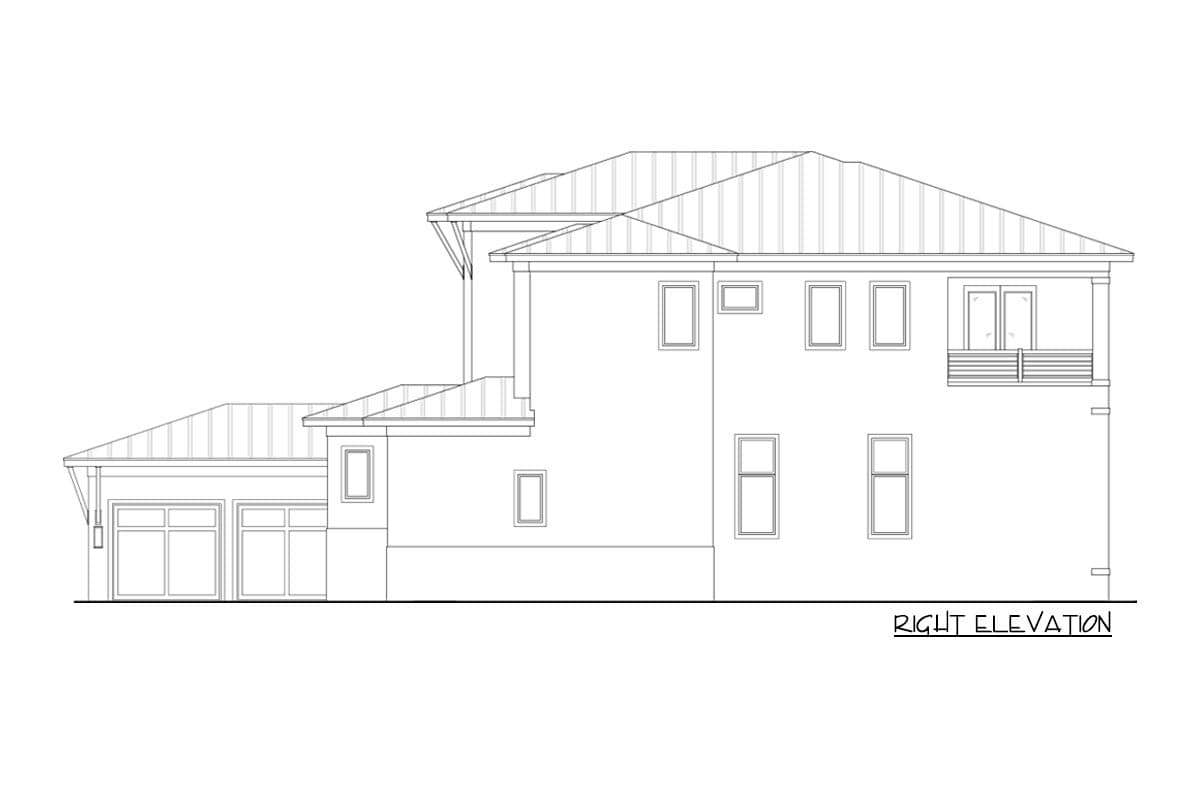

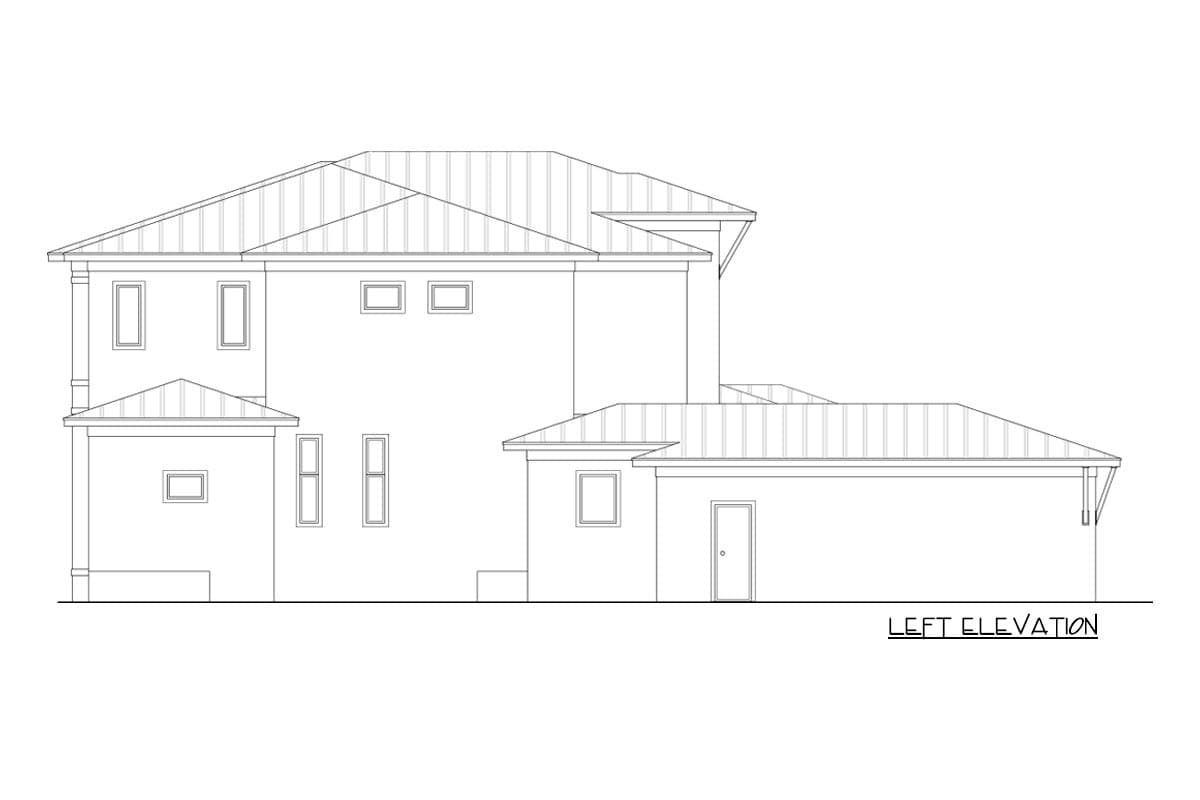

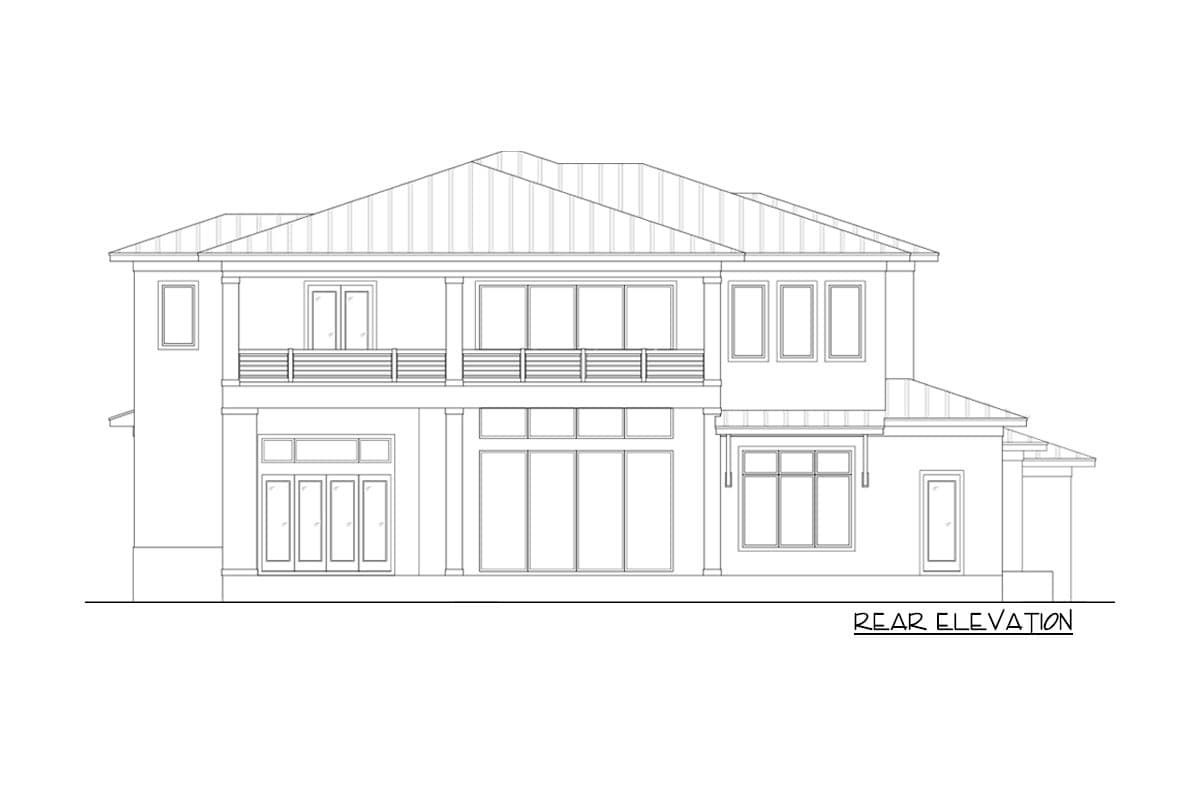

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

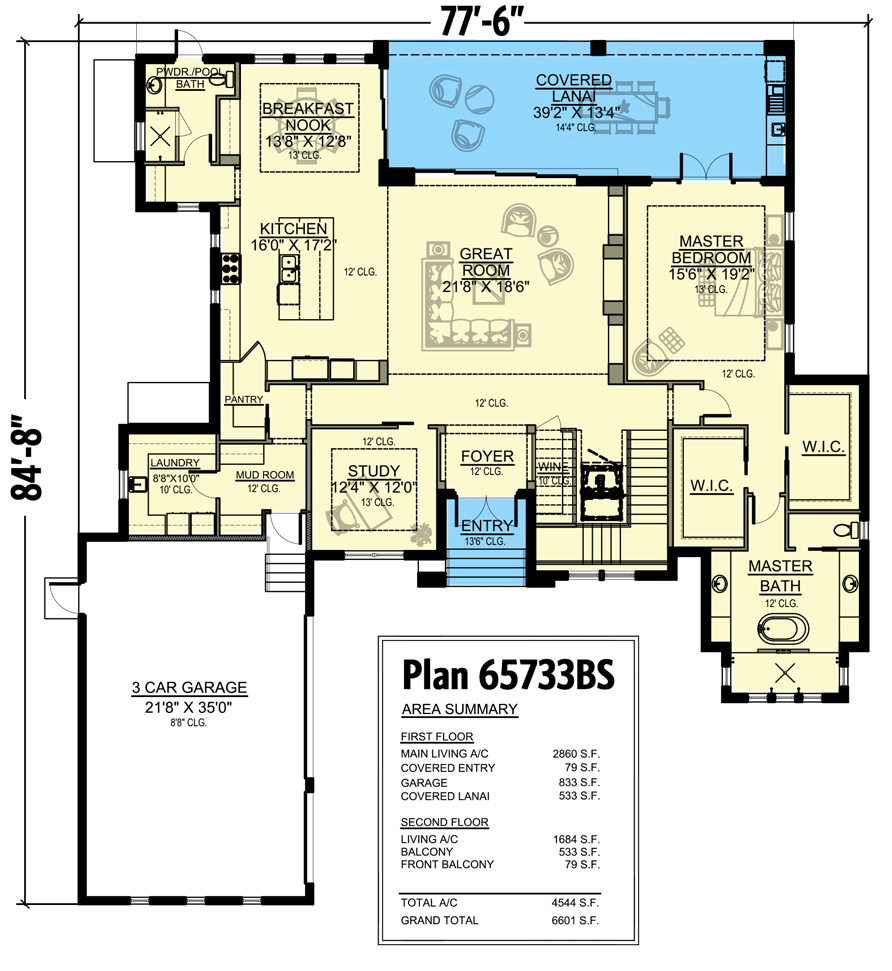

Transitional Mediterranean House Plan with Covered Lanai and 2-Story Great Room - 65733BS floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

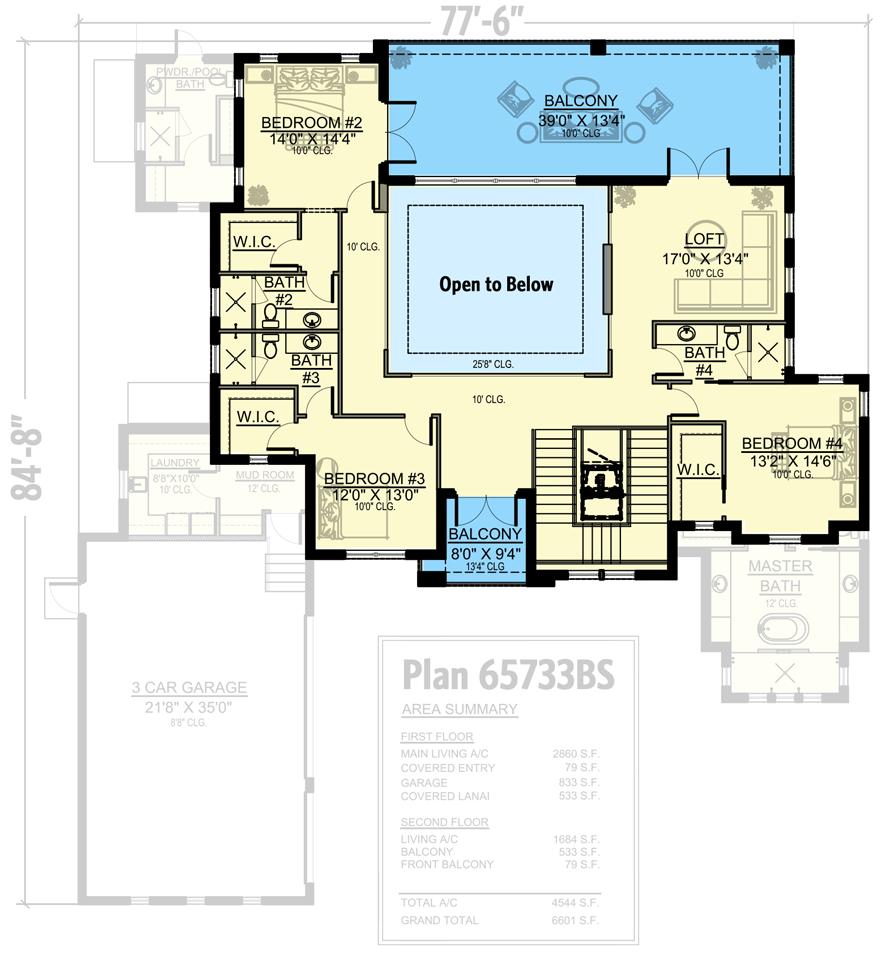

Transitional Mediterranean House Plan with Covered Lanai and 2-Story Great Room - 65733BS floor plan - Second Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,544 sq. ft.
  • 1st Floor: 2,860 sq. ft.
  • 2nd Floor: 1,684 sq. ft.
  • Lanai: 533 sq. ft.
  • Balcony / Veranda: 612 sq. ft.
  • Entry: 79 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Dimensions

  • Width: 77' 6"
  • Depth: 84' 8"
  • Max ridge height: 34' 10"

Garage

  • Type: Attached
  • Area: 833 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Roof Details

  • Primary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Transitional Mediterranean House Plan with Covered Lanai and 2-Story Great Room

  • 4,544

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • CAD + PDF - Single-Build $4,544
  • PDF - Single-Build $4,544
  • View all purchase option online

About This Plan

  • This Transitional Mediterranean house plan offers a smooth transition between the open concept living space and the outdoor space in back.
  • An oversized island sits in the center of the gourmet kitchen, creating plenty of workspace, and a walk-in pantry maximizes room for storage in the adjacent hallway.
  • Throughout the home, enjoy elegant tray or coffered ceilings ranging from 12' to 26'8". A study hides behind a barn door and offers a space to work from him in.
  • Occupying the right side of the home, the master suite has access to the back lanai, dual walk-in closets, and a five-fixture bath with a free-standing spa tub and a dual head walk-in shower.
  • Upstairs - accessible by stairs (note the wine storage underneath them) as well as by an elevator - bedrooms occupy three of the four corners of the home, each with its own walk-in closet and bathroom. Bed 2 has access to a balcony with views to the back. A loft overlooks the first floor and also enjoys balcony access.
  • Related Plan: Get a little more square footage with house plan 65734BS (4,680 sq. ft.).
  • BUILDING RESTRICTION: Restrictions may apply if building in Lee and Collier Counties, Florida as well as Sarasota, Florida. Please contact us with your site address to confirm.
