Plan 22305DR

Winning Modern Combination

Pageloader

Winning Modern Combination

Plan 22305DR

  • 1,768

    Heated s.f.

  • 3

    Beds

  • 1.5

    Baths

  • 2

    Stories

  • 2

    Cars

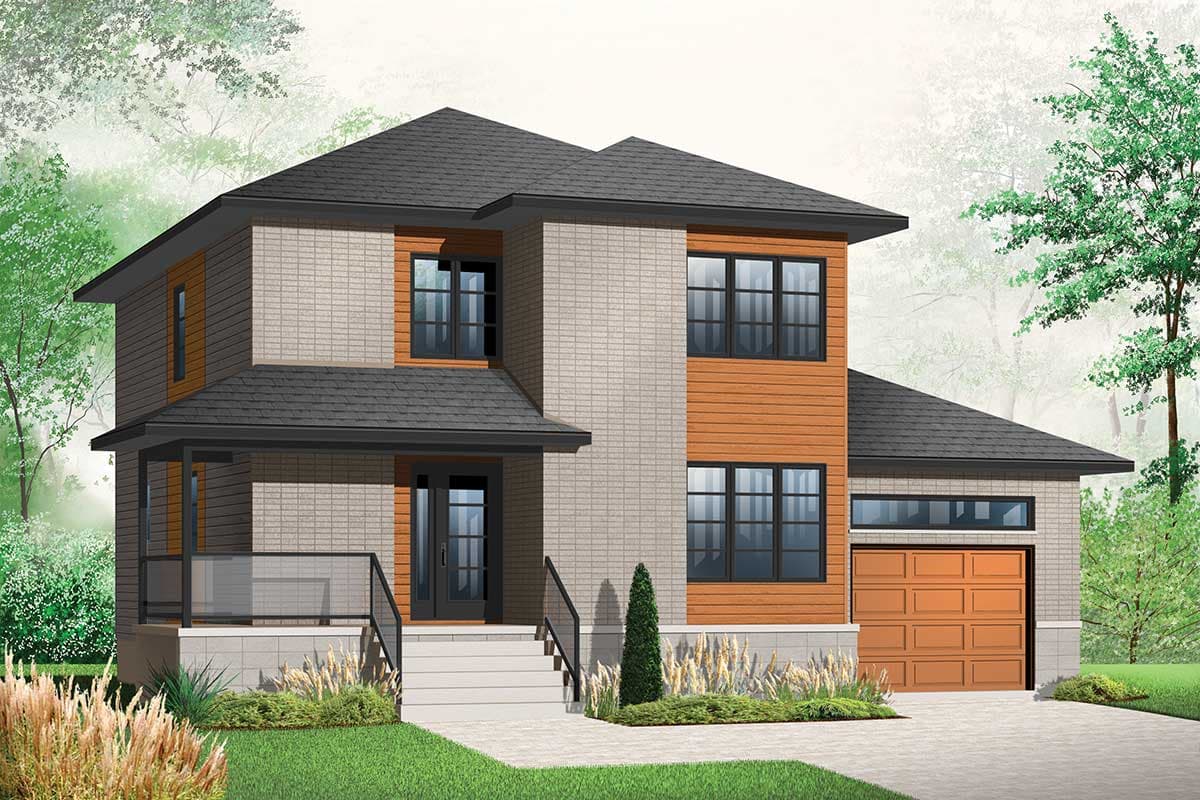

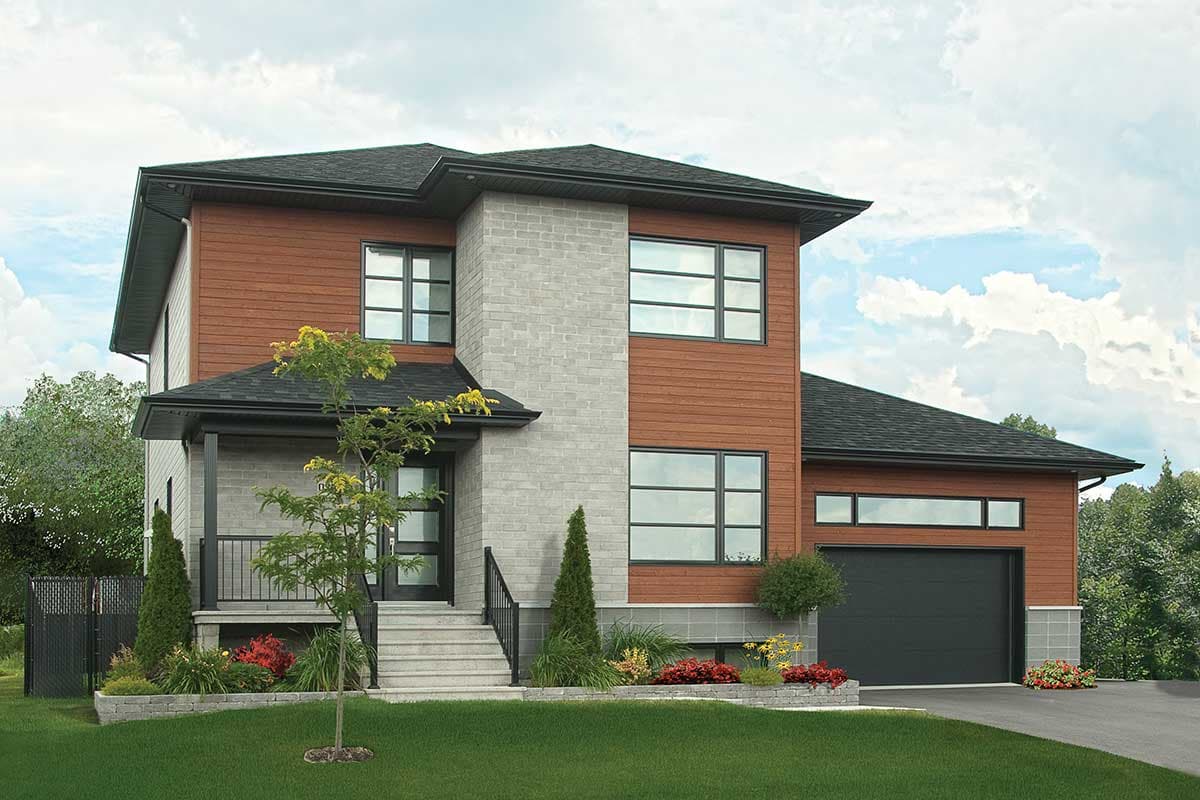

  • The use of modern architectural cladding and bold linear details creates a winning combination in this 3 bedroom modern house plan.
  • A large enclosed foyer keeps heat from escaping and cold from getting in. With nearly 8 feet of closet space it also helps reduce clutter.

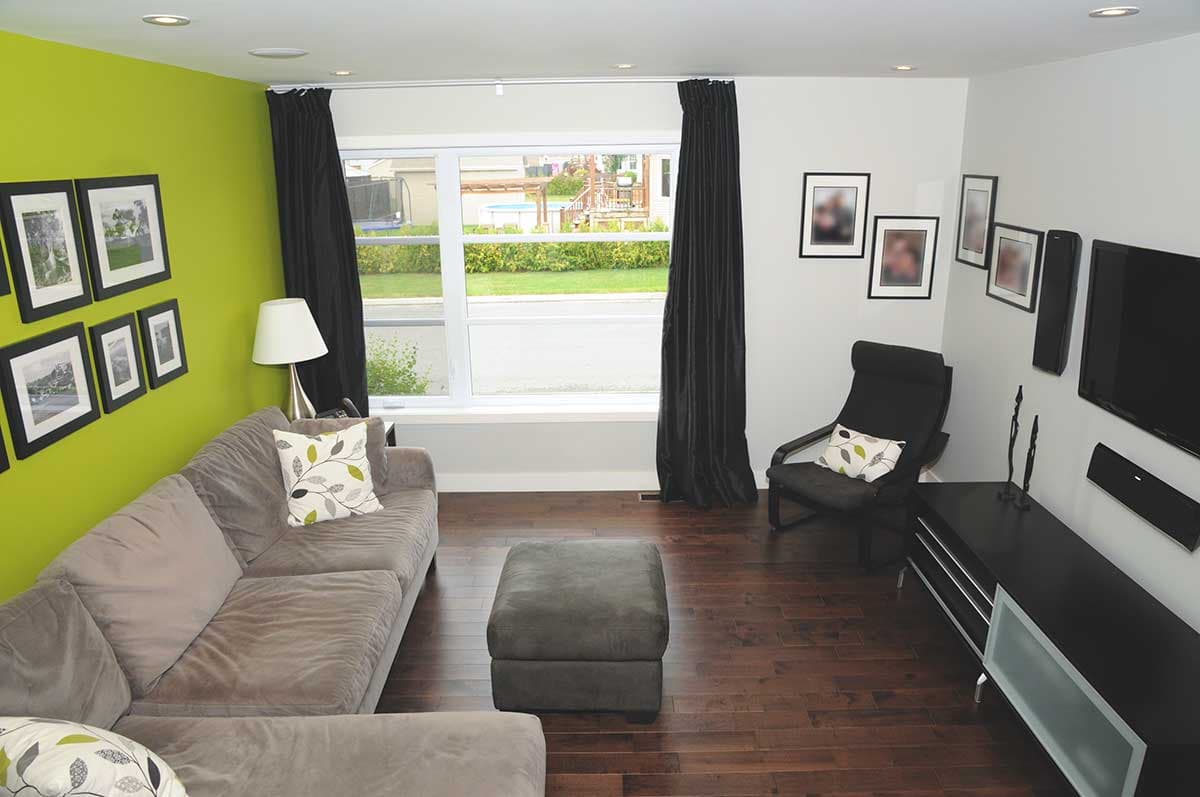

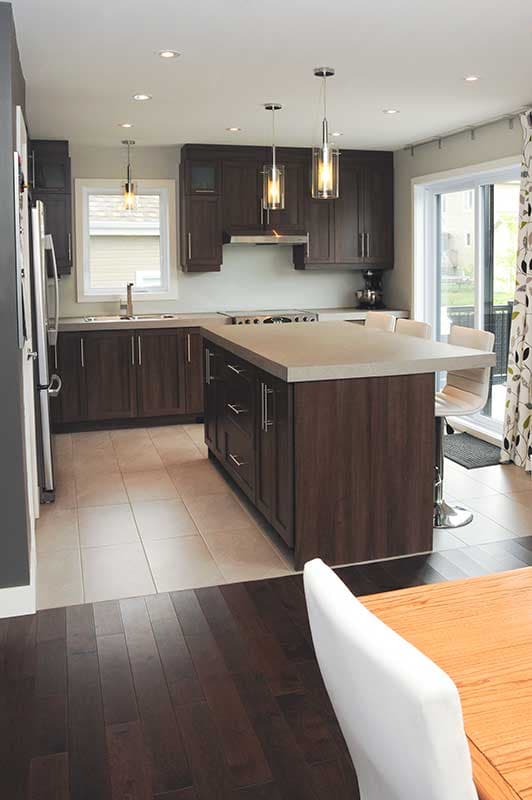

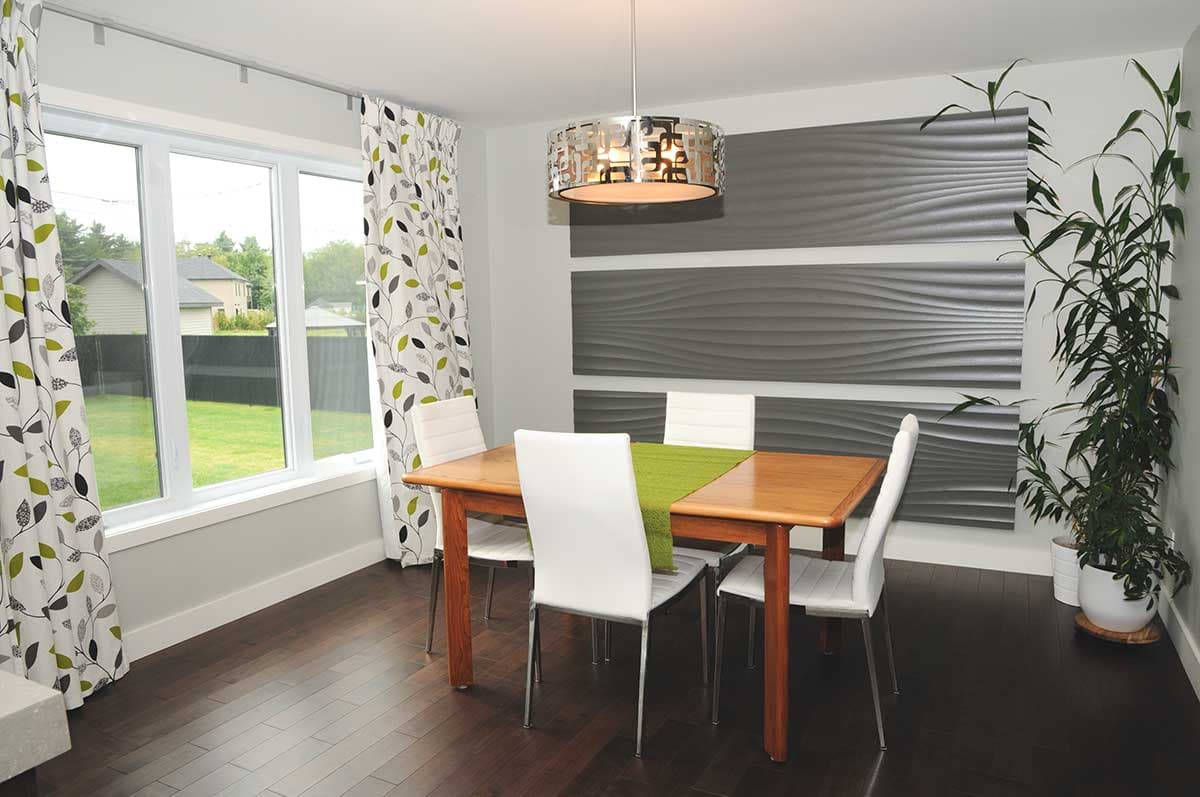

  • The living room is oriented to the front while the back of the house is wide open left to right and includes a generous open kitchen with walk-in pantry and dining area. A fireplace tastefully helps separate these two functional spaces. Island seats are great for informal meals.
  • Upstairs, the master retreat includes a walk-in closet, double vanity and 5' x 5' shower. The two secondary bedrooms share a 3-piece bathroom.
  • Related Plans: Get more room with house plan 22361DR (2,234 sq. ft.). And see these alternate versions as well: house plans 22322DR (with photos) and 21991DR.

Each plan includes the following:

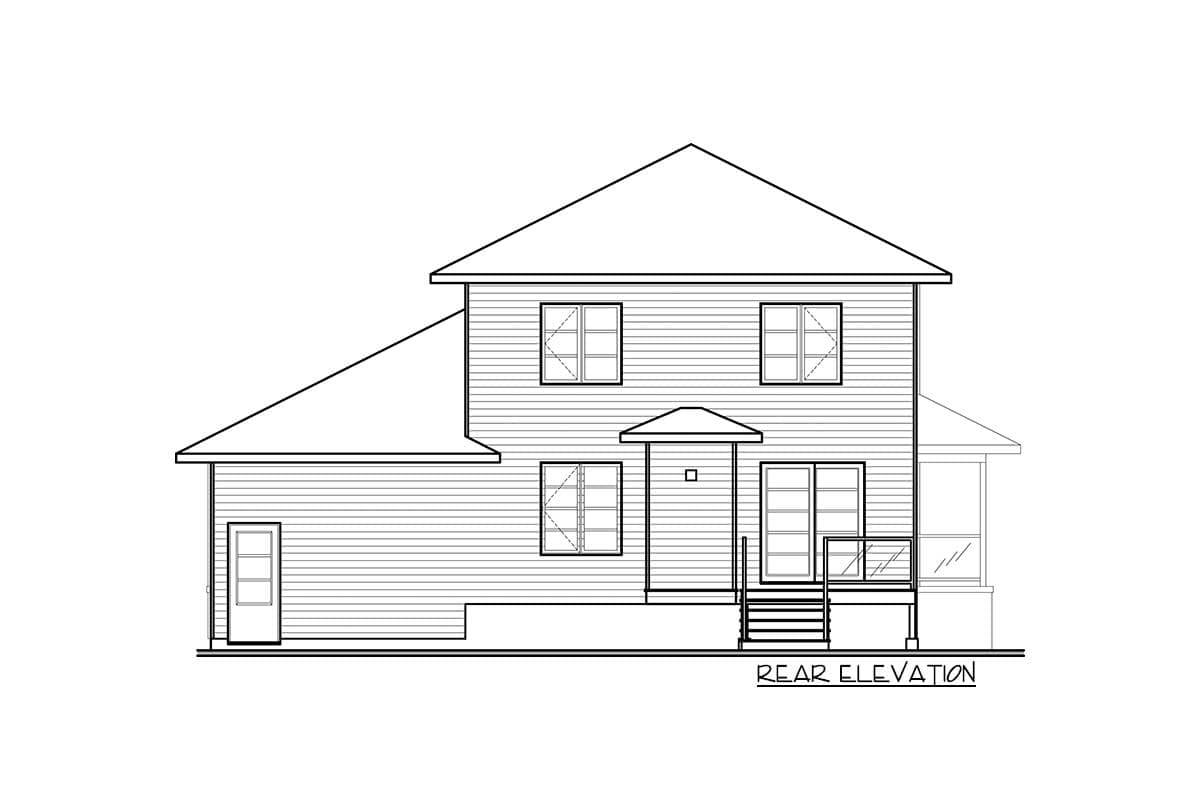

  • 4 Elevations
  •  Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  •  Construction Details
  • Typical Wall Section
Please note that electrical plans are not included.

Floor Plan

Plan details



Winning Modern Combination

  • 1,768

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $920
  • 8 Sets $950
  • Reproducible Set $1,010
  • PDF - single-use $1,010
  • CAD $1,650
  • View all purchase option online

About This Plan

  • The use of modern architectural cladding and bold linear details creates a winning combination in this 3 bedroom modern house plan.
  • A large enclosed foyer keeps heat from escaping and cold from getting in. With nearly 8 feet of closet space it also helps reduce clutter.
  • The living room is oriented to the front while the back of the house is wide open left to right and includes a generous open kitchen with walk-in pantry and dining area. A fireplace tastefully helps separate these two functional spaces. Island seats are great for informal meals.
  • Upstairs, the master retreat includes a walk-in closet, double vanity and 5' x 5' shower. The two secondary bedrooms share a 3-piece bathroom.
  • Related Plans: Get more room with house plan 22361DR (2,234 sq. ft.). And see these alternate versions as well: house plans 22322DR (with photos) and 21991DR.

Floor Plans

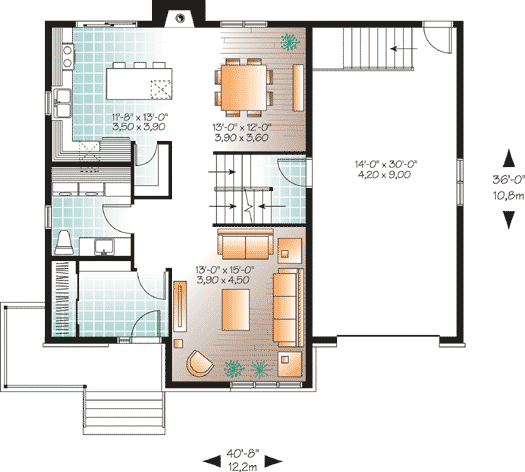

  • Main Level

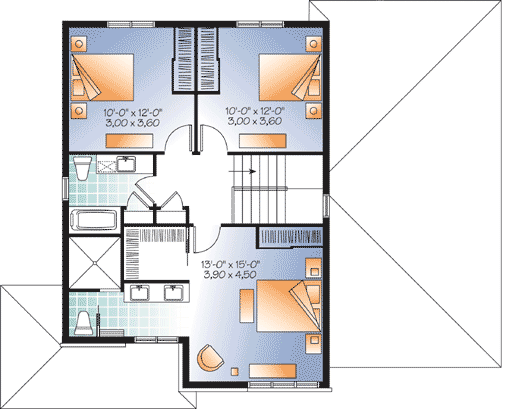

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,768 sq. ft.
  • 1st Floor: 885 sq. ft.
  • 2nd Floor: 883 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 8"
  • Depth: 36' 0"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 461 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss
