Plan 21567DR
Four-Seasons Cottage With Family Room Open To Above
Heated S.F.
1,625
Beds
3
Baths
2
Stories
2
Plan Details

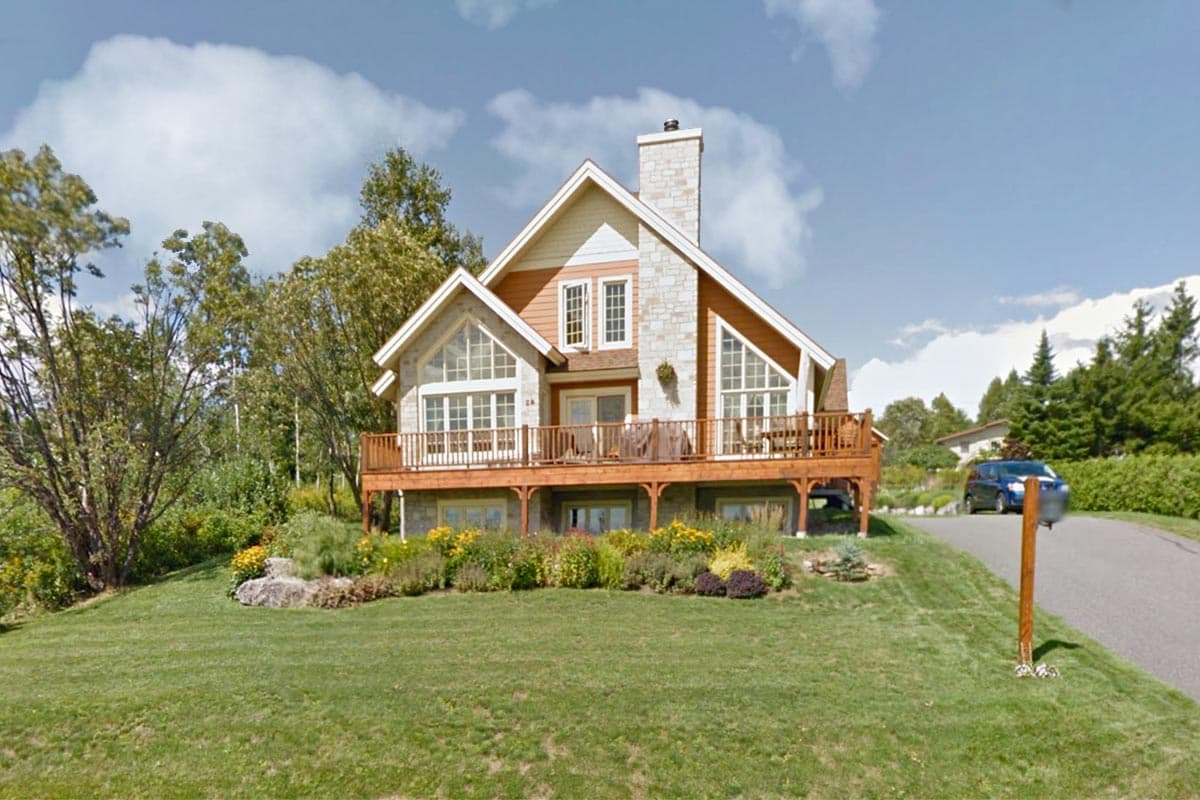

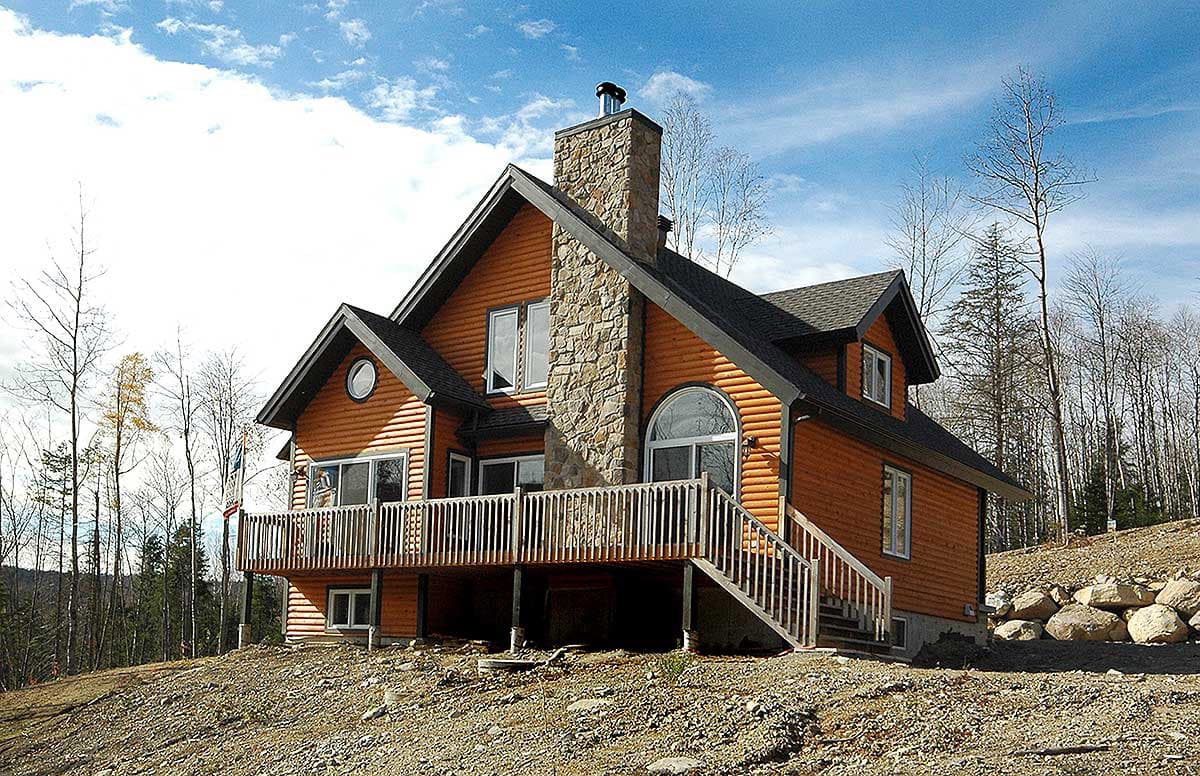

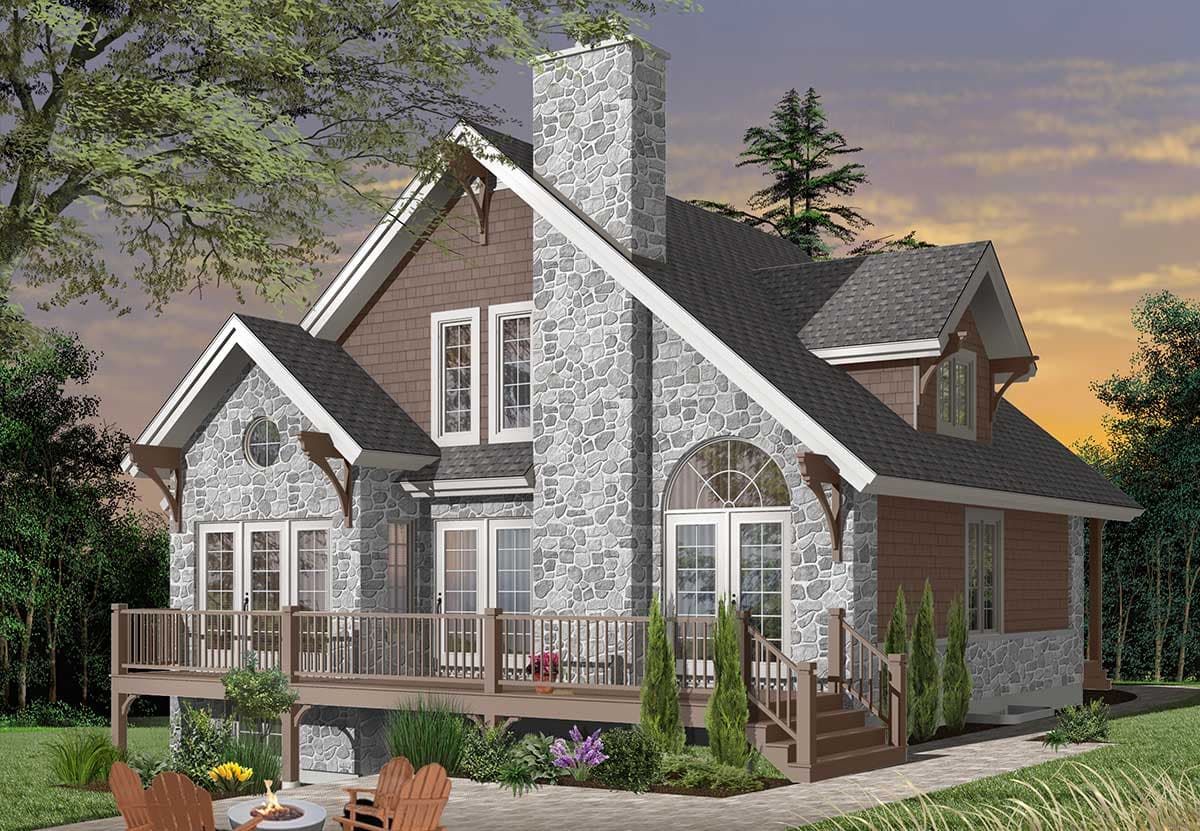

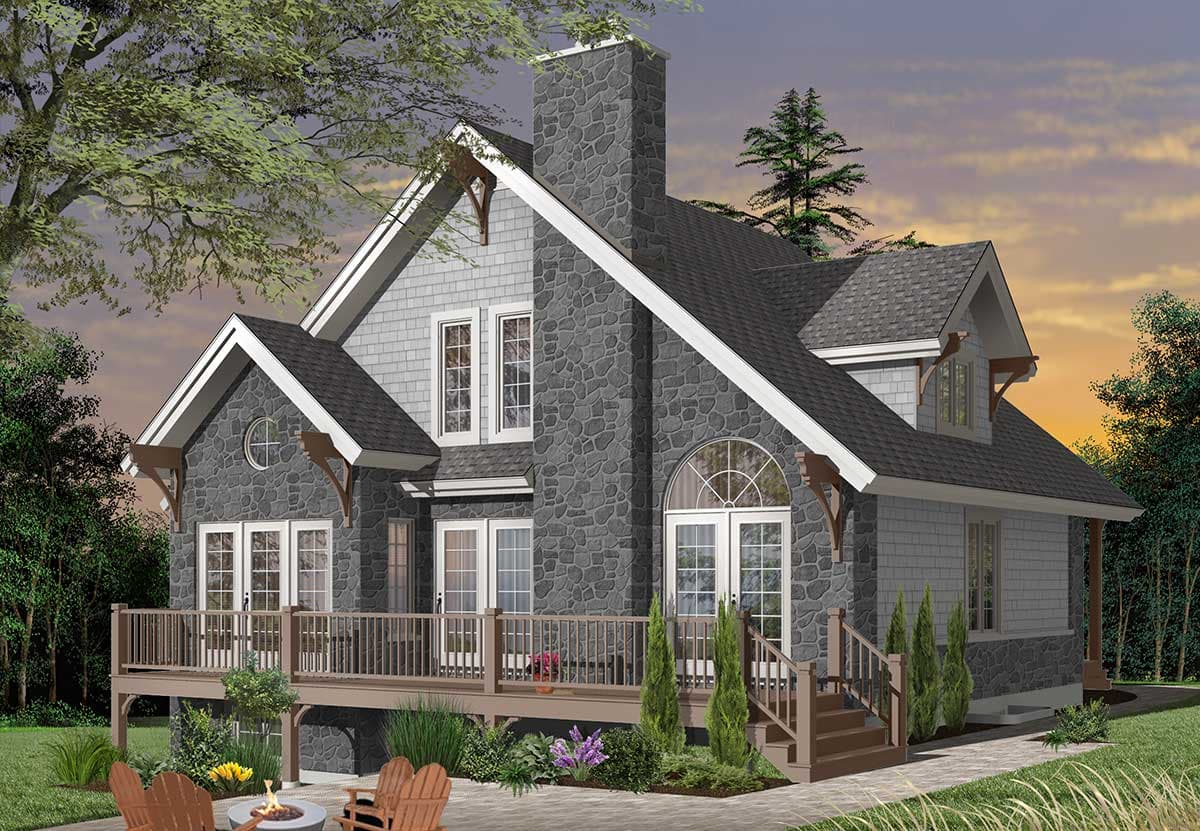

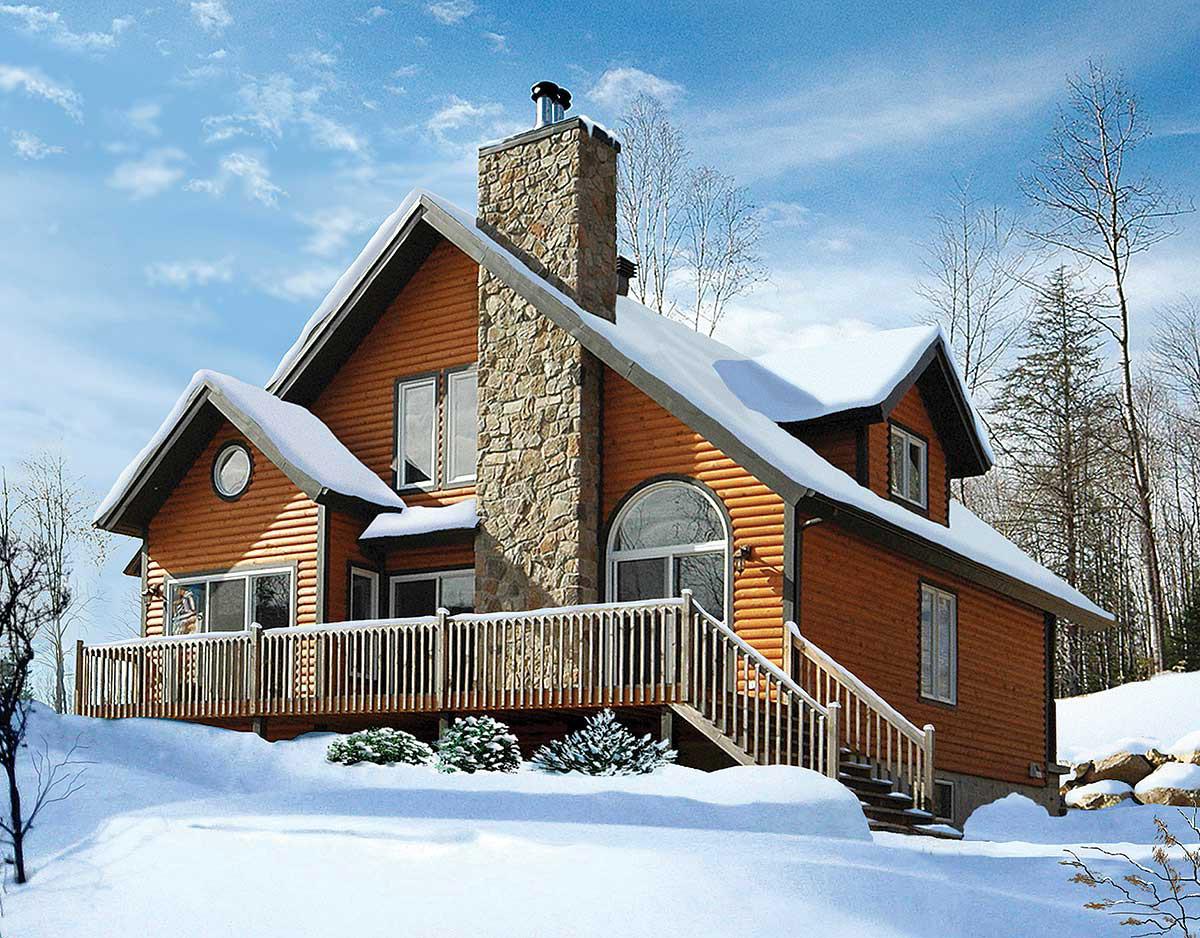

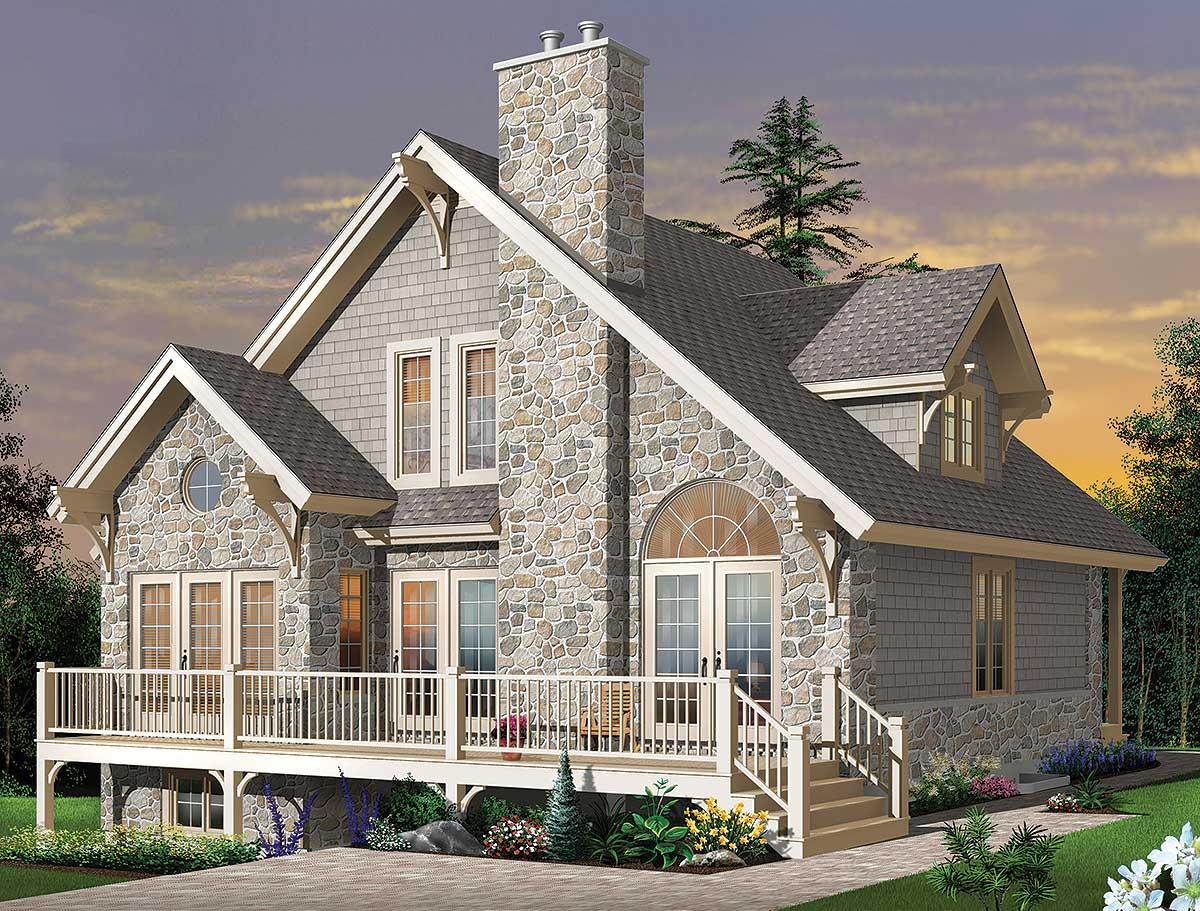

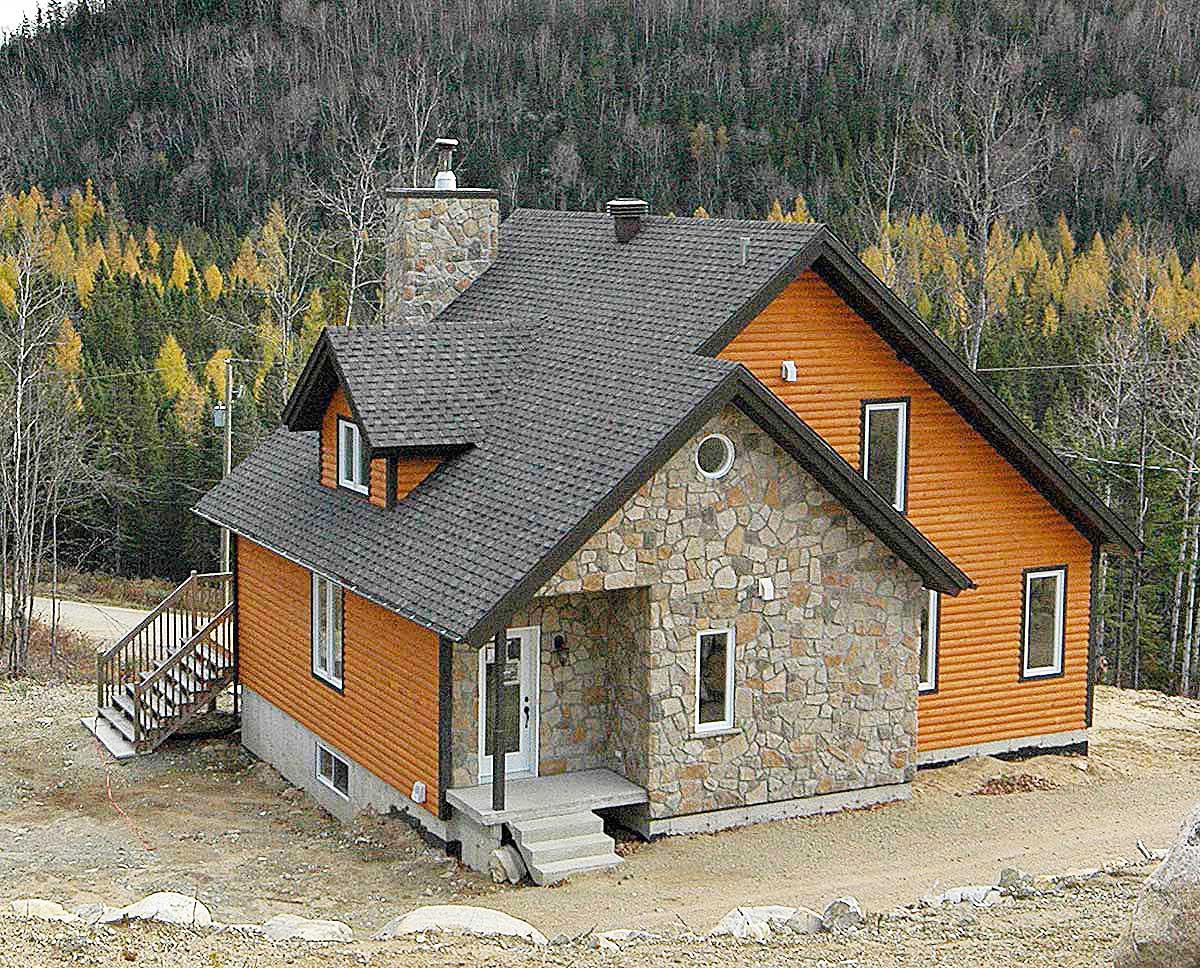

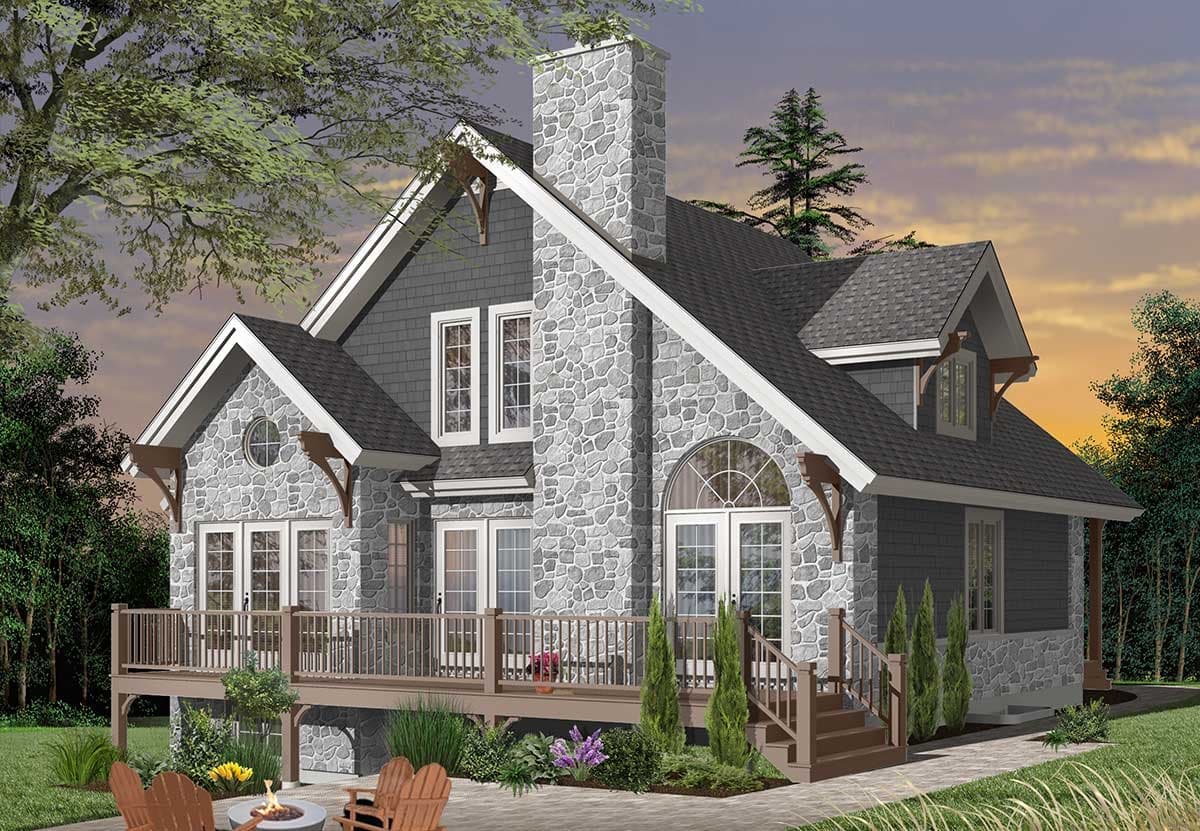

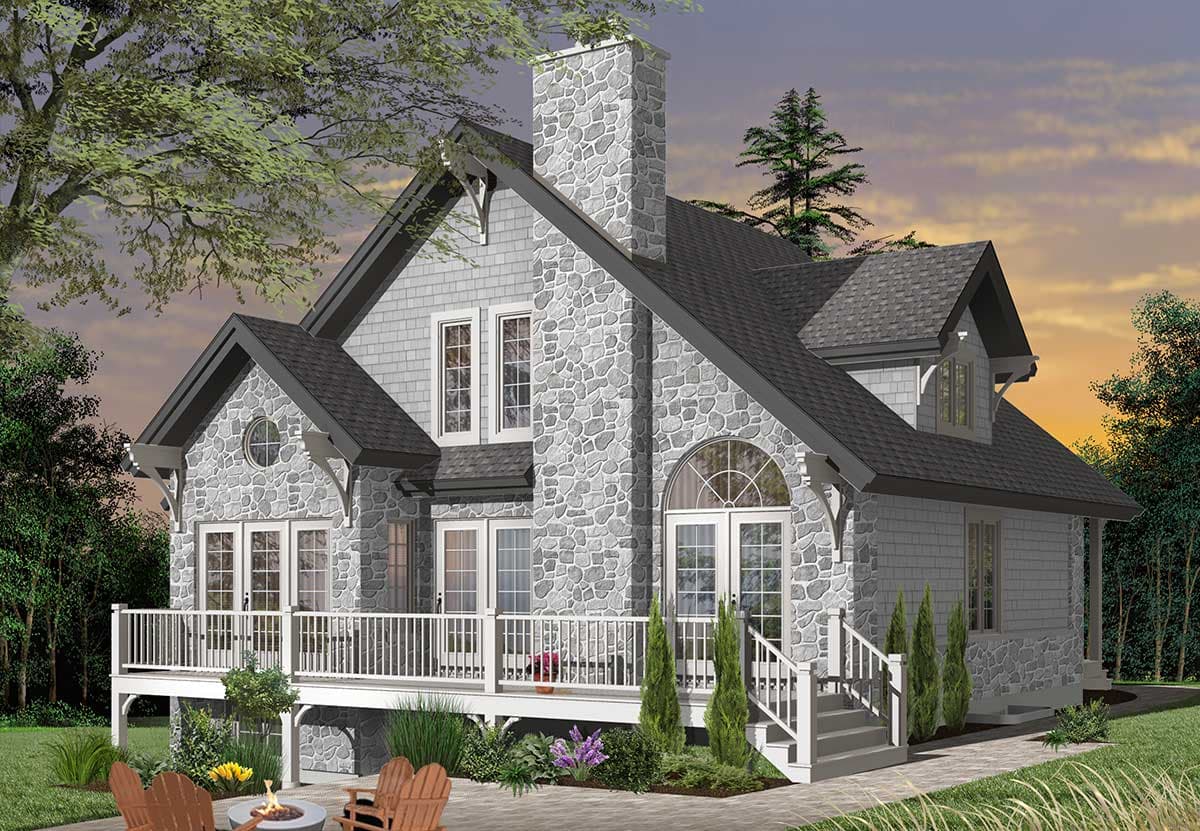

  • Set off by a sturdy stone chimney, stone accents and decorative gables, this striking cottage design could be used as a four-season vacation home.

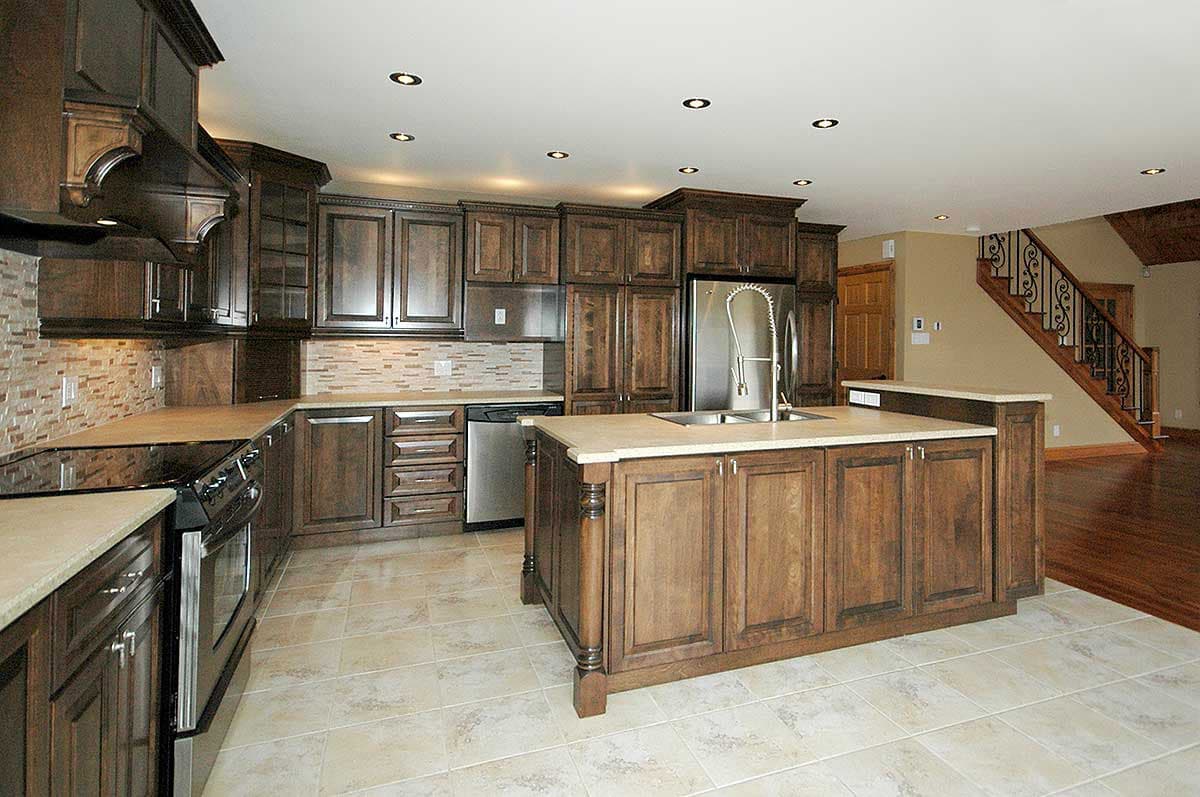

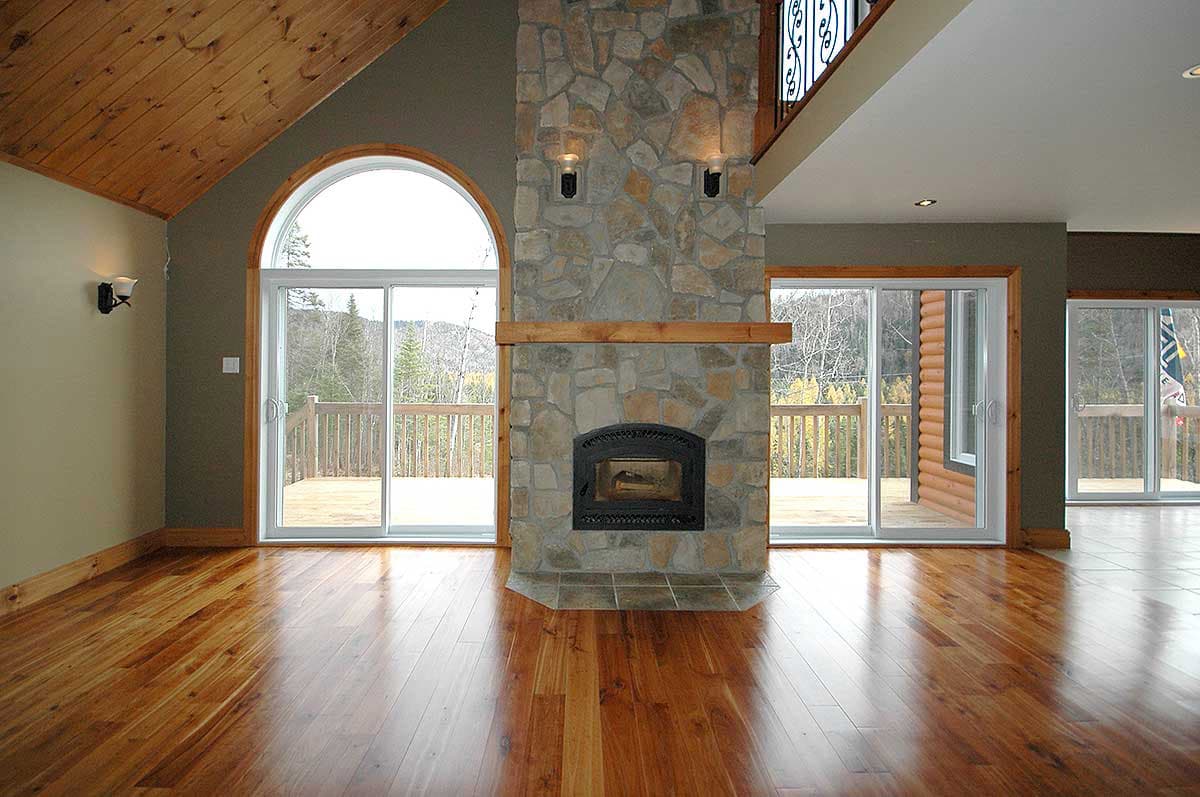

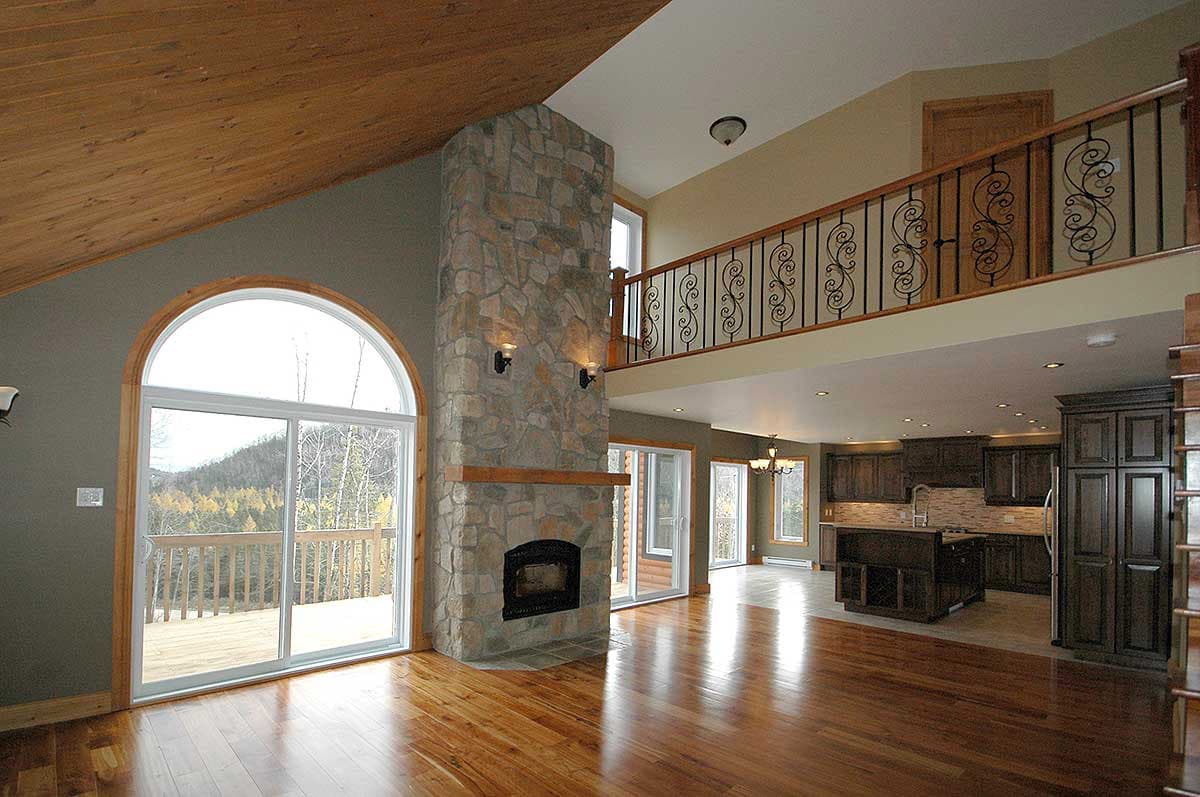

  • Open to each other, the family room and kitchen-dining room offer a wonderful living area. The fireplaced family room rises for two stories, the kitchen-dining room is enlarged by a box bay, and both rooms open to a deck.

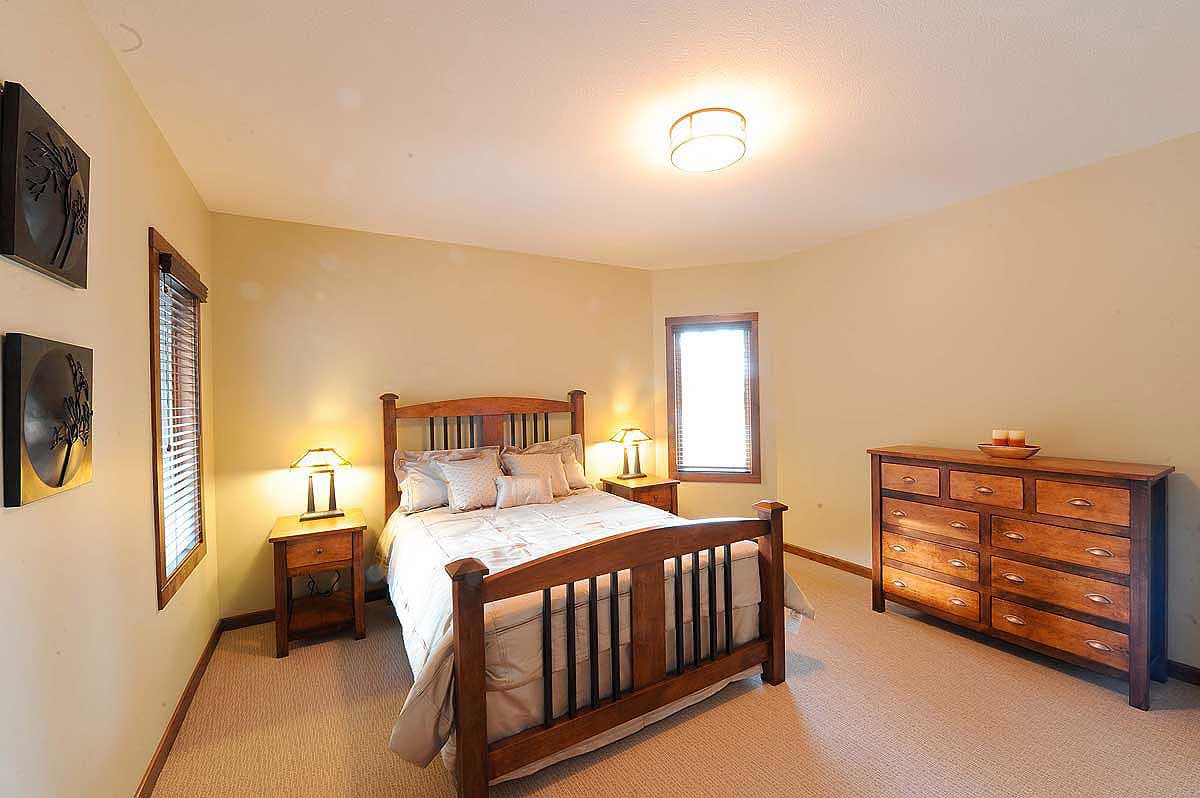

  • The sheltered main entry opens to a hall with a large coat closet, while the main-level bedroom includes a large walk-in closet.

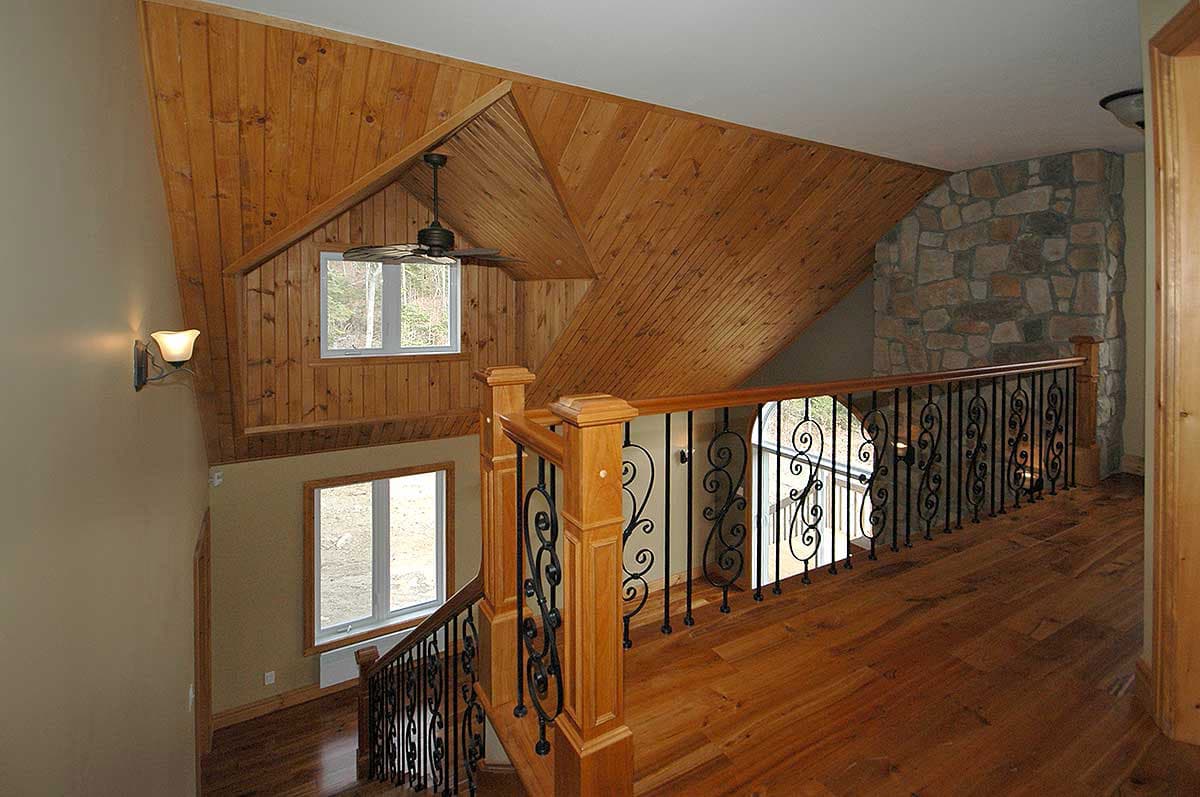

  • Upstairs, a mezzanine overlooks the family room below. Two bedrooms share the second bath.
  • Related Plans: Get a little more space plus a board & batten and stone exterior with house plan 22592DR (1,876 sq. ft.). Build in reverse with house plan 21091DR. Get a walkout basement and more room on the second floor with house plan 21961DR and 21979DR.
What's Included

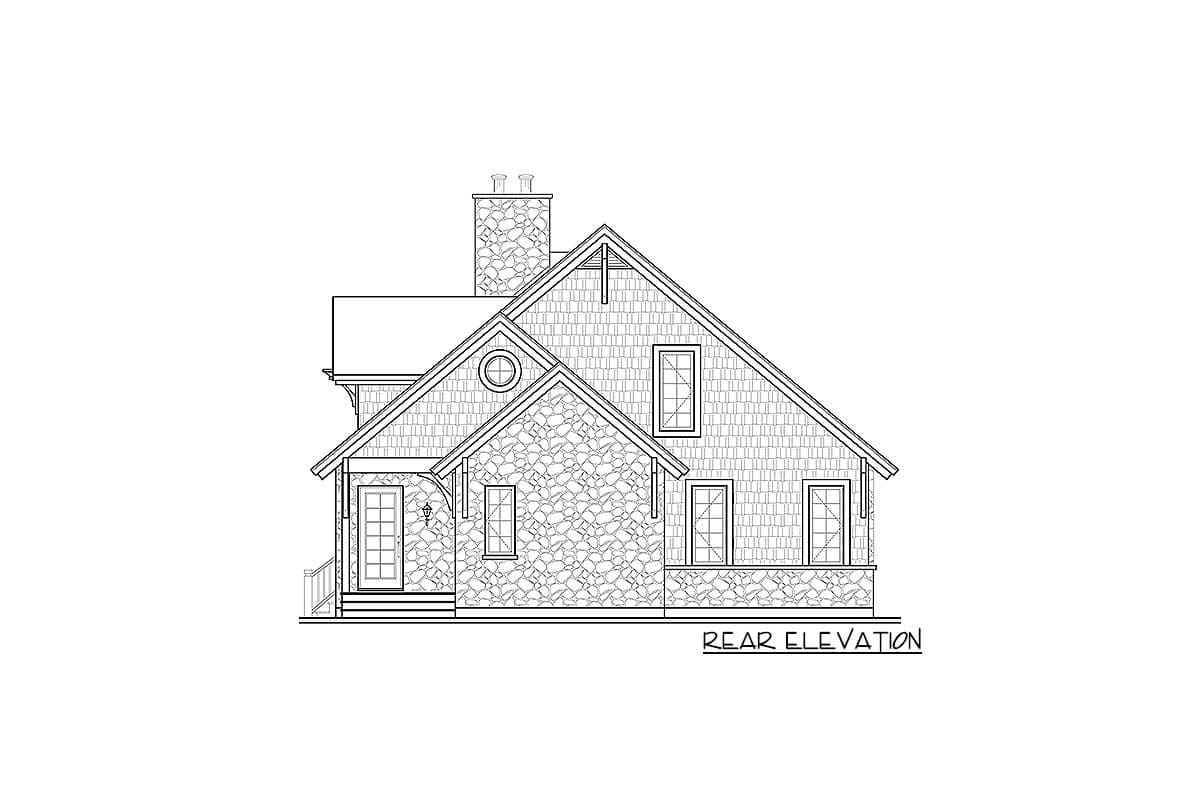

  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Four-Seasons Cottage With Family Room Open To Above

  • 1,625

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

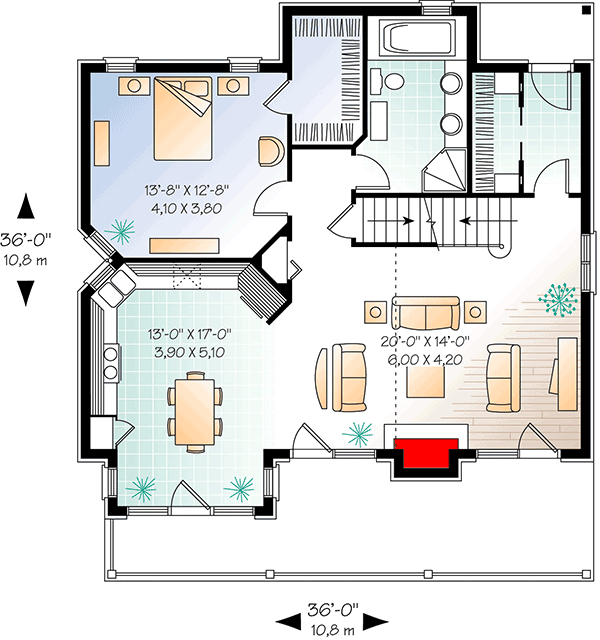

  • Main Level

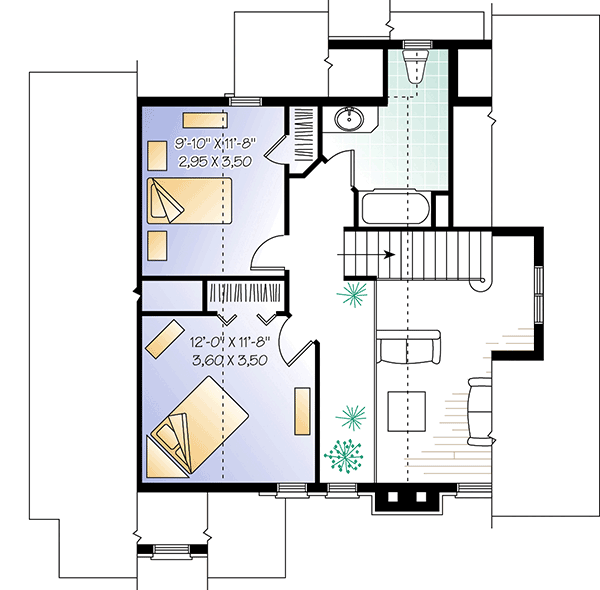

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,625 sq. ft.
  • 1st Floor: 1,108 sq. ft.
  • 2nd Floor: 517 sq. ft.

Dimensions

  • Width: 36' 0"
  • Depth: 36' 0"
  • Max ridge height: 25' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
