Plan 17500LV
Great American Retreat
Heated S.F.
4,304
Beds
4
Baths
3.5 - 4.5
Stories
1
Cars
3
Plan Details

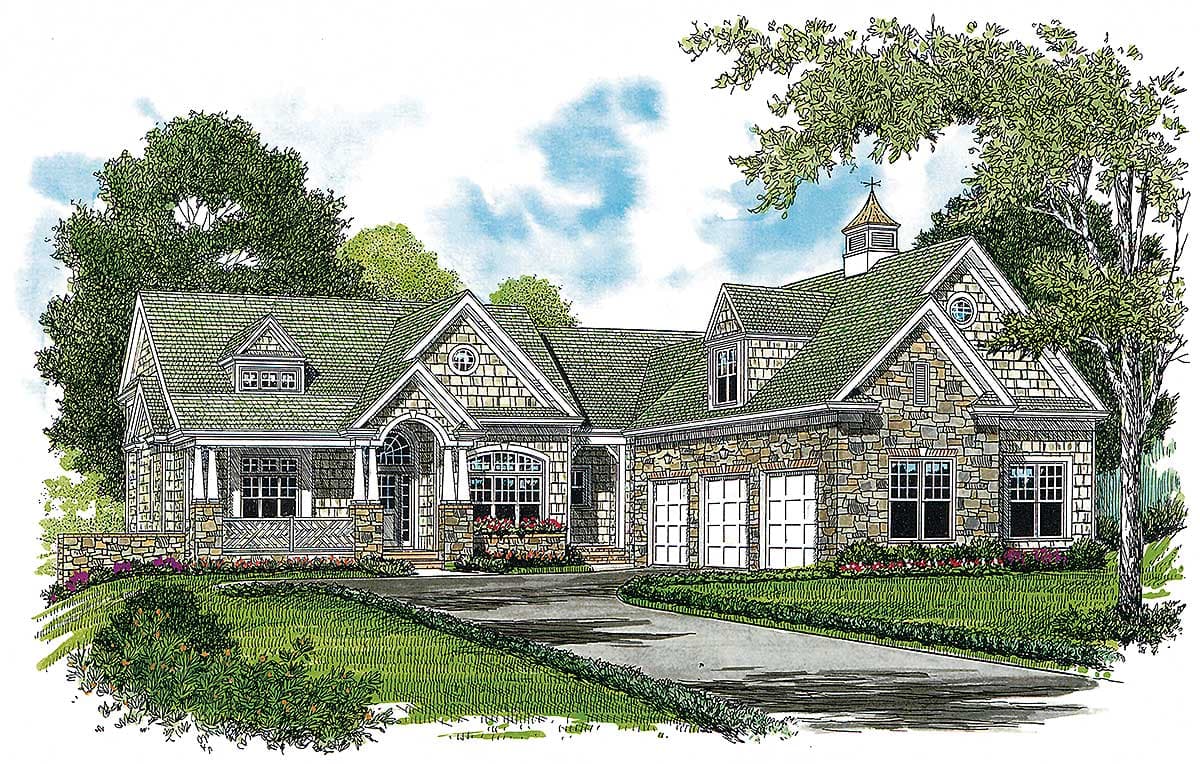

  • Perfect for a lakefront mountain home, this basement design offers exceptional living and entertaining opportunities. A popular design, in comes in three smaller versions as well.

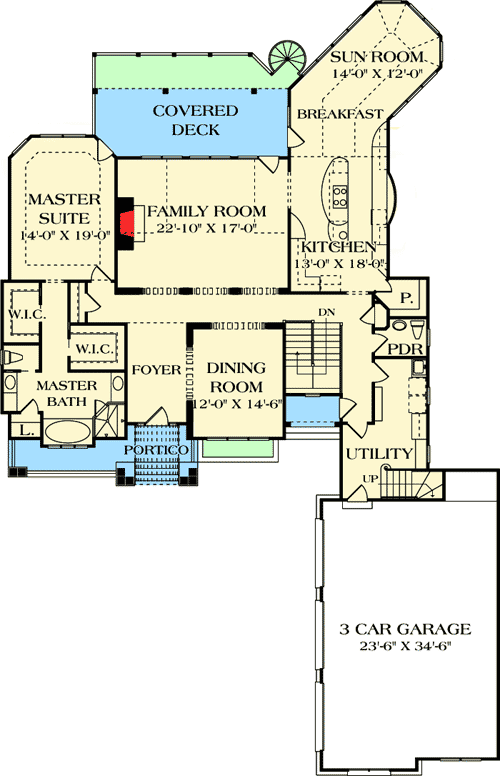

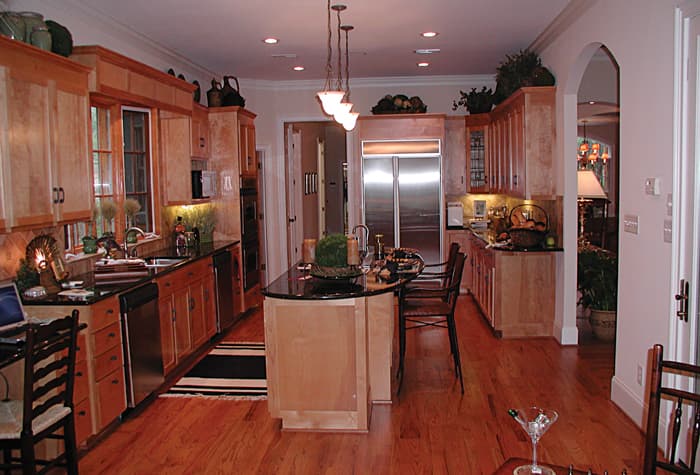

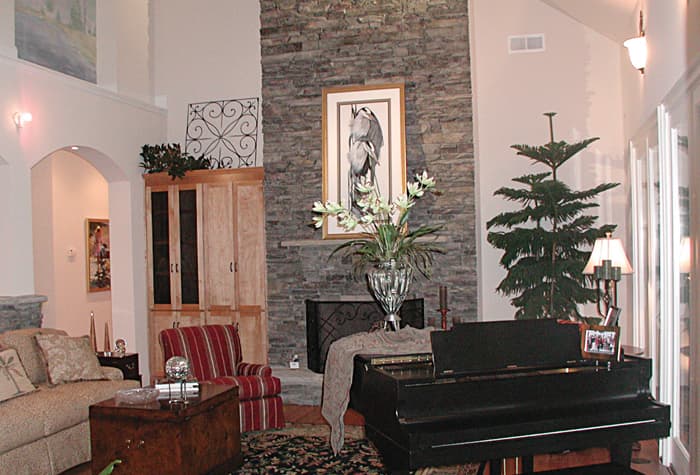

  • The kitchen, featuring an island, conveniently flows into the breakfast, sunroom, and family room with fireplace.

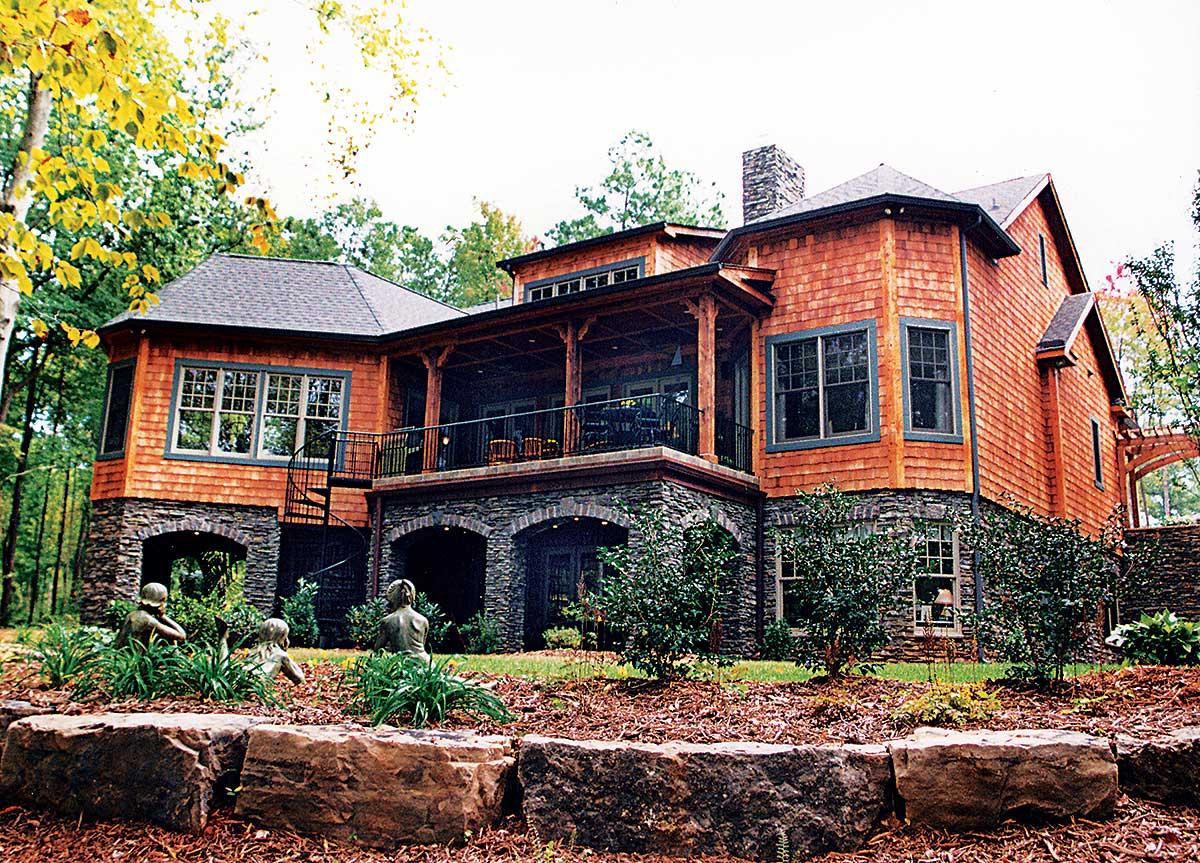

  • Ideal for outdoor entertaining, the family room and sunroom open onto a covered deck with spiral staircase leading to a lower covered deck.

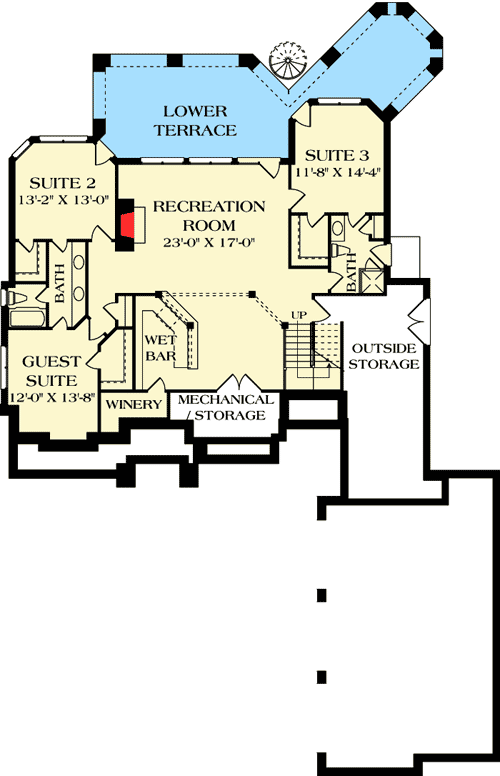

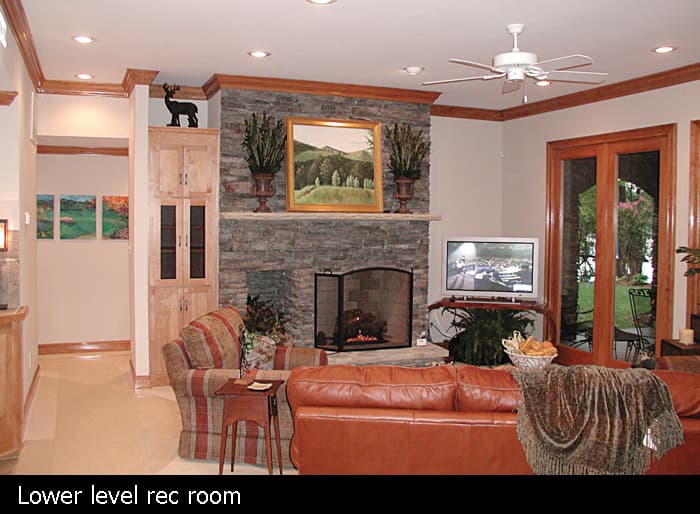

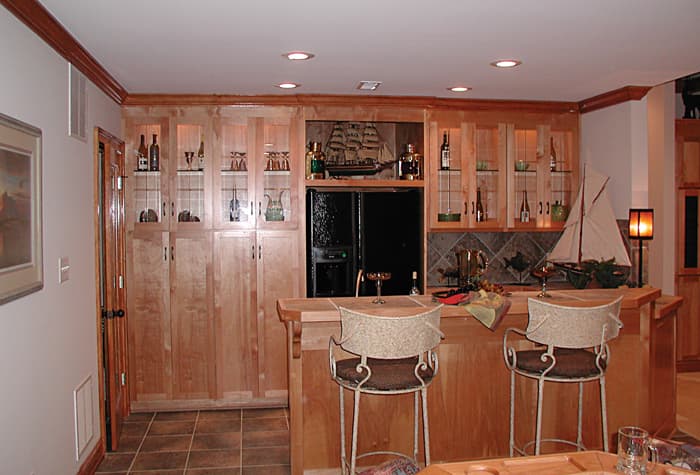

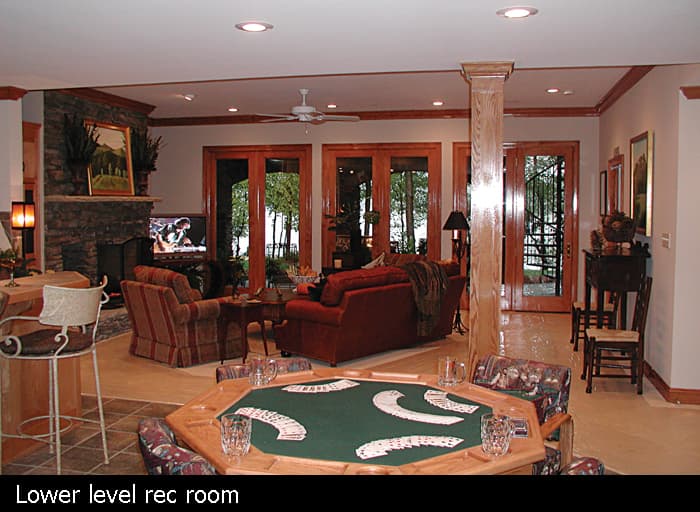

  • The lower level is fabulous. Three full suites are separated by a central rec room with a bar and gaming area. A wine cellar, storage and direct lower terrace access round out this level.
  • Expand over the garage with the bonus room. It makes a great media room, play room or an extra bedroom.
  • Related Plans: Get two bedroom suites upstairs PLUS the bonus room over the garage with house plan 17730LV on a crawlspace.
  • Get 2-car garages with house plans 17510LV (3,546 sq. ft.), 17511LV (4,040 sq. ft.) and 17512LV (3,879 sq. ft.).
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Great American Retreat

  • 4,304

    Heated s.f.

  • 4

    Beds

  • 3.5 - 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Basement

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 4,304 sq. ft.
  • Lower Level: 1,817 sq. ft.
  • 1st Floor: 2,487 sq. ft.

Dimensions

  • Width: 67' 2"
  • Depth: 104' 2"
  • Max ridge height: 27' 7"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 922 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
