Plan 31022D
Hill Country with Dual Suites - 3066 Sq Ft
Heated S.F.
3,066
Beds
3-5
Baths
3.5
Stories
1
Cars
3
Plan Details
  • At opposite ends of this luxurious sprawling hill country home plan are the master suite and the guest suite, which could become wonderful in-law quarters. Both suites open to private terraces.
  • The focal point of the home plan is the large great room which is open to the breakfast room and the kitchen with an island and walk-in pantry. The dining room is open and marked by columns.
  • By moving the door to bedroom three so that it opens to the foyer, this room could be used as a study. Another option is the use of the office/media/bedroom next to the master bedroom.
  • The guest suite also features a sitting area with a small auxiliary kitchen. In the master suite, the bathroom contains a spa tub next to a separate shower, with his and her walk-in closets on either side.
  • Ceilings: 9' standard. 11' entry, dining room, great room and master bedroom.
  • Related Plans: Need more room? See house plans 3067D (3,164 sq. ft.) and 31030D (3,329 sq. ft.).Save money with this smaller house plan - 31041D (2,458 sq. ft.).
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan

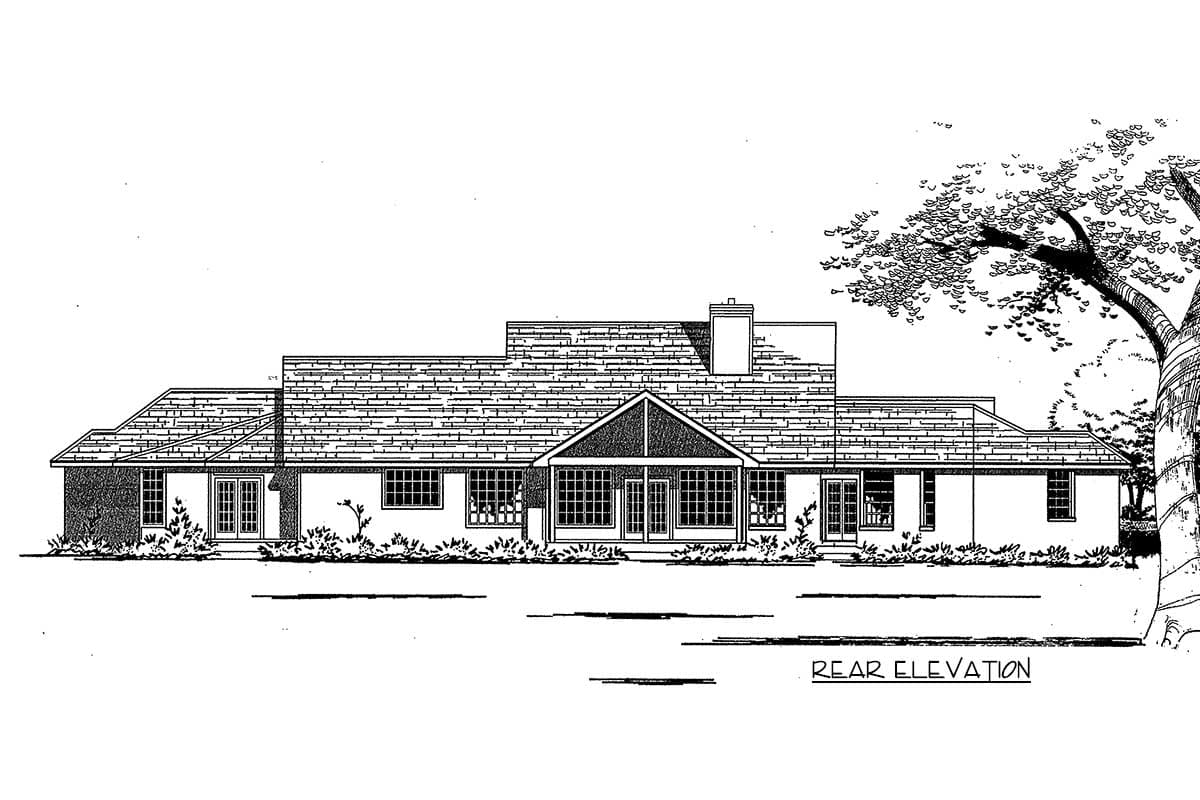

  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Hill Country with Dual Suites - 3066 Sq Ft

  • 3,066

    Heated s.f.

  • 3-5

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

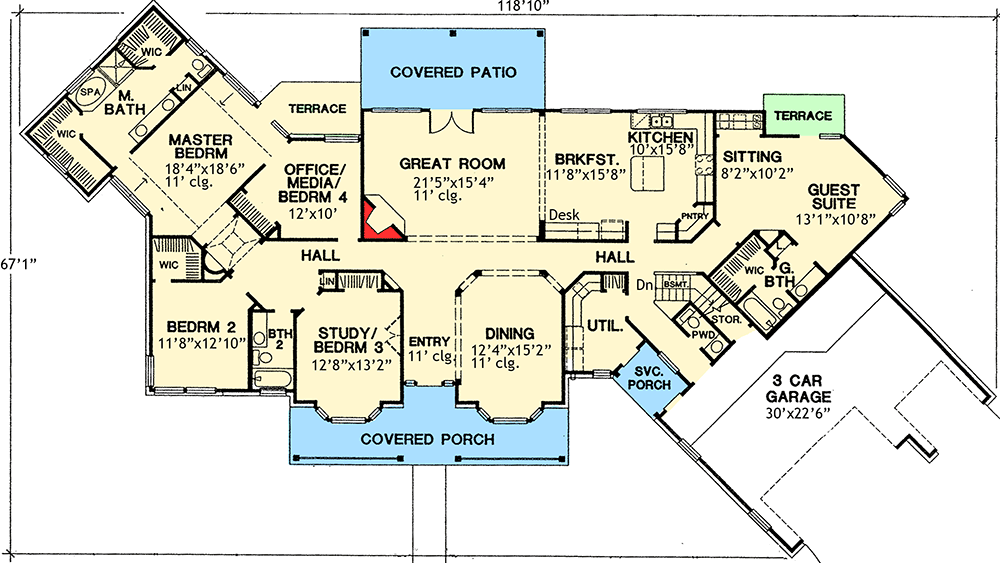

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,066 sq. ft.
  • 1st Floor: 3,066 sq. ft.

Dimensions

  • Width: 118' 10"
  • Depth: 67' 11"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 732 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
