Plan 51019MM
Unique Dormered Design
Heated S.F.
2,007
Beds
3
Baths
2.5
Stories
1-2
Cars
2
What's Included
Plan Details
  • Large closets compliment three over-sized bedrooms and flex space provides a perfect spot for that home office, playroom or formal dining room in this comfortable family home.
  • With a magnificent tray ceiling, the great room includes a gas log fireplace and beautiful views to the covered rear porch beyond.
  • A breakfast area and raised eating bar enjoy close access to the fully equipped kitchen.
  • The master bedroom also features tray ceilings and the master bathroom leaves nothing to be desired.
  • Bonus space over the garage provides for future expansion or additional storage.
  • Related Plans: Need less space? See house plan 51052MM (1,863 sq. ft.). Need a basement? See 51070MM (1,879 sq. ft) and 51036MM (2,060 sq. ft).
  • See these alternate exteriors with side-entry garages: 5188MM (1,863 s.f.), 5191MM (2,250 s.f.), 5192MM (2,500 s.f.), and 5177MM.
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

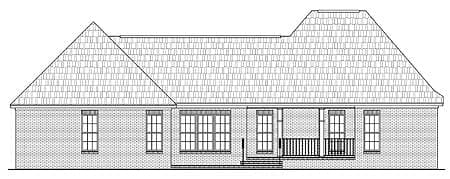

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Unique Dormered Design

  • 2,007

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

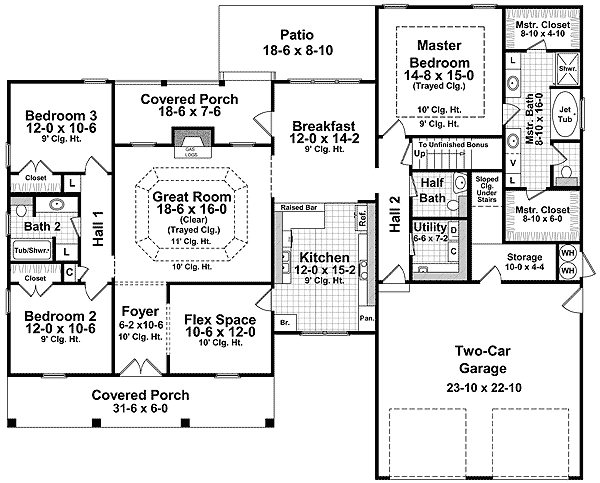

Floor Plan
