Plan 68663VR
3-Bed 1-Story House Plan with Split Bedroom Layout
Heated S.F.
3,012
Beds
3
Baths
2.5
Stories
1
Cars
3
What's Included
Plan Details

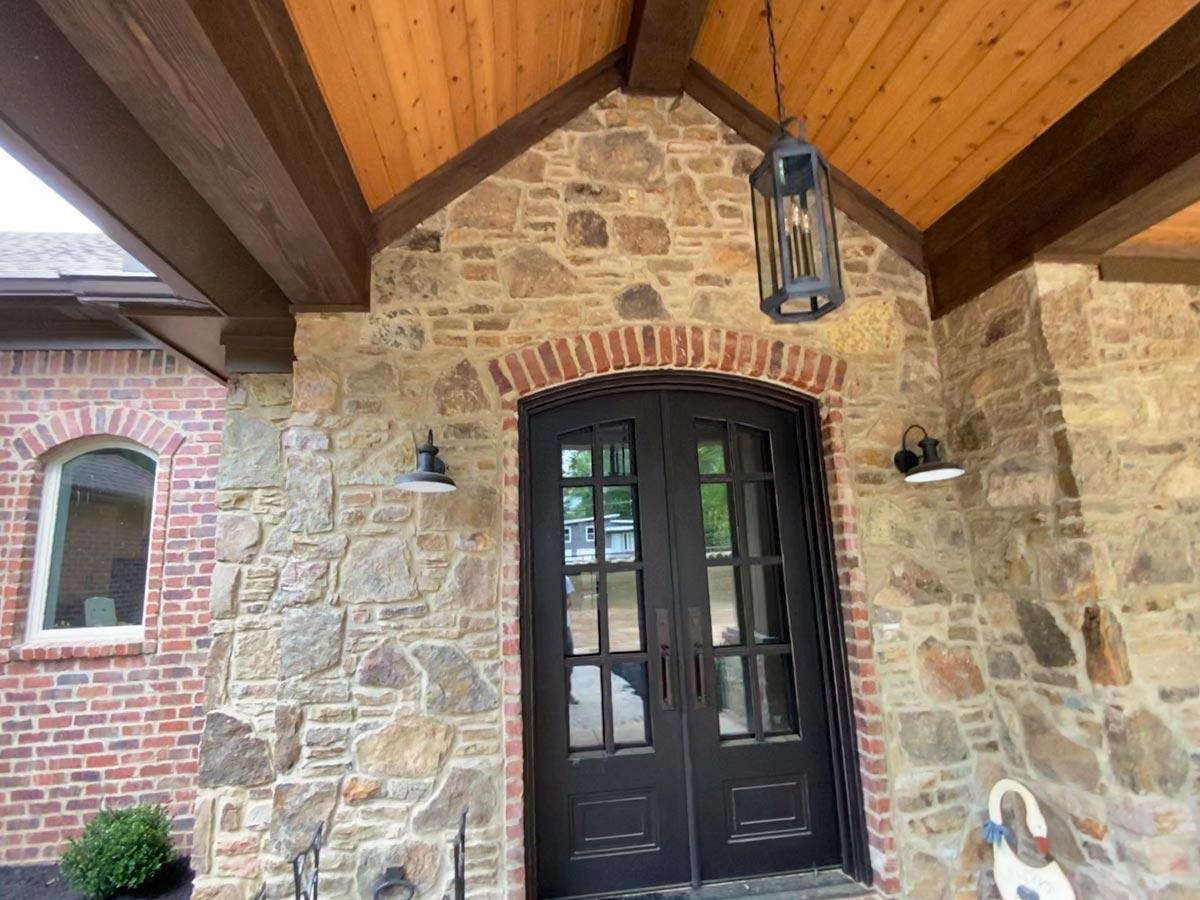

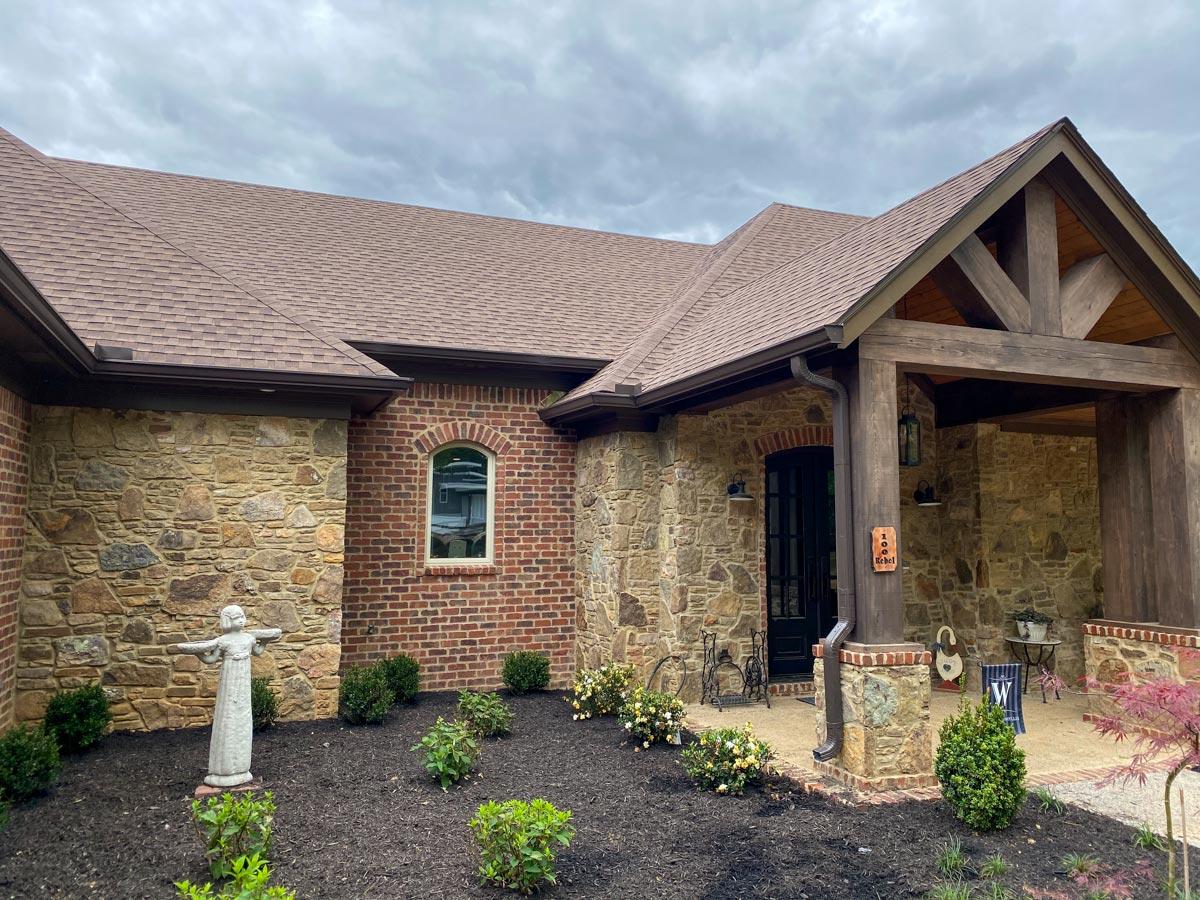

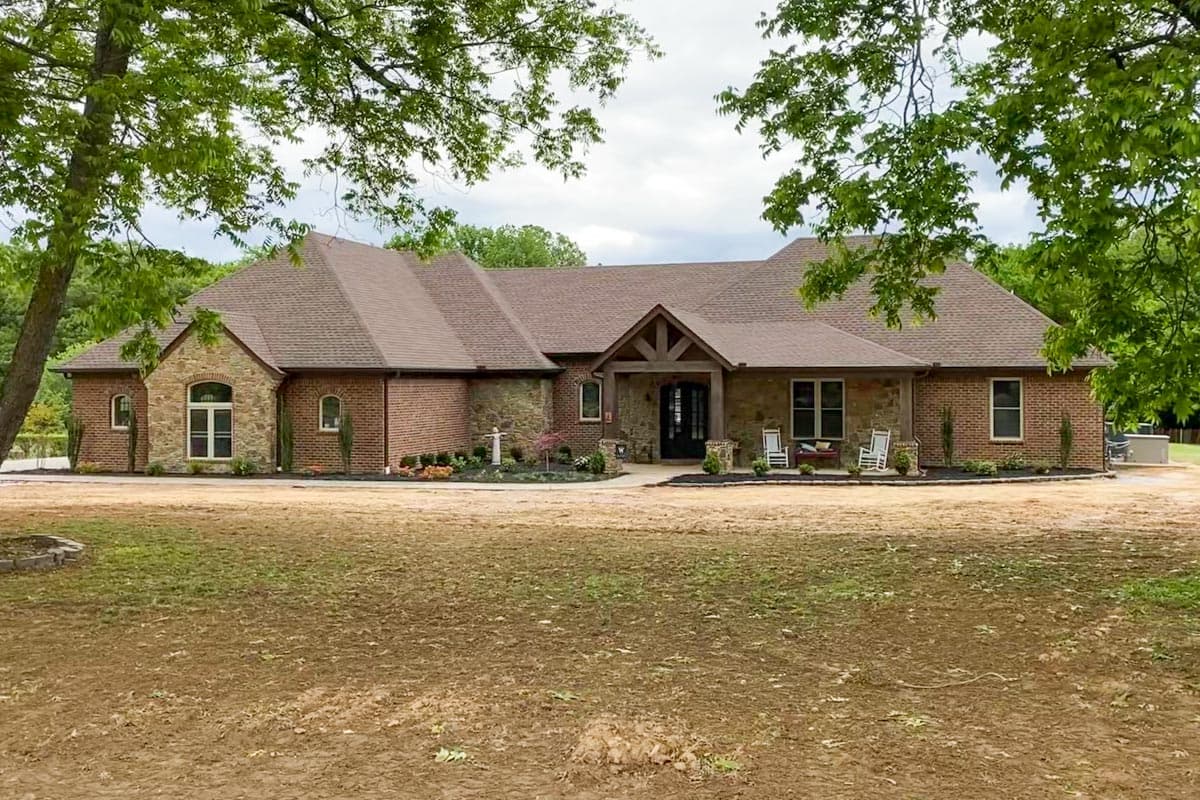

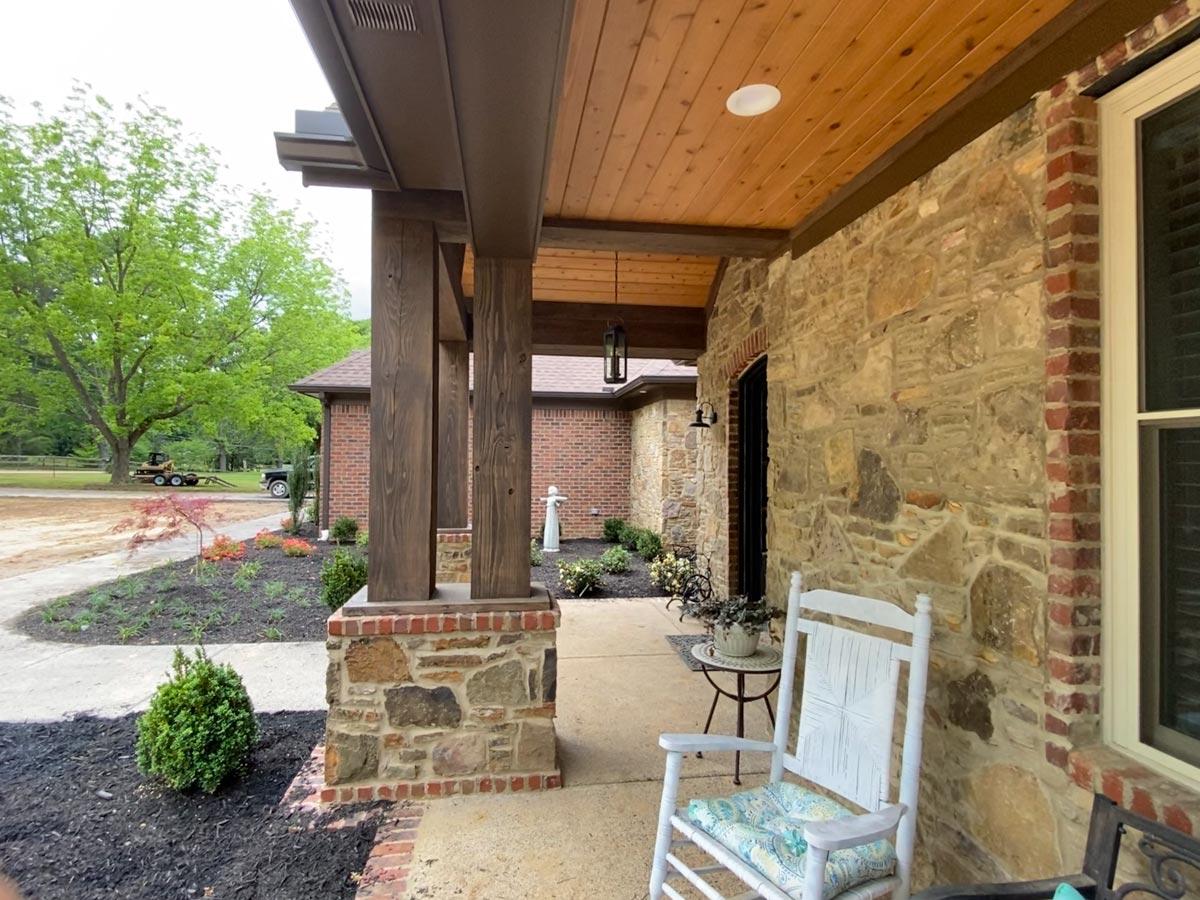

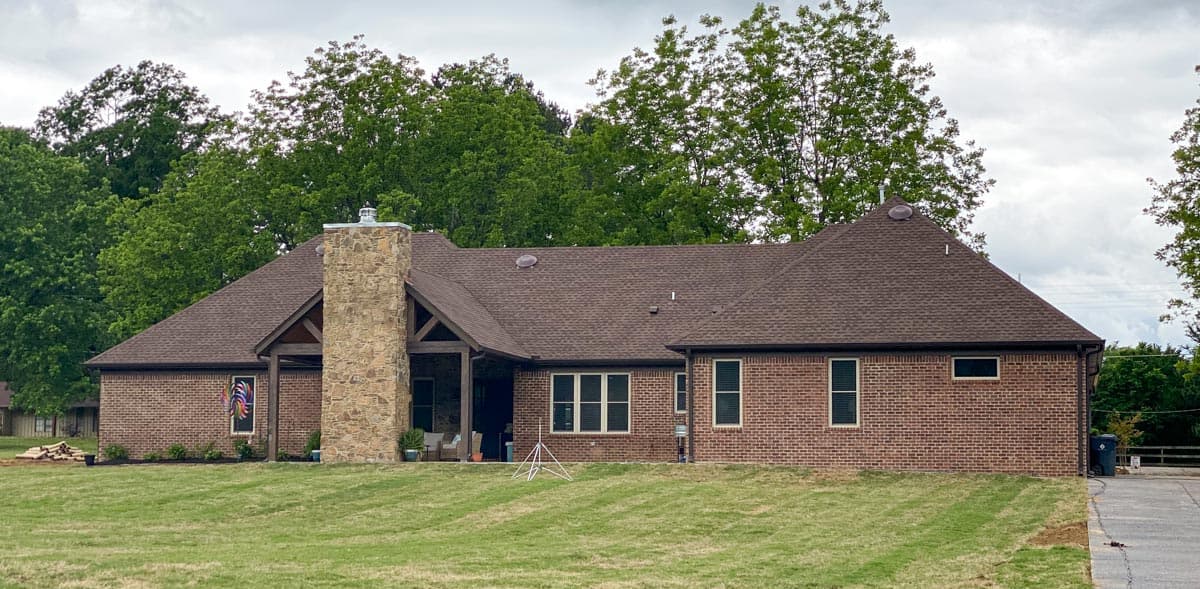

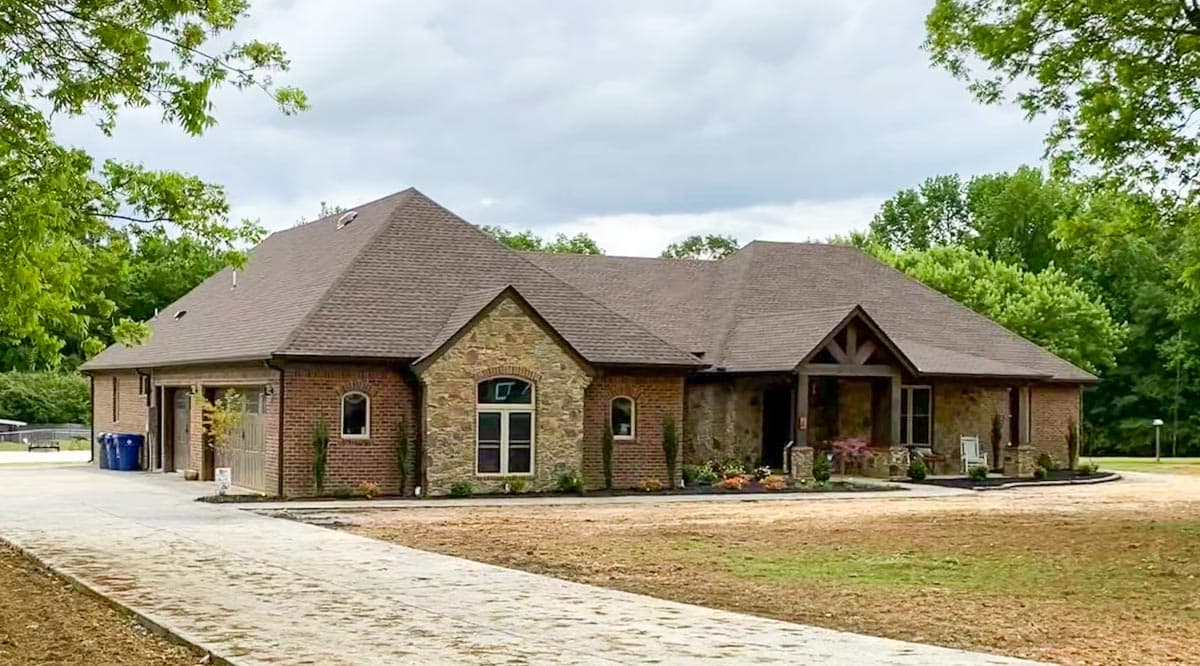

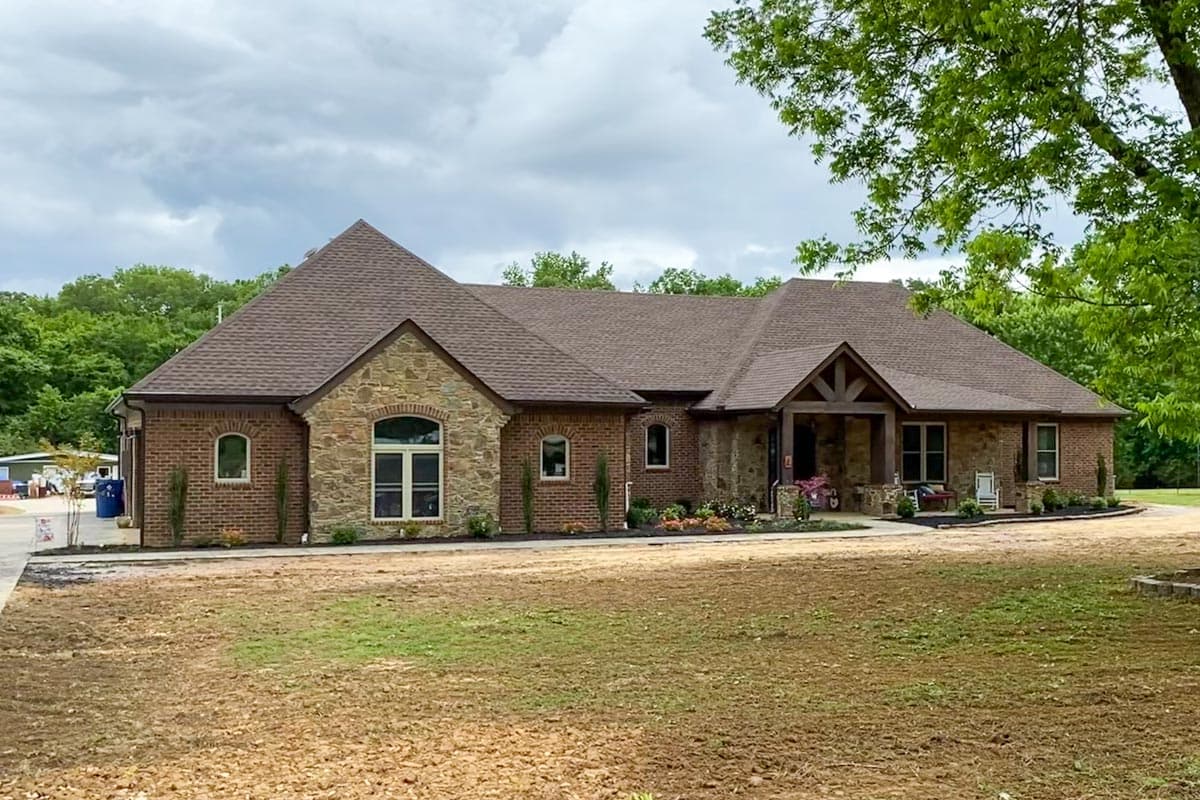

  • A maintenance-free brick and stone exterior gives an edge to this beautiful 3-bed one-story house plan.
  • The huge open great room combines the kitchen, dining area and family room with beams and a fireplace.

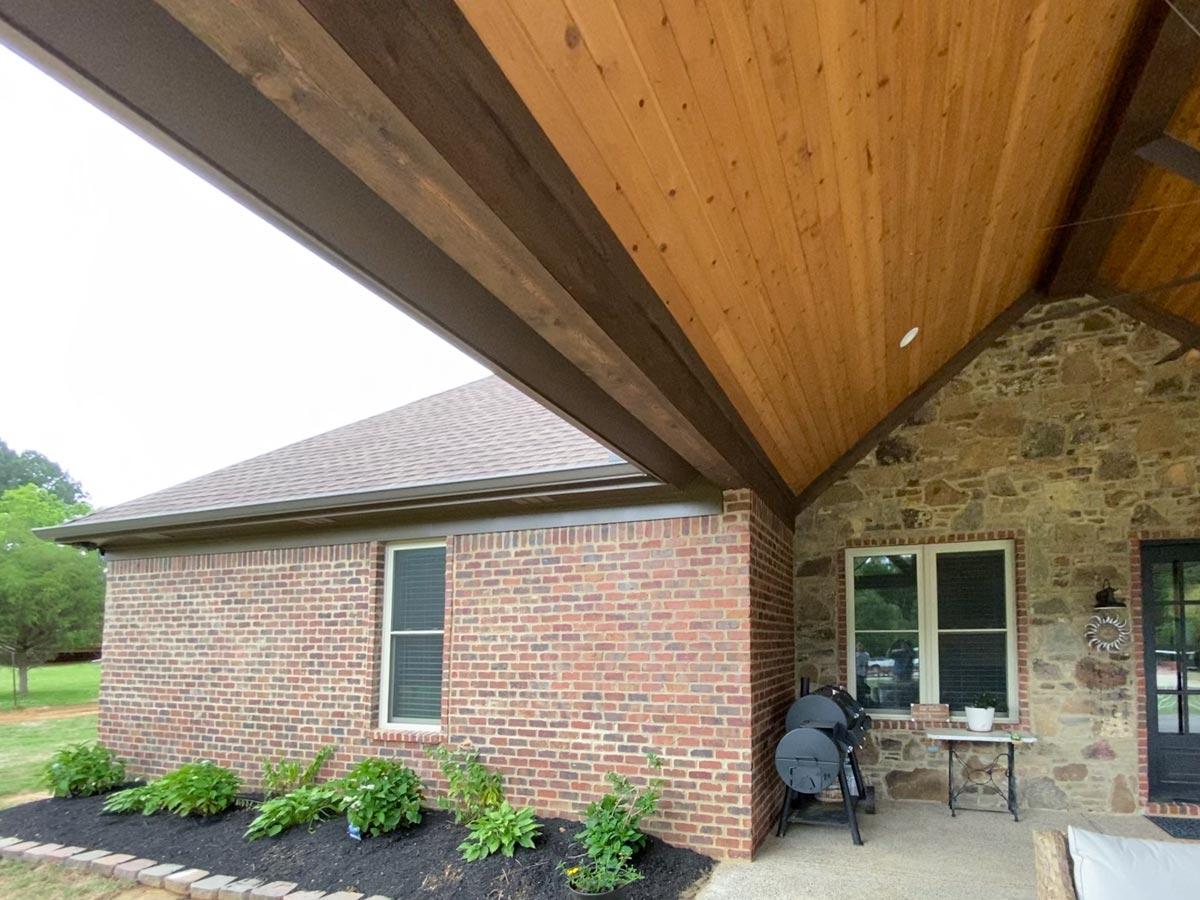

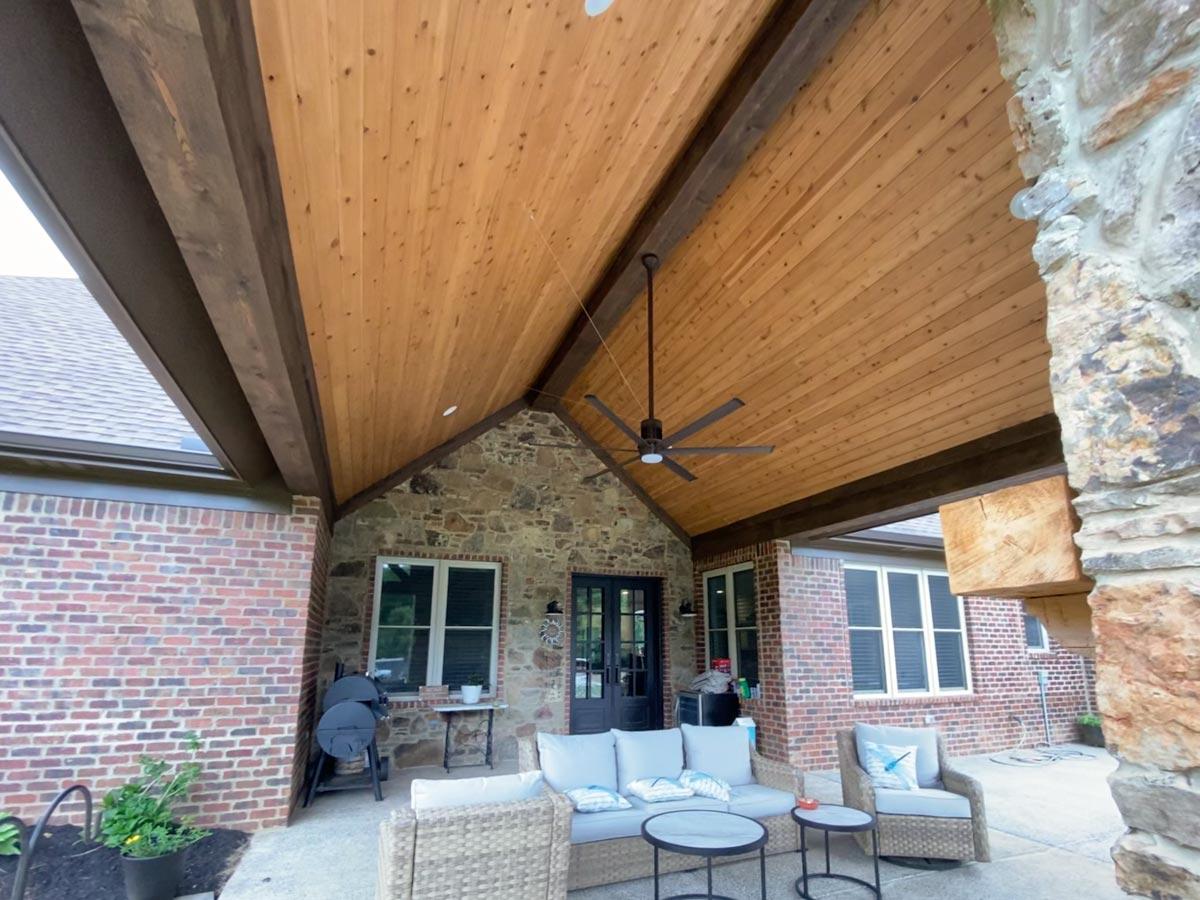

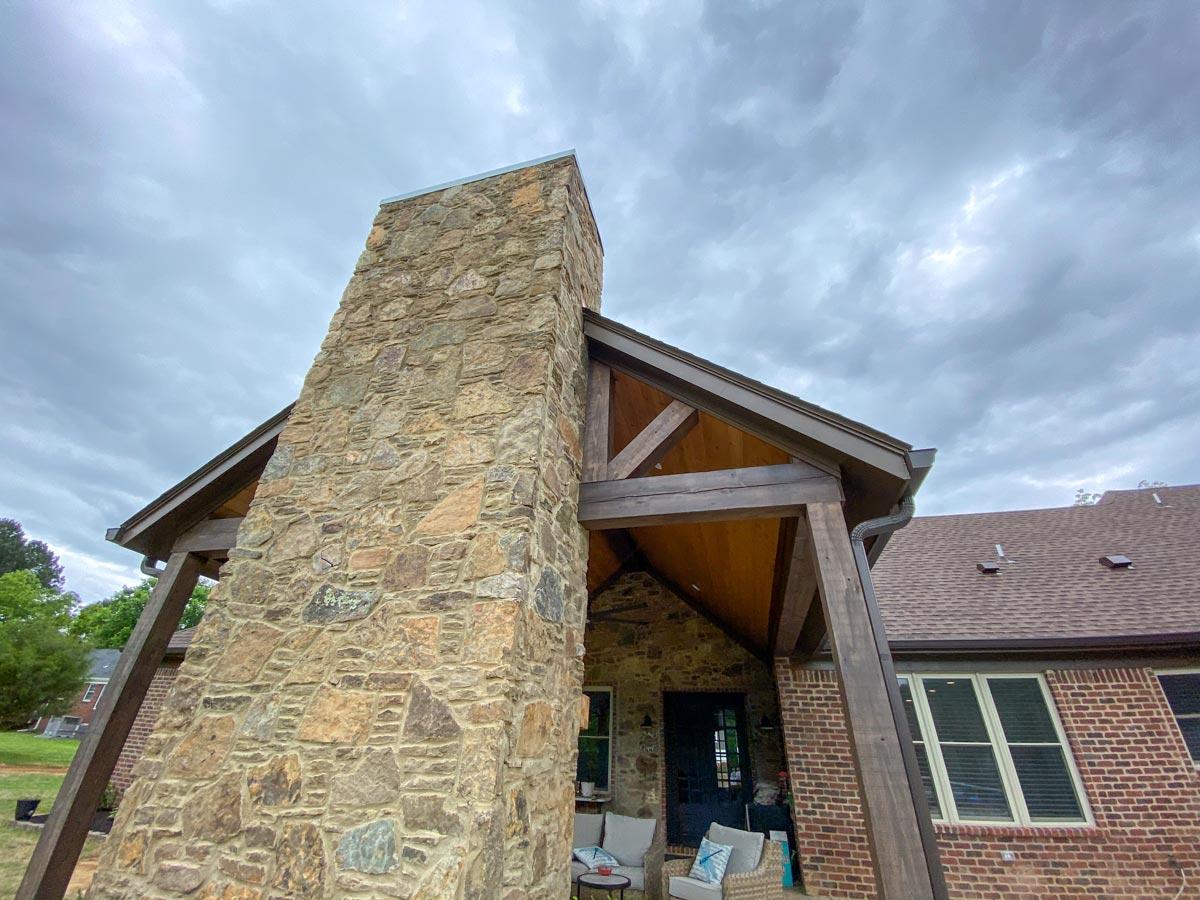

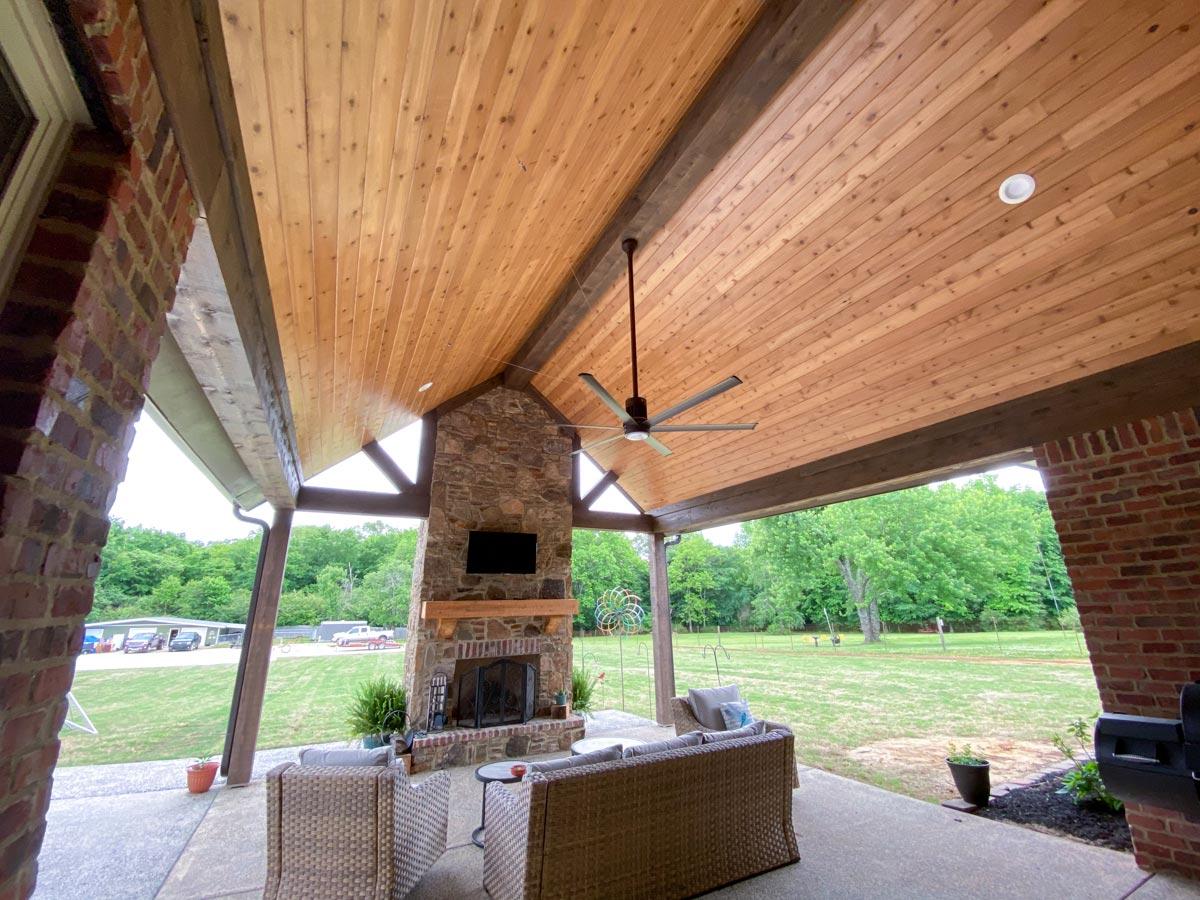

  • The porch in the rear of the home is vaulted, making it feel even larger.
  • On the left side of the home, the master suite is a world of its own with a deluxe master bathroom and two walk-in closets. One closet opens directly into the laundry room - a wonderful convenience.
  • On the opposite side of the home, two family bedrooms each have walk-in closets.
  • Related Plans: Get alternate version with house plans 68487VR (2,700 sq. ft.), 68638VR (2,709 sq. ft. and bonus room),  68507VR (2,782 sq. ft.), 68518VR (2,820 sq. ft.), 68646VR (3,500 sq. ft.) and 68673VR (2,894 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

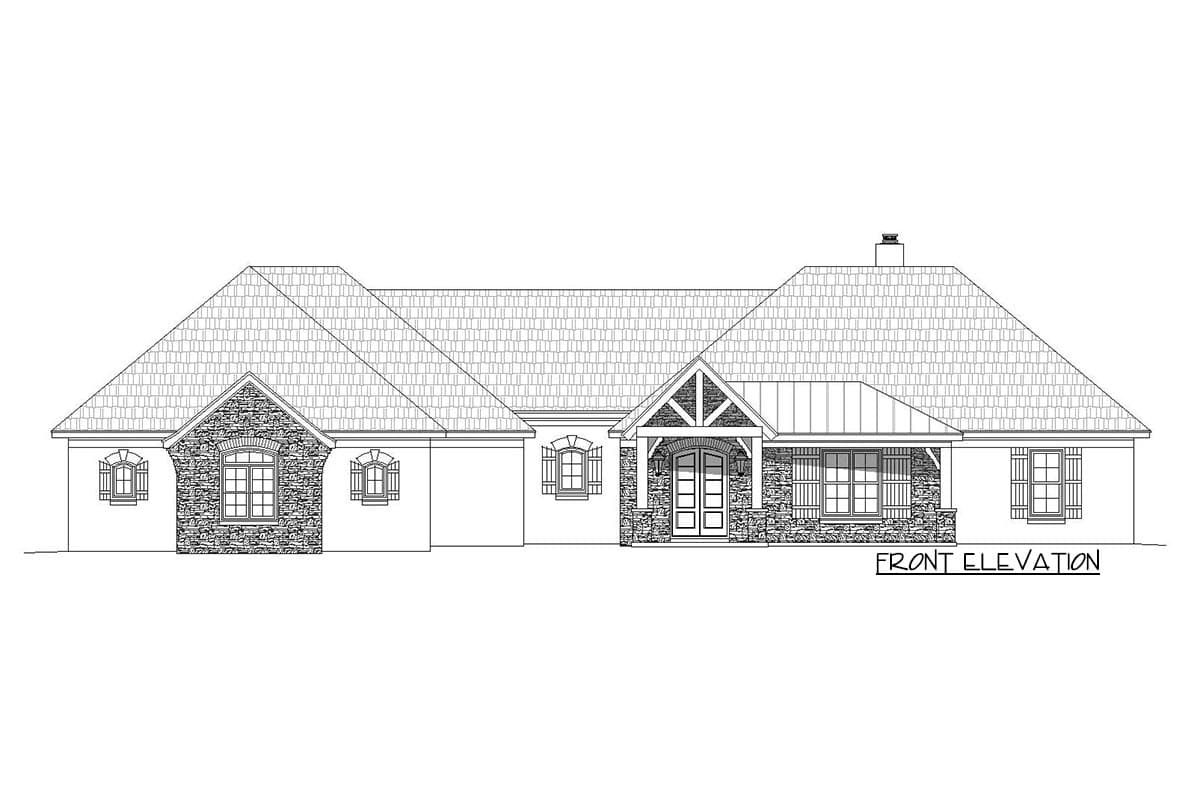

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed 1-Story House Plan with Split Bedroom Layout

  • 3,012

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

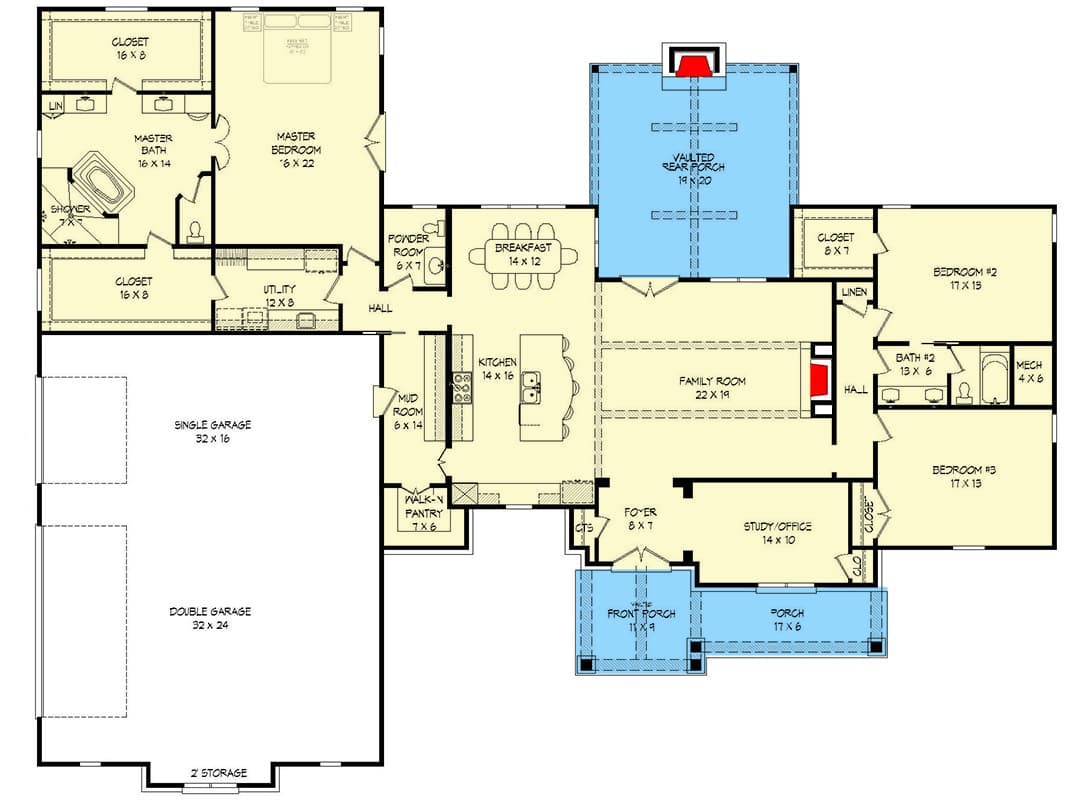

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,012 sq. ft.
  • 1st Floor: 3,012 sq. ft.

Dimensions

  • Width: 96' 0"
  • Depth: 73' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1349 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Walkout, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
