Plan 270046AF

3-Bed Modern A-Frame with Ladder-Accessible 3rd Floor Loft - 2001 Sq Ft

Heated S.F.
2,001
Beds
3
Baths
2
Stories
2-3

Floor Plan

Plan 270046AF

Main Level
Main Level
2nd Floor
2nd Floor
Third Level - Loft
Third Level - Loft

Plan 270046AF

M-F 9am-5pm EST |

1-203-761-8500

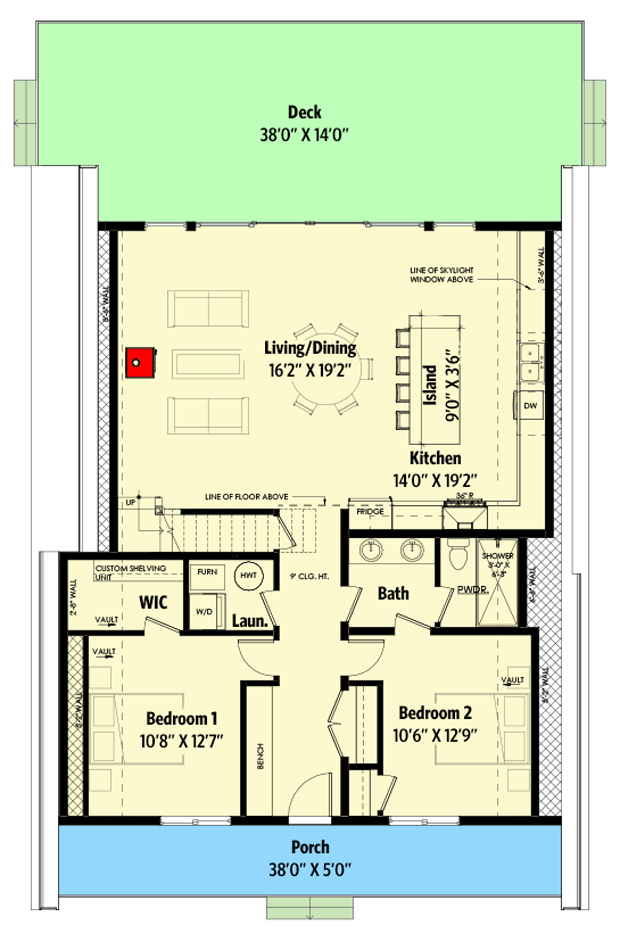

Main Level

Plan 270046AF: 3-Bed Modern A-Frame with Ladder-Accessible 3rd Floor Loft - 2001 Sq Ft - Floor Plan - Main Level - A-Frame, Cabin, Contemporary, Mountain, Rustic, Vacation

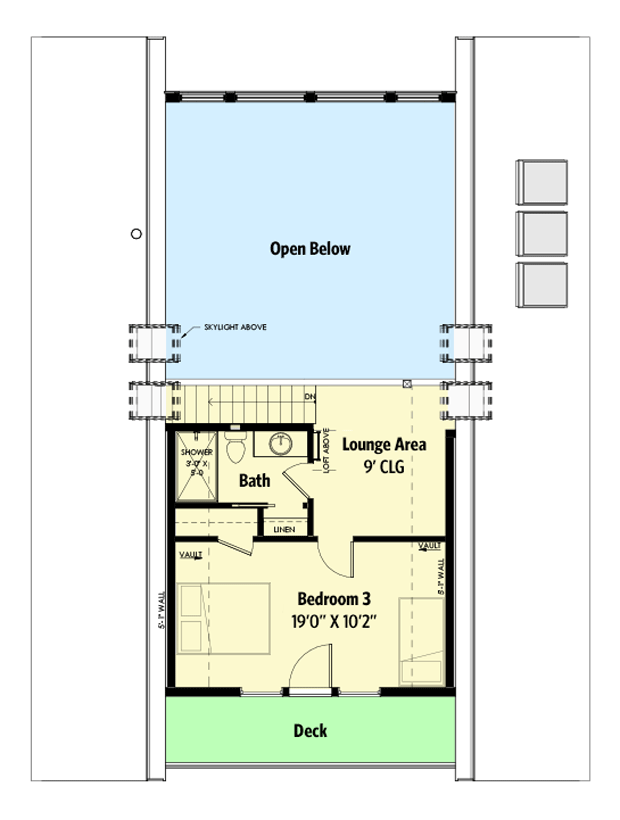

2nd Floor

Plan 270046AF: 3-Bed Modern A-Frame with Ladder-Accessible 3rd Floor Loft - 2001 Sq Ft - Floor Plan - 2nd Floor - A-Frame, Cabin, Contemporary, Mountain, Rustic, Vacation

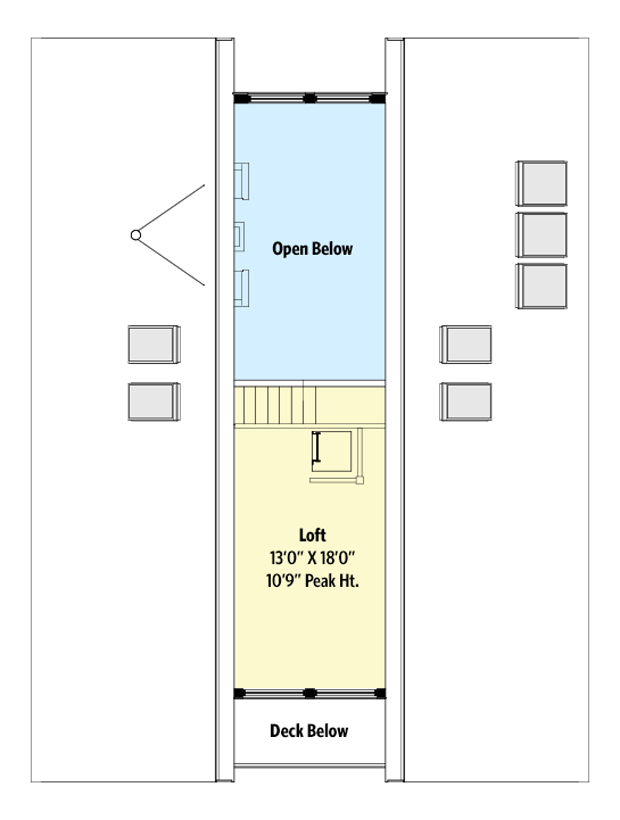

Third Level - Loft

Plan 270046AF: 3-Bed Modern A-Frame with Ladder-Accessible 3rd Floor Loft - 2001 Sq Ft - Floor Plan - Third Level - Loft - A-Frame, Cabin, Contemporary, Mountain, Rustic, Vacation

Plan Details

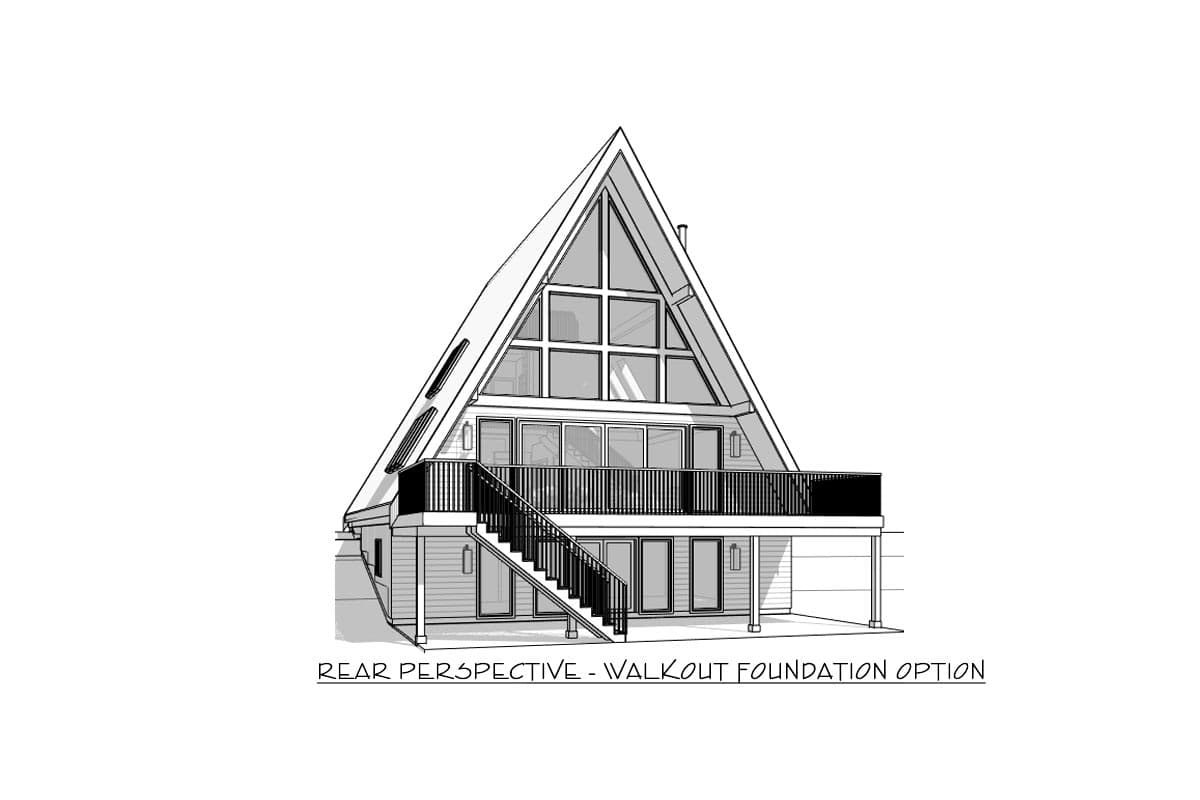

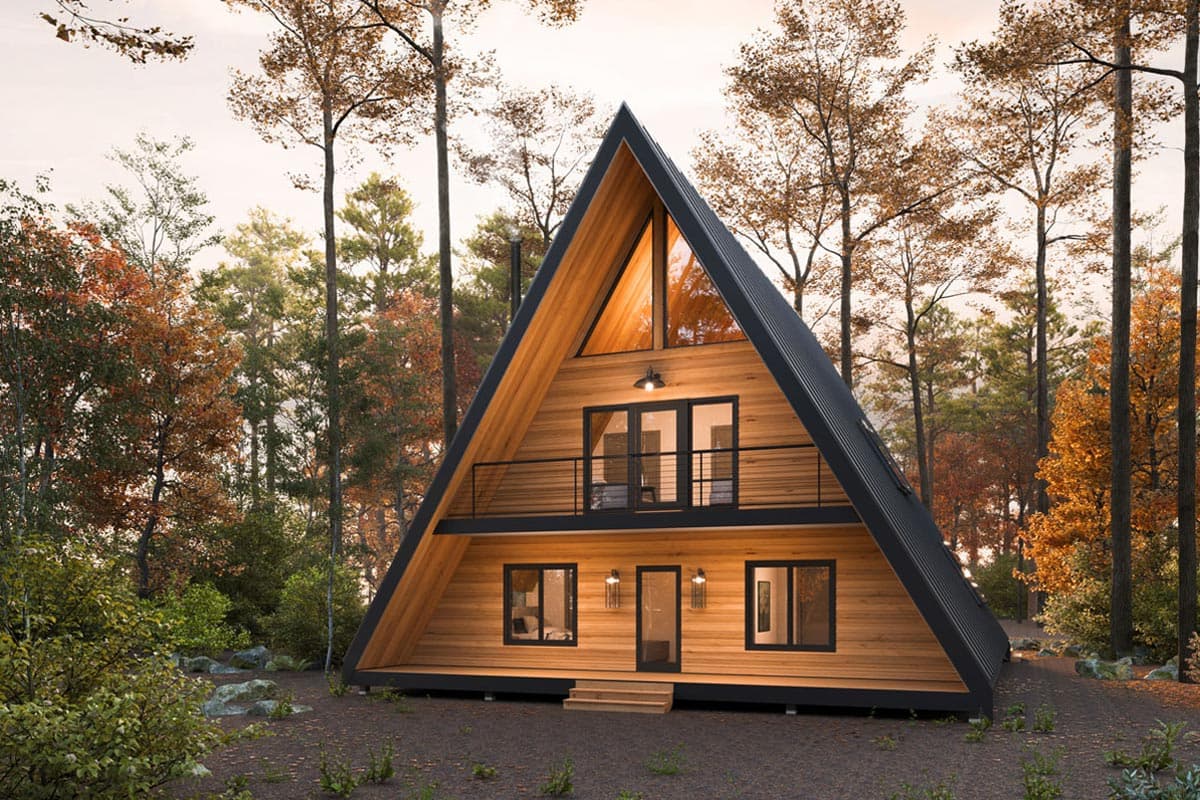

  • This modern A-frame house plan offers the simplicity of form with with jaw-dropping looks. Put this by a lake, in the mountains, or wherever you want to escape to and you'll be sure to enjoy your time spent on the front and back decks and inside.

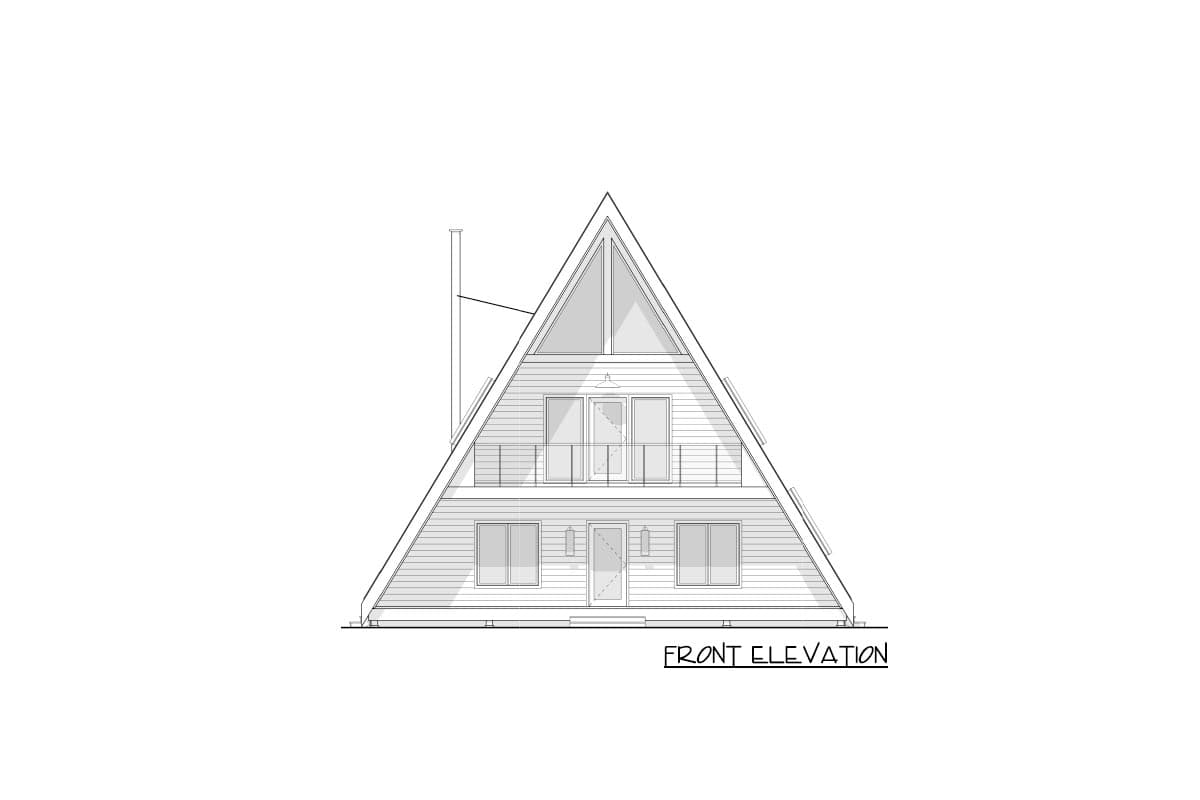

  • Step in off the 5'-deep front porch and find yourself in the foyer with a bench and a coat closet to help minimize clutter from spreading into the home. Doors on yuor left and right take you to two bedrooms.

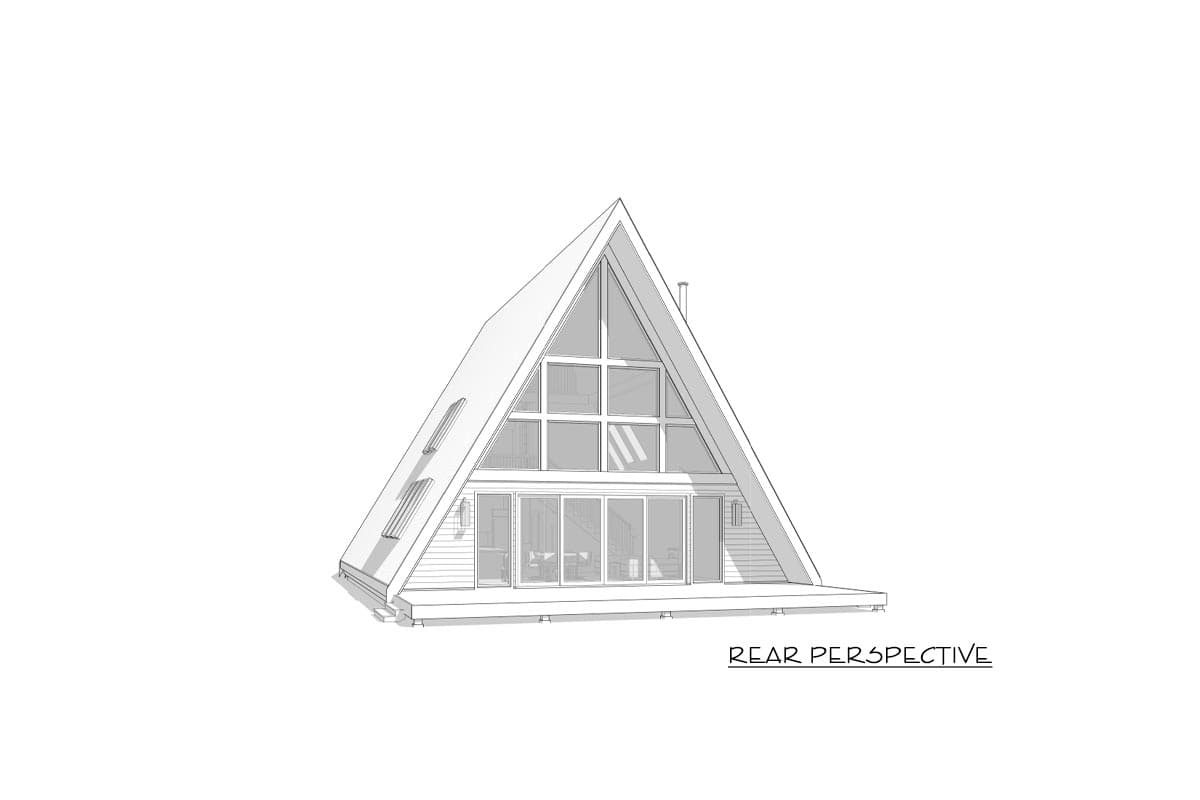

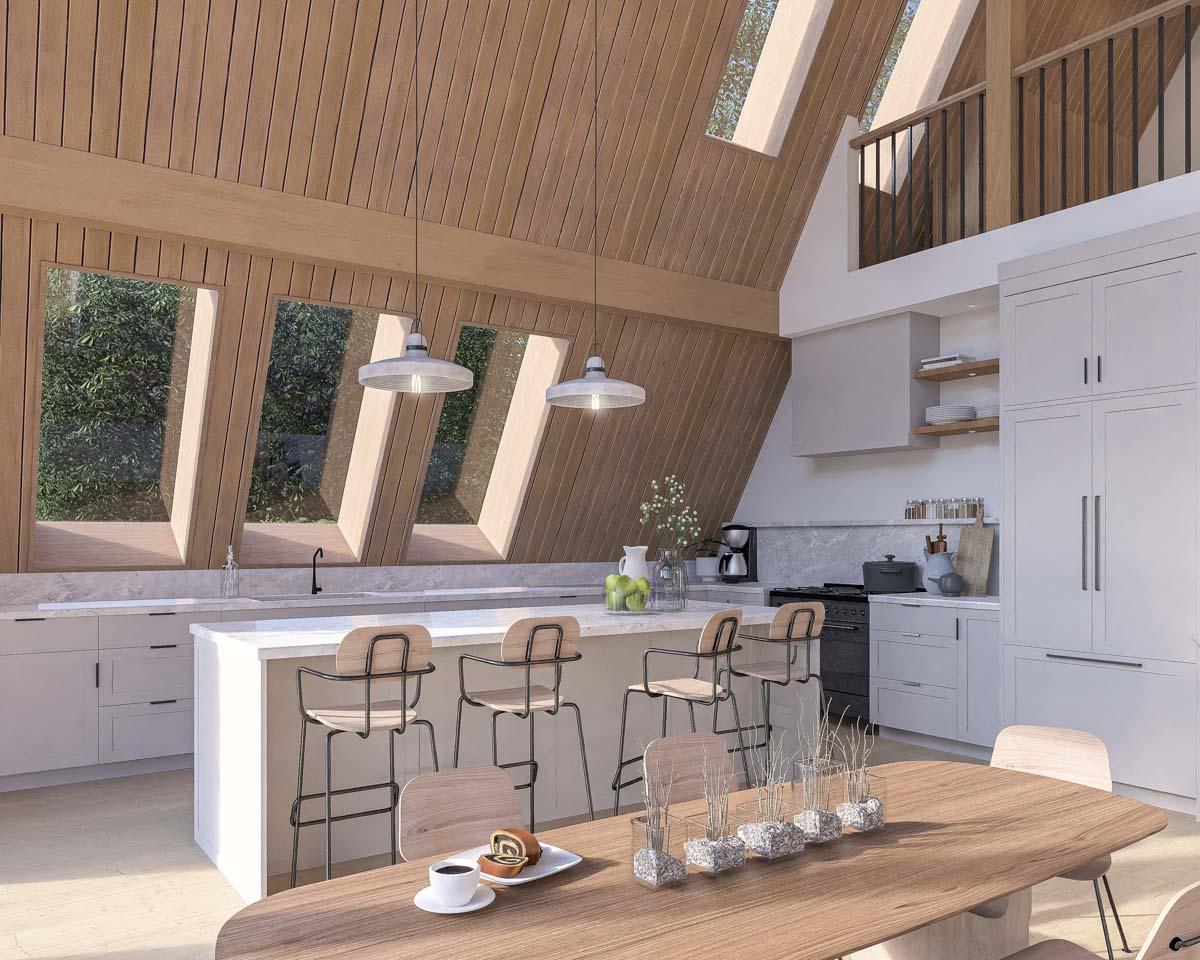

  • Go down the hall and you'll find yourself in the towering open living space unifying the living/dining room and the kitchen under a vaulted ceiling. Windows in back are designed to maximize your views. The back wall opens up giving you access to a 14'-deep deck.
  • Stairs take you to the second floor with the largest bedroom in the home and a lounge area that overlooks the living area below. A ladder by the top of the stairs takes you to the  area takes you to the 239 square foot third floor loft that overlooks the space below and has views out the back windows.
  • Related Plans: Get alternate configurations with house plans 270047AF, 270048AF and 270094AF

What's Included

  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges

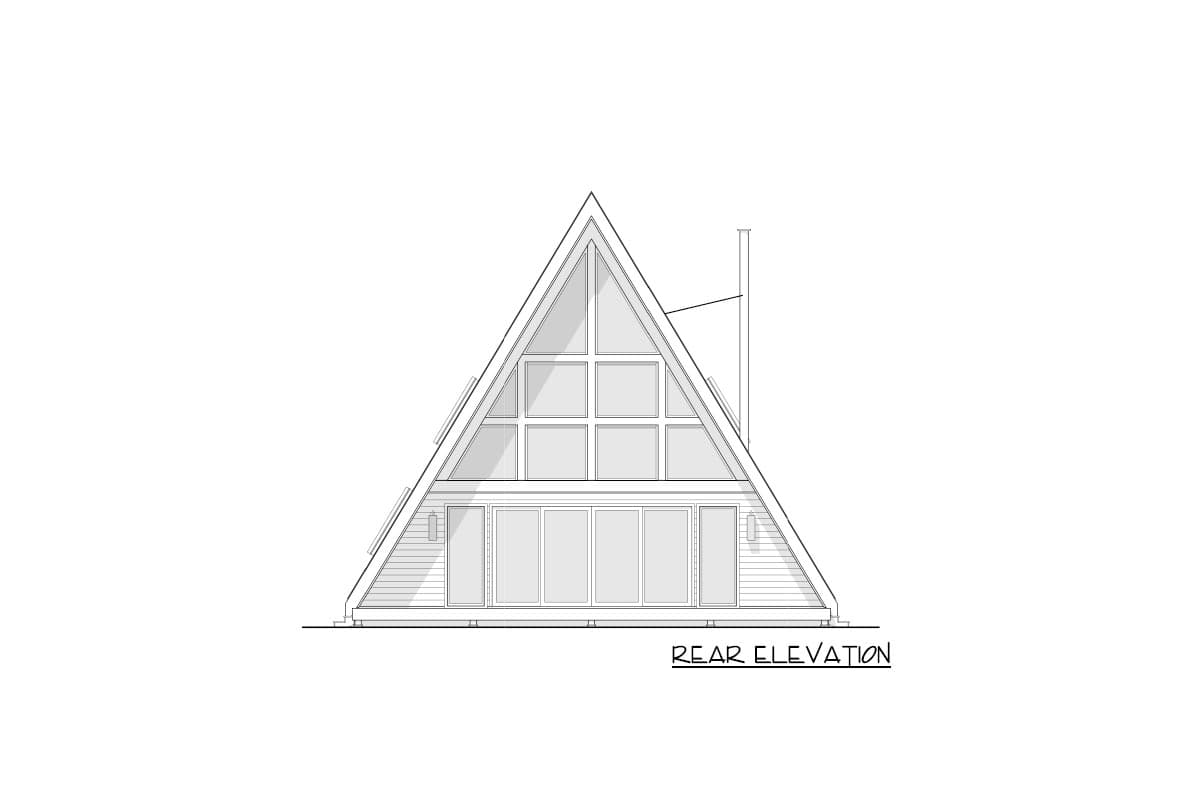

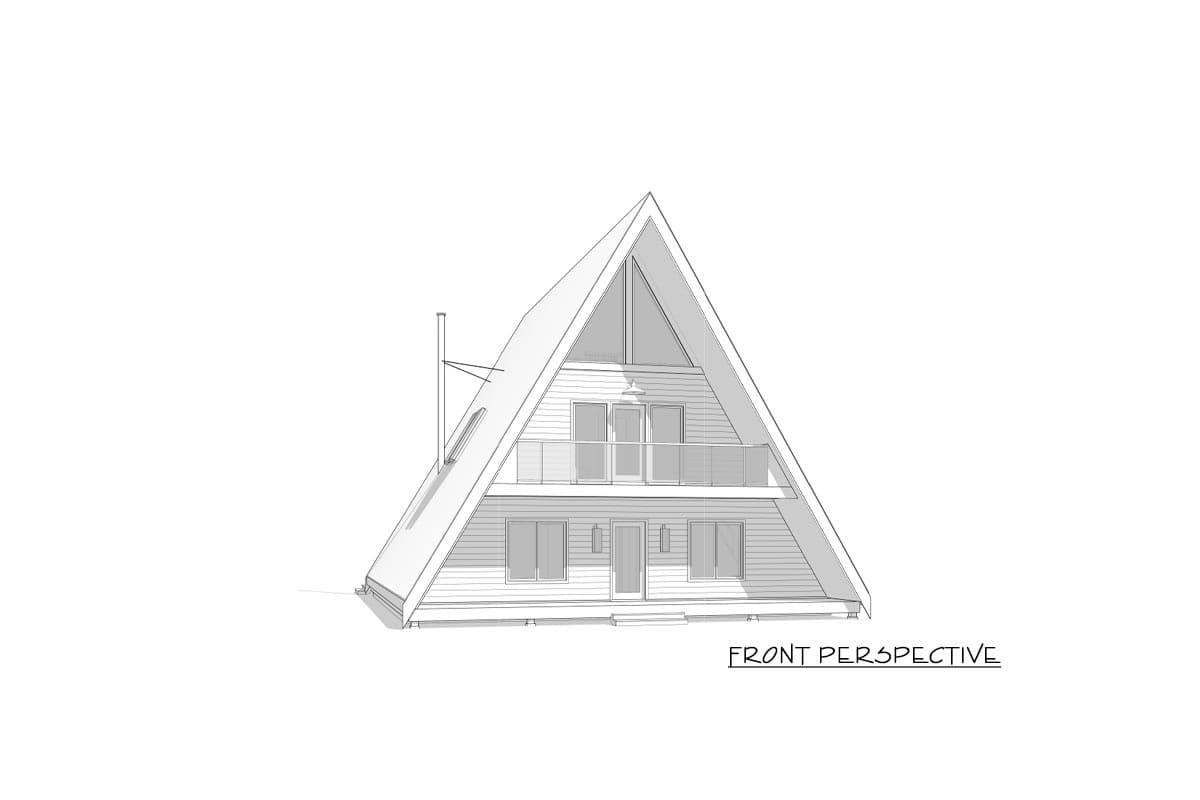

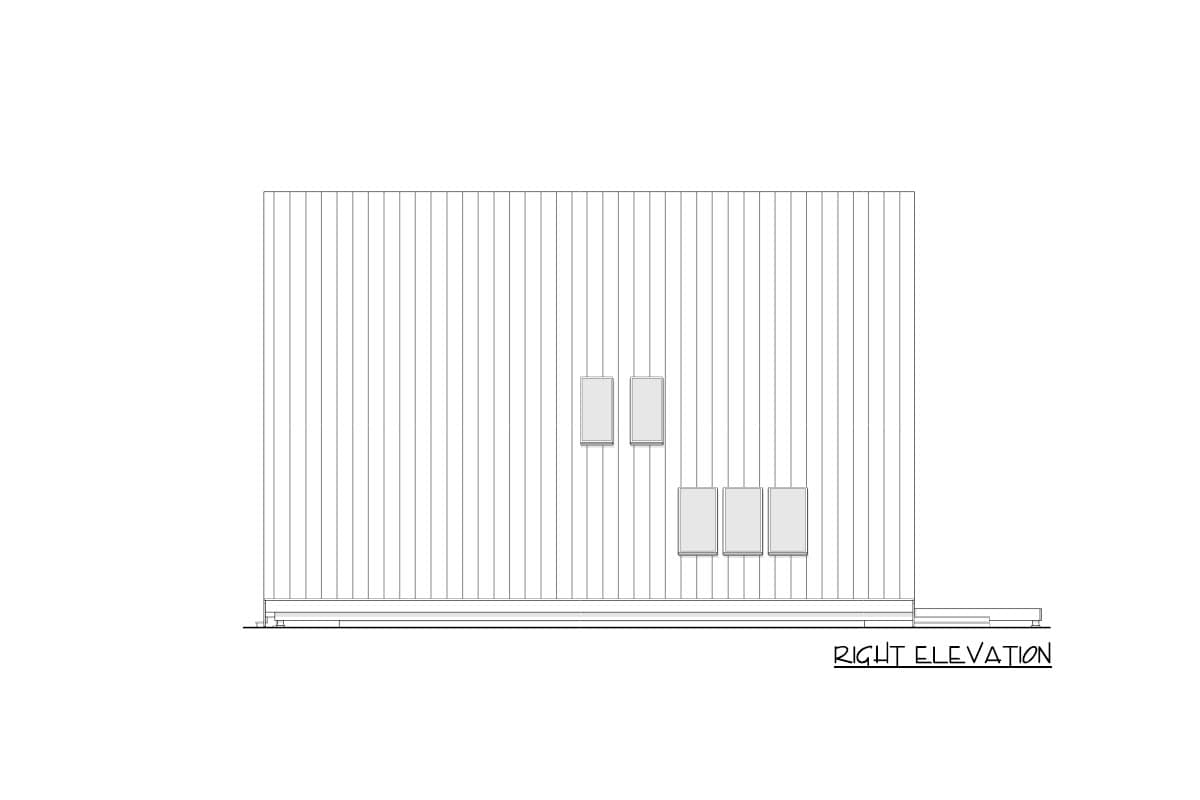

  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Framing - layouts with beam sizes and locations
  • Electrical plan
  • Plumbing Details
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Energy calculations - handled locally when required
  • Renderings, photography, or marketing imagery
