4 Bedroom Craftsman with Lots of Options

Plan 50146PH

This plan plants 10 trees

2,175
Heated s.f.
5
Beds
3
Baths
2
Stories

This Craftsman house plan gives you 4 bedrooms and comes in several different versions.
Related Plans: Get alternate versons with house plans 50179PH and 50147PH (both 2,268 sq. ft.). Get a larger laundry room and master closet with house plan 50151PH (2,580 sq. ft.) and 50187PH (2,590 sq. ft.). Get 3 bedrooms with house plan 50102PH (2,095 sq. ft.). Get an alternate kitchen and 4 beds with house plan 50116PH (2,175 sq. ft.).

Each plan set includes the following:

Foundation Plan: Includes detailed information about the foundation layout including concrete walls, footings, pads, posts, beams, bearing walls, and foundation notes. If the home features a basement, the first-floor framing details may also be included on this plan. If your plan features slab construction rather than a basement, the plan shows footings and details for a monolithic slab. This page, or another in the set, may include a sample plot plan for locating your house on a building site. Additional sheets focus on foundation cross-sections and other details. In some instances a designer may only provide what is commonly referred to as a foundation schematic or plumbing plan. These types of drawings only show the footprint of the foundation and do not include foundation construction details.
Floor Plans: Show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and include locations of doors and windows. Plans will also include and markers indicating cross-section details provided elsewhere in the plans if applicable.
Building Sections: Building sections show changes in floor, ceiling, or roof height, and / or the relationship of one level to another. These sections show how the various parts of the house fit together and are valuable during construction.
Electrical Plans: The electrical plan offers suggested locations with notes for all lighting, outlets, switches, and some other electrical appliances. A layout is provided for each level, as well as basements, garages, or other structures. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. These details should be designed by your electrician.
Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
Construction Details: Most drawings sets include typical construction details. These details may include the foundation, interior walls, exterior walls, floors, stairways, and / or roof details. NOTE: A majority of our plans include construction details but some do not.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

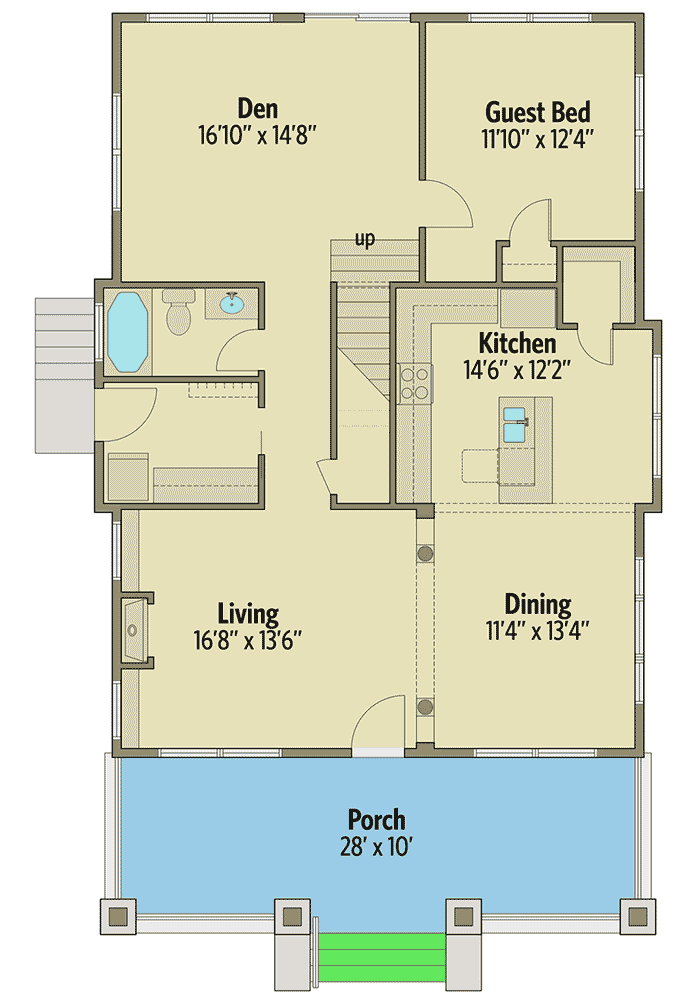

4 Bedroom Craftsman with Lots of Options - 50146PH floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

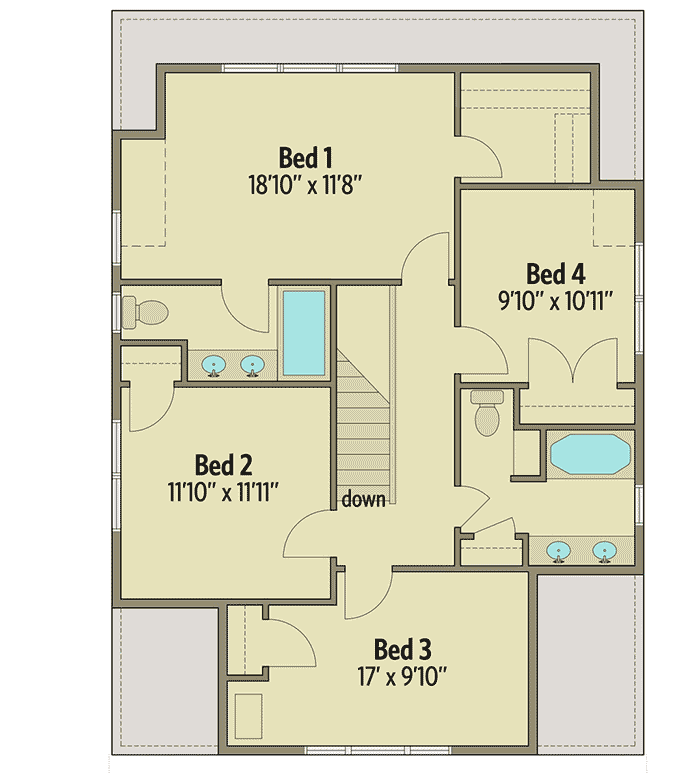

4 Bedroom Craftsman with Lots of Options - 50146PH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 2,175 sq. ft.
1st Floor: 1,220 sq. ft.
2nd Floor: 955 sq. ft.

Beds/Baths

Bedrooms: 5

Full bathrooms: 3

Foundation Type

Standard Foundations: Crawl

Optional Foundations: Walkout, Basement

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 32' 0"
Depth: 52' 0"
Max ridge height: 25' 6"

Ceiling Heights

Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections
