Plan 23806JD Contemporary 5-Bed House Plan with Second-Level Master Bed

3,861 5 4.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Contemporary 5-Bed House Plan with Second-Level Master Bed

Plan 23806JD

  • 3,861

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • An eye-catching exterior on this contemporary house plan intrigues the passerby, while an endearing front porch welcomes guests.
  • The main level consists of the common living spaces, along with a bedroom which is perfect for guests.
  • An open layout connects the great room, kitchen, and dining area, with a centered island anchoring the space. The covered porch completes the square design and encourages outdoor living.
  • Upstairs, discover a light-filled master bedroom through french doors. The master bath boasts a freestanding tub, oversized shower, and an expansive walk-in closet with a dresser island and access to the second-level laundry room.
  • A large play room sits between two bedrooms that share a full bath, and another bedroom includes a full bathroom.
  • A lengthy, 4-car tandem garage attaches to the left of the home, with access to a mudroom with a built-in bench.
  • Related Plans: Get an alternate exterior with house plan 23577JD. Get a 3-car garage with house plan 23506JD, 23507JD and 23630JD (side-load).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

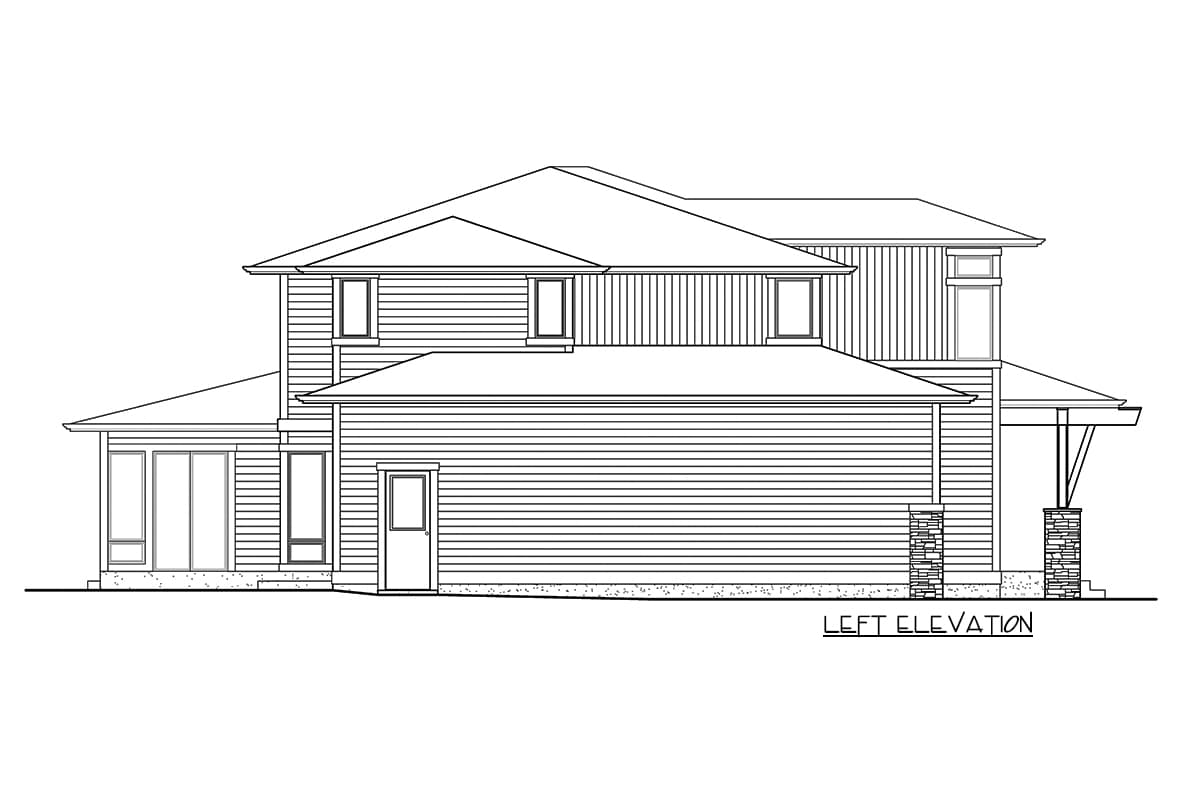

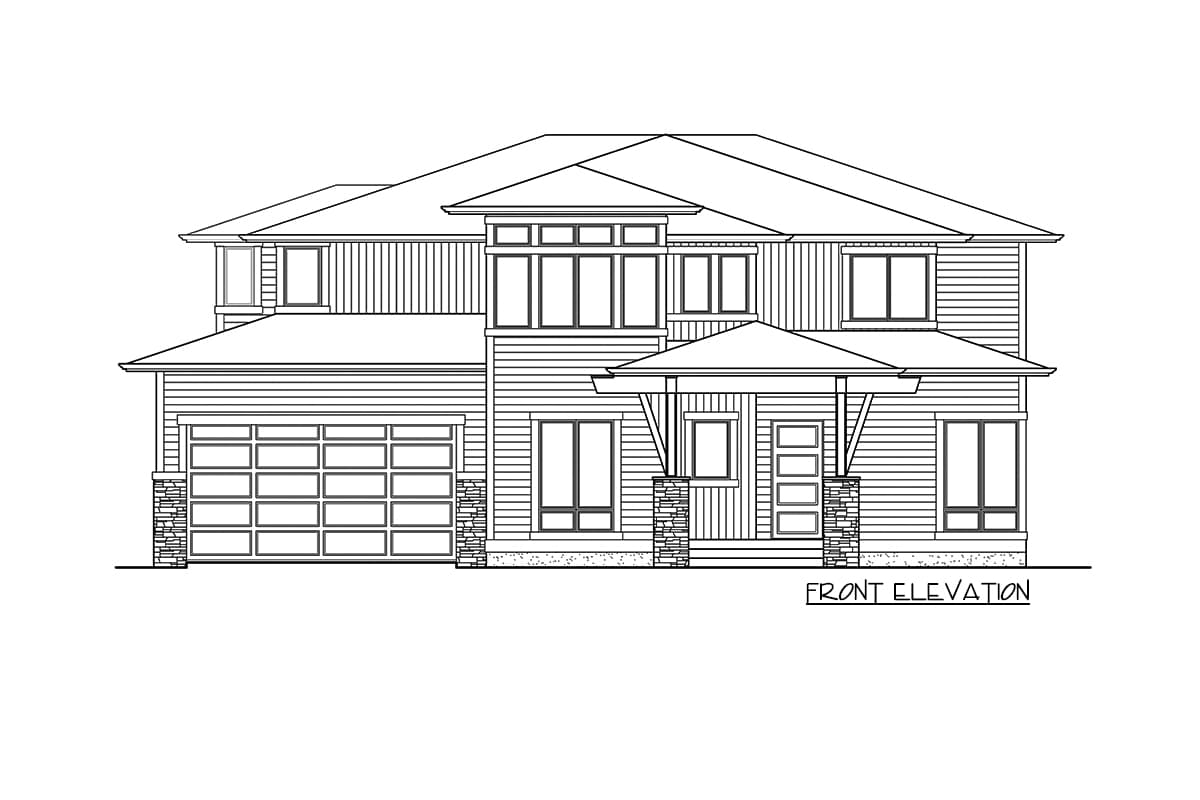

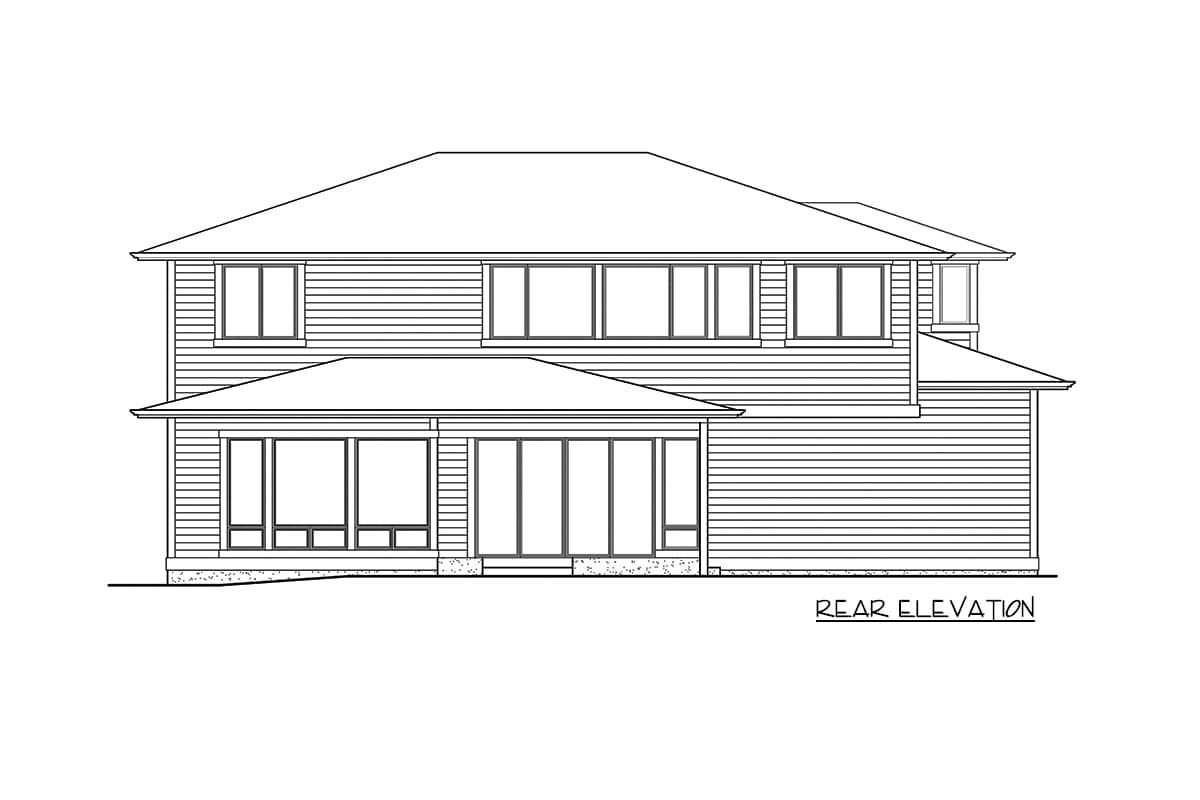

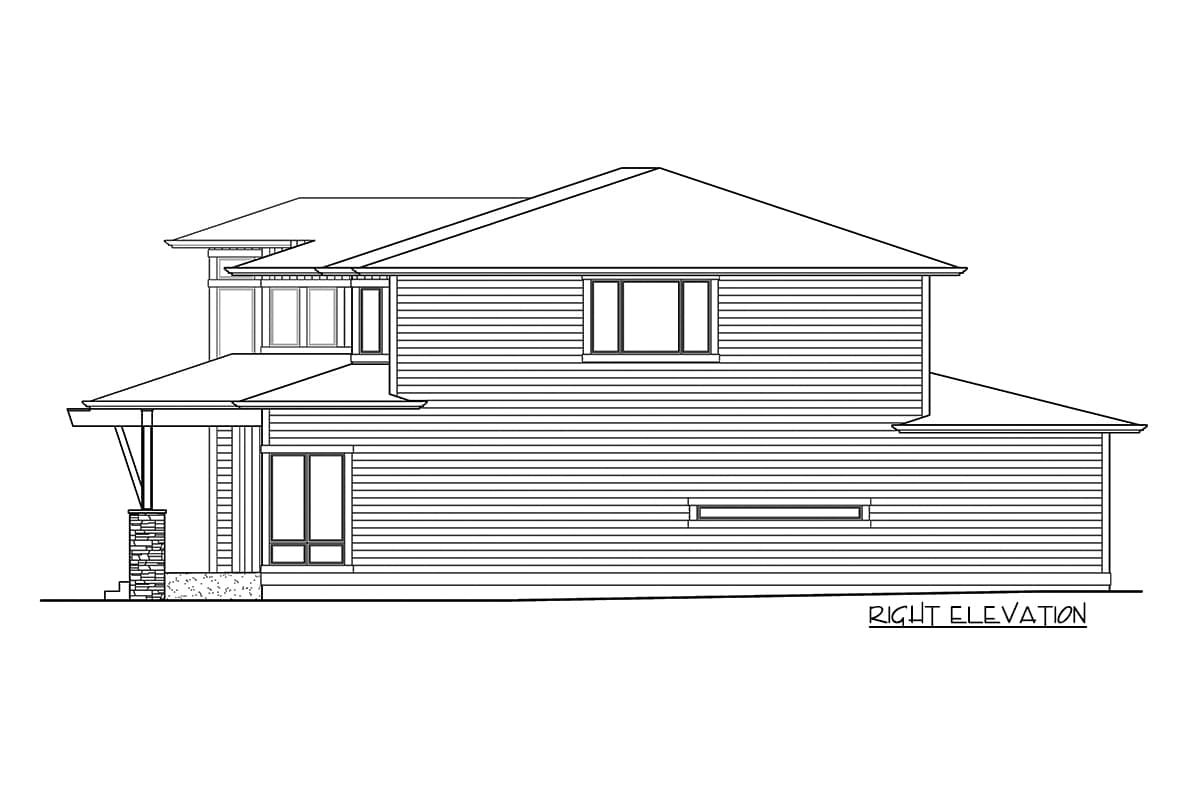

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

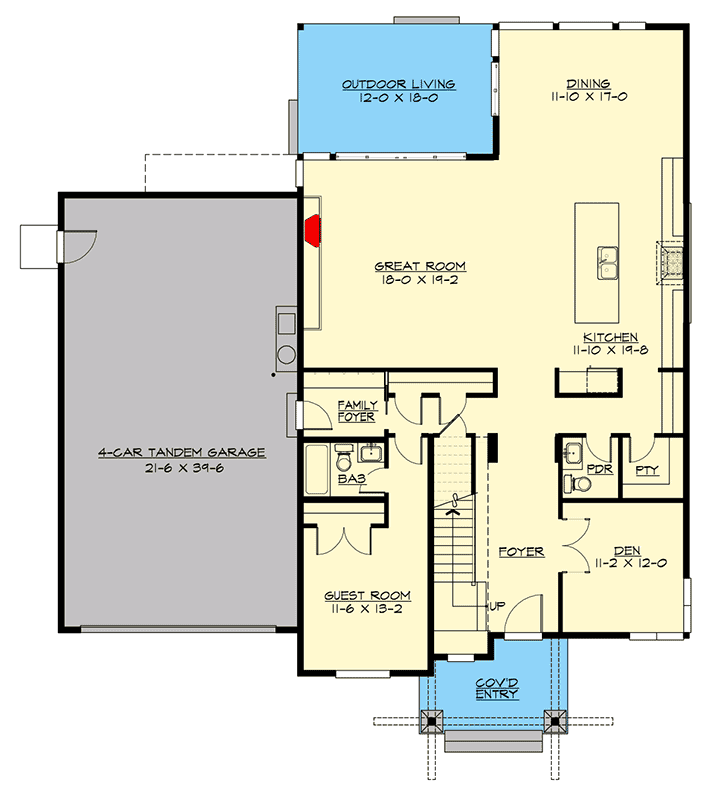

Contemporary 5-Bed House Plan with Second-Level Master Bed - 23806JD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

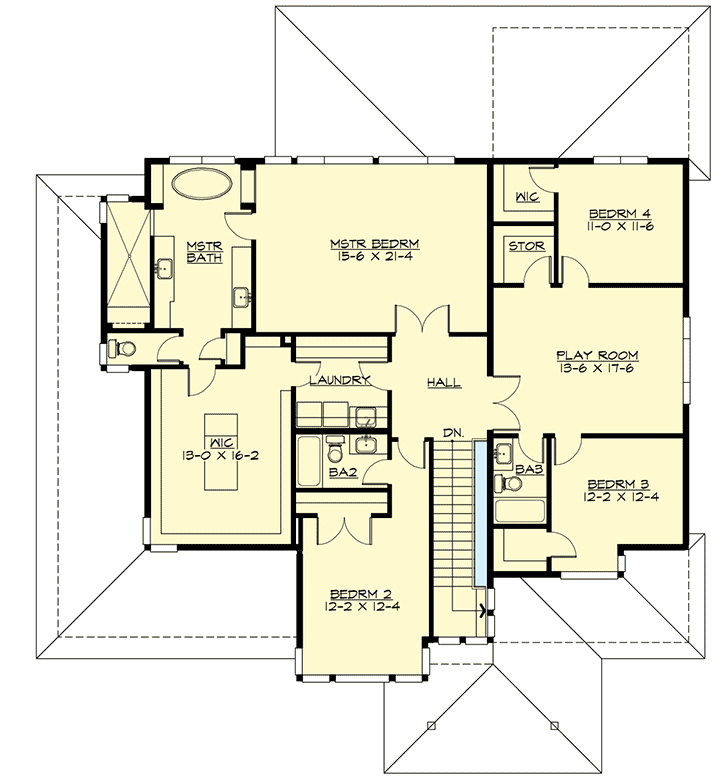

Contemporary 5-Bed House Plan with Second-Level Master Bed - 23806JD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,861 sq. ft.
  • 1st Floor: 1,873 sq. ft.
  • 2nd Floor: 1,988 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 65' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 891 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Contemporary 5-Bed House Plan with Second-Level Master Bed

  • 3,861

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,200
  • CAD + PDF - Unlimited Build $3,700
  • View all purchase option online

About This Plan

  • An eye-catching exterior on this contemporary house plan intrigues the passerby, while an endearing front porch welcomes guests.
  • The main level consists of the common living spaces, along with a bedroom which is perfect for guests.
  • An open layout connects the great room, kitchen, and dining area, with a centered island anchoring the space. The covered porch completes the square design and encourages outdoor living.
  • Upstairs, discover a light-filled master bedroom through french doors. The master bath boasts a freestanding tub, oversized shower, and an expansive walk-in closet with a dresser island and access to the second-level laundry room.
  • A large play room sits between two bedrooms that share a full bath, and another bedroom includes a full bathroom.
  • A lengthy, 4-car tandem garage attaches to the left of the home, with access to a mudroom with a built-in bench.
  • Related Plans: Get an alternate exterior with house plan 23577JD. Get a 3-car garage with house plan 23506JD, 23507JD and 23630JD (side-load).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,861 sq. ft.
  • 1st Floor: 1,873 sq. ft.
  • 2nd Floor: 1,988 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 58' 0"
  • Depth: 65' 0"
  • Max ridge height: 27' 0"

Garage

  • Type: Attached
  • Area: 891 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
Plan 23806JD
View this and more for this plan by visiting www.architechtecturaldesigns.com/23806JD
|
