Plan 2105DR Cottage with 2-Story Family Room Perfect for a Rear-Sloping Lot

1,480 2-3 2 2
2 Client
Albums Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Cottage with 2-Story Family Room Perfect for a Rear-Sloping Lot

Plan 2105DR

  • 1,480

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Stories

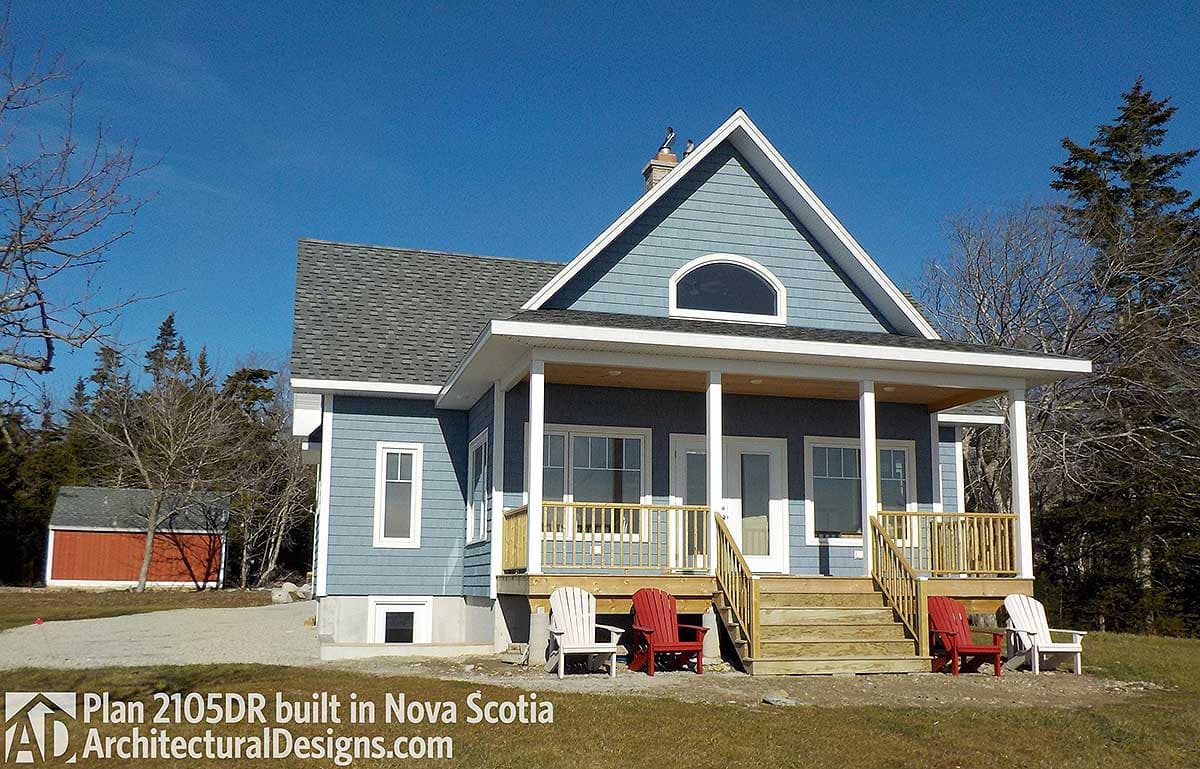

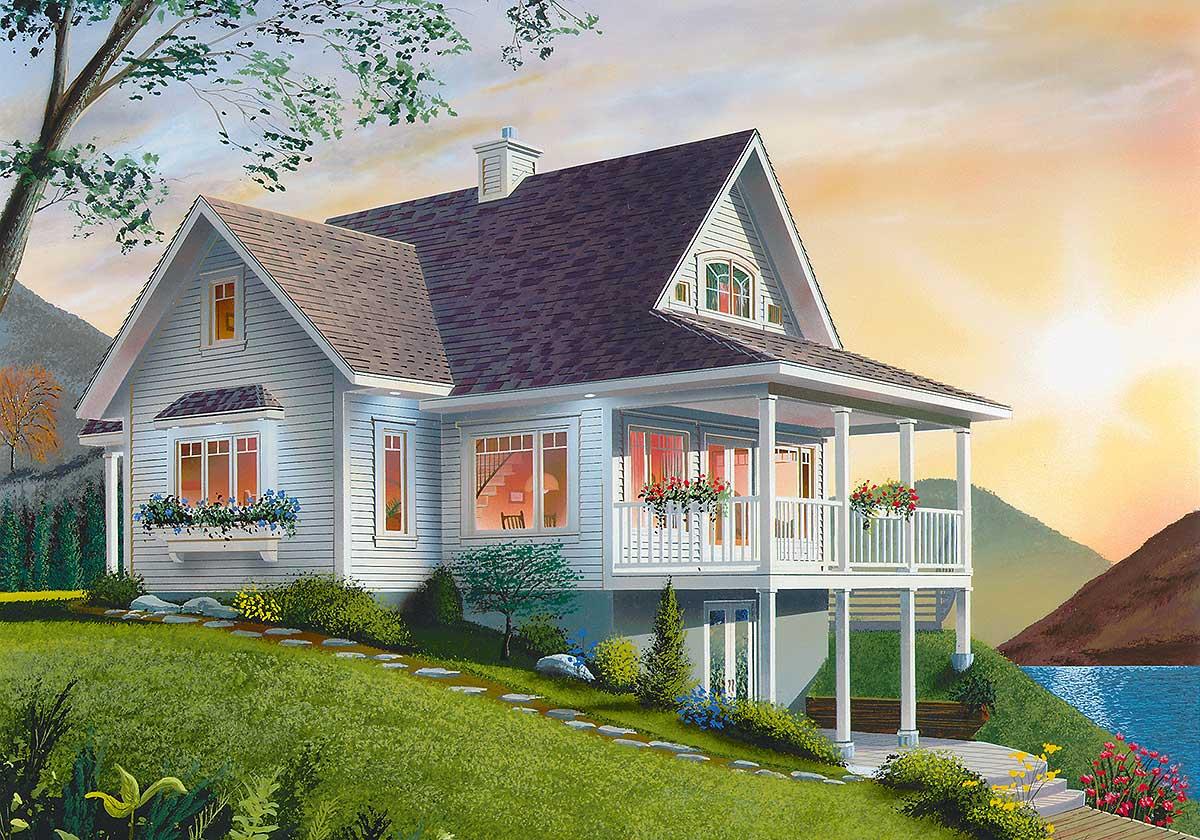

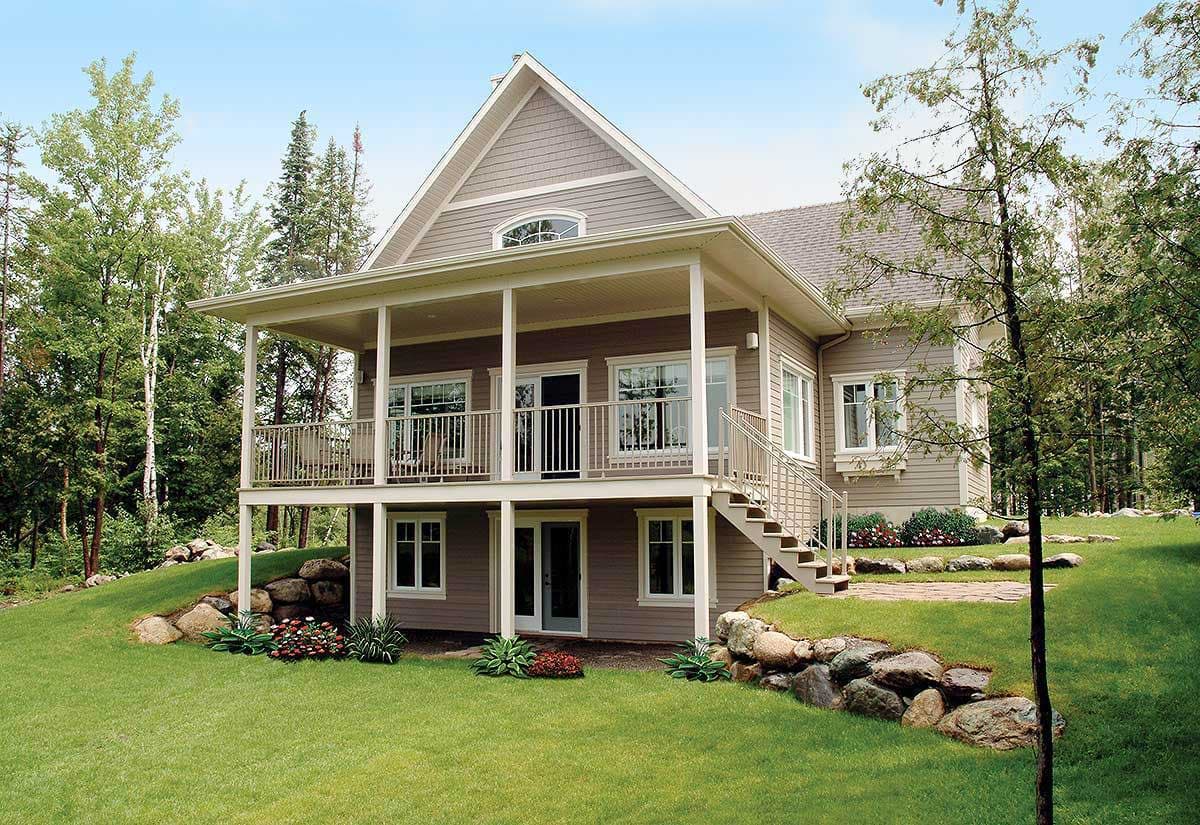

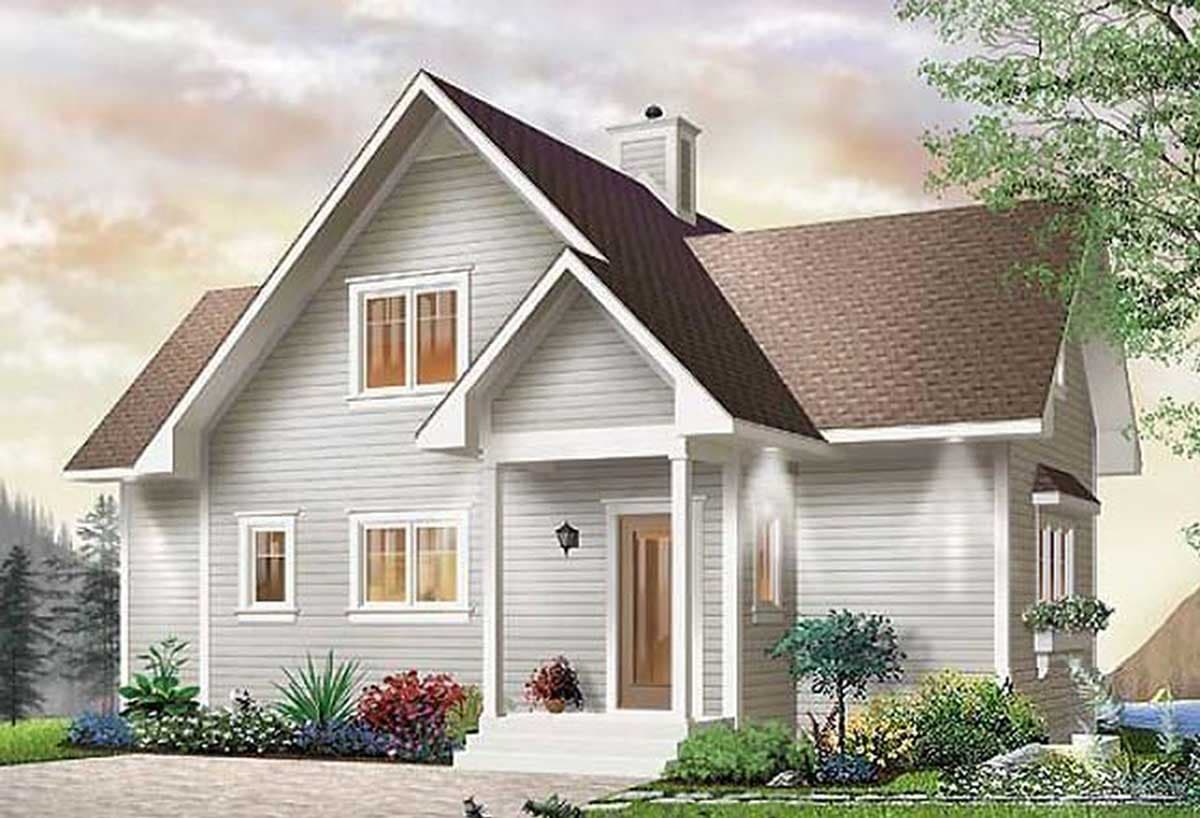

  • The daylight basement on this vacation home plan, which is designed for a sloping lot, offers the opportunity for expansion. A covered porch off the living area allows easy indoor-outdoor entertaining.

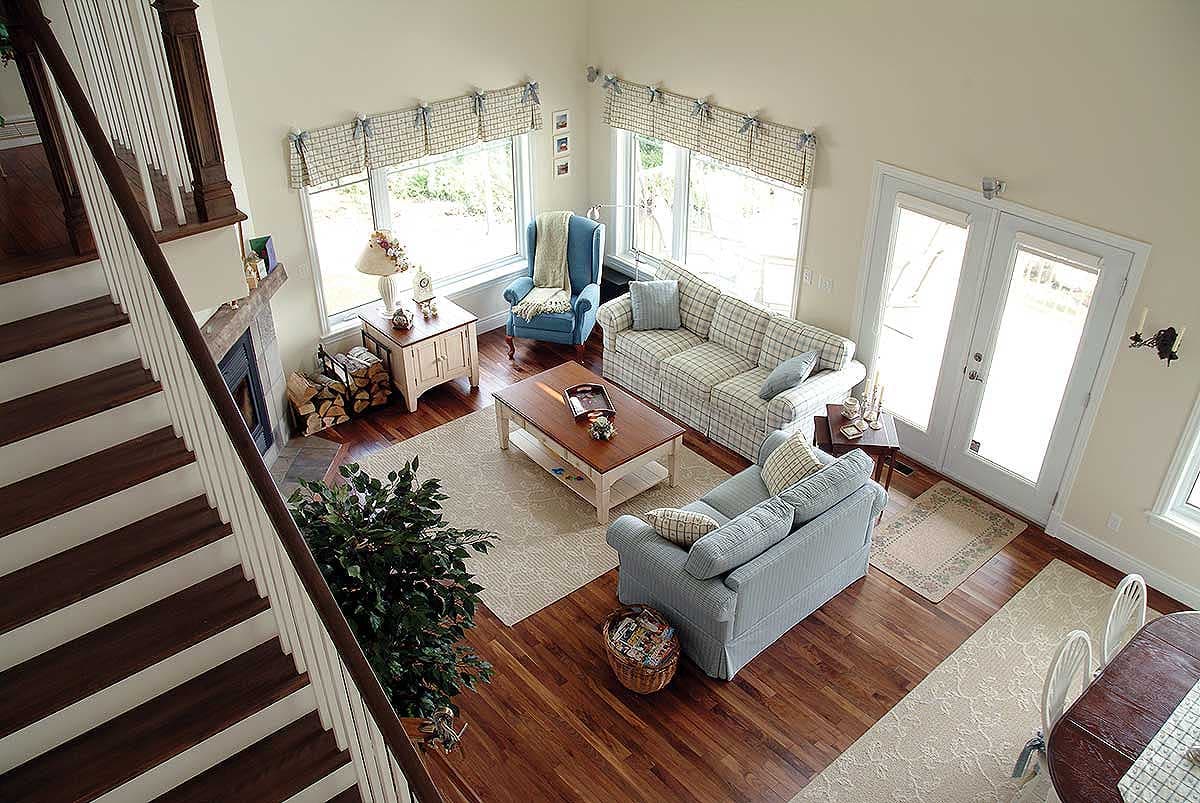

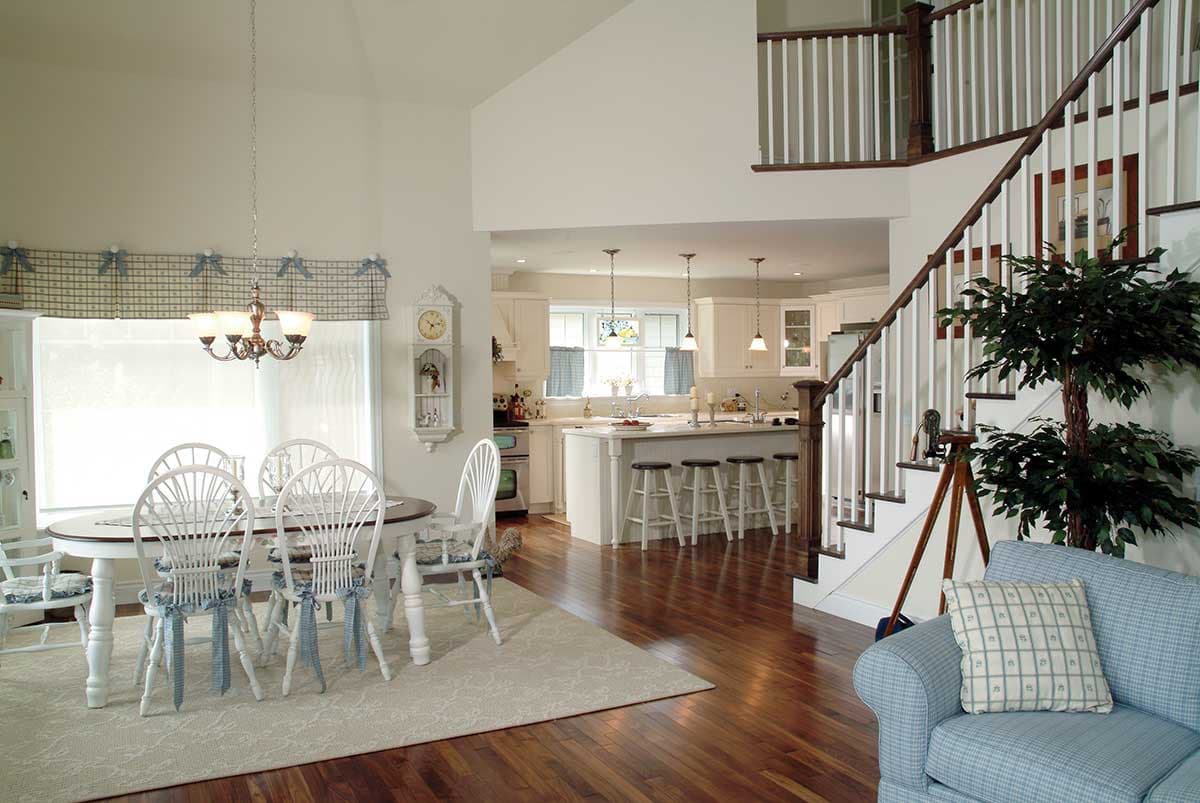

  • Angled around the family-room with its cathedral ceiling and a fireplace, a stairway leads down to the basement or up to the second floor, where you can view part of the living area below.

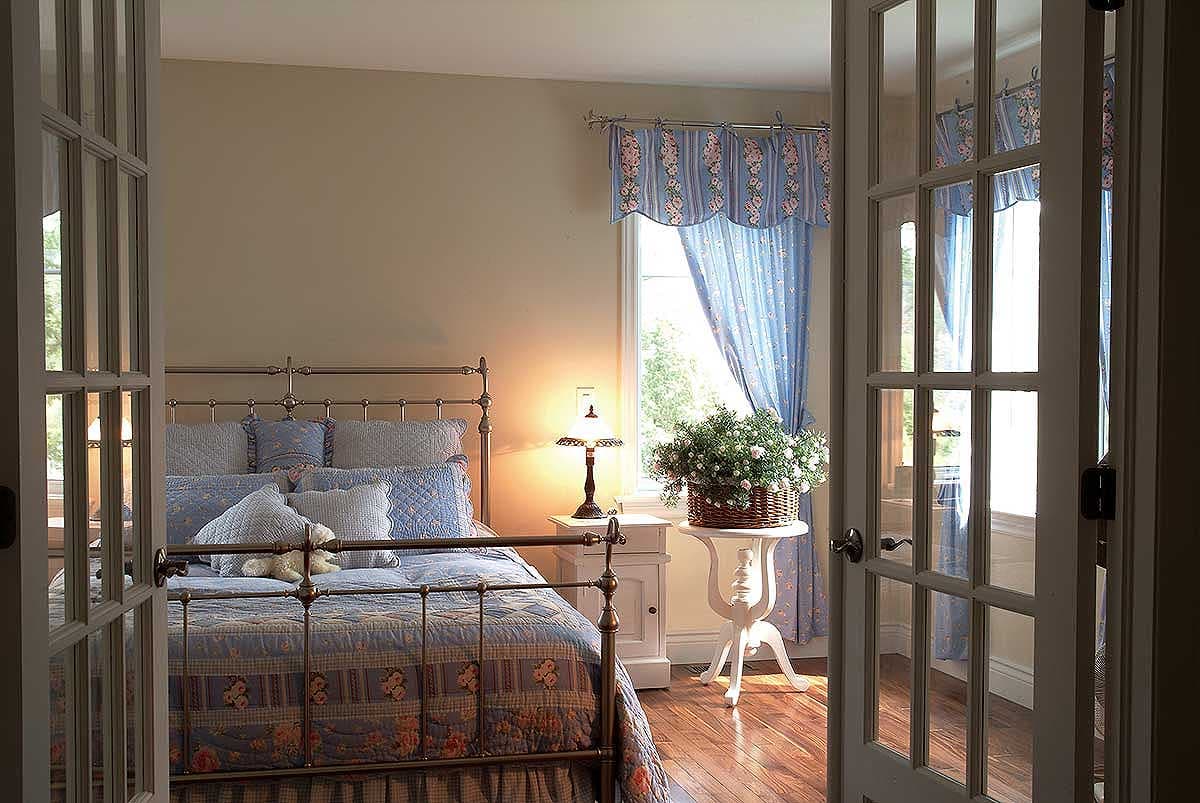

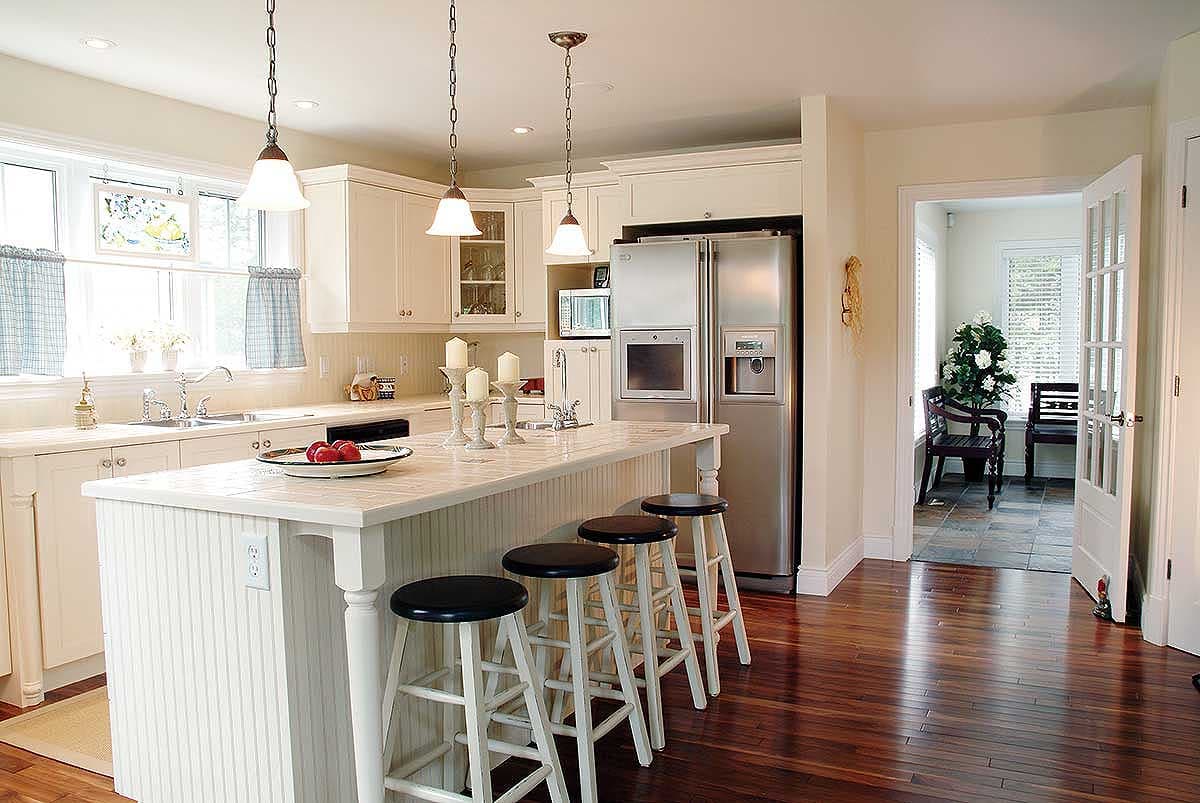

  • Downstairs, a four-fixture bath can be accessed from either the hall or through the walk-in closet of the bedroom on this floor. The kitchen is big enough to house a cooktop island with a circular eating bar.
  • The second floor contains a full bath, a bedroom and a loft area that could be used as a study, a sitting area or a guest area.
  • The ceiling is sloped on the second floor with knee walls 6' in the bathroom, 4'4" in the den, 4'2" on the bedroom wall without closet
    and 4'10" on the wall with the closet.
  • Related Plans: Build in reverse with house plan 21565DR. Get more room with house plans 21126DR (2,393 sq. ft.), 21865DR (2,048 sq. ft.). Get an attached garage with house plans 21128DR (2,219 sq. ft.), 21184DR (2,219 sq. ft.) and 2106DR (2,526 sq. ft.).
  • Delivery Delay: Please allow up to 15 business days for plan delivery.

This plan set has 12 sheets as follows:

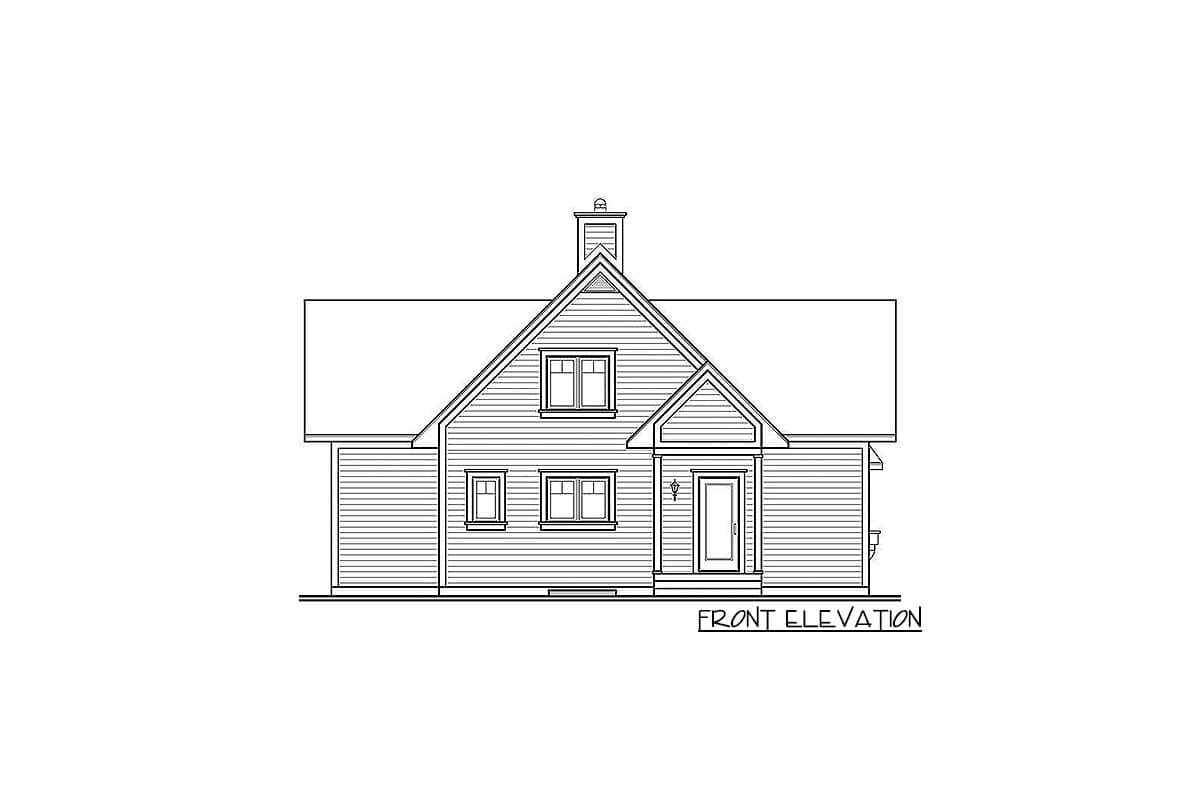

  1. Front elevation
  2. Foundation plan
  3. Roof plan
  4. General notes
  5. Right elevation
  6. Main floor plan
  7. Sections
  8. Electrical schematics
  9. Left elevation
  10. Upper floor plan
  11. Stair details

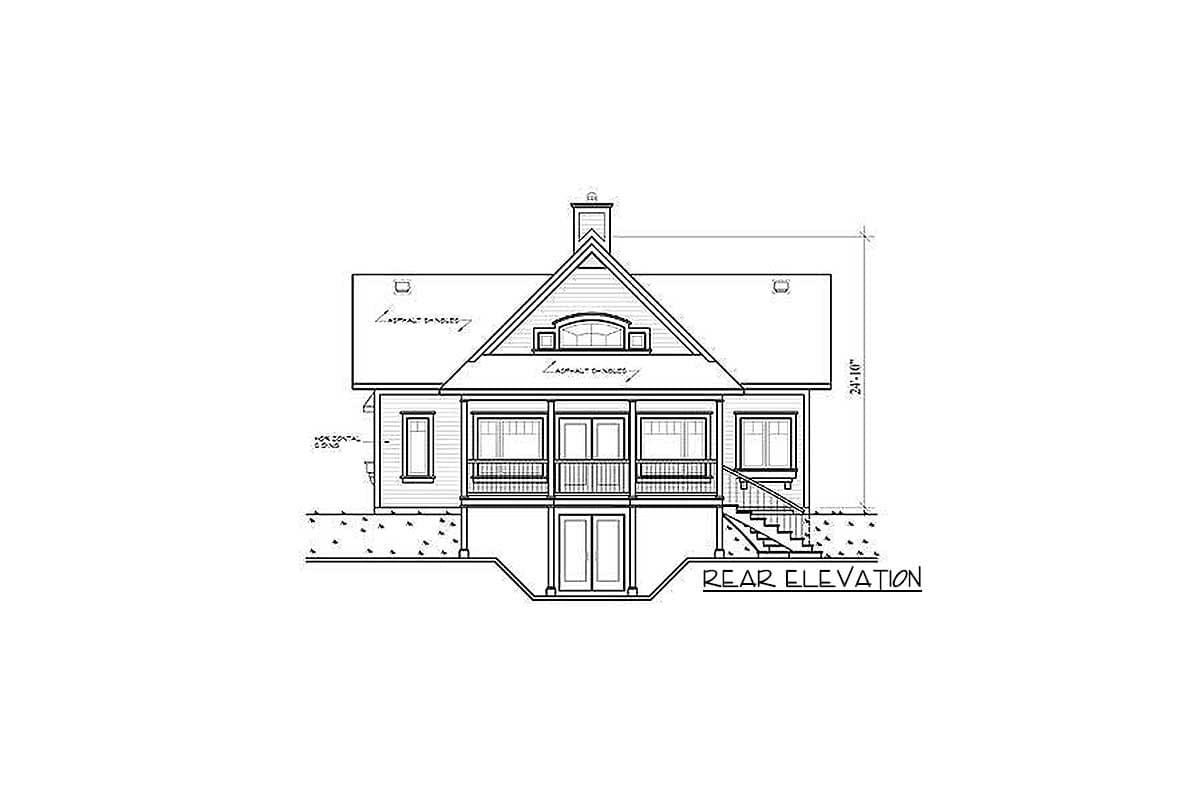

  12. Rear elevation
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

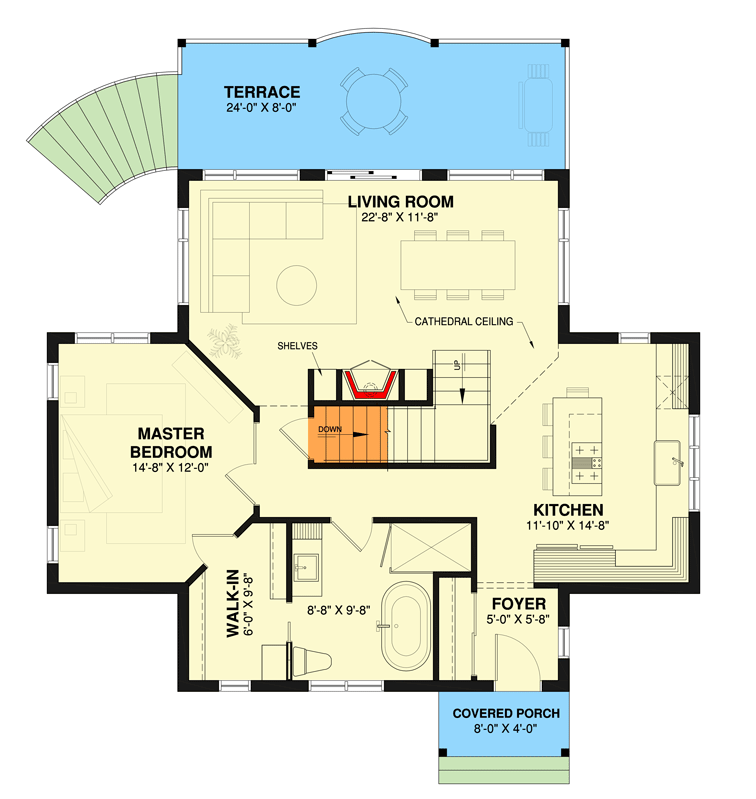

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Cottage with 2-Story Family Room Perfect for a Rear-Sloping Lot - 2105DR floor plan - Main Level

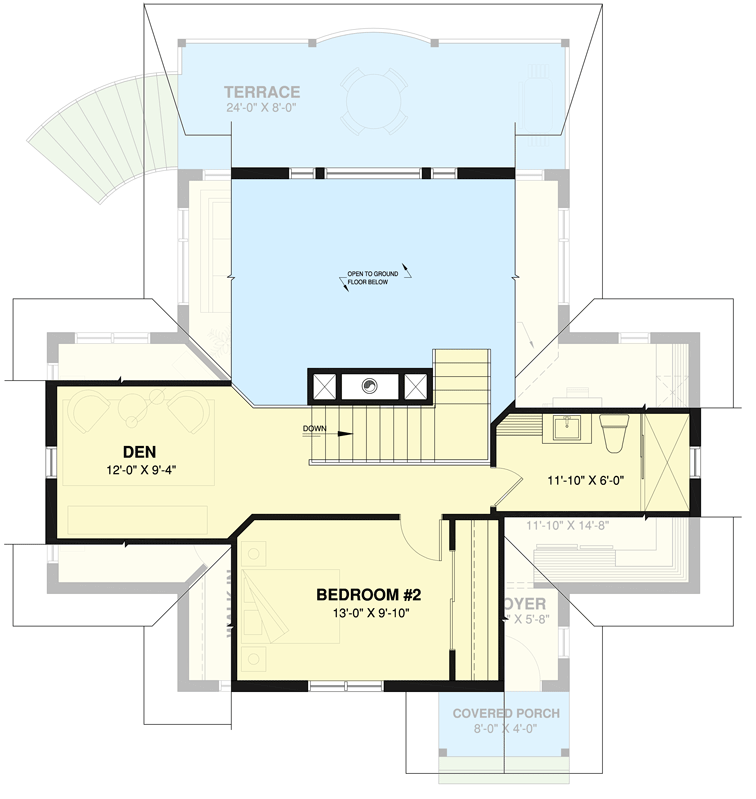

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Cottage with 2-Story Family Room Perfect for a Rear-Sloping Lot - 2105DR floor plan - 2nd Floor

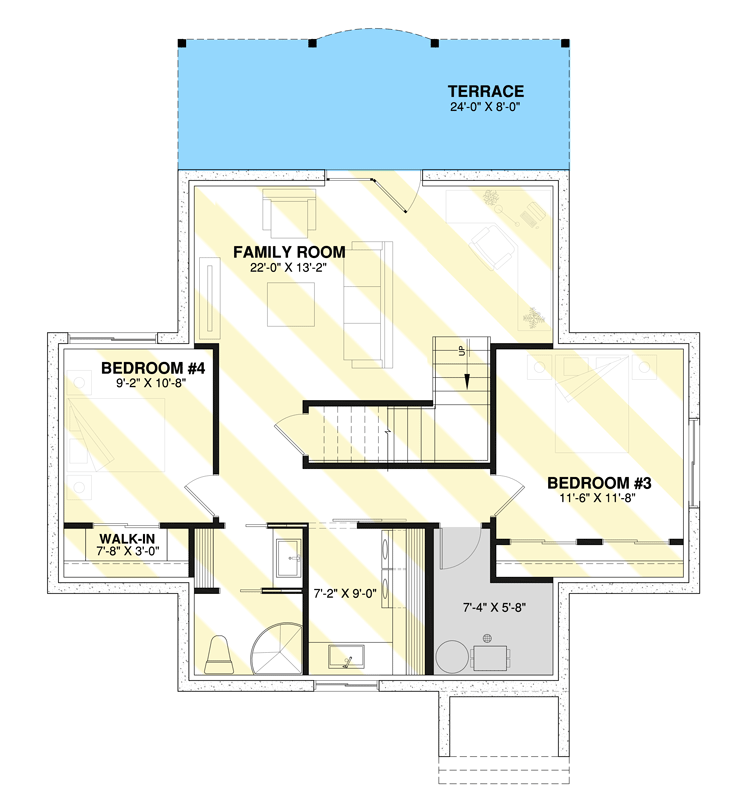

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Cottage with 2-Story Family Room Perfect for a Rear-Sloping Lot - 2105DR floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,480 sq. ft.
  • 1st Floor: 1,024 sq. ft.
  • 2nd Floor: 456 sq. ft.
  • Entry: 32 sq. ft.
  • Porch, Front: 195 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 40' 0"
  • Max ridge height: 23' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Cottage with 2-Story Family Room Perfect for a Rear-Sloping Lot

  • 1,480

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - Single-Build $1,300
  • CAD + PDF - Single-Build $1,900
  • View all purchase option online

About This Plan

  • The daylight basement on this vacation home plan, which is designed for a sloping lot, offers the opportunity for expansion. A covered porch off the living area allows easy indoor-outdoor entertaining.
  • Angled around the family-room with its cathedral ceiling and a fireplace, a stairway leads down to the basement or up to the second floor, where you can view part of the living area below.
  • Downstairs, a four-fixture bath can be accessed from either the hall or through the walk-in closet of the bedroom on this floor. The kitchen is big enough to house a cooktop island with a circular eating bar.
  • The second floor contains a full bath, a bedroom and a loft area that could be used as a study, a sitting area or a guest area.
  • The ceiling is sloped on the second floor with knee walls 6' in the bathroom, 4'4" in the den, 4'2" on the bedroom wall without closet
    and 4'10" on the wall with the closet.
  • Related Plans: Build in reverse with house plan 21565DR. Get more room with house plans 21126DR (2,393 sq. ft.), 21865DR (2,048 sq. ft.). Get an attached garage with house plans 21128DR (2,219 sq. ft.), 21184DR (2,219 sq. ft.) and 2106DR (2,526 sq. ft.).
  • Delivery Delay: Please allow up to 15 business days for plan delivery.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,480 sq. ft.
  • 1st Floor: 1,024 sq. ft.
  • 2nd Floor: 456 sq. ft.
  • Entry: 32 sq. ft.
  • Porch, Front: 195 sq. ft.

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 40' 0"
  • Max ridge height: 23' 8"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss
