Craftsman Home Plan with a Vaulted Master and Den

Plan 69475AM

  • 2,211

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • 9' ceilings prevail throughout the first floor of this comfortable Craftsman home plan, as well as in the dormered bonus room over the garage which gives you an additional 185 sq. ft. if you build it out.
  • To the right of the entry foyer lies a den.
  • Through the 2-story foyer you'll find the wide-open great room/kitchen/dining area. Windows across the rear wall let in lots of light. A fireplace warms the great room, the adjacent kitchen and bayed breakfast nook. The kitchen features an island with an eating bar, twin sinks, dishwasher and pantry closet.
  • Upstairs, the vaulted master bedroom opens to a walk-in closet and a bath with spa tub, walk-in shower and dual lavatories. Another full bath serves the remaining bedrooms.
  • Related Plans: Get a modern farmhouse exterior with house plan 69768AM. Get a 2-car garage with house plan 6901AM (1,946 sq. ft.) and more room with house plans 69767AM (2,055 sq. ft.) and 69504AM (2,577 sq. ft.). Get a smaller home with house plan 6903AM and an alternate exterior with house plan 69214AM (2,204 sq. ft.).

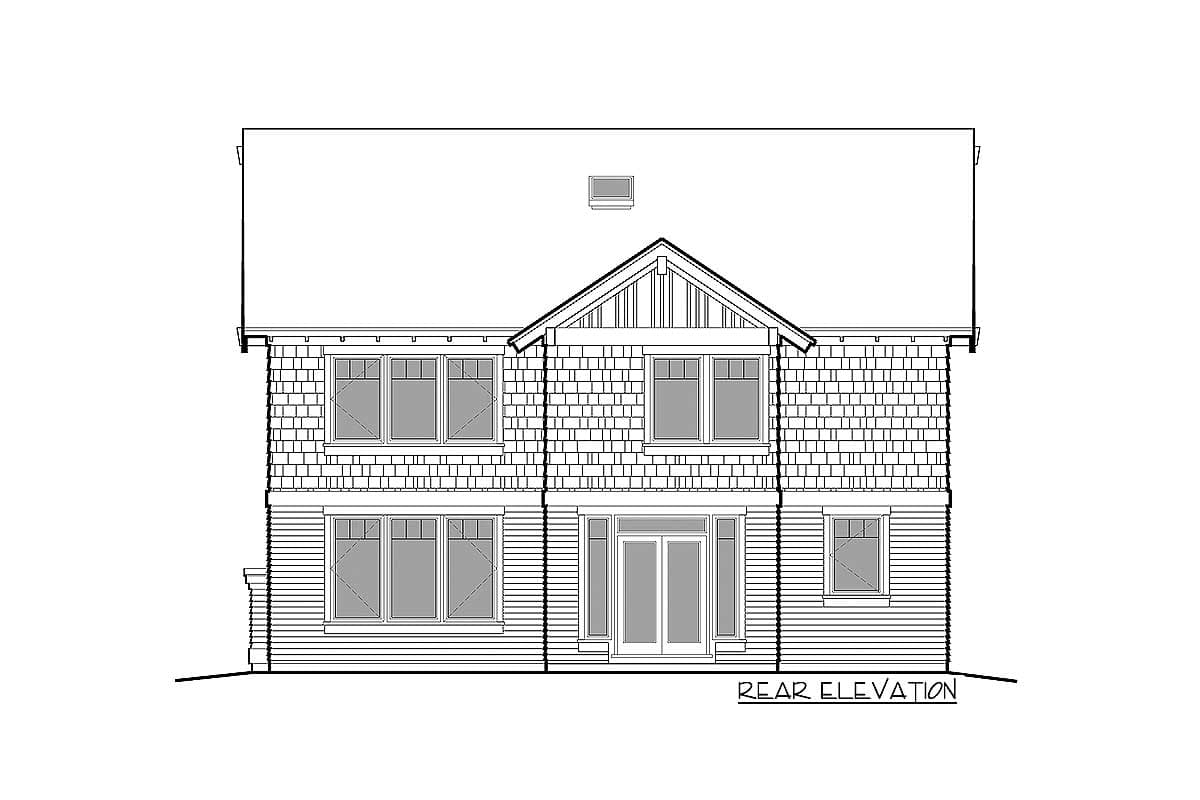

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

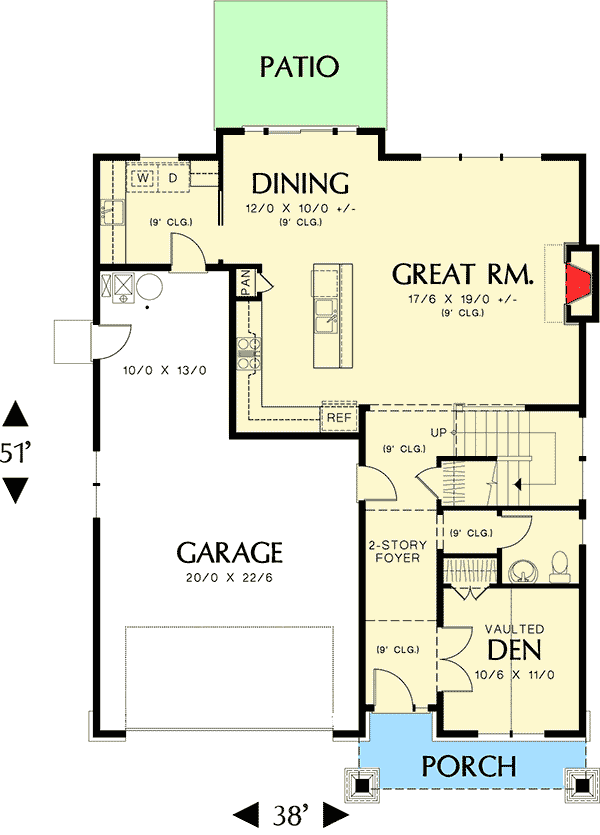

Craftsman Home Plan with a Vaulted Master and Den - 69475AM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

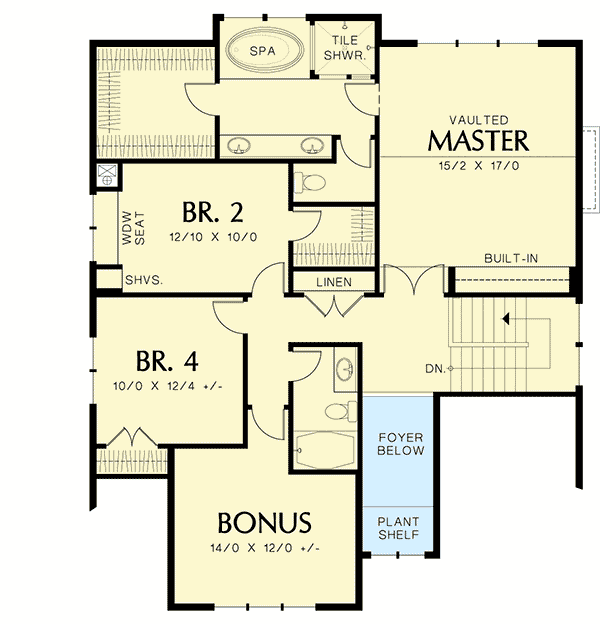

Craftsman Home Plan with a Vaulted Master and Den - 69475AM floor plan - Second Level

Basement Unfinished

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

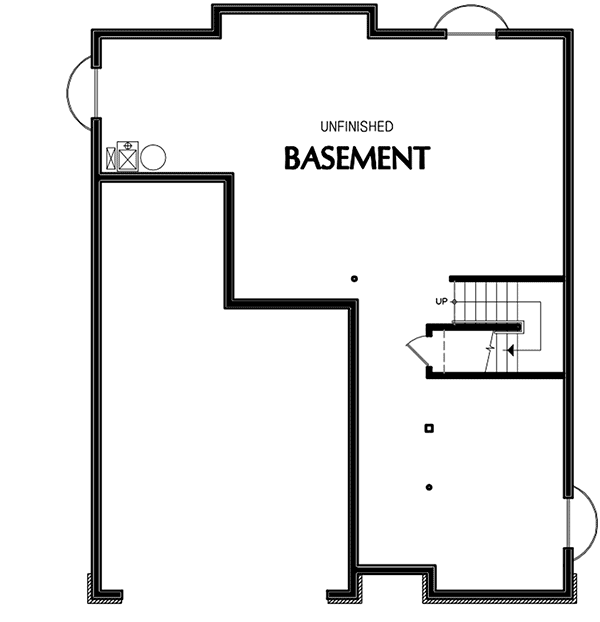

Craftsman Home Plan with a Vaulted Master and Den - 69475AM floor plan - Basement Unfinished

Basement Stairs Location

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

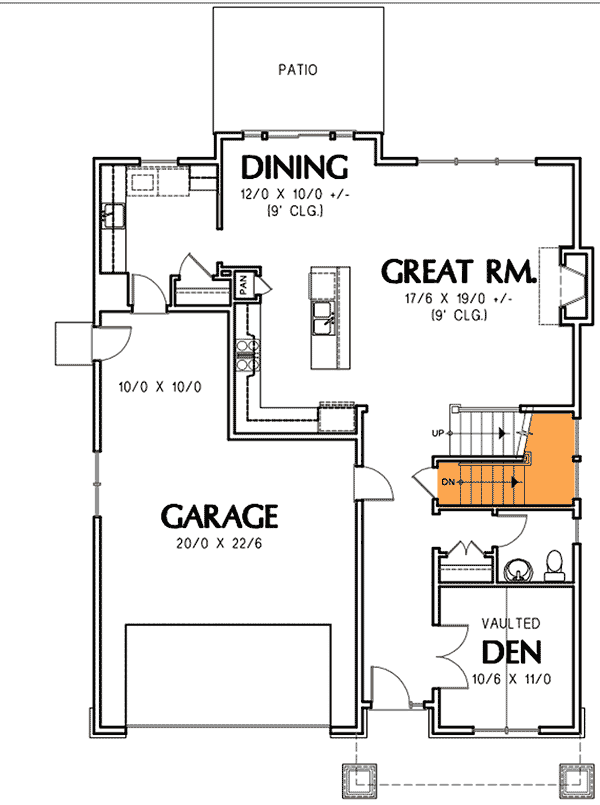

Craftsman Home Plan with a Vaulted Master and Den - 69475AM floor plan - Basement Stairs Location

Craftsman Home Plan with a Vaulted Master and Den

  • 2,211

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Second Level

  • Basement Unfinished

  • Basement Stairs Location

Plan Details

Square Footage Breakdown

  • Total: 2,211 sq. ft.
  • 1st Floor: 1,116 sq. ft.
  • 2nd Floor: 1,095 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 51' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 450 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"
