Plan 25685GE Craftsman House Plan with Lower Level Expansion

3,773 4-7 4.5 - 6.5 1 3-4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman House Plan with Lower Level Expansion

Plan 25685GE

  • 3,773

    Heated s.f.

  • 4-7

    Beds

  • 4.5 - 6.5

    Baths

  • 1

    Stories

  • 3-4

    Cars

  • This majestic house plan has multiple gables with decorative timber brackets - and timber accents framing the porch and the 3-car garage - giving it great curb appeal.
  • Enjoy one-level living and lower level expansion with this Craftsman house plan.
  • A vaulted foyer adjacent to the dining room and study behind french doors greets all who enter. With a built-in fireplace and a vaulted ceiling, the lodge room features a wall of windows and has views to the back.
  • The kitchen has views to the breakfast and lodge rooms and a large walk-in pantry.
  • A generous mud room is located off the garage and the laundry has access from both the kids' bedroom side and the master wing.
  • The master suite has a tray ceiling and access to the rear patio. The master bath has a large walk-in closet and a walk-in shower. A morning kitchen off the master bath and access to the study makes that space function as a private sitting room if desired.
  • Three more bedrooms, each with their own baths, are located across the home.
  • In back, there are three outdoor spaces - all connected - giving you space to entertain and enjoy the views.
  • Lower level expansion includes the possibility of three more bedrooms, rec space, storage and outdoor access.
  • Related Plans: Eliminate a main floor bedroom, rearrange the master suite and get an elevator with house plan 25671GE. Get two beds and a shared kitchen upstairs with house plan 25677GE. Get alternate versions with house plans 25618GE, 25646GE and 25655GE.

The plan set includes the following:

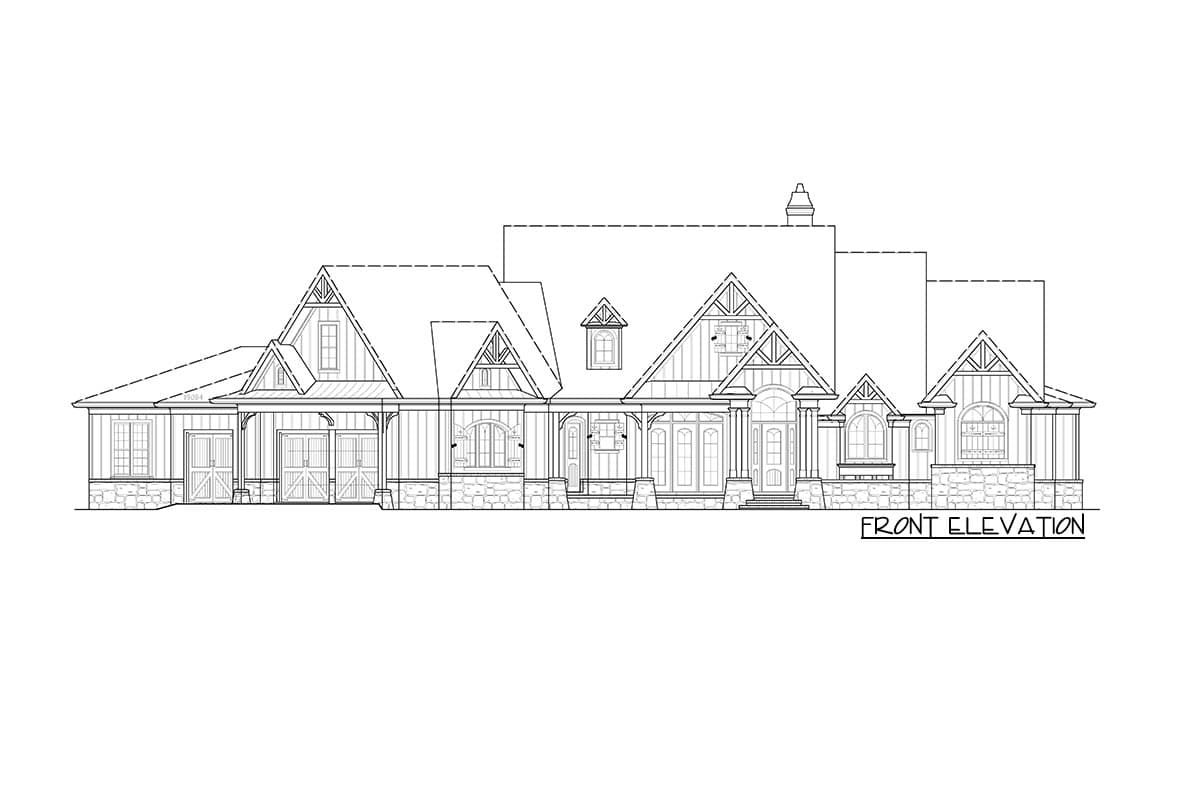

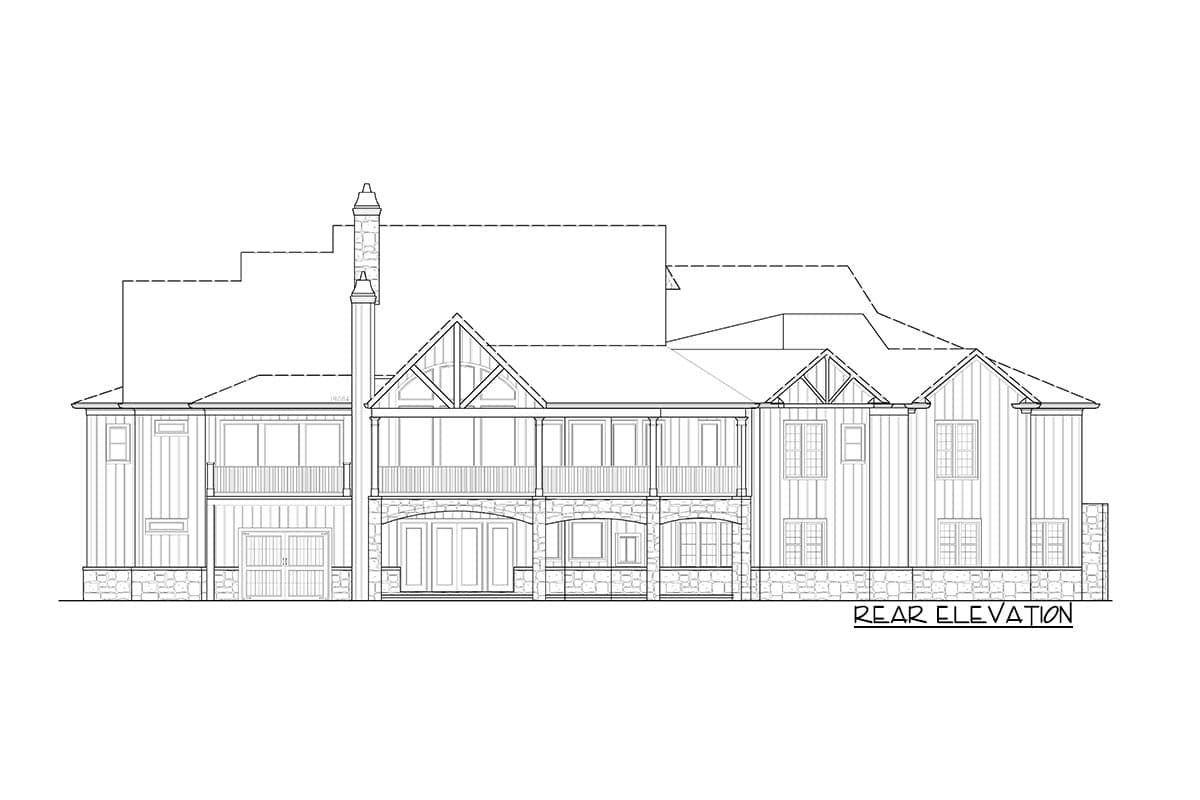

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

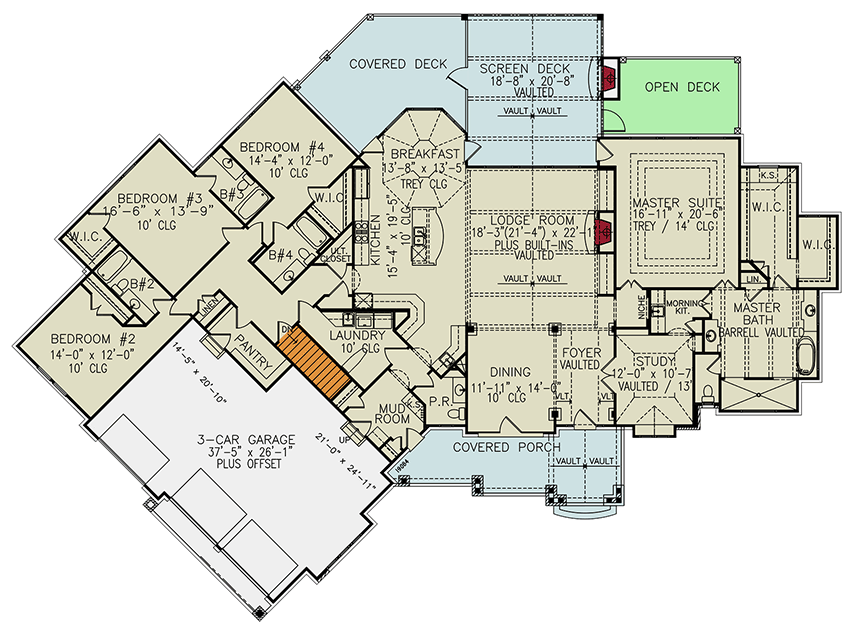

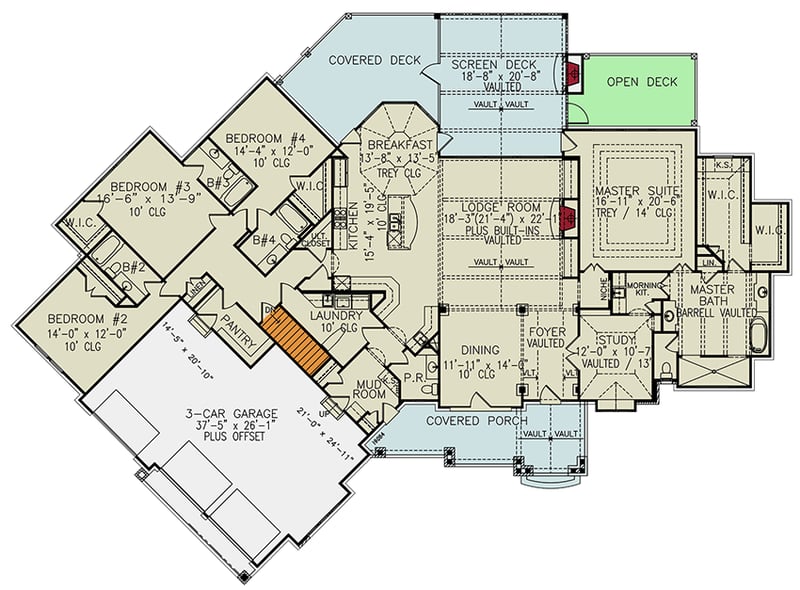

Craftsman House Plan with Lower Level Expansion - 25685GE floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

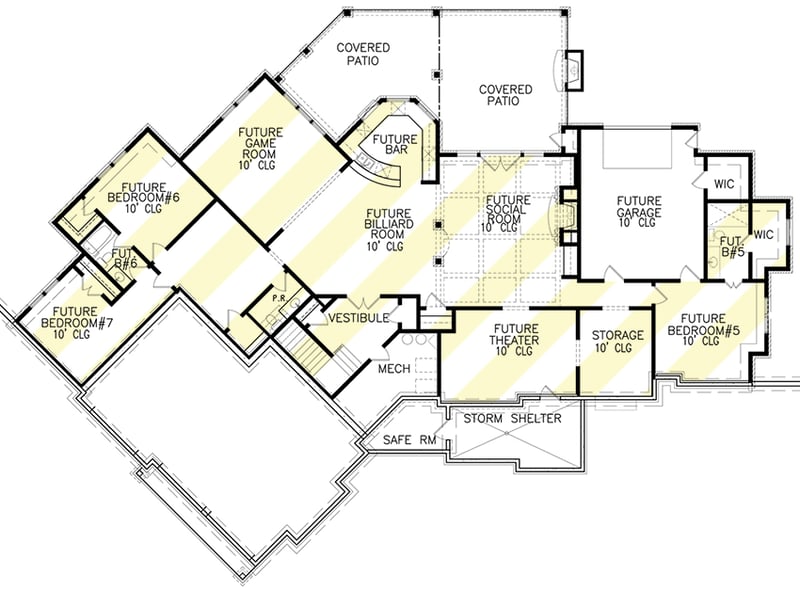

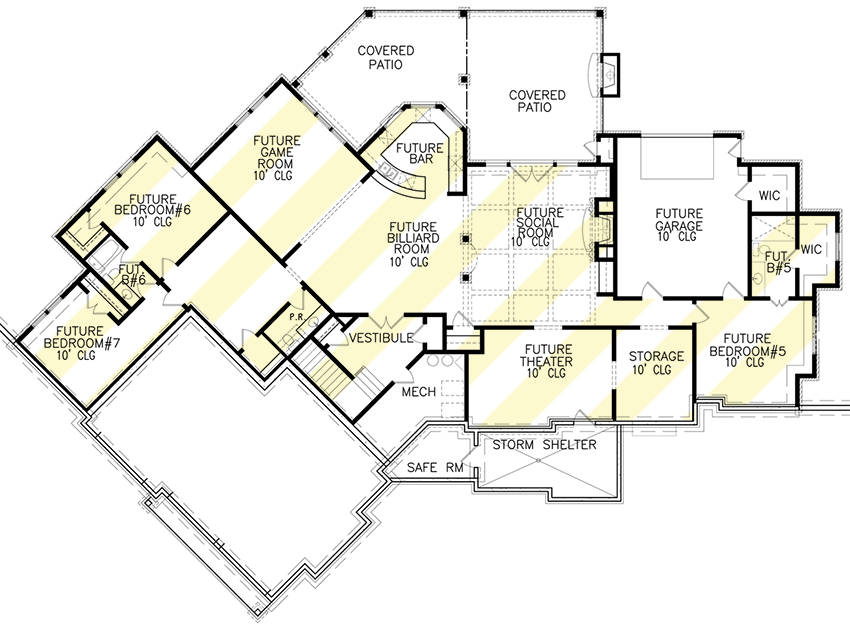

Craftsman House Plan with Lower Level Expansion - 25685GE floor plan - Lower Level
