Plan 68638VR
Hill Country Ranch Home Plan with Dramatic Family Room - 2709 Sq Ft
Heated S.F.
2,709
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details

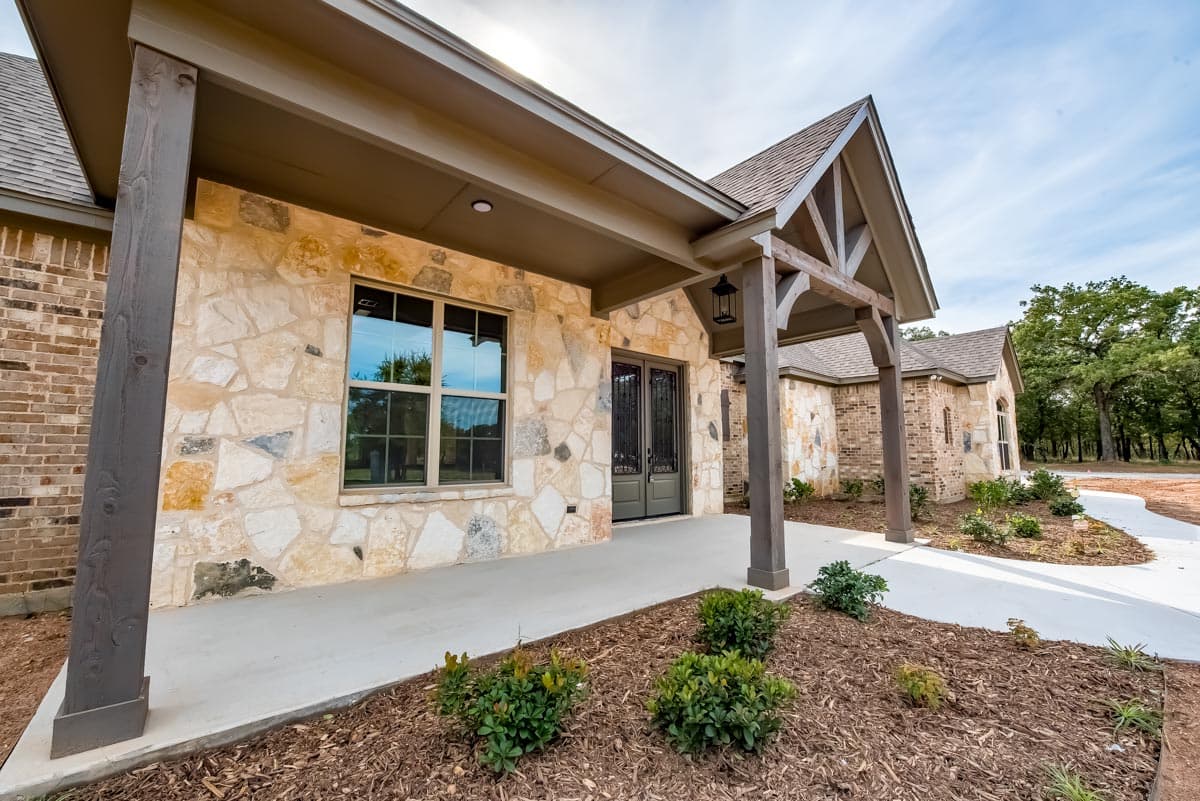

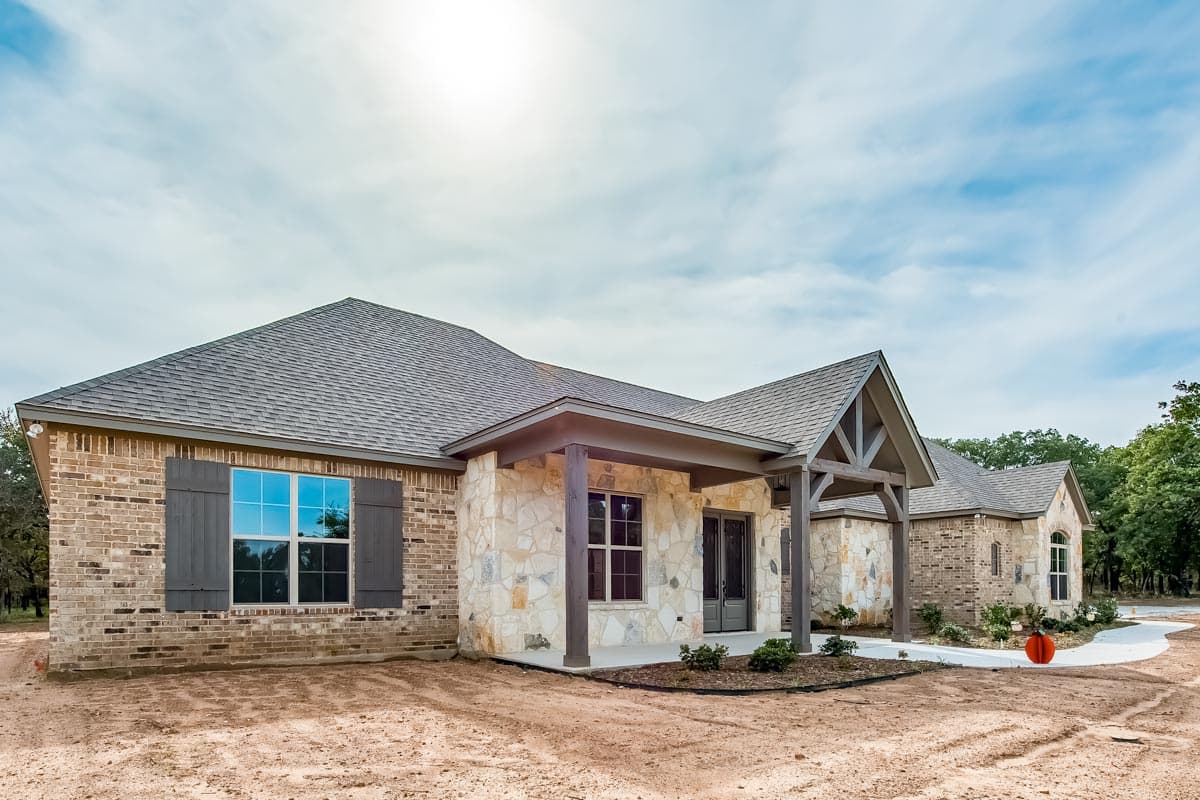

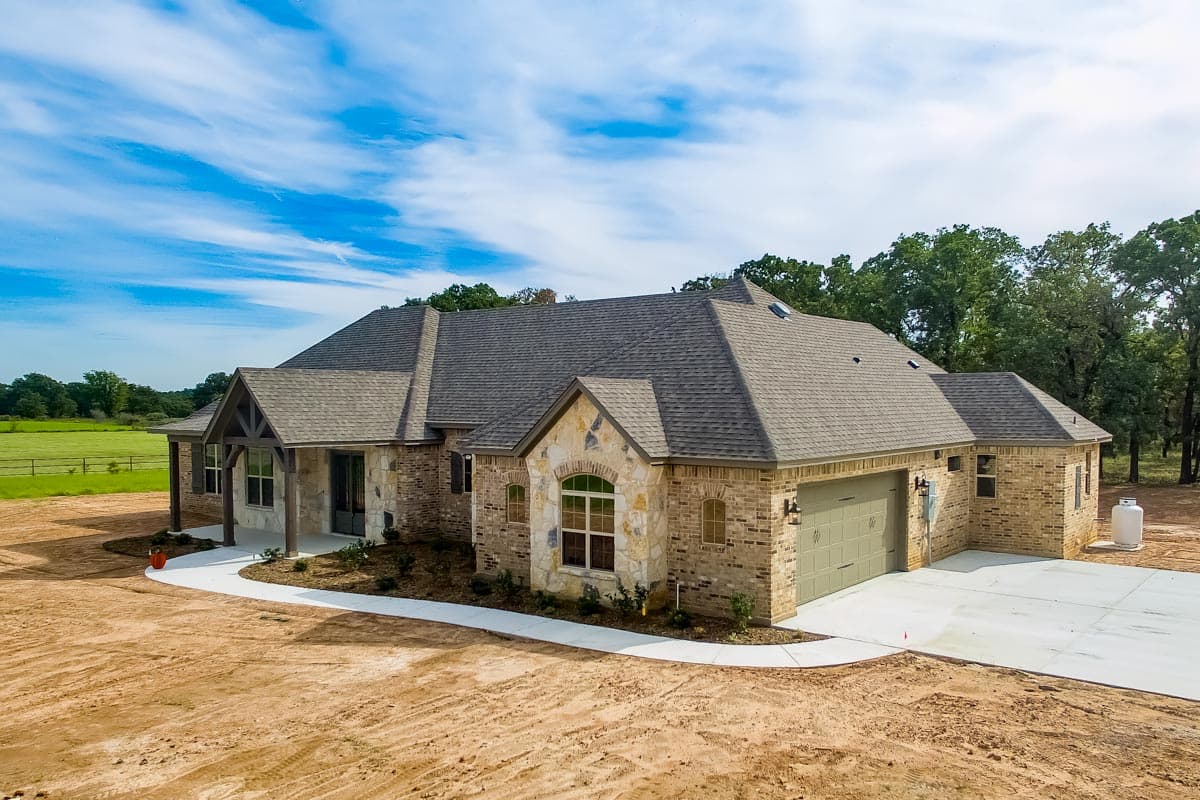

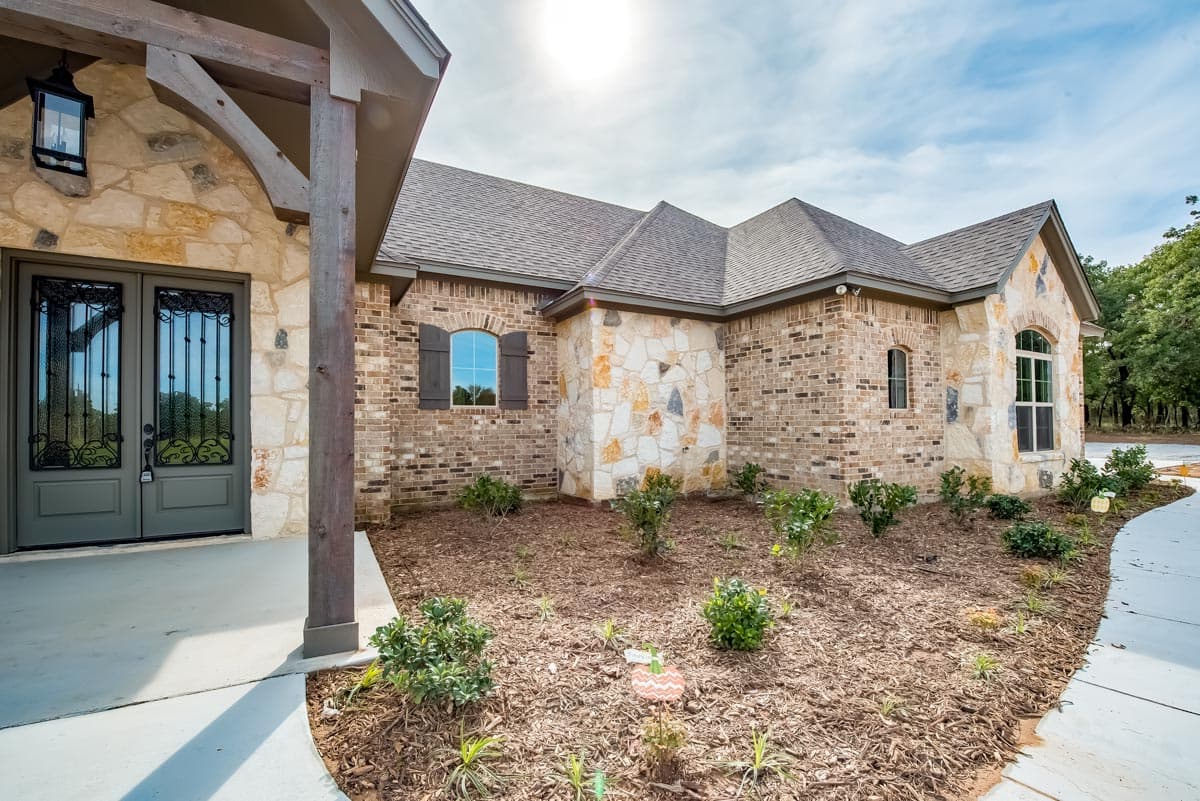

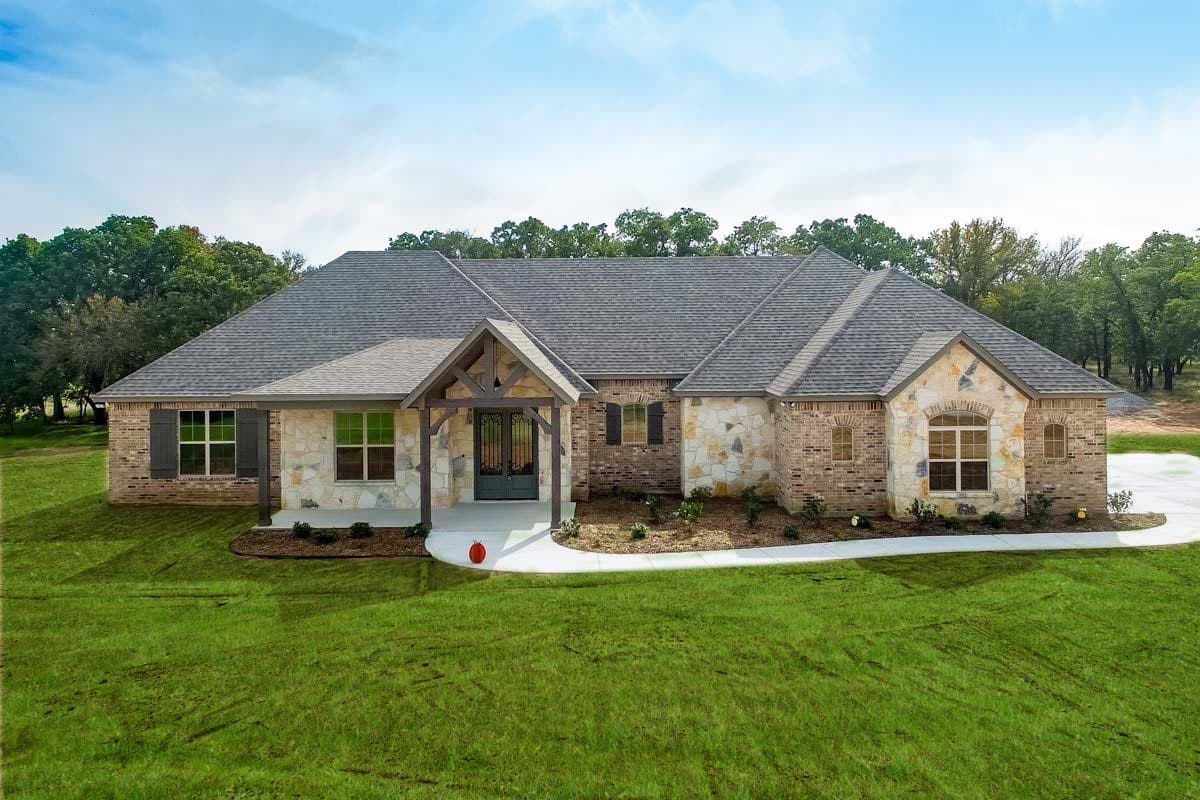

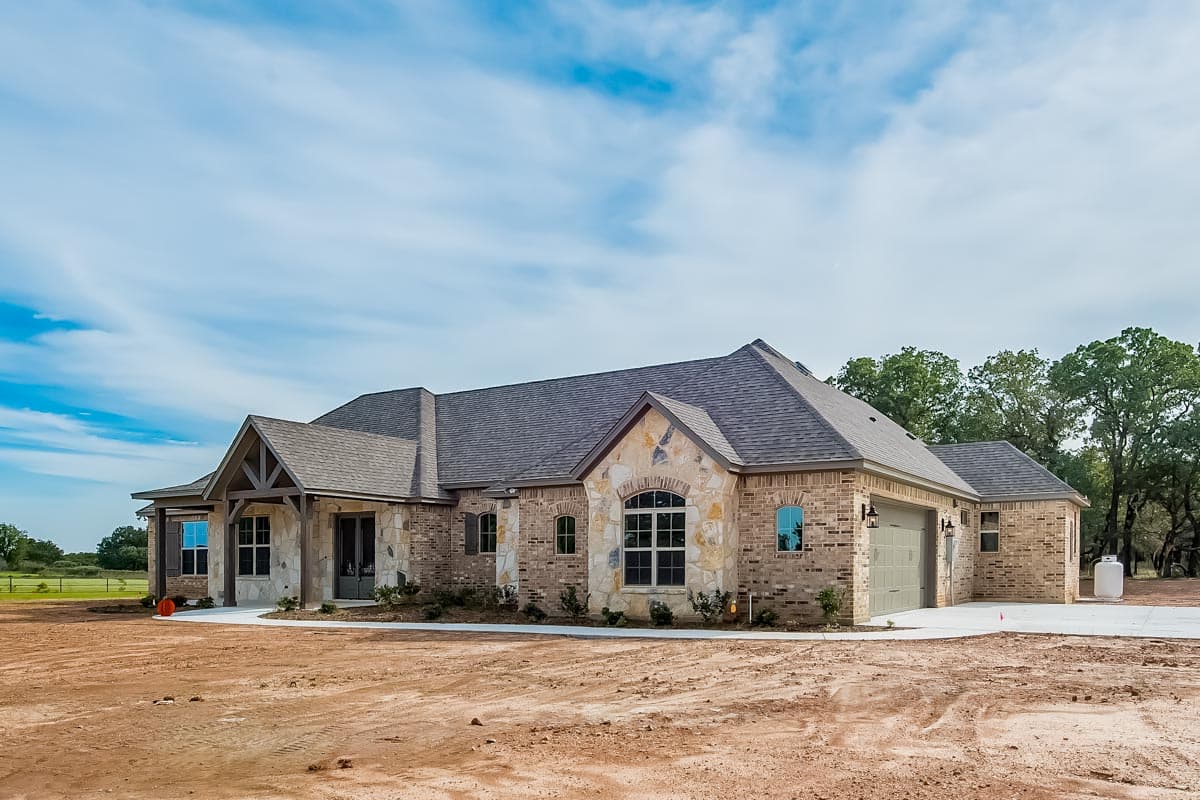

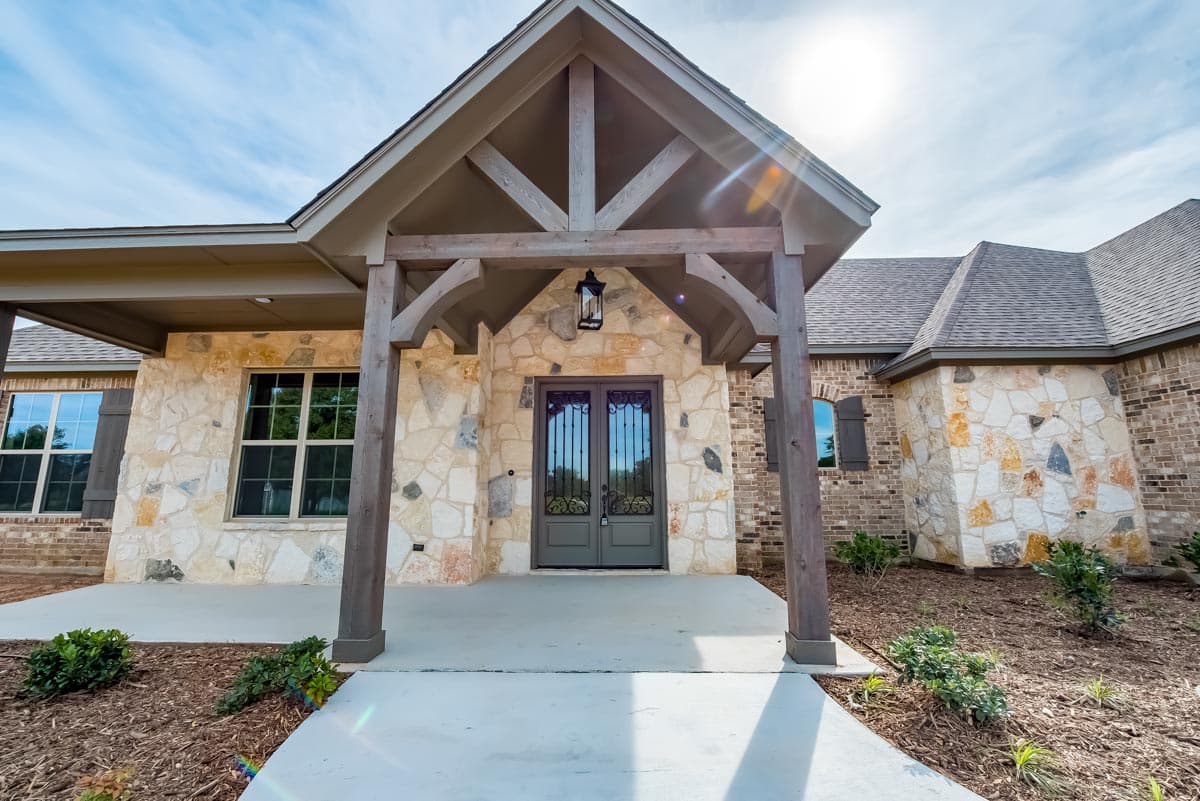

  • A maintenance-free brick and stone exterior gives an edge to this beautiful 3-bed house plan.

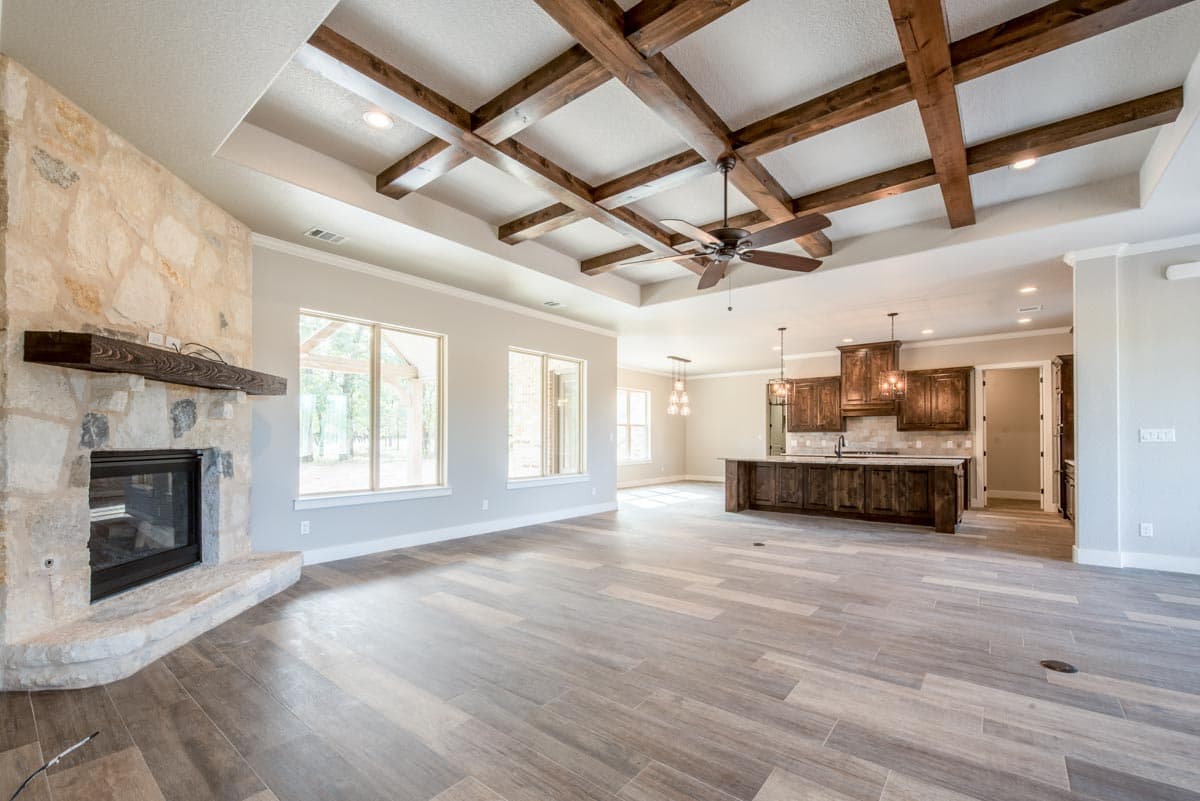

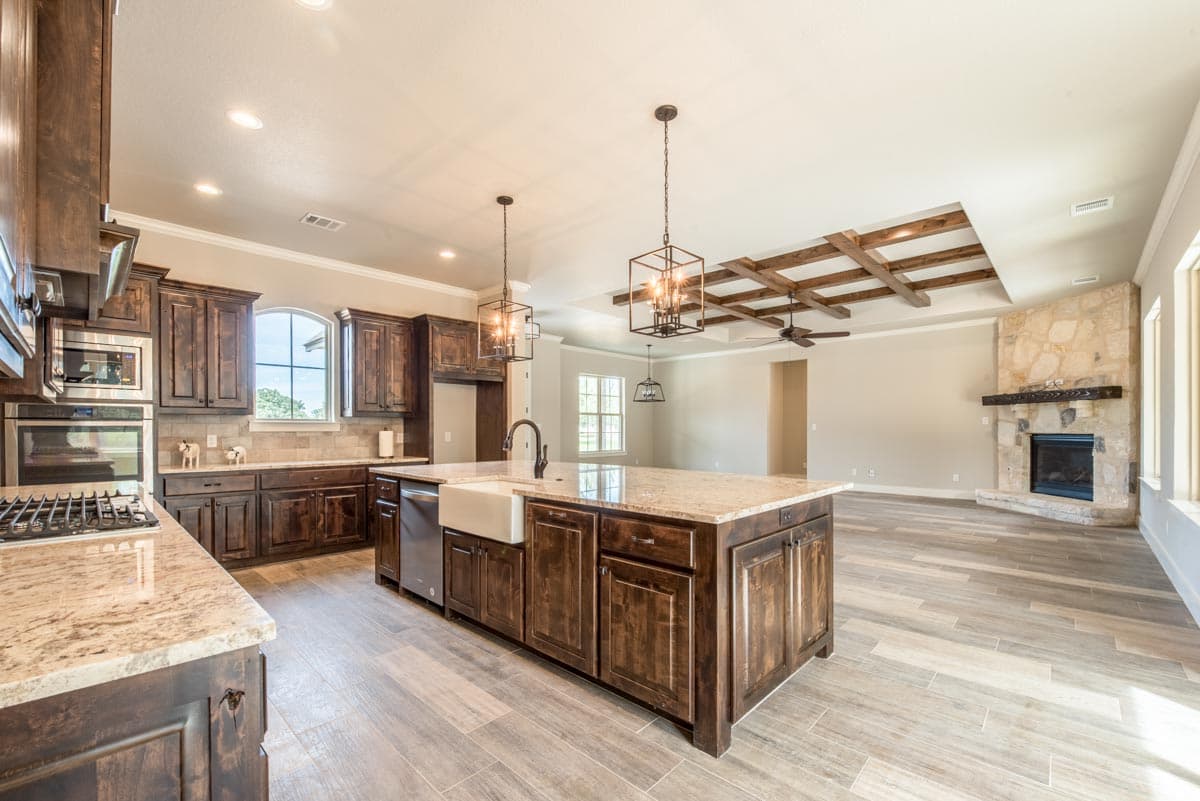

  • The huge open great room combines the kitchen, dining area and family room with beams and a fireplace.

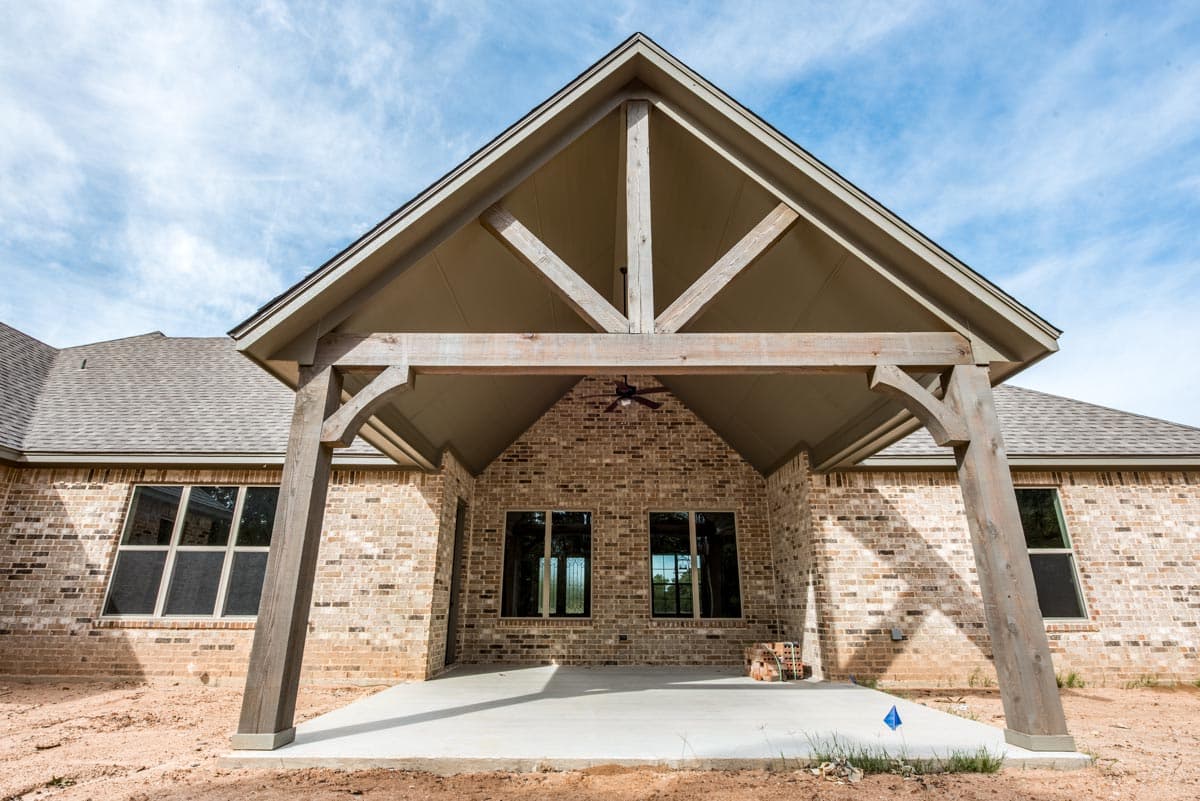

  • The porch in the rear of the home is vaulted, making it feel even larger.

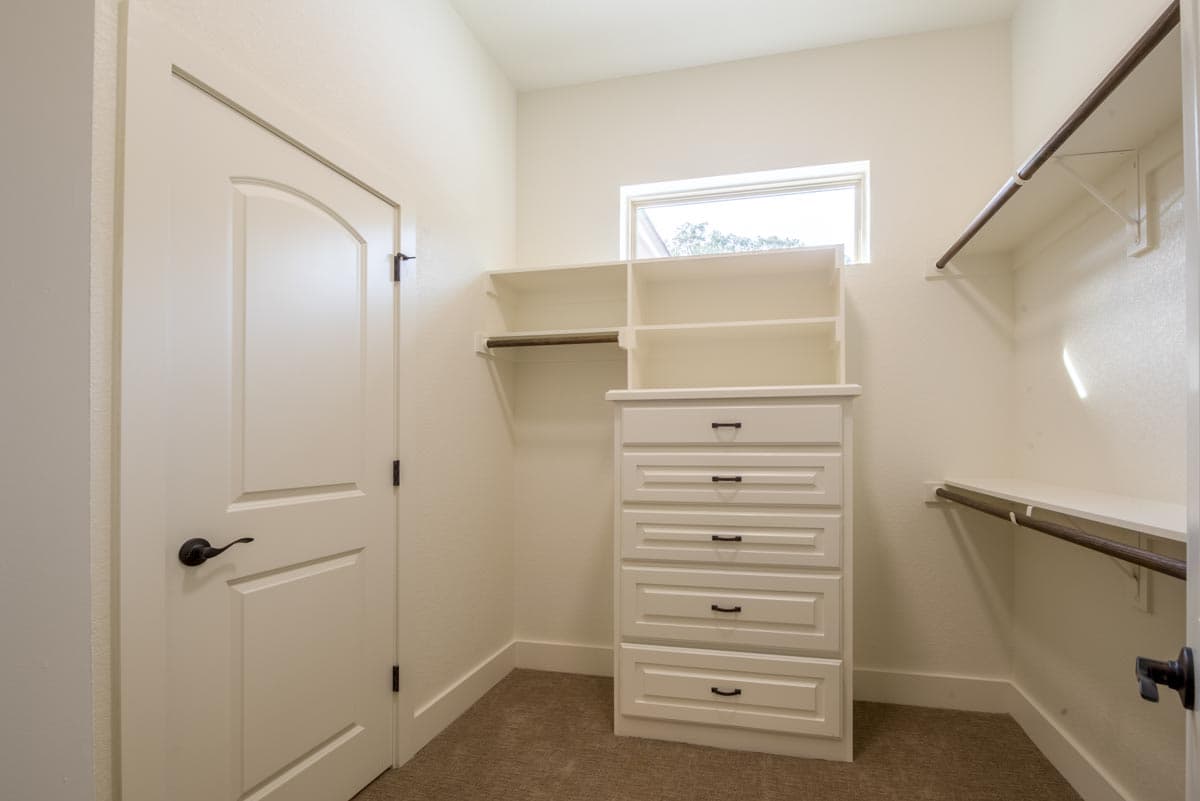

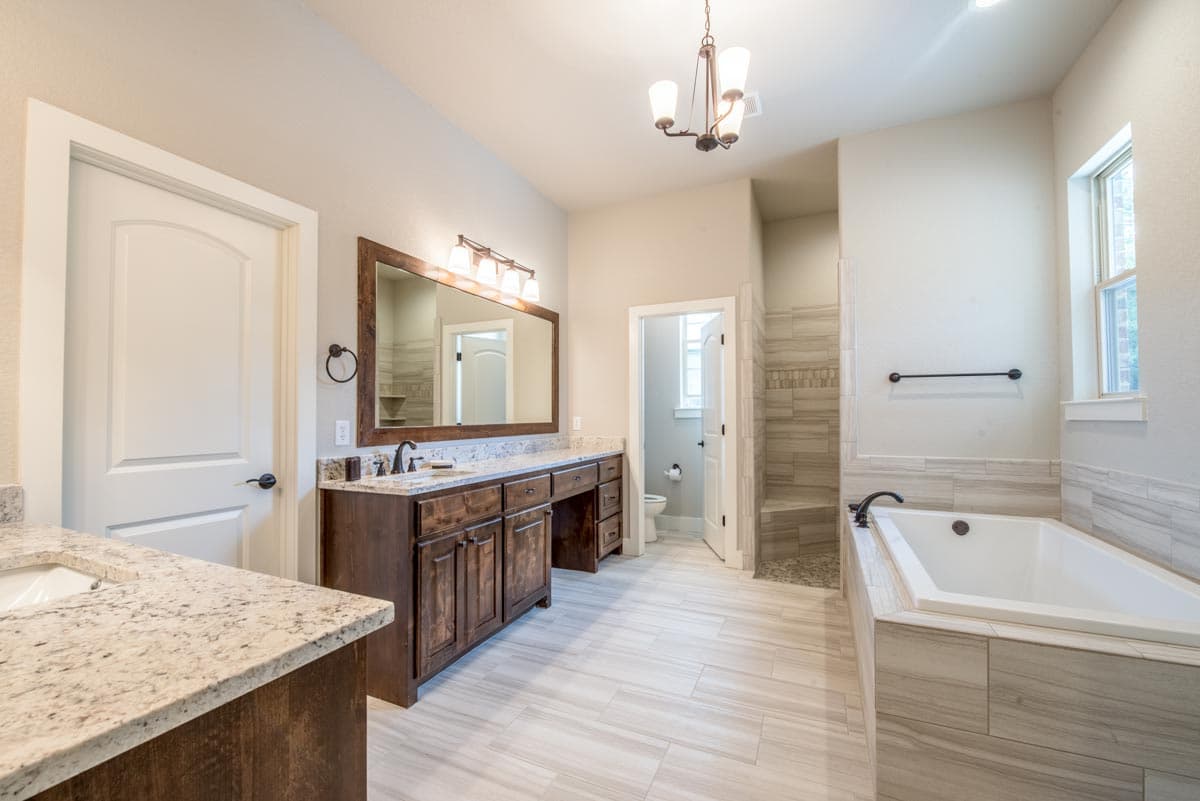

  • On the left side of the home, the master suite is a world of its own with a deluxe master bathroom and two walk-in closets. One closet opens directly into the laundry room - a wonderful convenience.

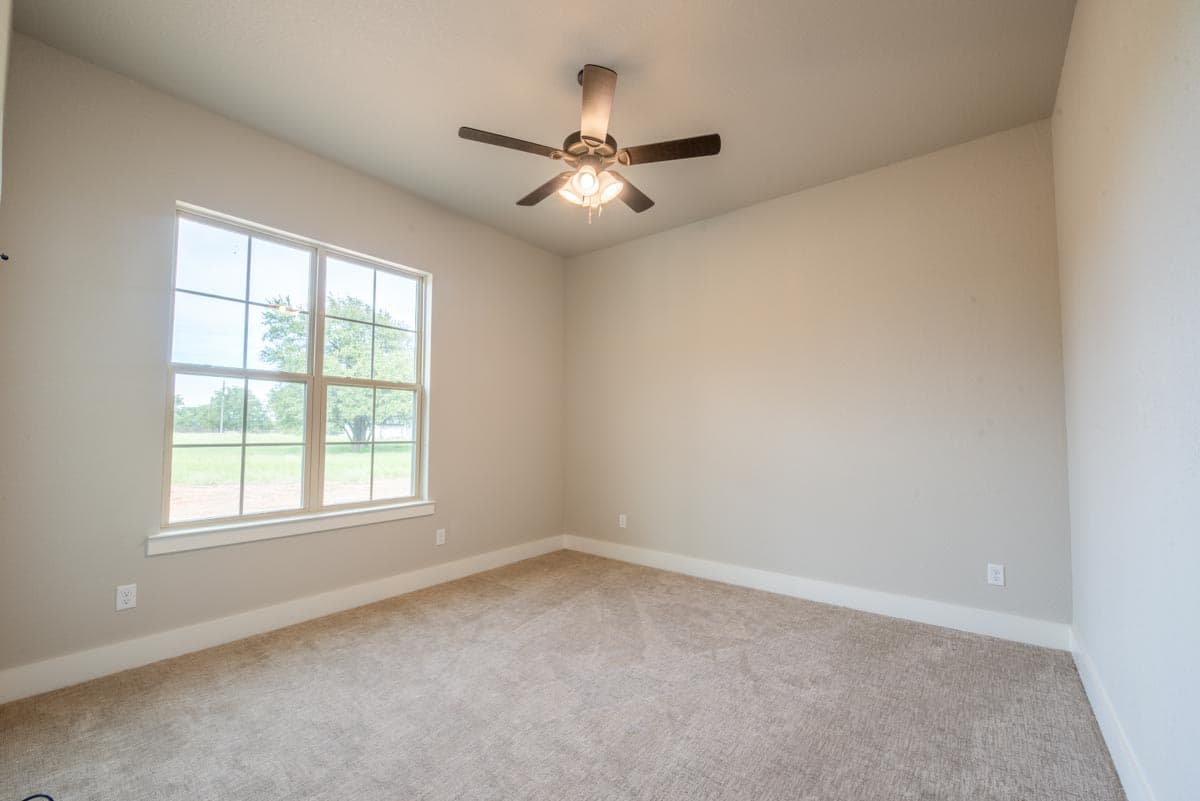

  • On the opposite side of the home, two family bedrooms each have a walk-in closet.
  • When you are ready to expand, there's future space on the second floor above the garage.
  • Related Plans: Get an alternate version in reverse layout with house plans 68518VR (2,820 sq. ft.) and 68663VR (3,012 sq. ft.). Get a bonus room over the garage with house plans 68507VR, 68646VR, 68429VR and 68487VR.
What's Included

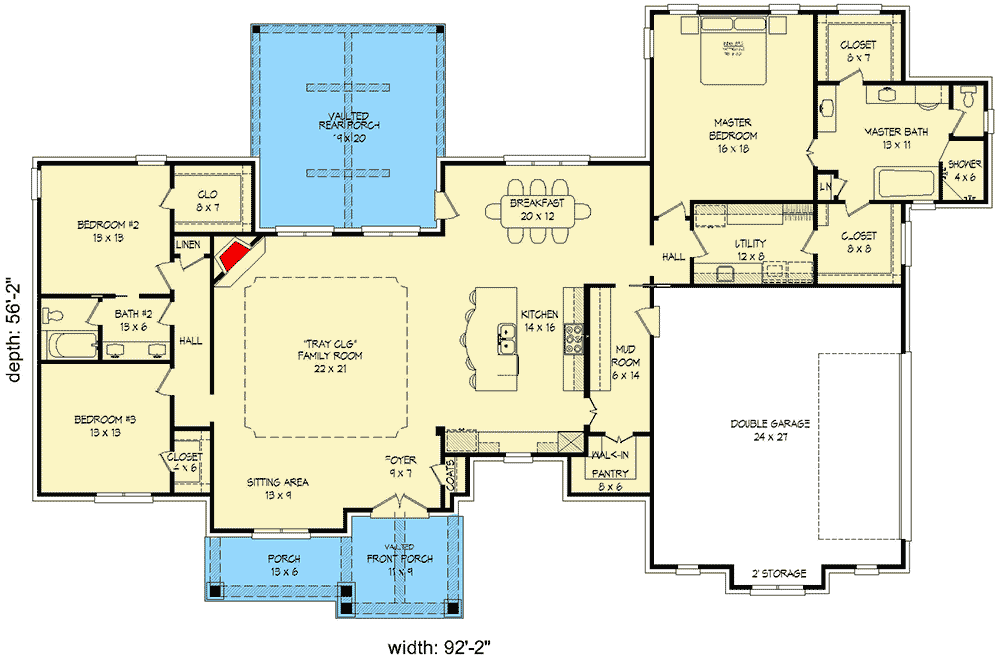

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

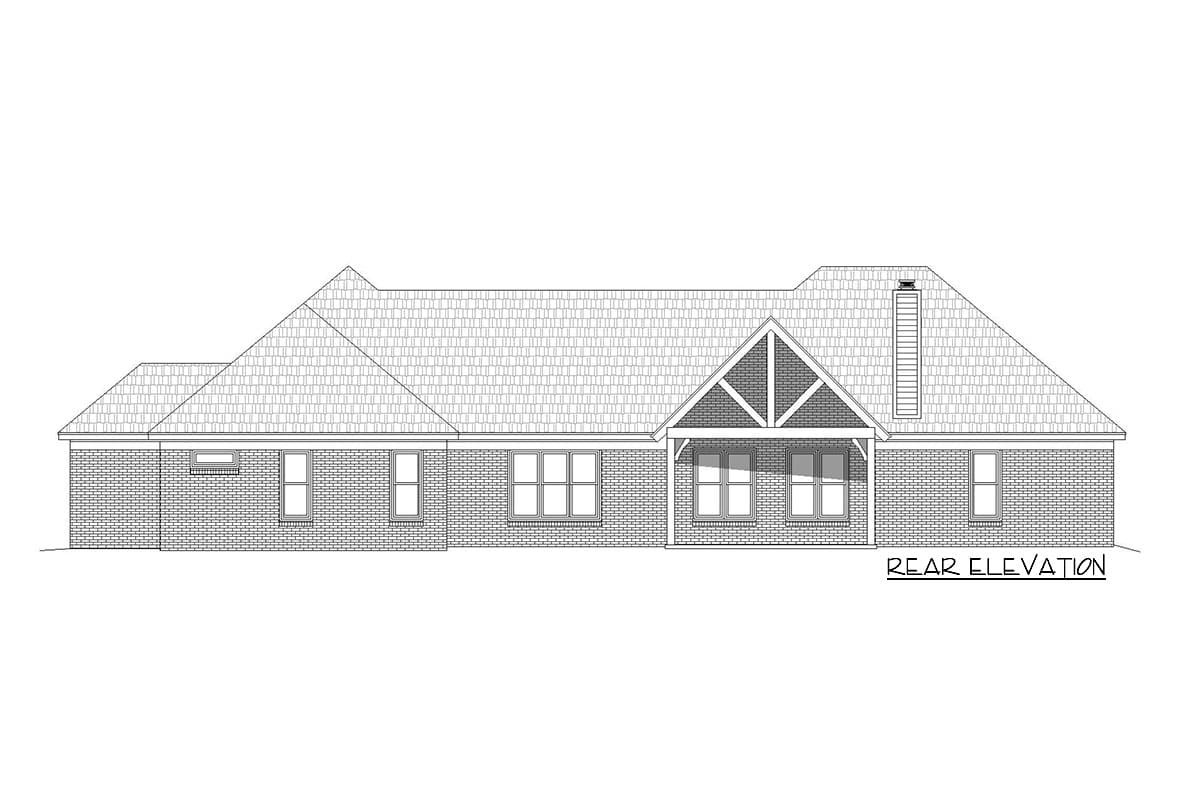

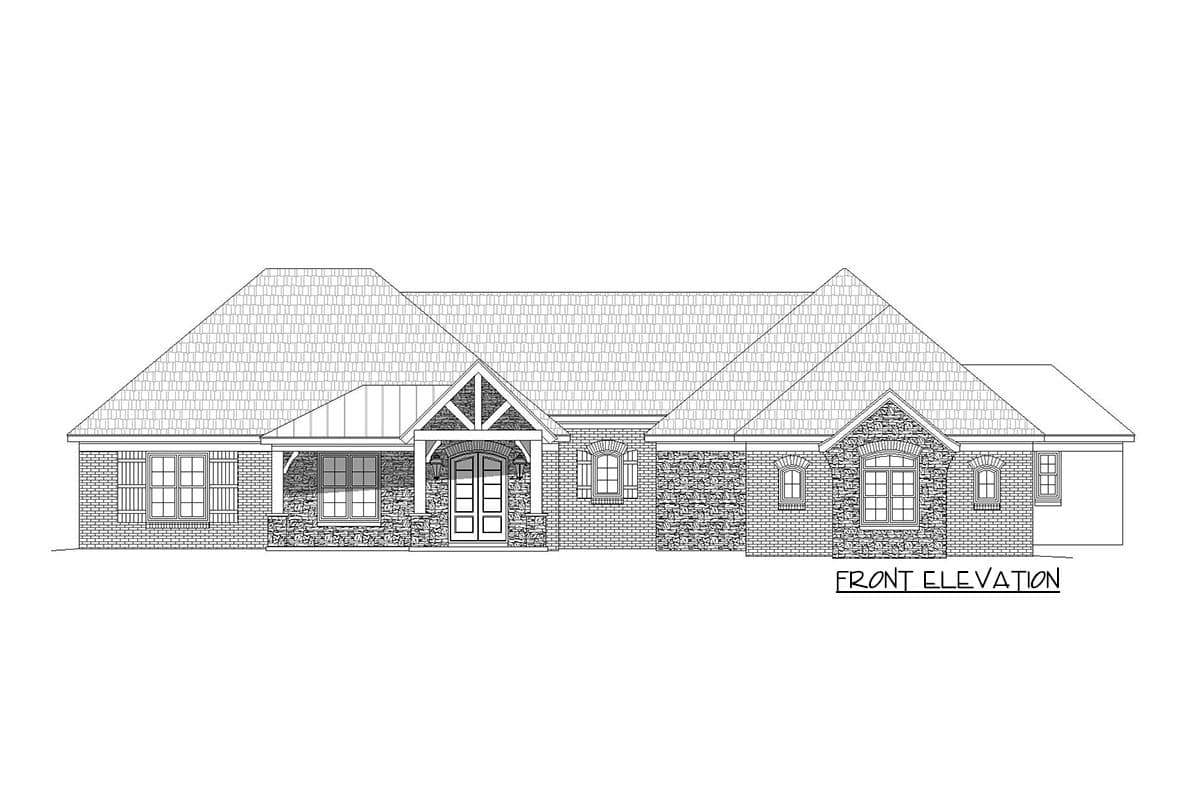

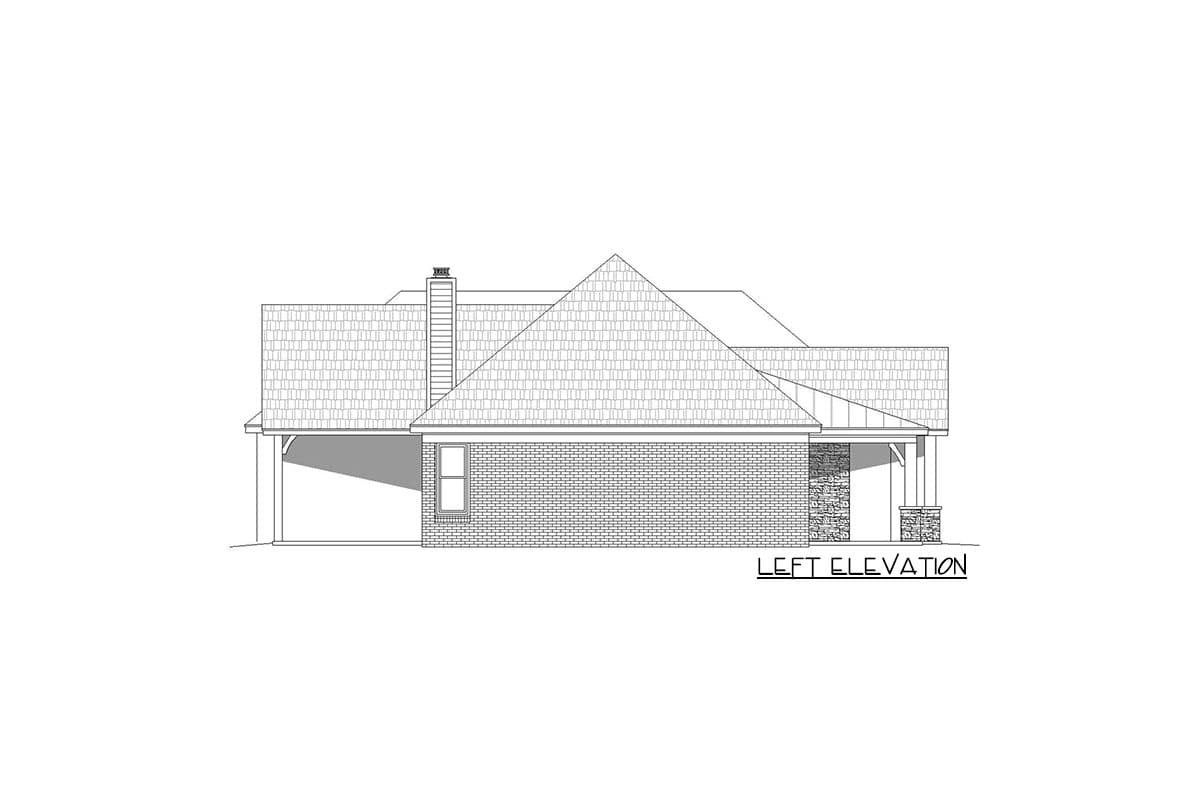

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Hill Country Ranch Home Plan with Dramatic Family Room - 2709 Sq Ft

  • 2,709

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,709 sq. ft.
  • 1st Floor: 2,709 sq. ft.

Dimensions

  • Width: 92' 2"
  • Depth: 56' 2"
  • Max ridge height: 24' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 712 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
