Live in Style

Plan 21535DR

  • 1,465

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 1

    Cars

  • An abundance of windows along the front and back of this two-story house plan lets in lots of light. The home is introduced by cascading gables and a sheltered entry supported by four columns.
  • On the first level, the open floor plan makes for an easy flow among the living room, the dining room and the kitchen. In the kitchen, windows over the double sinks allow the cook to keep tabs on children in the backyard.
  • A half-bath, laundry room, garage and coat closet complete the first floor. Stairs lead to the full basement, which can be finished later.
  • On the second level, three bedrooms share a full bath with a walk-in shower and a separate tub placed at an angle.
  • Related Plans: Get more room with house plan 21822DR (1,867 sq. ft.) and 21823DR (2,573 sq. ft.).
  • Remove the garage with house plans Get an alternate exterior with house plans 22358DR, 21846DR, 2117DR and 21222DR.

Each plan includes the following:

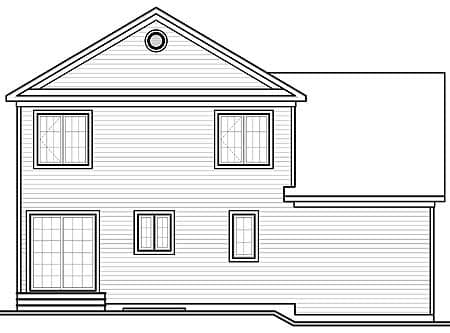

  • 4 Elevations
  •  Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Truss Diagrams & Building Section
  •  Construction Details
  • Typical Wall Section
Please note that electrical plans are not included.

Floor Plan

Plan details

Architectural Style

Plan Collections



Live in Style

  • 1,465

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 1

    Car garage

Buy This Plan
  • 5 Sets $860
  • 8 Sets $890
  • Reproducible Set $945
  • PDF - single-use $945
  • CAD $1,590
  • View all purchase option online

About This Plan

  • An abundance of windows along the front and back of this two-story house plan lets in lots of light. The home is introduced by cascading gables and a sheltered entry supported by four columns.
  • On the first level, the open floor plan makes for an easy flow among the living room, the dining room and the kitchen. In the kitchen, windows over the double sinks allow the cook to keep tabs on children in the backyard.
  • A half-bath, laundry room, garage and coat closet complete the first floor. Stairs lead to the full basement, which can be finished later.
  • On the second level, three bedrooms share a full bath with a walk-in shower and a separate tub placed at an angle.
  • Related Plans: Get more room with house plan 21822DR (1,867 sq. ft.) and 21823DR (2,573 sq. ft.).
  • Remove the garage with house plans Get an alternate exterior with house plans 22358DR, 21846DR, 2117DR and 21222DR.

Floor Plans

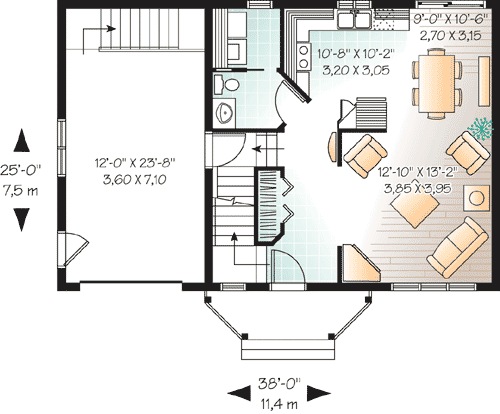

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,465 sq. ft.
  • 1st Floor: 633 sq. ft.
  • 2nd Floor: 832 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 1
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Daylight, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 25' 0"
  • Max ridge height: 28' 1"

Garage

  • Type: Attached
  • Area: 317 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Truss

Architectural Style

  • Traditional

Special features

  • 2nd Floor Master Suite
  • CAD Available
  • PDF

Plan Collections

  • Canadian
  • Metric
