Modern Farmhouse with Angled Garage with Apartment Above - 1980 Sq Ft
Heated S.F.
1,980
Beds
2-3
Baths
2 - 3
Stories
1-2
Cars
3
Plan Details
  • The whole second floor of this popular home plan - a spin-off of our popular house plan 18221BE - is devoted to a guest or in-law suite complete with full kitchen and living/dining areas.

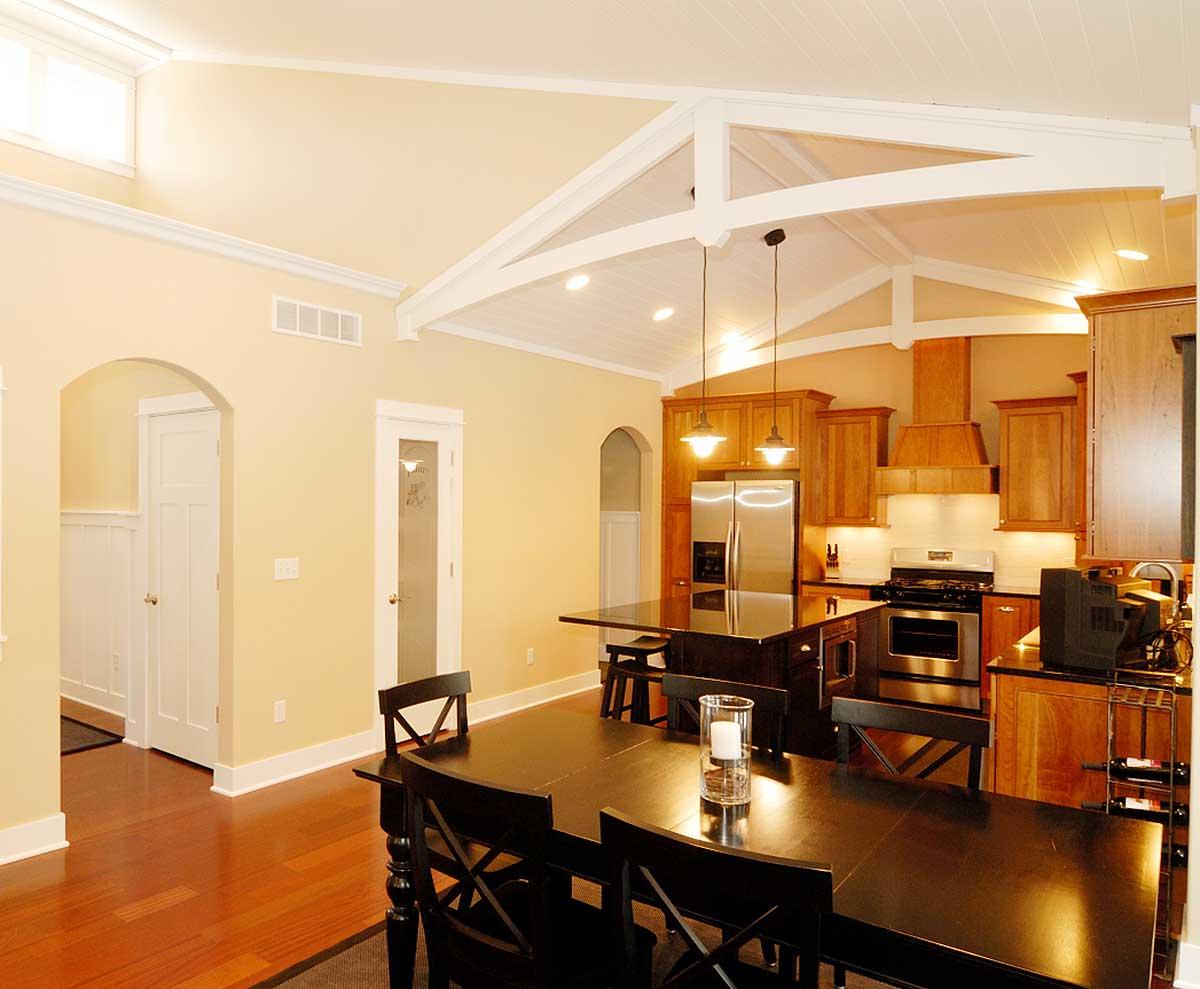

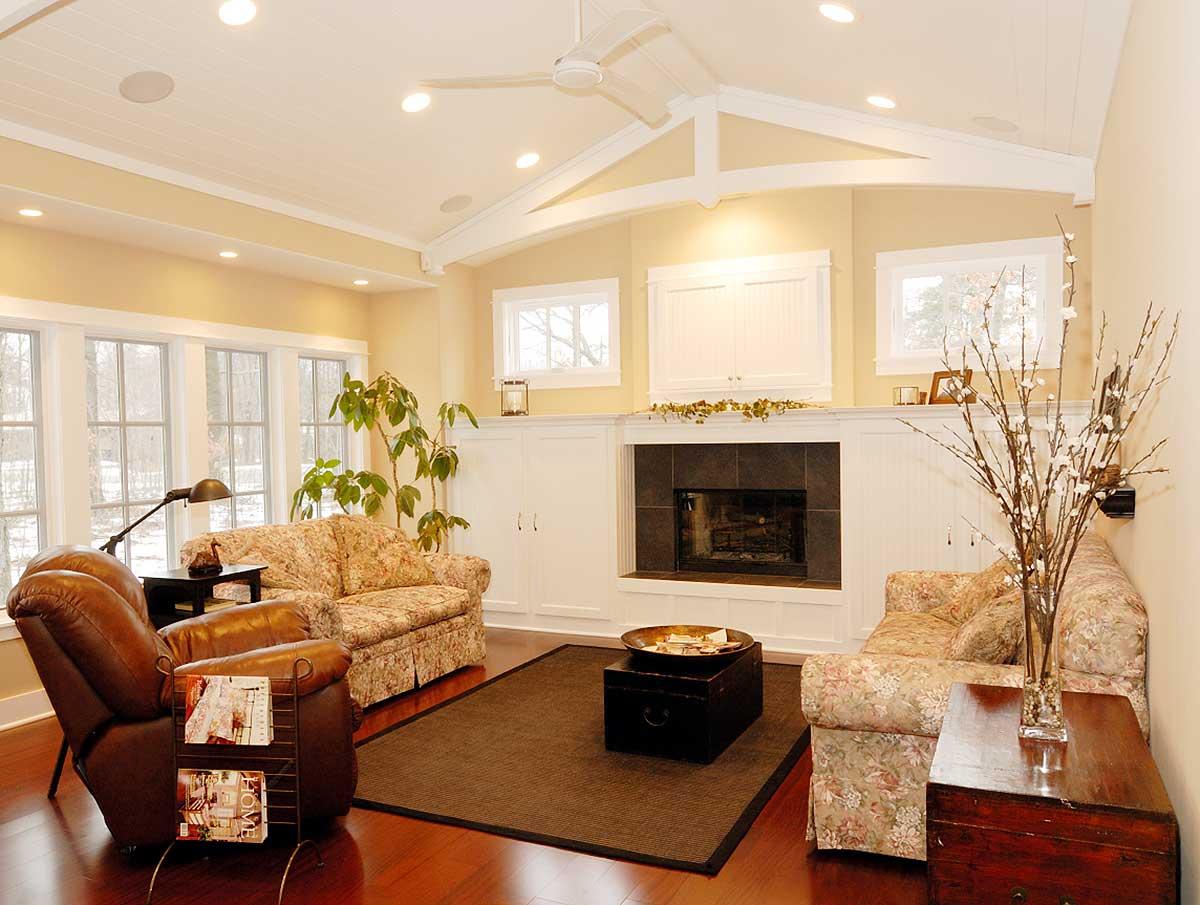

  • Vaulted spaces add comfortable volume to nicely proportioned room sizes. and abundant windows maximize views and natural light. The shed dormer over the foyer brings additional light into the living, dining and kitchen areas.

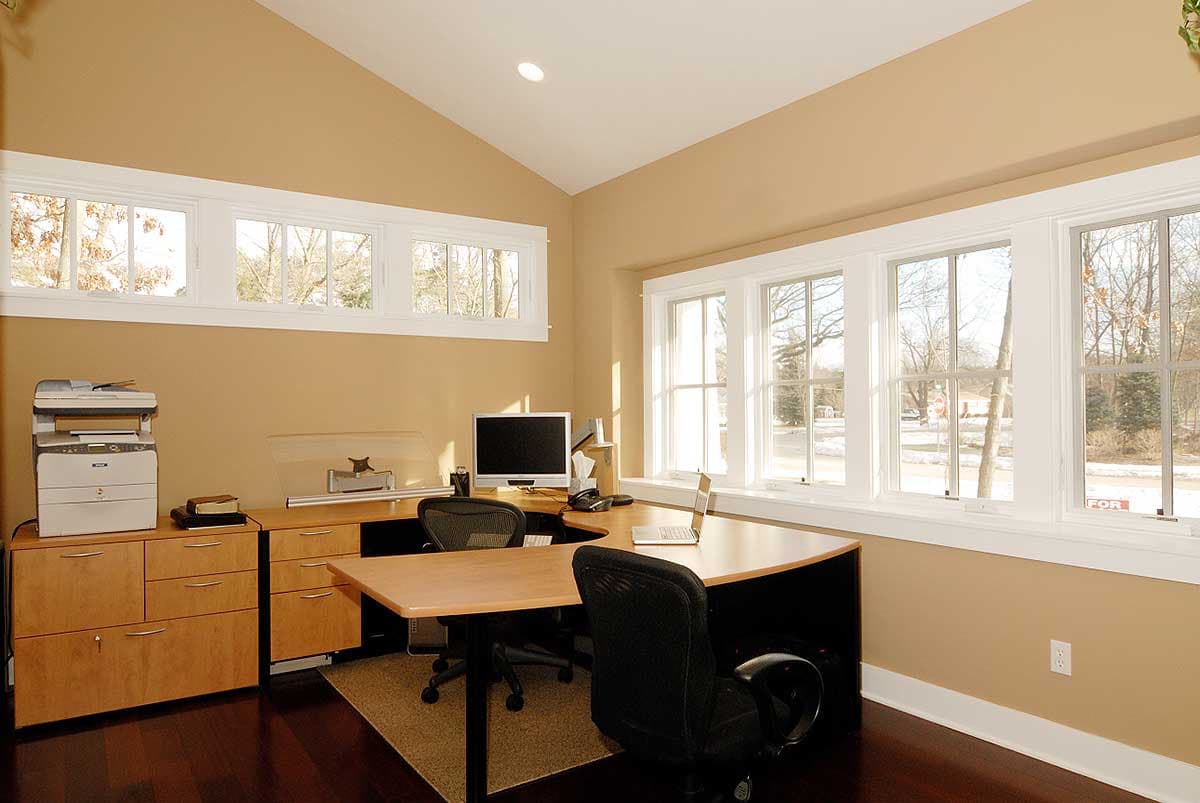

  • Wide hallways and doorways make for easy traffic flow, even for those that need Barrier Free Access. The front flex room off the foyer is perfect for a den or home office.

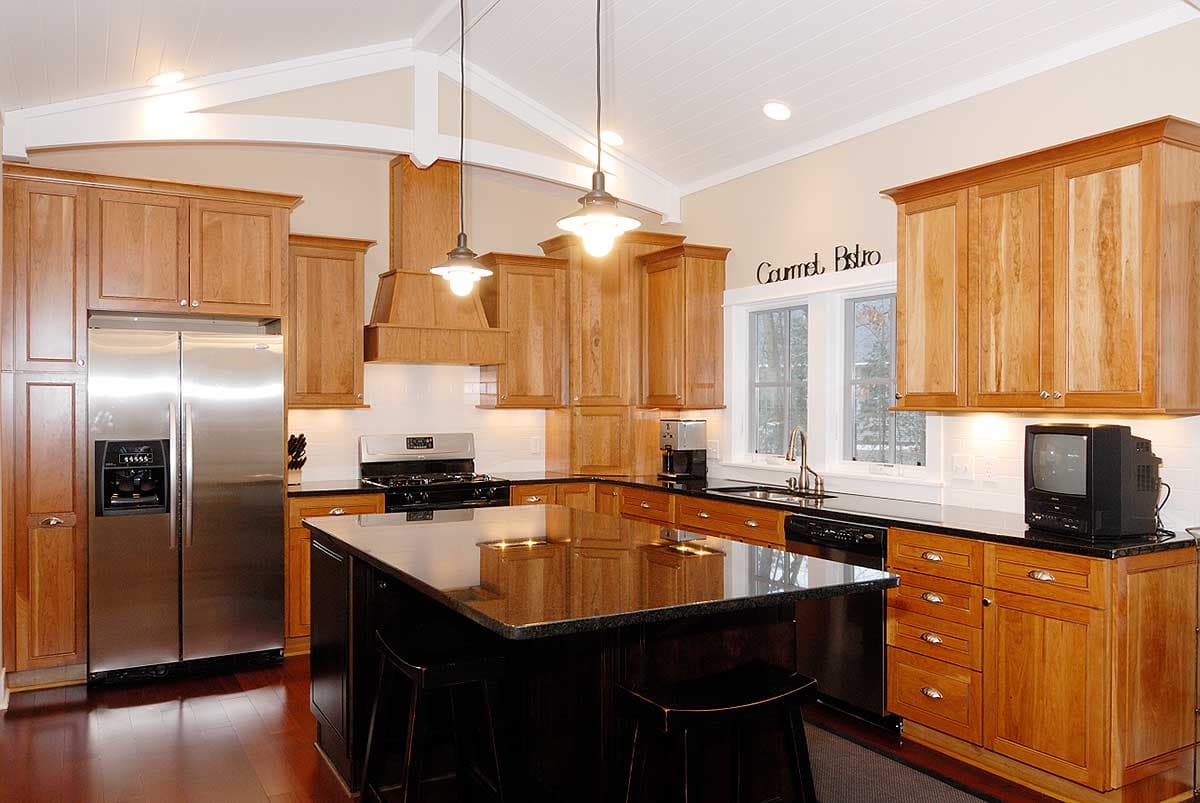

  • The kitchen is designed for both efficiency and aesthetics. The large island aids in food preparation, additional storage and allows for a nice seating area. There are both pantry cabinets and a spacious closet pantry.
  • The owners' suite has multiple windows and access to the rear patio.The handsome master bath has expansive spacious his-and-hers walk-in closets.
  • The main roof pitch is 10:12 and the secondary pitch is 3:12.
  • The home plan comes with an unfinished basement and has both slab and crawlspace upgrades available.
  • Related Plans: Get a smaller version with 2 bedrooms upstairs with house plan 18260BE. Get a 2-car garage and an extra main floor bedroom suite with house plan 18290BE, 18222BE (1,634 sq. ft. with bonus space on the upper floor), 18223BE (3,432 sq. ft. with finished lower level), 18238BE (3,994 sq. ft. with elevator), 18241BE (2,072 sq. ft. with 3 bedrooms on the main floor), 18245BE (3,253 sq. ft. with dramatic screened porch) and 18221BE (2,339 sq. ft. and the designer's former personal home).
  • BUILD RESTRICTION: These plans cannot be sold or built in NY state.
What's Included

What is Included in Our Plans?

We work with hundreds of designers and architects who work in a variety of styles.  It is important to note. Their plan packages may contain different details.

We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below are examples of sheets that may be included in plan sets - please be aware that not every plan includes every one of these pages:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Farmhouse with Angled Garage with Apartment Above - 1980 Sq Ft

  • 1,980

    Heated s.f.

  • 2-3

    Beds

  • 2 - 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

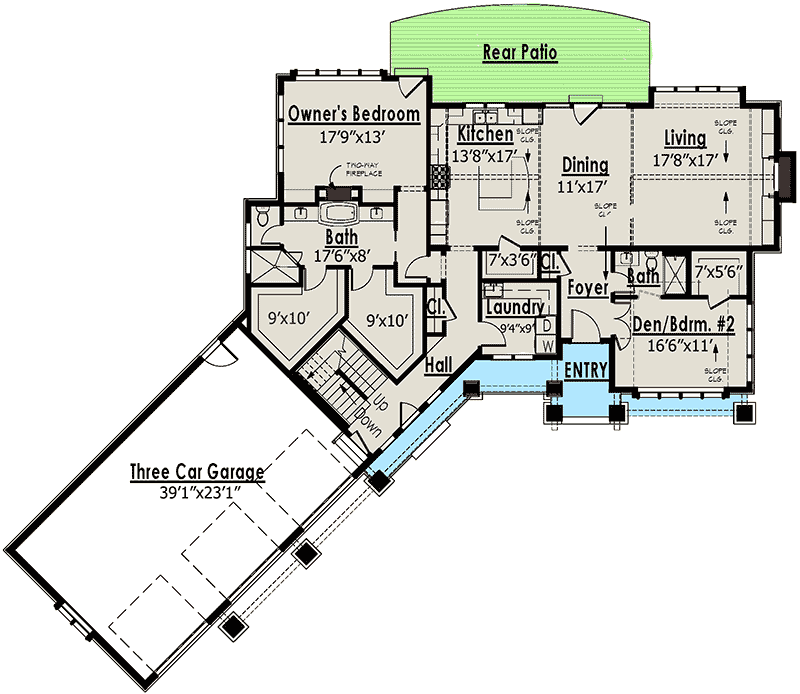

  • Main Level

  • Bonus Space

Plan Details

Square Footage Breakdown

  • Total: 1,980 sq. ft.
  • 1st Floor: 1,980 sq. ft.

Dimensions

  • Width: 96' 10"
  • Depth: 75' 2"
  • Max ridge height: 26' 7"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2 or 3

Garage

  • Type: Attached
  • Area: 948 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
