Plan 68570VR
Modern Home Plan Atop an RV Garage
Heated S.F.
1,400
Beds
3
Baths
2
Stories
2
Cars
2-3
What's Included
Plan Details
  • This modern house plan puts the living space on the upper floor, leaving virtually the entire ground floor for your RV vehicle or trucks (or cars). Park tandem and get a couple vehicles under roof.
  • Upstairs, the living area is brightly lit from the wall of windows and has soaring ceilings. The front living area is vaulted and has an open floor plan.
  • Three bedrooms are clustered in the middle and back part of the home.
  • French doors access the deck in front.
  • Related Plans: Get wider versions with house plans 68627VR (1,309 sq. ft.), 68461VR (820 sq. ft.), 68605VR (831 sq. ft.) and 68640VR (650 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Modern Home Plan Atop an RV Garage

  • 1,400

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2 - 3

    Car garage

Floor Plan

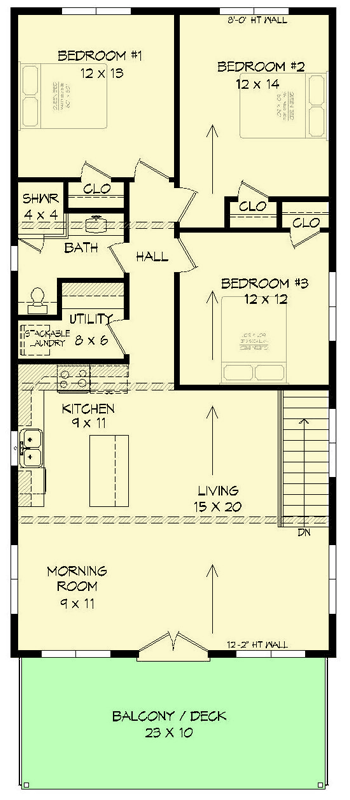

  • Upper Level

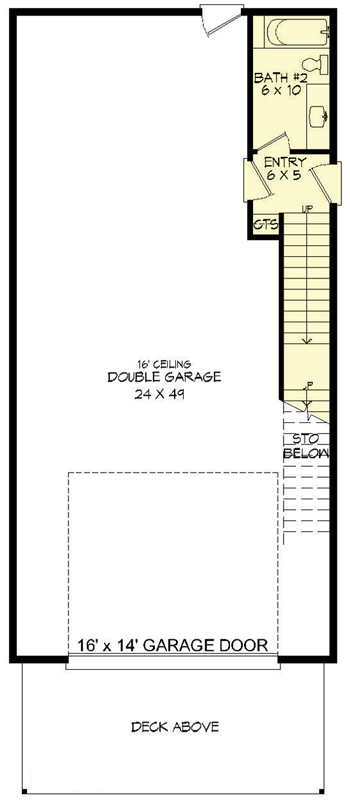

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,400 sq. ft.
  • 1st Floor: 150 sq. ft.
  • 2nd Floor: 1,250 sq. ft.

Dimensions

  • Width: 25' 0"
  • Depth: 60' 0"
  • Max ridge height: 31' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: RV Garage, Drive Under
  • Area: 1100 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Garage 12' 0" Main Level 12' 0"

Roof

  • Primary Pitch: 1 on 12
  • Framing Type: Stick
