Plan 15622GE Mountain Craftsman Home Plan with Spacious Finished Lower Level

5,662 3-4 3.5+ - 4.5+ 1 3
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Mountain Craftsman Home Plan with Spacious Finished Lower Level

Plan 15622GE

  • 5,662

    Heated s.f.

  • 3-4

    Beds

  • 3.5+ - 4.5+

    Baths

  • 1

    Stories

  • 3

    Cars

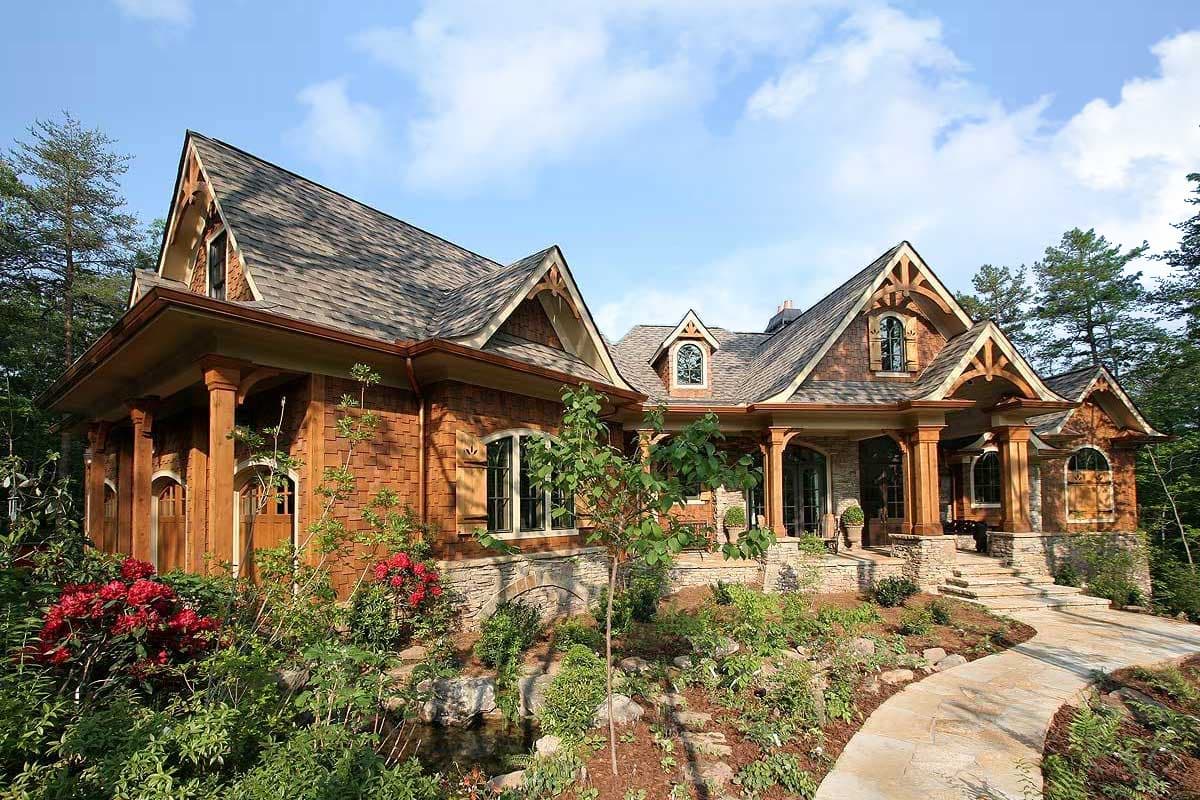

  • Before you walk through the front door, take a minute to appreciate the beauty in the natural-looking exterior. The facade features ornately carved gable peaks, a sprawling rooftop with various pitches and a decorative single dormer. The covered porch provides a dry place to enjoy Mother Nature, while dramatic wooden columns punctuate the exterior.
  • Upon entry into the home, a barrel-vaulted foyer and adjacent dining room immediately greet guests. With a built-in fireplace and vaulted ceiling, the lodge room features a wall of windows and boasts grandeur all around.

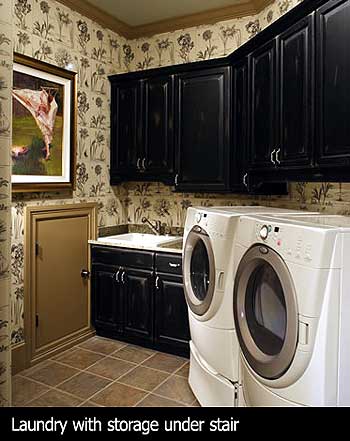

  • The breakfast, kitchen and keeping rooms are centrally located and adjacent to several larger living rooms, enabling conversation to flow freely throughout the home. A generous shop, mud and laundry rooms are all near the kitchen and create ample storage space in each.
  • The lower level is complete with bedrooms, bar, theater, game room and even a golf simulator if so desired. The social room opens to the sweeping deck where you can take in more views.
  • Related Plans: Get a larger lower level with house plan 15697GE and get a 2,168 sq. ft. upper level with house plan 15688GE. Save money by straightening the curved features with house plan 15793GE. Save money with these versions with unfinished lower levels you can complete later - 15662GE (2 beds on main, 2 up); 15623GE (3,126 sq. ft.), 15617GE (hip) and 15651GE (gable; both 2,611 sq. ft) and 15626GE (2,587 sq. ft; 3-car garage).

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

 These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

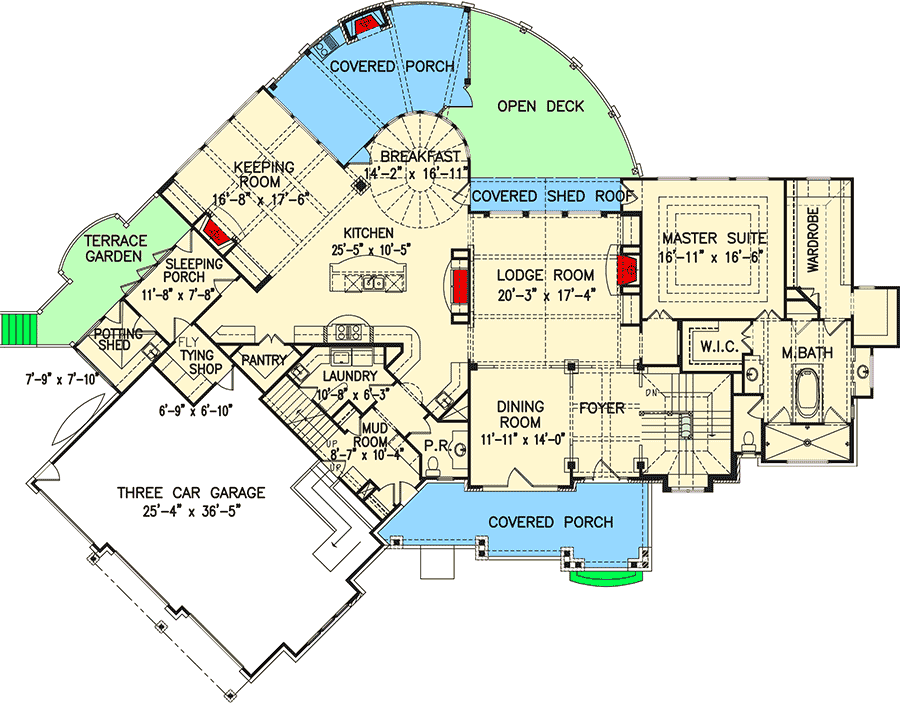

Mountain Craftsman Home Plan with Spacious Finished Lower Level - 15622GE floor plan - Main Level

Optional

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Mountain Craftsman Home Plan with Spacious Finished Lower Level - 15622GE floor plan - Optional

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

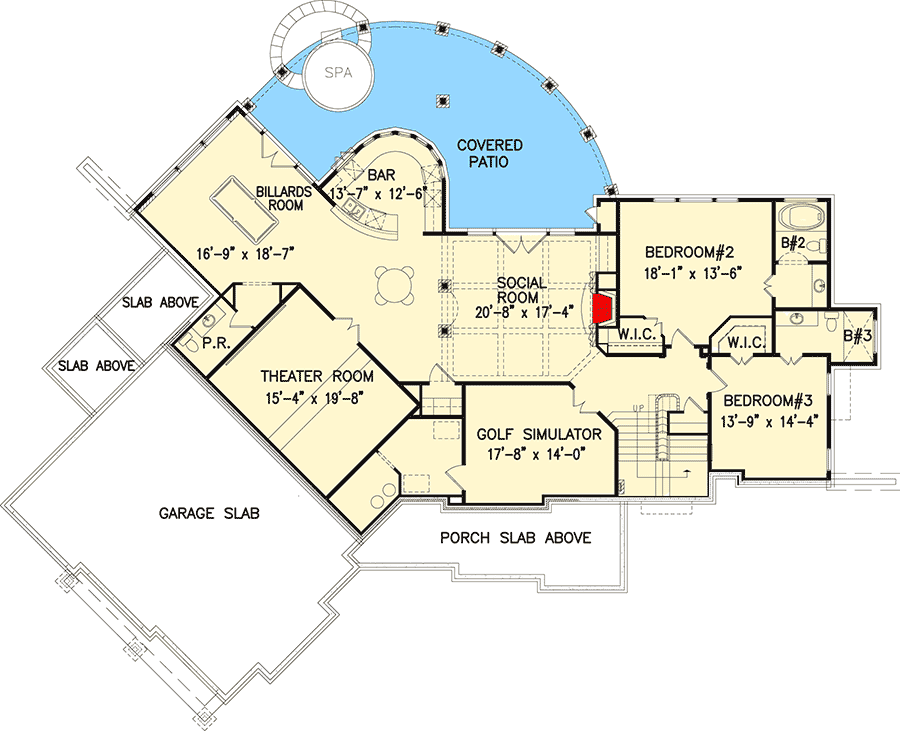

Mountain Craftsman Home Plan with Spacious Finished Lower Level - 15622GE floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,662 sq. ft.
  • Lower Level: 2,775 sq. ft.
  • 1st Floor: 2,887 sq. ft.
  • Bonus: 729 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 103' 8"
  • Depth: 83' 2"

Garage

  • Type: Attached
  • Area: 895 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Mountain Craftsman Home Plan with Spacious Finished Lower Level

  • 5,662

    Heated s.f.

  • 3-4

    Beds

  • 3.5+ - 4.5+

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $3,397
  • CAD - Single-Build $4,647
  • View all purchase option online

About This Plan

  • Before you walk through the front door, take a minute to appreciate the beauty in the natural-looking exterior. The facade features ornately carved gable peaks, a sprawling rooftop with various pitches and a decorative single dormer. The covered porch provides a dry place to enjoy Mother Nature, while dramatic wooden columns punctuate the exterior.
  • Upon entry into the home, a barrel-vaulted foyer and adjacent dining room immediately greet guests. With a built-in fireplace and vaulted ceiling, the lodge room features a wall of windows and boasts grandeur all around.
  • The breakfast, kitchen and keeping rooms are centrally located and adjacent to several larger living rooms, enabling conversation to flow freely throughout the home. A generous shop, mud and laundry rooms are all near the kitchen and create ample storage space in each.
  • The lower level is complete with bedrooms, bar, theater, game room and even a golf simulator if so desired. The social room opens to the sweeping deck where you can take in more views.
  • Related Plans: Get a larger lower level with house plan 15697GE and get a 2,168 sq. ft. upper level with house plan 15688GE. Save money by straightening the curved features with house plan 15793GE. Save money with these versions with unfinished lower levels you can complete later - 15662GE (2 beds on main, 2 up); 15623GE (3,126 sq. ft.), 15617GE (hip) and 15651GE (gable; both 2,611 sq. ft) and 15626GE (2,587 sq. ft; 3-car garage).

Floor Plans

  • Main Level

  • Optional

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,662 sq. ft.
  • Lower Level: 2,775 sq. ft.
  • 1st Floor: 2,887 sq. ft.
  • Bonus: 729 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3 or 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 103' 8"
  • Depth: 83' 2"

Garage

  • Type: Attached
  • Area: 895 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
