Popular Compact Cottage

Plan 21713DR

  • 835

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • An abundance of multi-paned windows, a gable and a friendly front porch adorn the exterior of this popular compact cottage with basement that offers an opportunity for expansion.
  • A closet off the front entry helps minimize clutter.
  • The living room is separated from the kitchen by the stairs leading to the basement. There is plenty of room for seating of six. Sliders open to the side of the home.
  • Two bedrooms lie on either side of the bathroom with its separate shower and tub.
  • Related Plans: Get more room and an alternate roofline with house plan 21966DR (973 sq. ft.).
  • See these alternate versions - 2112DR (1,079 sq. ft.), 21780DR (911 sq. ft.), 22378DR (1,103 sq. ft.) and 21871DR (1,308 sq.ft.).

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

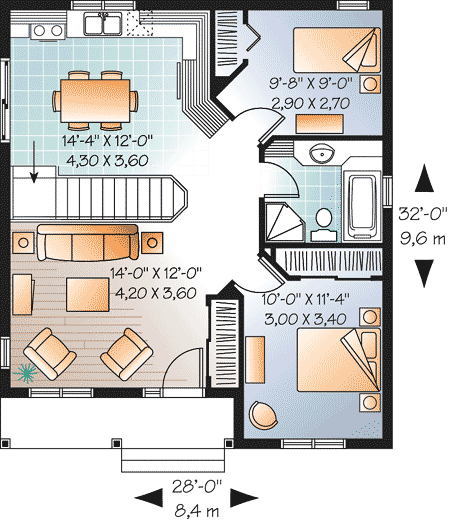

Popular Compact Cottage - 21713DR floor plan - Main Level

Architectural Style

Special features

Plan Collections

Popular Compact Cottage

  • 835

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 835 sq. ft.
  • 1st Floor: 835 sq. ft.

Dimensions

  • Width: 28' 0"
  • Depth: 32' 0"
  • Max ridge height: 18' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Daylight, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
